KIA CARENS RHD 2018 Owners Manual

Audio system
88
5

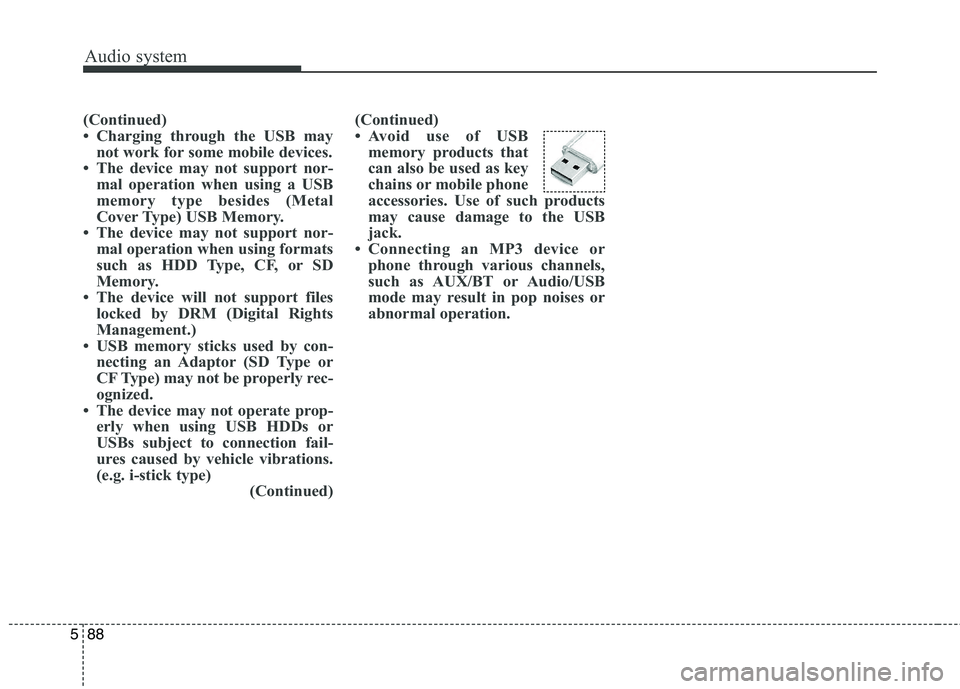

(Continued)
 Charging through the USB may
not work for some mobile devices.
 The device may not support nor- mal operation when using a USB
memory type besides (Metal
Cover Type) USB Memory.
 The device may not support nor- mal operation when using formats
such as HDD Type, CF, or SD
Memory.
 The device will not support files locked by DRM (Digital Rights
Management.)
 USB memory sticks used by con- necting an Adaptor (SD Type or
CF Type) may not be properly rec-
ognized.
 The device may not operate prop- erly when using USB HDDs or
USBs subject to connection fail-
ures caused by vehicle vibrations.
(e.g. i-stick type) (Continued)(Continued)
 Avoid use of USB
memory products that
can also be used as key
chains or mobile phone
accessories. Use of such products
may cause damage to the USB
jack.
 Connecting an MP3 device or phone through various channels,
such as AUX/BT or Audio/USB
mode may result in pop noises or
abnormal operation.

589
Audio system

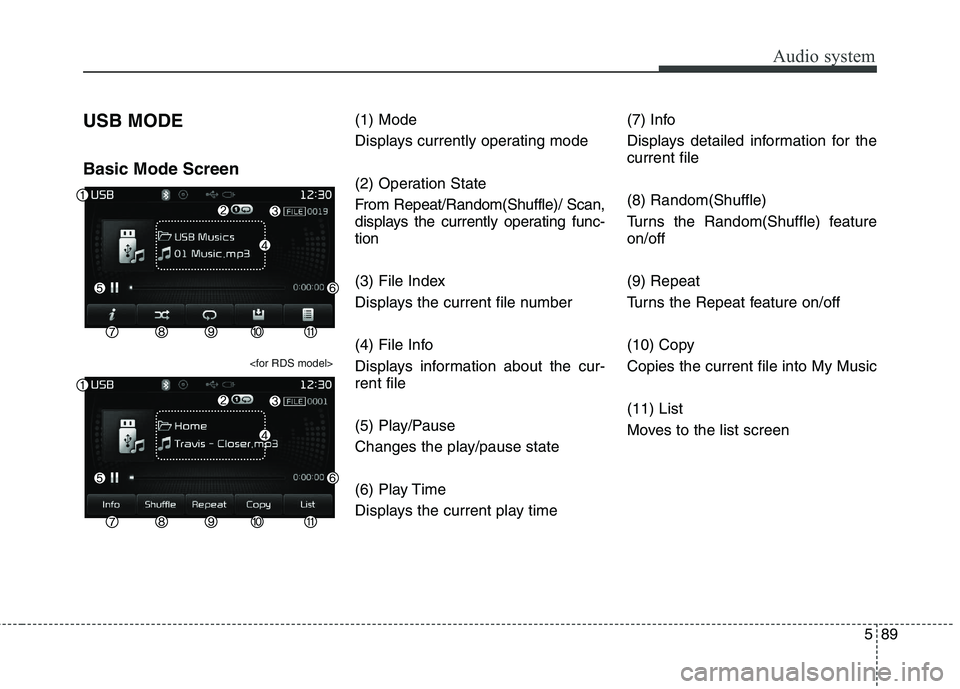

USB MODE Basic Mode Screen

(1) Mode
Displays currently operating mode
(2) Operation State
From Repeat/Random(Shuffle)/ Scan,
displays the currently operating func-tion
(3) File Index
Displays the current file number
(4) File Info
Displays information about the cur- rent file
(5) Play/Pause
Changes the play/pause state
(6) Play Time
Displays the current play time(7) Info
Displays detailed information for the current file (8) Random(Shuffle)
Turns the Random(Shuffle) feature on/off (9) Repeat
Turns the Repeat feature on/off
(10) Copy Copies the current file into My Music (11) List
Moves to the list screen

Audio system
90
5

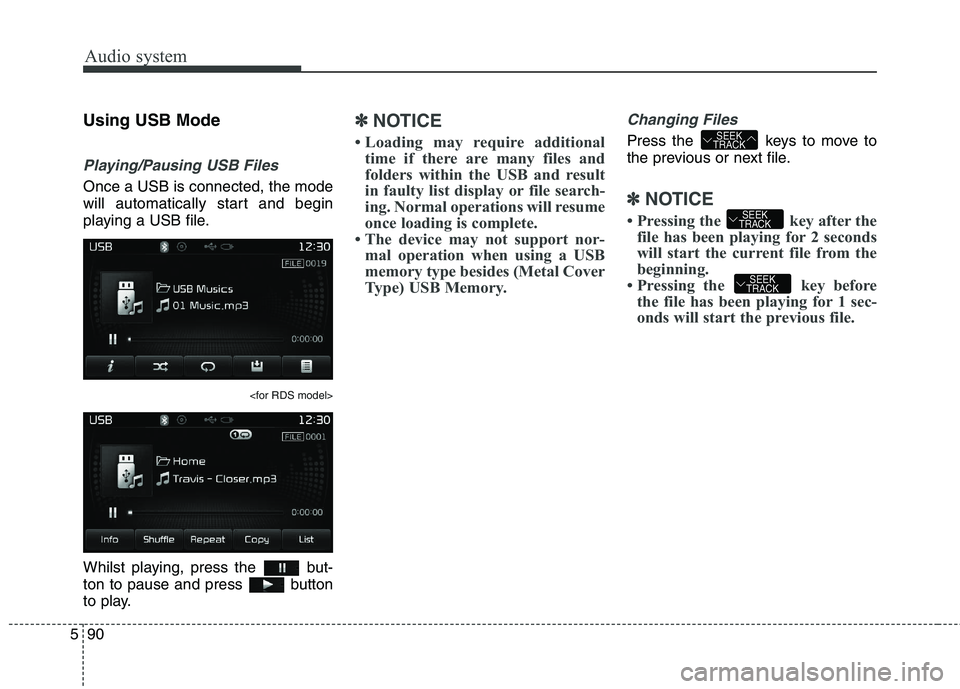

Using USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.

Whilst playing, press the but-
ton to pause and press button
to play.
✽✽
NOTICE
 Loading may require additional time if there are many files and
folders within the USB and result
in faulty list display or file search-
ing. Normal operations will resume
once loading is complete.
 The device may not support nor- mal operation when using a USB
memory type besides (Metal Cover
Type) USB Memory.Changing Files
Press the keys to move to
the previous or next file.
✽✽ NOTICE
 Pressing the key after the file has been playing for 2 seconds
will start the current file from the
beginning.
 Pressing the key before the file has been playing for 1 sec-
onds will start the previous file.
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK

591
Audio system

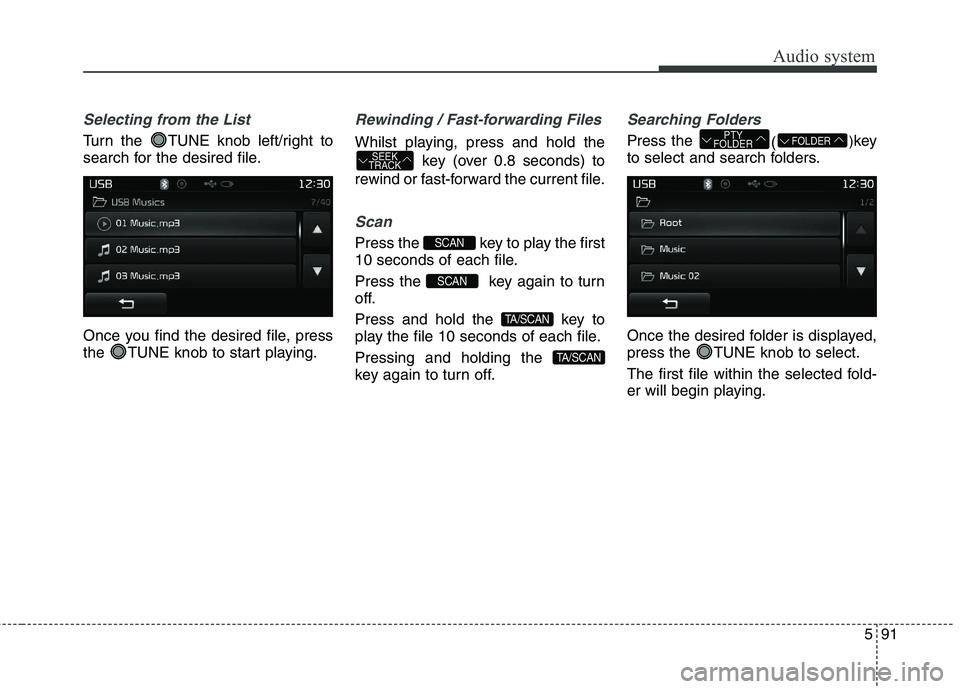

Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
Whilst playing, press and hold thekey (over 0.8 seconds) to
rewind or fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.
Press the key again to turn
off.
Press and hold the key to
play the file 10 seconds of each file. Pressing and holding the
key again to turn off.
Searching Folders
Press the ()
key
to select and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing.FOLDERPTY
FOLDER
TA/SCAN
TA/SCAN
SCAN
SCAN
SEEK
TRACK

Audio system
92
5

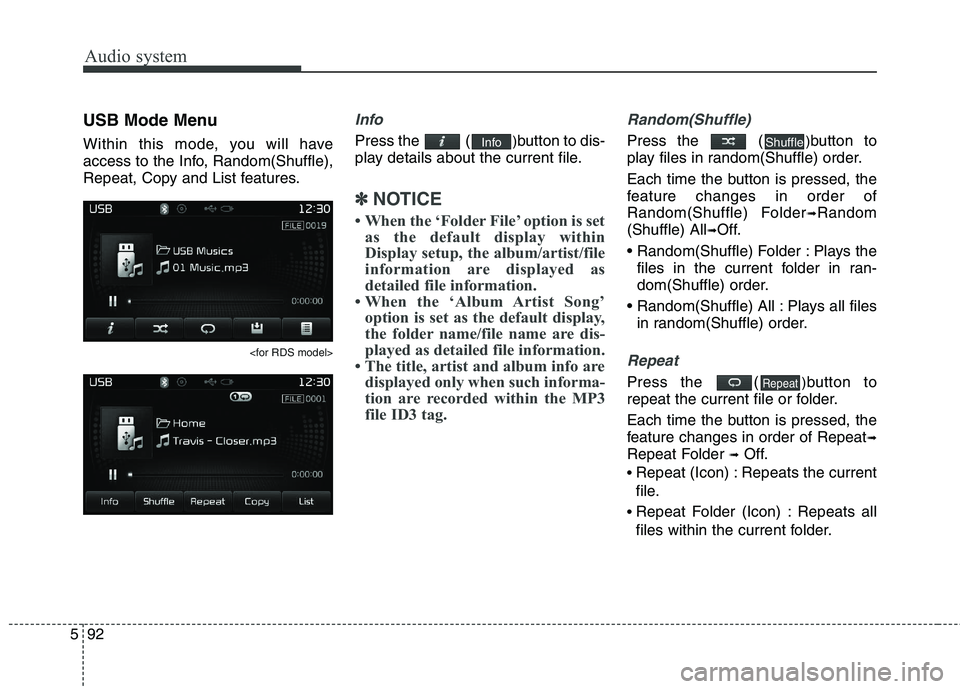

USB Mode Menu
Within this mode, you will have
access to the Info, Random(Shuffle),
Repeat, Copy and List features.

Info
Press the ( )button to dis-
play details about the current file.
✽✽ NOTICE
 When the ‘Folder File’ option is set as the default display within
Display setup, the album/artist/file
information are displayed as
detailed file information.
 When the ‘Album Artist Song’ option is set as the default display,
the folder name/file name are dis-
played as detailed file information.
 The title, artist and album info are displayed only when such informa-
tion are recorded within the MP3
file ID3 tag.
Random(Shuffle)
Press the ( )button to
play files in random(Shuffle) order.
Each time the button is pressed, the
feature changes in order of
Random(Shuffle) Folder ➟Random
(Shuffle) All ➟Off.
Plays the files in the current folder in ran-
dom(Shuffle) order.
Plays all files in random(Shuffle) order.
Repeat
Press the ( )button to
repeat the current file or folder.
Each time the button is pressed, the
feature changes in order of Repeat ➟
Repeat Folder ➟Off.
Repeat (Icon) : Repeats the current
file.
Repeat Folder (Icon) : Repeats all
files within the current folder.Repeat
ShuffleInfo

593
Audio system

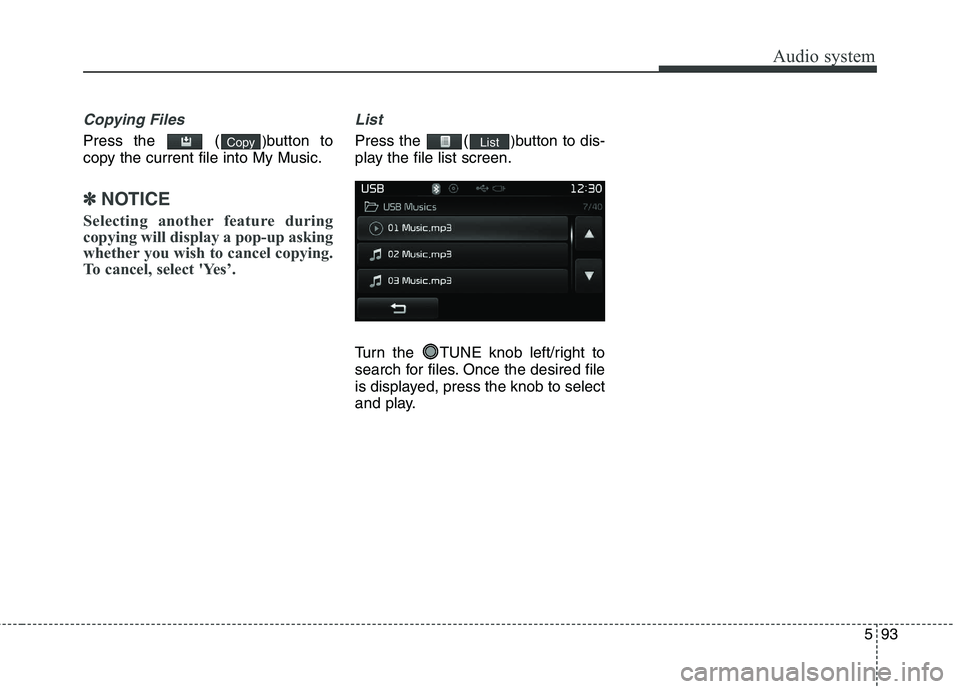

Copying Files
Press the ()button to
copy the current file into My Music.
✽✽ NOTICE
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select 'Yes’.
List
Press the ( )button to dis-
play the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.ListCopy

Audio system
94
5
✽✽

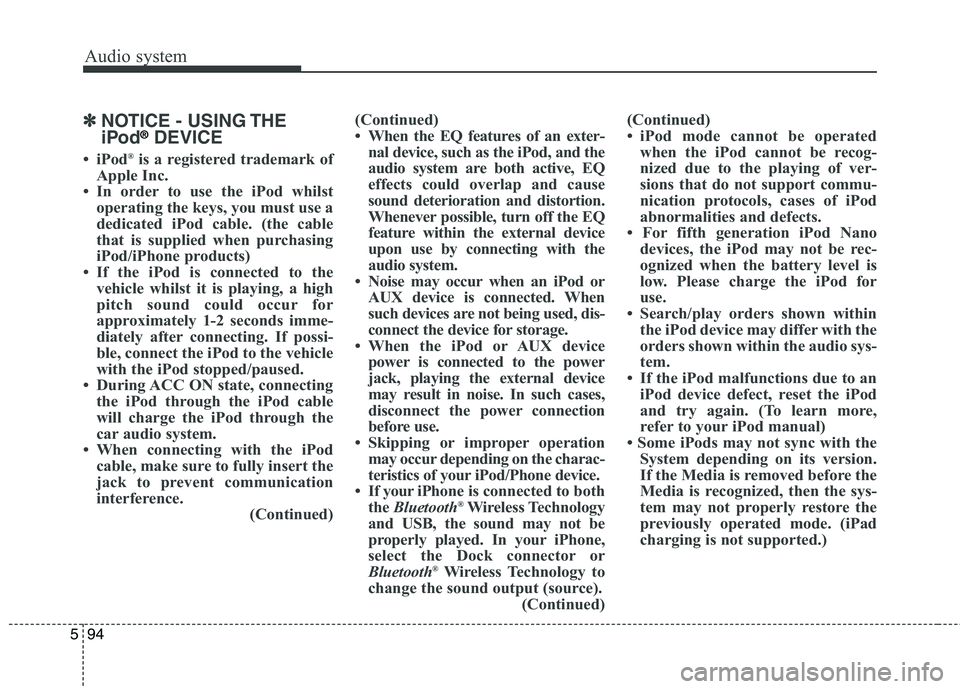

NOTICE - USING THE
iPod®DEVICE
 iPod ®
is a registered trademark of
Apple Inc.
 In order to use the iPod whilst operating the keys, you must use a
dedicated iPod cable. (the cable
that is supplied when purchasing
iPod/iPhone products)
 If the iPod is connected to the vehicle whilst it is playing, a high
pitch sound could occur for
approximately 1-2 seconds imme-
diately after connecting. If possi-
ble, connect the iPod to the vehicle
with the iPod stopped/paused.
 During ACC ON state, connecting the iPod through the iPod cable
will charge the iPod through the
car audio system.
 When connecting with the iPod cable, make sure to fully insert the
jack to prevent communication
interference. (Continued)(Continued)
 When the EQ features of an exter-
nal device, such as the iPod, and the
audio system are both active, EQ
effects could overlap and cause
sound deterioration and distortion.
Whenever possible, turn off the EQ
feature within the external device
upon use by connecting with the
audio system.
 Noise may occur when an iPod or AUX device is connected. When
such devices are not being used, dis-
connect the device for storage.
 When the iPod or AUX device power is connected to the power
jack, playing the external device
may result in noise. In such cases,
disconnect the power connection
before use.
 Skipping or improper operation may occur depending on the charac-
teristics of your iPod/Phone device.
 If your iPh one is connected to both
the Bluetooth ®
Wireless Technology
and USB, the sound may not be
properly played. In your iPhone,
select the Dock connector or
Bluetooth ®
Wireless Technology to
change the sound output (source). (Continued)(Continued)
 iPod mode cannot be operated
when the iPod cannot be recog-
nized due to the playing of ver-
sions that do not support commu-
nication protocols, cases of iPod
abnormalities and defects.
 For fifth generation iPod Nano devices, the iPod may not be rec-
ognized when the battery level is
low. Please charge the iPod for
use.
 Search/play orders shown within the iPod device may differ with the
orders shown within the audio sys-
tem.
 If the iPod malfunctions due to an iPod device defect, reset the iPod
and try again. (To learn more,
refer to your iPod manual)
 Some iPods may not sync with the System depending on its version.
If the Media is removed before the
Media is recognized, then the sys-
tem may not properly restore the
previously operated mode. (iPad
charging is not supported.)

595
Audio system

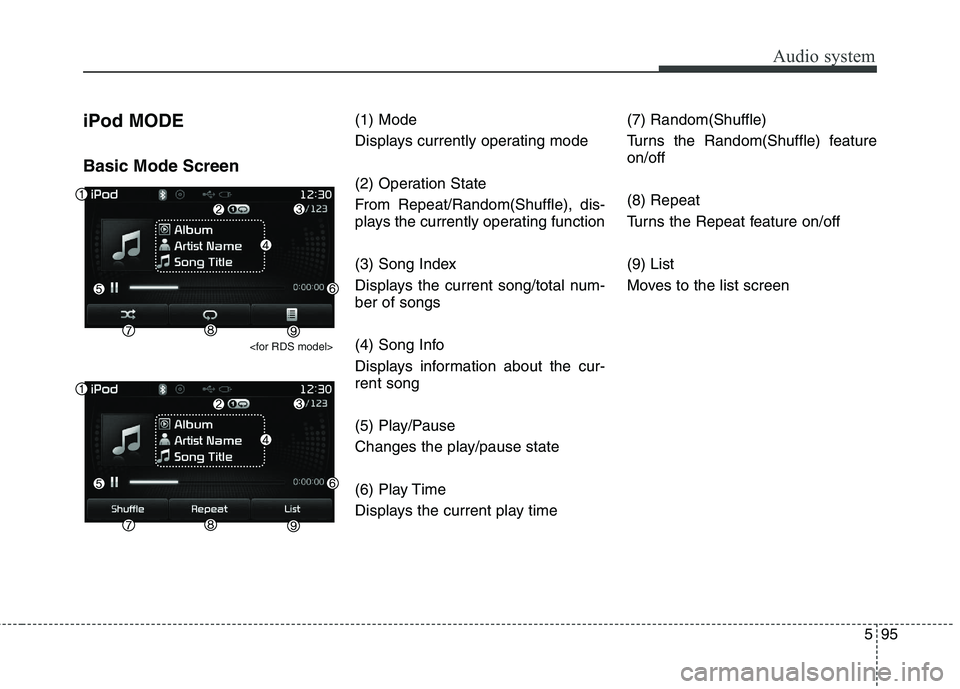

iPod MODE Basic Mode Screen

(1) Mode
Displays currently operating mode
(2) Operation State
From Repeat/Random(Shuffle), dis-
plays the currently operating function
(3) Song Index
Displays the current song/total num- ber of songs
(4) Song Info
Displays information about the cur- rent song
(5) Play/Pause
Changes the play/pause state
(6) Play Time
Displays the current play time(7) Random(Shuffle)
Turns the Random(Shuffle) feature on/off (8) Repeat
Turns the Repeat feature on/off (9) List
Moves to the list screen

Audio system
96
5

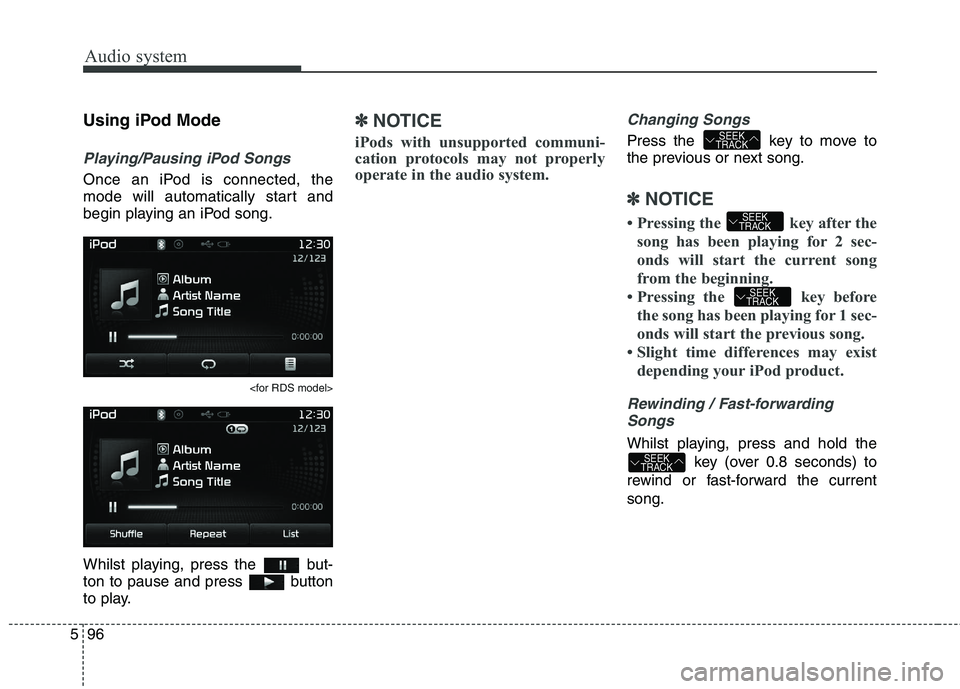

Using iPod Mode
Playing/Pausing iPod Songs
Once an iPod is connected, the
mode will automatically start and
begin playing an iPod song.

Whilst playing, press the but-
ton to pause and press button
to play.
✽✽
NOTICE
iPods with unsupported communi-
cation protocols may not properly
operate in the audio system. Changing Songs
Press the key to move to
the previous or next song.
✽✽ NOTICE
 Pressing the key after the song has been playing for 2 sec-
onds will start the current song
from the beginning.
 Pressing the key before the song has been playing for 1 sec-
onds will start the previous song.
 Slight time differences may exist depending your iPod product.
Rewinding / Fast-forwardingSongs
Whilst playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current song.SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK

597
Audio system

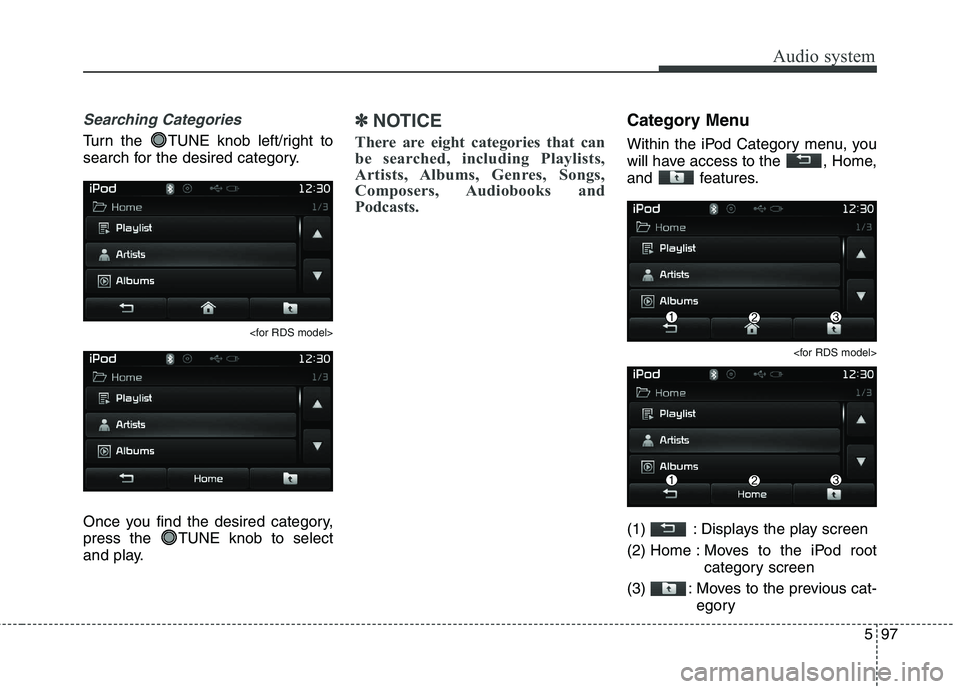

Searching Categories
Turn the TUNE knob left/right to
search for the desired category.

Once you find the desired category,
press the TUNE knob to select
and play.
✽✽NOTICE
There are eight categories that can
be searched, including Playlists,
Artists, Albums, Genres, Songs,
Composers, Audiobooks and
Podcasts.Category Menu
Within the iPod Category menu, you
will have access to the , Home,
and features.

(1) : Displays the play screen
(2) Home : Moves to the iPod root category screen
(3) : Moves to the previous cat- egory
