KIA CARNIVAL 2007 Workshop Manual

3.If system of some relay is not operate accurately, replace with a new one and check the system.
REPLACEMENT
FAM (FRONT AREA MODULE)
1. Disconnect the negative ( - ) battery terminal.
2. Remove the FAM cover of engine room.
3. Remove the FAM connectors (2EA) (A) and battery terminal nut (1EA) (B).
4.Remove FAM mounting bolts (3EA) (A) and remove the FAM (B) from splash shield (C).
5.Disconnect the connector from splash shield.
6. Installation is the reverse of removal.

Relay Box
(Passenger Compartment)

2007 > 2.7L V6 GASOLINE >
COMPONENTS

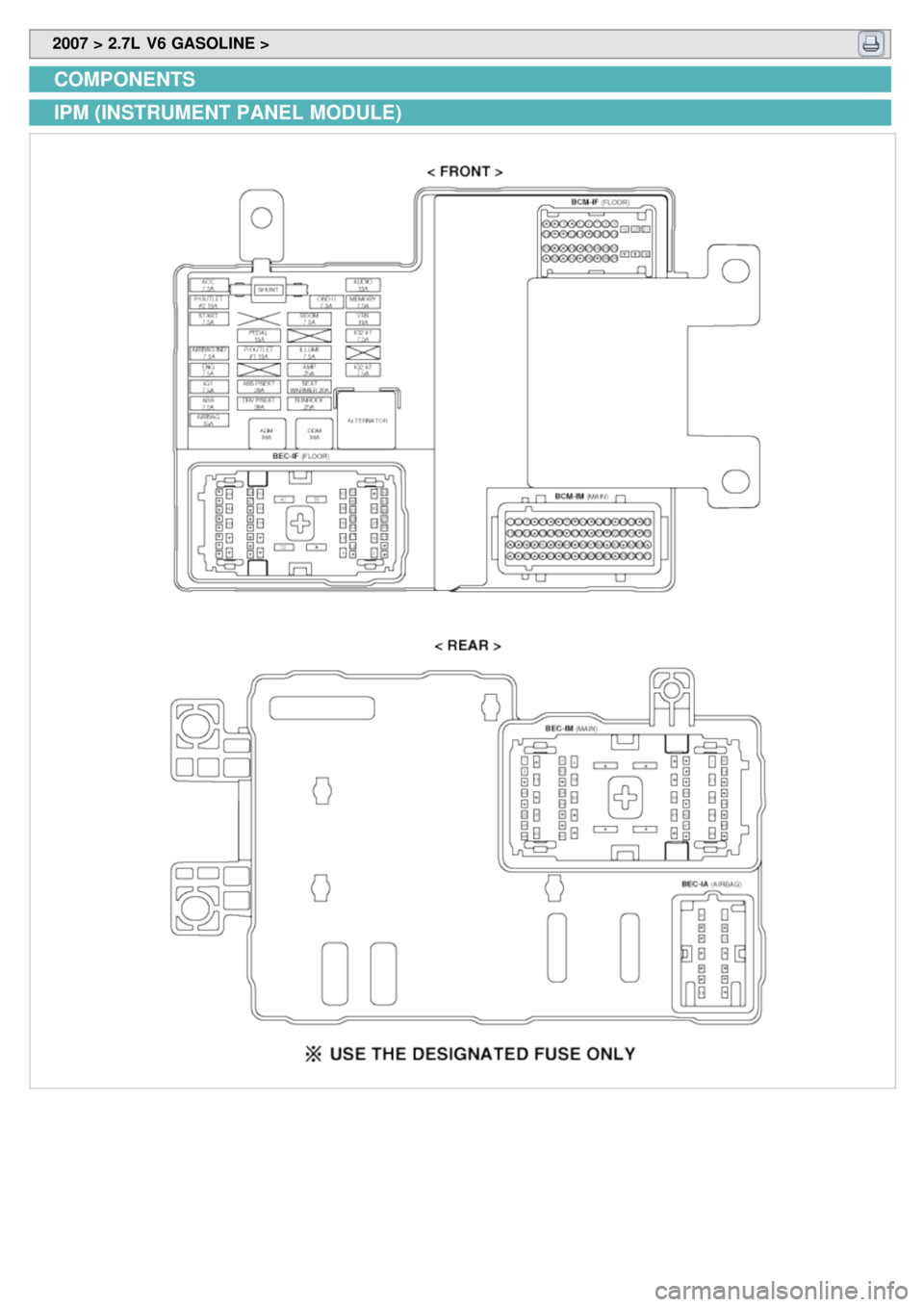

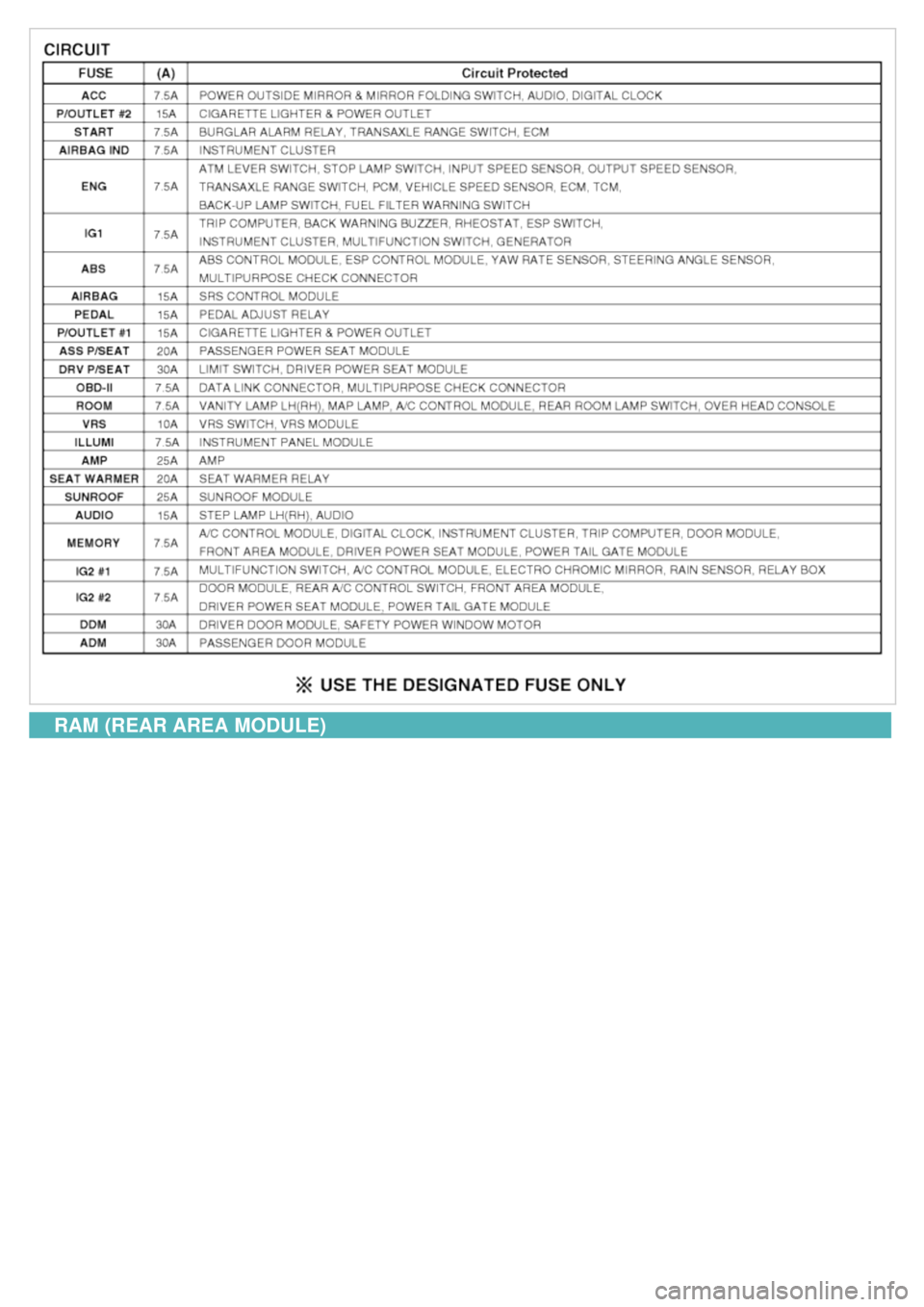

IPM (INSTRUMENT PANEL MODULE)

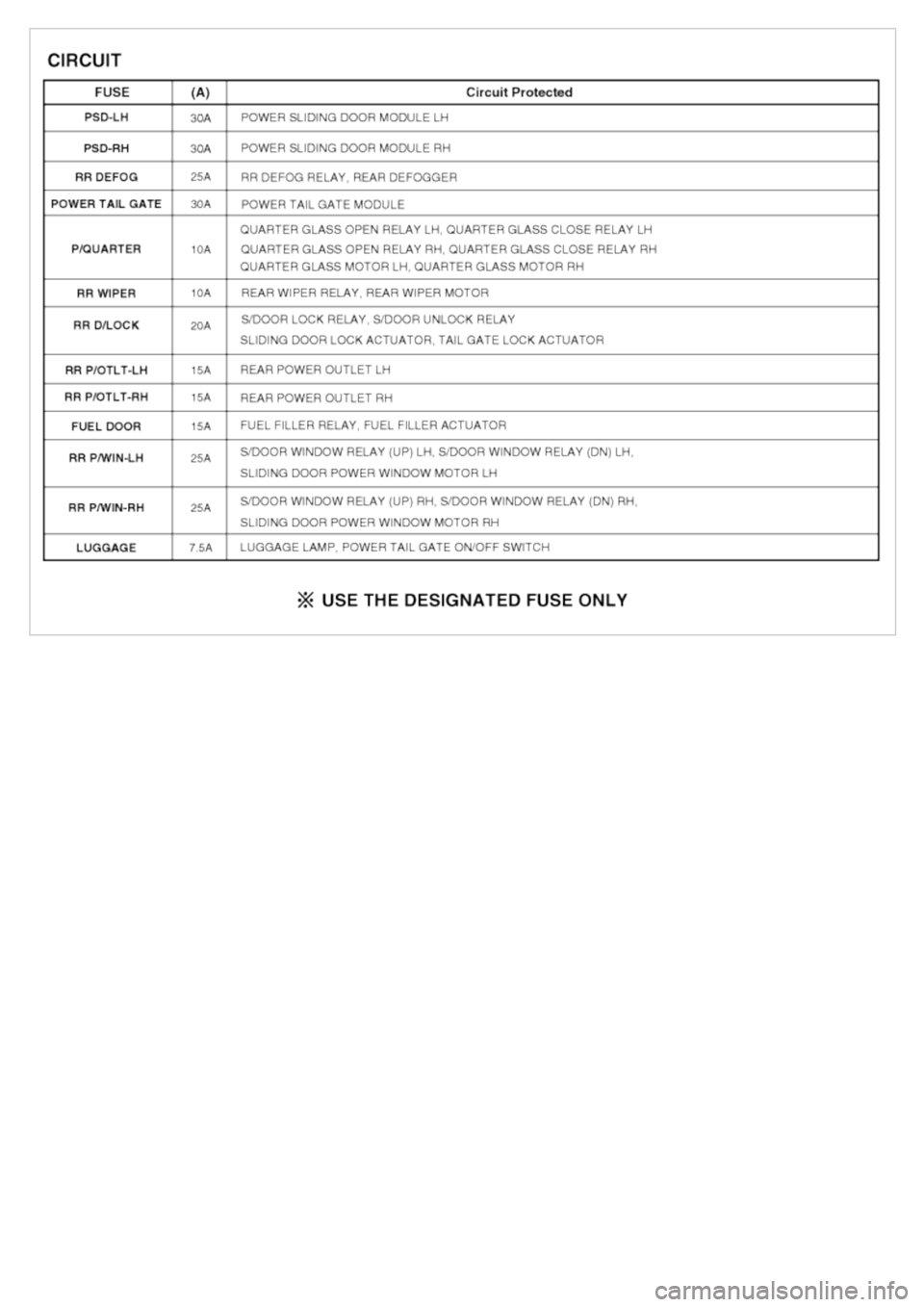

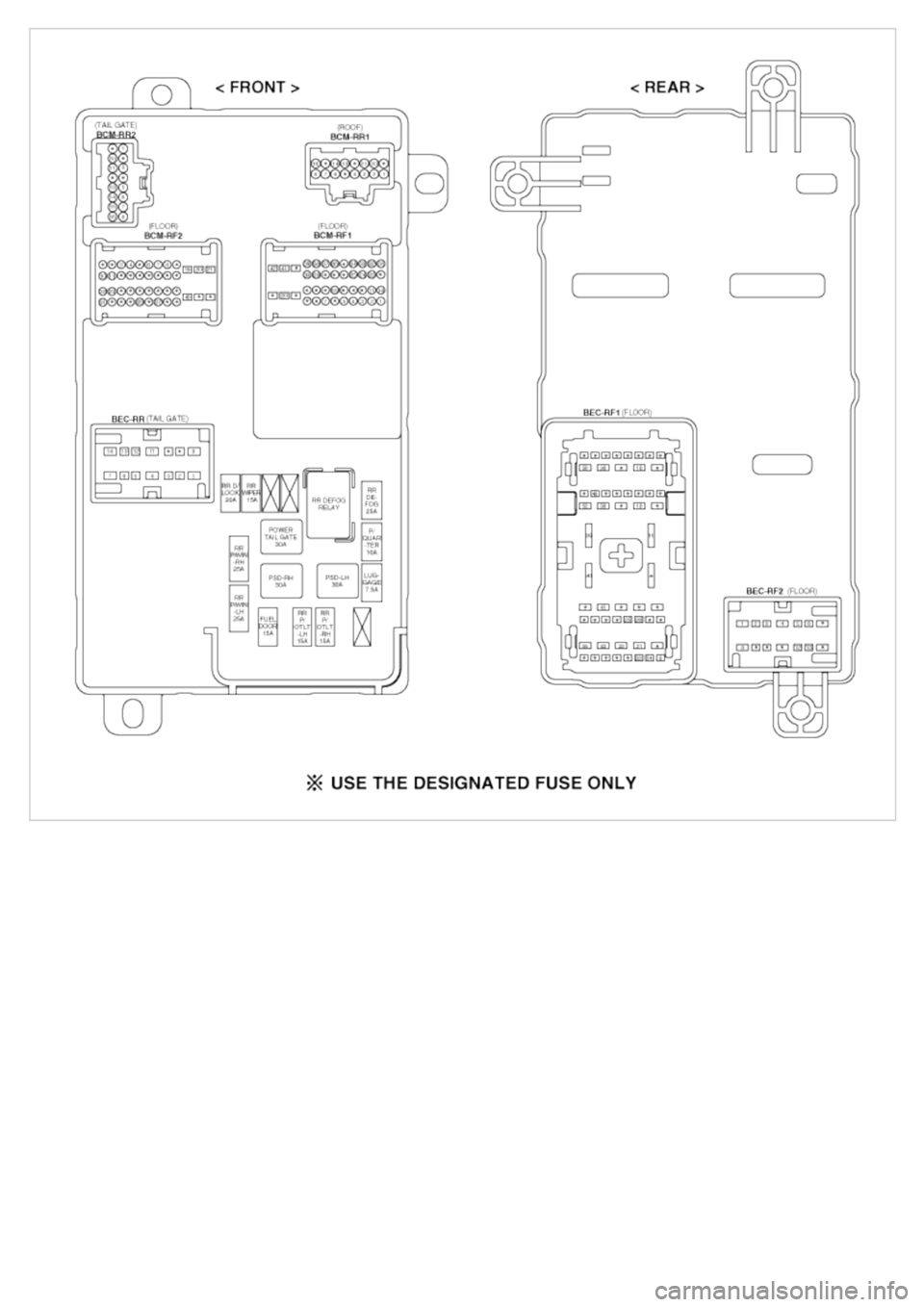

RAM (REAR AREA MODULE)

2007 > 2.7L V6 GASOLINE >
INSPECTION
FUSE
1. Be sure there is no play in the fuse holders, and that the fuses are held securely.
2. Are the fuse capacities for each circuit correct?
3. Are there any blown fuses ?
If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew
first and completely eliminate the problem before installing a new fuse.

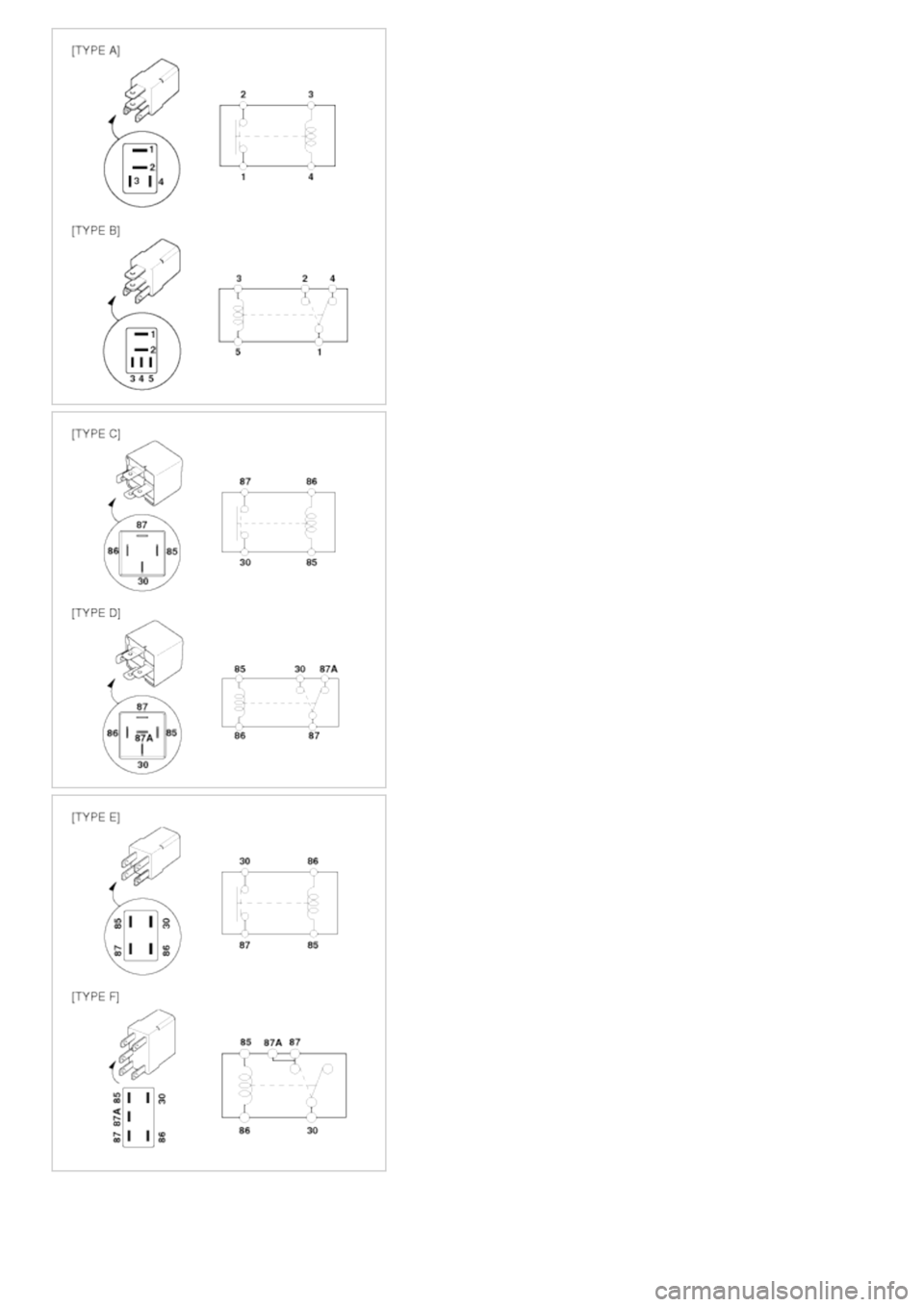

RELAY
1.Be sure that the relays are held the each module securely.
2. Are the relay types for each circuit correct?
3.If system of some relay is not operate accurately, replace with a new one and check the system.
REPLACEMENT
IPM (INSTRUMENT PANEL MODULE)
1. Disconnect the negative ( - ) battery terminal.

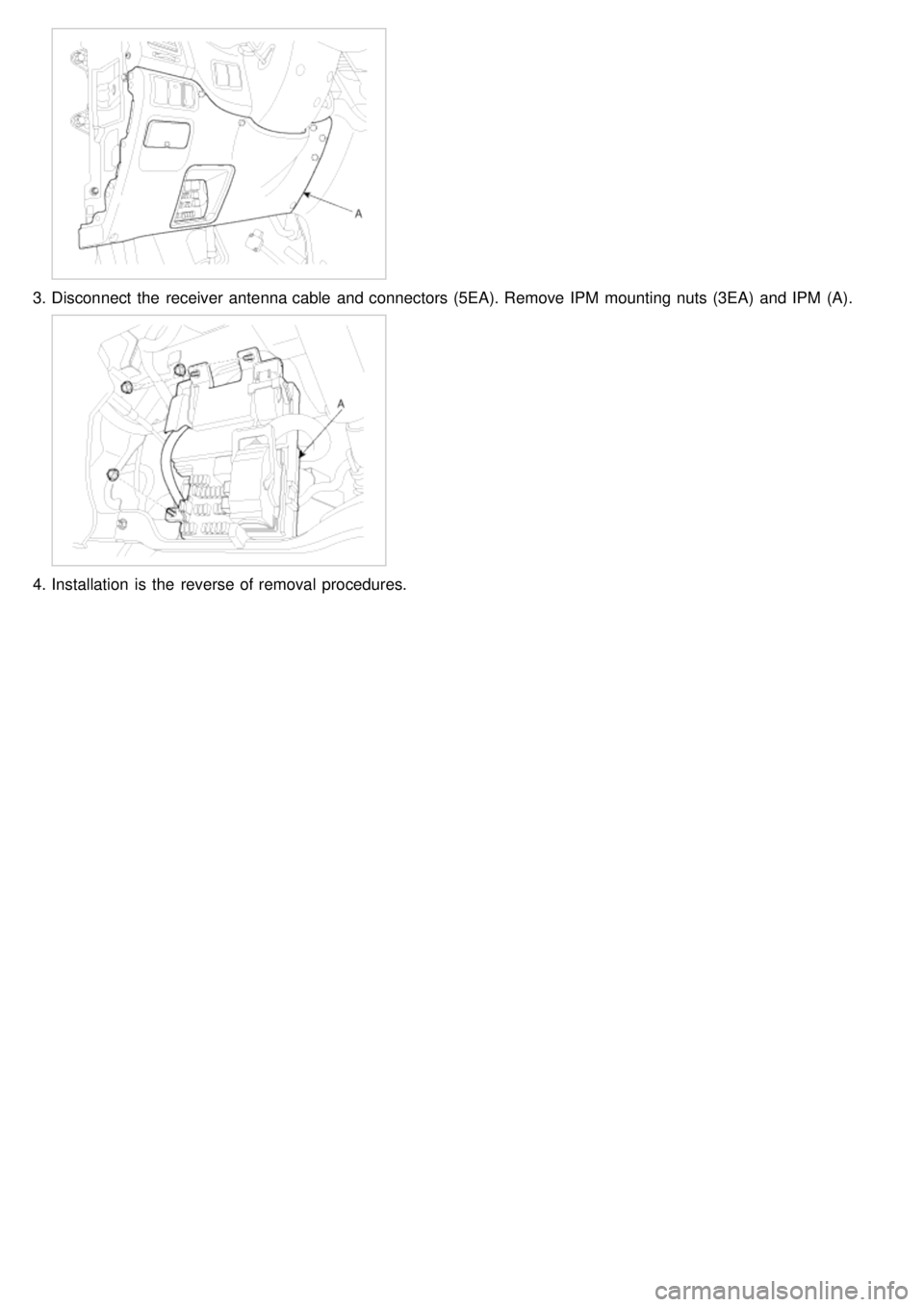

2. Remove the crash pad lower panel (A). (Refer to the Body group - Crash pad).

3.Disconnect the receiver antenna cable and connectors (5EA). Remove IPM mounting nuts (3EA) and IPM (A).
4.Installation is the reverse of removal procedures.

ICM
(Integrated Circuit Module) Relay Box
