KIA CARNIVAL 2007 Workshop Manual

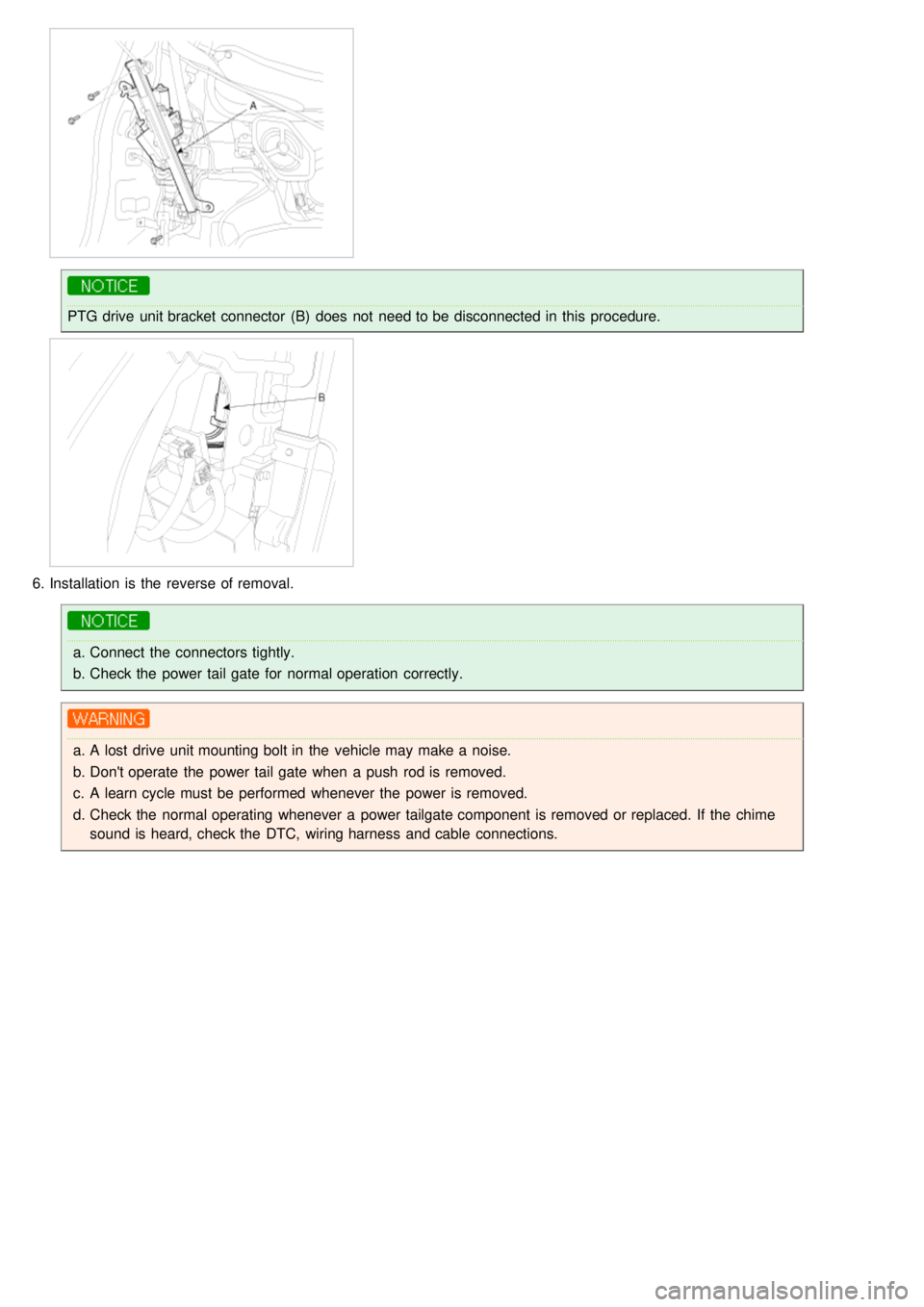

PTG drive unit bracket connector (B) does not need to be disconnected in this procedure.
6.Installation is the reverse of removal.
a.Connect the connectors tightly.
b. Check the power tail gate for normal operation correctly.
a.A lost drive unit mounting bolt in the vehicle may make a noise.
b. Don't operate the power tail gate when a push rod is removed.
c. A learn cycle must be performed whenever the power is removed.
d. Check the normal operating whenever a power tailgate component is removed or replaced. If the chime
sound is heard, check the DTC, wiring harness and cable connections.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the third, fourth seat (Refer to the Body group - seat)
3. Remove the D pillar and luggage side trim (Refer to the Body group - Interior trim).
4. Use a small screw driver to loosen clip (A). But do not remove power tailgate push rod (B).
5.Remove the power tail gate module mounting bolts (2EA) and connectors (2EA). And then remove the power tail
gate module (A).
TORQUE : 25- 35N.m(2.5- 3.5Kg.m)
6.Installation is the reverse of removal
a.Connect the connectors tightly.
b. Check the power tail gate for normal operation correctly.
a.A lost drive unit mounting bolt in the vehicle may make a noise.
b. Don't operate the power tail gate when a push rod is removed.
c. A learn cycle must be performed whenever the power is removed.
d. Check the normal operating whenever a power tailgate component is removed or replaced. If the chime
sound is heard, check the DTC, wiring harness and cable connections.

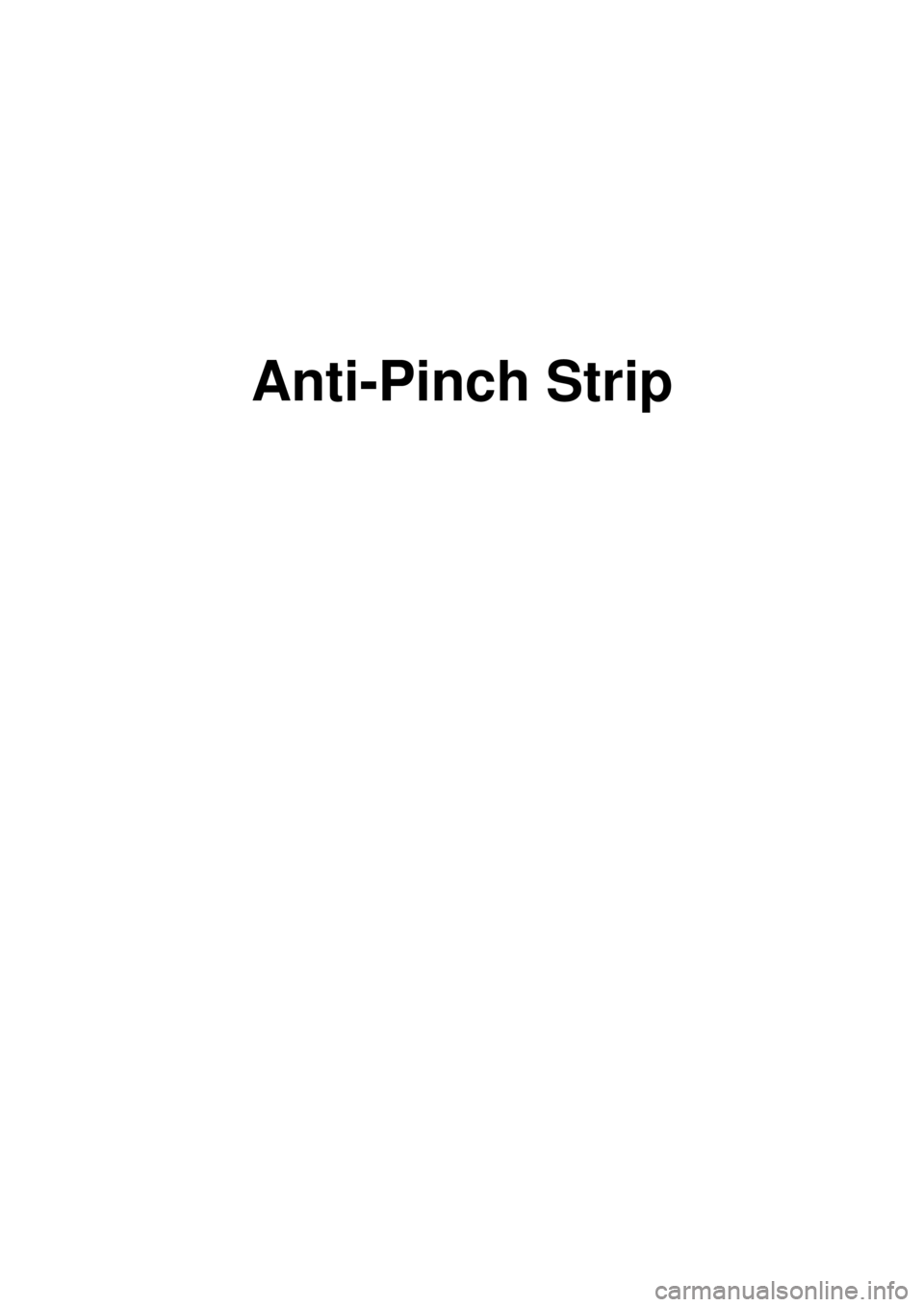

Anti-Pinch Strip

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Check the power tail gate control module input/output value by using the diagnostic tool. If the operation of tailgate
control module is abnormal, replace anti pinch strip control module.
2. When checking the anti pinch strip operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.
3.Select "POWER TAILGATE".
4.Select the sensor output. And then check the anti pinch strip sensor output while operating power tailgate in power
mode.
※ Above voltage and numerical value may be different from the real value.
5. Change the anti pinch strip sensor, if there is no change from OFF to ON during operation.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the tail gate trim (Refer to the Body group - tail gate).
3. Remove the anti- pinch strip sensor connector (A).

4.Remove the left and right side anti- pinch strip sensor (B) after removing the screws (5EA).
5.Installation is the reverse of removal. Part (C) has to be assembled using the cloth.

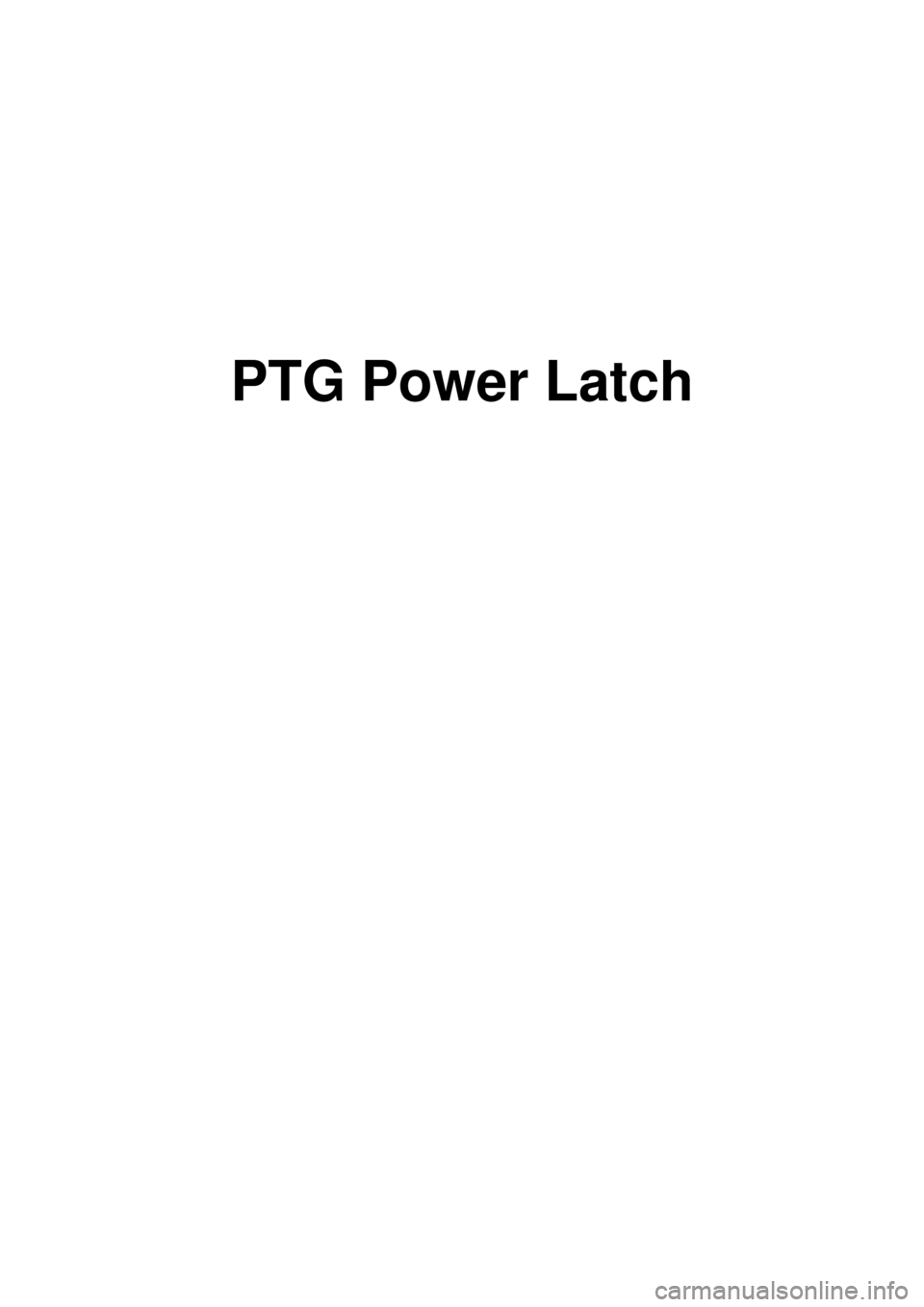

PTG Power Latch

2007 > 2.7L V6 GASOLINE >
INPECTION
1.Check the power tail gate control module input/output value by using the diagnostic tool. If the operation of tailgate
control module is abnormal, replace power latch.
2. To check the power latch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.
3.Select "POWER TAILGATE".
4.Select the sensor output. And then check the cinch feedback and unlatch feedback output while operating power
tailgate in power mode.
※ Above voltage and numerical value may be different from the real value.
5. Change the anti pinch strip sensor, if there is no change during operation.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the tail gate trim (Refer to the Body group - tail gate).
3. Remove the tail gate handle rod, actuator rod and key rod.

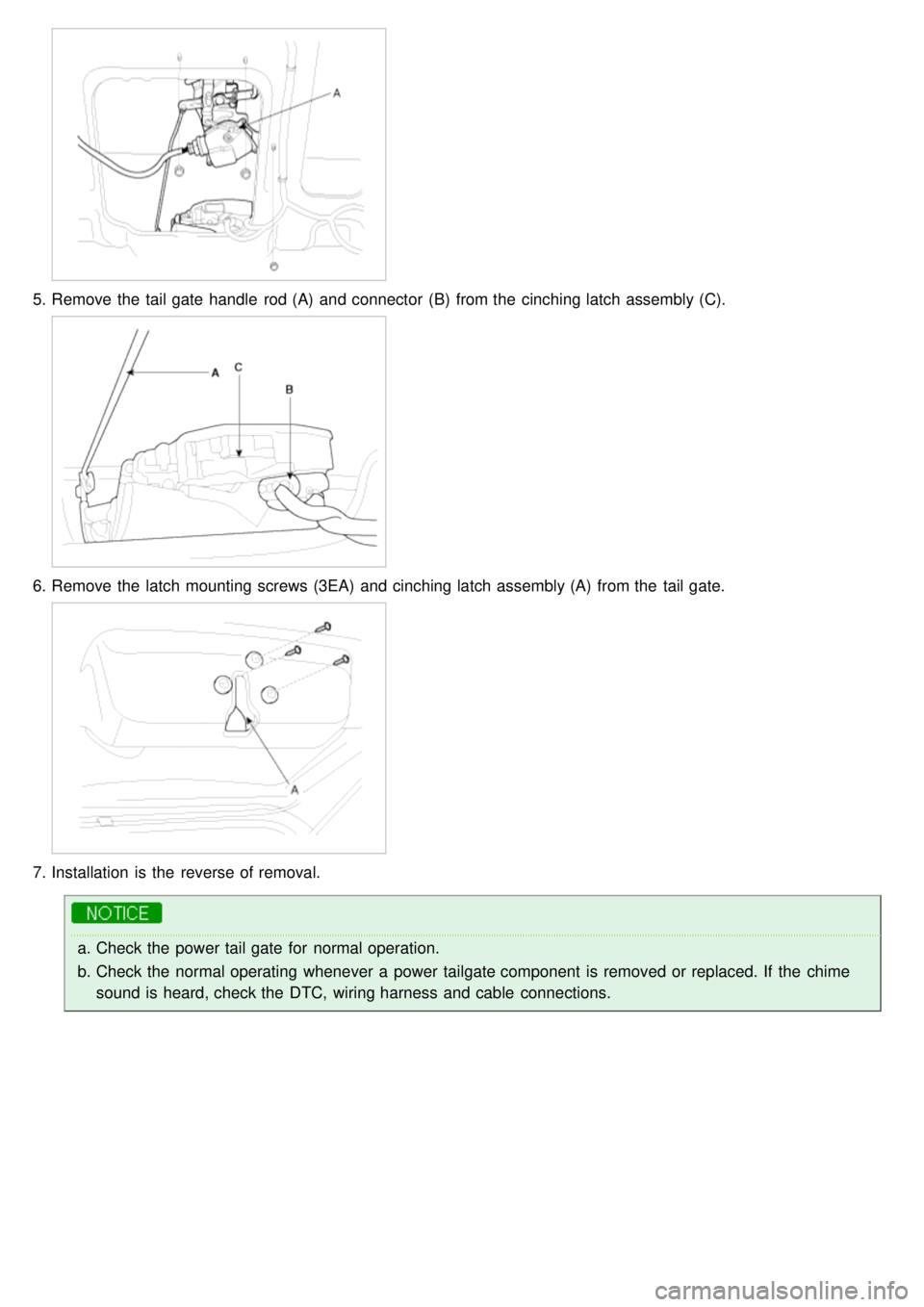

4. Remove the unlatch actuator assembly (A) after removing the connector and nuts (3EA).

5.Remove the tail gate handle rod (A) and connector (B) from the cinching latch assembly (C).
6.Remove the latch mounting screws (3EA) and cinching latch assembly (A) from the tail gate.
7.Installation is the reverse of removal.
a.Check the power tail gate for normal operation.
b. Check the normal operating whenever a power tailgate component is removed or replaced. If the chime
sound is heard, check the DTC, wiring harness and cable connections.

PTG Switch

2007 > 2.7L V6 GASOLINE >
INSPECTION
OVERHEAD CONSOLE DOOR SWITCH INSPECTION
1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation of
overhead console door switch is abnormal, check the IPM and replace.
2. When checking the overhead console switch operation, select a vehicle type and "IPM".
3.Select a in panel module (IPM) and "02. CURRENT DATA".
4.Check the PSD PTG power control switch and PTG switch output value.
5.Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.
TAILGATE SWITCH INSPECTION
1.Check the power tailgate control module input/output value by using the diagnostic tool. If the operation of tailgate
module is abnormal, replace power tailgate switch.
2. When checking tailgate switch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.
