Page 551 of 1575

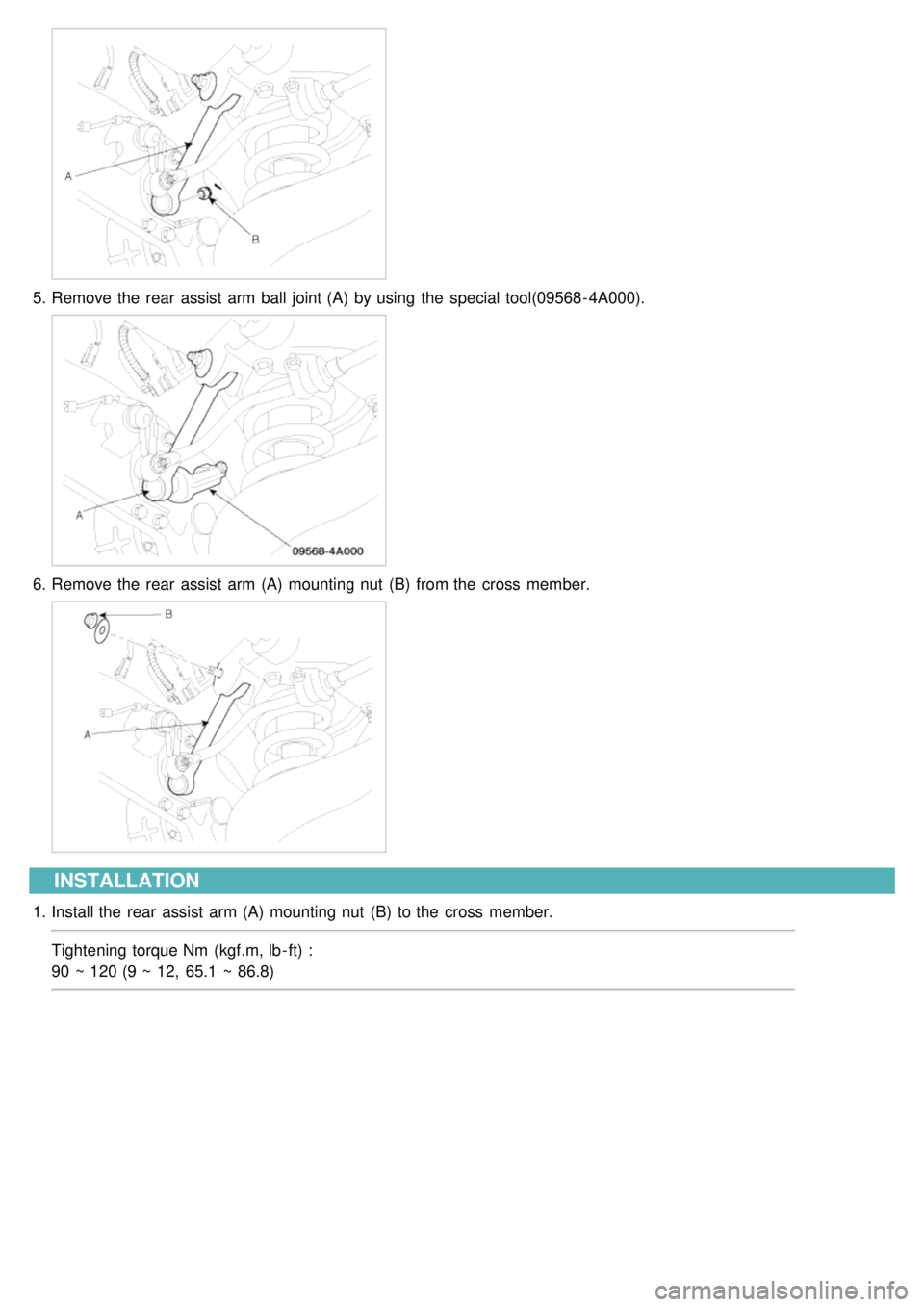

KIA CARNIVAL 2007  Workshop Manual 5.Remove the  rear  assist  arm ball  joint (A)  by using  the  special tool(09568- 4A000).
6.Remove the  rear  assist  arm (A)  mounting nut  (B)  from the  cross  member.
INSTALLATION
1.Install the

Page 552 of 1575

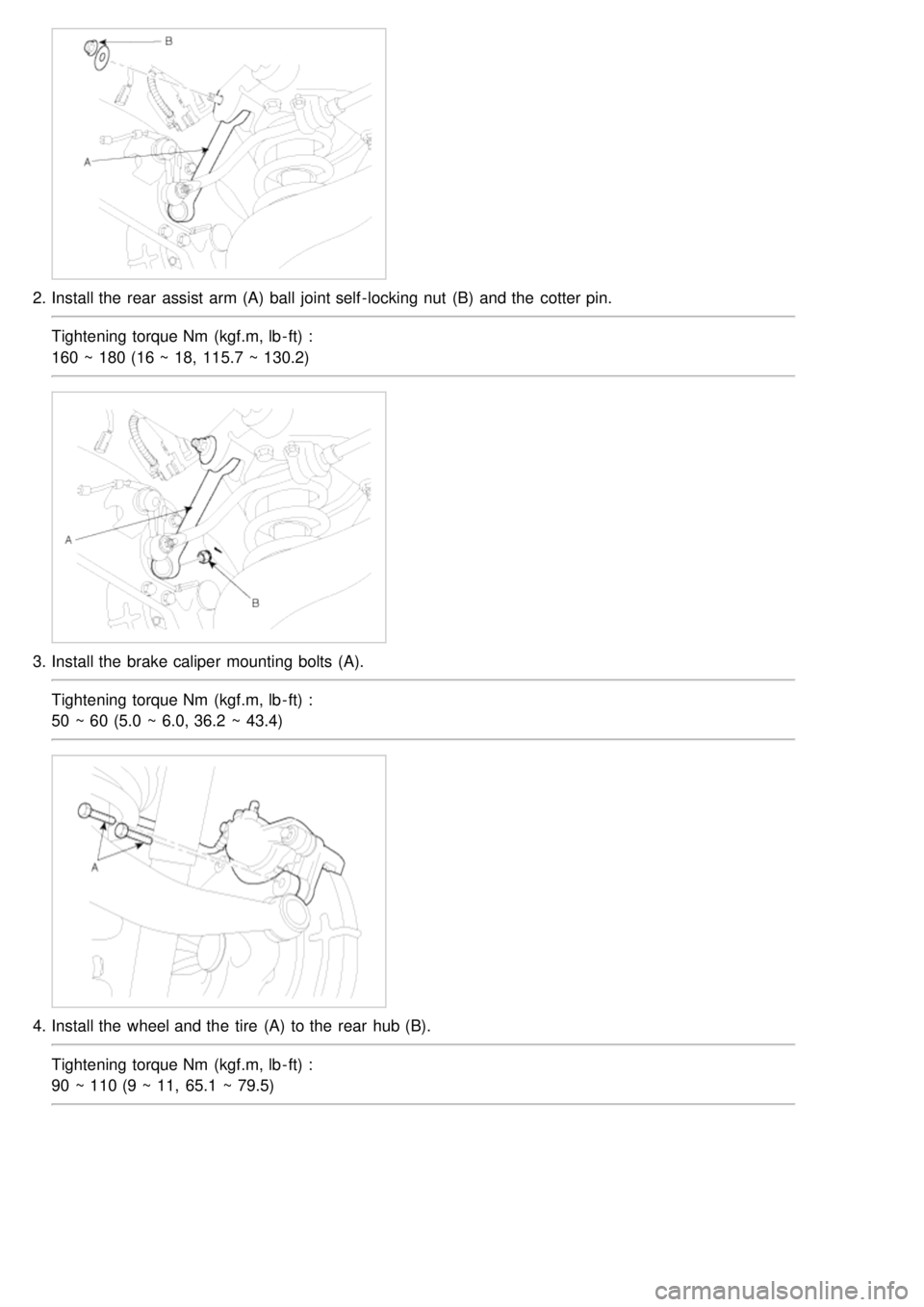

KIA CARNIVAL 2007  Workshop Manual 2.Install the  rear  assist  arm (A)  ball  joint self - locking nut  (B)  and the  cotter pin.
Tightening torque Nm  (kgf.m, lb - ft) :
160 ~ 180 (16 ~ 18,  115.7 ~ 130.2)
3.Install the  brake calipe

Page 553 of 1575

KIA CARNIVAL 2007  Workshop Manual Be careful  not  to damage the  hub bolts (C)  when  installing the  rear  wheel and tire  (A).
INSPECTION
1.Check the  bushing for  wear  and deterioration.
2. Check the  upper  arm for  bending  or

Page 554 of 1575

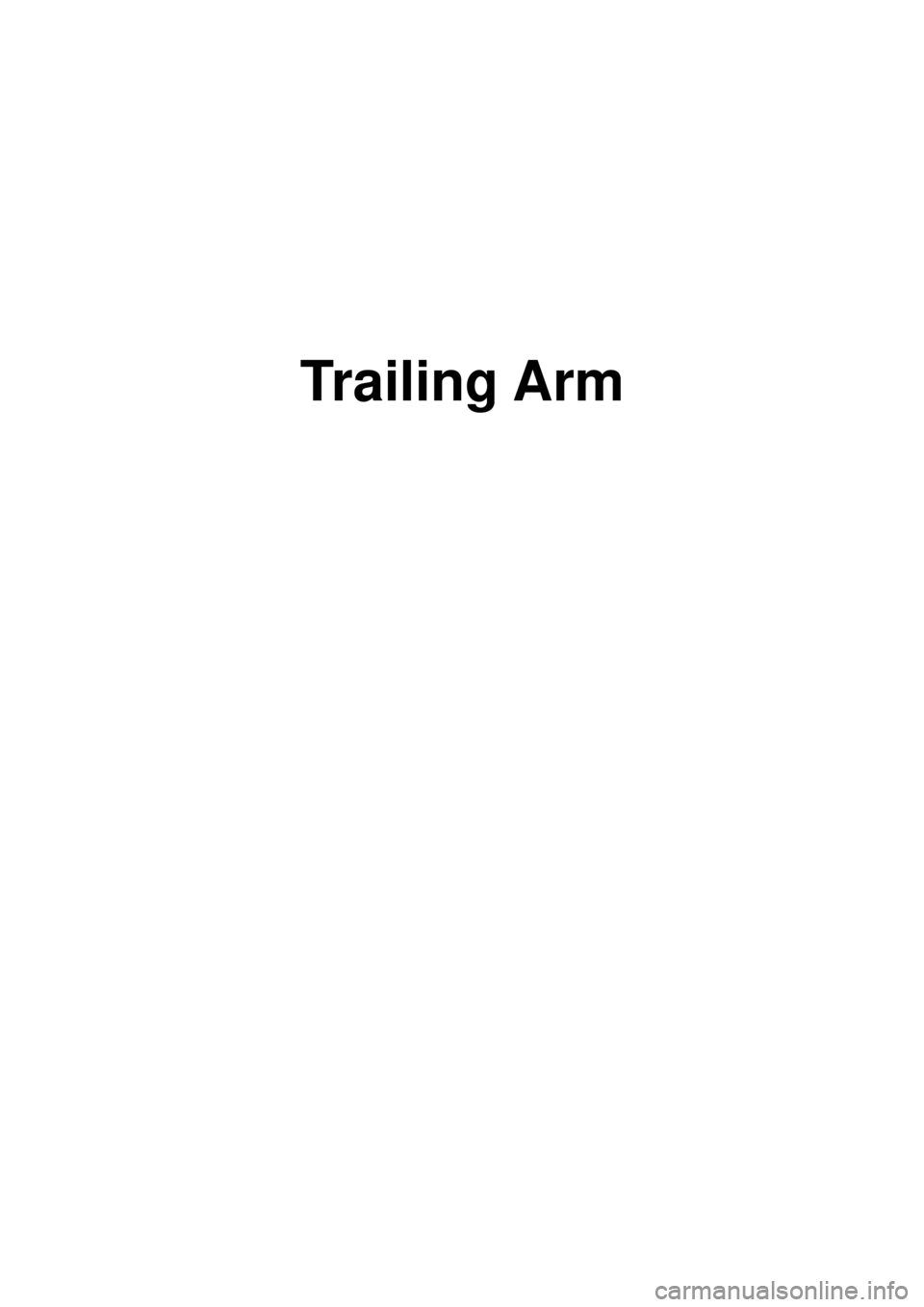

KIA CARNIVAL 2007  Workshop Manual Trailing Arm

Page 555 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >

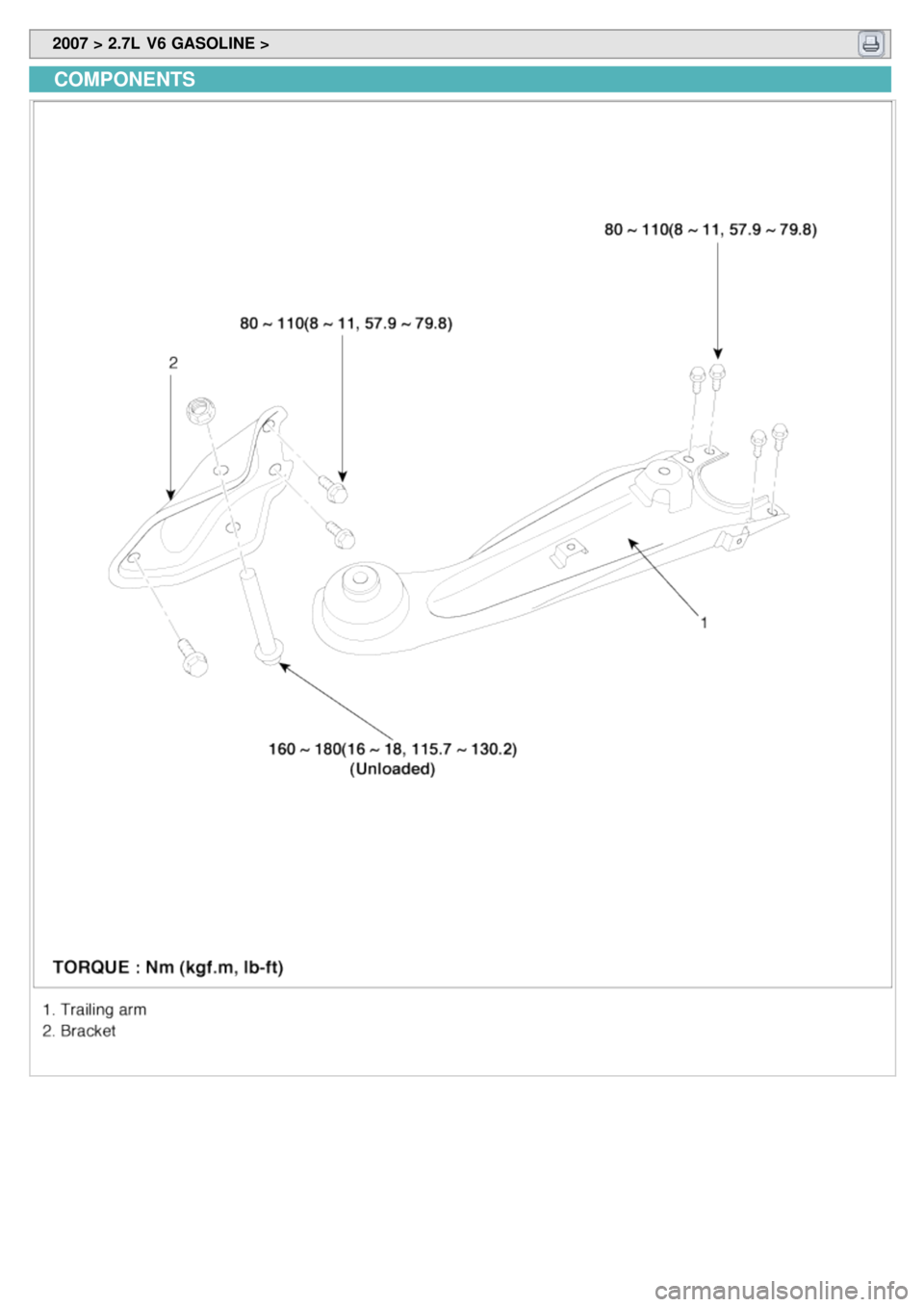

COMPONENTS

Page 556 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
REMOVAL
1.Loosen the  wheel nuts slightly. Raise  the  rear  of the  vehicle,  and make sure  it is securely supported.
2. Remove the  rear  wheel and tire  (A)  from rear

Page 557 of 1575

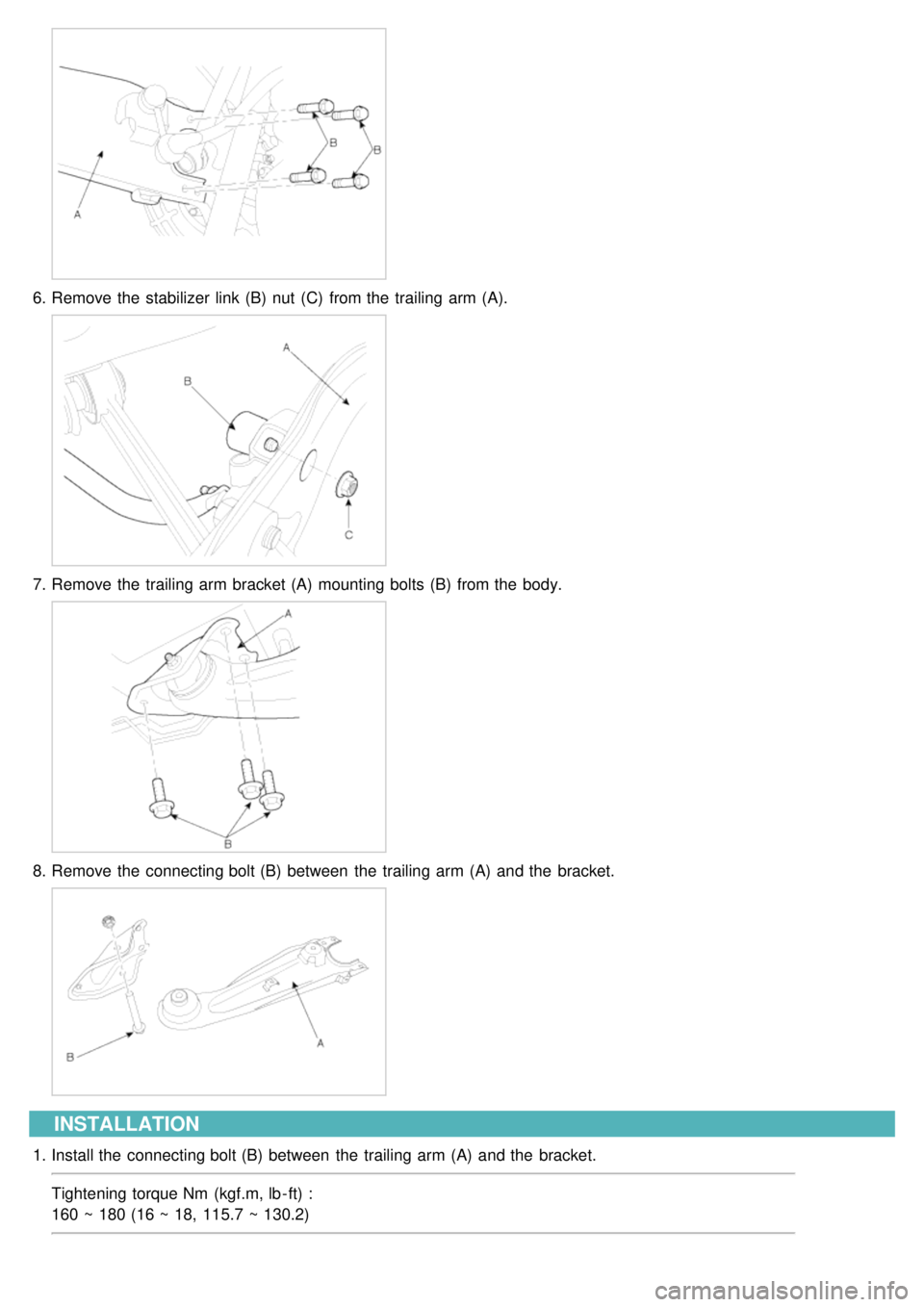

KIA CARNIVAL 2007  Workshop Manual 6.Remove the  stabilizer  link (B)  nut  (C)  from the  trailing  arm (A).
7.Remove the  trailing  arm bracket (A)  mounting bolts (B)  from the  body.
8.Remove the  connecting bolt (B)  between  the

Page 558 of 1575

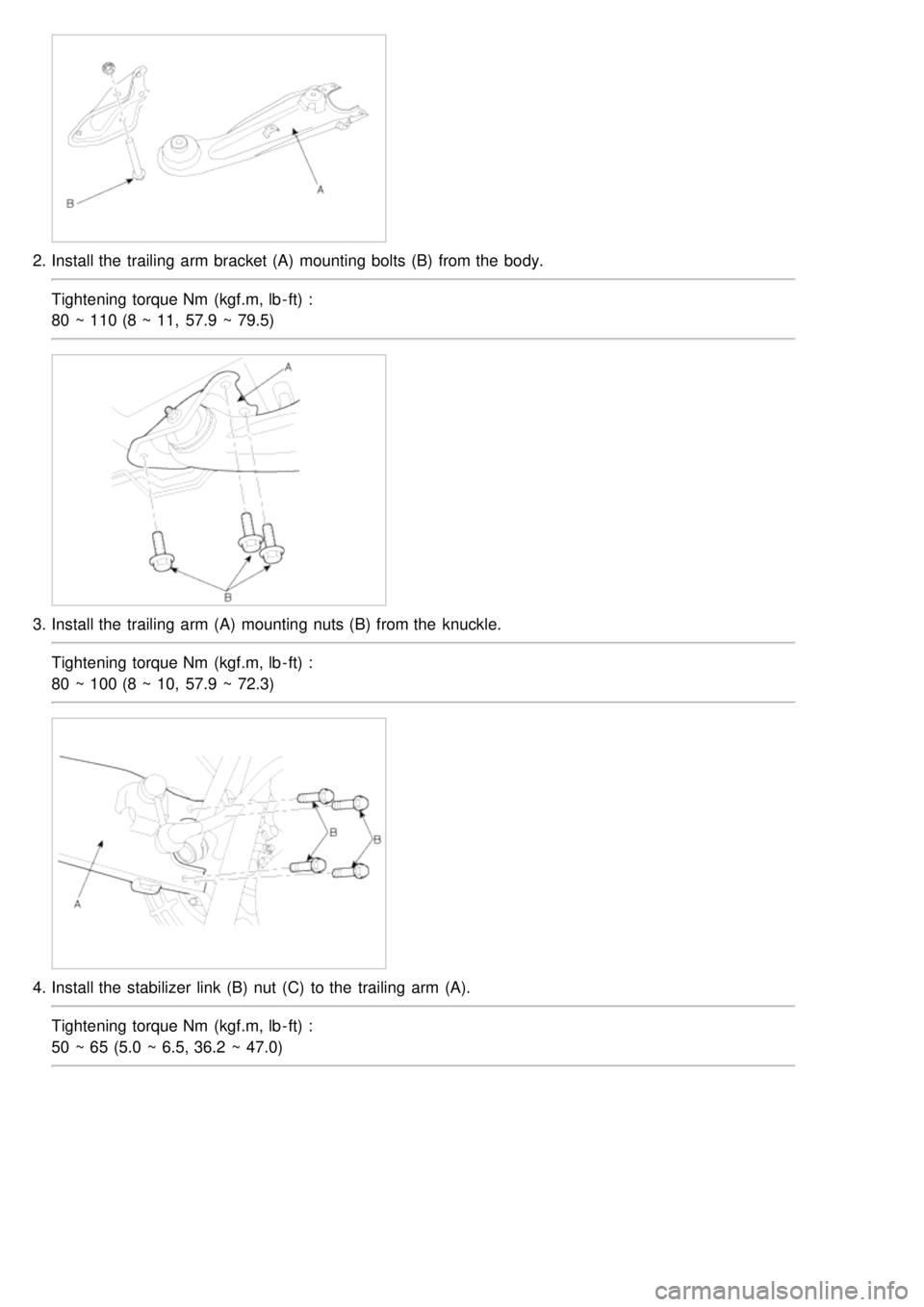

KIA CARNIVAL 2007  Workshop Manual 2.Install the  trailing  arm bracket (A)  mounting bolts (B)  from the  body.
Tightening torque Nm  (kgf.m, lb - ft) :
80 ~ 110 (8 ~ 11,  57.9  ~ 79.5)
3.Install the  trailing  arm (A)  mounting nuts

Page 559 of 1575

KIA CARNIVAL 2007  Workshop Manual 5.Remove the  wheel speed sensor  wires bracket bolt (A)  and the  parking brake wires bracket bolt (B).
Tightening torque Nm  (kgf.m, lb - ft) :
7  ~ 11 (0.7 ~ 1.1, 5.1  ~ 8.0)
6.Install the  wheel

Page 560 of 1575

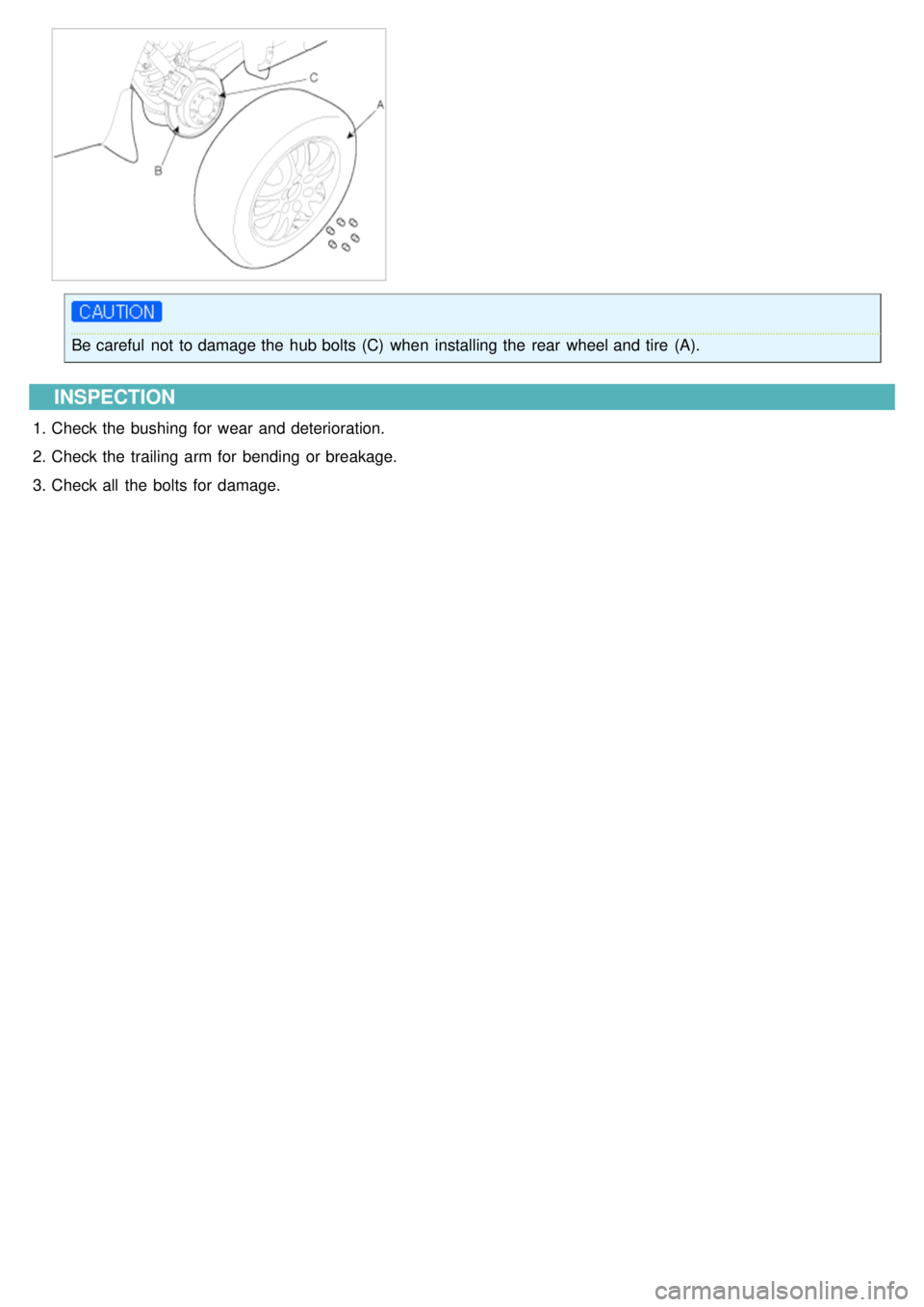

KIA CARNIVAL 2007  Workshop Manual Be careful  not  to damage the  hub bolts (C)  when  installing the  rear  wheel and tire  (A).
INSPECTION
1.Check the  bushing for  wear  and deterioration.
2. Check the  trailing  arm for  bending
