Page 541 of 1575

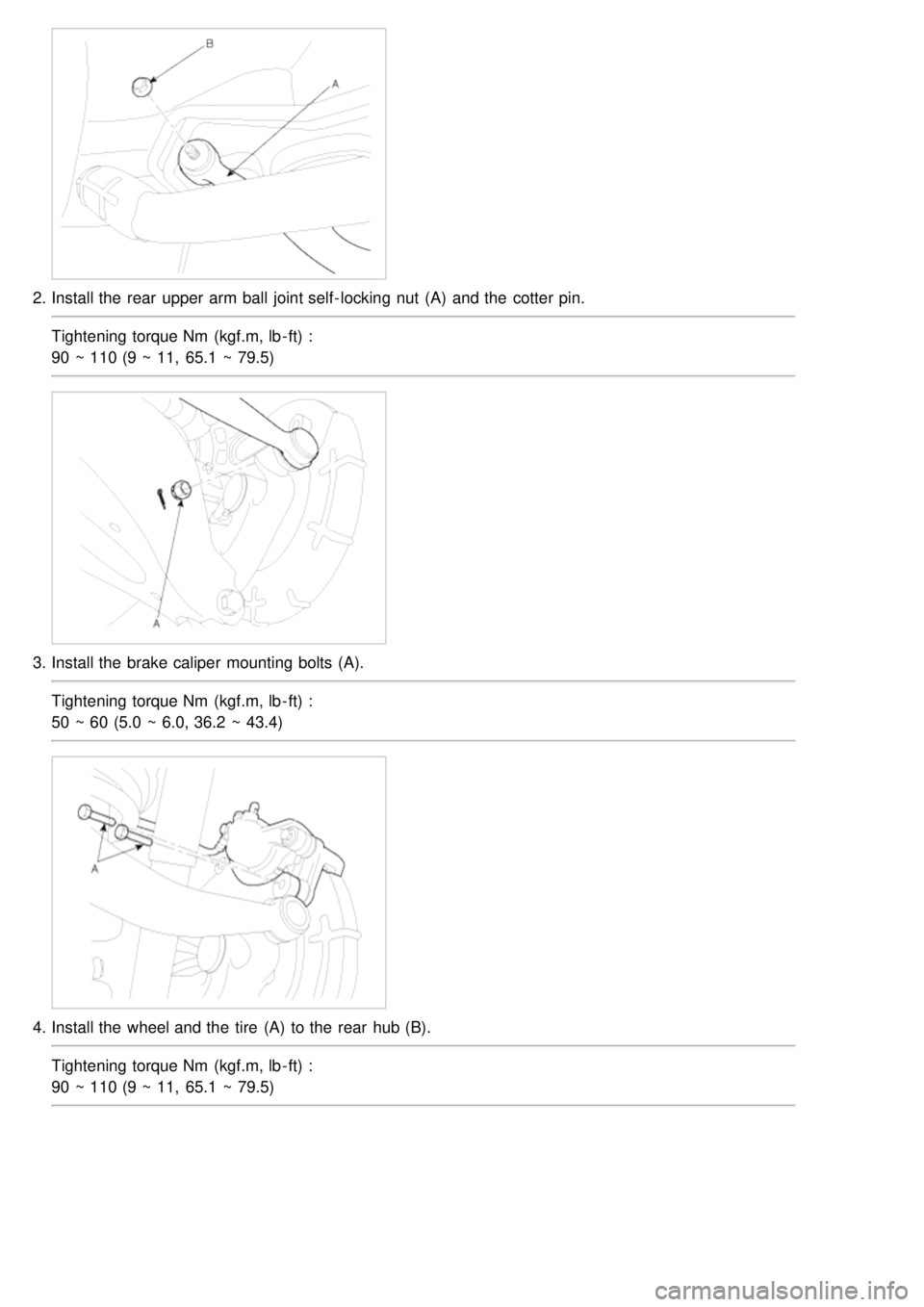

2.Install the rear upper arm ball joint self - locking nut (A) and the cotter pin.
Tightening torque Nm (kgf.m, lb - ft) :
90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
3.Install the brake caliper mounting bolts (A).
Tightening torque Nm (kgf.m, lb - ft) :
50 ~ 60 (5.0 ~ 6.0, 36.2 ~ 43.4)
4.Install the wheel and the tire (A) to the rear hub (B).
Tightening torque Nm (kgf.m, lb - ft) :
90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
Page 542 of 1575

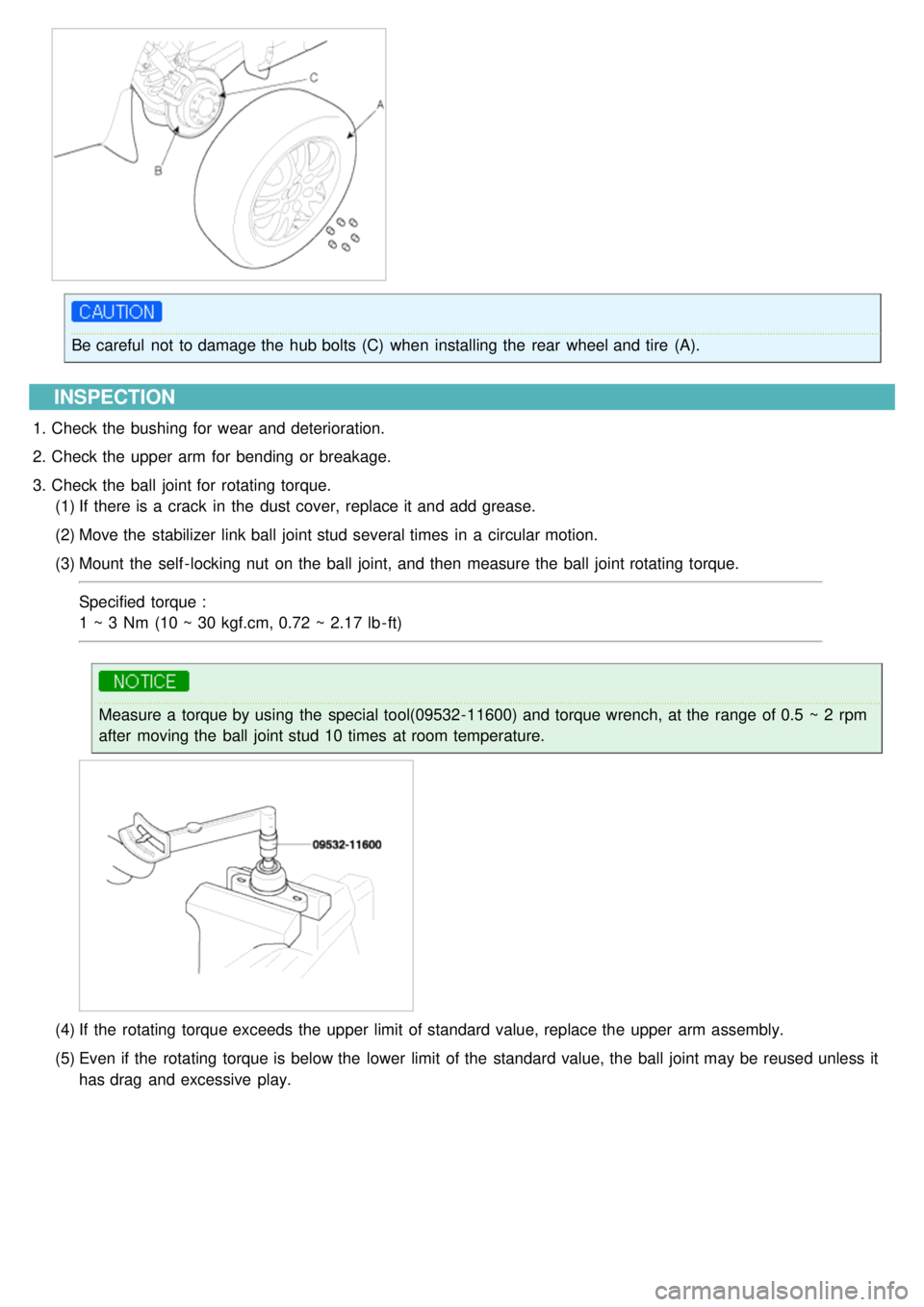

Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
INSPECTION
1.Check the bushing for wear and deterioration.
2. Check the upper arm for bending or breakage.
3. Check the ball joint for rotating torque.
(1) If there is a crack in the dust cover, replace it and add grease.
(2) Move the stabilizer link ball joint stud several times in a circular motion.
(3) Mount the self - locking nut on the ball joint, and then measure the ball joint rotating torque.
Specified torque :
1 ~ 3 Nm (10 ~ 30 kgf.cm, 0.72 ~ 2.17 lb - ft)
Measure a torque by using the special tool(09532- 11600) and torque wrench, at the range of 0.5 ~ 2 rpm
after moving the ball joint stud 10 times at room temperature.
(4)If the rotating torque exceeds the upper limit of standard value, replace the upper arm assembly.
(5) Even if the rotating torque is below the lower limit of the standard value, the ball joint may be reused unless it
has drag and excessive play.
Page 543 of 1575
Page 544 of 1575
2007 > 2.7L V6 GASOLINE >

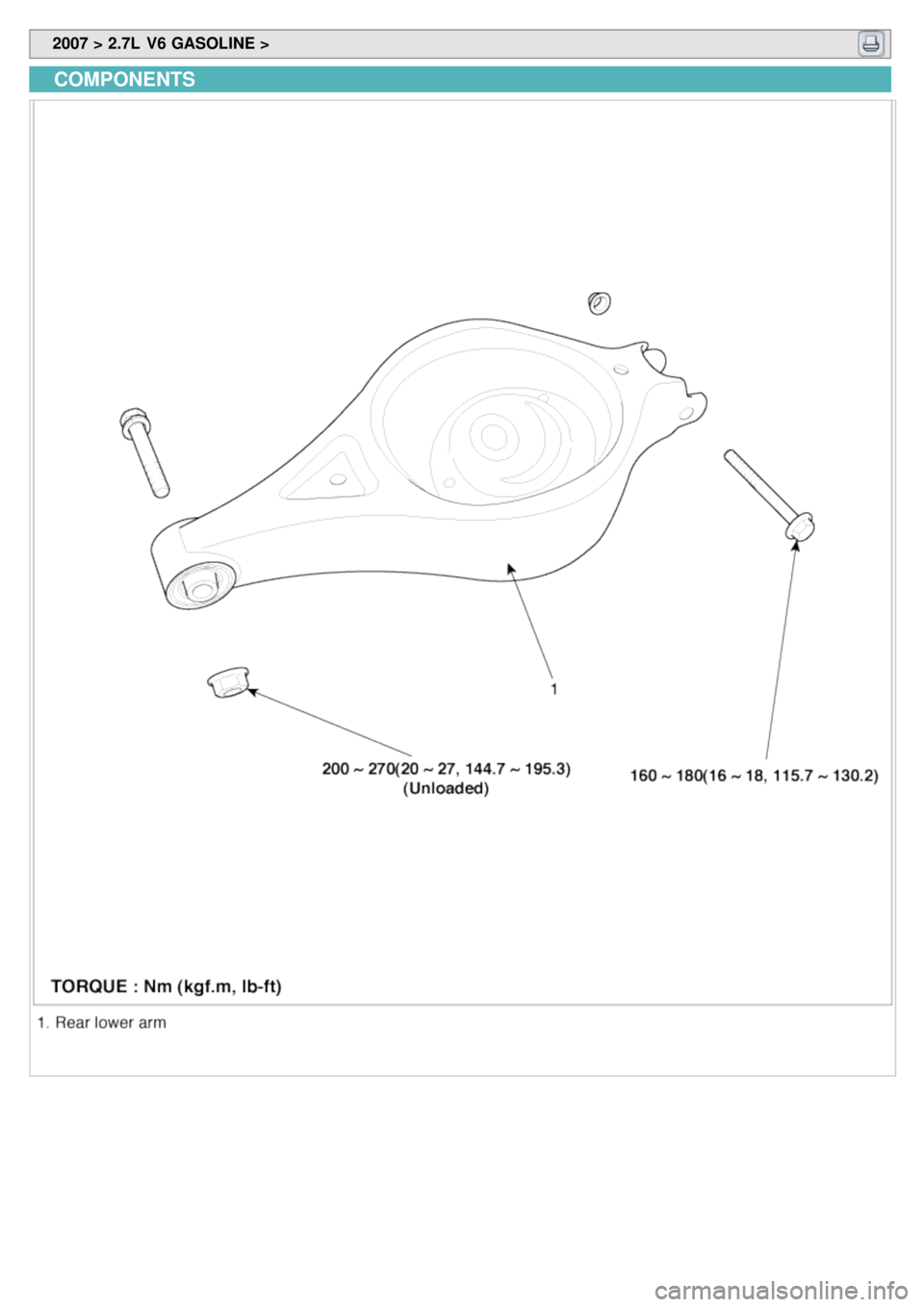

COMPONENTS
Page 545 of 1575
2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Loosen the wheel nuts slightly.
Raise the rear of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire (A) from rear hub (B).
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).
3. Remove the lower arm bolt (B) from the rear knuckle, while supporting the lower arm (A) with a jack as shown in
the illustration. Loosen the lower arm bolt (C) from the cross member.
4.Remove the spring (A), the lower seat, and the upper pad.
5.Remove the lower arm (A) mounting bolts (B) from the cross member (C).
Page 546 of 1575

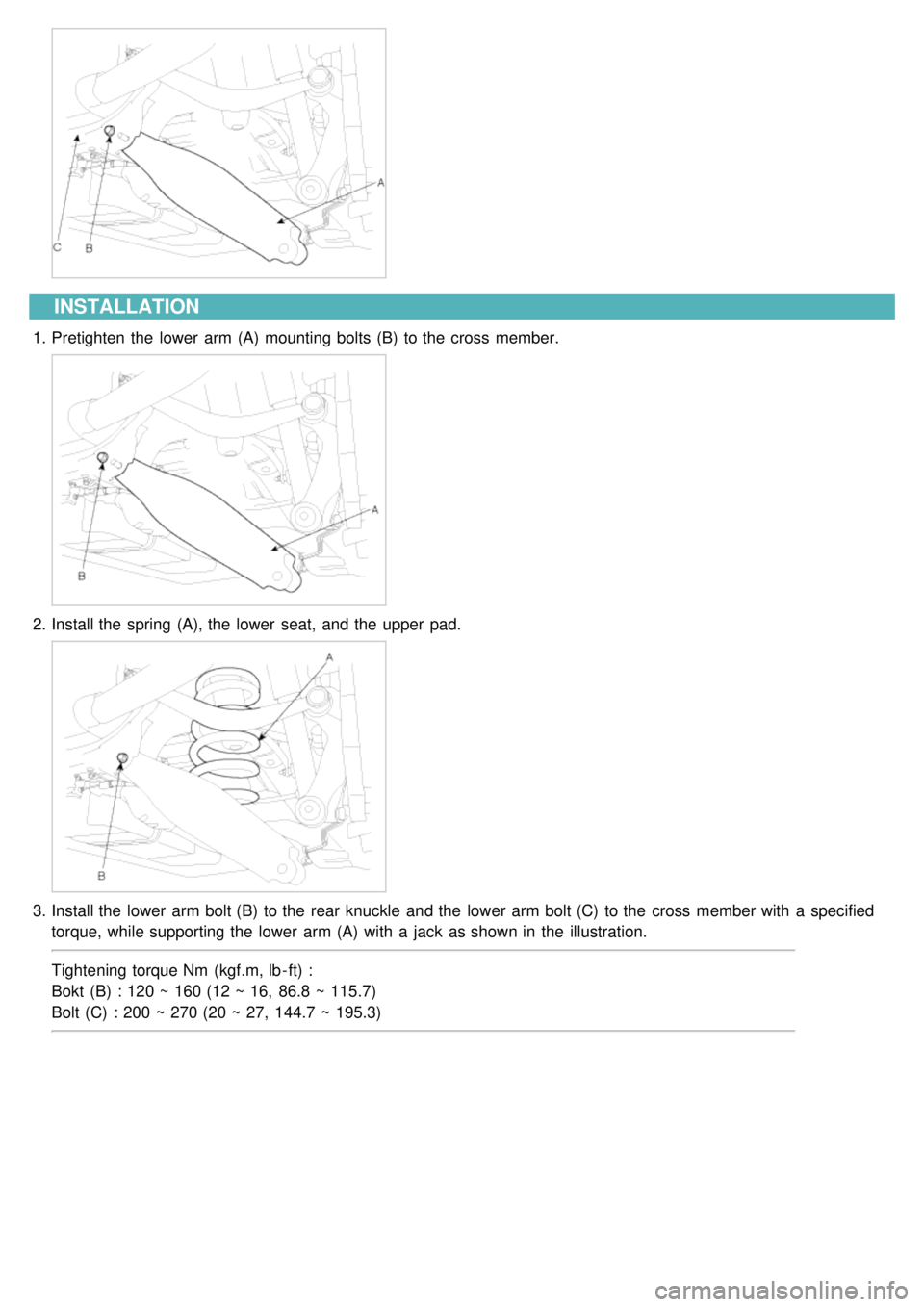

INSTALLATION
1.Pretighten the lower arm (A) mounting bolts (B) to the cross member.
2.Install the spring (A), the lower seat, and the upper pad.
3.Install the lower arm bolt (B) to the rear knuckle and the lower arm bolt (C) to the cross member with a specified
torque, while supporting the lower arm (A) with a jack as shown in the illustration.
Tightening torque Nm (kgf.m, lb - ft) :
Bokt (B) : 120 ~ 160 (12 ~ 16, 86.8 ~ 115.7)
Bolt (C) : 200 ~ 270 (20 ~ 27, 144.7 ~ 195.3)
Page 547 of 1575

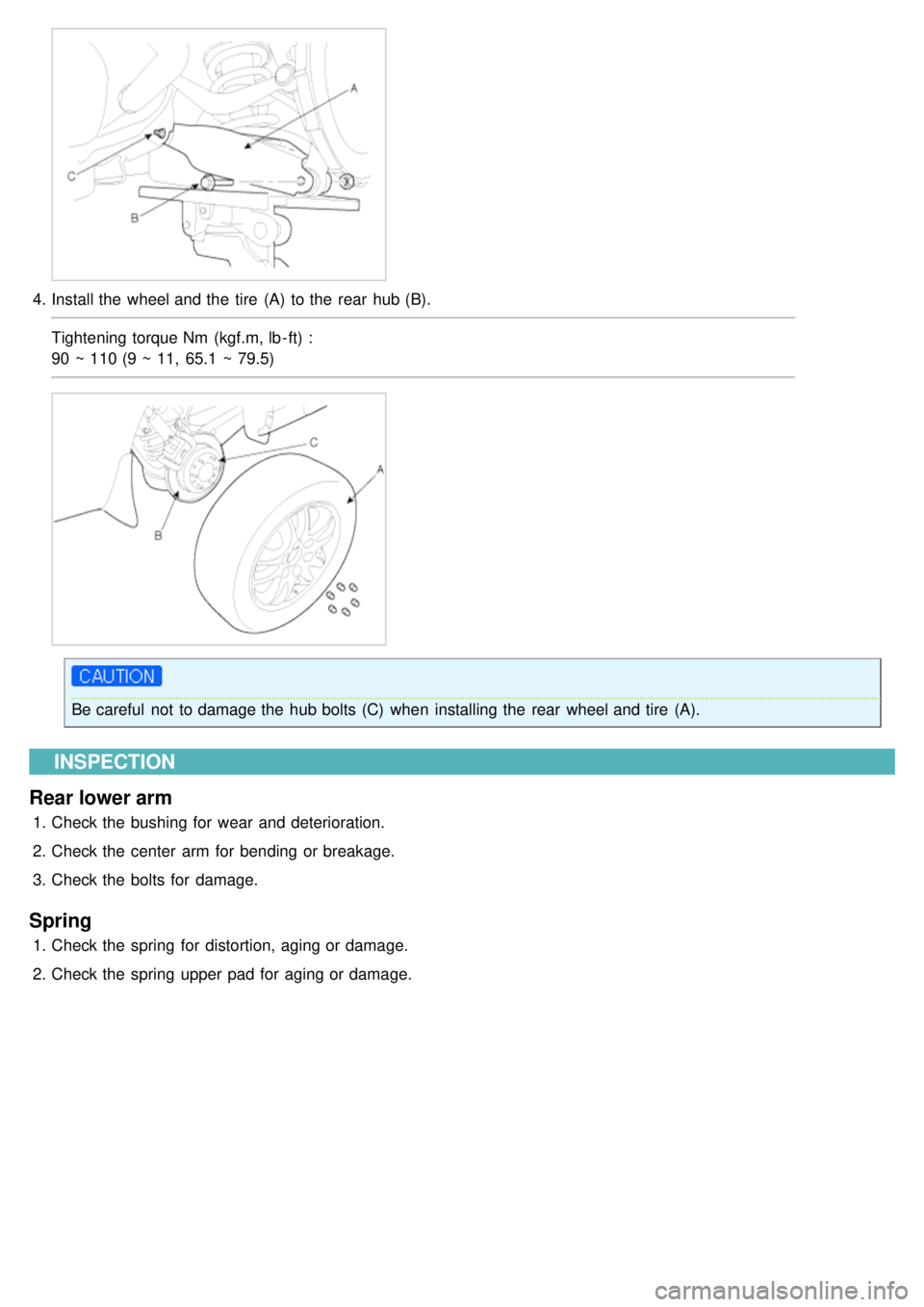

4.Install the wheel and the tire (A) to the rear hub (B).
Tightening torque Nm (kgf.m, lb - ft) :
90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
INSPECTION
Rear lower arm
1. Check the bushing for wear and deterioration.
2. Check the center arm for bending or breakage.
3. Check the bolts for damage.
Spring
1.Check the spring for distortion, aging or damage.
2. Check the spring upper pad for aging or damage.
Page 548 of 1575
Page 549 of 1575
2007 > 2.7L V6 GASOLINE >

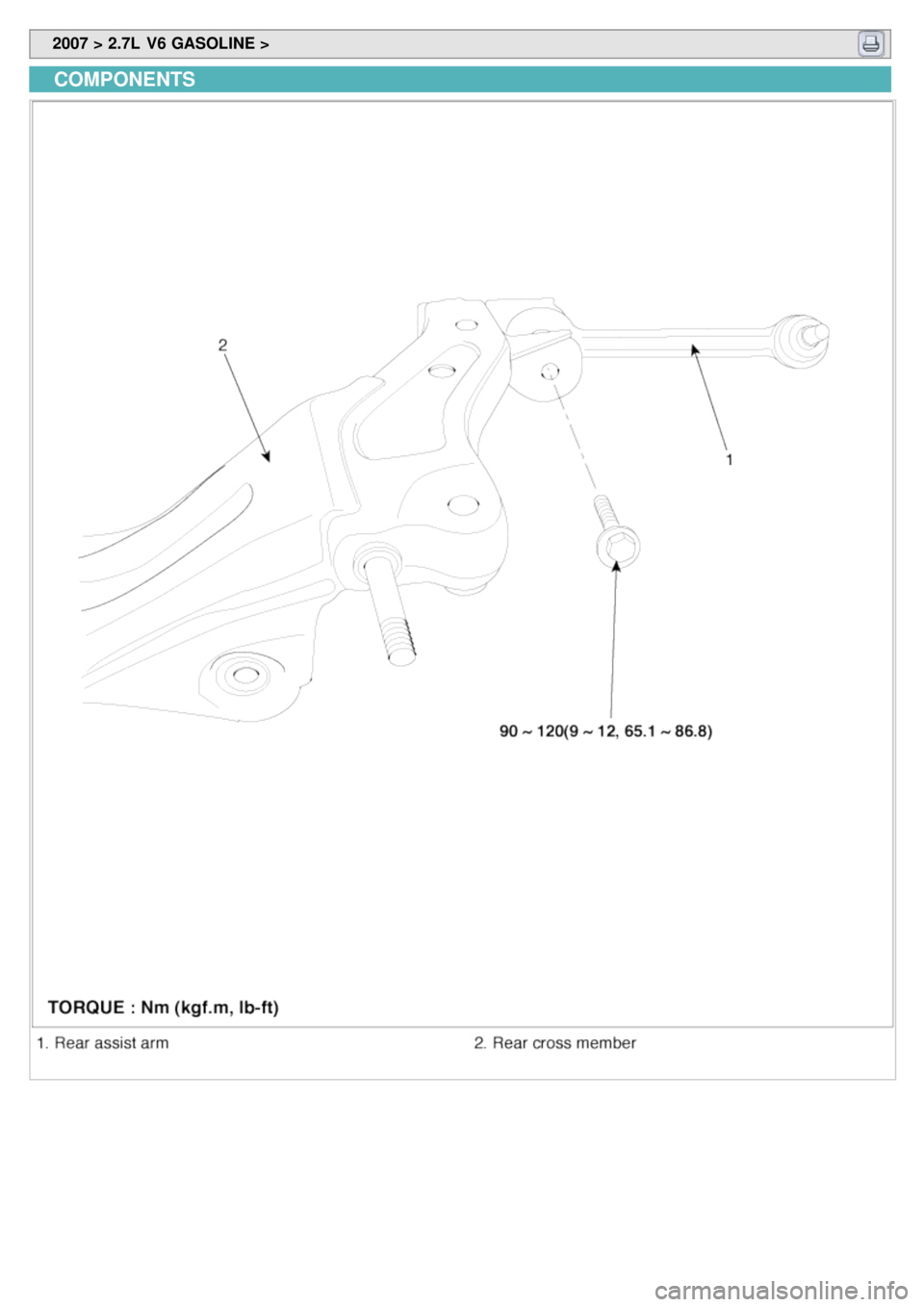

COMPONENTS
Page 550 of 1575
2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire (A) from rear hub (B).
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).
3. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as shown in
the illustration.
4.Remove the rear assist arm (A) ball joint self - locking nut (B) and the cotter pin.
