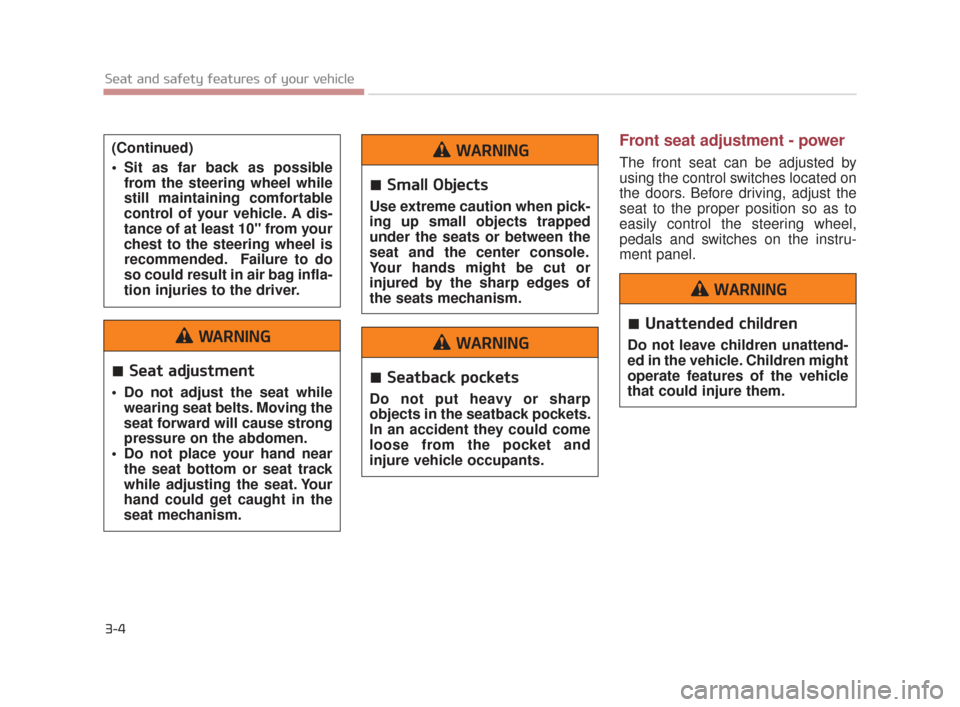

Front seat adjustment - power
The front seat can be adjusted by
using the control switches located on
the doors. Before driving, adjust the
seat to the proper position so as to
easily control the steering wheel,
pedals and switches on the instru-
ment panel.
3-4
Seat and safety features of your vehicle
(Continued)
Sit as far back as possiblefrom the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so could result in air bag infla-
tion injuries to the driver.
Seat adjustment
Do not adjust the seat whilewearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNINGUnattended children
Do not leave children unattend-
ed in the vehicle. Children might
operate features of the vehicle
that could injure them.
WARNING
Small Objects
Use extreme caution when pick-
ing up small objects trapped
under the seats or between the
seat and the center console.
Your hands might be cut or
injured by the sharp edges of
the seats mechanism.
WARNING
Seatback pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:06 AM Page 4
Page 22 of 522

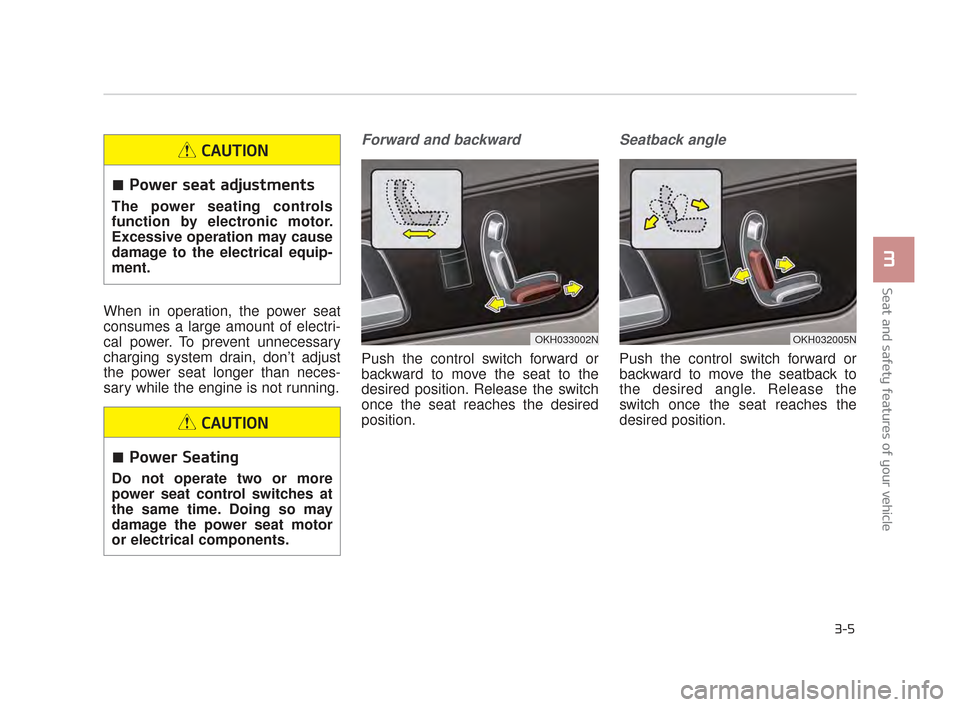

When in operation, the power seat
consumes a large amount of electri-
cal power. To prevent unnecessary
charging system drain, don’t adjust
the power seat longer than neces-
sary while the engine is not running.
Forward and backward
Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
Seatback angle
Push the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches the
desired position.
Seat and safety features of your vehicle
3
3-5
OKH033002NOKH032005N
Power seat adjustments
The power seating controls
function by electronic motor.
Excessive operation may cause
damage to the electrical equip-
ment.
CAUTION
Power Seating
Do not operate two or more
power seat control switches at
the same time. Doing so may
damage the power seat motor
or electrical components.
CAUTION
KH CAN (ENG) 3:2015 3/26/2015 6:06 AM Page 5
Page 23 of 522

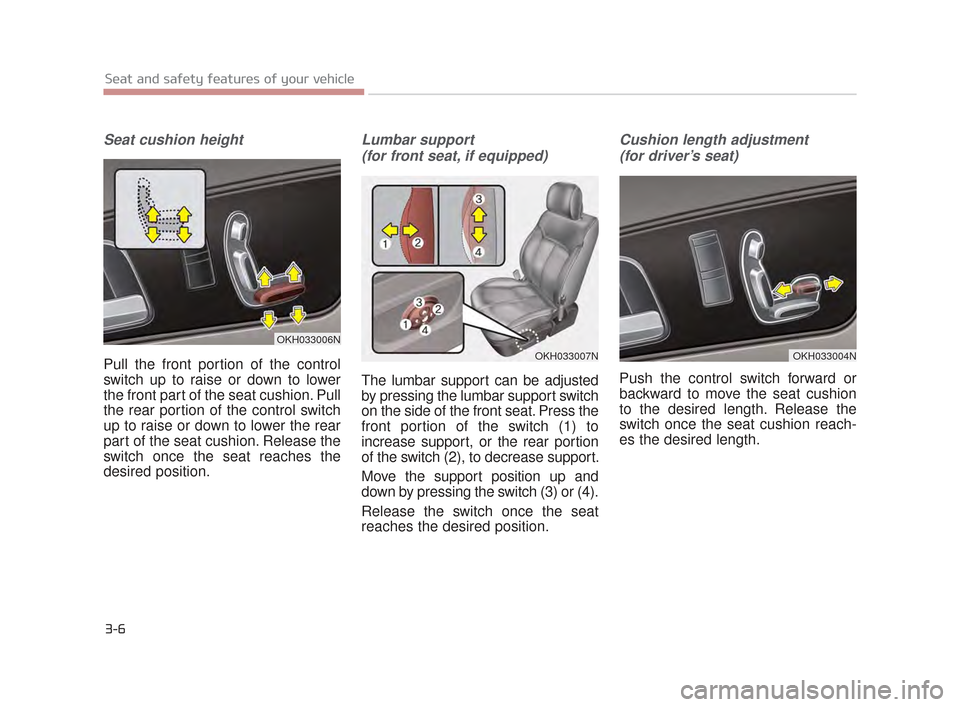

Seat cushion height
Pull the front portion of the control
switch up to raise or down to lower
the front part of the seat cushion. Pull
the rear portion of the control switch
up to raise or down to lower the rear
part of the seat cushion. Release the
switch once the seat reaches the
desired position.
Lumbar support (for front seat, if equipped)
The lumbar support can be adjusted
by pressing the lumbar support switch
on the side of the front seat. Press the
front portion of the switch (1) to
increase support, or the rear portion
of the switch (2), to decrease support.
Move the support position up and
down by pressing the switch (3) or (4).
Release the switch once the seat
reaches the desired position.
Cushion length adjustment (for driver’s seat)
Push the control switch forward or
backward to move the seat cushion
to the desired length. Release the
switch once the seat cushion reach-
es the desired length.
3-6
Seat and safety features of your vehicle
OKH033006N
OKH033007NOKH033004N
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 6
Page 24 of 522

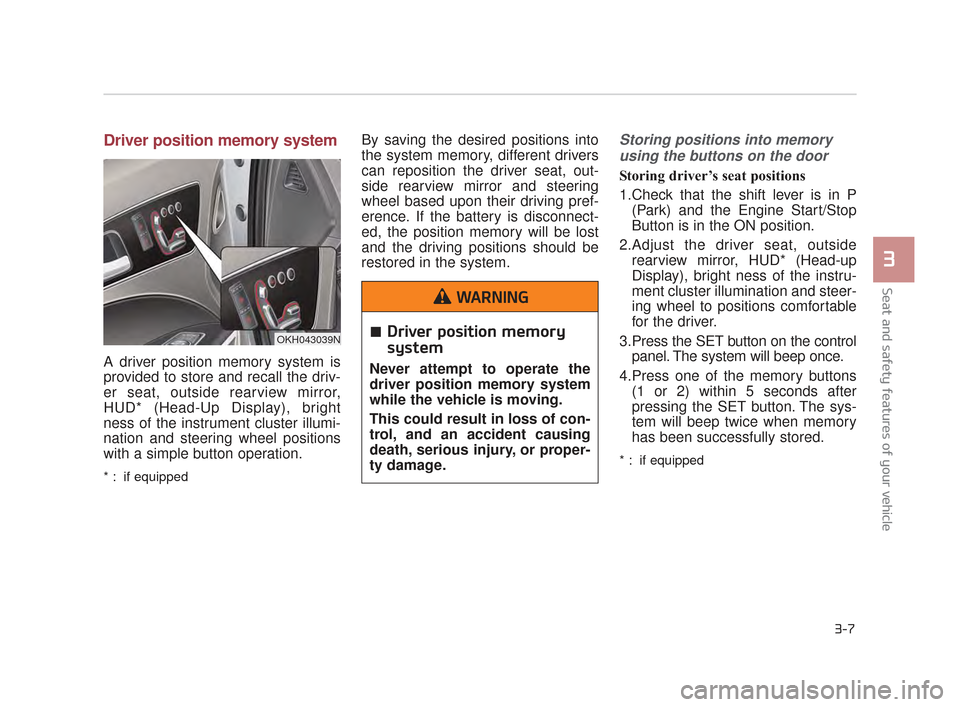

Driver position memory system
A driver position memory system is
provided to store and recall the driv-
er seat, outside rearview mirror,
HUD* (Head-Up Display), bright
ness of the instrument cluster illumi-
nation and steering wheel positions
with a simple button operation.
* : if equipped
By saving the desired positions into
the system memory, different drivers
can reposition the driver seat, out-
side rearview mirror and steering
wheel based upon their driving pref-
erence. If the battery is disconnect-
ed, the position memory will be lost
and the driving positions should be
restored in the system.Storing positions into memoryusing the buttons on the door
Storing driver’s seat positions
1.Check that the shift lever is in P (Park) and the Engine Start/Stop
Button is in the ON position.
2.Adjust the driver seat, outside rearview mirror, HUD* (Head-up
Display), bright ness of the instru-
ment cluster illumination and steer-
ing wheel to positions comfortable
for the driver.
3.Press the SET button on the control panel. The system will beep once.
4.Press one of the memory buttons (1 or 2) within 5 seconds after
pressing the SET button. The sys-
tem will beep twice when memory
has been successfully stored.
* : if equipped
OKH043039N
Seat and safety features of your vehicle
3
3-7
Driver position memory
system
Never attempt to operate the
driver position memory system
while the vehicle is moving.
This could result in loss of con-
trol, and an accident causing
death, serious injury, or proper-
ty damage.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 7
Page 25 of 522
3-8
Seat and safety features of your vehicle

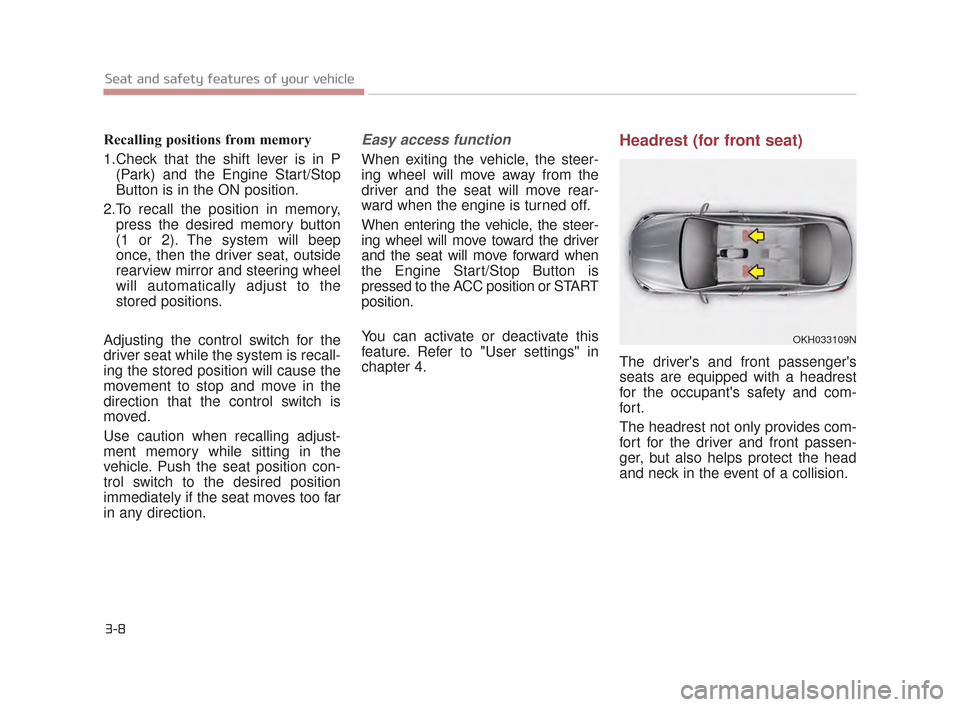

Recalling positions from memory
1.Check that the shift lever is in P(Park) and the Engine Start/Stop
Button is in the ON position.
2.To recall the position in memory, press the desired memory button
(1 or 2). The system will beep
once, then the driver seat, outside
rearview mirror and steering wheel
will automatically adjust to the
stored positions.
Adjusting the control switch for the
driver seat while the system is recall-
ing the stored position will cause the
movement to stop and move in the
direction that the control switch is
moved.
Use caution when recalling adjust-
ment memory while sitting in the
vehicle. Push the seat position con-
trol switch to the desired position
immediately if the seat moves too far
in any direction.Easy access function
When exiting the vehicle, the steer-
ing wheel will move away from the
driver and the seat will move rear-
ward when the engine is turned off.
When entering the vehicle, the steer-
ing wheel will move toward the driver
and the seat will move forward when
the Engine Start/Stop Button is
pressed to the ACC position or START
position.
You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.
Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and com-
for t.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps protect the head
and neck in the event of a collision.
OKH033109N
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 8
Page 26 of 522
Seat and safety features of your vehicle
3
3-9

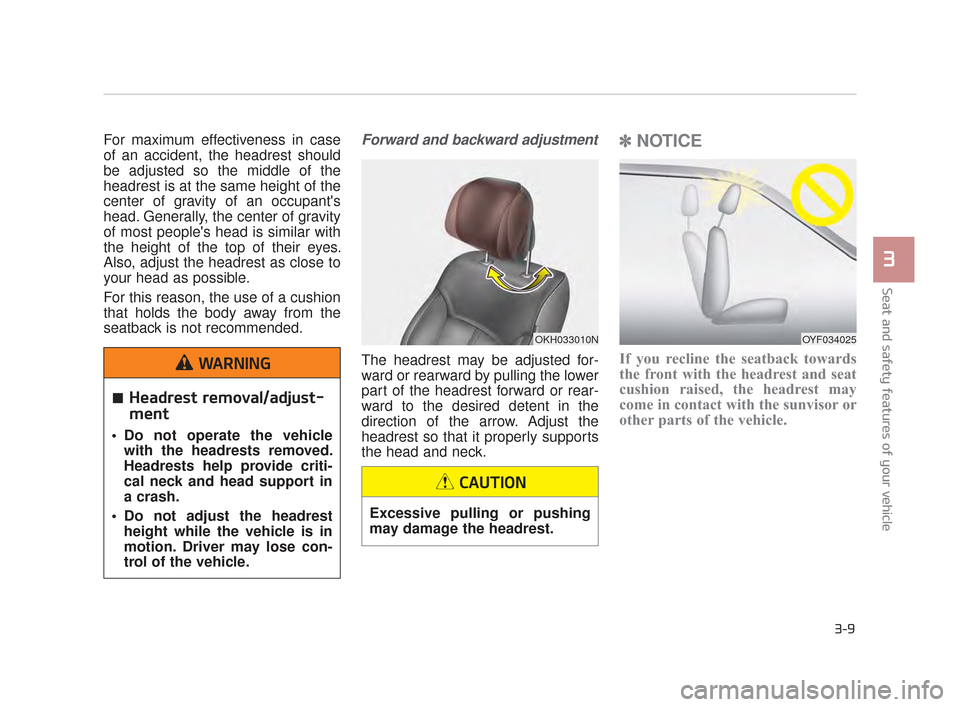

For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.
Also, adjust the headrest as close to
your head as possible.
For this reason, the use of a cushion
that holds the body away from the
seatback is not recommended.Forward and backward adjustment
The headrest may be adjusted for-
ward or rearward by pulling the lower
part of the headrest forward or rear-
ward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
✽NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.
OKH033010N
Headrest removal/adjust-
ment
Do not operate the vehicle
with the headrests removed.
Headrests help provide criti-
cal neck and head support in
a crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
WARNING
Excessive pulling or pushing
may damage the headrest.
CAUTION
OYF034025
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 9
Page 27 of 522

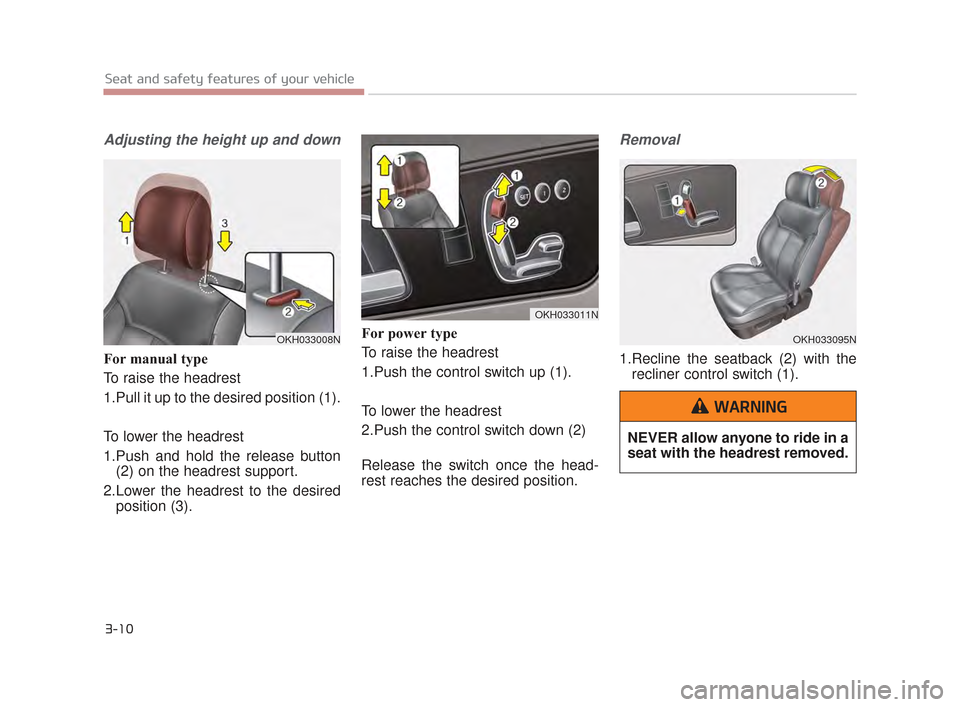

Adjusting the height up and down
For manual type
To raise the headrest
1.Pull it up to the desired position (1).
To lower the headrest
1.Push and hold the release button(2) on the headrest support.
2.Lower the headrest to the desired position (3). For power type
To raise the headrest
1.Push the control switch up (1).
To lower the headrest
2.Push the control switch down (2)
Release the switch once the head-
rest reaches the desired position.
Removal
1.Recline the seatback (2) with the
recliner control switch (1).
3-10
Seat and safety features of your vehicle
OKH033011N
OKH033095N
NEVER allow anyone to ride in a
seat with the headrest removed.
WARNING
OKH033008N
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 10
Page 28 of 522

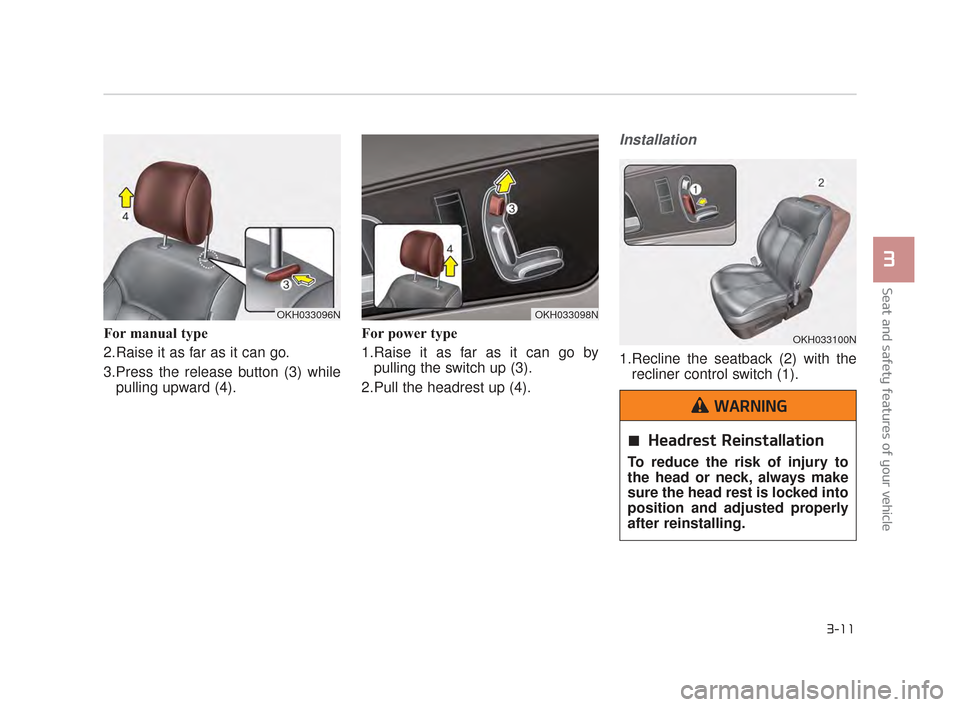

For manual type
2.Raise it as far as it can go.
3.Press the release button (3) whilepulling upward (4). For power type
1.Raise it as far as it can go by
pulling the switch up (3).
2.Pull the headrest up (4).
Installation
1.Recline the seatback (2) with the recliner control switch (1).
Seat and safety features of your vehicle
3
3-11
OKH033096NOKH033098N
OKH033100N
Headrest Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the head rest is locked into
position and adjusted properly
after reinstalling.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 11
Page 29 of 522

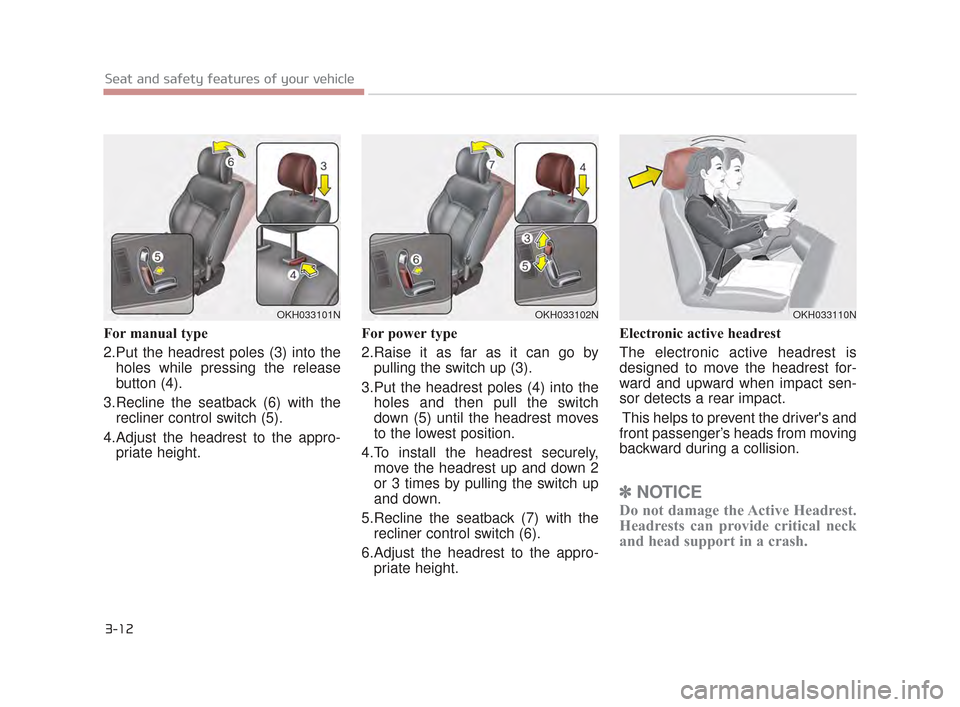

For manual type
2.Put the headrest poles (3) into theholes while pressing the release
button (4).
3.Recline the seatback (6) with the recliner control switch (5).
4.Adjust the headrest to the appro- priate height. For power type
2.Raise it as far as it can go by
pulling the switch up (3).
3.Put the headrest poles (4) into the holes and then pull the switch
down (5) until the headrest moves
to the lowest position.
4.To install the headrest securely, move the headrest up and down 2
or 3 times by pulling the switch up
and down.
5.Recline the seatback (7) with the recliner control switch (6).
6.Adjust the headrest to the appro- priate height. Electronic active headrest
The electronic active headrest is
designed to move the headrest for-
ward and upward when impact sen-
sor detects a rear impact.
This helps to prevent the driver's and
front passenger’s heads from moving
backward during a collision.
✽ NOTICE
Do not damage the Active Headrest.
Headrests can provide critical neck
and head support in a crash.
3-12
Seat and safety features of your vehicle
OKH033102NOKH033110NOKH033101N
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 12
Page 30 of 522
Rear seat adjustment
- for power seat (if equipped)
The rear seat can be adjusted by
using the control switches located on
the door.When in operation, the power seat
consumes a large amount of electri-
cal power. To prevent unnecessary
battery drain, don’t adjust the power
seat longer than necessary while the
engine is not running.
Seat and safety features of your vehicle
3
3-13
The power seat is operable with
the Engine Start/Stop Button in
OFF.
Therefore, children should never
be left unattended in the vehicle.
WARNING
Seat adjustment
Do not adjust the seat whilewearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat when adjusting the
seat. Your hand could get
caught in the seat mecha-
nism.
WARNING
Do not operate the rear power
seat while the child seat is
installed. Operation of the rear
power seats affect the proper
car seat installation and thereby
increase the risk of injury to the
child seat occupant.
WARNING
Power seat adjustments
The power seating controls
function by electronic motor.
Excessive operation may cause
damage to the electrical equip-
ment.
CAUTION
Power Seating
Do not operate two or more
power seat control switches at
the same time. Doing so may
damage the power seat motor
or electrical components.
CAUTION
KH CAN (ENG) 3:2015 3/26/2015 6:07 AM Page 13
