Features of your vehicle
4-22

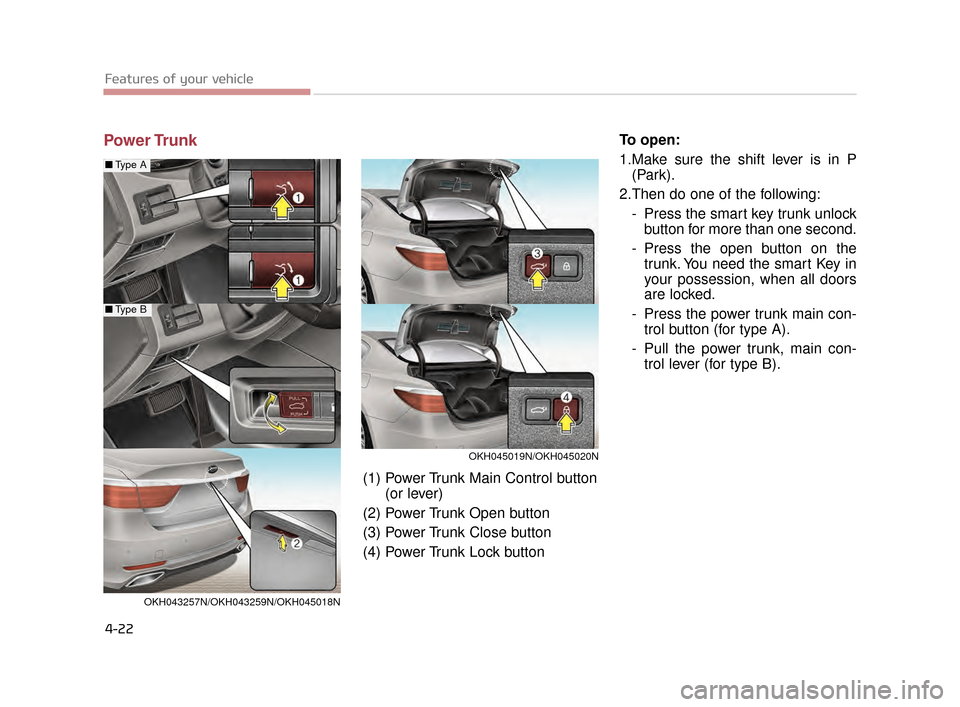

Power TrunkTo open:
1.Make sure the shift lever is in P(Park).
2.Then do one of the following: - Press the smart key trunk unlockbutton for more than one second.
- Press the open button on the trunk. You need the smart Key in
your possession, when all doors
are locked.
- Press the power trunk main con- trol button (for type A).
- Pull the power trunk, main con- trol lever (for type B).
OKH045019N/OKH045020N
■ Type A
■Type B
OKH043257N/OKH043259N/OKH045018N
(1) Power Trunk Main Control button
(or lever)
(2) Power Trunk Open button
(3) Power Trunk Close button
(4) Power Trunk Lock button
KH CAN (ENG) 4:2015 3/26/2015 10:36 AM Page 22

Features of your vehicle
4
4-23

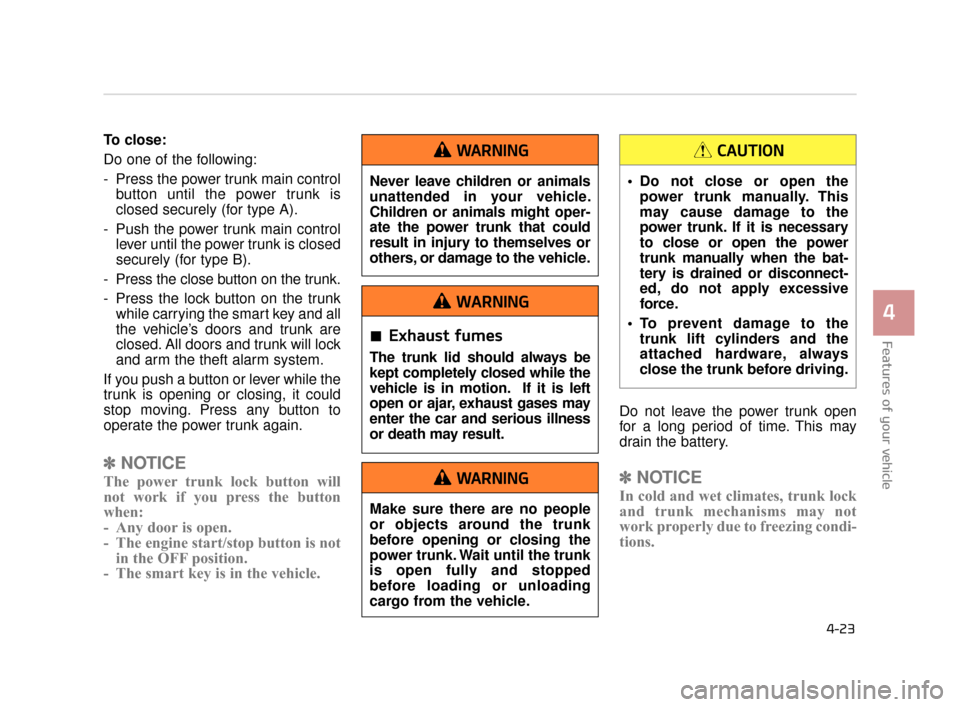

To close:
Do one of the following:
- Press the power trunk main controlbutton until the power trunk is
closed securely (for type A).
- Push the power trunk main control lever until the power trunk is closed
securely (for type B).
- Press the close button on the trunk.
- Press the lock button on the trunk while carrying the smart key and all
the vehicle’s doors and trunk are
closed. All doors and trunk will lock
and arm the theft alarm system.
If you push a button or lever while the
trunk is opening or closing, it could
stop moving. Press any button to
operate the power trunk again.
✽ NOTICE
The power trunk lock button will
not work if you press the button
when:
- Any door is open.
- The engine start/stop button is not
in the OFF position.
- The smart key is in the vehicle.
Do not leave the power trunk open
for a long period of time. This may
drain the battery.
✽ NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not
work properly due to freezing condi-
tions.
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power trunk that could
result in injury to themselves or
others, or damage to the vehicle.
WARNING
Make sure there are no people
or objects around the trunk
before opening or closing the
power trunk. Wait until the trunk
is open fully and stopped
before loading or unloading
cargo from the vehicle.
WARNING
Do not close or open the
power trunk manually. This
may cause damage to the
power trunk. If it is necessary
to close or open the power
trunk manually when the bat-
tery is drained or disconnect-
ed, do not apply excessive
force.
To prevent damage to the trunk lift cylinders and the
attached hardware, always
close the trunk before driving.
CAUTION
Exhaust fumes
The trunk lid should always be
kept completely closed while the
vehicle is in motion. If it is left
open or ajar, exhaust gases may
enter the car and serious illness
or death may result.
WARNING
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 23

Features of your vehicle
4-24

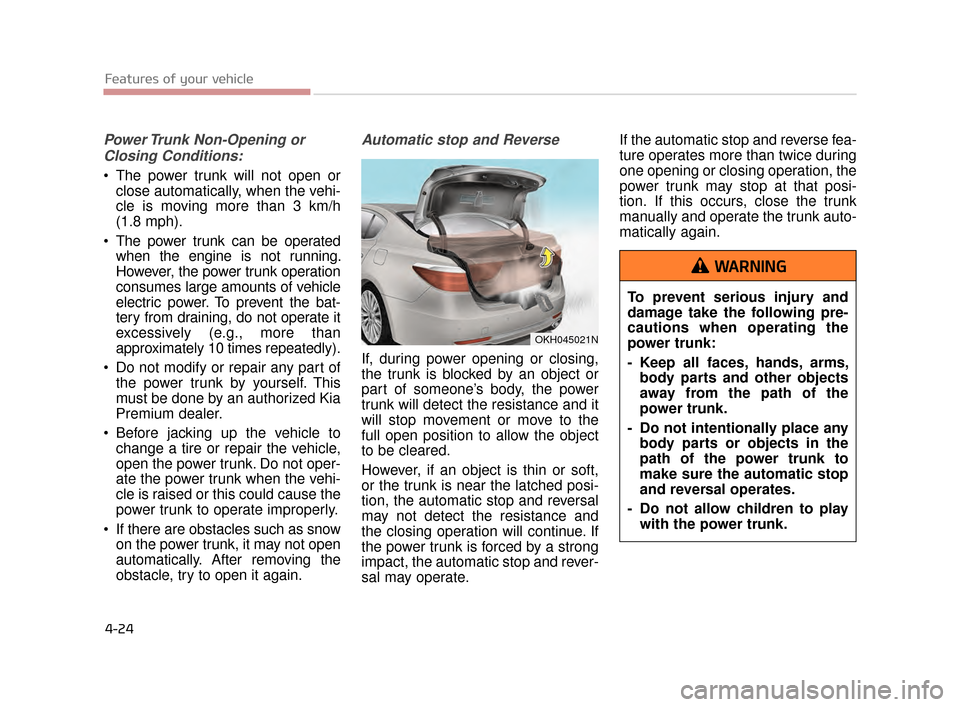

Power Trunk Non-Opening orClosing Conditions:
The power trunk will not open or close automatically, when the vehi-
cle is moving more than 3 km/h
(1.8 mph).
The power trunk can be operated when the engine is not running.
However, the power trunk operation
consumes large amounts of vehicle
electric power. To prevent the bat-
tery from draining, do not operate it
excessively (e.g., more than
approximately 10 times repeatedly).
Do not modify or repair any part of the power trunk by yourself. This
must be done by an authorized Kia
Premium dealer.
Before jacking up the vehicle to change a tire or repair the vehicle,
open the power trunk. Do not oper-
ate the power trunk when the vehi-
cle is raised or this could cause the
power trunk to operate improperly.
If there are obstacles such as snow on the power trunk, it may not open
automatically. After removing the
obstacle, try to open it again.
Automatic stop and Reverse
If, during power opening or closing,
the trunk is blocked by an object or
part of someone’s body, the power
trunk will detect the resistance and it
will stop movement or move to the
full open position to allow the object
to be cleared.
However, if an object is thin or soft,
or the trunk is near the latched posi-
tion, the automatic stop and reversal
may not detect the resistance and
the closing operation will continue. If
the power trunk is forced by a strong
impact, the automatic stop and rever-
sal may operate. If the automatic stop and reverse fea-
ture operates more than twice during
one opening or closing operation, the
power trunk may stop at that posi-
tion. If this occurs, close the trunk
manually and operate the trunk auto-
matically again.
To prevent serious injury and
damage take the following pre-
cautions when operating the
power trunk:
- Keep all faces, hands, arms,
body parts and other objects
away from the path of the
power trunk.
- Do not intentionally place any body parts or objects in the
path of the power trunk to
make sure the automatic stop
and reversal operates.
- Do not allow children to play with the power trunk.
WARNING
OKH045021N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 24

Features of your vehicle
4-26

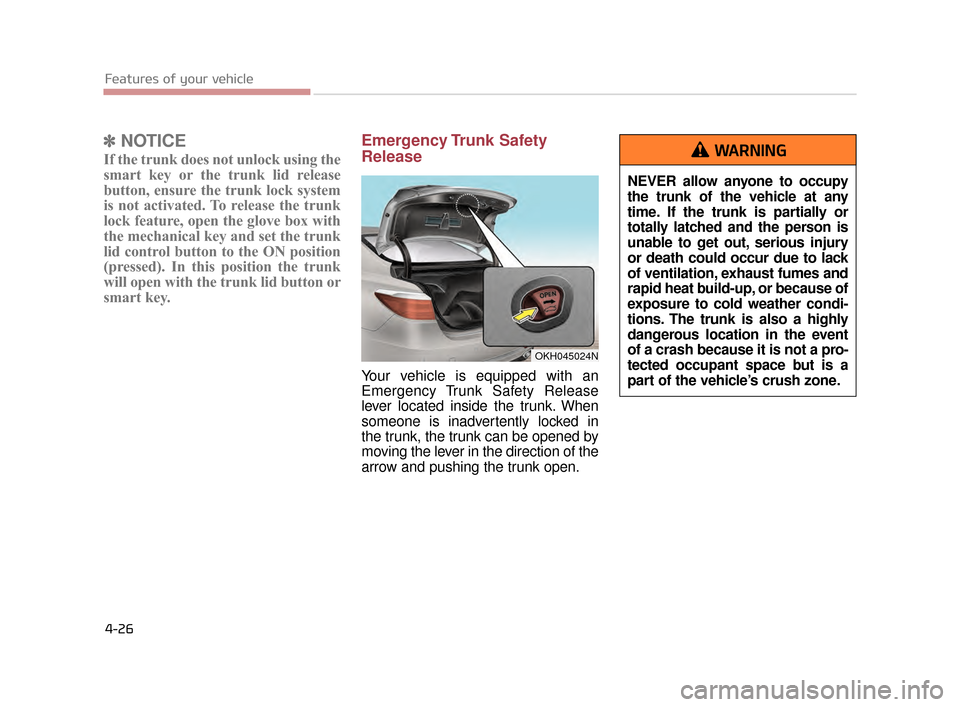

✽NOTICE
If the trunk does not unlock using the
smart key or the trunk lid release
button, ensure the trunk lock system
is not activated. To release the trunk
lock feature, open the glove box with
the mechanical key and set the trunk
lid control button to the ON position
(pressed). In this position the trunk
will open with the trunk lid button or
smart key.
Emergency Trunk Safety
Release
Your vehicle is equipped with an
Emergency Trunk Safety Release
lever located inside the trunk. When
someone is inadvertently locked in
the trunk, the trunk can be opened by
moving the lever in the direction of the
arrow and pushing the trunk open.
NEVER allow anyone to occupy
the trunk of the vehicle at any
time. If the trunk is partially or
totally latched and the person is
unable to get out, serious injury
or death could occur due to lack
of ventilation, exhaust fumes and
rapid heat build-up, or because of
exposure to cold weather condi-
tions. The trunk is also a highly
dangerous location in the event
of a crash because it is not a pro-
tected occupant space but is a
part of the vehicle’s crush zone.
WARNING
OKH045024N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 26

Features of your vehicle
4
4-27

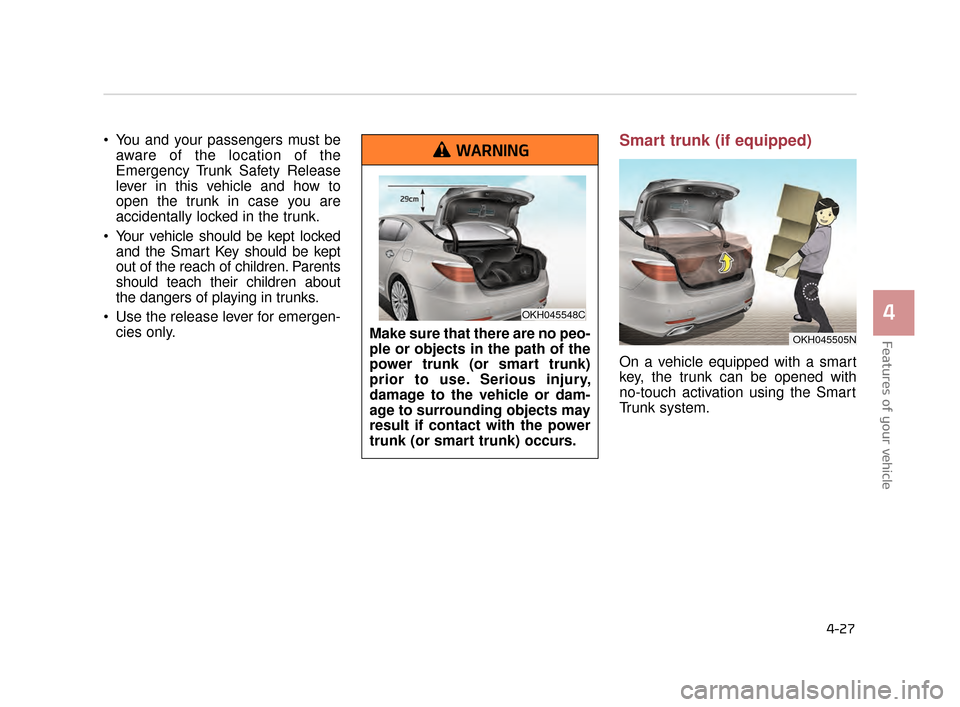

You and your passengers must beaware of the location of the
Emergency Trunk Safety Release
lever in this vehicle and how to
open the trunk in case you are
accidentally locked in the trunk.
Your vehicle should be kept locked and the Smart Key should be kept
out of the reach of children. Parents
should teach their children about
the dangers of playing in trunks.
Use the release lever for emergen- cies only.Smart trunk (if equipped)
On a vehicle equipped with a smart
key, the trunk can be opened with
no-touch activation using the Smart
Trunk system.
Make sure that there are no peo-
ple or objects in the path of the
power trunk (or smart trunk)
prior to use. Serious injury,
damage to the vehicle or dam-
age to surrounding objects may
result if contact with the power
trunk (or smart trunk) occurs.
WARNING
OKH045548C
OKH045505N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 27

How to use the Smart Trunk
The trunk can be opened with
notouch activation satisfying all the
conditions below.
After 15 seconds when all doorsare closed and locked
Positioned in the detecting area for more than 3 seconds.
✽ NOTICE
• The Smart Trunk does not operate
when:
- The smart key is detected within15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and within 60
inches (1.5 m) from the front
door handles. (for vehicles
equipped with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
1. Setting
To activate the Smart Trunk, go to
User Settings Mode and select
Smart Trunk on the LCD display.
For more details, refer to "LCD
Display" in this chapter. 2. Detect and Alert
If you are positioned in the detecting
area (50 ~100 cm (20~40 inches)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and chime will sound for about
3 seconds to alert you the smart key
has been detected and the trunk will
open.
✽
NOTICE
Do not approach the detecting area
if you do not want the trunk to open.
If you have unintentionally entered
the detecting area and the hazard
warning lights and chime starts to
operate, leave the detecting area
with the smart key. The trunk will
stay closed.
Features of your vehicle
4-28
OKH045574NOKH045506C
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 28

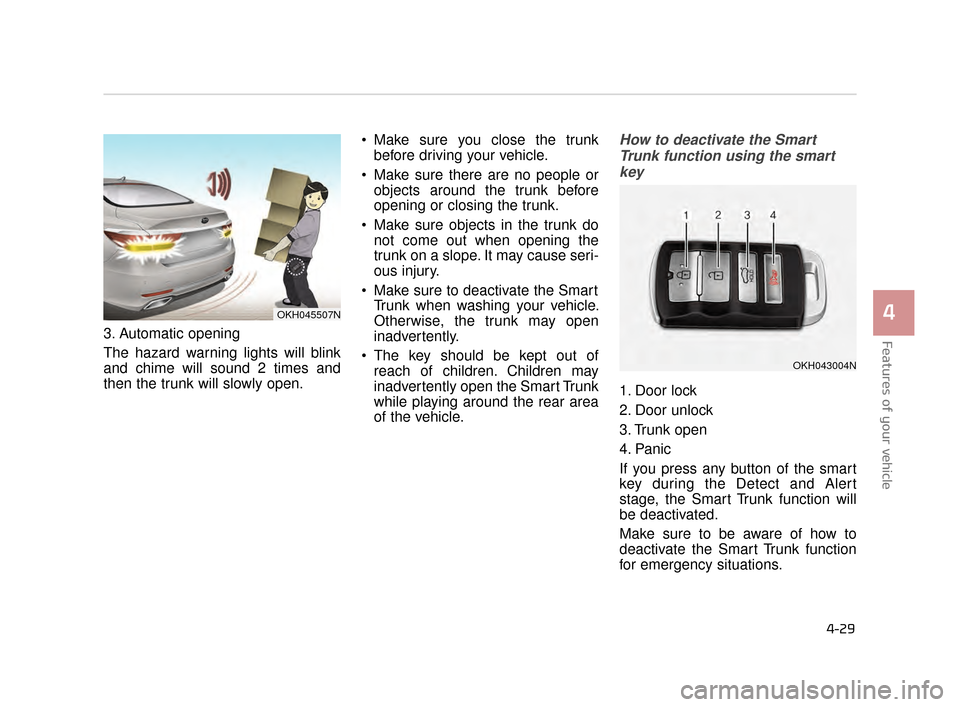

3. Automatic opening
The hazard warning lights will blink
and chime will sound 2 times and
then the trunk will slowly open. Make sure you close the trunk
before driving your vehicle.
Make sure there are no people or objects around the trunk before
opening or closing the trunk.
Make sure objects in the trunk do not come out when opening the
trunk on a slope. It may cause seri-
ous injury.
Make sure to deactivate the Smart Trunk when washing your vehicle.
Otherwise, the trunk may open
inadvertently.
The key should be kept out of reach of children. Children may
inadvertently open the Smart Trunk
while playing around the rear area
of the vehicle.
How to deactivate the Smart
Trunk function using the smartkey
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Trunk function
for emergency situations.
Features of your vehicle
4
4-29
OKH045507N
OKH043004N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 29

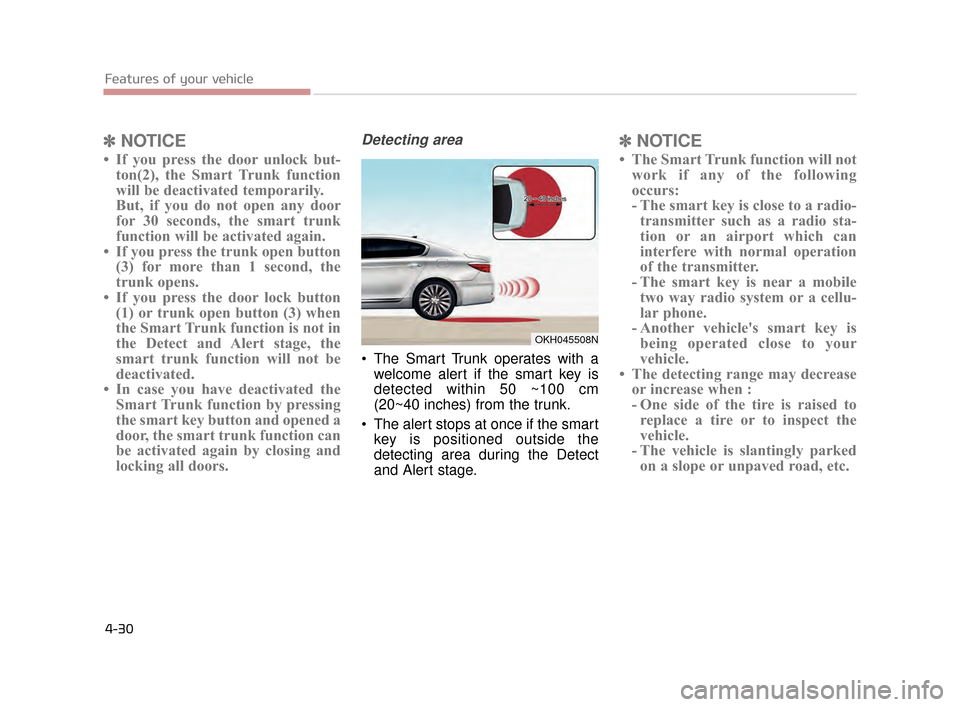

✽NOTICE
• If you press the door unlock but-
ton(2), the Smart Trunk function
will be deactivated temporarily.
But, if you do not open any door
for 30 seconds, the smart trunk
function will be activated again.
• If you press the trunk open button (3) for more than 1 second, the
trunk opens.
• If you press the door lock button (1) or trunk open button (3) when
the Smart Trunk function is not in
the Detect and Alert stage, the
smart trunk function will not be
deactivated.
• In case you have deactivated the Smart Trunk function by pressing
the smart key button and opened a
door, the smart trunk function can
be activated again by closing and
locking all doors.
Detecting area
The Smart Trunk operates with a
welcome alert if the smart key is
detected within 50 ~100 cm
(20~40 inches) from the trunk.
The alert stops at once if the smart key is positioned outside the
detecting area during the Detect
and Alert stage.
✽ NOTICE
• The Smart Trunk function will not
work if any of the following
occurs:
- The smart key is close to a radio-transmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the transmitter.
- The smart key is near a mobile two way radio system or a cellu-
lar phone.
- Another vehicle's smart key is being operated close to your
vehicle.
• The detecting range may decrease or increase when :
- One side of the tire is raised toreplace a tire or to inspect the
vehicle.
- The vehicle is slantingly parked on a slope or unpaved road, etc.
Features of your vehicle
4-30
OKH045508N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 30

Features of your vehicle
4
4-31

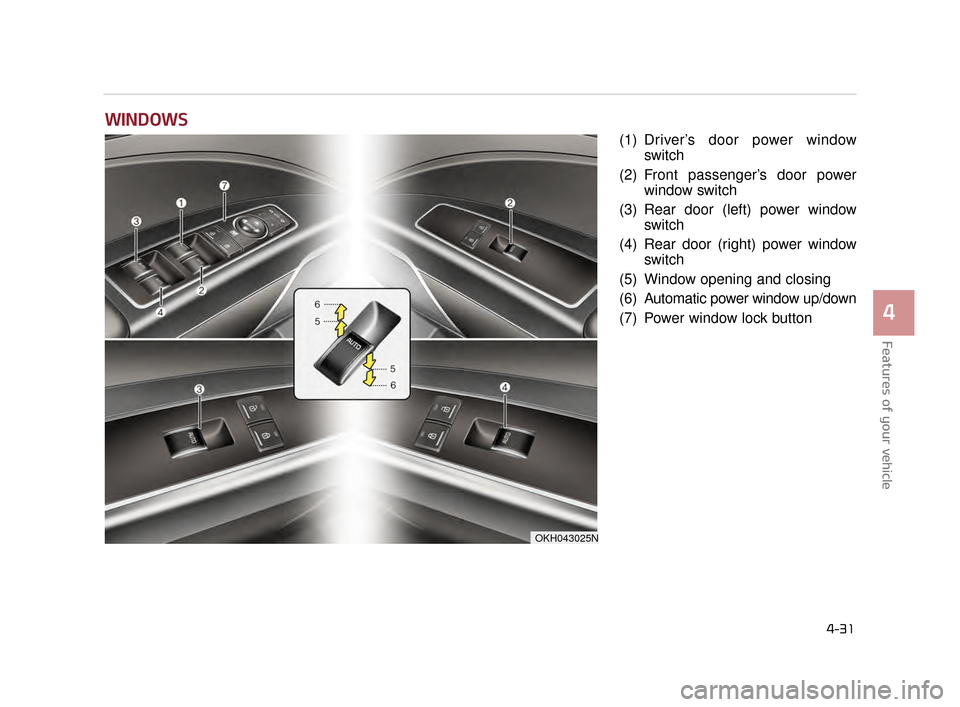

(1) Driver’s door power windowswitch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock button
WINDOWS
OKH043025N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 31

Features of your vehicle
4-32
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
Power windows
The Engine Start/ Stop button must
be in the ON position for power win-
dows to operate. Each door has a
power window switch that controls
the door’s window. The driver has a
power window lock switch which can
block the operation of rear passen-
ger windows.
The power windows can be operated
for approximately 30 seconds after
engine is turned off. However, if the
front doors are opened, the power
windows cannot be operated even
within the 30 second period.
✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
Pressing or pulling up the power win-
dow switch momentarily to the sec-
ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press and release the switch to the
opposite direction of the movement.
If the power window is not operated
correctly, the automatic power win-
dow system must be reset as follows:
OKH043026N
KH CAN (ENG) 4:2015 3/26/2015 10:37 AM Page 32
