Maintenance
62
7
Fuse NameFuse ratingCircuit Protected
MULTI MEDIA215AAudio/Video & Navigation Head Unit
MULTI MEDIA130AFuse - MULTI MEDIA2, MULTI MEDIA4, MULTI MEDIA3
AIR BAG115ASRS (Supplemental Restraint System) Control Module
INTERIOR LAMP10AOverhead Console Lamp, Room Lamp, Glove Box Lamp, Front Foot Lamp Left Handle side/Right Handle
side, Luggage Lamp Left Handle side/Right Handle side, Driver/Passenger Door Foot Lamp, Rear Door
Foot Lamp Left Handle side/Right Handle side, Driver/Passenger Seat Foot Lamp
BRAKE SWITCH10AIBU (Integrated Body Control Unit), Stop Lamp Switch
CLUSTER10AInstrument Cluster, Head-Up Display
AFS10A[Auto Dynamic] AFS (Adaptive Front Lighting System) Control Unit, Head Lamp Left Handle side/Right
Handle side
PRESAFETY
SEAT BELT10APre-Safe Seat Belt Control Unit
MULTI MEDIA410ARear Seat USB Jack, Instrument Cluster
MULTI MEDIA310ADIS (Driver Information System)
Instrument panel (Driver’s side fuse panel)

Maintenance
64
7
Fuse NameFuse ratingCircuit Protected
DRIVER POWER
SEAT225ADriver Power Seat Module, Driver Seat Relay Module, Driver Lumbar Support Unit
TRUNK LID10ATrunk Lid Relay, Fuel Lid Relay, Fuel Filler Door & Trunk Lid Switch
MODULE910AMultifunction Switch, Cooling Fan Controller (BLDC (Brushless Direct Current) Type), Surround View
Monitor Unit, Rear Seat Armrest Console Switch
MODULE610AIBU (Integrated Body Control Unit), 4WD (4 Wheel Drive) ECM (Electronic Control Module), ESC
(Electronic Stability Control) Unit, Lane Keeping Assist Unit (Line), Crash Pad Switch, Steering Tilt &
Telescopic Module
POWER HANDLE15ASteering Tilt & Telescopic Module
REAR LH POWER SEAT215ARear Seat Relay Module Left Handle side (8WAY)
PASSENGER
POWER SEAT225APassenger Power Seat Module, Passenger Seat Relay Module, Passenger Lumbar Support Unit
MODULE310AData Link Connector, Front Console Switch, Rain Sensor, Blind-Spot Collision Warning Unit Left Handle
side/Right Handle side, Rear Seat Armrest Console Switch, Rain Sensor
MODULE710A
Multipurpose Check Connector, Multifunction Switch, Keyboard, Audio/Video & Navigation Head Unit, MTS
(Mozen Telematics System) E-Call Module, Air Quality Sensor, AMP (Amplifier), Air Conditioner Control
Module, Electro Chromic Mirror, Front Air Conditioner Controller, Driver/Passenger Seat Relay Module,
Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module Left Handle side/Right
Handle side, Driver/Passenger Power Seat Module, Driver/Passenger CCS (Climate Control Seat) Module,
Rear Seat CCS (Climate Control Seat) Module Left Handle side/Right Han\
dle side, Rear Seat Armrest
Console Switch
SUNROOF20ASunroof Control Unit (Glass)

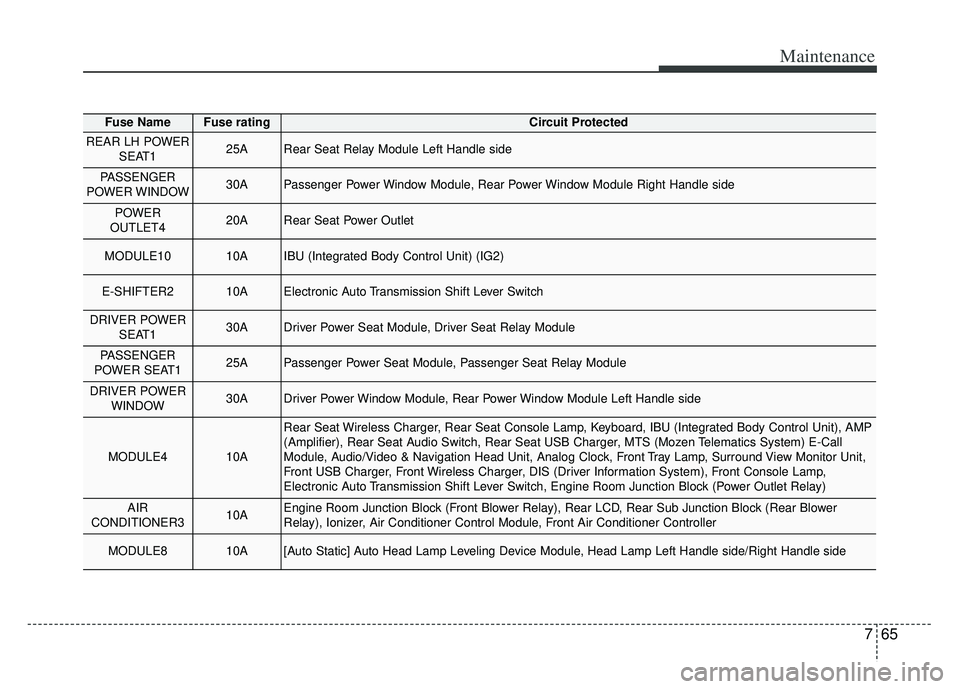

765
Maintenance
Fuse NameFuse ratingCircuit Protected
REAR LH POWERSEAT125ARear Seat Relay Module Left Handle side
PASSENGER
POWER WINDOW30APassenger Power Window Module, Rear Power Window Module Right Handle side
POWER
OUTLET420ARear Seat Power Outlet
MODULE1010AIBU (Integrated Body Control Unit) (IG2)
E-SHIFTER210AElectronic Auto Transmission Shift Lever Switch
DRIVER POWER SEAT130ADriver Power Seat Module, Driver Seat Relay Module
PASSENGER
POWER SEAT125APassenger Power Seat Module, Passenger Seat Relay Module
DRIVER POWER WINDOW30ADriver Power Window Module, Rear Power Window Module Left Handle side
MODULE410A
Rear Seat Wireless Charger, Rear Seat Console Lamp, Keyboard, IBU (Integrated Body Control Unit), AMP
(Amplifier), Rear Seat Audio Switch, Rear Seat USB Charger, MTS (Mozen Telematics System) E-Call
Module, Audio/Video & Navigation Head Unit, Analog Clock, Front Tray Lamp, Surround View Monitor Unit,
Front USB Charger, Front Wireless Charger, DIS (Driver Information System), Front Console Lamp,
Electronic Auto Transmission Shift Lever Switch, Engine Room Junction Block (Power Outlet Relay)
AIR
CONDITIONER310AEngine Room Junction Block (Front Blower Relay), Rear LCD, Rear Sub Junction Block (Rear Blower
Relay), Ionizer, Air Conditioner Control Module, Front Air Conditioner Controller
MODULE810A[Auto Static] Auto Head Lamp Leveling Device Module, Head Lamp Left Handle side/Right Handle side

Index
8I
Navigation-based Smart Cruise Control . . . . . . . . . . . 5-121System setting and operation . . . . . . . . . . . . . . . . . 5-121
Online factory authorized manuals (U.S. only) . . . . . . 8-16 Service manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16
Electrical troubleshooting manual . . . . . . . . . . . . . . 8-16
Owner's manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8 Owner maintenance schedule . . . . . . . . . . . . . . . . . . 7-8
Parking Distance Warning system . . . . . . . . . . . . . . . 4-106 Operation of the Parking Distance Warning system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
6
Non-operational conditions of parking distance warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110 Rear Cross-Traffic Collision Warning (RCCW) system/
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
149
System description . . . . . . . . . . . . . . . . . . . . . . . . . 5-149
System setting and activation . . . . . . . . . . . . . . . . . 5-150
Warning message and system control . . . . . . . . . . 5-151
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Recommended lubricants and capacities . . . . . . . . . . . . 8-7 Recommended SAE viscosity number. . . . . . . . . . . . 8-9
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Reporting safety defects (U.S. only) . . . . . . . . . . . . . . 8-16
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . 7-10
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 3-4 Driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Front passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
5
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-9
Front seat position memory system . . . . . . . . . . . . . 3-13
Headrest (For front seat) . . . . . . . . . . . . . . . . . . . . . 3-16
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-21
