KIA K900 2020 Owners Manual

555
Driving your vehicle
Prerequisite for activation
FCA system gets ready to be activat-
ed when FCA system is selected on
the LCD display, and when the fol-
lowing prerequisites are satisfied.
- The ESC (Electronic StabilityControl) is on.
- Vehicle speed is over 6 mph (10 km/h). (FCA system is only activat-
ed within a certain speed range.)
- The system detects a pedestrian, cyclist or a vehicle in front, which
may collide with your vehicle. (FCA
system may not be activated or
may sound a warning alarm in
accordance with the driving situa-
tion or vehicle condition. If you
select "Warning only", FCA system
activates and produces only warn-
ing alarms in accordance with the
collision risk levels.)
❈ FCA system may not operate prop-
erly according to the frontal situa-
tion, the direction of pedestrian or
cyclist and speed.
FCA warning message and
system control
FCA system produces warning mes-
sages, and warning alarms, in accor-
dance with the collision risk levels,
such as abrupt stopping of the vehi-
cle in front, insufficient braking dis-
tance, pedestrian or cyclist detec-
tion. Also, it controls the brakes in
accordance with the collision risk lev-
els.
The driver can select the initial warn-
ing activation time in the Settings in
the AVN. The options for the initial
Forward Collision Warning include
Normal or Late initial warning time.
WARNING
Completely stop the vehicle
on a safe location before
operating the switch on the
steering wheel to activate/
deactivate the FCA system.
FCA system automatically activates upon placing the
Engine Start/Stop button to
the ON position. The driver
can deactivate FCA system by
canceling the system setting
on the LCD display.
FCA system automatically deactivates upon canceling
the ESC (Electronic Stability
Control). When the ESC is
canceled, FCA system cannot
be activated on the LCD dis-
play. FCA system warning
light will illuminate which is
normal.

Driving your vehicle
56
5
Collision Warning (First warning)
This warning message appears on
the LCD display with a warning
chime. Additionally, the engine man-
agement system intervenes to help
decelerate the vehicle.
The Vehicle may slow down slightly.
It will operate if the vehicle speed is
greater than 5 mph (8 km/h) and
less than or equal to 110 mph (180
km/h) on a forward vehicle.
(Depending on the condition of the
vehicle ahead and the environment
surrounding it, the possible maxi-
mum operating speed may be
reduced.) For pedestrians and cyclists, the
vehicle speed is greater than or
equal to 5 mph (8 km/h) and less
than 40 mph (65 km/h).
(Depending on the condition of
pedestrians and bike riders and
the surrounding environment the
possible maximum operating
speed may be reduced.)
If you select “Warning only”, for FCA system setting, FCA system
activates and produces only warn-
ing alarms in accordance with the
collision risk levels. You should
control the brake directly because
FCA system will not control the
brake.
Emergency braking
(Second warning)
This warning message appears on
the LCD display with a warning
chime.
Additionally, the engine management
system intervenes to help decelerate
the vehicle.
The brake control is maximized just
before a collision, reducing impact
when it strikes a forward vehicle.
ORJ058163L
ORJ058162L

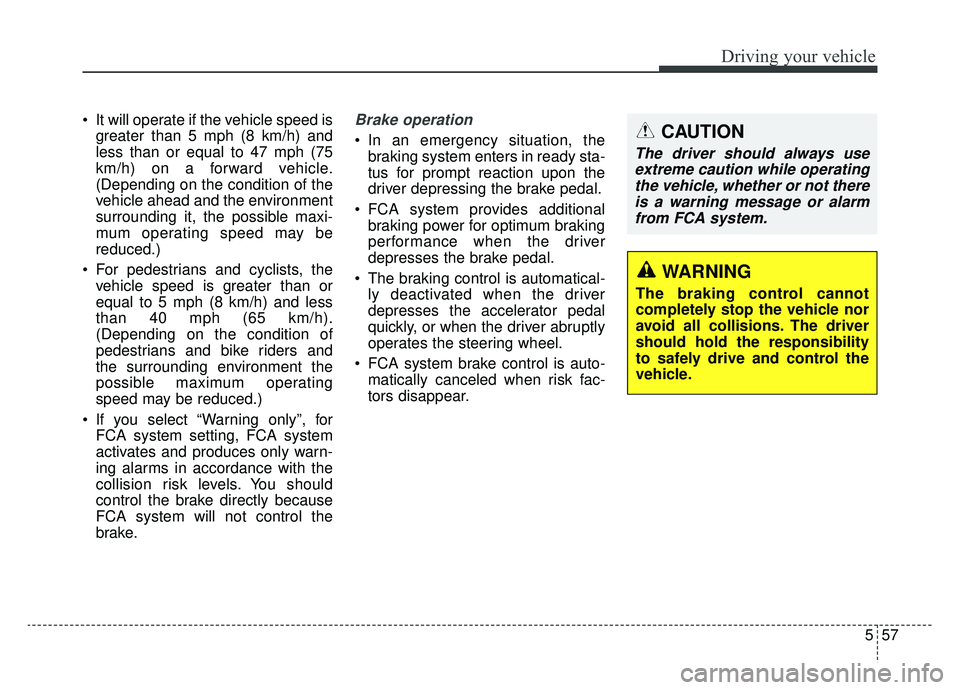

557
Driving your vehicle
It will operate if the vehicle speed isgreater than 5 mph (8 km/h) and
less than or equal to 47 mph (75
km/h) on a forward vehicle.
(Depending on the condition of the
vehicle ahead and the environment
surrounding it, the possible maxi-
mum operating speed may be
reduced.)
For pedestrians and cyclists, the vehicle speed is greater than or
equal to 5 mph (8 km/h) and less
than 40 mph (65 km/h).
(Depending on the condition of
pedestrians and bike riders and
the surrounding environment the
possible maximum operating
speed may be reduced.)
If you select “Warning only”, for FCA system setting, FCA system
activates and produces only warn-
ing alarms in accordance with the
collision risk levels. You should
control the brake directly because
FCA system will not control the
brake.Brake operation
In an emergency situation, thebraking system enters in ready sta-
tus for prompt reaction upon the
driver depressing the brake pedal.
FCA system provides additional braking power for optimum braking
performance when the driver
depresses the brake pedal.
The braking control is automatical- ly deactivated when the driver
depresses the accelerator pedal
quickly, or when the driver abruptly
operates the steering wheel.
FCA system brake control is auto- matically canceled when risk fac-
tors disappear.
WARNING
The braking control cannot
completely stop the vehicle nor
avoid all collisions. The driver
should hold the responsibility
to safely drive and control the
vehicle.
CAUTION
The driver should always useextreme caution while operatingthe vehicle, whether or not thereis a warning message or alarmfrom FCA system.

Driving your vehicle
58
5
FCA sensor
In order for FCA system to operate
properly, always make sure the sen-
sor cover or sensor is clean and free
of dirt, snow, and debris. Dirt, snow, or foreign substances
may adversely affect the sensing
performance of the sensor.
✽ ✽
NOTICE
• Do not apply license plate molding
or foreign objects such as a
bumper sticker or a bumper guard
near the radar sensor. Doing so
may adversely affect the sensing
performance of the radar.
• Always keep the radar sensor and cover clean and free of dirt and
debris.
• Use only a soft cloth to wash the vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
• Be careful not to apply unneces- sary force on the radar sensor or
sensor cover. If the sensor is
forcibly moved out of proper
alignment, FCA system may not
operate correctly. In this case, a
warning message may not be dis-
played. Have the vehicle inspected
by an authorized K900 Kia dealer. (Continued)
ORJ058023
ORJ058024
■ Front radar
■Front camera
WARNING
Never deliberately drive danger-
ously to activate the system.
WARNING
FCA system logic operates
within certain parameters, such
as the distance from the vehi-
cle, pedestrian or cyclist ahead,
the speed of the vehicle ahead,
and the driver's vehicle speed.
Certain conditions such as
inclement weather and road
conditions may affect the oper-
ation of FCA system.

559
Driving your vehicle
(Continued)
• If the front bumper becomes dam-aged in the area around the radar
sensor, FCA system may not oper-
ate properly. Have the system
checked by an authorized K900
Kia dealer.
• Use only genuine parts to repair or replace a damaged sensor or sen-
sor cover. Do not apply paint to
the sensor cover.
✽ ✽ NOTICE
• NEVER install any accessories or
stickers on the front windshield,
or tint the front windshield.
• NEVER place any reflective objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a malfunc-
tion of the system.
• Pay extreme caution to keep the camera out of water.
• NEVER disassemble the camera assembly, nor apply any impact on
the camera assembly.
• Playing the vehicle audio system at high volume may offset the sys-
tem warning sounds.
✽ ✽ NOTICE
We recommend that you have the
vehicle inspected by an authorized
K900 Kia dealer when :
• The windshield glass is replaced.
• The radar sensor or cover gets
damaged or replaced.
Warning message and warning
light
Forward Collision-Avoidance Assist
(FCA) system
Radar blocked
When the sensor cover is blocked
with dirt, snow, or debris, FCA sys-
tem operation may stop temporarily. If
this occurs, a warning message will
appear on the LCD display.
Remove any dirt, snow, or debris and
clean the radar sensor cover before
operating FCA system.
ORJ058164L

Driving your vehicle
60
5
The system will operate normally
when such dirt, snow or debris is
removed.
FCA system may not properly oper-
ate in an area (e.g. open terrain),
where any substances are not
detected after turning ON the engine.System malfunction
Check Forward Collision Avoidance
Assist system
When FCA system is not working
properly, FCA system warning light
( ) will illuminate and the warn-
ing message will appear for a few
seconds. After the message disap-
pears, the master warning light
( ) will illuminate. If this occurs,
we recommend that you have the
vehicle inspected by an authorized
K900 Kia dealer.
FCA system warning message may appear along with the illumi-
nation of the ESC (Electronic
Stability Control) warning light.
ORJ058165L
WARNING
FCA is only a supplementalsystem for the driver's con-
venience. The driver should
hold the responsibility to con-
trol the vehicle operation. Do
not solely depend on FCA
system. Rather, maintain a
safe braking distance, and, if
necessary, depress the brake
pedal to reduce the driving
speed.
In certain instances and under certain driving condi-
tions, FCA system may acti-
vate unintentionally. This ini-
tial warning message appears
on the LCD display with a
warning chime.
Also, in certain instances the
front radar sensor or camera
recognition system may not
detect the vehicle, pedestrian
or cyclist ahead. FCA system
may not activate and the
warning message may not be
displayed.
(Continued)
WARNING
FCA System may not activate
according to the road condi-
tions, inclement weather, driv-
ing conditions or traffic condi-
tions.

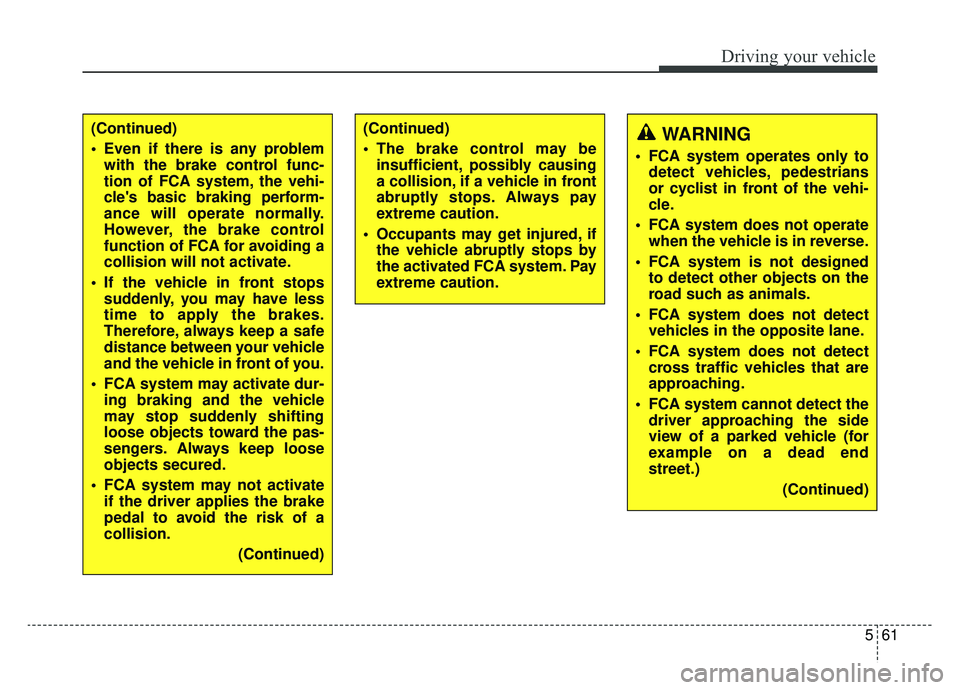

561
Driving your vehicle
(Continued)
Even if there is any problemwith the brake control func-
tion of FCA system, the vehi-
cle's basic braking perform-
ance will operate normally.
However, the brake control
function of FCA for avoiding a
collision will not activate.
If the vehicle in front stops suddenly, you may have less
time to apply the brakes.
Therefore, always keep a safe
distance between your vehicle
and the vehicle in front of you.
FCA system may activate dur- ing braking and the vehicle
may stop suddenly shifting
loose objects toward the pas-
sengers. Always keep loose
objects secured.
FCA system may not activate if the driver applies the brake
pedal to avoid the risk of a
collision.
(Continued)(Continued)
The brake control may beinsufficient, possibly causing
a collision, if a vehicle in front
abruptly stops. Always pay
extreme caution.
Occupants may get injured, if the vehicle abruptly stops by
the activated FCA system. Pay
extreme caution.WARNING
FCA system operates only todetect vehicles, pedestrians
or cyclist in front of the vehi-
cle.
FCA system does not operate when the vehicle is in reverse.
FCA system is not designed to detect other objects on the
road such as animals.
FCA system does not detect vehicles in the opposite lane.
FCA system does not detect cross traffic vehicles that are
approaching.
FCA system cannot detect the driver approaching the side
view of a parked vehicle (for
example on a dead end
street.)
(Continued)

Driving your vehicle
62
5
Limitations of the system
Forward Collision-Avoidance Assist
(FCA) system is designed to monitor
the vehicle or pedestrian or cyclist
ahead in the roadway through radar
signals and camera recognition to
warn the driver that a collision is
imminent, and if necessary, apply
emergency braking.
In certain situations, the radar sensor
or the camera may not be able to
detect the vehicle or pedestrian or
cyclist ahead. In these cases, FCA
system may not operate normally.
The driver must pay careful attention
in the following situations where FCA
operation may be limited.
Detecting vehicles
The sensor may be limited when:
The system may not work around
15 seconds after starting the vehi-
cle or the initialization or rebooting
of the front view camera.
The radar sensor or camera is blocked with a foreign object or
debris.
The camera lens is contaminated due to tinted, filmed or coated
windshield, damaged glass, or
stuck of foreign matter (sticker,
bug, etc.) on the glass.
Inclement weather such as heavy rain or snow obscures the field of
view of the radar sensor or cam-
era.
There is interference by electro- magnetic waves.
There is severe irregular reflection from the radar sensor.
The radar/camera sensor recogni- tion is limited.
The vehicle in front is too small to be detected (for example a motor-
cycle etc.).(Continued)
FCA system cannot detectany cross traffic cyclists that
are approaching.
In these cases, you must
maintain a safe braking dis-
tance, and if necessary,
depress the brake pedal to
reduce the driving speed in
order to maintain a safe dis-
tance.

563
Driving your vehicle
The vehicle in front is an oversizevehicle or trailer that is too big to
be detected by the camera recog-
nition system (for example a tractor
trailer, etc.).
The camera's field of view is not well illuminated (either too dark or
too much reflection or too much
backlight that obscures the field of
view).
The vehicle in front does not have their rear lights or their rear lights
does not turned ON or their rear
lights are located unusually.
The outside brightness changes suddenly, for example when enter-
ing or exiting a tunnel.
When light coming from a street light or an oncoming vehicle is
reflected on a wet road surface
such as a puddle in the road.
The field of view in front is obstructed by sun glare or head
light of oncoming vehicle.
The windshield glass is fogged up; a clear view of the road is obstructed.
The vehicle in front is driving erratically. The vehicle is on unpaved or
uneven rough surfaces, or road
with sudden gradient changes.
The vehicle is driven near areas containing metal substances as a
construction zone, railroad, etc.
The vehicle drives inside a build- ing, such as a basement parking
lot.
The camera does not recognize the entire vehicle in front.
The camera is damaged.
The brightness outside is too low such as when the headlamps are
not on at night or the vehicle is
going through a tunnel.
A shadow is on the road by a medi- an strip, trees, etc.
The vehicle drives through a toll- gate.
The rear part of the vehicle in front is not normally visible. (the vehicle
turns in other direction or the vehi-
cle is overturned.).
Adverse road conditions cause excessive vehicle vibrations while
driving. The sensor recognition changes
suddenly when passing over a
speed bump.
The vehicle in front is moving verti- cally to the driving direction.
The vehicle in front is stopped ver- tically.
The vehicle in front is driving towards your vehicle or reversing.
You are on a roundabout and the vehicle in front circles.

Driving your vehicle
64
5
- Driving on a curve
The performance of FCA system
may be limited when driving on a
curved road.
On curved roads, the other vehicle
on the same lane is not recognized
and FCA system's performance may
be degraded. This may result in
unnecessary alarm or braking or no
alarm or braking when necessary.
Also, in certain instances the front
radar sensor or camera recognition
system may not detect the vehicle
traveling on a curved road. In these cases, the driver must main-
tain a safe braking distance, and if
necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
When driving on a curve the driver
must maintain a safe braking dis-
tance, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe dis-
tance.
FCA system may recognize a vehicle
in the next lane when driving on a
curved road.
In this situation, the system may
unnecessarily alarm the driver and
apply the brake.
Always pay attention to road and
driving conditions, while driving. If
necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
Also, when necessary depress the
accelerator pedal to prevent the sys-
tem from unnecessarily decelerating
your vehicle.
Check to be sure that the road con-
ditions permit safe operation of FCA
system.
OJF055025OJF055026
