KIA K900 2020 Owners Manual

575
Driving your vehicle
lines.
When the conditions below are met,
LKA system will be enable to assist
steering.
Vehicle speed is above 40 mph (64km/h).
Both lane markers are detected by LKA system.
The vehicle is between the lane markers.
If LKA system can assist steering, a
green LKA system indicator will illu-
minate.
If the vehicle moves out its lane
because steering torque for assis-
tance is not enough, the line indica-
tor of deviation direction will blink
and the warning sound or steering
wheel vibration warning is provided.
If the driver takes hands off the steer-
ing wheel for several seconds while
LKA is activated, the system will
warn the driver.
WARNING
The warning message may bedelayed according to road
conditions. Therefore, always
have your hands on the steer-
ing wheel while driving.
If you hold the steering wheel too lightly, the system could
generate the hands off warn-
ing because LKA system may
think you are not grabbing the
wheel.
ORJ058180L
ORJ058181L

Driving your vehicle
76
5
✽ ✽
NOTICE
• Even though the steering is assist-
ed by the system, the driver may
control the steering.
• The steering wheel may feel heav- ier when the steering wheel is
assisted by the system than when it
is not.
The system will be canceled when:
You change lanes with the turn sig-
nal.
- Using the turn signal to changelanes.
- If you change lanes without the turn signal on, the steering wheel
might be controlled.
LKA can transition to steering assist mode when the car is near
the middle of the lane after the sys-
tem is turned on or the lane was
changed. LKA can not assist steer-
ing if the vehicle follows lane mark-
er too close continuously before
transition to steering assist mode.
The control of ESC (Electronic Stability Control) or VSM (Vehicle
Stability Management) is activated.
The steering will not be assisted when you drive fast on a sharp
curve.
WARNING
The LKA system is a supple-mental system only. It is the
responsibility of the driver to
safely steer the vehicle and to
maintain it in its lane.
Even though the steering is assisted by the system, the
driver may control the steer-
ing wheel.
Turn off the LKA system and drive without using the sys-
tem in the following situa-
tions:
- In bad weather
- In bad road conditions
- When the steering wheelneeds to be controlled by the
driver frequently.
- When towing a vehicle or trailer.
The steering wheel may feel heavier when the steering
wheel is assisted by the sys-
tem than when it is not.

577
Driving your vehicle
The steering will not be assistedwhen vehicle speed is below 40
mph (64 km/h) and over 110 mph
(177 km/h).
The steering will not be assisted when you change lanes quickly.
The steering will not be assisted when you brake suddenly.
The steering will not be assisted when the lane is very wide or nar-
row.
There are more than two lane markers such as in a construction
area.
Radius of a curve is too small.
When you turn the steering wheel suddenly, LKA system will be dis-
abled temporarily.
Driving on a steep slope or hill.DRIVER’S ATTENTION
The driver must be cautious in the
situations below as LKA system may
not work properly when the recogni-
tion of lane markers is poor or limit-
ed :
  When lane and road condition
are poor
• It is difficult to distinguish the lane marker from the road when the
lane marker is covered with dust
or sand.
• It is difficult to distinguish the color of the lane marker from the
road.
• There is something that looks like a lane marker.
• The lane marker is indistinct or damaged.
• The number of lanes increases/ decreases or the lane lines are
crossing (Driving through a toll
plaza/toll gate, merged/divided
lane).
• There are more than two lane markers.
• The lane marker is very thick or thin. (Continued)(Continued)
• The lane marker is not visible due
to snow, rain, stain, a puddle or
other factors.
• A shadow is on the lane marker because of a median strip,
guardrail, noise barriers and etc.
• When the lane markers are com- plicated or a structure substitutes
for the lines such as in a construc-
tion area.
• There are crosswalk signs or other symbols on the road.
• The lane suddenly disappears such as in a construction.
• The lane marker in a tunnel is cov- ered with dirt or oil and etc.
• The lane is very wide or narrow.
  When external conditions inter-
vene
• The brightness of outside changes suddenly when entering/existing a
tunnel or passing under a bridge.
• The headlamps are not on at night or in a tunnel, or light level is low. (Continued)

Driving your vehicle
78
5
(Continued)
• There is a boundary structure in
the roadway.
• Light from the street, sun, oncom- ing vehicles, etc. reflects from
water on the road.
• When light shines brightly in the reverse direction you drive.
• Road surface is not even.
• The distance from the vehicle ahead is very short or the vehicle
ahead is covering the lane line or
road edge.
• You drive on a steep grade or a sharp curve.
• The vehicle vibrates heavily.
• The temperature near the inside mirror is very high due to direct
sun light and etc.
  When front visibility is poor
• The lens or windshield is covered by strange materials.
• The sensor cannot detect the lane because of fog, heavy rain or snow.
• The windshield is fogged by humid air in the vehicle.
• Putting something on the crash pad and etc.LKA system malfunction
If there is a problem with the sys-
tem a message will appear. If the
problem continues the LKA system
fail indicator will illuminate.
WARNING
The Lane Keeping Assist
System is a system to help pre-
vent the driver from leaving the
lane. However, the driver should
not solely rely on the system
and always take necessary
actions to ensure safe driving
practices are followed.
ORJ058182L

579
Driving your vehicle
LKA system fail indicator
The LKA system fail indicator (yel-
low) will illuminate if the LKA system
is not working properly. If this occurs,
have the system checked by an
authorized K900 Kia dealer.
LKA system function change
The driver can change LKA to Lane
Departure Warning (LDW) or change
the LKA mode from the AVN.
Lane Keeping Assist
The LKA mode guides the driver to
keep the vehicle within the lanes. It
rarely controls the steering wheel
when the vehicle drives well inside
the lanes. However, it starts to con-
trol the steering wheel when the
vehicle is about to deviate from the
lanes.
Lane Departure Warning
LDW alerts the driver with a visual
and acoustic warning when the sys-
tem detects the vehicle leaving the
lane. In this mode, the system will not
provide steering inputs. When the
vehicle’s front wheel contacts the
inside edge of lane line, LKA issues
the lane departure warning.

Driving your vehicle
80
5
System description
Blind-Spot Collision Warning (BCW)
Blind-Spot Collision Warning (BCW)
system uses radar sensors in the
rear bumper to monitor and warn the
driver of an approaching vehicle in
the driver's blind spot area.
1) Blind-Spot Area
The blind spot detection range varies
relative to vehicle speed.
Note that if your vehicle is traveling
much faster than the vehicles around
you, the warning will not occur. 2) Closing at high speed
BCW system feature will alert you
when a vehicle is approaching in an
adjacent lane at a high rate of speed.
If the driver activates the turn signal
when the system detects an oncom-
ing vehicle, the system sounds an
audible alert.
Blind-Spot Collision-Avoidance
Assist (BCA)
Blind-Spot Collision-Avoidance
Assist (BCA) system detects the
front lane through the camera
installed on the upper front wind-
shield and detects the side/rear
areas through radar sensors.
BCA system may activate the
Electronic Stability Control (ESC) in
accordance with a colliding possibili-
ty with an approaching vehicle while
changing lanes. It is to lower the col-
liding risk or mitigate the colliding
damage.
BLIND-SPOT COLLISION WARNING (BCW)/BLIND-SPOT COLLISION-AVOIDANCE ASSIST
(BCA) SYSTEM
ORJ058124L
ORJ058125L
ORJ058126

581
Driving your vehicle
System setting and activation
System setting
The driver can activate the systemby placing the ignition switch to the
ON position and by selecting “AVN
→ Setup →Vehicle →Driver
Assistance →Blind-Spot Safety”
- BCA and BCW system turn on and get ready to be activated
when 'Active Assist' is selected.
Then, if a vehicle approaches the
driver's blind-spot area a warning
sounds or braking power is
applied.
- BCW system turns on and gets ready to be activated when
'Warning Only' is selected. Then,
if a vehicle approaches the dri-
ver's blind spot area a warning
sounds.
- The system is deactivated and the indicator on the BCW/BCA
button is extinguished when ‘OFF'
is selected.
WARNING
Always be aware of road con- ditions while driving and be
alert for unexpected situa-
tions even though Blind-Spot
Collision Warning (BCW) sys-
tem and Blind-Spot Collision-
Avoidance Assist (BCA) sys-
tem are operating.
(BCW) system and Blind-Spot
Collision-Avoidance Assist
(BCA) system are supplemen-
tal systems to assist you. Do
not entirely rely on the sys-
tems. Always pay attention,
while driving, for your safety.
(Continued)
(Continued)
The Blind-Spot CollisionWarning (BCW) system and
Blind-Spot Collision-
Avoidance Assist (BCA) sys-
tem are not substitutes for
proper and safe driving.
Always drive safely and use
caution when changing lanes
or backing up the vehicle. The
Blind-Spot Collision Warning
(BCW) system and Blind-Spot
Collision-Avoidance Assist
(BCA) system may not detect
every object alongside the
vehicle.

Driving your vehicle
82
5

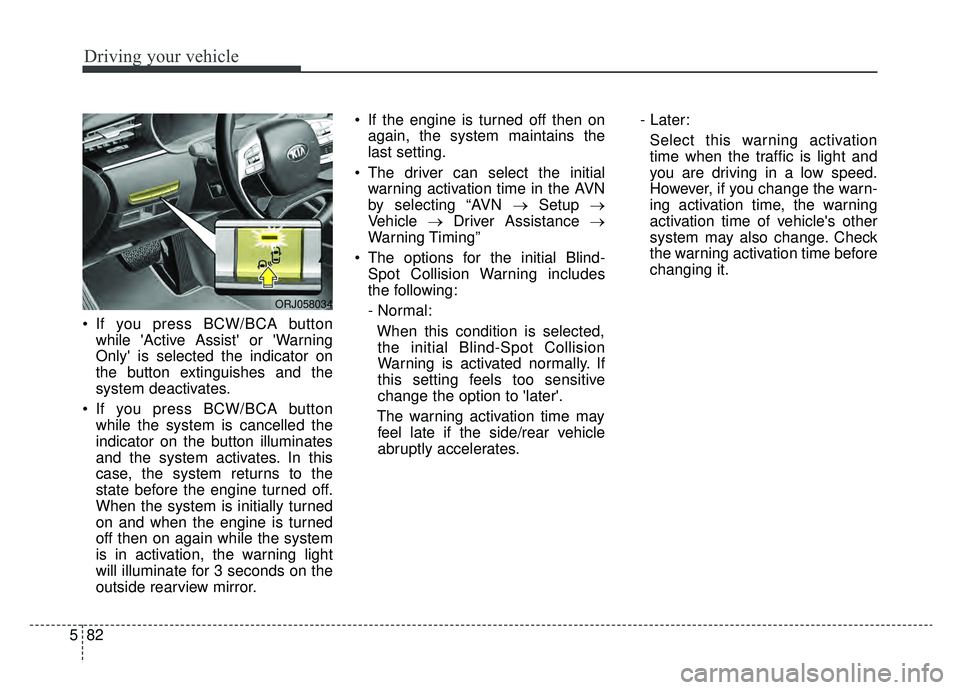

If you press BCW/BCA button
while 'Active Assist' or 'Warning
Only' is selected the indicator on
the button extinguishes and the
system deactivates.
If you press BCW/BCA button while the system is cancelled the
indicator on the button illuminates
and the system activates. In this
case, the system returns to the
state before the engine turned off.
When the system is initially turned
on and when the engine is turned
off then on again while the system
is in activation, the warning light
will illuminate for 3 seconds on the
outside rearview mirror. If the engine is turned off then on
again, the system maintains the
last setting.
The driver can select the initial warning activation time in the AVN
by selecting “AVN →Setup →
Vehicle →Driver Assistance →
Warning Timing”
The options for the initial Blind- Spot Collision Warning includes
the following:
- Normal:
When this condition is selected,the initial Blind-Spot Collision
Warning is activated normally. If
this setting feels too sensitive
change the option to 'later'.
The warning activation time may feel late if the side/rear vehicle
abruptly accelerates. - Later:
Select this warning activation
time when the traffic is light and
you are driving in a low speed.
However, if you change the warn-
ing activation time, the warning
activation time of vehicle's other
system may also change. Check
the warning activation time before
changing it.
ORJ058034

583
Driving your vehicle

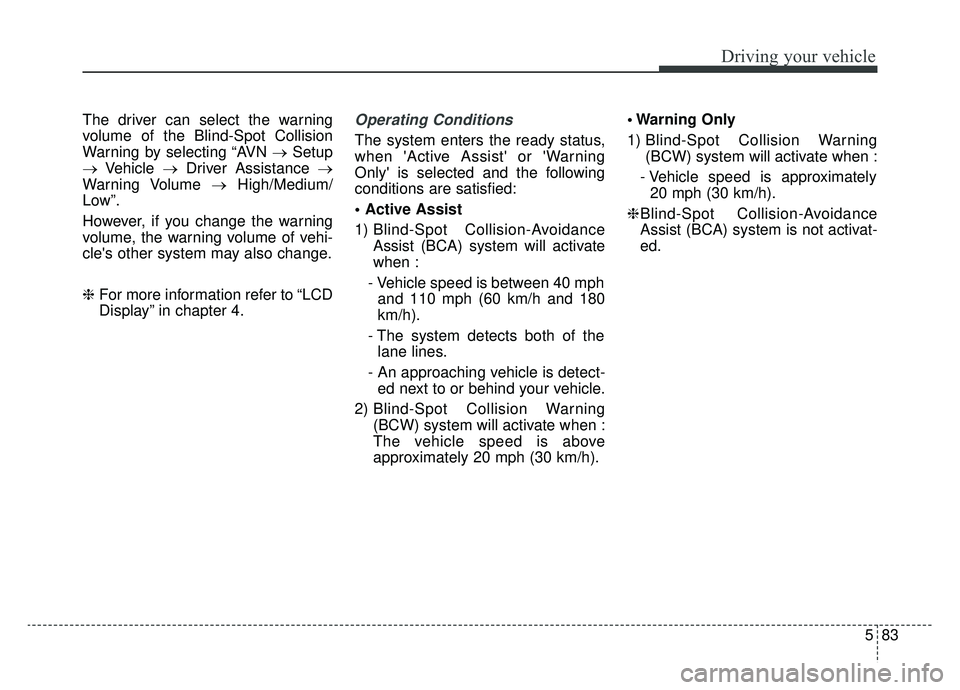

The driver can select the warning
volume of the Blind-Spot Collision
Warning by selecting “AVN →Setup
→ Vehicle →Driver Assistance →
Warning Volume →High/Medium/
Low”.
However, if you change the warning
volume, the warning volume of vehi-
cle's other system may also change.
❈ For more information refer to “LCD
Display” in chapter 4.Operating Conditions
The system enters the ready status,
when 'Active Assist' or 'Warning
Only' is selected and the following
conditions are satisfied:

1) Blind-Spot Collision-Avoidance
Assist (BCA) system will activate
when :
- Vehicle speed is between 40 mph and 110 mph (60 km/h and 180
km/h).
- The system detects both of the lane lines.
- An approaching vehicle is detect- ed next to or behind your vehicle.
2) Blind-Spot Collision Warning (BCW) system will activate when :
The vehicle speed is above
approximately 20 mph (30 km/h). Only
1) Blind-Spot Collision Warning
(BCW) system will activate when :
- Vehicle speed is approximately 20 mph (30 km/h).
❈ Blind-Spot Collision-Avoidance
Assist (BCA) system is not activat-
ed.

Driving your vehicle
84
5
Warning message and system
control
Blind-Spot Collision Warning
(BCW) system
First stage alert
If a vehicle is detected within the
boundary of the system, a warning
light will illuminate on the outside
rearview mirror and the head up dis-
play (if equipped).
Once the detected vehicle is no
longer within the blind spot area, the
warning will turn off according to the
driving conditions of the vehicle.
ORJ058128ORJ058129
[A] : Warning sound
Second stage alert
A warning chime to alert the driver will activate when:
1. A vehicle has been detected in the blind spot area by the radar system AND.
2. The turn signal is applied (same side as where the vehicle is being detected).
When this alert is activated, the warning light on the outside rearview mirror and
the head up display (if equipped) will also blink. And a warning chime will sound.
If you turn off the turn signal indicator, the second stage alert will be deactivated.
Once the detected vehicle is no longer within the blind spot area, the warn-
ing will turn off according to the driving conditions of the vehicle.
ORJ058127
