KIA K900 2020 Owners Manual

585
Driving your vehicle

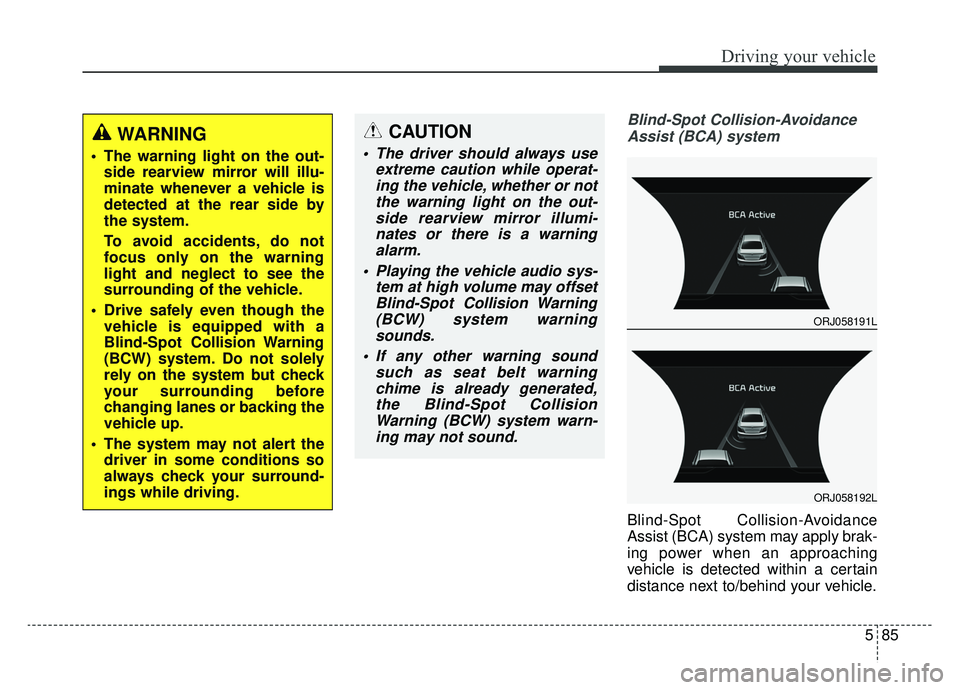

Blind-Spot Collision-AvoidanceAssist (BCA) system
Blind-Spot Collision-Avoidance
Assist (BCA) system may apply brak-
ing power when an approaching
vehicle is detected within a certain
distance next to/behind your vehicle.
WARNING
The warning light on the out- side rearview mirror will illu-
minate whenever a vehicle is
detected at the rear side by
the system.
To avoid accidents, do not
focus only on the warning
light and neglect to see the
surrounding of the vehicle.
Drive safely even though the vehicle is equipped with a
Blind-Spot Collision Warning
(BCW) system. Do not solely
rely on the system but check
your surrounding before
changing lanes or backing the
vehicle up.
The system may not alert the driver in some conditions so
always check your surround-
ings while driving.
CAUTION
The driver should always use extreme caution while operat-ing the vehicle, whether or notthe warning light on the out-side rearview mirror illumi-nates or there is a warningalarm.
Playing the vehicle audio sys- tem at high volume may offsetBlind-Spot Collision Warning(BCW) system warningsounds.
If any other warning sound such as seat belt warningchime is already generated,the Blind-Spot CollisionWarning (BCW) system warn-ing may not sound.
ORJ058191L
ORJ058192L

Driving your vehicle
86
5
It gently applies braking power on the
tire which is located in the opposite
side of the possibly-colliding point.
The instrument cluster will inform the
driver of the system activation.
Blind-Spot Collision-Avoidance Assist
(BCA) system is automatically deacti-
vated when:
- The vehicle drives a certain dis-
tance away
- The vehicle direction is changed against the possible-colliding point
- The steering wheel is abruptly moved
- The brake pedal is depressed
- After a certain period of time
The driver should drive the vehicle in
the middle of the vehicle lanes to
keep the system in the ready status.
When the vehicle drives too close to
one side of the vehicle lanes, the
system may not properly operate.
In addition, the system may not prop-
erly control your vehicle in accor-
dance with driving situations. Thus,
always pay close attention to road
situations.Detecting Sensor (Front View Camera / Rear Corner Radars)
WARNING
The driver is responsible for accurate steering.
Do not unnecessarily operate the steering wheel when Blind-
Spot Collision-Avoidance
Assist (BCA) system is in oper-
ation.
Always pay extreme caution while driving. Blind-Spot
Collision-Avoidance Assist
(BCA) system may not oper-
ate or unnecessarily operate
in accordance with your driv-
ing situations.
Blind-Spot Collision- Avoidance Assist (BCA) sys-
tem is not a substitute for safe
driving practices, but a con-
venience function only. It is
the responsibility of the driver
to always drive cautiously to
prevent unexpected and sud-
den situations from occur-
ring. Pay attention to the road
conditions at all times.
ORJ058024
ORJ058035
■ Front View Camera
■Rear Corner Radar

587
Driving your vehicle
Front Camera
The Front Camera is a sensor
detecting the lane. If the sensor is
covered with snow, rain or foreign
substance, the system may tem-
porarily be cancelled and not work
properly until the cancellation due to
the degradation of the sensor's
detection performance. Always keep
the sensor clean.
* Refer to Lane Keeping Assist (LKA)system for cautions for the front
camera sensor.
Rear Corner Radars
The Rear Corner Radars are the
sensors inside the rear bumper for
detecting the side/rear areas. Always
keep the rear bumper clean for prop-
er operation of the system.CAUTION
The system may not work properly when the bumper hasbeen damaged, or if the rearbumper has been replaced orrepaired.
The sensing range differs some- what according to the width ofthe road. When the road is nar-row, the system may detectother vehicles in the next lane.
On the other hand, when the road is wide, the system maynot detect vehicles on bothlanes and may not warn.
The system may turn off if inter- fered by electromagnetic waves.
Always keep the sensors clean. NEVER arbitrarily disassem- ble the sensor component norapply any impact on the sen-sor component.
(Continued)
(Continued) Be careful not to apply unnec- essary force on the radar sen-sor or sensor cover. If the sen-sor is forcibly moved out ofproper alignment, the systemmay not operate correctly. Ifthis occurs, a warning mes-sage may not be displayed.Have the vehicle inspected byan authorized K900 Kia dealer.
Do not apply foreign objects such as a bumper sticker or abumper guard near the radarsensor or apply paint to thesensor area. Doing so mayadversely affect the perform-ance of the sensor.
NEVER install any acces- sories or stickers on the frontwindshield, nor tint the frontwindshield.
(Continued)

Driving your vehicle
88
5
Blind-Spot Collision Warning (BCW)
system disabled.
Radar blocked
This warning message may appear
when :
- One or both of the sensors on therear bumper is blocked by dirt or
snow or a foreign object.
- When a trailer or carrier is installed.
- Driving in rural areas where the sensor does not detect another
vehicle for an extended period of
time.
- When there is inclement weather such as heavy snow or rain.
If any of these conditions occur, the
light on BCW/BCA switch and the
system will turn off automatically.
Turn off the BCW, BCA and RCCW
system (if equipped) when a trailer or
carrier is installed.
- Press the BCW/BCA button (the indicator on the button extinguish)
- Deactivate the RCCW system by deselecting
“AVN →Setup →Vehicle →Driver
Assistance →Blind-Spot Safety
→ Rear Cross-Traffic Collision
Warning” (if equipped)
If you use BCW, BCA and RCCW
system, remove a trailer or carrier.
When BCW system canceled warn-
ing message is displayed in the clus-
ter, check to make sure that the rear
bumper is free from any dirt or snow
in the areas where the sensor is
located. Remove any dirt, snow, or
foreign material that could interfere
with the radar sensors.(Continued) Pay extreme caution to keep the camera sensor out of water.
NEVER locate any reflective objects (i.e. white paper, mir-ror) over the crash pad. Anylight reflection may cause amalfunction of the system.
ORJ058183L

589
Driving your vehicle

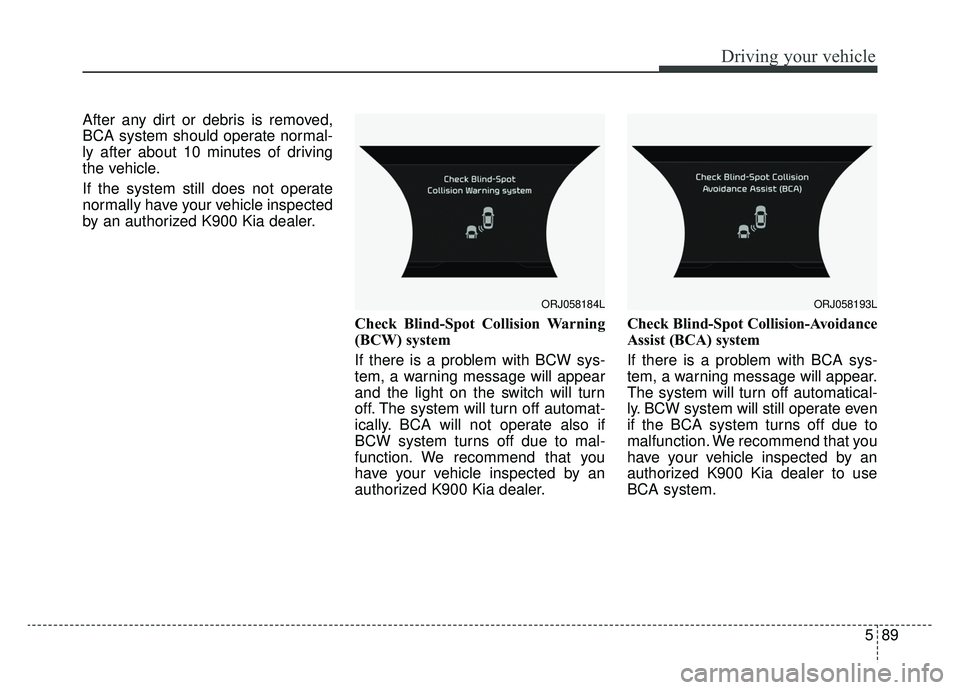

After any dirt or debris is removed,
BCA system should operate normal-
ly after about 10 minutes of driving
the vehicle.
If the system still does not operate
normally have your vehicle inspected
by an authorized K900 Kia dealer.Check Blind-Spot Collision Warning
(BCW) system
If there is a problem with BCW sys-
tem, a warning message will appear
and the light on the switch will turn
off. The system will turn off automat-
ically. BCA will not operate also if
BCW system turns off due to mal-
function. We recommend that you
have your vehicle inspected by an
authorized K900 Kia dealer.Check Blind-Spot Collision-Avoidance
Assist (BCA) system
If there is a problem with BCA sys-
tem, a warning message will appear.
The system will turn off automatical-
ly. BCW system will still operate even
if the BCA system turns off due to
malfunction. We recommend that you
have your vehicle inspected by an
authorized K900 Kia dealer to use
BCA system.
ORJ058184LORJ058193L

Driving your vehicle
90
5
Limitations of the system
The driver must be cautious in the
below situations, because the sys-
tem may not detect other vehicles or
objects in certain circumstances.
The system may not work around
15 seconds after starting the vehi-
cle or the initialization or rebooting
of the front view camera.
When a trailer or carrier is installed.
The vehicle drives in inclement weather such as heavy rain or
snow.
The sensor is polluted with rain, snow, mud, etc.
The rear bumper where the sensor is located is covered with a foreign
object such as a bumper sticker, a
bumper guard, a bike rack, etc.
The rear bumper is damaged, or the sensor is out of the original
default position.
The vehicle height gets lower or higher due to heavy loading in a
trunk, abnormal tire pressure, etc.
When the temperature of the rear bumper is high. When the sensors are blocked by
other vehicles, walls or parking-lot
pillars.
The vehicle drives on a curved road.
The vehicle drives through a tollgate.
The road pavement (or the periph- eral ground) abnormally contains
metallic components (i.e. possibly
due to subway construction).
There is a fixed object near the vehicle, such as a guardrail.
While going down or up a steep road where the height of the lane is
different.
Driving on a narrow road where trees or grass or overgrown.
Driving in rural areas where the sensor does not detect another
vehicle or structure for an extended
period of time.
Driving on a wet road.
Driving on a road where the guardrail or wall is in double structure.
A big vehicle is near such as a bus or truck.
When the other vehicle approach- es very close. When the other vehicle passes at a
very fast speed.
While changing lanes.
If the vehicle has started at the same time as the vehicle next to
you and has accelerated.
When the vehicle in the next lane moves two lanes away from you
OR when the vehicle two lanes
away moves to the next lane from
you.
A motorcycle or bicycle is near.
A flat trailer is near.
If there are small objects in the detecting area such as a shopping
cart or a baby stroller.
If there is a low height vehicle such as a sports car.
The brake pedal is depressed.
ESC (Electronic Stability Control) is activated.
ESC (Electronic Stability Control) malfunctions.
The tire pressure is low or a tire is damaged.
The brake is reworked.

591
Driving your vehicle

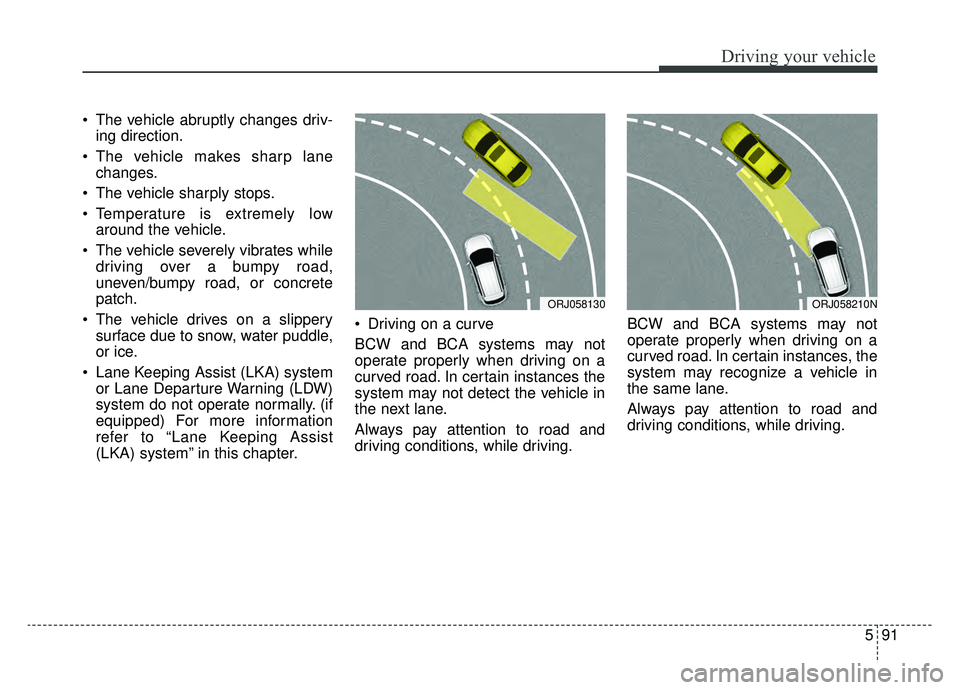

The vehicle abruptly changes driv-ing direction.
The vehicle makes sharp lane changes.
The vehicle sharply stops.
Temperature is extremely low around the vehicle.
The vehicle severely vibrates while driving over a bumpy road,
uneven/bumpy road, or concrete
patch.
The vehicle drives on a slippery surface due to snow, water puddle,
or ice.
Lane Keeping Assist (LKA) system or Lane Departure Warning (LDW)
system do not operate normally. (if
equipped) For more information
refer to “Lane Keeping Assist
(LKA) system” in this chapter. Driving on a curve
BCW and BCA systems may not
operate properly when driving on a
curved road. In certain instances the
system may not detect the vehicle in
the next lane.
Always pay attention to road and
driving conditions, while driving.
BCW and BCA systems may not
operate properly when driving on a
curved road. In certain instances, the
system may recognize a vehicle in
the same lane.
Always pay attention to road and
driving conditions, while driving.
ORJ058130ORJ058210N

Driving your vehicle
92
5

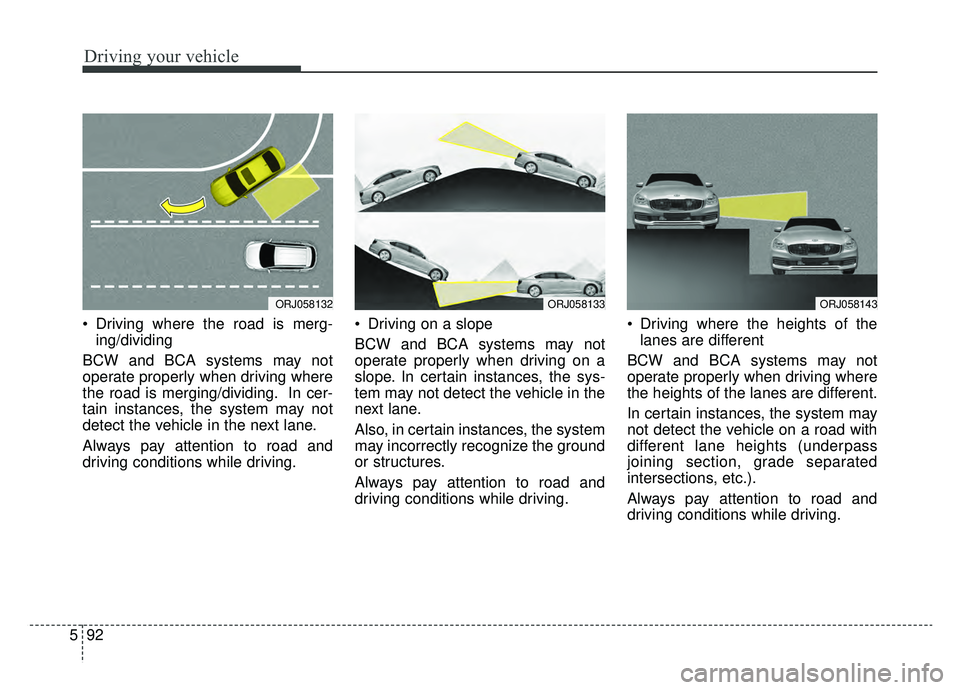

Driving where the road is merg-
ing/dividing
BCW and BCA systems may not
operate properly when driving where
the road is merging/dividing. In cer-
tain instances, the system may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving. Driving on a slope
BCW and BCA systems may not
operate properly when driving on a
slope. In certain instances, the sys-
tem may not detect the vehicle in the
next lane.
Also, in certain instances, the system
may incorrectly recognize the ground
or structures.
Always pay attention to road and
driving conditions while driving. Driving where the heights of the
lanes are different
BCW and BCA systems may not
operate properly when driving where
the heights of the lanes are different.
In certain instances, the system may
not detect the vehicle on a road with
different lane heights (underpass
joining section, grade separated
intersections, etc.).
Always pay attention to road and
driving conditions while driving.
ORJ058132ORJ058133ORJ058143

593
Driving your vehicle

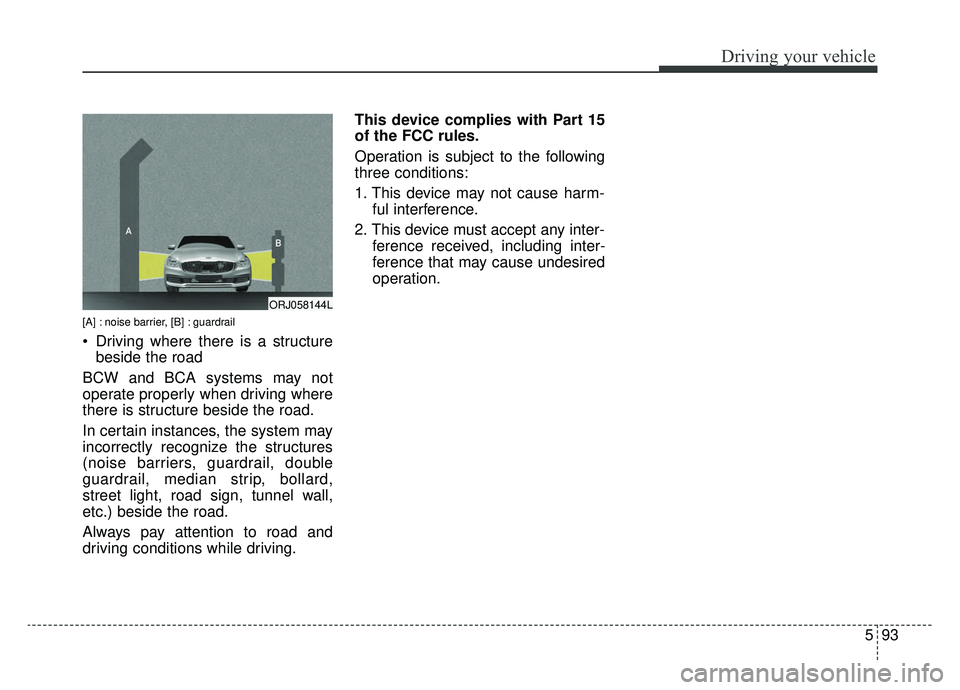

[A] : noise barrier, [B] : guardrail
Driving where there is a structurebeside the road
BCW and BCA systems may not
operate properly when driving where
there is structure beside the road.
In certain instances, the system may
incorrectly recognize the structures
(noise barriers, guardrail, double
guardrail, median strip, bollard,
street light, road sign, tunnel wall,
etc.) beside the road.
Always pay attention to road and
driving conditions while driving. This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harm-
ful interference.
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
ORJ058144L

Driving your vehicle
94
5

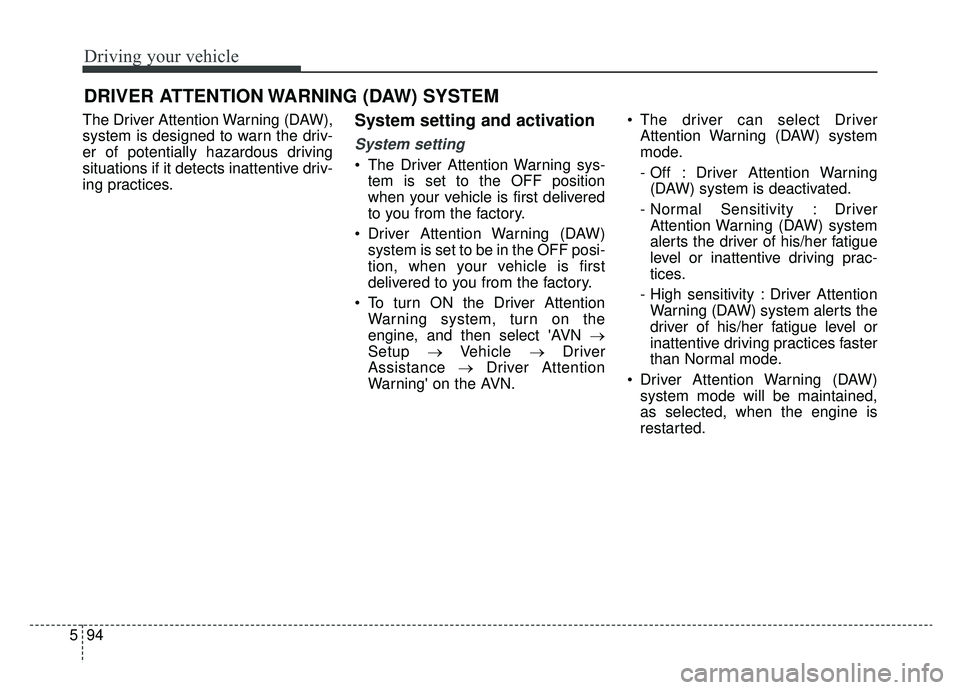

The Driver Attention Warning (DAW),
system is designed to warn the driv-
er of potentially hazardous driving
situations if it detects inattentive driv-
ing practices.System setting and activation
System setting
The Driver Attention Warning sys-
tem is set to the OFF position
when your vehicle is first delivered
to you from the factory.
Driver Attention Warning (DAW) system is set to be in the OFF posi-
tion, when your vehicle is first
delivered to you from the factory.
To turn ON the Driver Attention Warning system, turn on the
engine, and then select 'AVN →
Setup →Vehicle →Driver
Assistance →Driver Attention
Warning' on the AVN. The driver can select Driver
Attention Warning (DAW) system
mode.
- Off : Driver Attention Warning(DAW) system is deactivated.
- Normal Sensitivity : Driver Attention Warning (DAW) system
alerts the driver of his/her fatigue
level or inattentive driving prac-
tices.
- High sensitivity : Driver Attention Warning (DAW) system alerts the
driver of his/her fatigue level or
inattentive driving practices faster
than Normal mode.
Driver Attention Warning (DAW) system mode will be maintained,
as selected, when the engine is
restarted.
DRIVER ATTENTION WARNING (DAW) SYSTEM
