KIA NIRO 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 71 of 92
68
Address Book
Search the destination with the
address book.
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
AddressBook icon.
Select the desired group. If you save address in the Favorites
tab, you can set destinations easily by
pressing the icons such as
Go Home
and
Office at the bottom of the
Destination menu.
Name Description
Select the desired destina-
tion from the searched items.
Edit the item.
Register a new Address.
Delete the desired item.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 72 of 92
69
Phone Number
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Flick the screen
in up direction to scroll to the bottom
row of icons in the Destination tab. ▶
Select the
Phone Number to search
POI by phone.
Search destination by phone number.
Type phone number to search. To
search for a list of numbers based
on a partial phone number entry,
enter a few numbers and press
Done to narrow the search results.
Select the desired destination
among the searched items.
Press the Set as Destination button to
start guidance.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 73 of 92
70

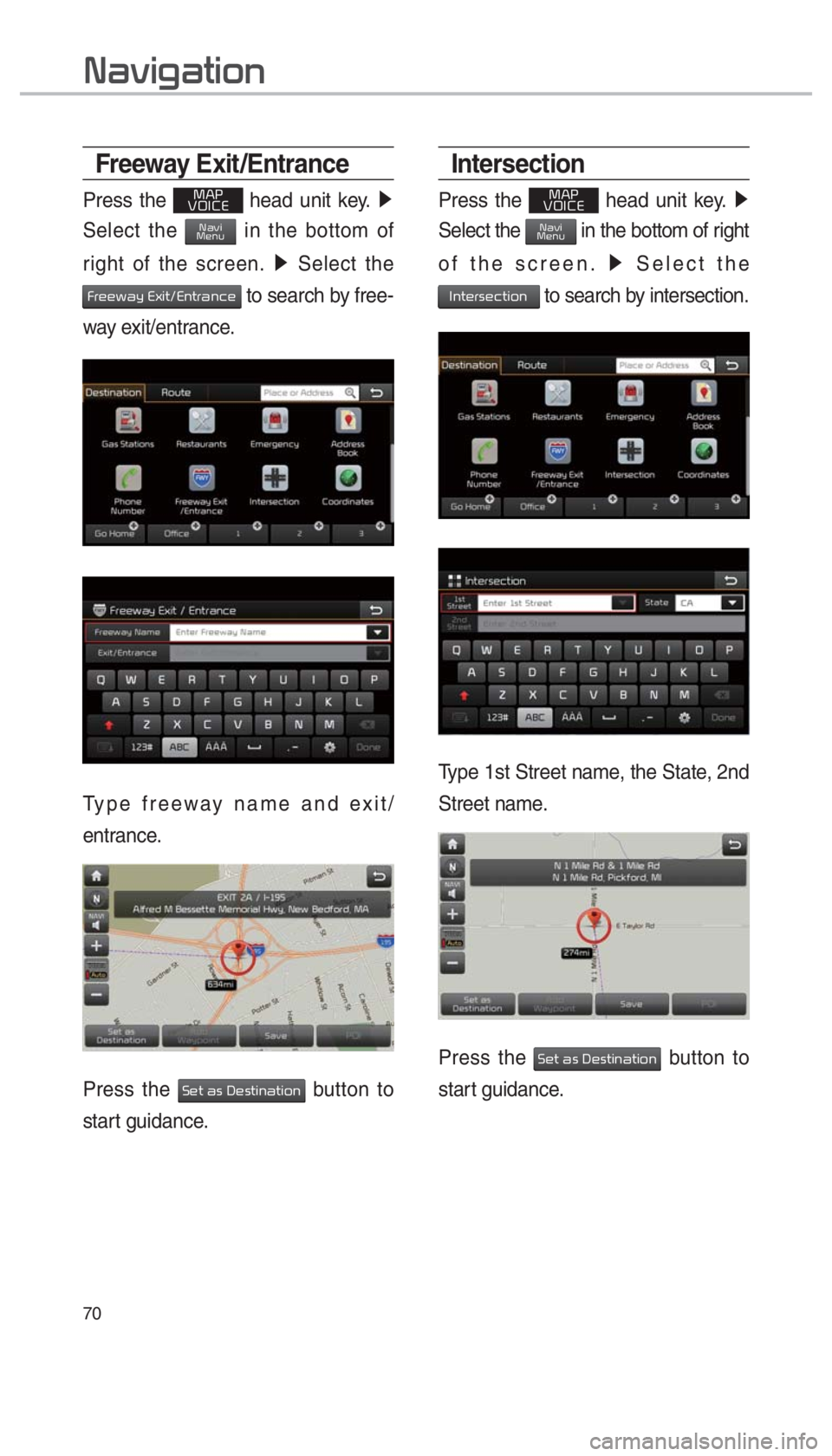

Freeway Exit /Entrance
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Select the
Freeway Exit/Entrance to search by free-
way exit/entrance.
Type freeway name and exit/
entrance.
Press the Set as Destination button to
start guidance.
Intersection
Press the MAP
VOICE head unit key. ▶
Select the
NaviMenu in the bottom of right
of the screen. ▶
Select the
Intersection to search by intersection.
Type 1st Street name, the State, 2nd
Street name.
Press the Set as Destination button to
start guidance.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 74 of 92
71
Coordinates
Press the MAP
VOICE head unit key. ▶
Select the
NaviMenu in the bottom of
right of the screen. ▶
Select the
Coordinates to search by coordinates.
There are two ways to search by
coordinates (D.M.S or Decimal
Degrees). After typing coordinates,
press the
Done button to search.
Press the Set as Destination button to
start guidance.
Favorite Places
Set the route using your favorite
places.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Select the
Destination tab. ▶
Select from favorite
places.
On the button where locations are
not registered, the
icon is dis-
played. When a location is regis-
tered, the
button disappears and
the buttons 1 to 3 are displayed as
your favorite places.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 75 of 92
72

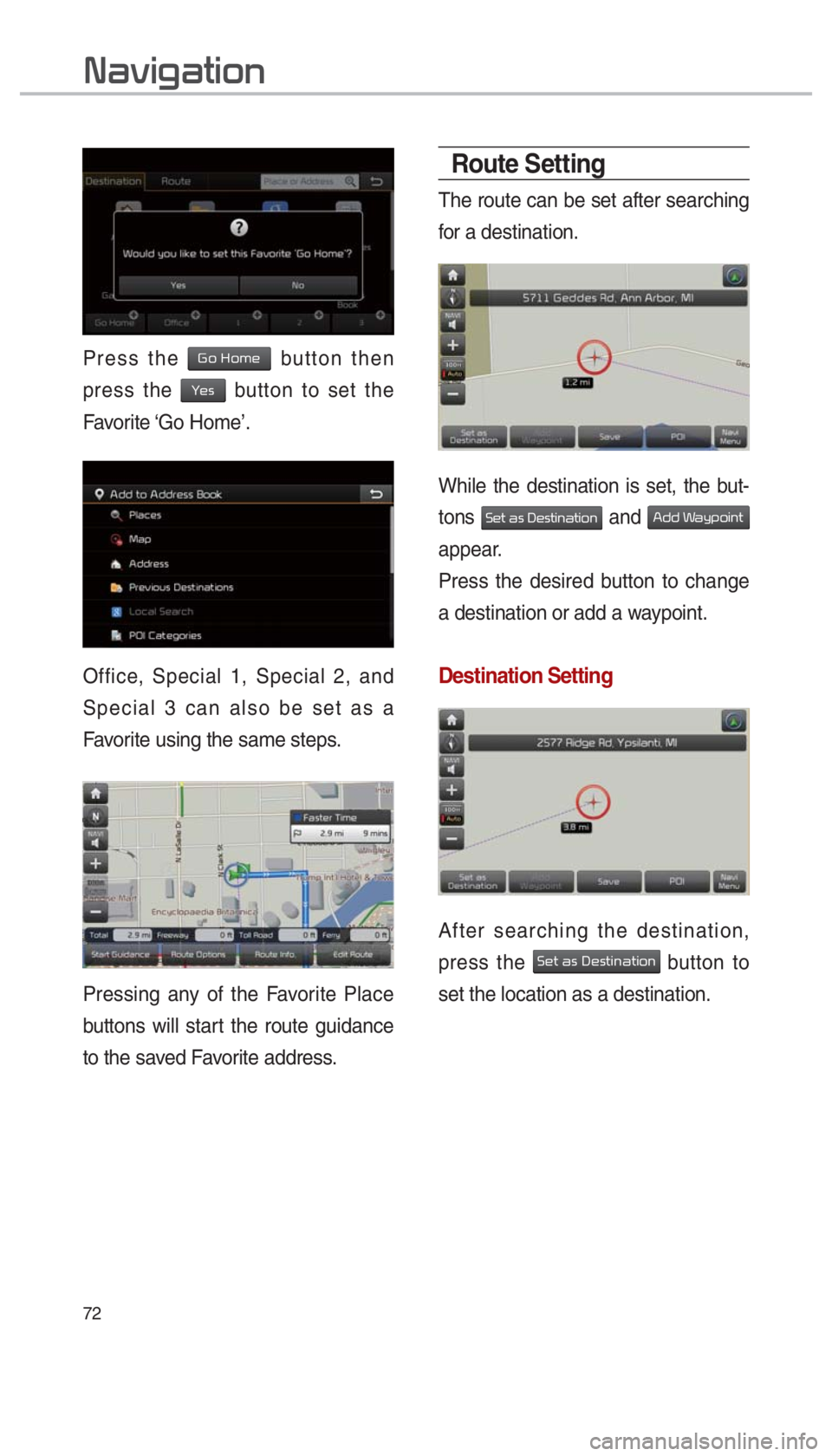

Press the Go Home button then
press the
Yes button to set the
Favorite ‘Go Home’.
Office, Special 1, Special 2, and
Special 3 can also be set as a
Favorite using the same steps.
Pressing any of the Favorite Place
buttons will start the route guidance
to the saved Favorite address.
Route Setting
The route can be set after searching
for a destination.
While the destination is set, the but-
tons
Set as Destination and Add Waypoint
appear.
Press the desired button to change
a destination or add a waypoint.
Destination Setting
After searching the destination,
press the
Set as Destination button to
set the location as a destination.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 76 of 92
73
All Routes
When the alternative routes option
is enabled in navigation setting, two
routing options are displayed based
on faster time and shorter distance.
• Faster Time: Select time optimized route, being the fastest roads.
• Shorter Distance: Select short dis- tance, irrespective of how fast or
slow progress will be calculated.
Name Description
Display total
distance, travel
time. Select the
desired route.
Start GuidanceStart the guidance
with the route.
Route OptionsChange the
route option.
Route Info.You can check
route information.
Edit RouteEdit the route.
Total Display total dis-
tance of the route.
Freeway Display length of
freeway on the
route.
Toll Road Display length of
toll road on the
route.
Ferry
Display length of
Ferry route on
the route.
The route will be calculated using
the option “Faster Time” by default.
Alternative routes can be suggested if
necessary,
SETUP key
▶ Navigation
Icon ▶
Route ▶
Alternative: ON
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 77 of 92
74
Route Guidance
Show route guidance detailed infor-
mation.
Route Guidance Screen
Remaining Time: Display the time
remaining until destination.
Arrival Time: Display the estimated
time of arrival.
Name Description
Display the
distance and
direction to the
first turn point.
Display the
distance and
direction to the
second turn
point.
Display the lane
information at
the current loca-
tion. Display the
recommended
direction in
white, travelable
direction in
white, and the
non-travelable
direction in grey.
Displays the dis-
tance to the des-
tination and the
estimated time of
arrival. Press the
button to check
the detailed
information. If
no waypoint is
set, you will see
the remaining
distance or
estimated time
of arrival in turn
each time you
click the button.
CancelRouteCancel the
route.
NaviMenu
Enter the nav-
igation menu
screen.
Destination InfoDisplays the
destination
information.
Turn ListTurn on or off
the Turn List.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 78 of 92
75
Route Search
Canceling Route
Cancel the route.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Cancel Route.
Press the Cancel Route icon.
Press the Yes button to cancel the
route.
Display Route Information
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Route Info..
Press the Route Info. icon.
Check the information on the map.
Select the desired item to see the
map information.
Avoiding a road
Click the Avoid Street button to avoid
the street or road.
Check the desired item and press
the
Done button to finish.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 79 of 92
76
Route Overview
Check the information on route
including the distance, estimated
time, toll fees, etc.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Route Overview.
Press the Route Overview icon.
Name Description
Route OptionsChange the
search option.
Route Info.You can check
route information.
Edit RouteEdit the current
route.
Route Preview
Check the detailed turn-by-turn list.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Route Preview.
Press the Route Preview icon.
Name Description
Departure
Place Move to the depar-
ture location.
Previous
Move to the previ-
ous maneuver.
Forward Move to the next
maneuver.
DestinationMove to the desti-
nation location.
Section
Displaying
Bar Touch bar to move
to the specific
position.
Close the route
preview.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 80 of 92
77
Editing Route
Edit the current route.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Edit Route.
Press the Edit Route icon.
Name Description
Display the
selected point on
the map screen.
Move the
selected item up.
Move the selected
item down.
Delete the
selected item.
DonePress the button
to finish editing.
Add WaypointPress the button to
add an waypoint.
Add the waypoint through various
searching methods.
Route Options
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Press the
Route tab. ▶
Select Route Options.
Press the Route Options icon.
Determine the route options to guide
the route.
