IN CASE OF EMERGENCY
6-10
DESCRIPTION FUSE RATING PROTECTED COMPARTIMENTS
RR HTD IND10A Rear window defroster, Outside rear view mirror heater
HAZARD10A Hazard light, Turn signal lights
RR FOG15A Rear fog light
A/CON10A Air conditioning system
ETACS10A ETACS, Keyless entry system, Door lock system
DR LOCK15A Power door lock
P/SEAT (DRIVE)25A Power seat
T/LID OPEN15A Remote trunk lid
STOP LP15A Stop lights
H/LP10A Head light
A/BAG IND10A Air-bag
T/SIG10A Turn signal lights
A/CON SW10A Air conditioning system
ACC SOCKET15A Power outlet
S/HTR15A Seat heater
A/BAG15A Air-bag
B/UP10A Backup lights
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 10
Page 162 of 225

6-11

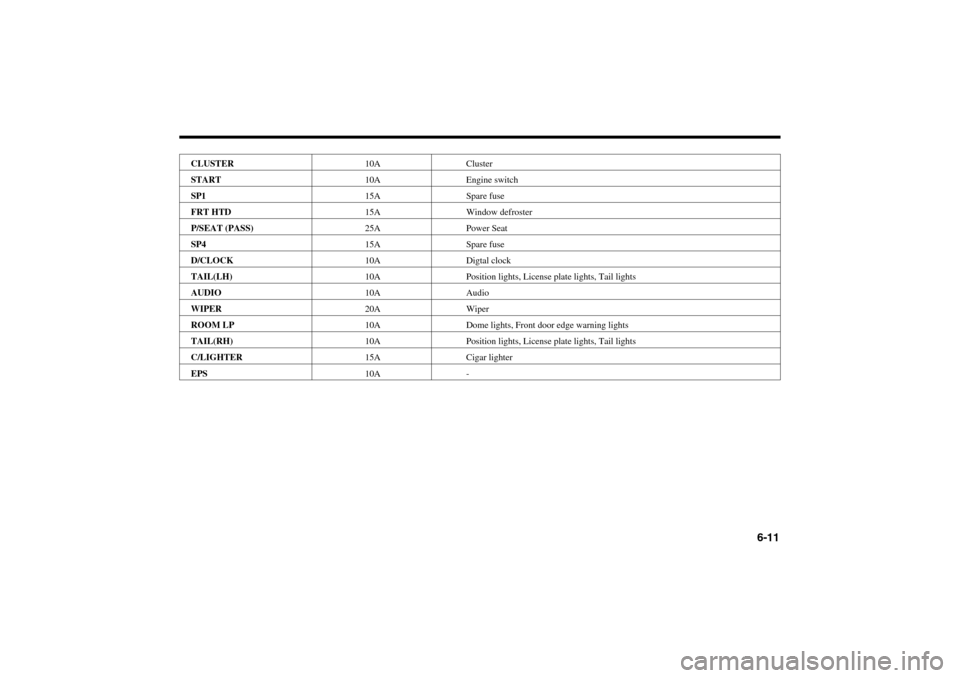

CLUSTER10A Cluster
START10A Engine switch
SP115A Spare fuse
FRT HTD15A Window defroster
P/SEAT (PASS)25A Power Seat
SP415A Spare fuse
D/CLOCK10A Digtal clock
TAIL(LH)10A Position lights, License plate lights, Tail lights
AUDIO10A Audio
WIPER20A Wiper
ROOM LP10A Dome lights, Front door edge warning lights
TAIL(RH)10A Position lights, License plate lights, Tail lights
C/LIGHTER15A Cigar lighter
EPS10A -
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 11
Page 163 of 225

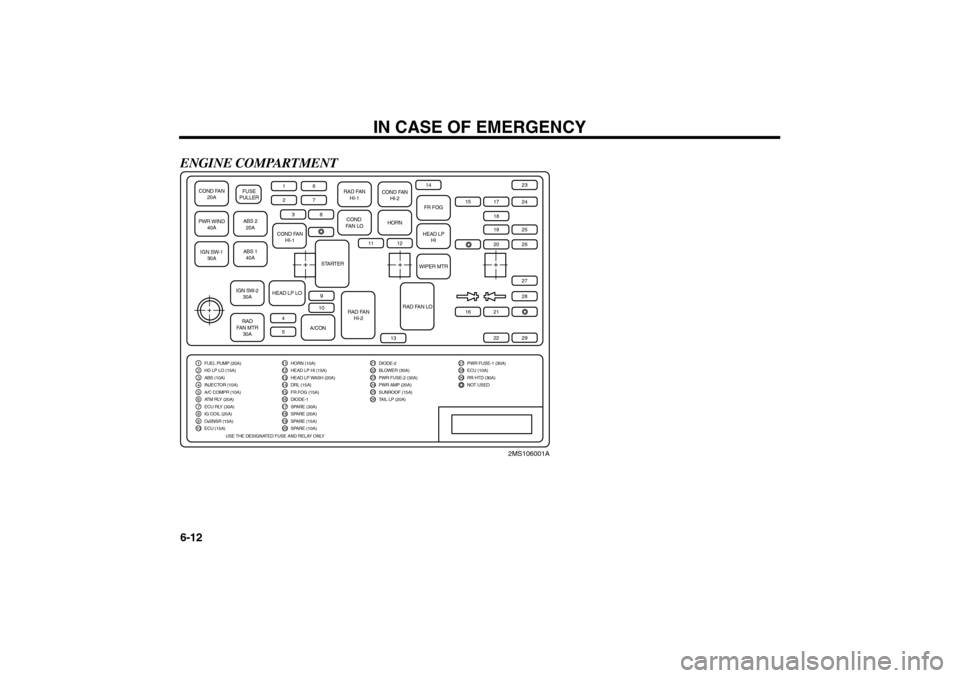

ENGINE COMPARTMENT
IN CASE OF EMERGENCY
6-12
COND FAN
20APWR WIND
40AIGN SW-1
30A
ABS 2
20A FUSE
PULLERABS 1
40A1
COND FAN
HI-1
RAD FAN
HI-1
COND FAN
HI-2
COND
FAN LO
HORN
FR FOGHEAD LP
HIWIPER MTR
STARTER
RAD FAN
HI-2
RAD FAN LO
IGN SW-2
30A
HEAD LP LO
RAD
FAN MTR
30A
A/CON6
2
7
3
8
11
13
14
15
1718
24232728
20
26
16
2122
29
19
25
12
910
45
1 FUEL PUMP (20A)2 HD LP LO (15A)3 ABS (10A)4 INJECTOR (10A)5 A/C COMPR (10A)6 ATM RLY (20A)7 ECU RLY (30A)8 IG COIL (20A)9
10O2SNSR (15A)ECU (15A)
11 HORN (10A)12 HEAD LP HI (15A)13 HEAD LP WASH (20A)14 DRL (15A)15 FR FOG (15A)16 DIODE-1
21
DIODE-222
BLOWER (30A)23
PWR FUSE-2 (30A)24
PWR AMP (20A)
27 PWR FUSE-1 (30A)28 ECU (10A)29 RR HTD (30A)NOT USED
25
SUNROOF (15A)
26
TAIL LP (20A)
17 SPARE (30A)18 SPARE (20A)19 SPARE (15A)20
SPARE (10A)
USE THE DESIGNATED FUSE AND RELAY ONLY
2MS106001A
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 12
Page 164 of 225

6-13
DESCRIPTION FUSE RATING PROTECTED COMPARTIMENTS
COND FAN20A Condenser fan
PWR WIND40A Power window
ABS 220A ABS
IGN SW-130A Ignition switch
ABS 140A ABS
IGN SW-230A Ignition switch
RAD FAN MTR30A Radiator fan motor
FUEL PUMP20A Fuel pump
HD LP LO15A Headlights (LO)
ABS10A ABS
INJECTOR10A Injector
A/C COMPR10A Air-con compressor
ATM RLY20A ATM Relay
ECU RLY30A Engine control unit relay
IG COIL20A Ignition coil
O
2SNSR15A Oxygen sensor
ECU15A Engine control unit
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 13
Page 165 of 225

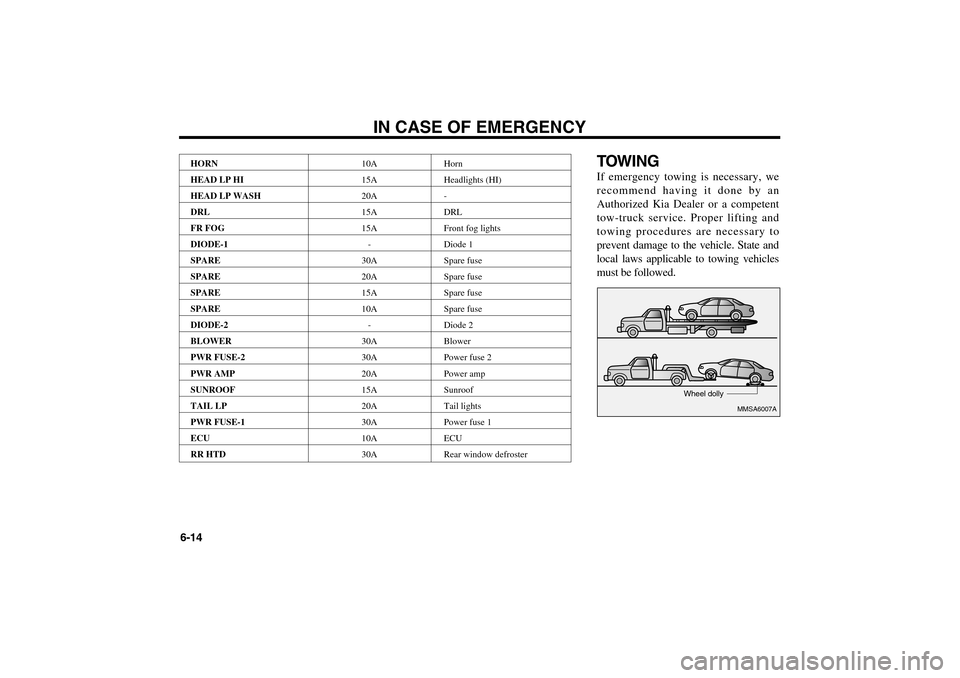

TOWINGIf emergency towing is necessary, we
recommend having it done by an
Authorized Kia Dealer or a competent
tow-truck service. Proper lifting and
towing procedures are necessary to
prevent damage to the vehicle. State and
local laws applicable to towing vehicles
must be followed.
IN CASE OF EMERGENCY
6-14
MMSA6007A
Wheel dolly
HORN10A Horn
HEAD LP HI15A Headlights (HI)
HEAD LP WASH20A -
DRL15A DRL
FR FOG15A Front fog lights
DIODE-1- Diode 1
SPARE30A Spare fuse
SPARE20A Spare fuse
SPARE15A Spare fuse
SPARE10A Spare fuse
DIODE-2- Diode 2
BLOWER30A Blower
PWR FUSE-230A Power fuse 2
PWR AMP20A Power amp
SUNROOF15A Sunroof
TAIL LP20A Tail lights
PWR FUSE-130A Power fuse 1
ECU10A ECU
RR HTD30A Rear window defroster
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 14
Page 166 of 225

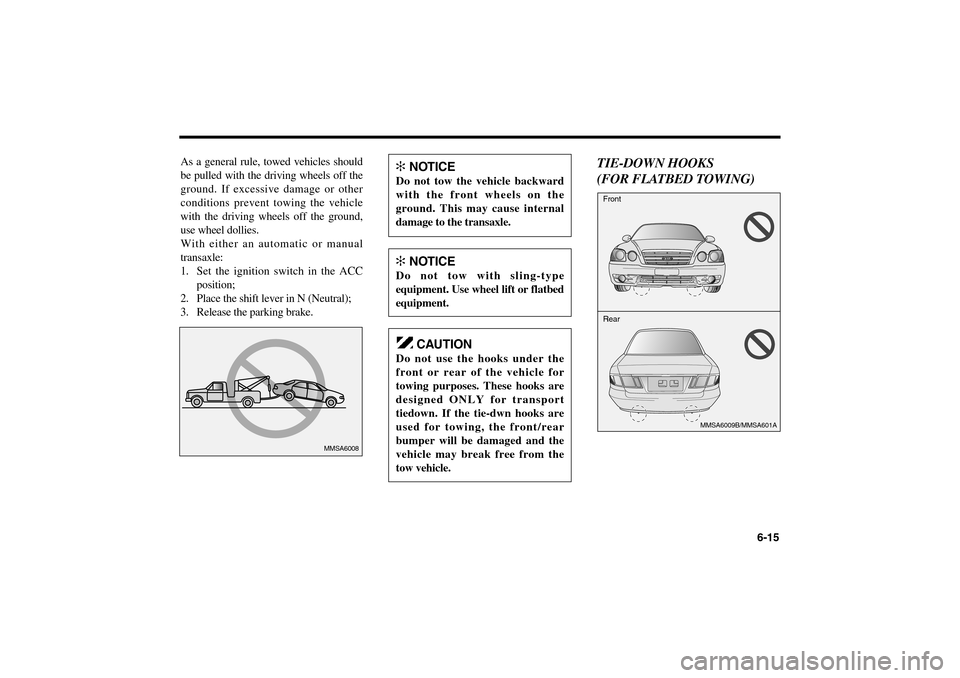

As a general rule, towed vehicles should
be pulled with the driving wheels off the
ground. If excessive damage or other
conditions prevent towing the vehicle
with the driving wheels off the ground,
use wheel dollies.
With either an automatic or manual
transaxle:
1. Set the ignition switch in the ACC
position;
2. Place the shift lever in N (Neutral);
3. Release the parking brake.
TIE-DOWN HOOKS
(FOR FLATBED TOWING)
6-15
MMSA6008
✻
NOTICE
Do not tow the vehicle backward
with the front wheels on the
ground. This may cause internal
damage to the transaxle.✻
NOTICE
Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
Front
MMSA6009B/MMSA601A
Rear
CAUTION
Do not use the hooks under the
front or rear of the vehicle for
towing purposes. These hooks are
designed ONLY for transport
tiedown. If the tie-dwn hooks are
used for towing, the front/rear
bumper will be damaged and the
vehicle may break free from the
tow vehicle.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 15
Page 167 of 225

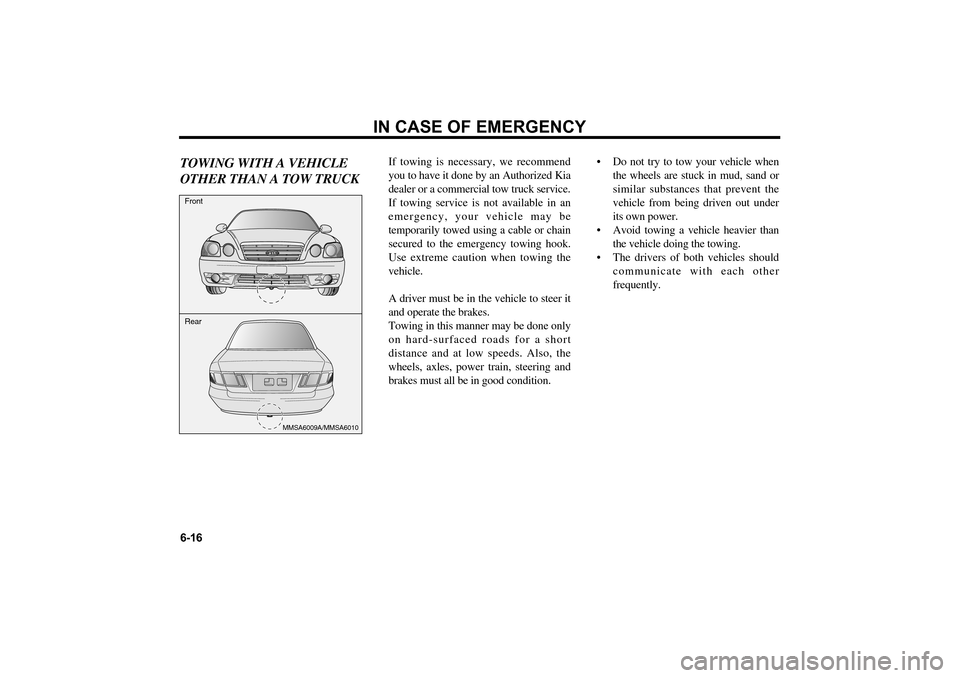

TOWING WITH A VEHICLE
OTHER THAN A TOW TRUCK
If towing is necessary, we recommend
you to have it done by an Authorized Kia
dealer or a commercial tow truck service.
If towing service is not available in an
emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook.
Use extreme caution when towing the
vehicle.
A driver must be in the vehicle to steer it
and operate the brakes.
Towing in this manner may be done only
on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering and
brakes must all be in good condition. Do not try to tow your vehicle when
the wheels are stuck in mud, sand or
similar substances that prevent the
vehicle from being driven out under
its own power.
Avoid towing a vehicle heavier than
the vehicle doing the towing.
The drivers of both vehicles should
communicate with each other
frequently.
IN CASE OF EMERGENCY
6-16Front
MMSA6009A/MMSA6010
Rear
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 16
Page 168 of 225

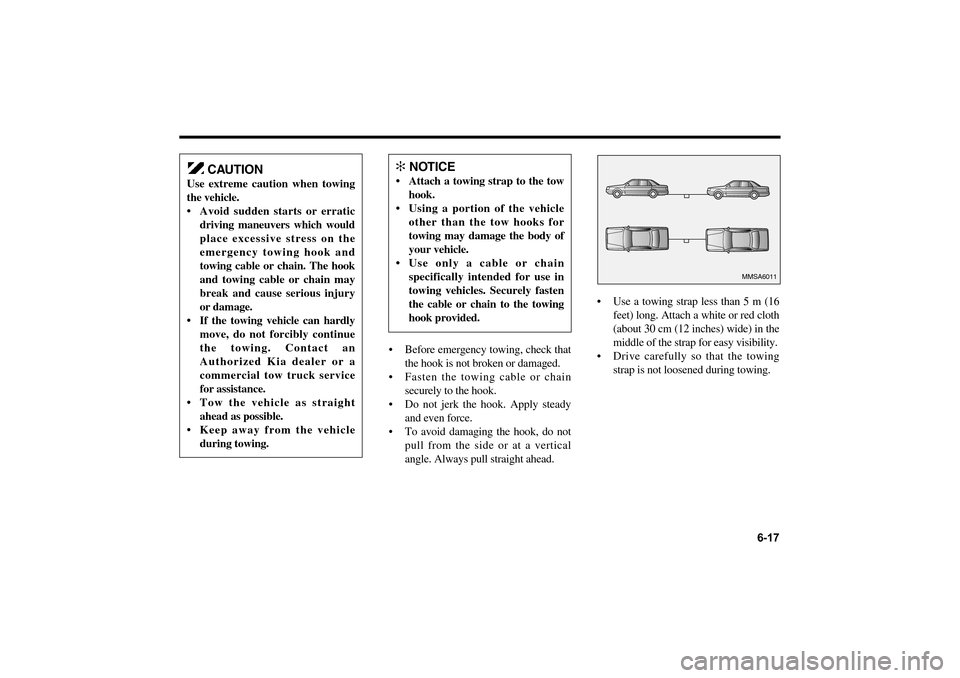

Before emergency towing, check that
the hook is not broken or damaged.
Fasten the towing cable or chain
securely to the hook.
Do not jerk the hook. Apply steady
and even force.
To avoid damaging the hook, do not
pull from the side or at a vertical
angle. Always pull straight ahead. Use a towing strap less than 5 m (16
feet) long. Attach a white or red cloth
(about 30 cm (12 inches) wide) in the
middle of the strap for easy visibility.
Drive carefully so that the towing
strap is not loosened during towing.
6-17
✻
NOTICE
• Attach a towing strap to the tow
hook.
Using a portion of the vehicle
other than the tow hooks for
towing may damage the body of
your vehicle.
Use only a cable or chain
specifically intended for use in
towing vehicles. Securely fasten
the cable or chain to the towing
hook provided.
CAUTION
Use extreme caution when towing
the vehicle.
Avoid sudden starts or erratic
driving maneuvers which would
place excessive stress on the
emergency towing hook and
towing cable or chain. The hook
and towing cable or chain may
break and cause serious injury
or damage.
If the towing vehicle can hardly
move, do not forcibly continue
the towing. Contact an
Authorized Kia dealer or a
commercial tow truck service
for assistance.
Tow the vehicle as straight
ahead as possible.
Keep away from the vehicle
during towing.
MMSA6011
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 17
Page 169 of 225

WHEN YOUR VEHICLE IS
BEING TOWED BY ANOTHER
VEHICLE OTHER THAN A
TOW TRUCK (IN CASE OF AN
EMERGENCY) Turn the ignition switch to ACC so
the steering wheel isn’t locked.
Place the transaxle shift lever in N
(Neutral).
Release the parking bake.
Vehicle equipped with automatic
transaxle should not exceed 45km/h
(28 mph) and should not be towed
more than 80km (50 miles). Press the brake pedal with more force
than normal since you will have
reduced brake performance.
More steering effort will be required
because the power steering system
will be disabled.
If you are driving down a long hill,
the brakes may overheat and brake
performance will be reduced. Stop
often and let the brakes cool off.
TIPS FOR TOWING A STUCK
VEHICLEThe following methods are effective
when your vehicle is stuck in mud, sand
or similar substances that prevent the
vehicle from being driven out under its
own power.
Remove the soil and sand, etc. from
the front and the back of the tires.
Place a stone or wood under the tires.
IN CASE OF EMERGENCY
6-18
✻
NOTICE
To prevent internal damage to the
transaxle, never tow your vehicle
from the rear (backwards) with all
four tires in contact with the
surface.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 18
Page 170 of 225

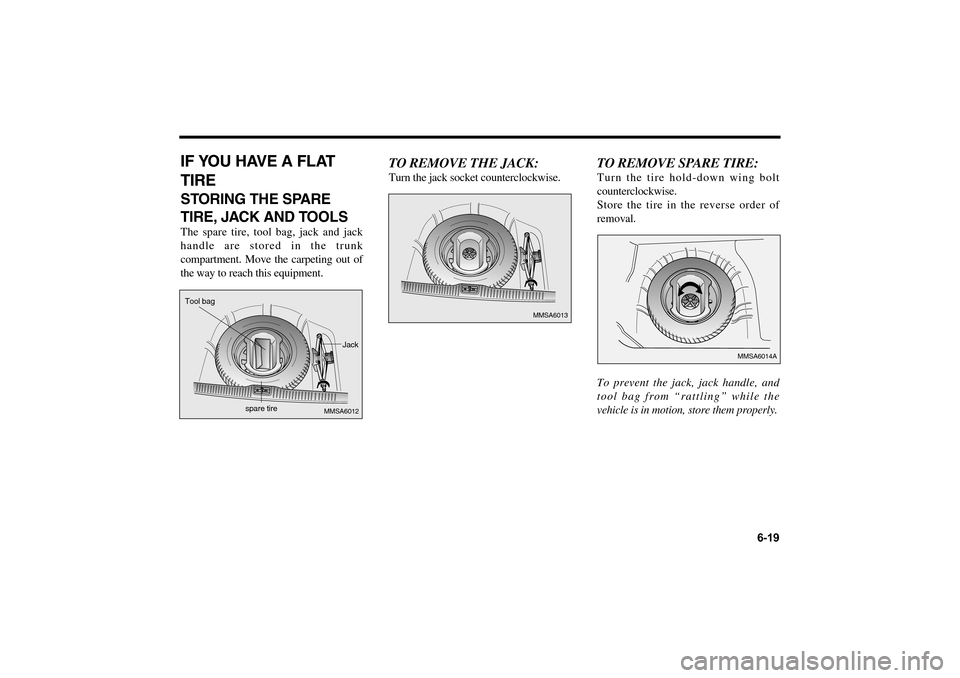

IF YOU HAVE A FLAT
TIRESTORING THE SPARE
TIRE, JACK AND TOOLSThe spare tire, tool bag, jack and jack
handle are stored in the trunk
compartment. Move the carpeting out of
the way to reach this equipment.
TO REMOVE THE JACK:Turn the jack socket counterclockwise.
TO REMOVE SPARE TIRE:Turn the tire hold-down wing bolt
counterclockwise.
Store the tire in the reverse order of
removal.
To prevent the jack, jack handle, and
tool bag from “rattling” while the
vehicle is in motion, store them properly.
6-19
MMSA6013
MMSA6014A
MMSA6012
Tool bag
spare tireJack
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 19
