KIA Optima 2006 2.G Owner's Manual

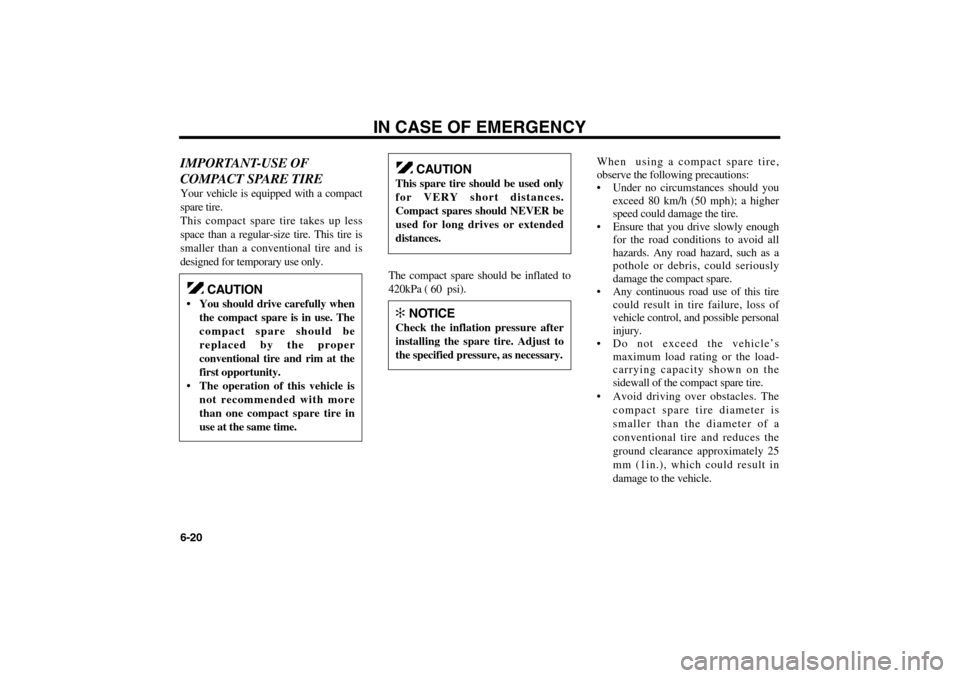

IMPORTANT-USE OF
COMPACT SPARE TIREYour vehicle is equipped with a compact
spare tire.
This compact spare tire takes up less
space than a regular-size tire. This tire is
smaller than a conventional tire and is
designed for temporary use only.
The compact spare should be inflated to
420kPa ( 60 psi).When using a compact spare tire,
observe the following precautions:
 Under no circumstances should you
exceed 80 km/h (50 mph); a higher
speed could damage the tire.
 Ensure that you drive slowly enough
for the road conditions to avoid all
hazards. Any road hazard, such as a
pothole or debris, could seriously
damage the compact spare.
 Any continuous road use of this tire
could result in tire failure, loss of
vehicle control, and possible personal
injury.
 Do not exceed the vehicle’s
maximum load rating or the load-
carrying capacity shown on the
sidewall of the compact spare tire.
 Avoid driving over obstacles. The
compact spare tire diameter is
smaller than the diameter of a
conventional tire and reduces the
ground clearance approximately 25
mm (1in.), which could result in
damage to the vehicle.
IN CASE OF EMERGENCY
6-20
CAUTION
 You should drive carefully when
the compact spare is in use. The
compact spare should be
replaced by the proper
conventional tire and rim at the
first opportunity.
 The operation of this vehicle is
not recommended with more
than one compact spare tire in
use at the same time.
CAUTION
This spare tire should be used only
for VERY short distances.
Compact spares should NEVER be
used for long drives or extended
distances.✻
NOTICE
Check the inflation pressure after
installing the spare tire. Adjust to
the specified pressure, as necessary.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 20

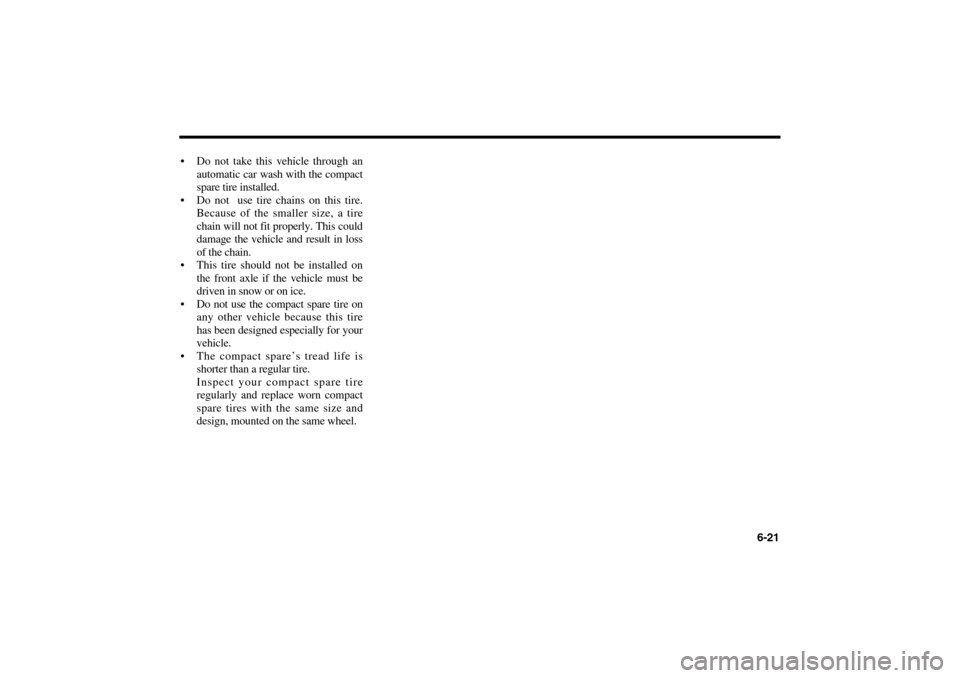

6-21  Do not take this vehicle through an
automatic car wash with the compact
spare tire installed.
 Do not use tire chains on this tire.
Because of the smaller size, a tire
chain will not fit properly. This could
damage the vehicle and result in loss
of the chain.
 This tire should not be installed on
the front axle if the vehicle must be
driven in snow or on ice.
 Do not use the compact spare tire on
any other vehicle because this tire
has been designed especially for your
vehicle.
 The compact spare’s tread life is
shorter than a regular tire.
Inspect your compact spare tire
regularly and replace worn compact
spare tires with the same size and
design, mounted on the same wheel.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 21

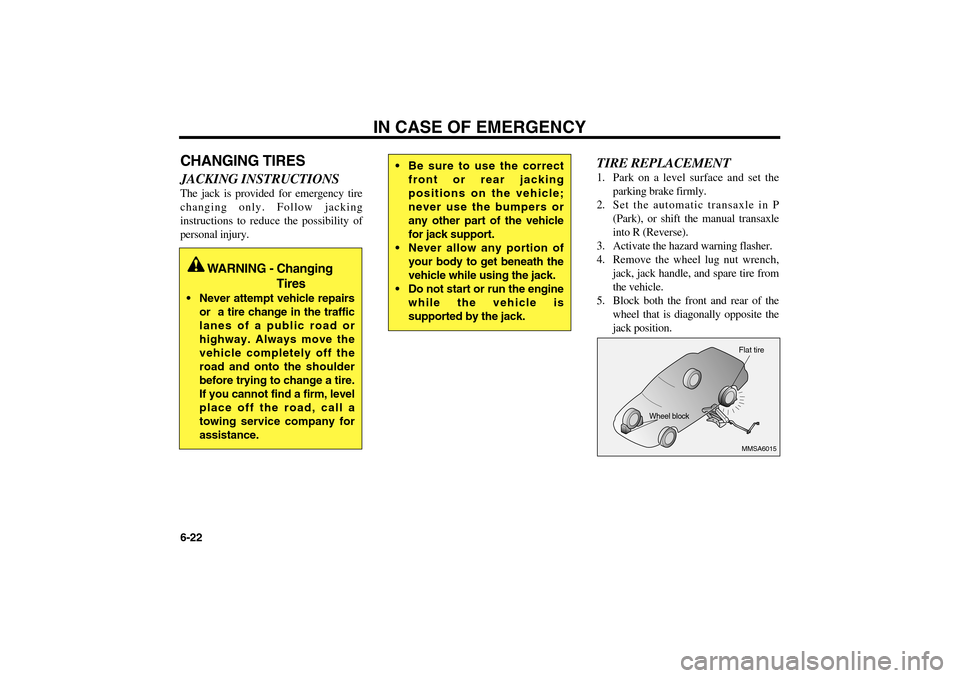

CHANGING TIRESJACKING INSTRUCTIONSThe jack is provided for emergency tire
changing only. Follow jacking
instructions to reduce the possibility of
personal injury.
TIRE REPLACEMENT1. Park on a level surface and set the
parking brake firmly.
2. Set the automatic transaxle in P
(Park), or shift the manual transaxle
into R (Reverse).
3. Activate the hazard warning flasher.
4. Remove the wheel lug nut wrench,
jack, jack handle, and spare tire from
the vehicle.
5. Block both the front and rear of the
wheel that is diagonally opposite the
jack position.
IN CASE OF EMERGENCY
6-22
MMSA6015Flat tire
Wheel block
WARNING - Changing
Tires
Never attempt vehicle repairs
or a tire change in the traffic
lanes of a public road or
highway. Always move the
vehicle completely off the
road and onto the shoulder
before trying to change a tire.
If you cannot find a firm, level
place off the road, call a
towing service company for
assistance.
Be sure to use the correct
front or rear jacking
positions on the vehicle;
never use the bumpers or
any other part of the vehicle
for jack support.
Never allow any portion of
your body to get beneath the
vehicle while using the jack.
Do not start or run the engine
while the vehicle is
supported by the jack.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 22

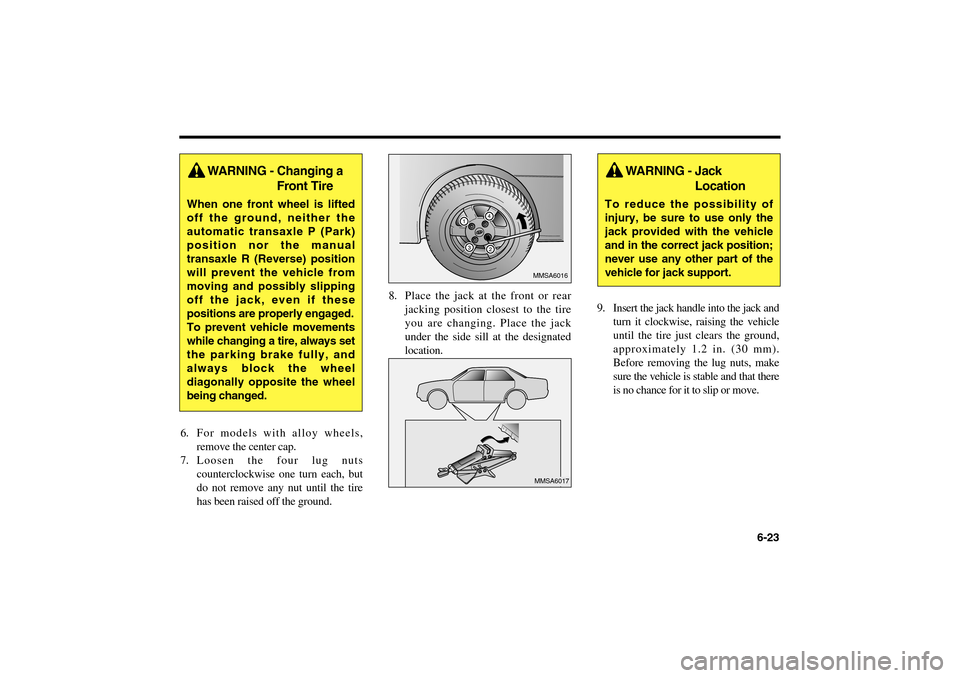

6-23 6. For models with alloy wheels,
remove the center cap.
7. Loosen the four lug nuts
counterclockwise one turn each, but
do not remove any nut until the tire
has been raised off the ground.8. Place the jack at the front or rear
jacking position closest to the tire
you are changing. Place the jack
under the side sill at the designated
location.9. Insert the jack handle into the jack and
turn it clockwise, raising the vehicle
until the tire just clears the ground,
approximately 1.2 in. (30 mm).
Before removing the lug nuts, make
sure the vehicle is stable and that there
is no chance for it to slip or move.
MMSA6016MMSA6017
WARNING - Changing a
Front Tire
When one front wheel is lifted
off the ground, neither the
automatic transaxle P (Park)
position nor the manual
transaxle R (Reverse) position
will prevent the vehicle from
moving and possibly slipping
off the jack, even if these
positions are properly engaged.
To prevent vehicle movements
while changing a tire, always set
the parking brake fully, and
always block the wheel
diagonally opposite the wheel
being changed.
WARNING - Jack
Location
To reduce the possibility of
injury, be sure to use only the
jack provided with the vehicle
and in the correct jack position;
never use any other part of the
vehicle for jack support.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 23

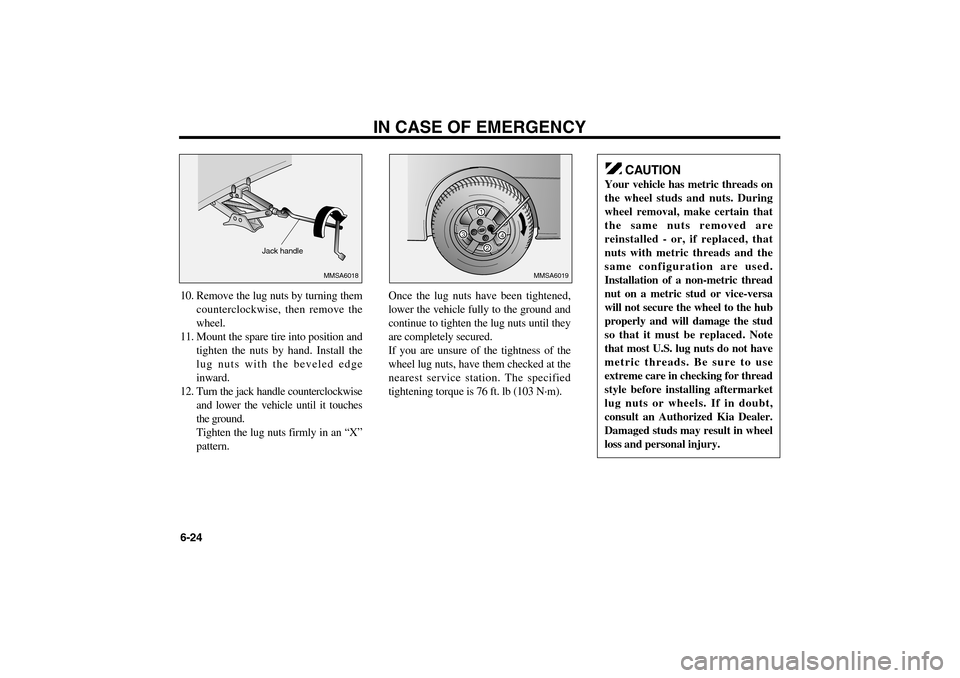

10. Remove the lug nuts by turning them
counterclockwise, then remove the
wheel.
11. Mount the spare tire into position and
tighten the nuts by hand. Install the
lug nuts with the beveled edge
inward.
12. Turn the jack handle counterclockwise
and lower the vehicle until it touches
the ground.
Tighten the lug nuts firmly in an “X”
pattern.Once the lug nuts have been tightened,
lower the vehicle fully to the ground and
continue to tighten the lug nuts until they
are completely secured.
If you are unsure of the tightness of the
wheel lug nuts, have them checked at the
nearest service station. The specified
tightening torque is 76 ft. lb (103 N·m).
IN CASE OF EMERGENCY
6-24
1
3
2
4
MMSA6019
MMSA6018
Jack handle
CAUTION
Your vehicle has metric threads on
the wheel studs and nuts. During
wheel removal, make certain that
the same nuts removed are
reinstalled - or, if replaced, that
nuts with metric threads and the
same configuration are used.
Installation of a non-metric thread
nut on a metric stud or vice-versa
will not secure the wheel to the hub
properly and will damage the stud
so that it must be replaced. Note
that most U.S. lug nuts do not have
metric threads. Be sure to use
extreme care in checking for thread
style before installing aftermarket
lug nuts or wheels. If in doubt,
consult an Authorized Kia Dealer.
Damaged studs may result in wheel
loss and personal injury.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 24

6-25 To prevent the jack, jack handle, wheel
lug nut, wrench and spare tire from
rattling while the vehicle is in motion,
store them properly.
✻
NOTICE
Check the inflation pressures as
soon as possible after installing the
spare tire. Adjust it to the specified
pressure, if necessary.
Standard Tire : 210 kPa(30 psi)
Compact Spare Tire : 420 kPa(60
psi)

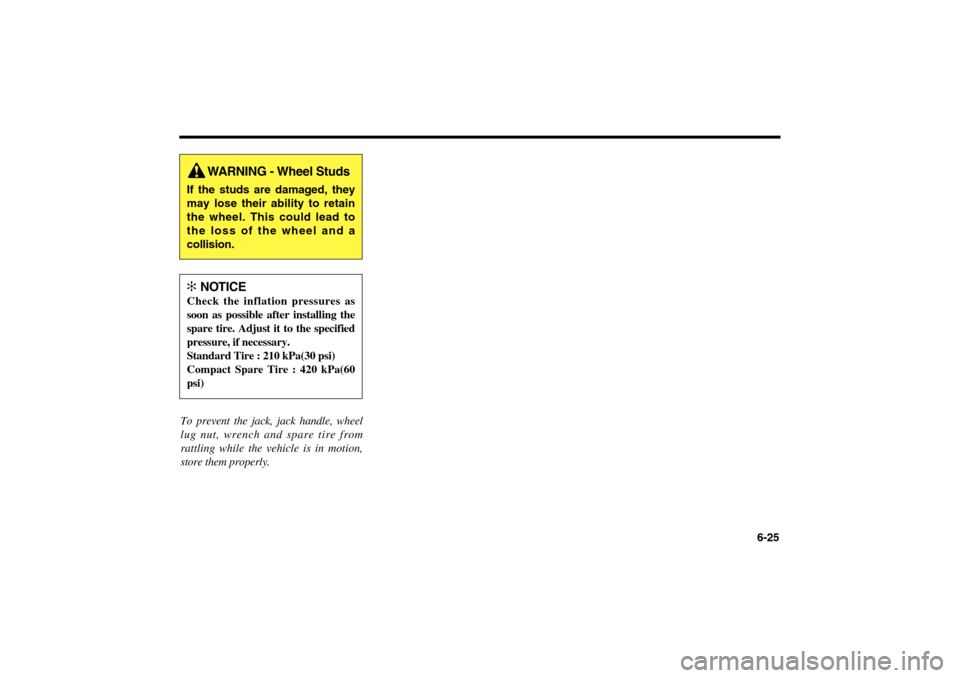

WARNING - Wheel Studs
If the studs are damaged, they
may lose their ability to retain
the wheel. This could lead to
the loss of the wheel and a
collision.
MS-CNA-Eng 6.QXD 7/25/2005 5:13 PM Page 25

MAINTENANCE
7-1

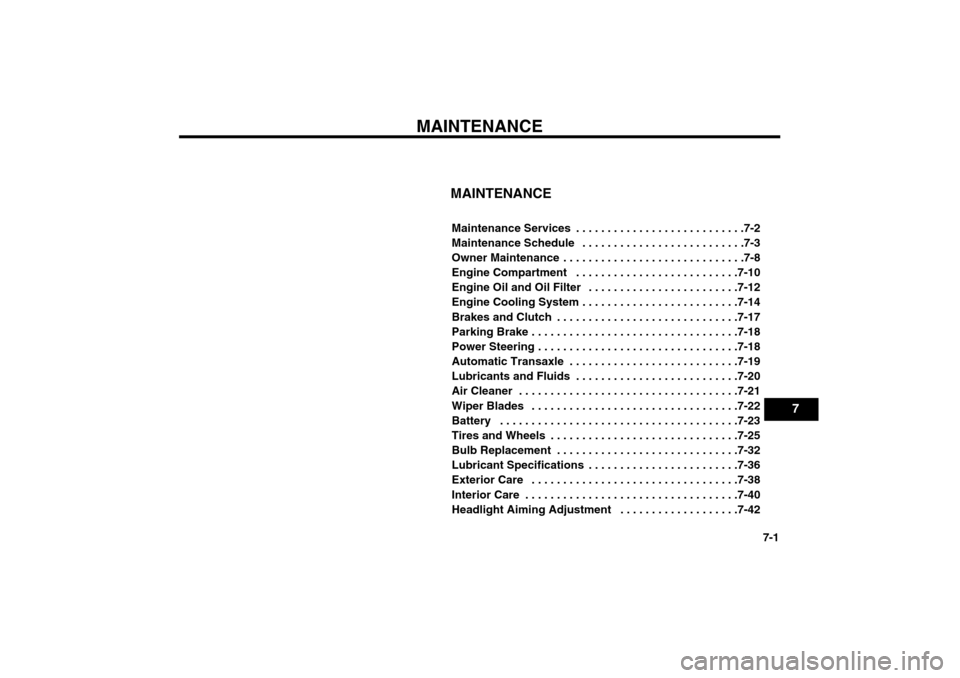

MAINTENANCEMaintenance Services . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Owner Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Engine Oil and Oil Filter . . . . . . . . . . . . . . . . . . . . . . . .7-12
Engine Cooling System . . . . . . . . . . . . . . . . . . . . . . . . .7-14
Brakes and Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-17
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-18
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-18
Automatic Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . .7-19
Lubricants and Fluids . . . . . . . . . . . . . . . . . . . . . . . . . .7-20
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-21
Wiper Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-22
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-23
Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-25
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-32
Lubricant Specifications . . . . . . . . . . . . . . . . . . . . . . . .7-36
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-38
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-40
Headlight Aiming Adjustment . . . . . . . . . . . . . . . . . . .7-42
7
MS-CNA-Eng 7.QXD 7/25/2005 5:09 PM Page 1

MAINTENANCE

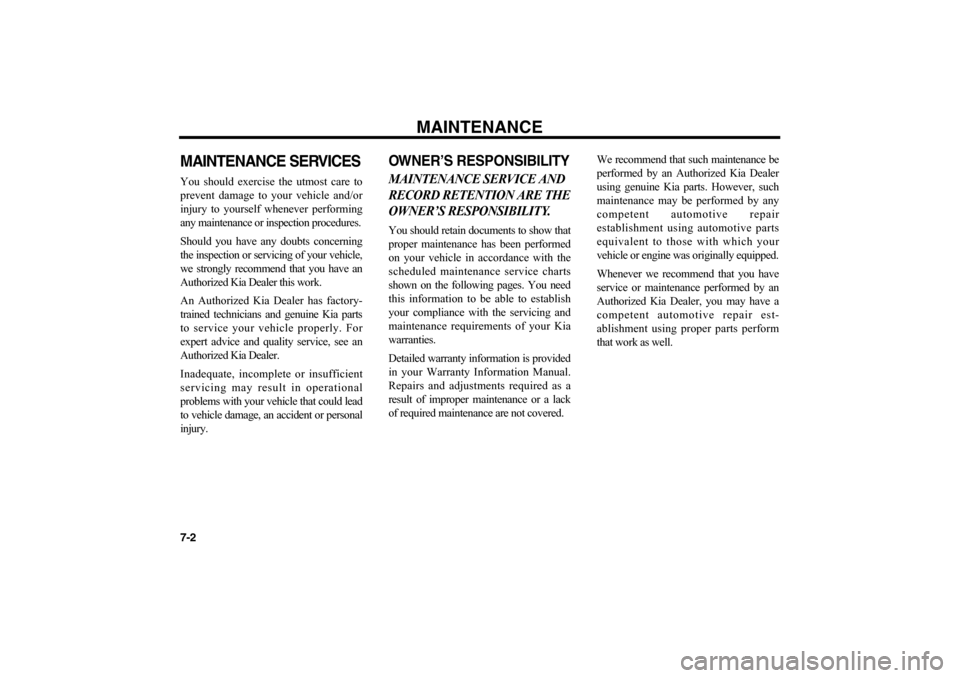

7-2MAINTENANCE SERVICESYou should exercise the utmost care to
prevent damage to your vehicle and/or
injury to yourself whenever performing
any maintenance or inspection procedures.
Should you have any doubts concerning
the inspection or servicing of your vehicle,
we strongly recommend that you have an
Authorized Kia Dealer this work.
An Authorized Kia Dealer has factory-
trained technicians and genuine Kia parts
to service your vehicle properly. For
expert advice and quality service, see an
Authorized Kia Dealer.
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could lead
to vehicle damage, an accident or personal
injury.
OWNER’S RESPONSIBILITYMAINTENANCE SERVICE AND
RECORD RETENTION ARE THE
OWNER’S RESPONSIBILITY.You should retain documents to show that
proper maintenance has been performed
on your vehicle in accordance with the
scheduled maintenance service charts
shown on the following pages. You need
this information to be able to establish
your compliance with the servicing and
maintenance requirements of your Kia
warranties.
Detailed warranty information is provided
in your Warranty Information Manual.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.We recommend that such maintenance be
performed by an Authorized Kia Dealer
using genuine Kia parts. However, such
maintenance may be performed by any
competent automotive repair
establishment using automotive parts
equivalent to those with which your
vehicle or engine was originally equipped.
Whenever we recommend that you have
service or maintenance performed by an
Authorized Kia Dealer, you may have a
competent automotive repair est-
ablishment using proper parts perform
that work as well.
MS-CNA-Eng 7.QXD 7/25/2005 5:09 PM Page 2

7-3
MAINTENANCE SCHEDULEEngine Control systemI: Inspect these items and their related parts. If necessary,
Check the engine oil and coolant levels every week.
R: Replace or change.
NOTE :
Check the engine oil and coolant levels every week.
Kilometers or Time in Months, Whichever Comes First
km 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128Months 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Engine oil & engine oil filter R R R R R R R R R R R R R R R R
Drive belts (tension)III I
Cooling system hoses & connectionsIIII I
Engine coolant II IIIRIIIIIRIIII
Fuel filterR
Fuel tank cap, lines, EVAP canister and hosesII
Fuel tank air filterIRIR I
Air cleaner element II IIIRIIIIIRIIII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
x 1,000
(1)
(1)
(2)
(1) Refer to the lubricant and coolant specifications in the Owner’s Manual.
(2) More frequent maintenance is required if driving under dusty conditions.
MS-CNA-Eng 7.QXD 7/25/2005 5:09 PM Page 3

MAINTENANCE
7-4Engine Control System (cont.)I: Inspect these items and their related parts. If necessary,
correct, clean, refill, adjust or replace.
R: Replace or change.
Kilometers or Time in Months, Whichever Comes First
km 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128
Months 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Ignition wiresII
Spark plugsR
Idle speedIIII I
Engine timing beltR
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
x 1,000
MS-CNA-Eng 7.QXD 7/25/2005 5:09 PM Page 4
