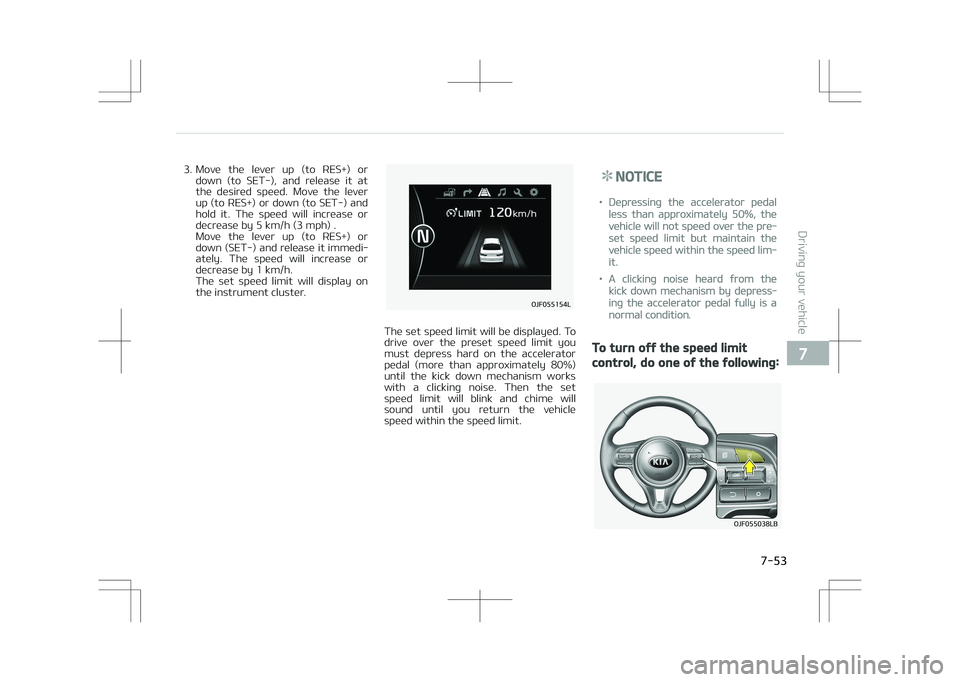

3. Move the lever up (to RES+) ordown (to SET-), and release it at
the desired speed. Move the lever
up (to RES+) or down (to SET-) and
hold it. The speed will increase or
decrease by 5 km/h (3 mph) .
Move the lever up (to RES+) or
down (SET-) and release it immedi‐
ately. The speed will increase or decrease by 1 km/h.
The set speed limit will display on
the instrument cluster.
0+'-
The set speed limit will be displayed. To
drive over the preset speed limit you must depress hard on the accelerator
pedal (more than approximately 80%)
until the kick down mechanism works with a clicking noise. Then the set
speed limit will blink and chime will
sound until you return the vehicle speed within the speed limit.
NOTICE
•Depressing the accelerator pedal
less than approximately 50%, the
vehicle will not speed over the pre‐
set speed limit but maintain the
vehicle speed within the speed lim‐
it.
•A clicking noise heard from the
kick down mechanism by depress‐
ing the accelerator pedal fully is a
normal condition.
To turn off the speed limit
control, do one of the following:
0+'-#

7-53
7
Driving your vehicle

SPEED LIMIT INFORMATION FUNCTION (SLIF) (IF EQUIPPED)
06.
The system displays the information of
speed limit and no passing restriction to the driver in both the instrument
cluster and navigation screen. SLIF de‐
tects traffic signs with camera system attached on the top of the windscreen.
The SLIF also utilizes the navigation in‐
formation to display the speed limit in‐
formation.
WARNING
•Speed Limit Information Functionis only an aid and is not alwaysable to correctly display speed lim‐its and overtaking restrictions.
•The driver always keeps the re‐sponsibility not to exceed themaximum allowed speed.
•Do not place any accessories,stickers or tint the windshield nearthe rearview mirror.
•The system detects traffic signsand displays speed limit informa‐tion by a camera therefore, if traf‐fic signs are hard to detect, thesystem may not work properly.Please refer to L

Operation
0+'-
• If a traffic sign that is relevant toyour vehicle is passed, the system
displays the information of the speed limits and no passing restrictions to
the driver.
• When the driver turns on the ignition, the system displays stored informa‐
tion of the speed limit before turning
off the ignition. • Sometimes different speed limits are
displayed for the same road. The in‐
formation displayed is depending on
the situation. Because, traffic signs
with additional sign (e.g rainy, ar‐
row...) are also detected and com‐ pared with vehicle interior data (e.g
wiper operation, turn signal...).
• The system can update the speed limit information without visible
speed limit signs in the following sit‐ uations. - When you change your driving di‐ rection with right or left or U turn‐ ing.
- When vehicle changes roads. (e.g. from highway to country road…)
- When you enter or exit into town or village.
NOTICE
If speed limit value has the differ‐
ence between cluster and naviga‐
tion, check the speed unit setting in
navigation.
Display
/P
SFMJBCMF
TQFFE
MJNJU
JOGPSNBUJPO
86.
• If the system doesn’t have a reliablespeed limit information, the following
symbol is displayed in both the in‐ strument cluster and navigation
screen.
/P
QBTTJOH
JOGPSNBUJPO
86.86.
• If the system detects no passing sign,no passing is displayed in both the in‐
strument cluster and navigation
screen.
Driving your vehicle
7-56

Advanced smart cruise control will
be temporarily canceled when:
0+'-
Cancelled manually
The advanced smart cruise control is
temporarily canceled when the brake pedal is depressed or the CANCEL but‐
ton is pressed. The speed and vehicle to
vehicle distance indicator on the cluster is disappeared and the CRUISE indicator
is illuminated continuously.
Cancelled automatically
• The driver's door is opened.
• The shift lever is shifted to N (Neu‐ tral), R (Reverse) or P (Parking). • The EPB (electronic parking brake) is
applied.
• The vehicle speed is over 190 km/h (120 mph).
• The ESC, ABS or TCS is operating.
• The ESC is turned off.
• The sensor or the cover is dirty or blocked with foreign matter.
• When the vehicle is stopped for over 5 minutes.
• The driver starts driving by pushing the lever up (RES +) or down (SET -)
or depressing the accelerator pedal approximately 3 seconds after the
vehicle is stopped by the advanced
smart cruise control system with no
other vehicle ahead or a vehicle stop‐
ped far away in front.
• The accelerator pedal is continuously depressed for a long time.
• The engine RPM is in dangerous range.
• The SCC system has malfunctioned.
Each of these actions will cancel the
advanced smart cruise control opera‐
tion. (the set speed and vehicle to vehi‐
cle distance on the LCD display will go
off.) In a condition the advanced smart
cruise control is cancelled automatical‐
ly, the advanced smart cruise control
will not resume even though the RES+ or SET- lever is moved. Also, the EPB
(electronic parking brake) will be ap‐
plied when the vehicle is stopped. • When activating the ISG mode.
• When activating the AEB (Autono‐ mous Emergency Braking).
CAUTION
If the advanced smart cruise controlis cancelled by other than the rea‐sons mentioned, we recommendhave the system checked by an au‐thorized Kia dealer.
Driving your vehicle
7-62

To set vehicle to vehicle distance:
%JTUBODF
 %JTUBODF
%JTUBODF
 %JTUBODF
0+' 0+'
0+' 0+'
• The vehicle will maintain the set
speed, when the lane ahead is clear.
• The vehicle will slow down or speed up to maintain the selected distance,when there is a vehicle ahead of you
in the lane. (A vehicle will appear in
front of your vehicle in the LCD dis‐
play only when there is an actual ve‐
hicle in front of you)
• If the vehicle ahead speeds up, your vehicle will travel at a steady cruising
speed after accelerating to the selec‐
ted speed.
CAUTION
•The warning chime sounds andLCD display blinks if it is hard tomaintain the selected distance tothe vehicle ahead.
•If the warning chime sounds, ac‐tively adjust the vehicle speed bydepressing the brake pedal accord‐ing to the road condition aheadand driving condition.
(Continued)

7-65
7
Driving your vehicle

(Continued)
•Even if the warning chime is notactivated, always pay attention tothe driving conditions to preventdangerous situations from occur‐ring.
Collision alert
0+'
When the ASCC system is on, and there
is a high risk of collision due to sudden braking of the vehicle in front or not
securing enough space with the vehicle
in front, the driver needs to control the brake system or the steering wheel
manually. In this case, the collision alert
warning displays on the instrument cluster and warning sounds. Decrease
vehicle speed immediately.
WARNING
•Even when the indicator displayingthe distance with the vehicle infront does not blink or the collisionalert does not sound, always drivesafely.
•Depending on the use of radio,sound quality, and driving condi‐tions, you may not be able to hearthe warning sound. Therefore, al‐ways pay close attention to trafficin front.
0+'-
Driving your vehicle
7-66

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)
Hybrid vehicle
5ZQF
"
0+'
5ZQF
#
0+'
The drive mode may be selected ac‐
cording to the driver’s preference or road condition. The system resets to be in the ECO
mode, when the hybrid system is re‐
started.
If there is a problem with the instru‐ ment cluster, the drive mode will be in
ECO mode and may not change to NOR‐
MAL mode or SPORT mode.
The mode changes whenever the DRIVE MODE button is pressed.

/03."-
41035
















&$0
❈ When normal mode is selected, it is
not displayed on the cluster.
ECO mode (Active ECO)
ECO
Active ECO helps
improve fuel effi‐
ciency by control‐ling certain en‐gine and trans‐axle system op‐erating parame‐ters. Fuel effi‐ciency depends
on the driver'sdriving habit and
road condition. • When the DRIVE MODE button is
pressed and the ECO mode is selec‐
ted, the ECO indicator (green) will illu‐ minate to show that the Active ECO
is operating.
• When the Active ECO is activated, it does not turn off even though the
engine is restarted again. To turn off
the system, press the DRIVE MODE button again.
When Active ECO is activated:
• The acceleration may slightly be re‐ duced even though you depress the
accelerator fully.
• The air conditioner performance may be limited.
• The shift pattern of the automatic transaxle may change.
• The engine noise may get louder.
The above situations are normal condi‐
tions when the active eco system is ac‐
tivated to improve fuel efficiency.
Limitation of Active ECO operation:
If the following conditions occur while Active ECO is operating, the system op‐
eration is limited even though there is
no change in the ECO indicator.

7-75
7
Driving your vehicle

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)
Plug-in hybrid vehicle
0+')1-
The drive mode may be selected ac‐
cording to the driver’s preference or road condition.
The system resets to be in the ECO
mode, when the hybrid system is re‐
started.
If there is a problem with the instru‐ ment cluster, the drive mode will be in
ECO mode and may not change to NOR‐
MAL mode.
The mode changes whenever the DRIVE MODE button is pressed.
/03."- &$0
❈ When normal mode is selected, it is
not displayed on the cluster.
ECO mode (Active ECO)
ECO
Active ECO helps
improve fuel effi‐
ciency by control‐ling certain en‐gine and trans‐axle system op‐erating parame‐ters. Fuel effi‐ciency depends
on the driver'sdriving habit and
road condition.
• When the DRIVE MODE button is pressed and the ECO mode is selec‐
ted, the ECO indicator (green) will illu‐ minate to show that the Active ECO
is operating.
• When the Active ECO is activated, it does not turn off even though the
engine is restarted again. To turn off
the system, press the DRIVE MODE button again.
When Active ECO is activated:
• The acceleration may slightly be re‐ duced eventhough you depress the
accelerator fully.
• The air conditioner performance may be limited
• The shift pattern of the automatic transaxle may change.
• The engine noise may get louder.
The above situations are normal condi‐
tions when the active eco system is ac‐
tivated to improve fuel efficiency.
Limitation of Active ECO operation:
If the following conditions occur while Active ECO is operating, the system op‐
eration is limited even though there is
no change in the ECO indicator. • When the coolant temperature is low: The system will be limited until en‐
gine performance becomes normal.
• When driving up a hill: The system will be limited to gainpower when driving uphill because
the engine torque is restricted.
• When using manual mode: The system will be limited according
to the shift location.

7-77
7
Driving your vehicle

To operate the LDWS, press the switch
with the engine start/stop button in the ON position. The indicator illumi‐
nates white on the cluster.
To cancel the LDWS, press LDWS button
again. The indicator on the cluster will
go off.
0+'-
If you select this symbol, the LDWS
mode on the LCD display will appear.
If your vehicle leaves the lane when the LDWS is operating and vehicle speed
exceeds around 60 km/h, the warning
operates as follows:
0+'-
-FGU
MBOF
EFQBSUJOH
3JHIU
MBOF
EFQBSUJOH
0+'-
1. Visual warning If you leave a lane, the lane you
cross will blink (yellow) and LDWS
indicator will blink green on LCD
during max 3 seconds. 2. Auditory warning
If you leave the lane, the warning
sound operates for maximum 3
seconds.
The color of symbol will change de‐ pending on the condition of LDWS sys‐
tem.
• White color: When you activate
the lane departure warning system by
pressing the LDWS
button, system oper‐
ating conditions arenot satisfied or thesensor does not de‐tect the lane line.
• Green color: When you activate the lane departurewarning system by
pressing the LDWS
button, system oper‐
ating conditions aresatisfied and the sen‐sor detect the laneline.
• Yellow color: When there is a mal‐function with the lane
departure warningsystem.
Driving your vehicle

7-80

(Continued)
•Do not place objects on the dash‐board that reflects light such asmirrors, white paper, etc. The sys‐tem may malfunction if the sun‐light is reflected.
•Loud audio sounds may interferewith the passenger from hearingwarning chimes.
•Always have your hands on thesteering wheel while the LKASsystem is activated. If you contin‐ue to drive with your hands off thesteering wheel after the "Hand on"warning, the system will turn offautomatically.
•If you drive very fast, the vehiclemay stray out of the lane. Alwaysbe cautious when using the sys‐tem.
•When you tow the trailer, makesure that you turn off LKAS func‐tion.
LKAS operation
0+'
To turn ON the LKAS, press the switch,
after turning ON the ignition switch. The indicator illuminates on the instru‐
ment cluster. To turn OFF the LKAS,
press the switch again.
The LKAS indicator illuminates in 3colors as follows:
• [Green] - When the system operating condi‐tions are satisfied.
• [White] - The system operation conditionsare not satisfied. - The sensor does not detect lane
lines.
• [Yellow] - There is a malfunction with theLKAS. In this case, we recommend
you to have your vehicle inspectedby an authorized Kia dealer.
LKAS activation
0+'-
• The LKAS screen will appear on the LCD display if the system is activa‐
ted.
• When both lanes are detected and all the conditions to activate the LKAS
are satisfied, the steering wheel will
Driving your vehicle
7-84
