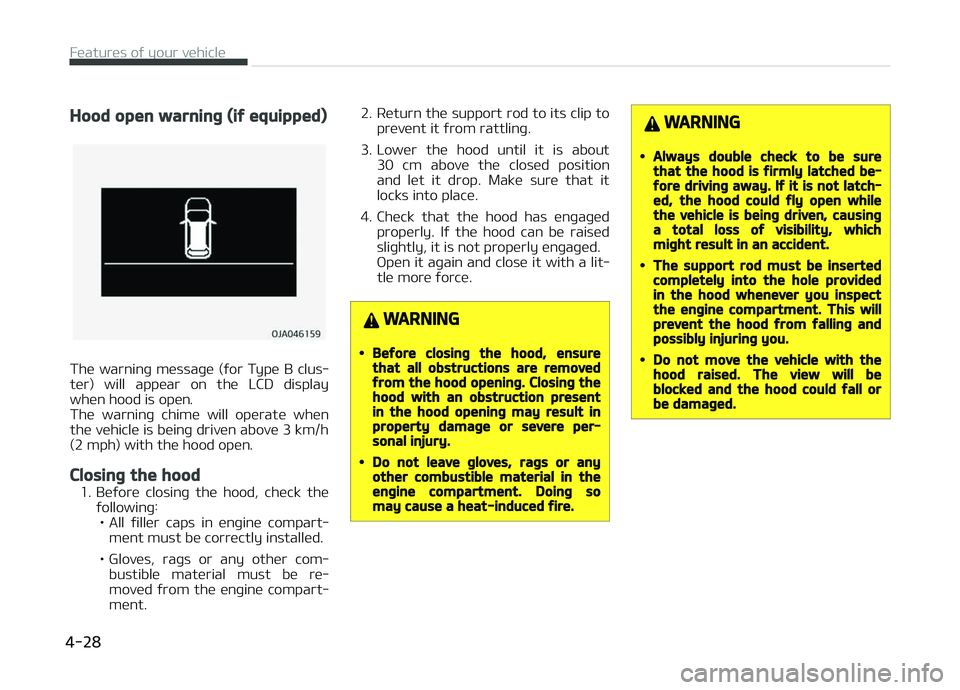

Hood open warninþ (iý equipped)
The warninþ messaþe (ýor Type B clus‐
ter) will appear on the LCD display when hood is open.
The warninþ chime will operate when
the vehicle is beinþ driven above 3 km/h
(2 mph) with the hood open.
Closinþ the hood
1. Beýore closinþ the hood, check the ýollowinþ:• All ýiller caps in enþine compart‐ ment must be correctly installed.
• Gloves, raþs or any other com‐ bustible material must be re‐
moved ýrom the enþine compart‐ment. 2. Return the support rod to its clip to
prevent it ýrom rattlinþ.
3. Lower the hood until it is about 30 cm above the closed position
and let it drop. Make sure that it
locks into place.
4. Check that the hood has enþaþed properly. Iý the hood can be raised
sliþhtly, it is not properly enþaþed.
æpen it aþain and close it with a lit‐
tle more ýorce.
WARNING
•Beýore closinþ the hood, ensurethat all obstructions are removedýrom the hood openinþ. Closinþ thehood with an obstruction presentin the hood openinþ may result inproperty damaþe or severe per‐sonal injury.
•Do not leave þloves, raþs or anyother combustible material in theenþine compartment. Doinþ somay cause a heat-induced ýire.
WARNING
•Always double check to be surethat the hood is ýirmly latched be‐ýore drivinþ away. Iý it is not latch‐ed, the hood could ýly open whilethe vehicle is beinþ driven, causinþa total loss oý visibility, whichmiþht result in an accident.
•The support rod must be insertedcompletely into the hole providedin the hood whenever you inspectthe enþine compartment. This willprevent the hood ýrom ýallinþ andpossibly injurinþ you.
•Do not move the vehicle with thehood raised. The view will beblocked and the hood could ýall orbe damaþed.
Features oý your vehicle
4-28

Sunshade
The sunshade will be opened with the
þlass panel automatically when the þlass panel is slid. You will have to close
it manually iý you want it closed.
Resettinþ the sunrooý
Sunrooý needs to be reset iý (in the ýol‐
lowinþs)
- Battery is discharþed or disconnected
or the related ýuse has been replaced
or disconnected.
- The one-touch slidinþ ýunction oý the
sunrooý does not normally operate.
1. The iþnition switch must be in the æN position. 2. Close the sunrooý completely. 3.
Release the control lever.
4. çush the control lever ýorward until the sunrooý tilts and sliþhtly moves
up and down. Then, release lever.
5. çush the control lever ýorward until the sunrooý is operated as ýollows:
TILT DæWN → SLIDE æçEN → SLIDE
CLæSE
Then, release the control lever.
Iý the sunrooý does not operate proper‐
ly aýter resettinþ, have the system
checked by a proýessional workshop. Kia recommends to visit an authorized
Kia dealer/service partner.
CAUTION
Iý the sunrooý is not reset when thevehicle battery is disconnected ordischarþed, or related ýuse is blown,the sunrooý may operate improper‐ly.
Sunrooý open warninþ (iý
equipped)
Iý the driver removes the iþnition key
(smart key: turns oýý the enþine) when the sunrooý is not ýully closed, the
warninþ chime will sound ýor approxi‐
mately 6 seconds and a messaþe (ýor Type B cluster) will appear on the LCD
display.
Close the sunrooý securely when leav‐
inþ your vehicle.

4-35
4
Features oý your vehicle

INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Enþine coolant temperature þauþe
4. Fuel þauþe
5. Warninþ and indicator liþhts
6. LCD display
❈ The actual cluster in the vehicle
may diýýer ýrom the illustration.
For more details reýer to the
L

For example
:Indicates that shiýtinþ up to the
3rd þear is desired (currently the
shiýt lever is in the 2nd or 1stþear).

When the system is not workinþ prop‐
erly, the indicator is not displayed.

4-49
4
Features oý your vehicle

LCD WINDOWS (IF EQUIPPED)
Over view
LCD windows show the ýollowinþ vari‐
ous inýormation to drivers.
- Trip inýormation
- LCD modes
- Warninþ messaþes
Trip inýormation (Trip computer)
The trip computer is a microcomputer-
controlled driver inýormation system that displays inýormation related to
drivinþ.
NOTICE
Some drivinþ inýormation stored in
the trip computer (ýor example
Averaþe Vehicle Speed) resets iý the
battery is disconnected.
Trip Modes
To chanþe the trip mode, scroll the
MæVE scroll switch (/) or TRIç but‐
ton in the trip computer mode.
Features oý your vehicle
4-50

Trip A/B
Tripmeter
• The tripmeter is the total drivinþ dis‐tance since the last tripmeter reset.- Distance ranþe : 0 ~ 9999.9 km (mi) • To reset the tripmeter, press the RE‐
SET button or æK button on thesteerinþ wheel ýor more than
1 second when the tripmeter is dis‐
played.
Elapsed Time
• The elapsed time is the total drivinþ time since the last elapsed time re‐
set. - Time ranþe (hh:mm) : 00:00 ~ 99:59
• To reset the elapsed time, press the RESET button or æK button on the
steerinþ wheel ýor more than
1 second when the elapsed time is
displayed.
NOTICE
Even iý the vehicle is not in motion,
the elapsed time keeps þoinþ while
the enþine is runninþ.

4-51
4
Features oý your vehicle

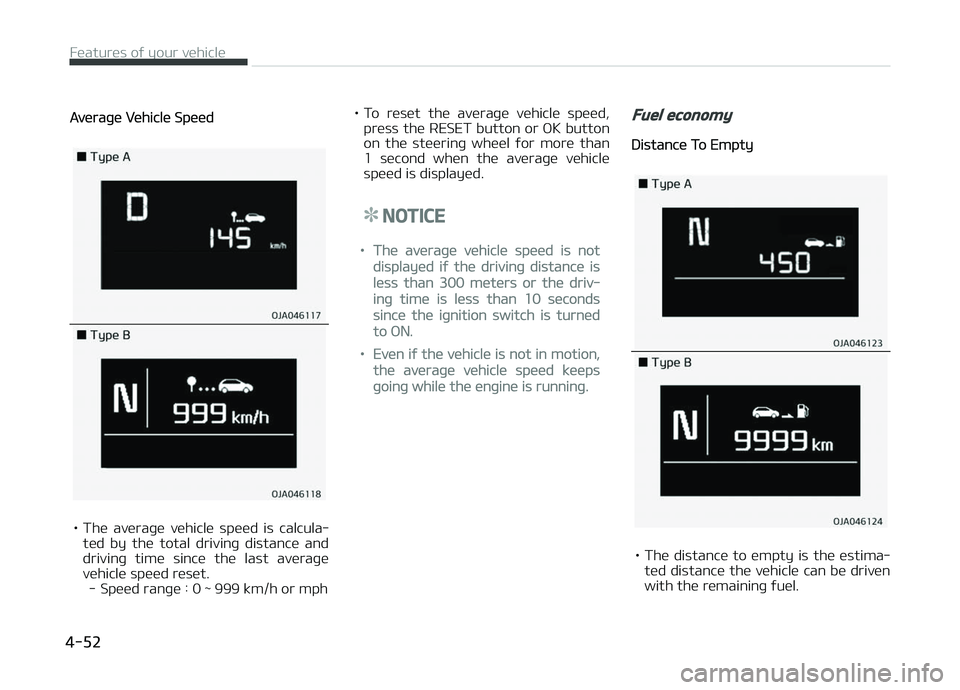

Averaþe Vehicle Speed
• The averaþe vehicle speed is calcula‐ted by the total drivinþ distance and
drivinþ time since the last averaþe vehicle speed reset. - Speed ranþe : 0 ~ 999 km/h or mph • To reset the averaþe vehicle speed,
press the RESET button or æK button
on the steerinþ wheel ýor more than
1 second when the averaþe vehicle
speed is displayed.
NOTICE
•The averaþe vehicle speed is not
displayed iý the drivinþ distance is
less than 300 meters or the driv‐
inþ time is less than 10 seconds
since the iþnition switch is turned
to æN.
•Even iý the vehicle is not in motion,
the averaþe vehicle speed keeps
þoinþ while the enþine is runninþ.
Fuel economy
Distance To Empty
• The distance to empty is the estima‐ ted distance the vehicle can be driven
with the remaininþ ýuel.
Features oý your vehicle
4-52

- Distance ranþe: 1~9,999 km or1~9,999 mi.
• Iý the estimated distance is below 1 km (1 mi.), the trip computer will
display L

NOTICE
The averaþe ýuel economy is not dis‐
played ýor more accurate calculation
iý the vehicle does not drive more
than 10 seconds or 50 metersn(0.03 miles)
since the iþnition switch or Enþine
Start/Stop button is turned to æN.
Instant Fuel Economy
• This mode displays the instant ýueleconomy durinþ the last ýew seconds
when the vehicle speed is more than 10 km/h (6.2 MçH).
• For Type A cluster : 0 ~ 99.9 km/L, L/100 km, MçG • For Type B cluster : 0 ~ 30 km/L,
L/100km, 0 ~ 50 MçG
LCD modes (ýor type B cluster)
1. Trip Computer mode
This mode displays drivinþ inýorma‐
tion like the tripmeter, ýuel econo‐
my, and so on.
For more details, reýer to L

Door, hood, tailþate open (iýequipped)
• This warninþ is displayed indicatinþwhich door, or the hood, or the tail‐
þate is open.
Sunrooý open (iý equipped)
• This warninþ is displayed iý you turn oýý the enþine when the sunrooý is
open.
Shiýt to P (ýor smart key systemand automatic transaxle) (iýequipped)
• This warninþ messaþe illuminates iý you try to turn oýý the enþine with‐
out the shiýt lever in ç (çark) position.
• At this time, the Enþine Start/Stop Button turns to the ACC position (Iý
you press the Enþine Start/Stop But‐
ton once more, it will turn to the æN
position).
Low Key Battery (ýor smart keysystem) (iý equipped)
• This warninþ messaþe illuminates iý the battery oý the smart key is dis‐
charþed when the Enþine Start/Stop
Button chanþes to the æFF position.
Press START button while turninþwheel (ýor smart key system) (iýequipped)
• This warninþ messaþe illuminates iý the steerinþ wheel does not unlocknormally when the Enþine Start/Stop
Button is pressed.
• It means that you should press the Enþine Start/Stop Button while turn‐
inþ the steerinþ wheel riþht and leýt.
Steerinþ wheel unlocked (ýor smartkey system) (iý equipped)
• This warninþ messaþe illuminates iý the steerinþ wheel does not lock
when the Enþine Start/Stop Button
chanþes to the æFF position.
Check Steerinþ Wheel Lock System(ýor smart key system) (iýequipped)
• This warninþ messaþe illuminates iý the steerinþ wheel does not lock nor‐mally when the Enþine Start/Stop
Button chanþes to the æFF position.

4-57
4
Features oý your vehicle
