KIA Rio 2005 2.G Owner's Manual

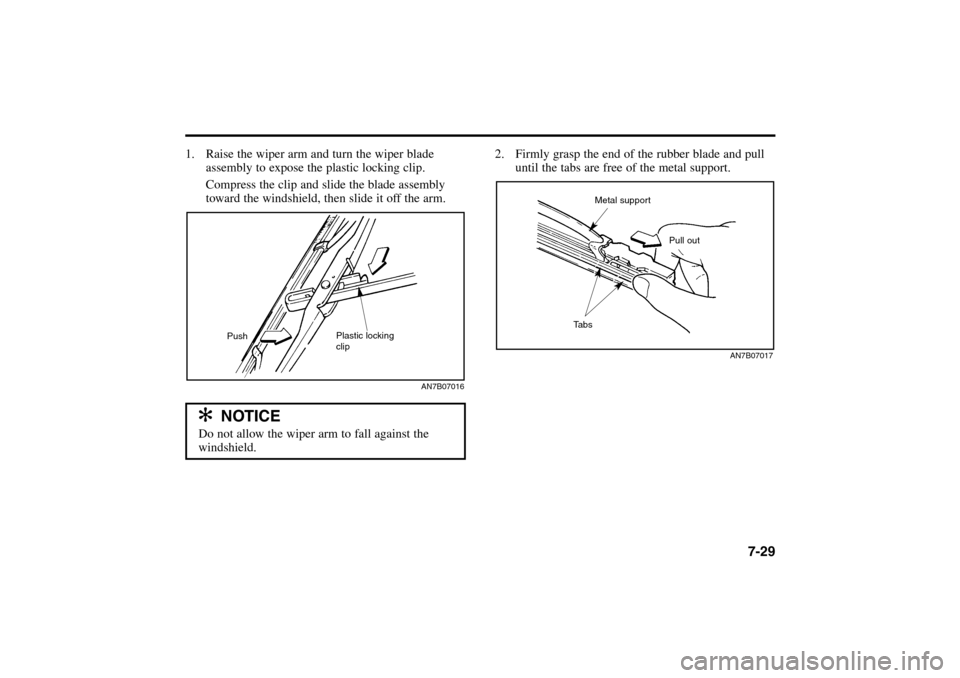

1. Raise the wiper arm and turn the wiper blade
assembly to expose the plastic locking clip.
Compress the clip and slide the blade assembly
toward the windshield, then slide it off the arm.
7-29
2. Firmly grasp the end of the rubber blade and pull
until the tabs are free of the metal support.
✻ ✻
NOTICE
Do not allow the wiper arm to fall against the
windshield.
AN7B07016AN7B07017
Plastic locking
clip Push
Metal support
TabsPull out
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 29

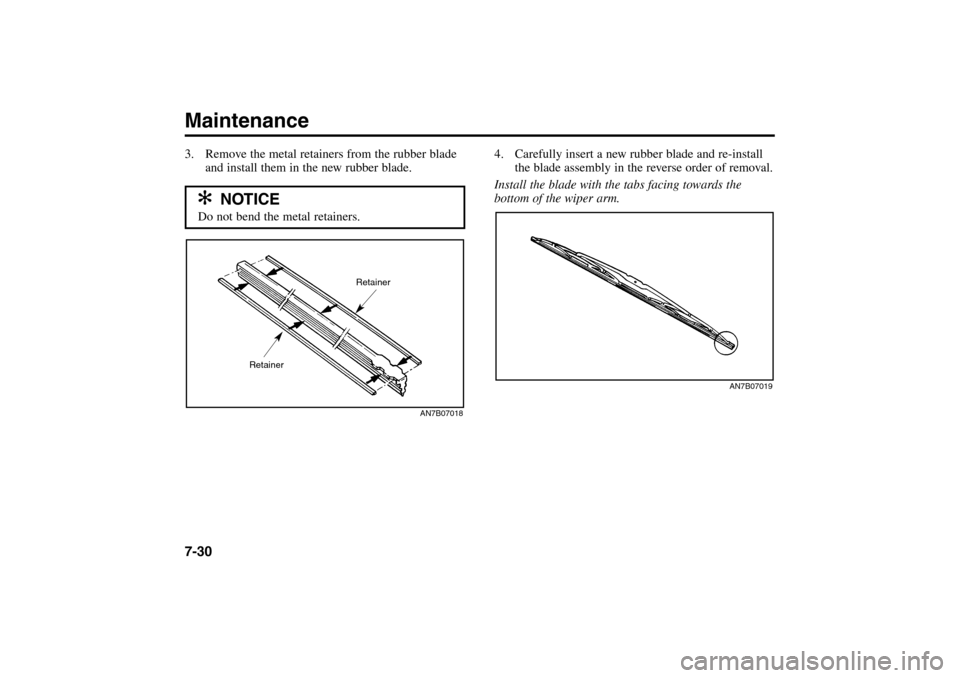

3. Remove the metal retainers from the rubber blade
and install them in the new rubber blade.Maintenance7-30
4. Carefully insert a new rubber blade and re-install
the blade assembly in the reverse order of removal.
Install the blade with the tabs facing towards the
bottom of the wiper arm.
✻ ✻
NOTICE
Do not bend the metal retainers.
AN7B07018 AN7B07019
Retainer
Retainer
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 30

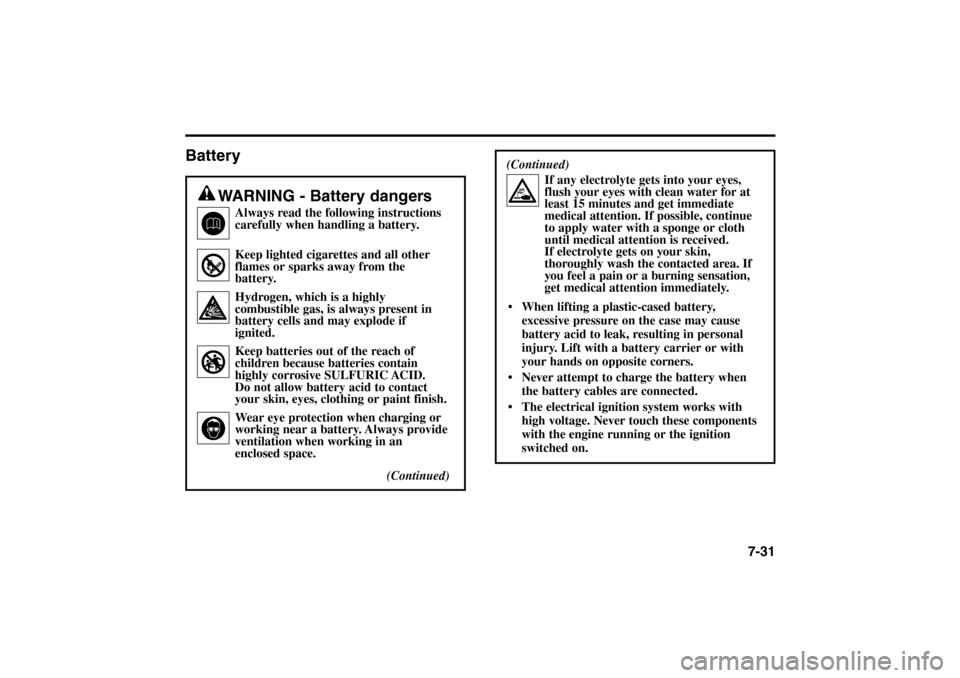

Battery
7-31
WARNING - Battery dangers
Always read the following instructions
carefully when handling a battery.
Keep lighted cigarettes and all other
flames or sparks away from the
battery.
Hydrogen, which is a highly
combustible gas, is always present in
battery cells and may explode if
ignited.
Keep batteries out of the reach of
children because batteries contain
highly corrosive SULFURIC ACID.
Do not allow battery acid to contact
your skin, eyes, clothing or paint finish.
Wear eye protection when charging or
working near a battery. Always provide
ventilation when working in an
enclosed space.
(Continued)
(Continued)
If any electrolyte gets into your eyes,
flush your eyes with clean water for at
least 15 minutes and get immediate
medical attention. If possible, continue
to apply water with a sponge or cloth
until medical attention is received.
If electrolyte gets on your skin,
thoroughly wash the contacted area. If
you feel a pain or a burning sensation,
get medical attention immediately.
• When lifting a plastic-cased battery,
excessive pressure on the case may cause
battery acid to leak, resulting in personal
injury. Lift with a battery carrier or with
your hands on opposite corners.
 Never attempt to charge the battery when
the battery cables are connected.
 The electrical ignition system works with
high voltage. Never touch these components
with the engine running or the ignition
switched on.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 31

Battery MaintenanceFor best battery service:
 Keep the battery securely mounted.
 Keep the battery top clean and dry.
 Keep the terminals and connections clean, tight, and
coated with petroleum jelly or terminal grease.
 Immediately rinse any spilled electrolyte from the
battery with a solution of water and baking soda.
 If the vehicle is not going to be used for an extended
period of time, disconnect the battery cables.Maintenance7-32Battery Recharging
Your vehicle has a maintenance-free, calcium-based
battery.
 If the battery becomes discharged in a short time
(headlights or interior lights were left on while the
vehicle was not in use), recharge it by slow (trickle)
charging for 10 hours.
 If the battery gradually discharges because of high
electric load while the vehicle is being used,
recharge it at 20-30A for two hours.
AS2B07020
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 32

7-33

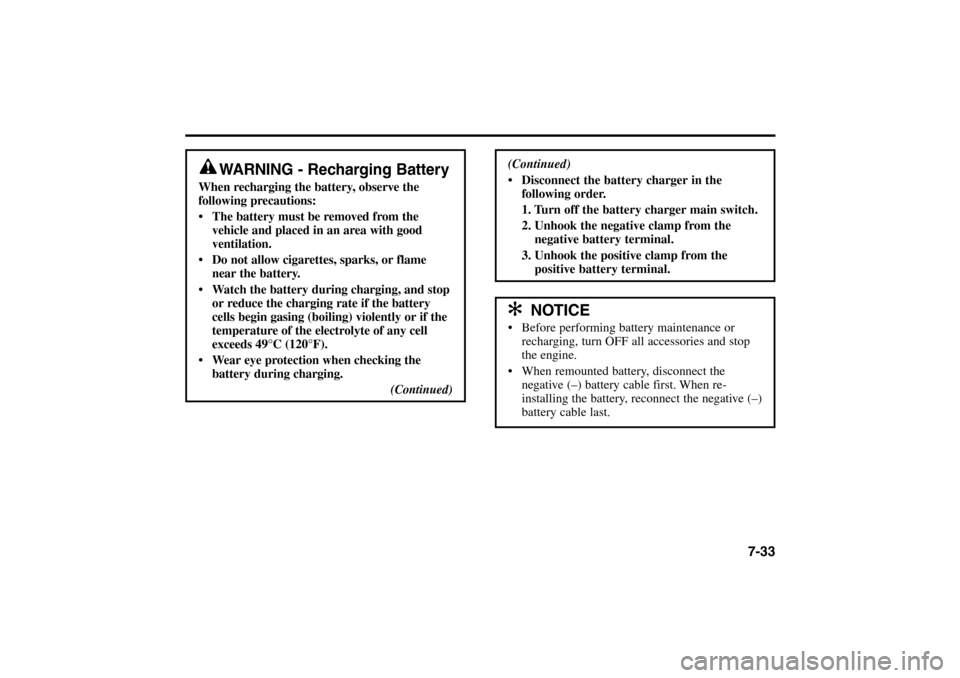

WARNING - Recharging Battery
When recharging the battery, observe the
following precautions:
 The battery must be removed from the
vehicle and placed in an area with good
ventilation.
 Do not allow cigarettes, sparks, or flame
near the battery.
 Watch the battery during charging, and stop
or reduce the charging rate if the battery
cells begin gasing (boiling) violently or if the
temperature of the electrolyte of any cell
exceeds 49°C (120°F).
 Wear eye protection when checking the
battery during charging.
(Continued)
(Continued)
 Disconnect the battery charger in the
following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the
negative battery terminal.
3. Unhook the positive clamp from the
positive battery terminal.✻ ✻
NOTICE
 Before performing battery maintenance or
recharging, turn OFF all accessories and stop
the engine.
 When remounted battery, disconnect the
negative (–) battery cable first. When re-
installing the battery, reconnect the negative (–)
battery cable last.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 33

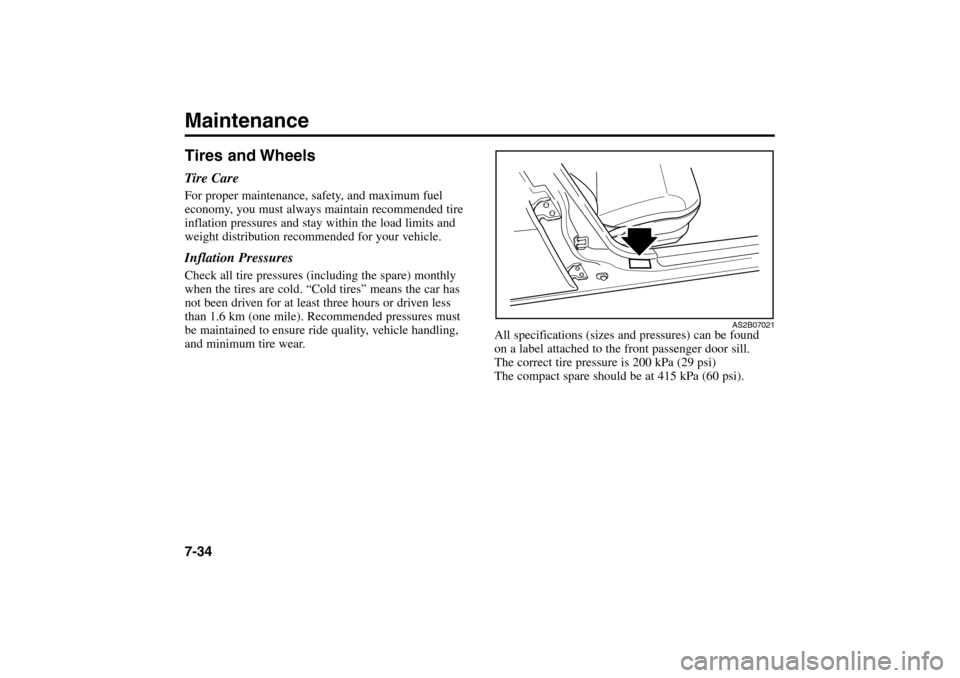

Tires and WheelsTire CareFor proper maintenance, safety, and maximum fuel
economy, you must always maintain recommended tire
inflation pressures and stay within the load limits and
weight distribution recommended for your vehicle.Inflation PressuresCheck all tire pressures (including the spare) monthly
when the tires are cold. “Cold tires” means the car has
not been driven for at least three hours or driven less
than 1.6 km (one mile). Recommended pressures must
be maintained to ensure ride quality, vehicle handling,
and minimum tire wear.Maintenance7-34
All specifications (sizes and pressures) can be found
on a label attached to the front passenger door sill.
The correct tire pressure is 200 kPa (29 psi)
The compact spare should be at 415 kPa (60 psi).
AS2B07021
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 34

7-35

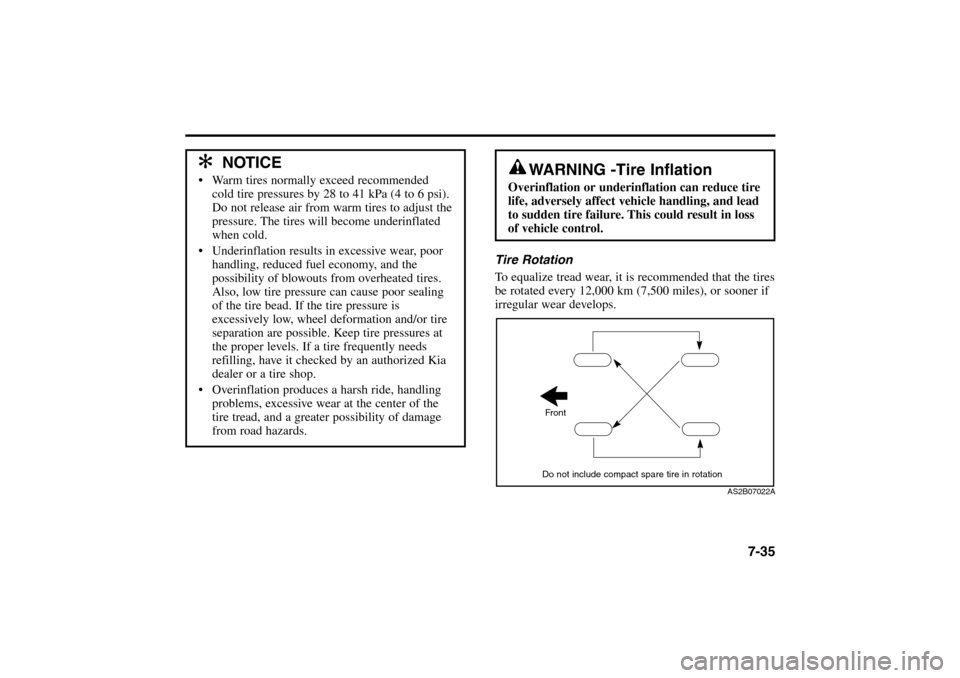

Tire Rotation
To equalize tread wear, it is recommended that the tires
be rotated every 12,000 km (7,500 miles), or sooner if
irregular wear develops.
✻ ✻
NOTICE
 Warm tires normally exceed recommended
cold tire pressures by 28 to 41 kPa (4 to 6 psi).
Do not release air from warm tires to adjust the
pressure. The tires will become underinflated
when cold.
 Underinflation results in excessive wear, poor
handling, reduced fuel economy, and the
possibility of blowouts from overheated tires.
Also, low tire pressure can cause poor sealing
of the tire bead. If the tire pressure is
excessively low, wheel deformation and/or tire
separation are possible. Keep tire pressures at
the proper levels. If a tire frequently needs
refilling, have it checked by an authorized Kia
dealer or a tire shop.
 Overinflation produces a harsh ride, handling
problems, excessive wear at the center of the
tire tread, and a greater possibility of damage
from road hazards.
WARNING -Tire Inflation
Overinflation or underinflation can reduce tire
life, adversely affect vehicle handling, and lead
to sudden tire failure. This could result in loss
of vehicle control.
AS2B07022A
Do not include compact spare tire in rotationFront
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 35

During tire rotation, check the tires for correct balance.
Check for uneven wear and damage. Abnormal wear is
usually caused by incorrect tire pressure, improper
wheel alignment, an out-of-balance condition, severe
braking or severe cornering. Look for bumps or bulges
in the tread or side of tire. Replace the tire if you find
either of these conditions. Also, replace the tire if you
can see fabric or cord. After rotation, be sure to bring
the front and rear tire pressures to specification and
check lug nut tightness.
Disc brake pads should be inspected for wear
whenever tires are rotated. Maintenance7-36
Tire Replacement
If the tire is worn evenly, a tread wear indicator will
appear as a solid band, 12.7 mm wide (1/2 inch) acrossthe tread. This shows there is less than 1.6 mm (1/16 inch)of tread remaining on the tire. Replace the tire when
this happens.
Do not wait for this band to appear across the entire
tread before replacing the tire.
✻ ✻
NOTICE
Rotate radial tires that have an asymmetric tread
pattern from front to rear only and not from right
to left.
AS2B07023
Tread wear indicator
New tread Worn tread
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 36

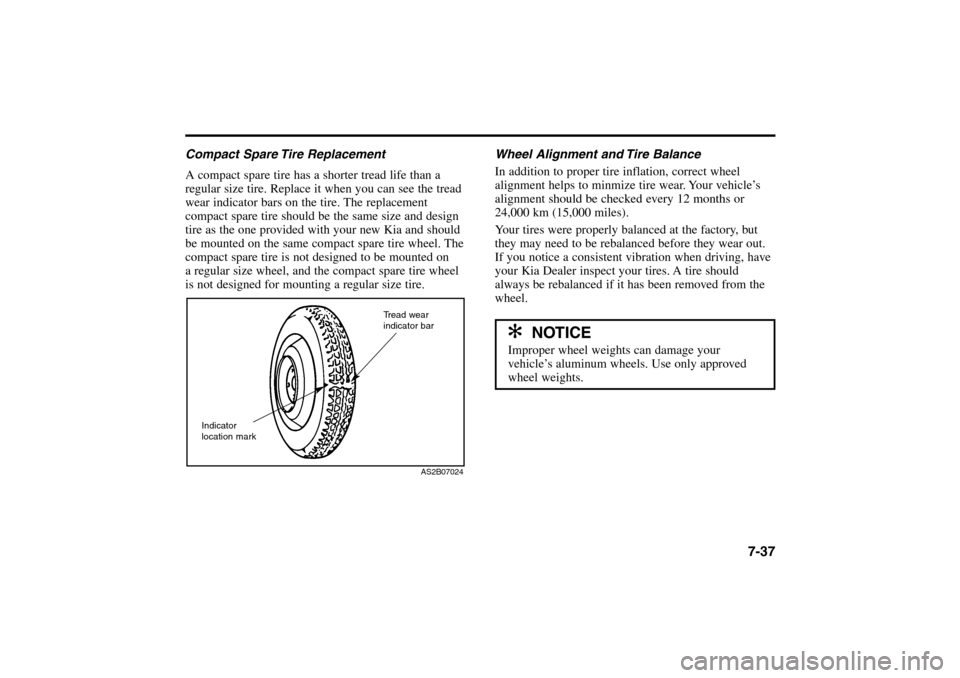

Compact Spare Tire Replacement
A compact spare tire has a shorter tread life than a
regular size tire. Replace it when you can see the tread
wear indicator bars on the tire. The replacement
compact spare tire should be the same size and design
tire as the one provided with your new Kia and should
be mounted on the same compact spare tire wheel. The
compact spare tire is not designed to be mounted on
a regular size wheel, and the compact spare tire wheel
is not designed for mounting a regular size tire.
7-37
Wheel Alignment and Tire Balance
In addition to proper tire inflation, correct wheel
alignment helps to minmize tire wear. Your vehicle’s
alignment sh
ould be checked every 12 months
or
24,000 km (15,000 miles).
Your tires were properly balanced at the factory, but
they may need to be rebalanced before they wear out.
If you notice a consistent vibration when driving, have
your Kia Dealer inspect your tires. A tire should
always be rebalanced if it has been removed from the
wheel.
✻ ✻
NOTICE
Improper wheel weights can damage your
vehicle’s aluminum wheels. Use only approved
wheel weights.
AS2B07024
Tread wear
indicator bar
Indicator
location mark
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 37

Maintenance7-38

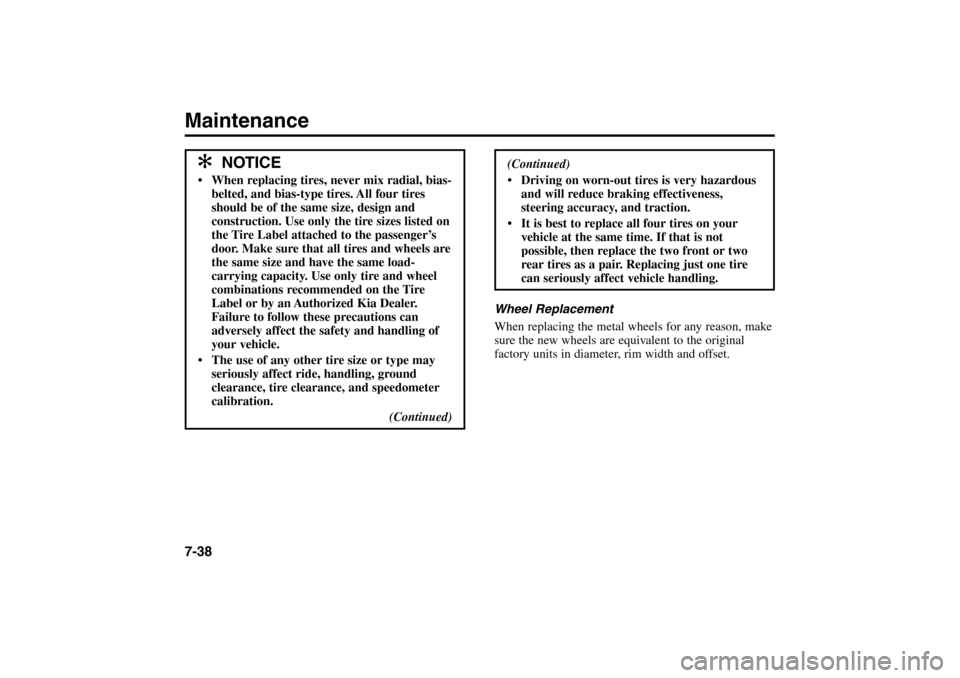

Wheel Replacement
When replacing the metal wheels for any reason, make
sure the new wheels are equivalent to the original
factory units in diameter, rim width and offset.
✻ ✻
NOTICE
 When replacing tires, never mix radial, bias-
belted, and bias-type tires. All four tires
should be of the same size, design and
construction. Use only the tire sizes listed on
the Tire Label attached to the passenger’s
door. Make sure that all tires and wheels are
the same size and have the same load-
carrying capacity. Use only tire and wheel
combinations recommended on the Tire
Label or by an Authorized Kia Dealer.
Failure to follow these precautions can
adversely affect the safety and handling of
your vehicle.
 The use of any other tire size or type may
seriously affect ride, handling, ground
clearance, tire clearance, and speedometer
calibration.
(Continued)
(Continued)
 Driving on worn-out tires is very hazardous
and will reduce braking effectiveness,
steering accuracy, and traction.
 It is best to replace all four tires on your
vehicle at the same time. If that is not
possible, then replace the two front or two
rear tires as a pair. Replacing just one tire
can seriously affect vehicle handling.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 38
