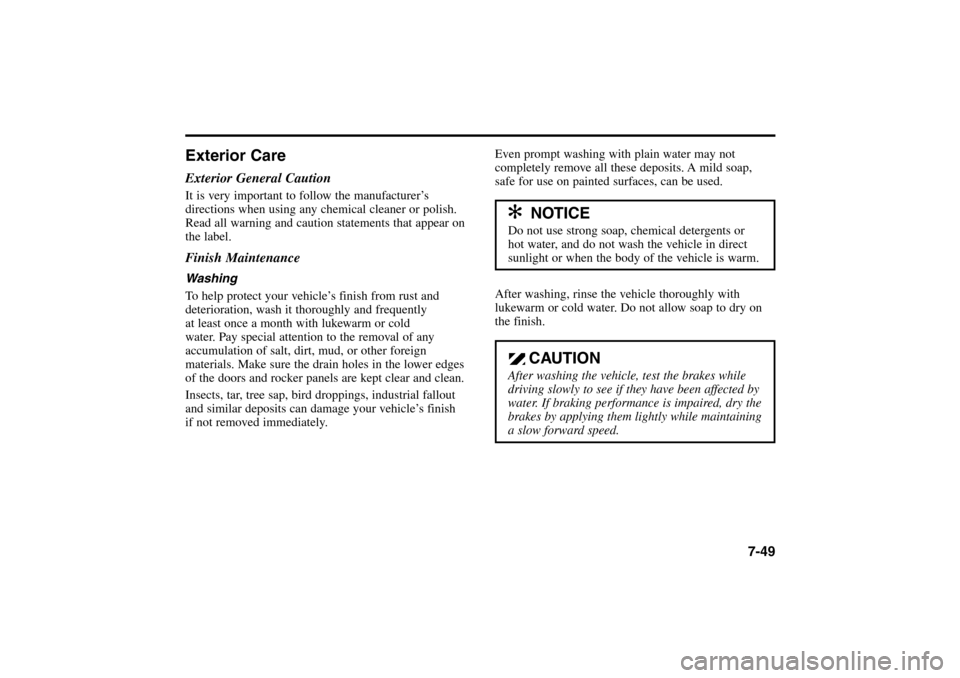

Exterior CareExterior General CautionIt is very important to follow the manufacturer’s
directions when using any chemical cleaner or polish.
Read all warning and caution statements that appear on
the label.Finish MaintenanceWashing
To help protect your vehicle’s finish from rust and
deterioration, wash it thoroughly and frequently
at least once a month with lukewarm or cold
water. Pay special attention to the removal of any
accumulation of salt, dirt, mud, or other foreign
materials. Make sure the drain holes in the lower edges
of the doors and rocker panels are kept clear and clean.
Insects, tar, tree sap, bird droppings, industrial fallout
and similar deposits can damage your vehicle’s finish
if not removed immediately. Even prompt washing with plain water may not
completely remove all these deposits. A mild soap,
safe for use on painted surfaces, can be used.
After washing, rinse the vehicle thoroughly with
lukewarm or cold water. Do not allow soap to dry on
the finish.
✻ ✻
NOTICE
Do not use strong soap, chemical detergents or
hot water, and do not wash the vehicle in direct
sunlight or when the body of the vehicle is warm.
CAUTION
After washing the vehicle, test the brakes while
driving slowly to see if they have been affected by
water. If braking performance is impaired, dry the
brakes by applying them lightly while maintaining
a slow forward speed.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 49

Maintenance7-50Waxing

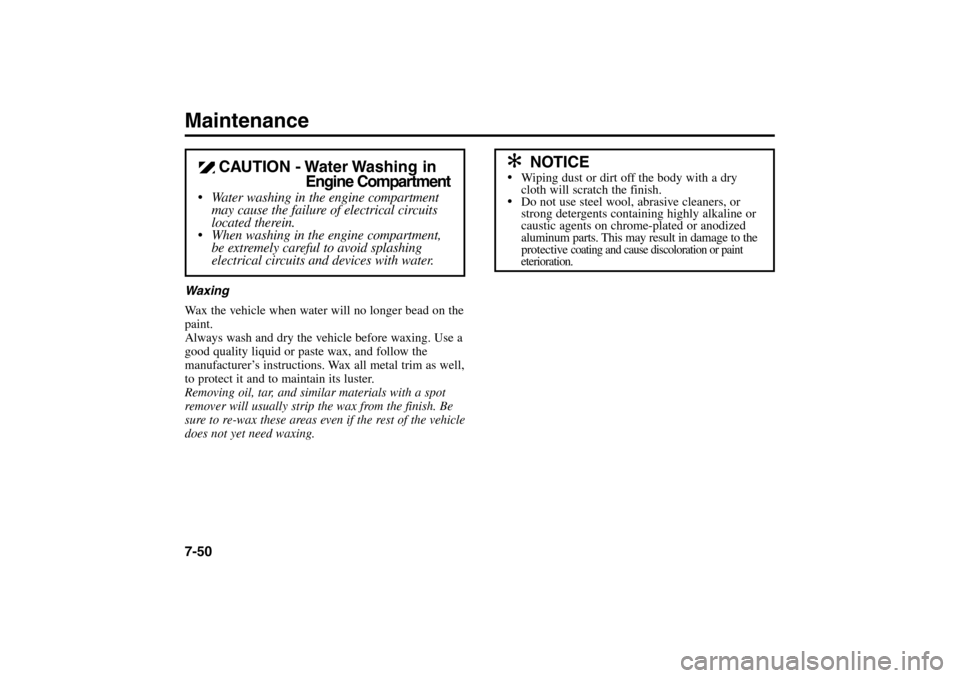

Wax the vehicle when water will no longer bead on the
paint.
Always wash and dry the vehicle before waxing. Use a
good quality liquid or paste wax, and follow the
manufacturer’s instructions. Wax all metal trim as well,
to protect it and to maintain its luster.
Removing oil, tar, and similar materials with a spot
remover will usually strip the wax from the finish. Be
sure to re-wax these areas even if the rest of the vehicle
does not yet need waxing.
✻ ✻
NOTICE

Wiping dust or dirt off the body with a dry
cloth will scratch the finish.

Do not use steel wool, abrasive cleaners, or
strong detergents containing highly alkaline or
caustic agents on chrome-plated or anodized
aluminum parts. This may result in damage to the
protective
coating and cause discoloration or paint
eterioration.
CAUTION - Water Washing in
Engine Compartment
Water washing in the engine compartment
may cause the failure of electrical circuits
located therein.
When washing in the engine compartment,
be extremely careful to avoid splashing
electrical circuits and devices with water.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 50

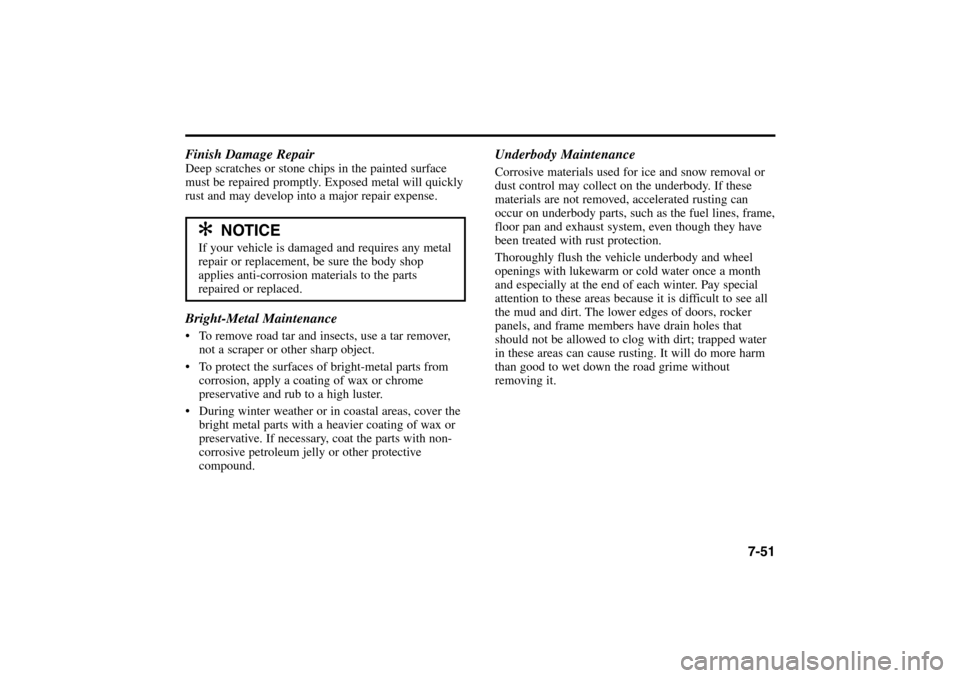

7-51 Finish Damage Repair
Deep scratches or stone chips in the painted surface
must be repaired promptly. Exposed metal will quickly
rust and may develop into a major repair expense.Bright-Metal Maintenance To remove road tar and insects, use a tar remover,
not a scraper or other sharp object.
 To protect the surfaces of bright-metal parts from
corrosion, apply a coating of wax or chrome
preservative and rub to a high luster.
 During winter weather or in coastal areas, cover the
bright metal parts with a heavier coating of wax or
preservative. If necessary, coat the parts with non-
corrosive petroleum jelly or other protective
compound.
✻ ✻
NOTICE
If your vehicle is damaged and requires any metal
repair or replacement, be sure the body shop
applies anti-corrosion materials to the parts
repaired or replaced.
Underbody MaintenanceCorrosive materials used for ice and snow removal or
dust control may collect on the underbody. If these
materials are not removed, accelerated rusting can
occur on underbody parts, such as the fuel lines, frame,
floor pan and exhaust system, even though they have
been treated with rust protection.
Thoroughly flush the vehicle underbody and wheel
openings with lukewarm or cold water once a month
and especially at the end of each winter. Pay special
attention to these areas because it is difficult to see all
the mud and dirt. The lower edges of doors, rocker
panels, and frame members have drain holes that
should not be allowed to clog with dirt; trapped water
in these areas can cause rusting. It will do more harm
than good to wet down the road grime without
removing it.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 51

Maintenance7-52
Interior CareInterior General PrecautionsPrevent caustic solutions such as perfume and cosmetic
oil from contacting the dashboard; they may cause
damage or discoloration. If they do contact the
dashboard, wipe them off immediately.
Upholstery and Interior Trim Cleaning
Vinyl
First, remove dust and loose dirt from vinyl with a
whisk broom or vacuum cleaner. Then, clean vinyl
surfaces with a vinyl cleaner.
Fabric
First, remove dust and loose dirt from fabric with a
whisk broom or vacuum cleaner. Then, clean with a
mild soap solution recommended for upholstery or
carpets. Remove fresh spots immediately with a fabric
spot cleaner. If a fresh spot do not receive immediate
attention, the fabric may be stained and its color can be
affected. Also, its fire-resistant properties may be
reduced if the material is not properly maintained.
Aluminum Wheel MaintenanceThe aluminum wheels are coated with a clear
protective finish.
 Do not use any abrasive cleaner, polishing
compound, solvent, or wire brushes on aluminum
wheels. They may scratch or damage the finish.
 Use only a mild soap or neutral detergent, and rinse
thoroughly with water. Also, be sure to clean the
wheels after driving on salted roads. This helps
prevent corrosion.
 Avoid washing the wheels with high-speed car wash
brushes.
CAUTION
After washing the vehicle, test the brakes while
driving slowly to see if they have been affected
by water.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 52

7-53

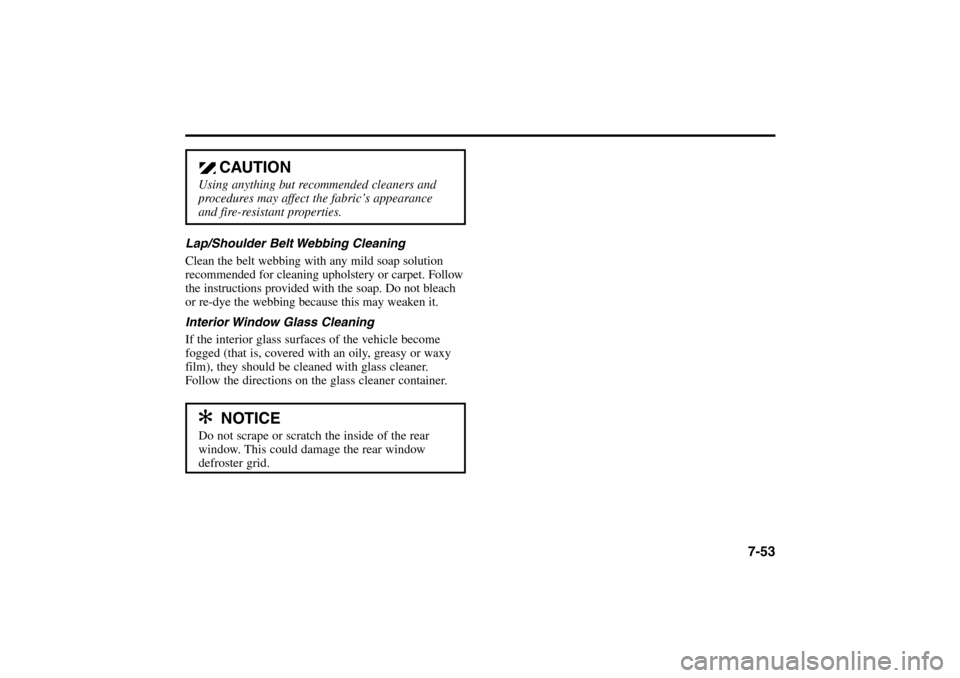

Lap/Shoulder Belt Webbing Cleaning
Clean the belt webbing with any mild soap solution
recommended for cleaning upholstery or carpet. Follow
the instructions provided with the soap. Do not bleach
or re-dye the webbing because this may weaken it.
Interior Window Glass Cleaning
If the interior glass surfaces of the vehicle become
fogged (that is, covered with an oily, greasy or waxy
film), they should be cleaned with glass cleaner.
Follow the directions on the glass cleaner container.
CAUTION
Using anything but recommended cleaners and
procedures may affect the fabric’s appearance
and fire-resistant properties.✻ ✻
NOTICE
Do not scrape or scratch the inside of the rear
window. This could damage the rear window
defroster grid.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 53

8-1
SPECIFICATIONSSpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-1

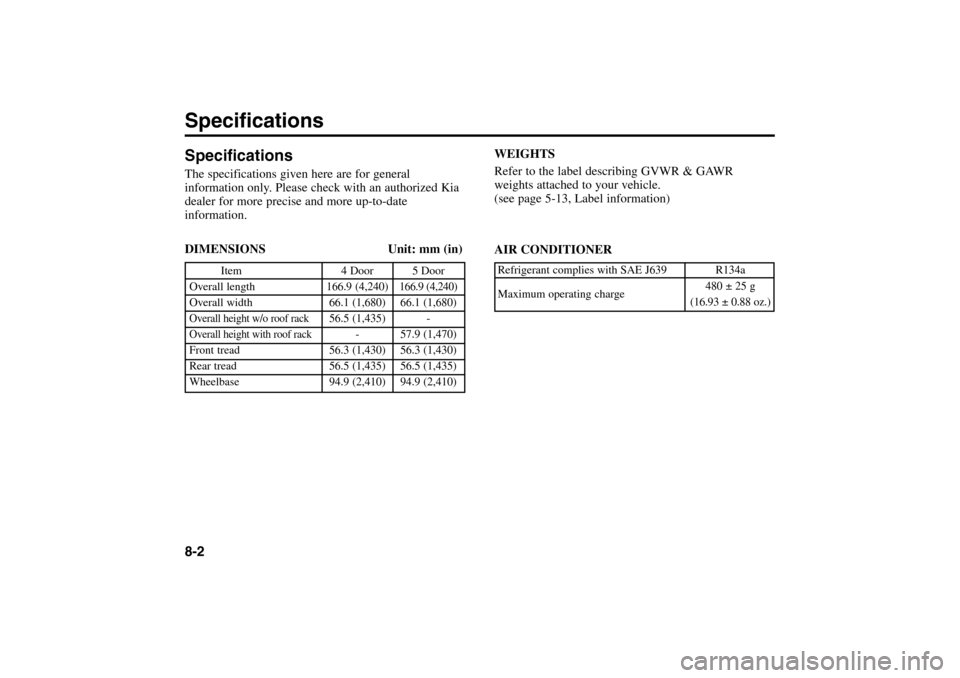

SpecificationsThe specifications given here are for general
information only. Please check with an authorized Kia
dealer for more precise and more up-to-date
information.
DIMENSIONS Unit: mm (in)WEIGHTS
Refer to the label describing GVWR & GAWR
weights attached to your vehicle.
(see page 5-13, Label information)
AIR CONDITIONERSpecifications8-2
Item 4 Door 5 Door
Overall length 166.9 (4,240)
166.9 (4,240)
Overall width 66.1 (1,680) 66.1 (1,680)Overall height w/o roof rack
56.5 (1,435) -
Overall height with roof rack
- 57.9 (1,470)
Front tread 56.3 (1,430) 56.3 (1,430)
Rear tread 56.5 (1,435) 56.5 (1,435)
Wheelbase 94.9 (2,410) 94.9 (2,410)
Refrigerant complies with SAE J639 R134a
Maximum operating charge480 ± 25 g
(16.93 ± 0.88 oz.)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-2

8-3

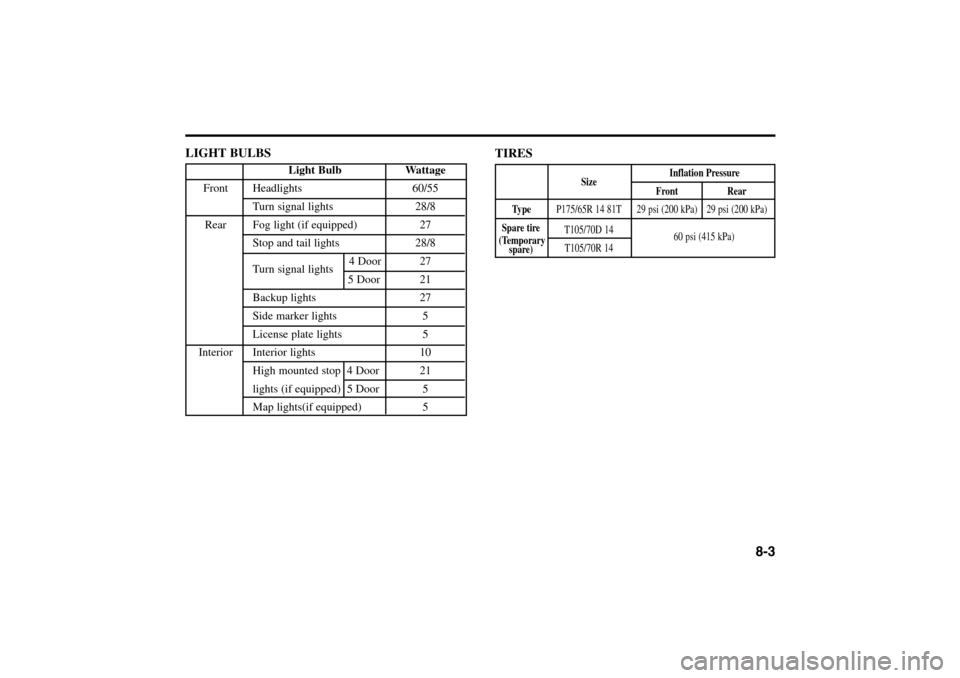

LIGHT BULBS
Light Bulb Wattage
Front Headlights 60/55
Turn signal lights 28/8
Rear Fog light (if equipped) 27
Stop and tail lights 28/8
Turn signal lights4 Door 27
5 Door 21
Backup lights 27
Side marker lights 5
License plate lights 5
Interior Interior lights 10
High mounted stop 4 Door 21
lights (if equipped) 5 Door 5
Map lights(if equipped) 5
TIRES
SizeInflation Pressure
Front Rear
TypeP175/65R 14 81T 29 psi (200 kPa) 29 psi (200 kPa)
T105/70D 14
60 psi (415 kPa)
T105/70R 14
Spare tire
(Temporary
spare)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-3

CAPACITIES
M/T: Manual Transaxle
A/T: Automatic Transaxle ENGINE
ELECTRICAL SYSTEM
Specifications8-4
Item
Borex Stroke1.6 DOHC
Displacement 1594 cc (97.2 cu. in.)
Compression Ratio
10.0:1 78 mmx 83.4 mm
(3.07 in.x 3.28 in.)
Item liter/US qt.
Item 1.6 DOHC
Battery
Alternator 12V-80 Amp
StarterM/T 12V-0.85 kw12 volt MF
60 AH
A/T 12V-0.85 kw
Spark
plugsGap1.0-1.1 mm
(0.028-0.032 in.)TypeBKR6ES-II (NGK)
RC8YC4 (CHAMPION)
Engine Oil w/Filter 3.4/3.59
Engine Oil w/o Filter 3.2/3.38Coolant 2.6+/0.38+
liter/US gal.
Fuel Tank 45/11.7Transaxle OilM/T
A/T2.8/2.9
5.9/6.2
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-4

CLUTCH
8-5

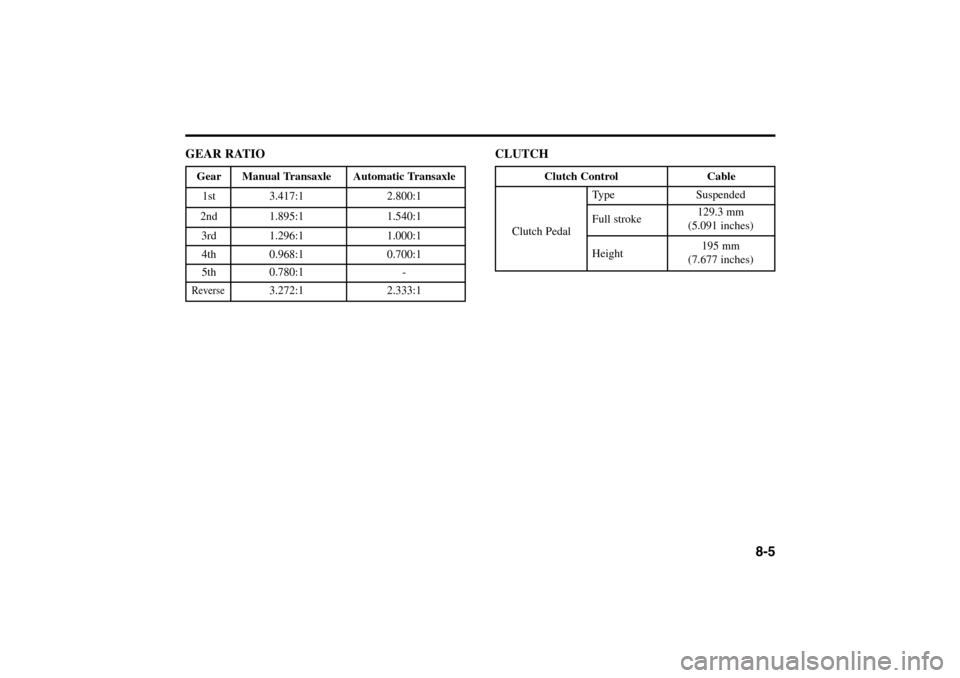

GEAR RATIOGear Manual Transaxle Automatic Transaxle1st 3.417:1 2.800:12nd 1.895:1 1.540:13rd 1.296:1 1.000:14th 0.968:1 0.700:15th 0.780:1 -Reverse
3.272:1 2.333:1
Clutch Control
Type
Clutch PedalCable
Suspended
Full stroke129.3 mm
(5.091 inches)
Height195 mm
(7.677 inches)
RIO ENG CNA 8.qxd 7/29/05 5:19 PM Page 8-5
