Page 17 of 54

KIA SEDONA 2016 Features and Functions Guide 15
Turn Signals & Fog Lights*
To o p e r a t e :
•Turn Signals - Move lever Up/Down for Right /Left Turn Signal
•Fog Lights - Push toggle switch to turn Fog Lights ON/OFF
REMINDER: Headlights

Page 40 of 54

KIA SEDONA 2016 Features and Functions Guide 38
How to Sync Transmitter with HomeLink®*
If programming for the first time, begin with Step 1 (repeating this step will
delete all information) .
To program non-rolling and rolling code garage doo

38
How to Sync Transmitter with HomeLink®*
If programming for the first time, begin with Step 1 (repeating this step will
delete all information) .
To program non-rolling and rolling code garage door openers and
other devices:
1 . Press and hold the left [A] and center [D] buttons simultaneously until the
indicator light [C] begins to flash (to reprogram buttons, skip this step)
2 . Press and hold the desired button [A], [B] or [D] and hold the button
on the transmitter while it is approximately 1 to 3 inches away from
the mirror . The HomeLink® Indicator light [C] will flash rapidly once the
frequency signal has been successfully programmed
To finish programming rolling code garage door openers, complete
these steps:
3 . Locate the “learn” or “smart” button on the garage door’s motor
head unit . Press and release the button and complete Step 4 within
30 seconds
4 . Firmly press and release the programmed HomeLink® button up to
three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons .
Erasing programmed buttons:
Press and hold the left [A] and center [D] buttons simultaneously
for approximately 20 seconds, and then release both buttons within
30 seconds .
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
The HomeLink® with Auto-Dimming Rearview Mirror* is designed to reduce
glare from a vehicle’s headlights located in the rear and also connect up to
three electronic transmitters into one location .
• To turn automatic dimming ON, press [~] button [F]
• To turn automatic dimming OFF, press [~] button [G]
REMINDER: Mirror indicator light [C] will illuminate when automatic dimming is ON .
HomeLink® with Auto-Dimming
Rearview Mirror*
[A] HomeLink® button
[B] HomeLink® button
[C] Indicator light
[D] HomeLink® button
[E] Glare detection sensor
[F] Automatic dimming ON
[G] Automatic dimming OFF
•
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
ABCDEFG
A
A
E
B
ABD
C
C
AD
F
F
CG
G
D
D
C
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

Page 41 of 54

KIA SEDONA 2016 Features and Functions Guide 39
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the
ENGINE START/STOP button is OFF .
Map/Room Lamp Operation
Press the lens [

39
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the
ENGINE START/STOP button is OFF .
Map/Room Lamp Operation
Press the lens [A] to turn the Map Lamp ON/OFF . This light produces a spot
beam for convenient use as a map lamp or as a personal lamp for the driver
or the front passenger .
When the button [B] is pressed the following occurs:
•When any door or the liftgate is opened, the map and room lamps turn ON
•When doors are unlocked from the Smart Key or key removed from
ignition, the Map and Room Lamps turn ON for approximately 30
seconds or until a door is opened
•When doors are closed, the lamps will gradually turn OFF after
approximately 30 seconds
•When all doors are locked or the ignition is turned ON, the Map Lamp
will turn OFF immediately .
When the button [C] is pressed, the lamps stay ON continuously .
Room Lamp - Press the lens [D] to turn the Room Lamp ON/OFF .
REMINDER: When Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position .

•When doors are unlocked by the Smart Key*, the lamp turns ON for approximately 30 seconds •If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage •Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
A
CB
DD
A
Sunvisor
Use the Sunvisor to shield direct light through the front or side
windows . Slide the Sunvisor out and adjust as needed .
REMINDERS:
•Sunvisor may not shield all direct light
•The Sunvisor may impair visibility if not adjusted properly
• Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows .
A
B
D
C
(Lamp controls located in the overhead consoles)
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

Page 43 of 54

KIA SEDONA 2016 Features and Functions Guide 41
Back-Up Warning System
(Rear Parking Assist System)*
The Back-Up Warning System is not a safety device . The Back-Up Warning
System is a supplemental system that assists the driver by chiming if

41
Back-Up Warning System
(Rear Parking Assist System)*
The Back-Up Warning System is not a safety device . The Back-Up Warning
System is a supplemental system that assists the driver by chiming if any
object is detected within the sensing area to the rear and side of the vehicle
when backing up .
The system is activated when the ignition is ON and the vehicle is in
R (Reverse) . To deactivate the system, press the Back-Up Warning System
button [A] (LED illuminated) .
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
• When more than two objects are sensed at the same time, the closest one will be recognized first
The Back-Up Warning System is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Back-Up Warning System may not detect every object behind the vehicle.
(Navigation screen display shown)
Rear-Camera Display*
The Rear-Camera Display system is not a safety device . It is a supplemental
system that displays the view behind the vehicle through the Standard
Audio System, UVO eServices System and the UVO eServices with Premium
Navigation screens while the vehicle is in Reverse .
The Rear-Camera Display* activates when the:
•ENGINE START/STOP button is in the ON position (Green Light)
•Gear Shift Lever is in the R (Reverse) position
•To turn the Rear-Camera Display* OFF, press the camera button [B]
(Button located below Gear shift)
A
B
REMINDERS:
•The Rear-Camera Display* is ON by default when ignition is cycled
•While camera is active, only the volume controls on the Audio System can be operated
• The screen image above is for illustration purposes only . The actual image or graphics may differ in your vehicle
The Rear-Camera Display* is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
AB
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

Page 44 of 54

KIA SEDONA 2016 Features and Functions Guide 42
Power Liftgate (Tailgate)*
Inside the Vehicle:
Press the Power Liftgate Open/Close button* [A] to
automatically open/close the Liftgate .
Depress the POWER DOOR OFF button* [B] to disable .
REM

42
Power Liftgate (Tailgate)*
Inside the Vehicle:
Press the Power Liftgate Open/Close button* [A] to
automatically open/close the Liftgate .
Depress the POWER DOOR OFF button* [B] to disable .
REMINDER: If POWER DOOR OFF button is pressed, the Power Liftgate button on the Smart Key will be disabled .
REMINDERS:
•All doors are closed and locked after about 15 seconds
•If the POWER DOOR OFF button is depressed, the Smart Liftgate will not operate
• The Smart Power Liftgate feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
For more information on the Smart Power Liftgate operation, please refer to the Owner's Manual.
Outside the Vehicle:
To open Power Liftgate* automatically, press the Rear Hatch
Release button [C] on exterior of the Liftgate .
Automatically close by pressing Power Liftgate Close button* [D] .
Smart Key:
To open the Power Liftgate*, press and
hold the Smart key Liftgate button [E]
until the Liftgate begins opening . Press
again to close .
REMINDER: Pulling the Rear Hatch upward by the handle or pressing the button a second time will interrupt the automatic opening of the Power Liftgate .

Smart Power Liftgate*
When the Smart Key fob is on your person and you are
near the back of the vehicle, within close proximity, the
hazard lights will blink and a chime will sound for about
3 seconds as an alert that the Smart Power Liftgate* is
about to open .
Then the alert system will blink and chime two additional
times before opening the Smart Power Liftgate* .
The Smart Power Liftgate* feature is OFF by default . To enable the Smart Power
Liftgate*, go to User Settings in the LCD Instrument Cluster modes .
During the Smart Power Liftgate alert, the Smart Power Liftgate can be deactivated with the Smart Key by pressing any button on the key fob .
QUICK TIPS
HOLDHOLD
HOLDE
D
C(Button located on inside edge of liftgate)
AB
(Buttons located on overhead console)
Smart Power Liftgate Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/yp13/2016
AE
B
C
D
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

Page 45 of 54

KIA SEDONA 2016 Features and Functions Guide 43
Fuel Cap/Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK to prevent Malfunction
Indicator [~] from illuminating .
REMINDER: The Fuel Filler Door Release button is located on the

Page 46 of 54

KIA SEDONA 2016 Features and Functions Guide 44

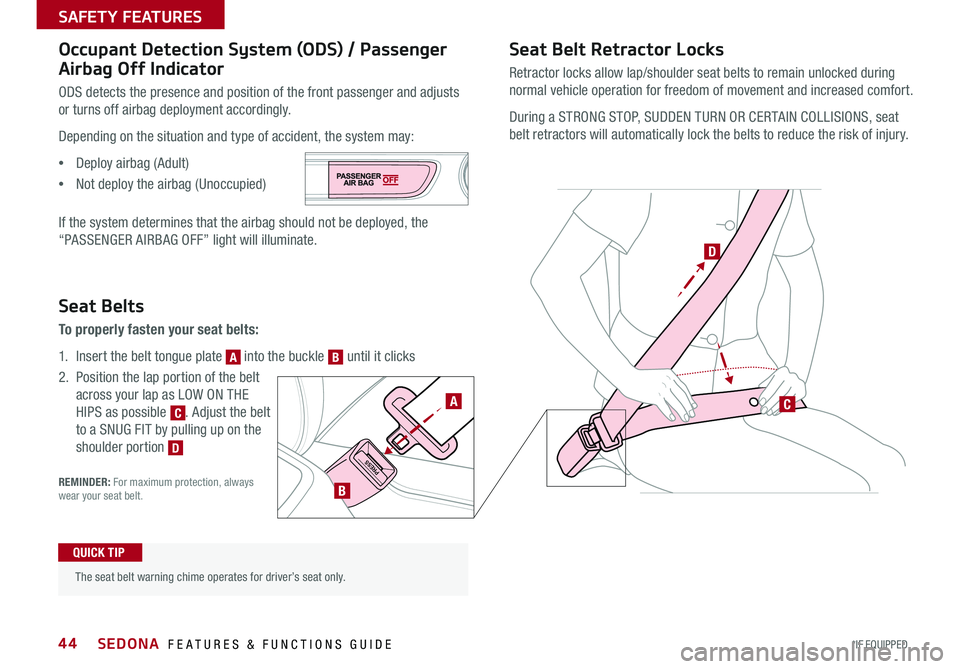

Occupant Detection System (ODS) / Passenger
Airbag Off Indicator
ODS detects the presence and position of the front passenger and adjusts
or turns off airbag deployment accordingly .
Depending on

Page 51 of 54

$KIA SEDONA 2016 Features and Functions Guide Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\ ving. Driv$

Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.
Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia Motors Corporation (KMC) makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, KMC may need to update or make changes to the vehicle features and other vehicle information reported in this app. KMC, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.
Bluetooth® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth® wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
Driver Assist Features - Advanced Smart Cruise Control (ASCC), Back-Up Warning System (Rear Parking Assist System), Blind Spot Detection (BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Forward Collision Warning System, Lane Departure Warning System, Park Assist System, Rear-Camera Display, Surround View Monitor (SVM): These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.
Electronic Stability Control, Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, power assist for steering and braking will be disabled, and the vehicle will be more difficult to control.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Seat Belts / Airbags: For maximum protection, always wear your seatbelt.
HomeLink® is a registered trademark of Gentex Corporation.
iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 a\
ctively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2015 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
Sportmatic® is a registered trademark of Kia Motors America.
Steering Wheel Controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted co\
ntrols while driving.
Sunvisor: Sunvisor may not shield all direct light. Do not operate the vehicle if Sunvisor is impairing your visibility.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.
UVO eServices with Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
LEGAL DISCLAIMERSSales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________

Page: < prev 1-10 11-20
