KIA SEDONA 2020 User Guide
Manufacturer: KIA, Model Year: 2020, Model line: SEDONA, Model: KIA SEDONA 2020Pages: 604, PDF Size: 16.24 MB

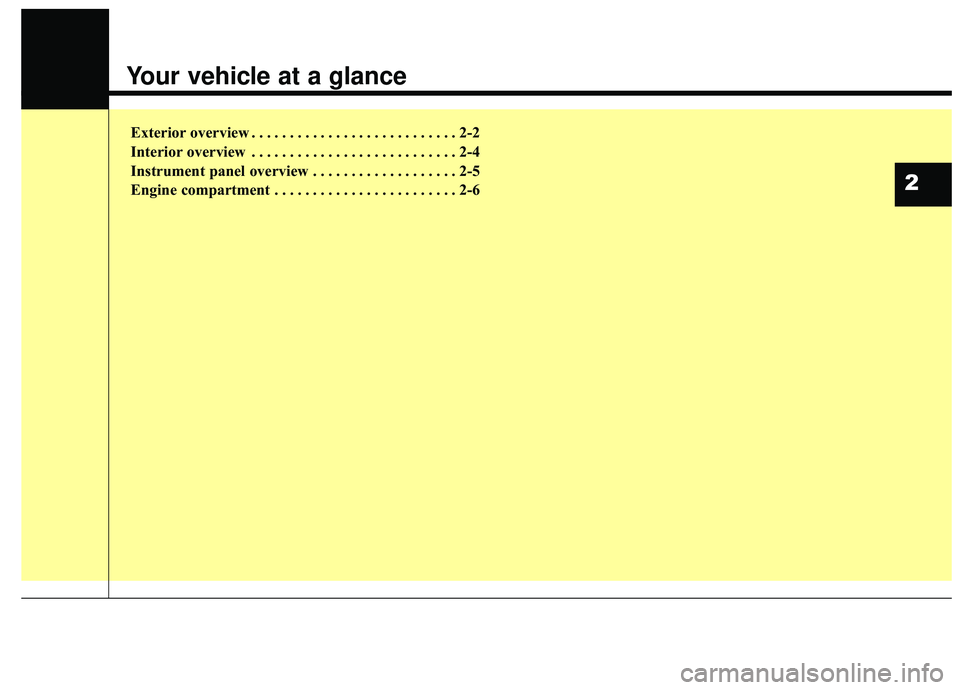

Page 11 of 604

Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Your vehicle at a glance
2
Page 12 of 604

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-58
2. Head lamp..................................4-140, 7-67
3. Fog lamp ....................................4-147, 7-67
4. Wheel and tire ................................7-39, 8-4
5. Outside rearview mirror .........................4-86
6. Sunroof ..................................................4-65
7. Front windshield wiper blades....4-150, 7-33
8. Windows ................................................4-53
9. Parking distance warning ....................4-132
OYP018001N
■Front view
❈The actual shape may differ from the illustration.
Page 13 of 604

23
Your vehicle at a glance
1. Door locks (for front door) .....................4-26
2. Fuel filler lid ...........................................4-61
3. Rear combination lamp .........................7-68
4. High mounted stop lamp .......................7-68
5. Rear window wiper blade ...........4-151, 7-35
6. Liftgate .........................................4-32, 4-35
7. Antenna ...............................................4-216
8. Rear view monitor ...............................4-137
9. Parking distance warning-reverse .......4-128Parking distance warning ....................4-132
10. Door Locks (for sliding door) ...............4-35
OYP018002N

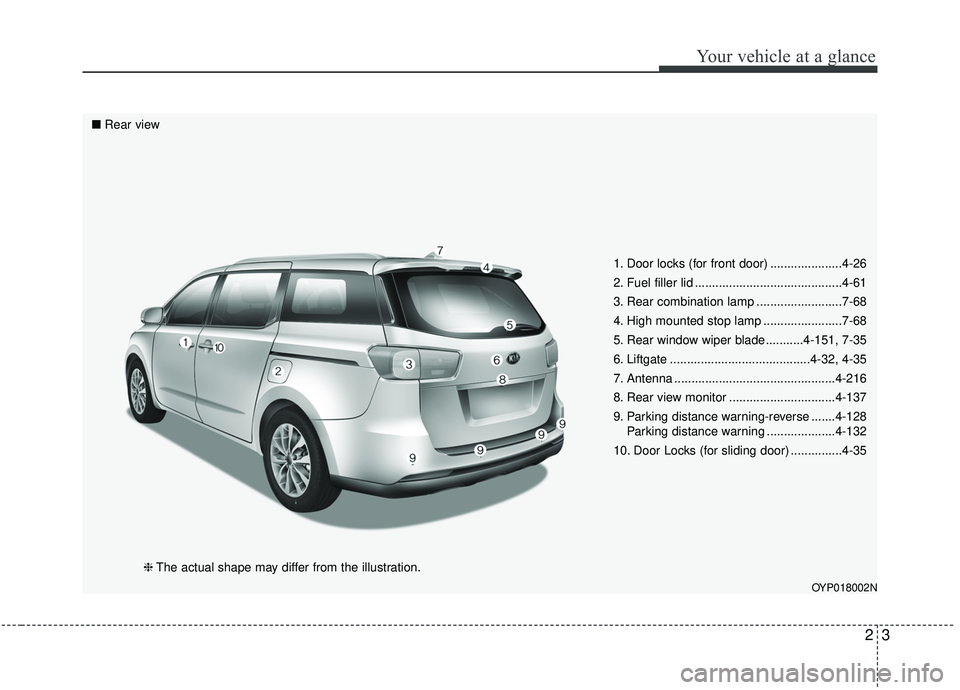

■ Rear view
❈The actual shape may differ from the illustration.
Page 14 of 604

Your vehicle at a glance
42

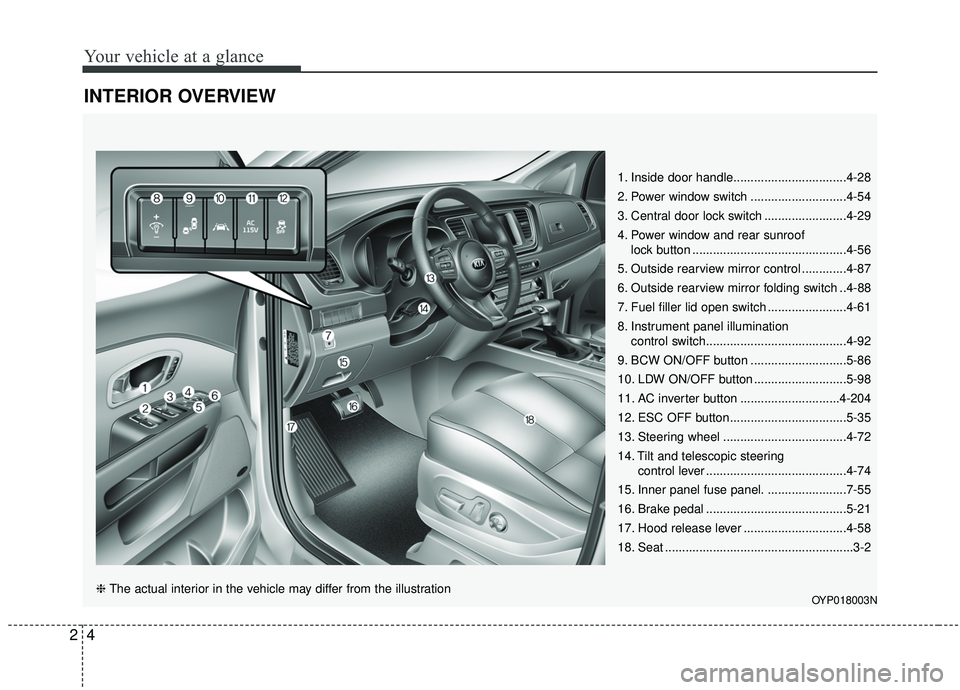

INTERIOR OVERVIEW
1. Inside door handle.................................4-28
2. Power window switch ............................4-54
3. Central door lock switch ........................4-29
4. Power window and rear sunrooflock button .............................................4-56
5. Outside rearview mirror control .............4-87
6. Outside rearview mirror folding switch ..4-88
7. Fuel filler lid open switch .......................4-61
8. Instrument panel illumination control switch.........................................4-92
9. BCW ON/OFF button ............................5-86
10. LDW ON/OFF button ...........................5-98
11. AC inverter button .............................4-204
12. ESC OFF button..................................5-35
13. Steering wheel ....................................4-72
14. Tilt and telescopic steering control lever .........................................4-74
15. Inner panel fuse panel. .......................7-55
16. Brake pedal .........................................5-21
17. Hood release lever ..............................4-58
18. Seat .......................................................3-2
OYP018003N❈ The actual interior in the vehicle may differ from the illustration
Page 15 of 604

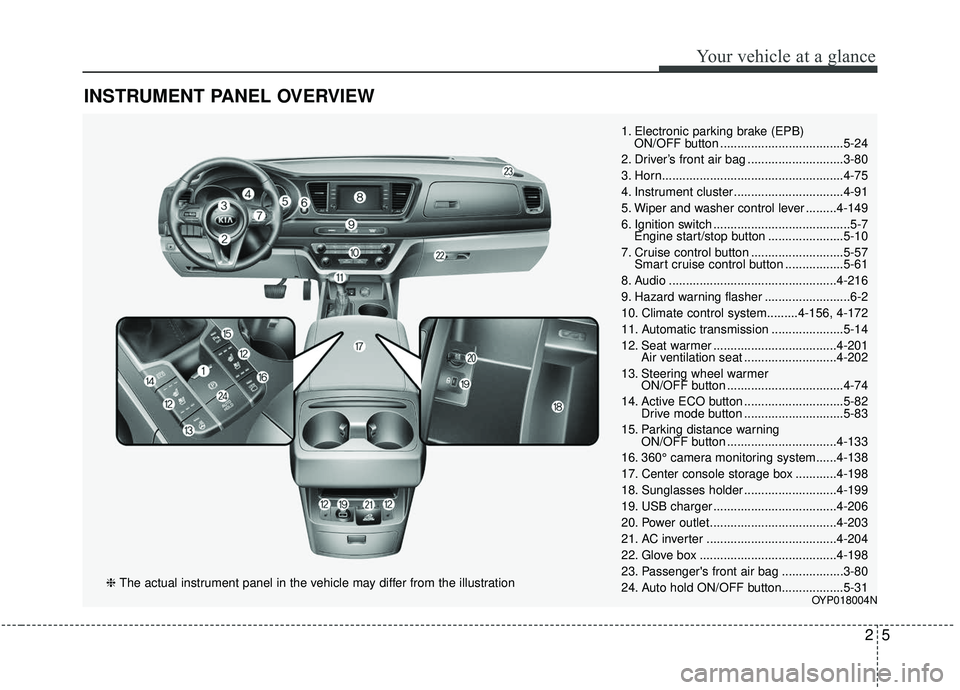

INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Electronic parking brake (EPB) ON/OFF button ....................................5-24
2. Driver’s front air bag ............................3-80
3. Horn.....................................................4-75
4. Instrument cluster ................................4-91
5. Wiper and washer control lever .........4-149
6. Ignition switch ........................................5-7 Engine start/stop button ......................5-10
7. Cruise control button ...........................5-57 Smart cruise control button .................5-61
8. Audio .................................................4-216
9. Hazard warning flasher .........................6-2
10. Climate control system.........4-156, 4-172
11. Automatic transmission .....................5-14
12. Seat warmer ....................................4-201 Air ventilation seat ...........................4-202
13. Steering wheel warmer ON/OFF button ..................................4-74
14. Active ECO button .............................5-82 Drive mode button .............................5-83
15. Parking distance warning ON/OFF button ................................4-133
16. 360° camera monitoring system......4-138
17. Center console storage box ............4-198
18. Sunglasses holder ...........................4-199
19. USB charger ....................................4-206
20. Power outlet.....................................4-203
21. AC inverter ......................................4-204
22. Glove box ........................................4-198
23. Passenger's front air bag ..................3-80
24. Auto hold ON/OFF button..................5-31
OYP018004N
❈ The actual instrument panel in the vehicle may differ from the illustration
Page 16 of 604

Your vehicle at a glance
62

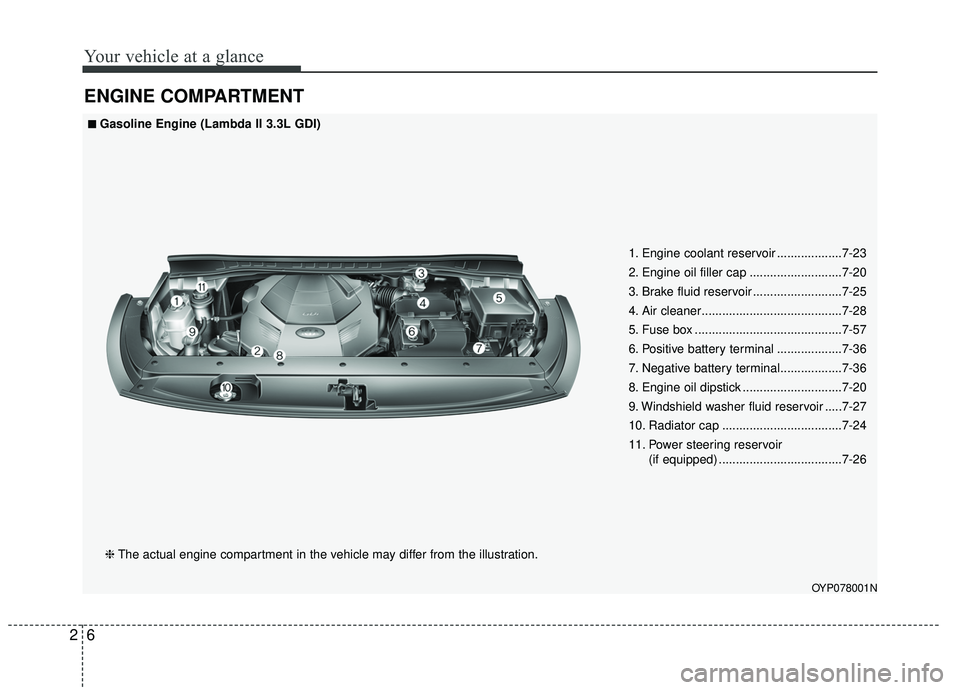

ENGINE COMPARTMENT
OYP078001N
❈The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-23
2. Engine oil filler cap ...........................7-20
3. Brake fluid reservoir ..........................7-25
4. Air cleaner.........................................7-28
5. Fuse box ...........................................7-57
6. Positive battery terminal ...................7-36
7. Negative battery terminal..................7-36
8. Engine oil dipstick .............................7-20
9. Windshield washer fluid reservoir .....7-27
10. Radiator cap ...................................7-24
11. Power steering reservoir
(if equipped) ....................................7-26
■ ■Gasoline Engine (Lambda II 3.3L GDI)
Page 17 of 604

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2
• Front seat adjustment - manual. . . . . . . . . . . . . . . . . . 3-7
. . . . . . . . . . . . . . . . . . . 3-8
. . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-52
Child Restraint System (CRS) . . . . . . . . . . . . . . . 3-54
. . . . . . . . . . . . . . . . . . . . 3-54
. . . . . . . . 3-55
. . . . . . . . 3-58
Air bag - advanced supplemental restraint system (SRS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
65
. . . . . . . . . . . . 3-66
. . . . . . . . . . . . . . . . . . . . . . . . . 3-68
. . . . . . . . . . . . . . . . . 3-69
. . . . . . . . . . . . . . 3-72
. . . . . . . . . . . 3-80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
92
air bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . 3-93
. . . . . . . . . . . . . . . . . . . . . . . . . 3-93
3
Page 18 of 604

Safety features of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver’s seat)
(5) Driver position memory
(6) Headrest
(7) Walk-in switch
2nd / 3rd row seat
(8) Forward and backward
(9) Seatback angle and folding
(10) Walk-in
(11) Headrest
(12) Armrest
(13) Seatback angle and folding
(14) Seat sinking
(15) Headrest
SEATS
OYP037322N
Manual seat
Power seat
Page 19 of 604

33
Safety features of your vehicle
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver’s seat)
(5) Driver position memory
(6) Headrest
(7) Walk-in switch
2nd / 3rd row seat
(8) Forward and backward
(9) Left and right
(10) Seatback angle and folding
(11) Leg support
(12) Walk-in
(13) Headrest
(14) Armrest
(15) Seatback angle and folding
(16) Seat sinking
(17) Headrest

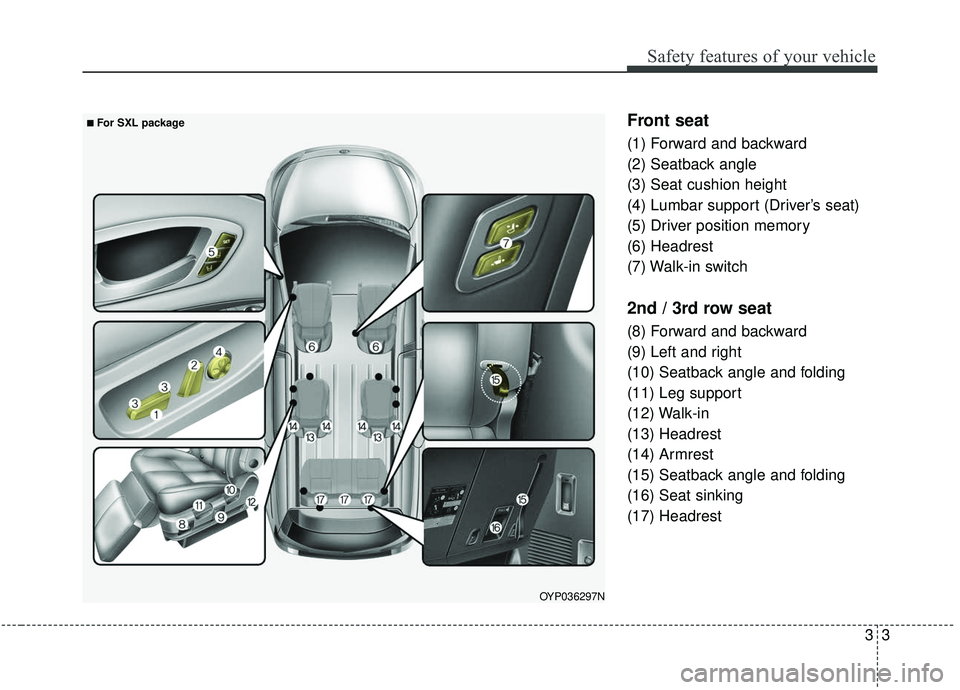

OYP036297N
■For SXL package
Page 20 of 604

Safety features of your vehicle
43
WARNING- Uprightingseat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Driver respon-
sibility for passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the occupant's hips may slide
under the lap portion of the seat
belt, applying great force to the
unprotected abdomen.
1KMN3662
WARNING - Seat cushion
Occupants should never sit on
aftermarket seat cushions or sit-
ting cushions.
The passenger's hips may slide
under the lap portion of the seat
belt during an accident or a sud-
den stop.
