DRIVING YOUR VEHICLE
4-41
ABS
CHECK
4WD
LOW
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Fuel gauge
1
2
3
2
4
5
6
7
8
5
5BLD401
INSTRUMENT CLUSTER (MANUAL TRANSMISSION)
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 41

DRIVING YOUR VEHICLE4-42
ABS
CHECK
O/D
OFF4WD
LOW
PN R
D
2
L
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Shift position indicator
9. Fuel gauge
1
2
3
2
4
5BLD402/5BLD403
INSTRUMENT CLUSTER (AUTOMATIC TRANSMISSION)
5
6
7
9
8
5
30-40LEiA5SR1
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 42

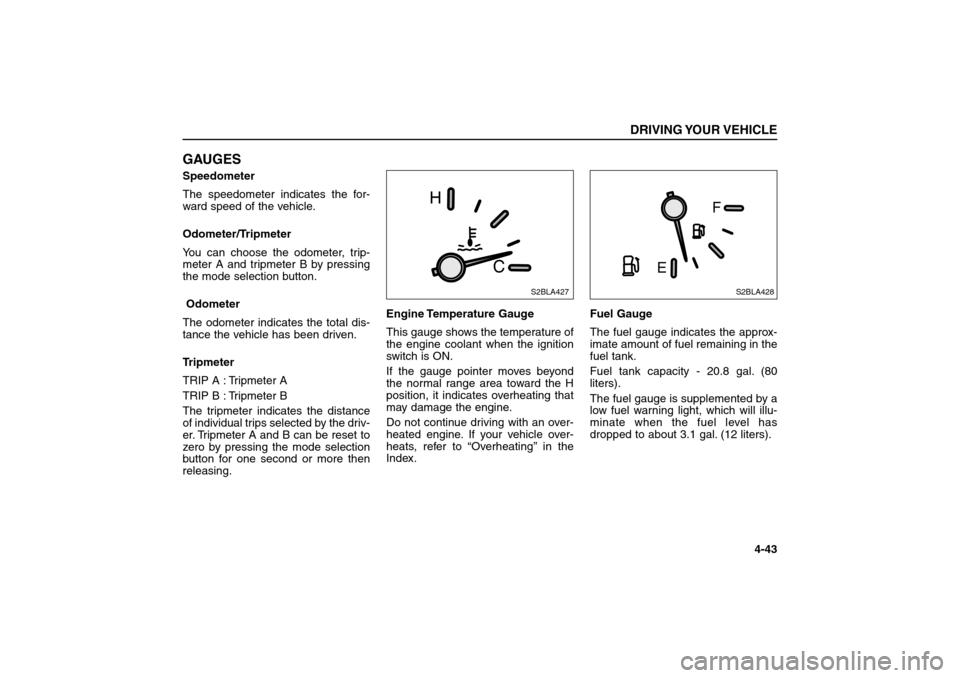

GAUGESSpeedometer
The speedometer indicates the for-
ward speed of the vehicle.
Odometer/Tripmeter
You can choose the odometer, trip-
meter A and tripmeter B by pressing
the mode selection button.
Odometer
The odometer indicates the total dis-
tance the vehicle has been driven.
Tripmeter
TRIP A : Tripmeter A
TRIP B : Tripmeter B
The tripmeter indicates the distance
of individual trips selected by the driv-
er. Tripmeter A and B can be reset to
zero by pressing the mode selection
button for one second or more then
releasing.Engine Temperature Gauge
This gauge shows the temperature of
the engine coolant when the ignition
switch is ON.
If the gauge pointer moves beyond
the normal range area toward the H
position, it indicates overheating that
may damage the engine.
Do not continue driving with an over-
heated engine. If your vehicle over-
heats, refer to “Overheating’’in the
Index.Fuel Gauge
The fuel gauge indicates the approx-
imate amount of fuel remaining in the
fuel tank.
Fuel tank capacity - 20.8 gal. (80
liters).
The fuel gauge is supplemented by a
low fuel warning light, which will illu-
minate when the fuel level has
dropped to about 3.1 gal. (12 liters).
DRIVING YOUR VEHICLE
4-43
F
E
S2BLA428
H
C
S2BLA427
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 43

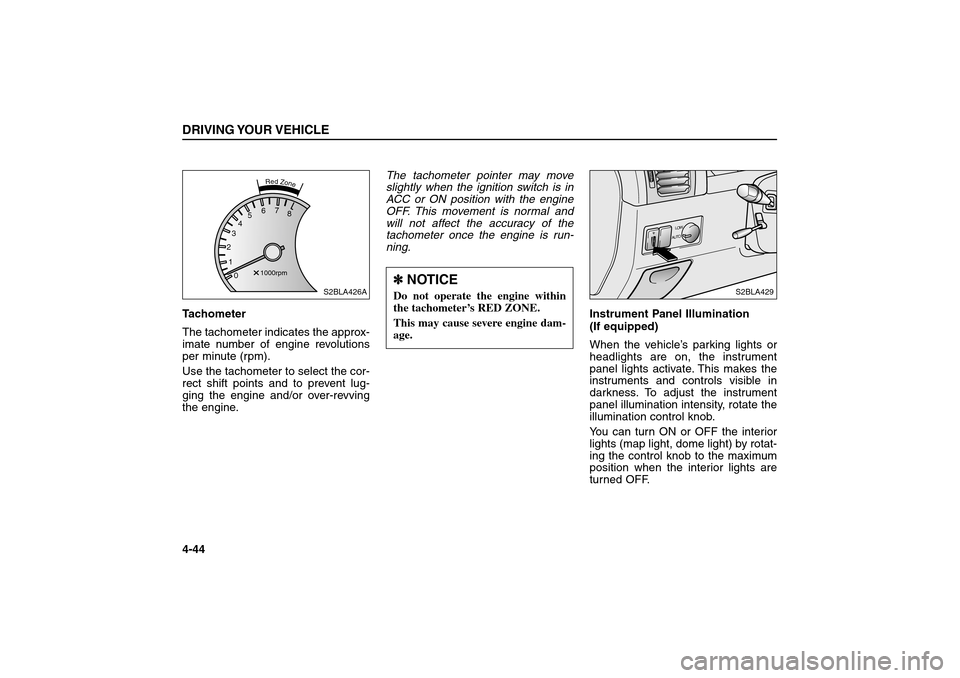

Tachometer
The tachometer indicates the approx-
imate number of engine revolutions
per minute (rpm).
Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging the engine and/or over-revving
the engine.The tachometer pointer may move
slightly when the ignition switch is in
ACC or ON position with the engine
OFF. This movement is normal and
will not affect the accuracy of the
tachometer once the engine is run-
ning.
Instrument Panel Illumination
(If equipped)
When the vehicle’s parking lights or
headlights are on, the instrument
panel lights activate. This makes the
instruments and controls visible in
darkness. To adjust the instrument
panel illumination intensity, rotate the
illumination control knob.
You can turn ON or OFF the interior
lights (map light, dome light) by rotat-
ing the control knob to the maximum
position when the interior lights are
turned OFF.DRIVING YOUR VEHICLE4-44
0 1 234567
8
1000rpmRedZone
S2BLA426A
LOWAUTO
S2BLA429
✽ ✽
NOTICEDo not operate the engine within
the tachometer’s RED ZONE.
This may cause severe engine dam-
age.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 44

WARNINGS AND INDICA-
TORSWarning Lights / Audible Indicators
Checking operation
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an Authorized Kia Dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the
brake system warning light should go
off. The fuel warning light will stay on
if the fuel level is low.Anti-Lock Brake System
(ABS) Warning Light
This light illuminates when you start
the engine. The light will go off if the
ABS system is operating normally.
Also, this light illuminates if the key is
turned to ON and goes off in 2-3 sec-
onds if the system is operating nor-
mally.
O/D OFF Indicator
(A/T:30-40LEi)
This indicator comes on when the
O/D system is deactivated.Engine Oil Pressure
Warning
This warning light indicates the
engine oil pressure is low.
If the warning light illuminates while
driving:
1. Drive safely to the side of the road
and stop.
2. With the engine off, check the
engine oil level. If the level is low,
add oil as required.
If the warning light remains on after
adding oil or if oil is not available, call
an Authorized Kia Dealer.
DRIVING YOUR VEHICLE
4-45
ABSO/D
OFF
✽ ✽
NOTICEIf the engine is not stopped immedi-
ately, severe damage could result.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 45

Charging System Warning
This warning light indicates a mal-
function of either the generator or
electrical charging system.
If the warning light comes on while
the vehicle is in motion:
1. Drive to the nearest safe location.
2. With the engine off, check the gen-
erator drive belt for looseness or
breakage.
3. If the belt is adjusted properly, a
problem exists somewhere in the
electrical charging system. Have
an Authorized Kia Dealer correct
the problem as soon as possible.Safety Belt Warning
Type A
As a reminder to the driver and pas-
senger, safety belt warning light will
illuminate for approximately 6 sec-
onds each time you turn the ignition
switch ON regardless of belt fasten-
ing.
Type B
As a reminder to the driver and pas-
senger, safety belt warning light will
blink for approximately 6 seconds
each time you turn the ignition switch
ON regardless of belt fastening.
If the driver's safety belt is unfastened
after the ignition switch is ON, the
safety belt warning light will blink for
approximately 6 seconds.Shift Pattern
Indicators
(A/T: 30-40LEi)
The individual indicators illuminate to
show the shift lever selection.
Shift Pattern
Indicators
(A/T: A5SR1)
The individual indicators illuminate to
show the shift lever selection.DRIVING YOUR VEHICLE4-46
P
R
N
D2
L
P
R
N
D
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 46

Parking Brake & Brake
Fluid Warning
Parking brake warning
This light is illuminated when the
parking brake is applied with the igni-
tion switch in the START or ON posi-
tion. The warning light should go off
when the parking brake is released.Low brake fluid level warning
If the warning light remains on, it may
indicate that the brake fluid level in
the reservoir is low.
If the warning light remains on:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required. Then
check all brake components for
fluid leaks.
3. Do not drive the vehicle if leaks are
found, the warning light remains on
or the brakes do not operate prop-
erly. Have it towed to any
Authorized Kia Dealer for a brake
system inspection and necessary
repairs.To check bulb operation, check
whether the parking brake and brake
fluid warning light illuminates when
the ignition switch is in the ON posi-
tion
DRIVING YOUR VEHICLE
4-47
WARNING
Driving the vehicle with a warn-
ing light on is dangerous. If the
brake warning light remains on,
have the brakes checked and
repaired immediately by an
Authorized Kia Dealer.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 47

Immobilizer Indicator
When you turn the ignition key to the
ON position, if the IMMO indicator
goes off after blinking 6 times, this
indicates that the immobilizer system
is normal. However, if the IMMO indi-
cator remains on continuously after
blinking 6 times, this indicates that
the immobilizer system is out of order
and you cannot start the engine with-
out the limp home procedure. Refer
to the “Limp home procedure”on
page 3-4.Malfunction Indicator
The CHECK ENGINE or malfunction
indicator light is installed in your vehi-
cle’s instrument panel and responds
to signals from the vehicle’s On
Board Diagnostic (OBD -II) System.
The OBD-II System monitors the per-
formance of the vehicle’s Emission
Control System (ECS), which is
designed to reduce the amount of air
pollutants in engine exhaust to the
levels required by government regu-
lations.
When you first start the engine, the
check engine light will illuminate
briefly as a system check to confirm
that the OBD-II System is operating
properly. As the engine starts, this
light turns off. However, if at any time
the OBD-II system detects a faulty
signal or determines that the ECS is
not performing to specification, the
CHECK ENGINE light will illuminate
continuously or flash.Continuously ON :
If the CHECK ENGINE light comes
ON while driving and illuminates con-
tinuously, a potential problem has
been discovered in the ECS or one of
the exhaust system components.
Generally, the vehicle will continue to
be driveable but it should be checked
by an authorized Kia dealer as soon
as possible. This condition is unlikely
to lead to engine damage unless a
decrease in vehicle power or poor
running conditions is immediately
apparent.
Note that the CHECK ENGINE light
will illuminate for a problem like a
loose or missing gas cap, but will not
illuminate as a result of low engine oil
or coolant, low automatic transaxle
fluid or engine overheating. The driv-
er will be alerted to these conditions
by other indicators on the instrument
panel
DRIVING YOUR VEHICLE
4-49
CHECK
IMMO
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 49

Air Bag Warning
This warning light will blink for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
If this indicator does not do this or if it
illuminates while the vehicle is being
driven, see an Authorized Kia Dealer
for immediate service.
Auto Cruise Indicator
The indicator light illuminates when
the cruise control system is activated.
Front fog light indicator
(if equipped)
This light comes on when the front
fog lights are ON.4WD Indicator Light
(If equipped)
(Part Time 4WD Only)
When the key is turned to the “ON”
position, the 4WD indicator light will
come on and then go off in a few sec-
onds.
The 4WD indicator light will illuminate
when the transfer shift knob is set to
4HI position (Part time 4WD only).
4WD LOW Indicator Light
(If equipped)
When the key is turned to the “ON”
position, the 4WD Low indicator will
come on and then go off in a few sec-
onds. The 4WD Low indicator light
comes on when the transfer shift
knob is set to 4WD low position.
Part-time 4WD : 4LO position
Full-time 4WD : Low position
DRIVING YOUR VEHICLE4-50
CRUISE
4WD
LOW
CAUTION
 Prolonged driving with the On
Board Diagnostic System
Malfunction Indicator Light
( ) illuminated may cause
damage to the emission con-
trol systems which could
effect driveability and/or fuel
economy.
 If the On Board Diagnostic
System Malfunction Indicator
Light ( ) illuninates, poten-
tial catalytic converter dam-
age is possible which could
result in loss of engine power.
Have the On Board Diagnostic
System inspected as soon as
possible by an authorized Kia
dealer.
CHECK
CHECK
✽ ✽
NOTICEA loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( )
in the instrument panel to illumi-
nate unnecessarily. Always make
sure that the fuel filler cap is tight.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 50

Auto light position (If equipped)
When the light switch is in the auto
light position (third position), the tail-
lights and headlights will be turned
automatically ON or OFF according
to external illumination.High-Beam operation
To turn on the high-beam headlights,
push the lever away from you. Pull it
back for low beams.
The high-beam indicator will light
when the headlight high beams are
switched on.
To prevent the battery from being dis-
charged, do not leave the lights on for
a prolonged time while the engine is
not running.
DRIVING YOUR VEHICLE
4-59
A
U
T
OOFF
OFFON
AUTOOFF
S2BLA436B
S2BLC201A
A
U
TOOFF
OFFON
S2BLA436A
✽ ✽
NOTICETo ensure better control of the auto
light system, never place items on
the sensor located on the dash.
Don’t clean the sensor with a win-
dow cleaner, only use a towel damp-
ened with water. If your front wind-
shield has a coating or tint the auto
light system may not work proper-
ly.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 59
