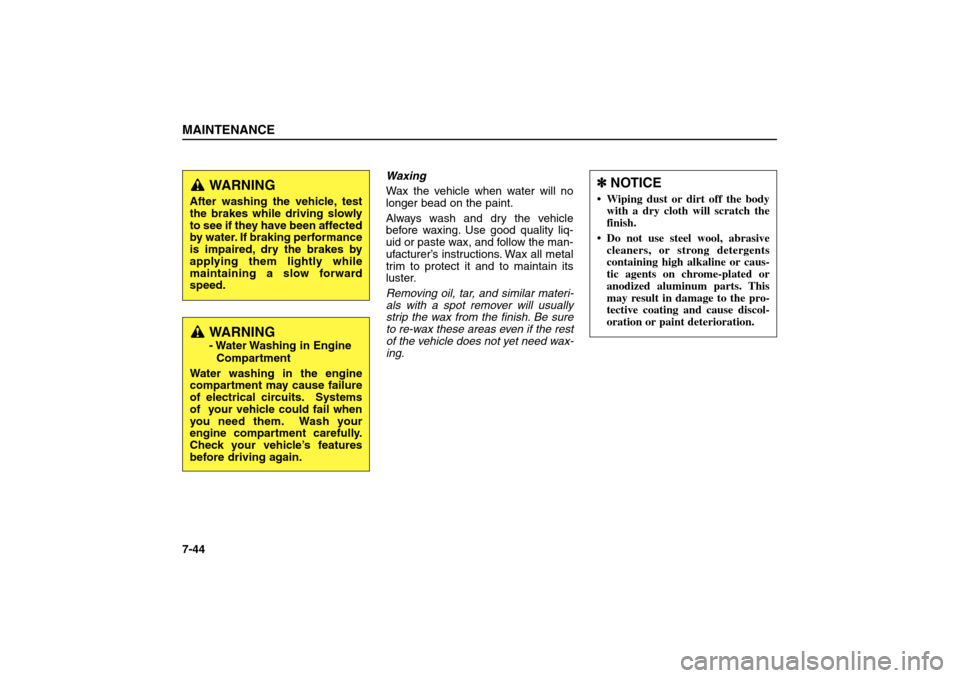

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use good quality liq-
uid or paste wax, and follow the man-
ufacturer’s instructions. Wax all metal
trim to protect it and to maintain its
luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.
MAINTENANCE7-44
WARNING
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
WARNING- Water Washing in Engine
Compartment
Water washing in the engine
compartment may cause failure
of electrical circuits. Systems
of your vehicle could fail when
you need them. Wash your
engine compartment carefully.
Check your vehicle’s features
before driving again.
✽ ✽
NOTICE Wiping dust or dirt off the body
with a dry cloth will scratch the
finish.
 Do not use steel wool, abrasive
cleaners, or strong detergents
containing high alkaline or caus-
tic agents on chrome-plated or
anodized aluminum parts. This
may result in damage to the pro-
tective coating and cause discol-
oration or paint deterioration.
BL-ENG (CAN)-7.qxd 7/28/05 5:58 PM Page 44

SPECIFICATIONS8-4Engine
Electrical SystemCapacities
Item Gasoline Engine
BoreXStroke
93 mm × 85.8 mm (3.66 in × 3.38 in)
Displacement 3496 cc (213.3 cu.in)
Compression Ratio 10.0
Size Gasoline Engine
BatteryType MF 70 AH
Capacity 12V / 70AH
Alternator 13.5V / 120A
Starter 12V-1.2KW
Gap 1.0 mm ~ 1.1 mm
Spark Plug
SpecificationPFR5N-11,
RC10PYPB4
Lubricant Volume (l) Classification
Engine oilWith filter 4.3
API Service SJ, SL or above,
Without filter 4.0 ILSAC GF-3 or aboveA/T30-40LEi11.5 MOBIL D-II
Transmission
A5SR1 10.0
APOLLOIL ATF RED-1
oil
M/T
2WD 3.2
API SERVICE GL-4
4WD 2.7 SAE 75W-85 (fill for-life)
Coolant 11.0Ethylene glycol basefor aluminum radiator
Brake fluid 0.35SAE J1703, FMVSS116
DOT-3 or DOT-4
Fuel 80 -
BL-ENG (CAN)-8.qxd 7/28/05 5:59 PM Page 4

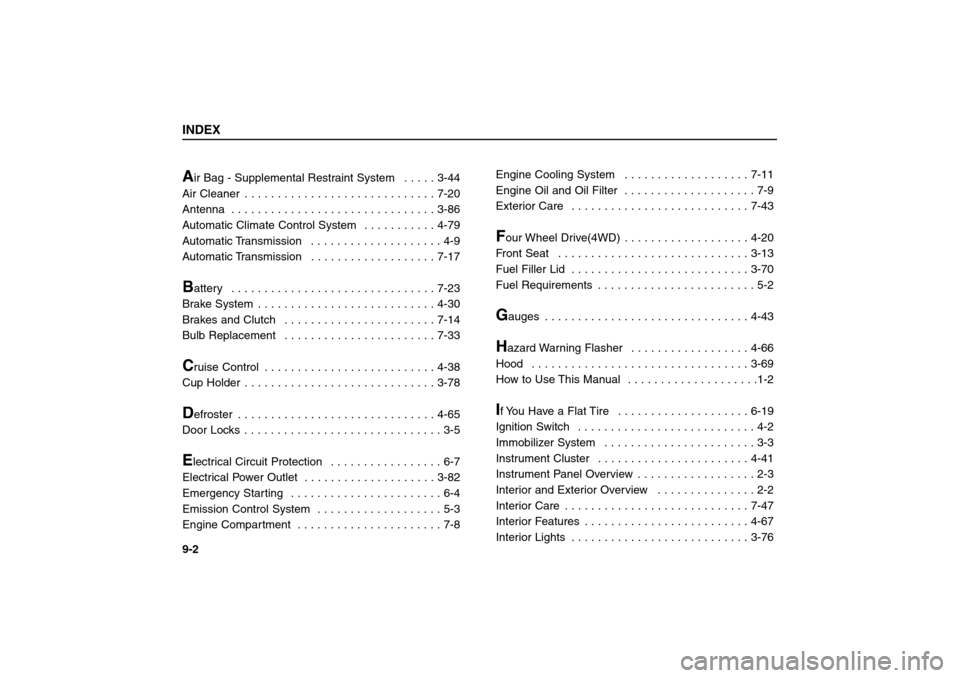

A
ir Bag - Supplemental Restraint System . . . . . 3-44
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-86
Automatic Climate Control System . . . . . . . . . . . 4-79
Automatic Transmission . . . . . . . . . . . . . . . . . . . . 4-9
Automatic Transmission . . . . . . . . . . . . . . . . . . . 7-17
B
attery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Brake System . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Brakes and Clutch . . . . . . . . . . . . . . . . . . . . . . . 7-14
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . 7-33
C
ruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Cup Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
D
efroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Electrical Circuit Protection . . . . . . . . . . . . . . . . . 6-7
Electrical Power Outlet . . . . . . . . . . . . . . . . . . . . 3-82
Emergency Starting . . . . . . . . . . . . . . . . . . . . . . . 6-4
Emission Control System . . . . . . . . . . . . . . . . . . . 5-3
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . 7-8Engine Cooling System . . . . . . . . . . . . . . . . . . . 7-11
Engine Oil and Oil Filter . . . . . . . . . . . . . . . . . . . . 7-9
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Four Wheel Drive(4WD) . . . . . . . . . . . . . . . . . . . 4-20
Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Fuel Filler Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
Fuel Requirements . . . . . . . . . . . . . . . . . . . . . . . . 5-2G
auges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
H
azard Warning Flasher . . . . . . . . . . . . . . . . . . 4-66
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
How to Use This Manual . . . . . . . . . . . . . . . . . . . .1-2
If You Have a Flat Tire . . . . . . . . . . . . . . . . . . . . 6-19
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Immobilizer System . . . . . . . . . . . . . . . . . . . . . . . 3-3
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 4-41
Instrument Panel Overview . . . . . . . . . . . . . . . . . . 2-3
Interior and Exterior Overview . . . . . . . . . . . . . . . 2-2
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
Interior Features . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-76
INDEX9-2
BL-ENG (CAN)-9.qxd 7/28/05 5:59 PM Page 2

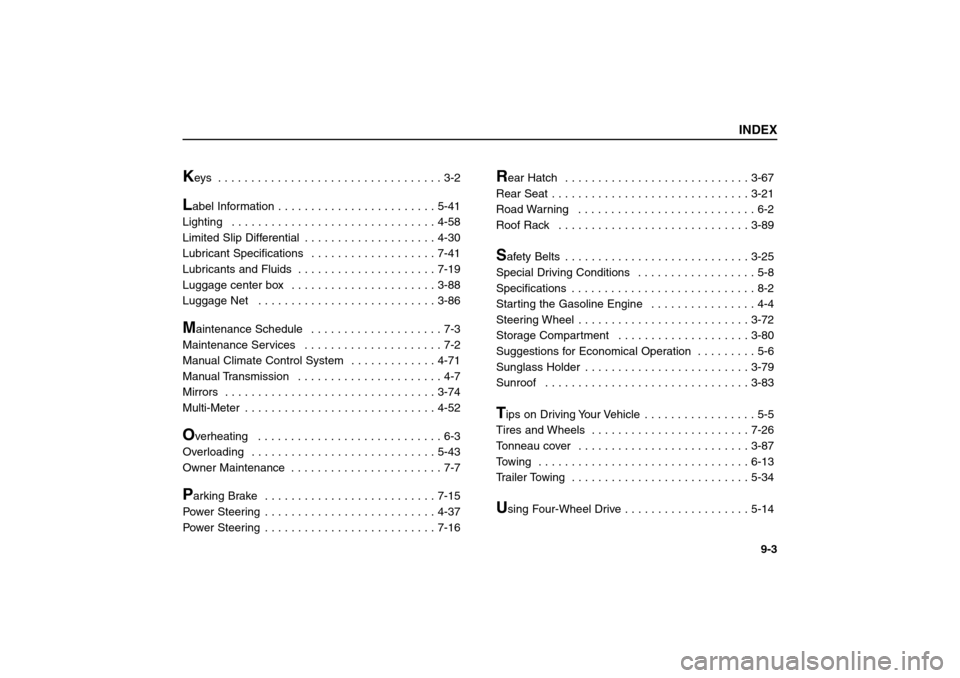

K
eys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Label Information . . . . . . . . . . . . . . . . . . . . . . . . 5-41
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Limited Slip Differential . . . . . . . . . . . . . . . . . . . . 4-30
Lubricant Specifications . . . . . . . . . . . . . . . . . . . 7-41
Lubricants and Fluids . . . . . . . . . . . . . . . . . . . . . 7-19
Luggage center box . . . . . . . . . . . . . . . . . . . . . . 3-88
Luggage Net . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-86M
aintenance Schedule . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance Services . . . . . . . . . . . . . . . . . . . . . 7-2
Manual Climate Control System . . . . . . . . . . . . . 4-71
Manual Transmission . . . . . . . . . . . . . . . . . . . . . . 4-7
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-74
Multi-Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
O
verheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
Owner Maintenance . . . . . . . . . . . . . . . . . . . . . . . 7-7
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
R
ear Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Road Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-89
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Special Driving Conditions . . . . . . . . . . . . . . . . . . 5-8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Starting the Gasoline Engine . . . . . . . . . . . . . . . . 4-4
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 3-72
Storage Compartment . . . . . . . . . . . . . . . . . . . . 3-80
Suggestions for Economical Operation . . . . . . . . . 5-6
Sunglass Holder . . . . . . . . . . . . . . . . . . . . . . . . . 3-79
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-83Tips on Driving Your Vehicle . . . . . . . . . . . . . . . . . 5-5
Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Tonneau cover . . . . . . . . . . . . . . . . . . . . . . . . . . 3-87
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34U
sing Four-Wheel Drive . . . . . . . . . . . . . . . . . . . 5-14
INDEX
9-3
