IGNITION SWITCHIlluminated Ignition Switch
Whenever a door is opened, the igni-
tion switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 sec-
onds after closing the door or when
the ignition switch is turned on.Ignition Switch and Anti-Theft
Steering Column Lock
Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position and turn
the key toward the LOCK position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON if
the engine is not running. The battery
will discharge.
START
Turn the ignition key to the START
position to start the engine. The
engine will crank until you release the
key; then it returns to the ON position.
The brake warning lamp can be
checked in this position.
If difficulty is experienced in turning
the ignition key to the START posi-
tion, turn the steering wheel right and
left to release the tension and then
turn the key.DRIVING YOUR VEHICLE4-2
PUSH
LOCKACCONSTARTS2BLA401A
✽ ✽
NOTICE -
Manual
Transmission
For your safety, the engine will not
start if the clutch pedal is not fully
depressed.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 2

DRIVING YOUR VEHICLE
4-3
Automatic Transaxle
When turning the ignition switch to
the LOCK position, the shift lever
must be in the P (Park) position.
Manual Transaxle
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position and turn
the key toward the LOCK position.

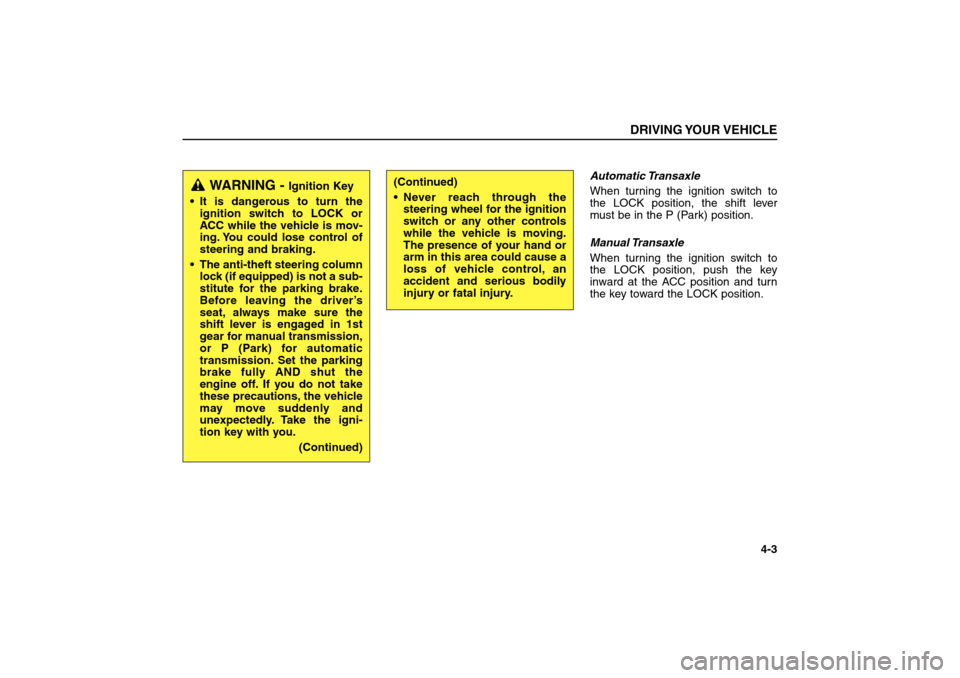

WARNING -
Ignition Key
• It is dangerous to turn the
ignition switch to LOCK or
ACC while the vehicle is mov-
ing. You could lose control of
steering and braking.
 The anti-theft steering column
lock (if equipped) is not a sub-
stitute for the parking brake.
Before leaving the driver’s
seat, always make sure the
shift lever is engaged in 1st
gear for manual transmission,
or P (Park) for automatic
transmission. Set the parking
brake fully AND shut the
engine off. If you do not take
these precautions, the vehicle
may move suddenly and
unexpectedly. Take the igni-
tion key with you.
(Continued)
(Continued)
 Never reach through the
steering wheel for the ignition
switch or any other controls
while the vehicle is moving.
The presence of your hand or
arm in this area could cause a
loss of vehicle control, an
accident and serious bodily
injury or fatal injury.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 3

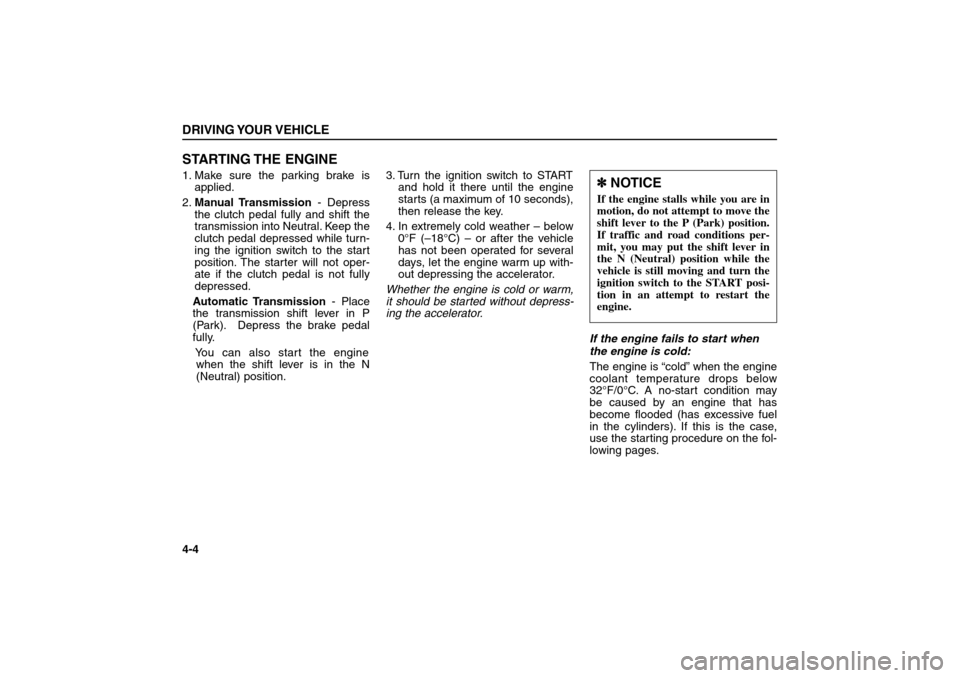

STARTING THE ENGINE1. Make sure the parking brake is
applied.
2.Manual Transmission - Depress
the clutch pedal fully and shift the
transmission into Neutral. Keep the
clutch pedal depressed while turn-
ing the ignition switch to the start
position. The starter will not oper-
ate if the clutch pedal is not fully
depressed.
Automatic Transmission- Place
the transmission shift lever in P
(Park). Depress the brake pedal
fully.
You can also start the engine
when the shift lever is in the N
(Neutral) position.3. Turn the ignition switch to START
and hold it there until the engine
starts (a maximum of 10 seconds),
then release the key.
4. In extremely cold weather – below
0°F (–18°C) – or after the vehicle
has not been operated for several
days, let the engine warm up with-
out depressing the accelerator.
Whether the engine is cold or warm,
it should be started without depress-
ing the accelerator.
If the engine fails to start when
the engine is cold:
The engine is “cold” when the engine
coolant temperature drops below
32°F/0°C. A no-start condition may
be caused by an engine that has
become flooded (has excessive fuel
in the cylinders). If this is the case,
use the starting procedure on the fol-
lowing pages.DRIVING YOUR VEHICLE4-4
✽ ✽
NOTICEIf the engine stalls while you are in
motion, do not attempt to move the
shift lever to the P (Park) position.
If traffic and road conditions per-
mit, you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and turn the
ignition switch to the START posi-
tion in an attempt to restart the
engine.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 4

1. Make sure the parking brake is
applied.
2.Manual Transmission- Depress
the clutch pedal fully and shift the
transmission into Neutral. Keep the
clutch pedal depressed while turn-
ing the ignition switch to the start
position. The starter will not oper-
ate if the clutch pedal is not fully
depressed.
Automatic Transmission -Place
the transmission shift lever in P
(Park) or N (Neutral). Depress the
brake pedal fully.
3. While fully depressing the acceler-
ator, turn the ignition switch to the
START position and hold it (a max-
imum of 10 seconds) to discharge
the excess fuel.
If the engine starts, the engine
speed will increase suddenly;
release the key and the accelera-
tor immediately.4. If the engine has not yet started,
release the accelerator after crank-
ing the engine. Without depressing
the accelerator, crank the engine
until it starts (a maximum of 10
seconds).If the engine fails to start when
the engine is warm:
A no-start condition, characterized by
failure to restart a warmed engine
despite repeated attempts may be
eliminated by using the following pro-
cedure.
1. Make sure the parking brake is
applied.
2.Manual Transmission- Depress
the clutch pedal fully and shift the
transmission into Neutral. Keep the
clutch pedal depressed while turn-
ing the ignition switch to the start
position. The starter will not oper-
ate if the clutch pedal is not fully
depressed.
Automatic Transmission -Place
the transmission shift lever in P
(Park) or N (Neutral). Depress the
brake pedal fully.
DRIVING YOUR VEHICLE
4-5
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 5

3. While depressing the accelerator
about halfway, turn the ignition
switch to the START position and
hold it (a maximum of 10 seconds).
4. Let the engine idle for about 10
seconds before driving.The starter will not operate if:
 Manual transmission - the clutch
pedal is not fully depressed.
 Automatic transmission - the shift
lever is NOT in the P (Park) or N
(Neutral) position.
Excessive engine noise may occur if
the engine has not been operated for
an extended period. The noise should
stop after the engine has reached
normal operating temperature. If the
noise does not stop, have the vehicle
inspected by an authorized Kia deal-
er.DRIVING YOUR VEHICLE4-6✽ ✽
NOTICEDo not engage the starter for more
than 10 seconds. If the engine stalls
or fails to start, wait 5 to 10 seconds
before re-engaging the starter.
Improper use of the starter may
damage it.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 6

MANUAL TRANSMISSION
(IF EQUIPPED)Manual Transmission Operation
The manual transmission has five for-
ward gears.
Press the clutch pedal down fully
while shifting, then release it slowly.A special safety feature prevents
inadvertent shifting from 5 (Fifth) to R
(Reverse). The gearshift lever must
be returned to the Neutral position
before shifting into R (Reverse).
Make sure the vehicle is completely
stopped before shifting into R
(Reverse).
DRIVING YOUR VEHICLE
4-7
✽ ✽
NOTICETo avoid premature clutch wear
and damage, do not drive with your
foot resting on the clutch pedal.
Also, don’t use the clutch to hold
the vehicle stopped on an upgrade,
while waiting for a traffic light, etc.
N
135
24R
S2BLA404
WARNING
- Manual
Transmission
Before leaving the driver’s seat,
always set the parking brake
fully and shut the engine off.
Then make sure the transmis-
sion is shifted into 1st gear.
Unexpected and sudden vehicle
movement can occur if these
precautions are not followed in
the order identified.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 7

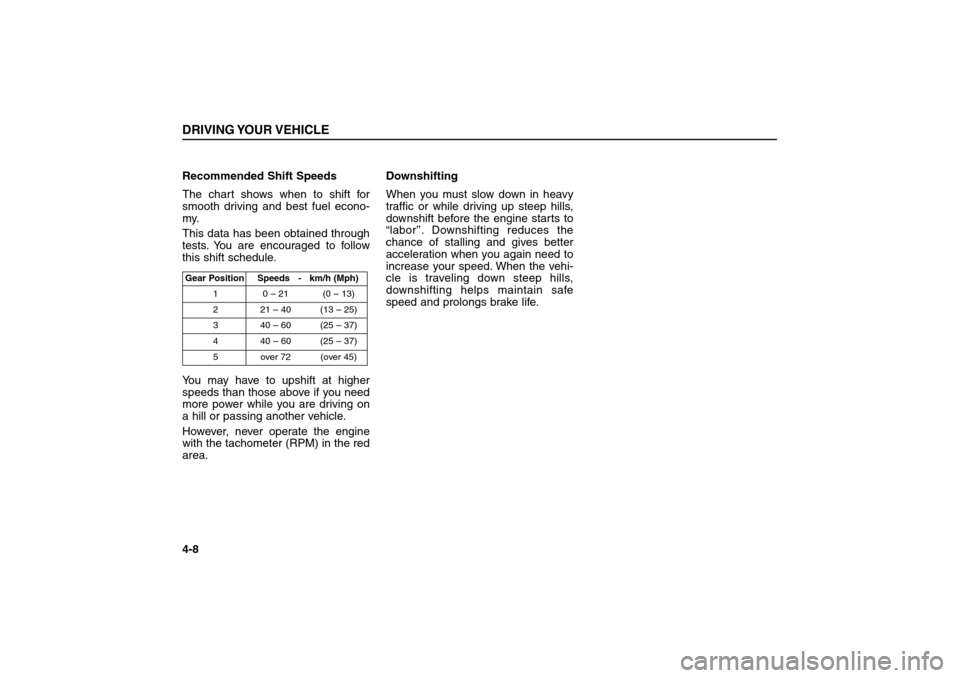

Recommended Shift Speeds
The chart shows when to shift for
smooth driving and best fuel econo-
my.
This data has been obtained through
tests. You are encouraged to follow
this shift schedule.
You may have to upshift at higher
speeds than those above if you need
more power while you are driving on
a hill or passing another vehicle.
However, never operate the engine
with the tachometer (RPM) in the red
area.Downshifting
When you must slow down in heavy
traffic or while driving up steep hills,
downshift before the engine starts to
“labor’’. Downshifting reduces the
chance of stalling and gives better
acceleration when you again need to
increase your speed. When the vehi-
cle is traveling down steep hills,
downshifting helps maintain safe
speed and prolongs brake life.DRIVING YOUR VEHICLE4-8Gear Position Speeds - km/h (Mph)
1 0 – 21 (0 – 13)
2 21 – 40 (13 – 25)
3 40 – 60 (25 – 37)
4 40 – 60 (25 – 37)
5 over 72 (over 45)
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 8

Automatic Transmission
Operation
The automatic transmission is elec-
tronically controlled.
All normal forward driving is done
with the shift lever in the D (Drive)
position.To move the shift lever from the P
(Park) position, the ignition switch
must be in the ON position, the brake
pedal must be depressed and the
lock release button must be
depressed.
For smooth operation, depress the
brake pedal when shifting from N
(Neutral) to a forward or reverse gear.DRIVING YOUR VEHICLE4-10
PR
N
D
2
LO/D OFF
PRND2LS2BLA402C
WARNING- Automatic Transaxle
Before leaving the driver’s seat,
always make sure the shift lever
is in the P (PARK) position; then
set the parking brake fully and
shut the engine off. Unexpected
and sudden vehicle movement
can occur if these precautions
are not followed in the order
identified.
✽ ✽
NOTICE To avoid damage to your trans-
mission, do not accelerate the
engine in R (Reverse) or any for-
ward gear position with the
brakes on.
 When stopped on an upgrade, do
not hold the vehicle stationary
with engine power. Use the serv-
ice brake or the parking brake.
 Do not shift from N (Neutral) or
P (Park) into L (Low), 2 (Second
Gear), D (Drive), or R (Reverse)
when the engine is above idle
speed.✽ ✽
NOTICEIf the Emission Control System
Malfunction Indicator Light ( )
flashes, it indicates an electrical
problem with the transmission.
Should this occur, have the vehicle
checked by an Authorized Kia
Dealer as soon as possible.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 10

Shift Lock System
For your safety, the Automatic
Transmission has a shift lock system
which prevents shifting the transmis-
sion out of P (Park) unless the brake
pedal is depressed.
To shift the transmission out of P
(Park):
1. Depress and hold the brake pedal.
2. Start the engine or turn the ignition
to the ON position.
3. Depress the lock release button
and move the shift lever.
When the ignition switch is in the
ACC or LOCK position, the transmis-
sion cannot be shifted from P (Park).If the brake pedal is repeatedly
depressed and released with the shift
lever in the P (Park) position, a chat-
tering noise near the shift lever may
be heard. This is a normal condition.
Also, the ignition key cannot be
removed unless the shift lever is in
the P (Park) position. If the ignition
switch is in any other position, the key
cannot be removed.
Transmission Ranges
O/D (OverDrive) System
Pressing the O/D system button can-
cels and engages the overdrive sys-
tem. When the O/D system is can-
celled (button is pressed), the O/D
OFF indicator illuminates and the
transmission gear range is limited to
1st through 3rd. The transmission will
not shift to 4th gear until the O/D sys-
tem button is pressed again to
release the switch.
DRIVING YOUR VEHICLE
4-11
PR
N
D
2
LO/D OFF
S2BLA407
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 11

When driving down a sloping road
with the transaxle in O/D (5th), you
can decrease the vehicle speed with-
out using the brakes by pressing the
O/D OFF button.
When the ignition is switched OFF,
O/D OFF mode is automatically can-
celled.
O/D OFF indicator
This indicator light illuminates in the
instrument panel when the O/D mode
is cancelled.P (Park)
This position locks the transmission
and prevents the front wheels from
rotating. Always come to a complete
stop before shifting into this position.DRIVING YOUR VEHICLE4-12✽ ✽
NOTICEIf the O/D OFF indicator flashes, it
indicates an electrical problem with
the transaxle. Should this occur,
have the vehicle checked by an
Authorized Kia Dealer as soon as
possible.
WARNING
Shifting into P (Park) while the
vehicle is in motion will cause
the drive wheels to lock which
will cause you to lose control
of the vehicle.
Do not use the P (Park) posi-
tion in place of the parking
brake. Always make sure the
shift lever is latched in the P
(Park) position so that it can-
not be moved unless the lock
release button is pushed in,
AND set the parking brake
fully.
(Continued)
(Continued)
Before leaving the driver’s
seat, always make sure the
shift lever is in the P (PARK)
position. Set the parking
brake fully, shut the engine off
and take the key with you.
Unexpected and sudden vehi-
cle movement can occur if
you do not follow these pre-
cautions in the order speci-
fied.
Never leave a child unattend-
ed in a vehicle.
CAUTION
The transmission may be dam-
aged if you shift into P (Park)
while the vehicle is in motion.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 12
