Front Fog Light (If equipped)
To turn the front fog lights ON, turn
the headlights ON after starting the
engine and then turn the front fog
light switch to ON position. To turn it
OFF, turn it to OFF position or turn
the headlights OFF.Daytime Running Light
Daytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially
helpful after dawn and before sunset.
The DRL system will make your high-
beam headlights turn OFF when:
The headlight switch is ON.
The parking brake is engaged.
The engine stops.
DRIVING YOUR VEHICLE
4-61
AUTOOFF
OFFON
S2BLA440
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 61

Windshield Washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 2-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
an appropriate non-abrasive wind-
shield washer fluid to the washer
reservoir. The reservoir filler neck is
located in the front of the engine
compartment on the passenger side.
DRIVING YOUR VEHICLE
4-63
HILO
O
N
INT
INT
OFF
OFF
FS
REAR
INT
TIME
PULL
S2BLA447
✽ ✽
NOTICE To prevent possible damage to the
wipers or windshield, do not
operate the wipers when the
windshield is dry.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
WARNING
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on contact
with the windshield and
obscure your vision.✽ ✽
NOTICETo prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 63

DEFROSTER
The defroster clears frost, fog and
thin ice from the interior and exterior
of the front windshield and rear win-
dow, while the engine is running.If your vehicle is equipped with the
outside rearview mirror defroster, you
can also clear frost from the mirrors
by depressing this rear window
defroster switch.
To activate the defroster, depress the
corresponding defroster switch locat-
ed on the center console switch
panel. Front windshield and rear win-
dow defroster indicators illuminate
when the defrosters are on. The
defrosters automatically turn off after
about 20 minutes, or when the igni-
tion switch is turned off. To turn off the
defroster, press the corresponding
defroster switch again.
If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster.
If your vehicle is equipped with an
outside rearview mirror defroster, it
will be operating at the same time
when you operate the rear window
defroster.
DRIVING YOUR VEHICLE
4-65
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
H
M
PASSENGER AIRBAG OFF
5BLC450A
AU TO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
H
M
PASSENGER AIRBAG OFF
5BLC450C
FrontRear
✽ ✽
NOTICE To prevent damage to the conduc-
tors bonded to the inside surface
of the bottom of the front wind-
shield and the rear window, never
use sharp instruments or window
cleaners containing abrasives to
clean the window.
 To prevent the battery from being
discharged, operate the defroster
only while the engine is running.
 The front windshield defroster is
designed to defrost wiper blades.
If you want to defrost and defog
on the front windshield, refer to
“Windshield Defrosting and
Defogging” in this section.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 65

INTERIOR FEATURESDigital Clock
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:HOUR “H’’:
Pressing the “H’’button with your fin-
ger, a pencil or similar object will
advance the time displayed by one
hour.
MINUTE “M’’:
Pressing the “M’’button with your fin-
ger, a pencil or similar object will
advance the time displayed by one
minute.
RESET “:00’’:
To clear away minutes, press the
“:00’’button with your finger, a pencil
or similar object. Then the clock will
be set precisely on the hour.
For example, if the “:00’’button is
pressed while the time is between
9:01 and 9:29, the display will be
reset to 9:00. If pressed while it is
between 9:30 and 9:59, the display
will be reset to 10:00.Cigarette Lighter
To use the cigarette lighter, press the
front face then release it to allow the
cigarette lighter and ashtray to slowly
extend from center panel.
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
DRIVING YOUR VEHICLE
4-67
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
H
M
L
R
PASSENGER AIRBAG OFF
5BLA450
H
M
5BLA335E
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 67

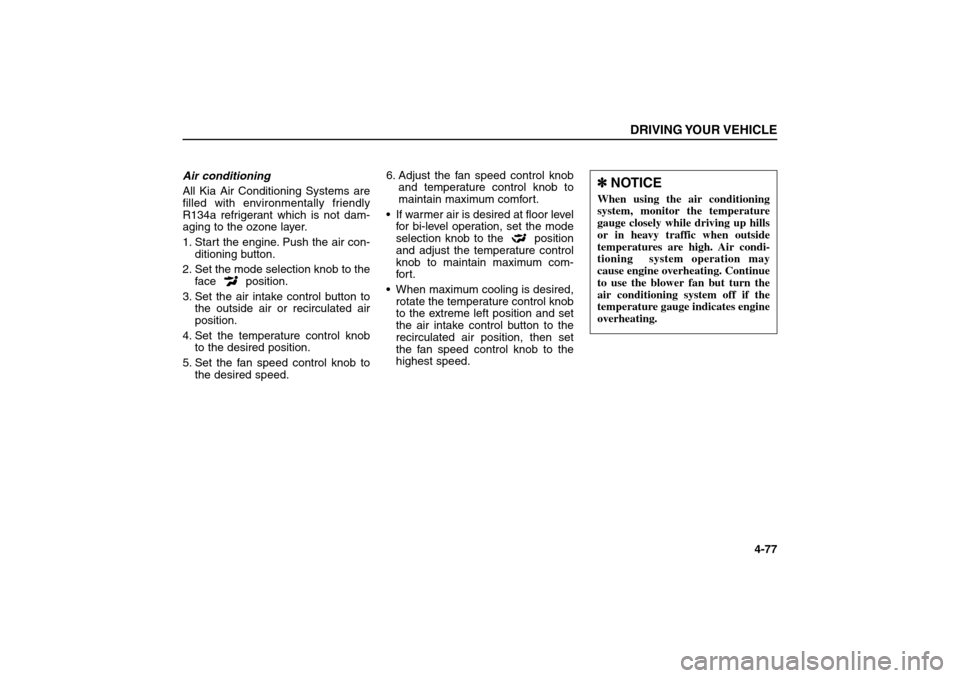

Air conditioning
All Kia Air Conditioning Systems are
filled with environmentally friendly
R134a refrigerant which is not dam-
aging to the ozone layer.
1. Start the engine. Push the air con-
ditioning button.
2. Set the mode selection knob to the
face position.
3. Set the air intake control button to
the outside air or recirculated air
position.
4. Set the temperature control knob
to the desired position.
5. Set the fan speed control knob to
the desired speed.6. Adjust the fan speed control knob
and temperature control knob to
maintain maximum comfort.
If warmer air is desired at floor level
for bi-level operation, set the mode
selection knob to the position
and adjust the temperature control
knob to maintain maximum com-
for t.
When maximum cooling is desired,
rotate the temperature control knob
to the extreme left position and set
the air intake control button to the
recirculated air position, then set
the fan speed control knob to the
highest speed.
DRIVING YOUR VEHICLE
4-77
✽ ✽
NOTICEWhen using the air conditioning
system, monitor the temperature
gauge closely while driving up hills
or in heavy traffic when outside
temperatures are high. Air condi-
tioning system operation may
cause engine overheating. Continue
to use the blower fan but turn the
air conditioning system off if the
temperature gauge indicates engine
overheating.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 77

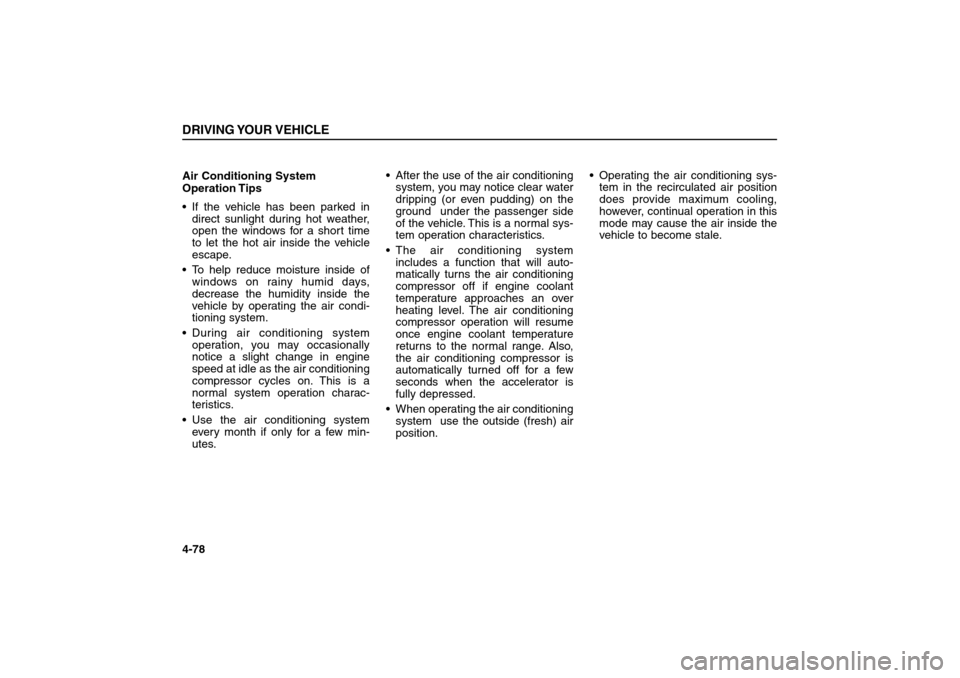

Air Conditioning System
Operation Tips
If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
To help reduce moisture inside of
windows on rainy humid days,
decrease the humidity inside the
vehicle by operating the air condi-
tioning system.
During air conditioning system
operation, you may occasionally
notice a slight change in engine
speed at idle as the air conditioning
compressor cycles on. This is a
normal system operation charac-
teristics.
Use the air conditioning system
every month if only for a few min-
utes.After the use of the air conditioning
system, you may notice clear water
dripping (or even pudding) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristics.
The air conditioning system
includes a function that will auto-
matically turns the air conditioning
compressor off if engine coolant
temperature approaches an over
heating level. The air conditioning
compressor operation will resume
once engine coolant temperature
returns to the normal range. Also,
the air conditioning compressor is
automatically turned off for a few
seconds when the accelerator is
fully depressed.
When operating the air conditioning
system use the outside (fresh) air
position.Operating the air conditioning sys-
tem in the recirculated air position
does provide maximum cooling,
however, continual operation in this
mode may cause the air inside the
vehicle to become stale.DRIVING YOUR VEHICLE4-78
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 78

For maximum defrosting, set the
temperature control knob to the
extreme right/hot position and the
fan speed control knob to the high-
est speed.
If warm air to the floor is desired
while defrosting or defogging, set
the mode selection knob to the
floor- defrost position.
Before driving, clear all snow and
ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
Clear all snow and ice from the
hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up inside of the wind-
shield.How to cancel automatic outside
(fresh) air position in the Floor,
Floor-Defrost and Defrost posi-
tion:
When you select the Floor, Floor-
Defrost or Defrost position, the out-
side (fresh) air position will be select-
ed automatically.
If you don’t want the outside (fresh)
air position when operating in either
of these modes, you can turn off the
automatic outside (fresh) air position
by performing the following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Turn the fan speed control knob to
the “0”position.
3. Turn the mode selection knob to
the defrost ( ) position.
4. Push the air intake control button
( ) at least 5 times within 3 sec-
onds.
Then the indicator light on the air
intake control button will blink 3
times with 0.5 second intervals
between blinks.
If you want to return to the automatic
outside (fresh) air position, repeat the
procedure above.
DRIVING YOUR VEHICLE
4-87
PUSHMAX
A/C
PUSHMAX
A/C
S4BLA475
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 87

How to cancel forced air-condition-
ing operation and outside (fresh)
air position in floor-defrost and
defrost position ;
When you select the Floor-Defrost or
Defrost position, the system automat-
ically turns on the air-conditioning
system and the outside (fresh) air
position will be selected.
If you don’t want air-conditioning and
the outside (fresh) air position when
operating in either of these modes,
you can turn off the air-conditioning
system operation by performing the
following:1. Make sure the engine is running or
the ignition switch is in the ON
position.
2. Select the defrost position press-
ing the defrost ( ) button.
3. While holding the air conditioning
button A/C depressed, depress the
recirculated air position button
( ) at least 5 times within 3 sec-
onds.
The indicator light in the recirculat-
ed air position button ( ) will
blink 3 times with 0.5 second of
interval.
If you want to return to the automatic
air conditioning system and outside
(fresh) air position, repeat the proce-
dure above.
Follow the same procedure if you
want to cancel or return to the forced
outside (fresh) air position when you
start the engine with recirculated air
position selected manually before the
engine off.
DRIVING YOUR VEHICLE
4-89
S2BLA478
BL-ENG (CAN)-4.qxd 7/28/05 5:56 PM Page 89

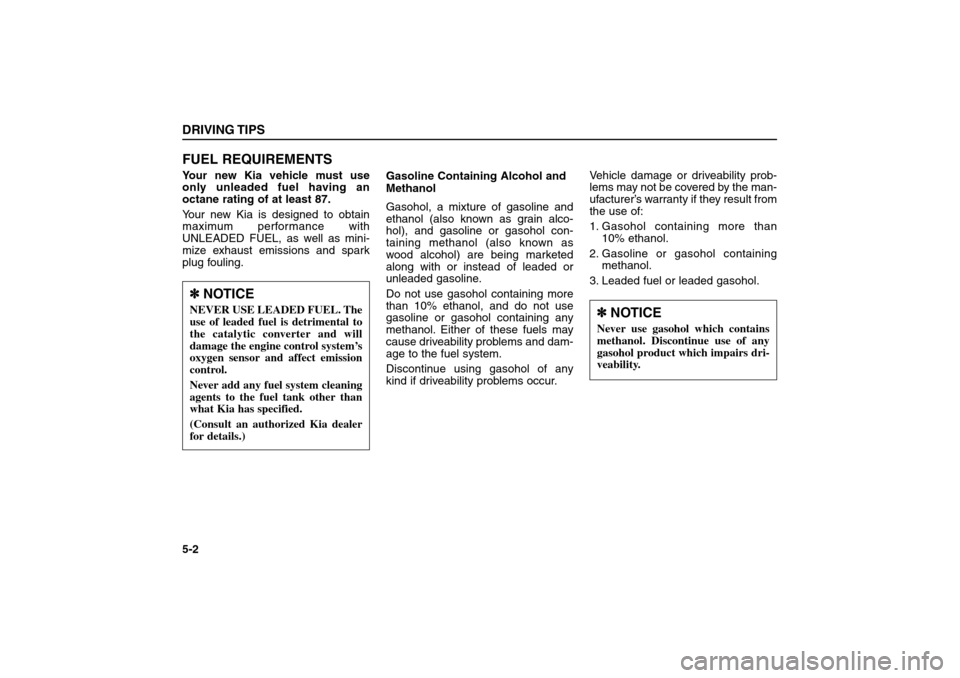

FUEL REQUIREMENTSYour new Kia vehicle must use
only unleaded fuel having an
octane rating of at least 87.
Your new Kia is designed to obtain
maximum performance with
UNLEADED FUEL, as well as mini-
mize exhaust emissions and spark
plug fouling.Gasoline Containing Alcohol and
Methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alco-
hol), and gasoline or gasohol con-
taining methanol (also known as
wood alcohol) are being marketed
along with or instead of leaded or
unleaded gasoline.
Do not use gasohol containing more
than 10% ethanol, and do not use
gasoline or gasohol containing any
methanol. Either of these fuels may
cause driveability problems and dam-
age to the fuel system.
Discontinue using gasohol of any
kind if driveability problems occur.Vehicle damage or driveability prob-
lems may not be covered by the man-
ufacturer’s warranty if they result from
the use of:
1. Gasohol containing more than
10% ethanol.
2. Gasoline or gasohol containing
methanol.
3. Leaded fuel or leaded gasohol.DRIVING TIPS5-2✽ ✽
NOTICENEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control system’s
oxygen sensor and affect emission
control.
Never add any fuel system cleaning
agents to the fuel tank other than
what Kia has specified.
(Consult an authorized Kia dealer
for details.)
✽ ✽
NOTICENever use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs dri-
veability.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 2

EMISSION CONTROL
SYSTEMThe emissions control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Warranty
and Consumer Information Manual in
your vehicle.
Vehicle Modifications
This vehicle should not be modified.
Modification of your Kia could affect
its performance, safety or durability
and may even violate governmental
safety and emissions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.Engine Exhaust Gas Precautions
(Carbon Monoxide)
 Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately by an authorized Kia
dealer. If you ever suspect exhaust
fumes are coming into your vehicle,
drive it only with all the windows
fully open. Have your vehicle
checked and repaired immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in an
open area for more than a short
time with the engine running, adjust
the heating or cooling system (as
needed) to draw outside air into the
vehicle.
 Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
 When the engine stalls or fails to
start, excessive attempts to re-start
the engine may cause damage to
the emission control system.
DRIVING TIPS
5-3
WARNING
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is dan-
gerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poisoning.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 3
