Features of your vehicle70
4LCD Display ControlThe LCD display modes can be
changed by using the control buttons
on the steering wheel.
[Type A]
(1) : TRIP button for changing trip
modes
(2) : RESET button for resetting items
❈ For the LCD modes, refer to “LCD
Display” in this chapter. [Type B]
(1) : MODE button for changing
modes or SELECT button
for setting the selected item
(2) : MOVE button for changing items or RESET button for
resetting the selected item
OXM043124
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 70

471
Features of your vehicle

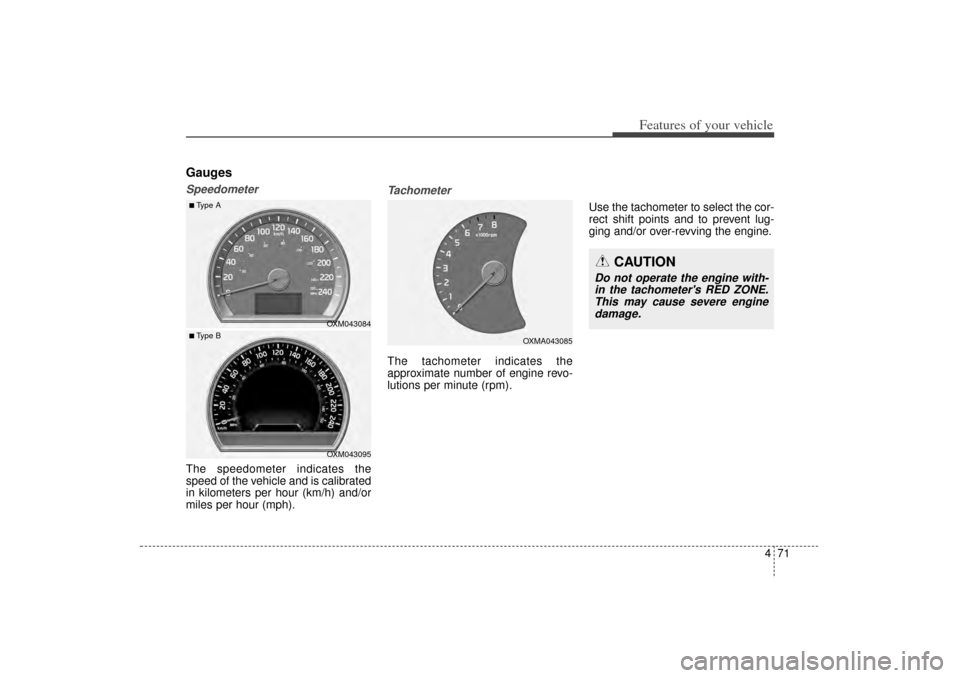

GaugesSpeedometerThe speedometer indicates the
speed of the vehicle and is calibrated
in kilometers per hour (km/h) and/or
miles per hour (mph).
TachometerThe tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.
OXM043084OXM043095
■Type A■ Type B
CAUTION
Do not operate the engine with-
in the tachometer's RED ZONE.This may cause severe enginedamage.
OXMA043085
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 71

Features of your vehicle72

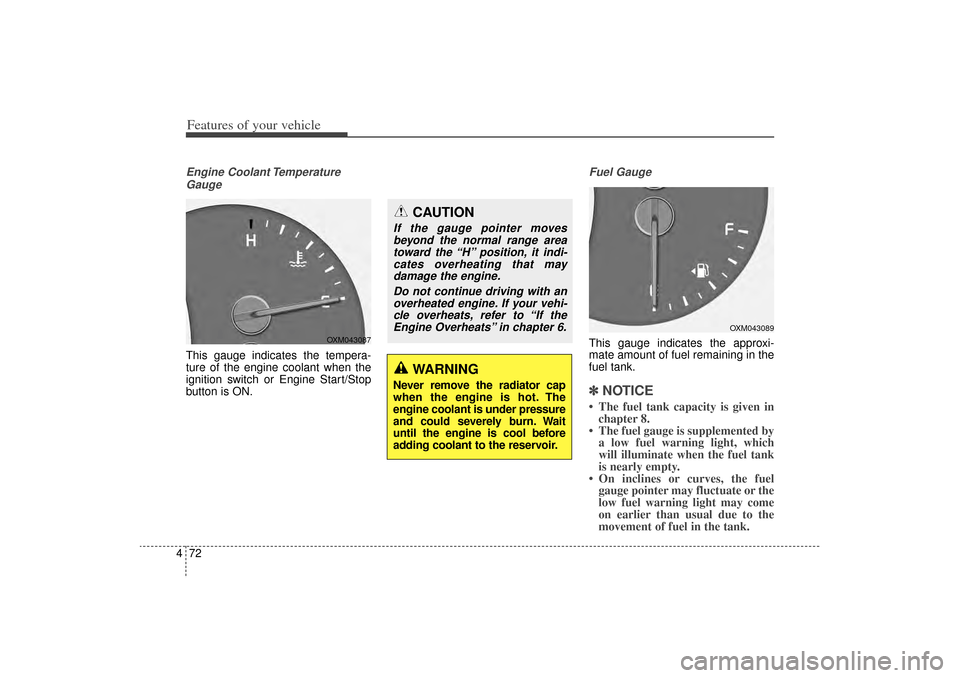

4Engine Coolant Temperature
GaugeThis gauge indicates the tempera-
ture of the engine coolant when the
ignition switch or Engine Start/Stop
button is ON.
Fuel GaugeThis gauge indicates the approxi-
mate amount of fuel remaining in the
fuel tank.✽ ✽ NOTICE• The fuel tank capacity is given in
chapter 8.
• The fuel gauge is supplemented by a low fuel warning light, which
will illuminate when the fuel tank
is nearly empty.
• On inclines or curves, the fuel gauge pointer may fluctuate or the
low fuel warning light may come
on earlier than usual due to the
movement of fuel in the tank.
WARNING
Never remove the radiator cap
when the engine is hot. The
engine coolant is under pressure
and could severely burn. Wait
until the engine is cool before
adding coolant to the reservoir.
CAUTION
If the gauge pointer moves
beyond the normal range areatoward the “H” position, it indi-cates overheating that maydamage the engine.
Do not continue driving with anoverheated engine. If your vehi-cle overheats, refer to “If theEngine Overheats” in chapter 6.
OXM043087
OXM043089
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 72

473
Features of your vehicle
✽
✽NOTICEFuel display may not be accurate if
you are filling in sloping places.
OdometerThe odometer Indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
- Odometer range : 0 ~ 999999 kilo-
meters or miles.
Outside Temperature GaugeThis gauge indicates the current out-
side air temperatures by 1°C (1°F).
- Temperature range : -40°C ~ 60°C (-40°F ~ 140°F)
The outside temperature on the dis-
play may not change immediately
like a general thermometer to pre-
vent the driver from being inattentive.
The temperature unit (from °F to °C
or from °C to °F) can be changed by
using the “User Settings” mode of the
LCD display.
❈ For more details, refer to “LCD
Display” in this chapter.
WARNING -
Fuel Gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi-
tional fuel as soon as possible
after the warning light comes
on or when the gauge indicator
comes close to the “E (Empty)”
level.
CAUTION
Avoid driving with a extremely low fuel level. Running out offuel could cause the engine tomisfire damaging the catalyticconverter.
OXM049061/OXM043125
■
Type A
■Type B
OXM043127/OXM043126
■
Type A
■Type B
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 73

Features of your vehicle74
4Transaxle Shift IndicatorAutomatic Transaxle Shift
Indicator (if equipped)This indicator displays which auto-
matic transaxle shift lever is selected.
Park :P
 Reverse : R
 Neutral : N
Drive :D
 Sports Mode : 1, 2, 3, 4, 5, 6
OXMA043321/OXMA043322
■
Type A
■Type B
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 74

475
Features of your vehicle
LCD ModesLCD DISPLAY (IF EQUIPPED)
Modes
Symbol
Explanation
Trip Computer
This mode displays driving information like the tripmeter, fuel economy, and so on.
For more details, refer to “Trip Computer” in this chapter.
Service
This mode informs of service interval (mileage or days) and warning messages
related to TPMS or washer fluid.
User Settings
On this mode, you can change settings of the doors, lamps, and so on.
A/V
(if equipped)
This mode displays the state of the A/V system.
Tu r n B y Tu r n (if equipped)
This mode displays the state of the navigation.
❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 75

Features of your vehicle76
4Service ModeService IntervalService in
It calculates and displays when you
need a scheduled maintenance
service (mileage or days).
If the remaining mileage or time
reaches 1,500 km. (900 mi) or 30
days, "Service in" message is dis-
played for several seconds each time
you set the ignition switch or Engine
Start/Stop Button to the ON position. Service required
If you do not have your vehicle serv-
iced according to the already inputted
service interval, “Service required”
message is displayed for several sec-
onds each time you set the ignition
switch or Engine Start/Stop Button to
the ON position (The mileage and
time changes to "---").
To reset the service interval to the
mileage and days you inputted before:
- Press the RESET button for
more than 1 second. Service in OFF
If the service interval is not set,
“Service in OFF” message is dis-
played on the LCD display.
✽ ✽
NOTICE If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
OXM043119E
OXM043129E
OXM043130E
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 76

477
Features of your vehicle
Master Warning Mode (if equipped) This warning light informs the driv- er the following situations
- Low washer fluid (if equipped)
- TPMS (if equipped)
- Service reminder (if equipped)
The Master Warning Light illumi-
nates when more than one of the
above warning situations occur. At
this time, the LCD Modes Icon will
change from ( ) to ( ).
If the warning situation is solved, the
master warning light will be turned off
and the LCD Modes Icon will be
changed back to its previous icon ( ).
(ex : refill the washer fluid)
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 77

Features of your vehicle78

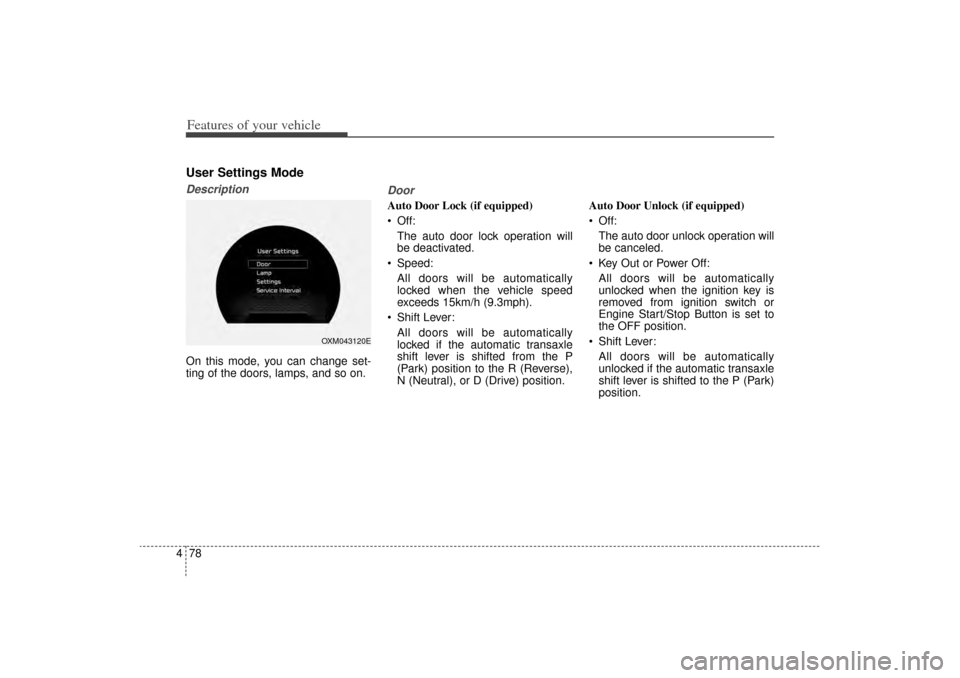

4User Settings ModeDescriptionOn this mode, you can change set-
