KIA Sorento 2014 3.G Owner's Manual

Features of your vehicle100

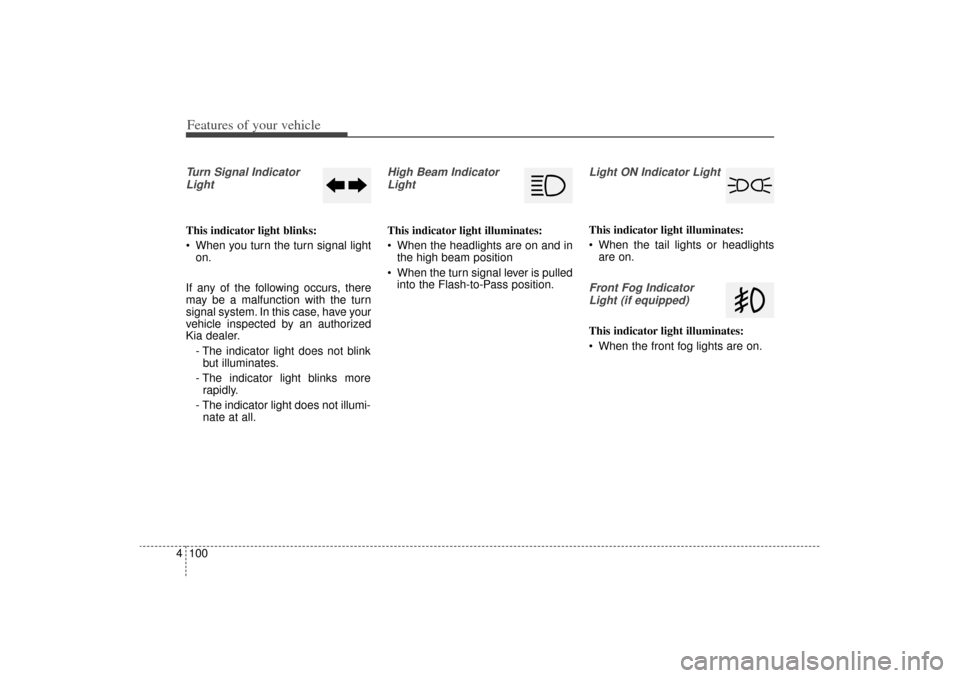

4Turn Signal Indicator
LightThis indicator light blinks:
 When you turn the turn signal light on.
If any of the following occurs, there
may be a malfunction with the turn
signal system. In this case, have your
vehicle inspected by an authorized
Kia dealer. - The indicator light does not blinkbut illuminates.
- The indicator light blinks more rapidly.
- The indicator light does not illumi- nate at all.
High Beam Indicator
LightThis indicator light illuminates:
 When the headlights are on and in the high beam position
 When the turn signal lever is pulled into the Flash-to-Pass position.
Light ON Indicator LightThis indicator light illuminates:
 When the tail lights or headlightsare on.Front Fog Indicator
Light (if equipped)This indicator light illuminates:
 When the front fog lights are on.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 100

4 101
Features of your vehicle

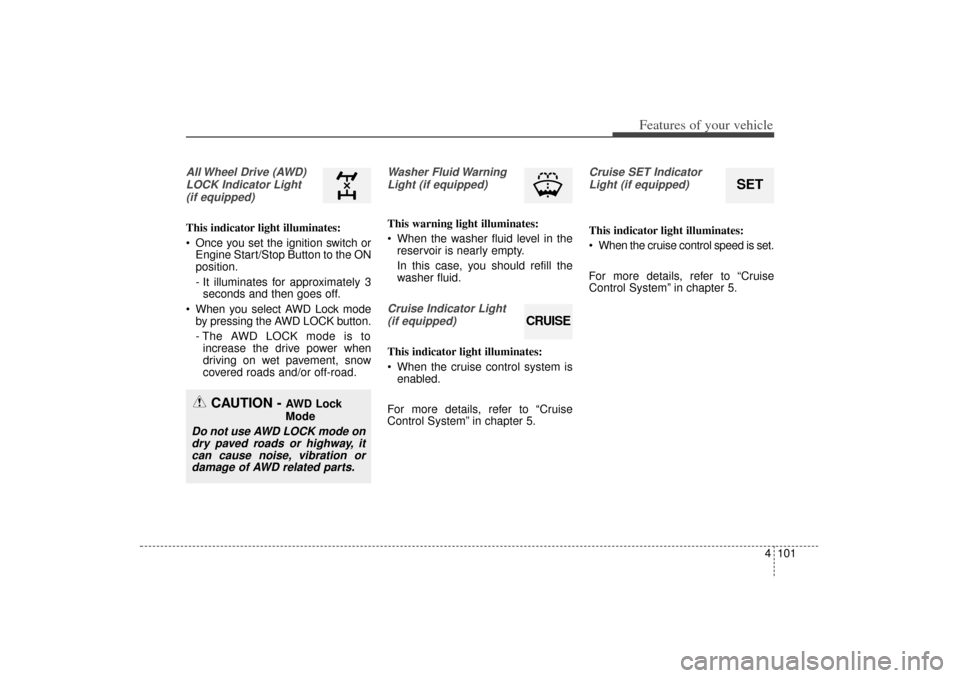

All Wheel Drive (AWD)LOCK Indicator Light (if equipped)This indicator light illuminates:
 Once you set the ignition switch or Engine Start/Stop Button to the ON
position.
- It illuminates for approximately 3seconds and then goes off.
 When you select AWD Lock mode by pressing the AWD LOCK button.
- The AWD LOCK mode is toincrease the drive power when
driving on wet pavement, snow
covered roads and/or off-road.
Washer Fluid Warning
Light (if equipped)This warning light illuminates:
 When the washer fluid level in the reservoir is nearly empty.
In this case, you should refill the
washer fluid.Cruise Indicator Light
(if equipped)This indicator light illuminates:
 When the cruise control system is enabled.
For more details, refer to “Cruise
Control System” in chapter 5.
Cruise SET Indicator Light (if equipped)This indicator light illuminates:
 When the cruise control speed is set.
For more details, refer to “Cruise
Control System” in chapter 5.
CAUTION -
AWD Lock
Mode
Do not use AWD LOCK mode ondry paved roads or highway, itcan cause noise, vibration ordamage of AWD related parts.
CRUISE
SET
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 101

Features of your vehicle102
4The rear parking assist system
assists the driver during backward
movement of the vehicle by chiming if
any object is sensed within a distance
of 120 cm. (47 in) behind the vehicle.
This system is a supplemental system
and it is not intended to nor does it
replace the need for extreme care and
attention of the driver. The sensing
range and objects detectable by the
back sensors are limited. Whenever
backing-up, pay as much attention to
what is behind you as you would in a
vehicle without a rear parking assist
system.
Operation of the rear parking
assist systemOperating condition This system will activate when the
indicator on the rear parking assist
OFF button is not illuminated. If
you desire to deactivate the rear
parking assist system, press the
rear parking assist OFF button
again. (The indicator on the button
will illuminate.) To turn the system
on, press the button again. (The
indicator on the button will go off.)
If the vehicle is moving at a speed
over 5 km/h (3 mph), the system
may not be activated correctly.
REAR PARKING ASSIST SYSTEM (IF EQUIPPED)
WARNING
The rear parking assist system
is a supplementary function
only. The operation of the rear
parking assist system can be
affected by several factors
(including environmental condi-
tions). It is the responsibility of
the driver to always check the
area behind the vehicle before
and while backing up.
OXM053105
Sensors
OXM053032
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 102

4 103
Features of your vehicle
 The sensing distance while therear parking assist system is in
operation is approximately 120 cm.
(47 in).
 When more than two objects are sensed at the same time, the clos-
est one will be recognized first.
Types of warning sound When an object is 120 cm to 61 cm(47 in. to 24 in.) from the rear
bumper: Buzzer beeps intermit-
tently.
 When an object is 60 cm to 31 cm (24 in. to 12 in.) from the rear
bumper: Buzzer beeps more fre-
quently.
 When an object is within 30 cm (12 in.) of the rear bumper:
Buzzer sounds continuously.
Non-operational conditions of
rear parking assist systemThe rear parking assist system
may not operate properly when:
1. Moisture is frozen to the sensor. (It will operate normally when the
moisture has been cleared.)
2. The sensor is covered with foreign matter, such as snow or water, or
the sensor cover is blocked. (It will
operate normally when the materi-
al is removed or the sensor is no
longer blocked.)
3. Driving on uneven road surfaces (unpaved roads, gravel, bumps,
gradient).
4. Objects generating excessive noise (vehicle horns, loud motor-
cycle engines, or truck air brakes)
are within range of the sensor.
5. Heavy rain or water spray exists.
6. Wireless transmitters or mobile phones are within range of the
sensor.
7. The sensor is covered with snow.
8. Trailer towing
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 103

Features of your vehicle104
4The detecting range may decrease
when:
1. The sensor is stained with foreign
matter such as snow or water.
(The sensing range will return to
normal when removed.)
2. Outside air temperature is extremely hot or cold.
The following objects may not be
recognized by the sensor:
1. Sharp or slim objects such as ropes, chains or small poles.
2. Objects which tend to absorb the sensor frequency such as clothes,
spongy material or snow.
3. Undetectable objects smaller than 1 m. (40 in) in height and narrower
than 14 cm. (6 in) in diameter.
Rear parking assist system
precautions The rear parking assist systemmay not sound consistently
depending on the speed and
shapes of the objects detected.
 The rear parking assist system may malfunction if the vehicle
bumper height or sensor installa-
tion has been modified or dam-
aged. Any non-factory installed
equipment or accessories may
also interfere with the sensor per-
formance.
 The sensor may not recognize objects less than 40 cm. (15 in)
from the sensor, or it may sense an
incorrect distance. Use caution.
 When the sensor is frozen or SOILED with snow, dirt, or water,
the sensor may be inoperative until
the MATERIAL IS removed using a
soft cloth.
 Do not push, scratch or strike the sensor. Sensor damage could
occur.
WARNING
Pay close attention when the
vehicle is driven close to
objects on the road, particularly
pedestrians, and especially
children. Be aware that some
objects may not be detected by
the sensors, due to the object’s
distance, size or material, all of
which can limit the effective-
ness of the sensor. Always per-
form a visual inspection to
make sure the vehicle is clear of
all obstructions before moving
the vehicle in any direction.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 104

4 105
Features of your vehicle
✽
✽NOTICEThis system can only sense objects
within the range and location of the
sensors. It cannot detect objects in
other areas where sensors are not
installed. Also, small or slim objects,
such as poles or objects located
between sensors may not be detected
by the sensors.
Always visually check behind the
vehicle when backing up.
Be sure to inform any drivers of the
vehicle that may be unfamiliar with
the system regarding the systems
capabilities and limitations.
Self-diagnosisIf you don’t hear an audible warning
sound or if the buzzer sounds inter-
mittently when shifting the gear to
the R (Reverse) position, this may
indicate a malfunction in the rear
parking assist system. If this occurs,
have your vehicle checked by an
authorized Kia dealer as soon as
possible.
WARNING
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries to
its occupants due to a rear
parking assist system malfunc-
tion. Always drive safely and
cautiously.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 105

Features of your vehicle106
4The rearview camera will activate
with the ignition switch ON and the
shift lever in the R (Reverse) position. This system is a supplemental sys-
tem that shows behind the vehicle
through the rearview display mirror
while backing up unless equipped
with a navigation system, then will
display on the screen.
The rearview camera may be turned
off by pressing the ON/OFF button
when the rearview camera is activated.
To turn the camera on again, press
the ON/OFF button again when the
ignition switch is on and the shift
lever in R (Reverse). Also, the cam-
era will turn on automatically when-
ever the ignition switch is turned off
and on again.REARVIEW CAMERA (IF EQUIPPED)
WARNING
 This system is a supplemen-
tary function only. It is the
responsibility of the driver to
always check the inside/out-
side rearview mirrors and the
area behind the vehicle before
and while backing up because
there is a dead zone that can't
be seen by the camera.
 Always keep the camera lens clean. If lens is covered with
foreign matter, the camera
may not operate normally.
OXM053120OXM053121
Rear view display
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 106

4 107
Features of your vehicle

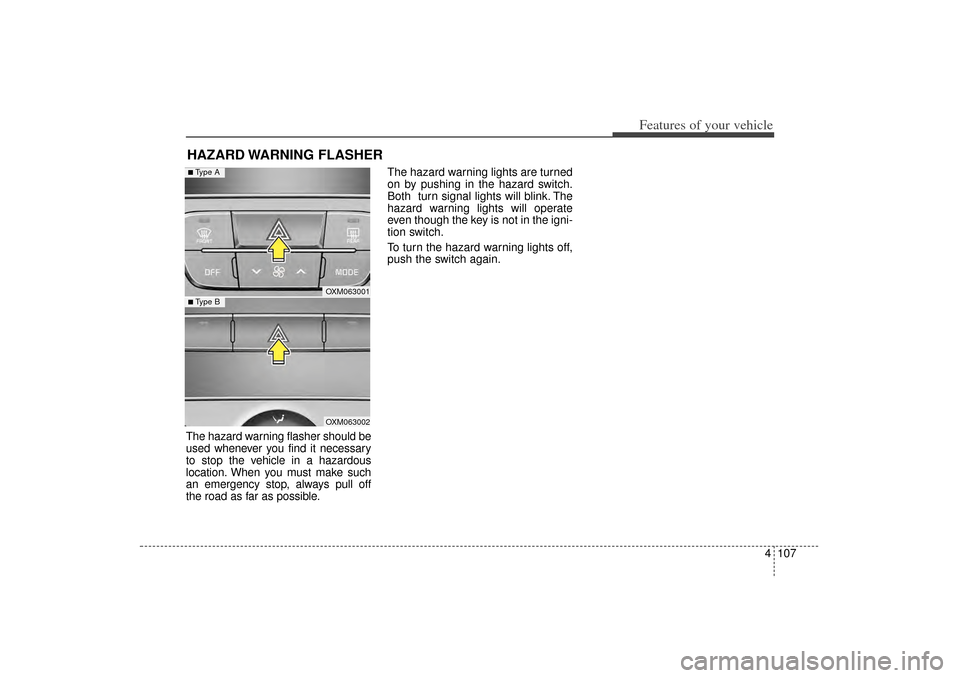

The hazard warning flasher should be
used whenever you find it necessary
to stop the vehicle in a hazardous
location. When you must make such
an emergency stop, always pull off
the road as far as possible.The hazard warning lights are turned
on by pushing in the hazard switch.
Both turn signal lights will blink. The
hazard warning lights will operate
even though the key is not in the igni-
tion switch.
To turn the hazard warning lights off,
push the switch again.HAZARD WARNING FLASHER
OXM063001OXM063002
■ Type B■ Type A
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 107

Features of your vehicle108

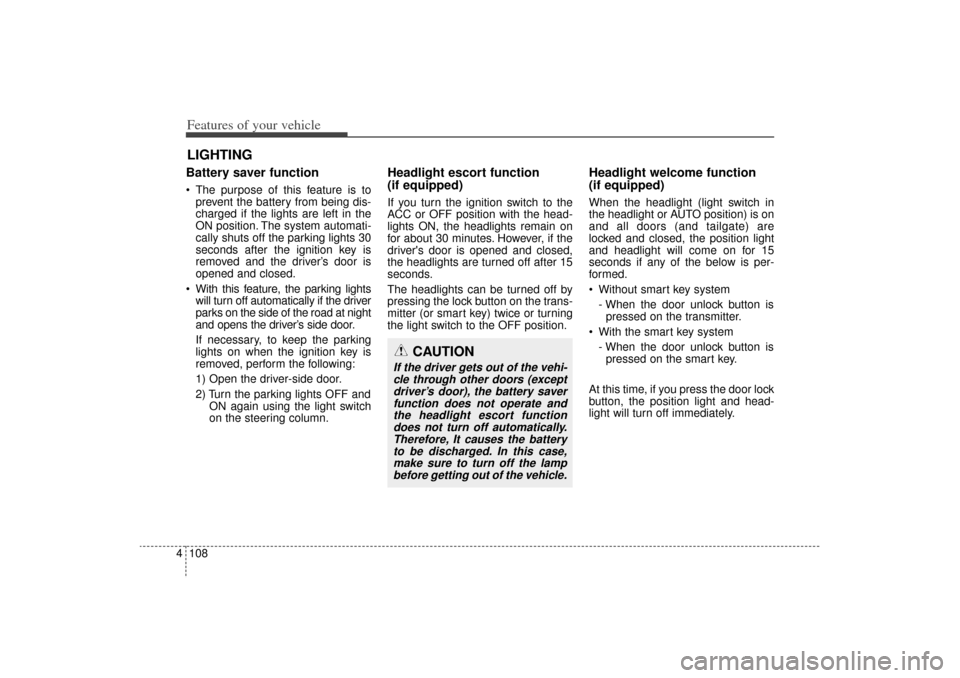

4Battery saver function The purpose of this feature is to
prevent the battery from being dis-
charged if the lights are left in the
ON position. The system automati-
cally shuts off the parking lights 30
seconds after the ignition key is
removed and the driver’s door is
opened and closed.
 With this feature, the parking lights will turn off automatically if the driver
parks on the side of the road at night
and opens the driver’s side door.
If necessary, to keep the parking
lights on when the ignition key is
removed, perform the following:
1) Open the driver-side door.
2) Turn the parking lights OFF and ON again using the light switch
on the steering column.
Headlight escort function
(if equipped)If you turn the ignition switch to the
ACC or OFF position with the head-
lights ON, the headlights remain on
for about 30 minutes. However, if the
driver's door is opened and closed,
the headlights are turned off after 15
seconds.
The headlights can be turned off by
pressing the lock button on the trans-
mitter (or smart key) twice or turning
the light switch to the OFF position.
Headlight welcome function
(if equipped)When the headlight (light switch in
the headlight or AUTO position) is on
and all doors (and tailgate) are
locked and closed, the position light
and headlight will come on for 15
seconds if any of the below is per-
formed.
 Without smart key system
- When the door unlock button ispressed on the transmitter.
 With the smart key system - When the door unlock button ispressed on the smart key.
At this time, if you press the door lock
button, the position light and head-
light will turn off immediately.
LIGHTING
CAUTION
If the driver gets out of the vehi- cle through other doors (exceptdriver’s door), the battery saverfunction does not operate andthe headlight escort functiondoes not turn off automatically.Therefore, It causes the batteryto be discharged. In this case,make sure to turn off the lampbefore getting out of the vehicle.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 108

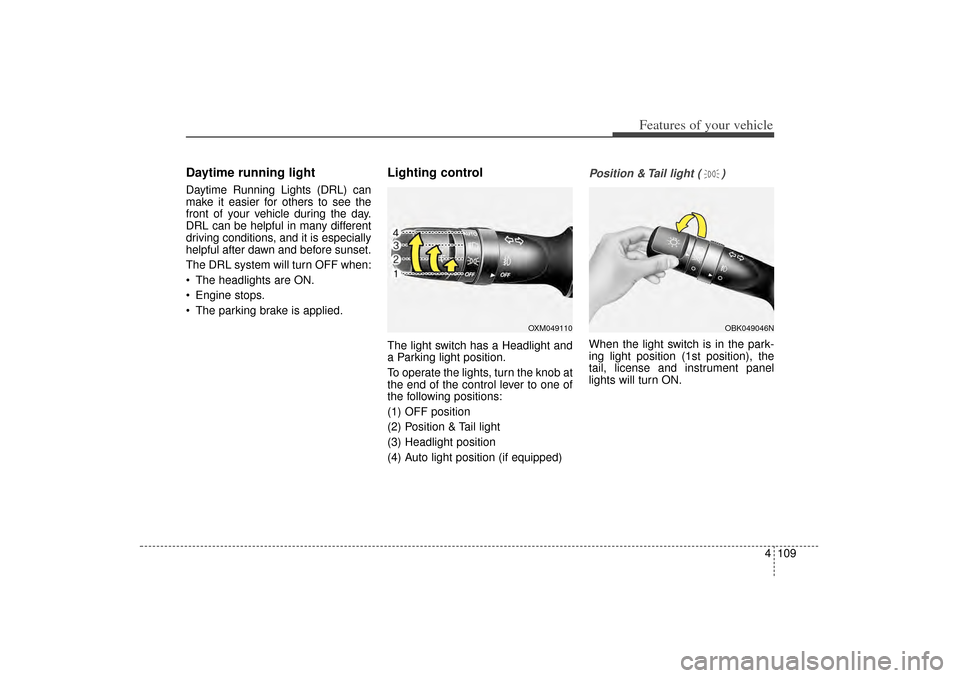

4 109
Features of your vehicle
Daytime running lightDaytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially
helpful after dawn and before sunset.
The DRL system will turn OFF when:
 The headlights are ON.
 Engine stops.
 The parking brake is applied.
Lighting controlThe light switch has a Headlight and
a Parking light position.
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF position
(2) Position & Tail light
(3) Headlight position
(4) Auto light position (if equipped)
Position & Tail light ( )When the light switch is in the park-
ing light position (1st position), the
tail, license and instrument panel
lights will turn ON.
OBK049046N
OXM049110
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 109
