Features of your vehicle140

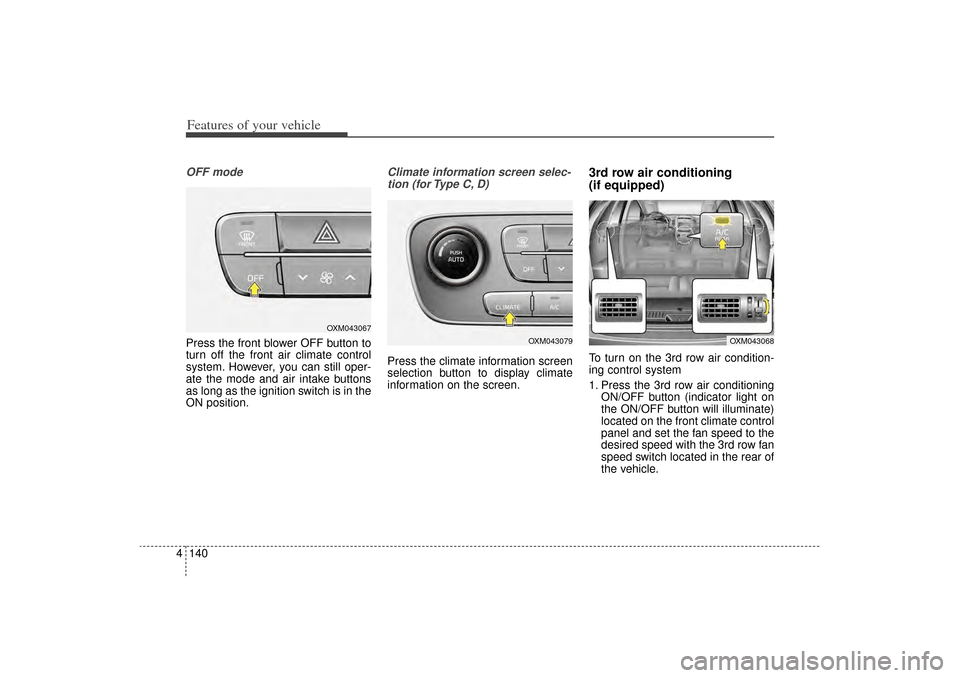

4OFF modePress the front blower OFF button to
turn off the front air climate control
system. However, you can still oper-
ate the mode and air intake buttons
as long as the ignition switch is in the
ON position.
Climate information screen selec-
tion (for Type C, D)Press the climate information screen
selection button to display climate
information on the screen.
3rd row air conditioning
(if equipped)To turn on the 3rd row air condition-
ing control system
1. Press the 3rd row air conditioning ON/OFF button (indicator light on
the ON/OFF button will illuminate)
located on the front climate control
panel and set the fan speed to the
desired speed with the 3rd row fan
speed switch located in the rear of
the vehicle.
OXM043067
OXM043079
OXM043068
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 140

4 141
Features of your vehicle

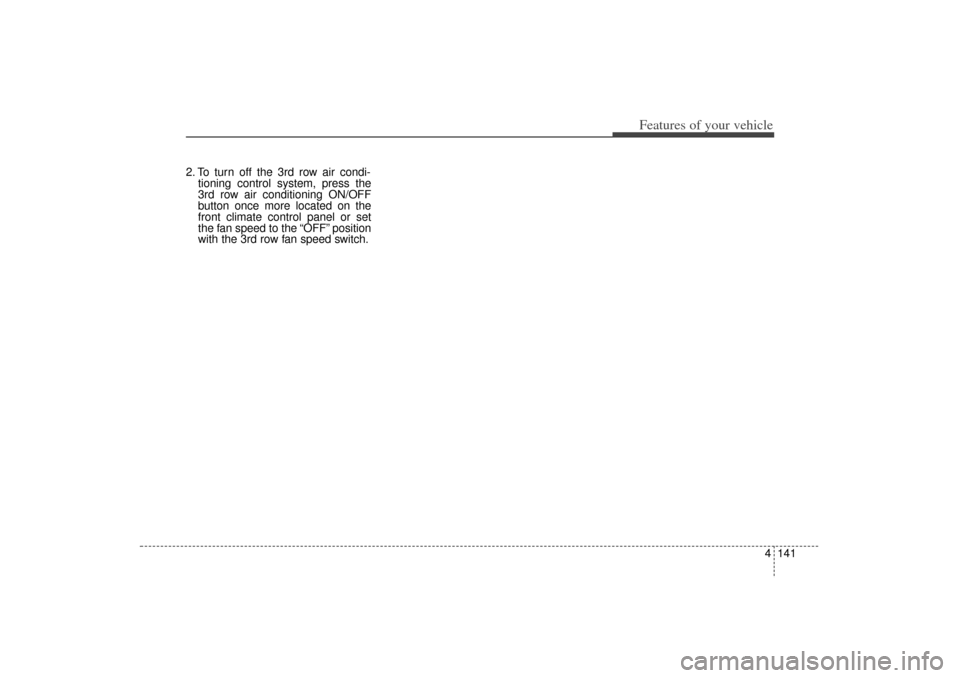

2. To turn off the 3rd row air condi-tioning control system, press the
3rd row air conditioning ON/OFF
button once more located on the
front climate control panel or set
the fan speed to the “OFF” position
with the 3rd row fan speed switch.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 141

Features of your vehicle142
4

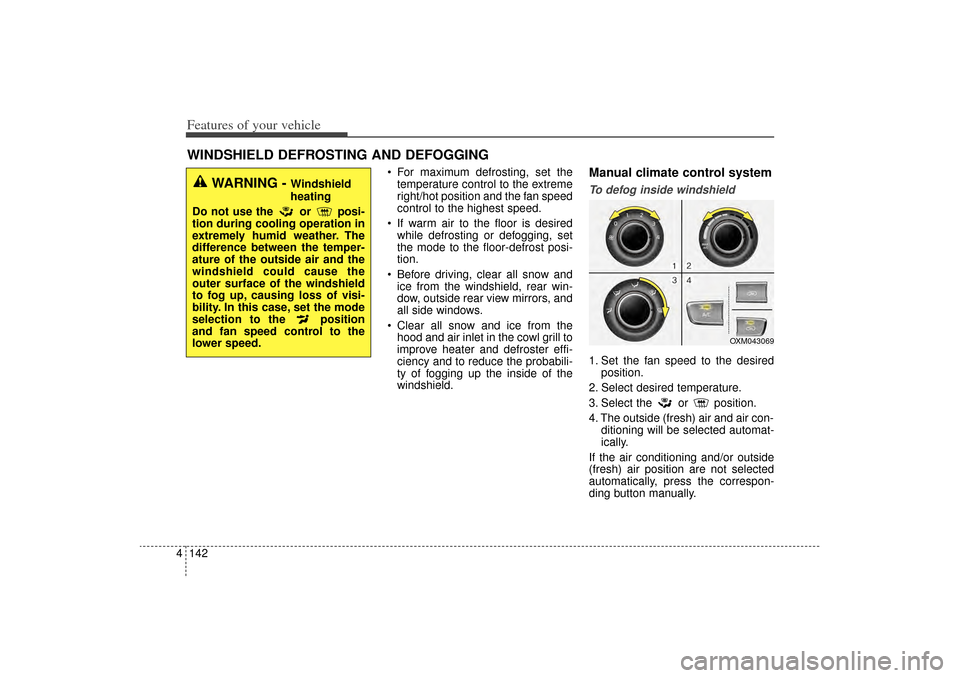

 For maximum defrosting, set the
temperature control to the extreme
right/hot position and the fan speed
control to the highest speed.
 If warm air to the floor is desired while defrosting or defogging, set
the mode to the floor-defrost posi-
tion.
 Before driving, clear all snow and ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
 Clear all snow and ice from the hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up the inside of the
windshield.
Manual climate control systemTo defog inside windshield 1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Select the or position.
4. The outside (fresh) air and air con- ditioning will be selected automat-
ically.
If the air conditioning and/or outside
(fresh) air position are not selected
automatically, press the correspon-
ding button manually.
WINDSHIELD DEFROSTING AND DEFOGGING
WARNING -
Windshield
heating
Do not use the or posi-
tion during cooling operation in
extremely humid weather. The
difference between the temper-
ature of the outside air and the
windshield could cause the
outer surface of the windshield
to fog up, causing loss of visi-
bility. In this case, set the mode
selection to the position
and fan speed control to the
lower speed.
OXM043069
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 142

4 143
Features of your vehicle

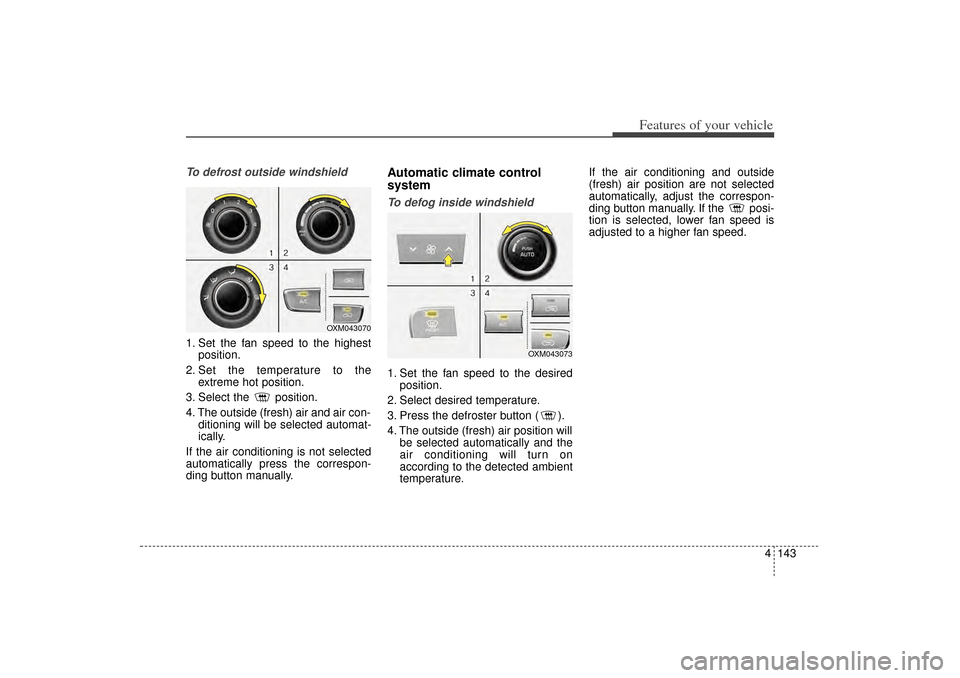

To defrost outside windshield1. Set the fan speed to the highestposition.
2. Set the temperature to the extreme hot position.
3. Select the position.
4. The outside (fresh) air and air con- ditioning will be selected automat-
ically.
If the air conditioning is not selected
automatically press the correspon-
ding button manually.
Automatic climate control
systemTo defog inside windshield1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Press the defroster button ( ).
4. The outside (fresh) air position will be selected automatically and the
air conditioning will turn on
according to the detected ambient
temperature. If the air conditioning and outside
(fresh) air position are not selected
automatically, adjust the correspon-
ding button manually. If the posi-
tion is selected, lower fan speed is
adjusted to a higher fan speed.
OXM043070
OXM043073
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 143

Features of your vehicle144

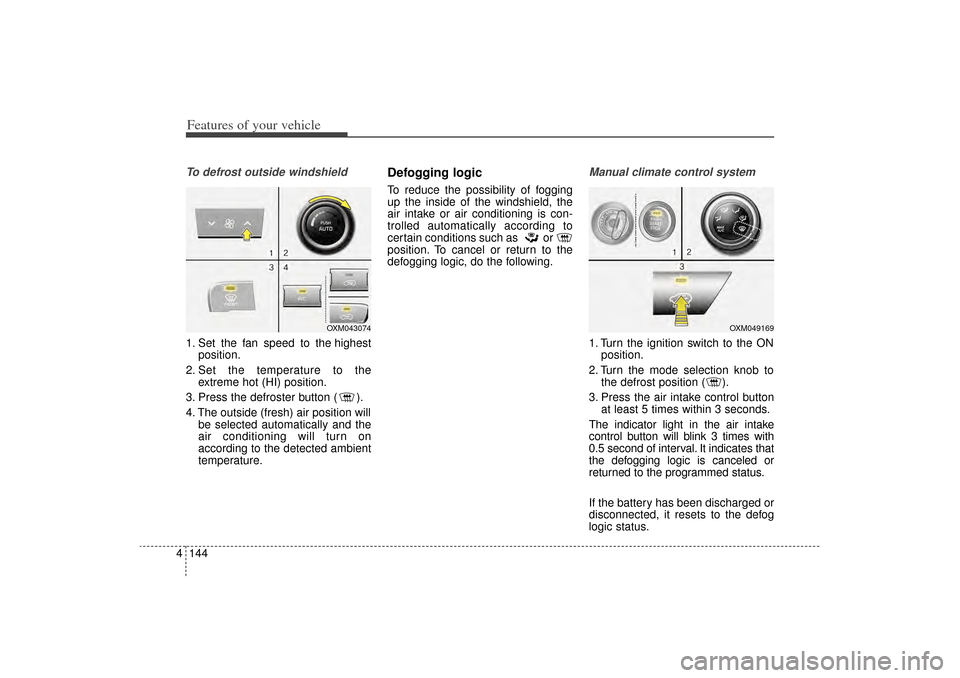

4To defrost outside windshield 1. Set the fan speed to the highest
position.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defroster button ( ).
4. The outside (fresh) air position will be selected automatically and the
air conditioning will turn on
according to the detected ambient
temperature.
Defogging logicTo reduce the possibility of fogging
up the inside of the windshield, the
air intake or air conditioning is con-
trolled automatically according to
certain conditions such as or
position. To cancel or return to the
defogging logic, do the following.
Manual climate control system1. Turn the ignition switch to the ONposition.
2. Turn the mode selection knob to the defrost position ( ).
3. Press the air intake control button at least 5 times within 3 seconds.
The indicator light in the air intake
control button will blink 3 times with
0.5 second of interval. It indicates that
the defogging logic is canceled or
returned to the programmed status.
If the battery has been discharged or
disconnected, it resets to the defog
logic status.
OXM043074
OXM049169
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 144

4 145
Features of your vehicle

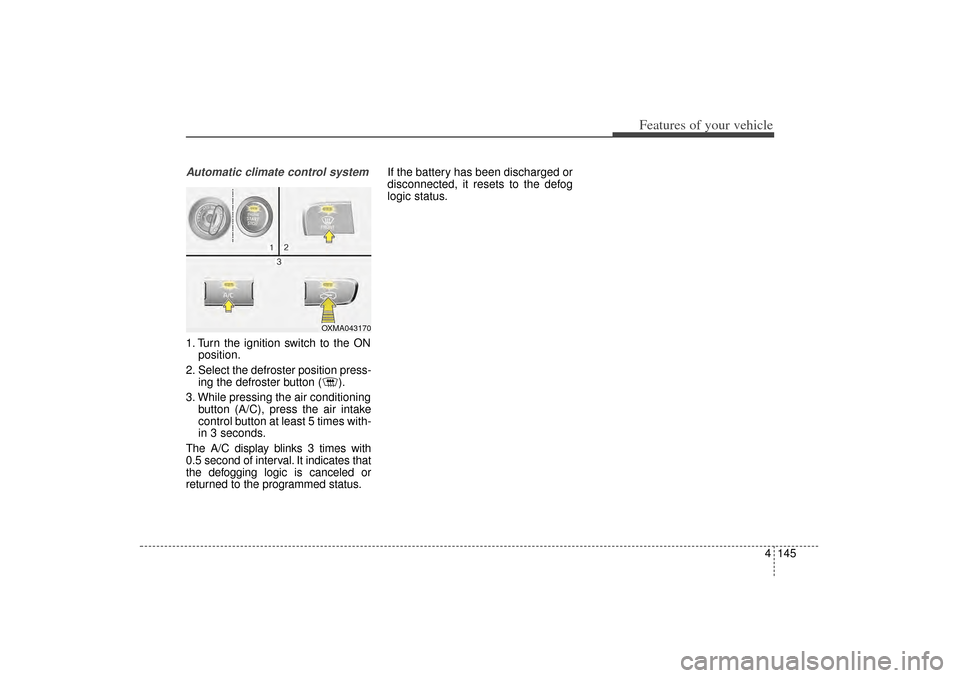

Automatic climate control system1. Turn the ignition switch to the ONposition.
2. Select the defroster position press- ing the defroster button ( ).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times with-
in 3 seconds.
The A/C display blinks 3 times with
0.5 second of interval. It indicates that
the defogging logic is canceled or
returned to the programmed status. If the battery has been discharged or
disconnected, it resets to the defog
logic status.
OXMA043170
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:55 PM Page 145

Features of your vehicle146

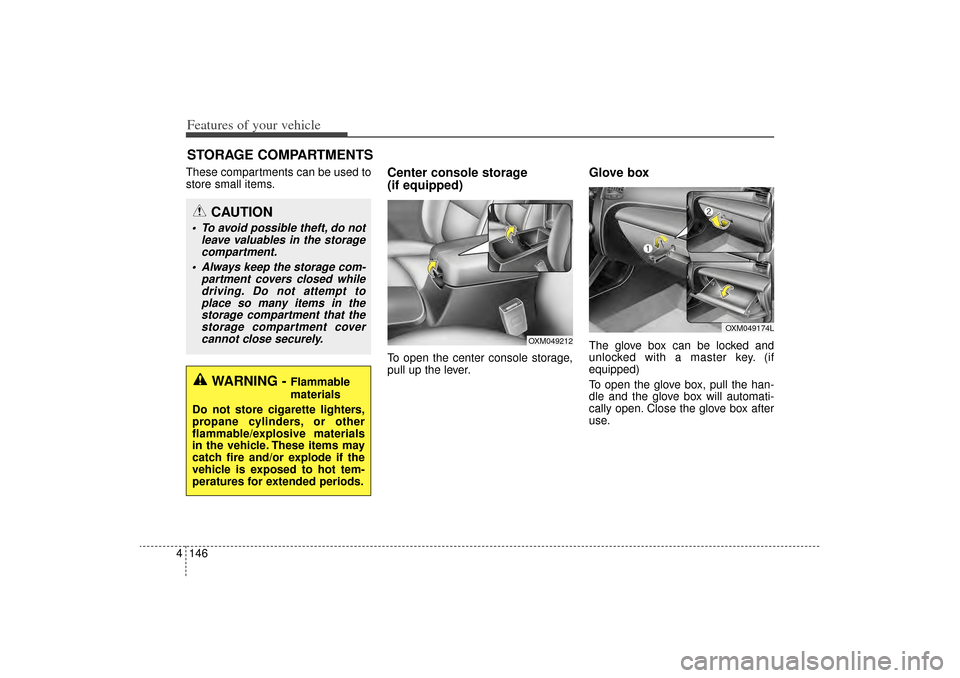

4These compartments can be used to
store small items.
Center console storage
(if equipped)To open the center console storage,
pull up the lever.
Glove boxThe glove box can be locked and
unlocked with a master key. (if
equipped)
To open the glove box, pull the han-
dle and the glove box will automati-
cally open. Close the glove box after
use.
STORAGE COMPARTMENTS
WARNING -
Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
CAUTION
 To avoid possible theft, do not leave valuables in the storagecompartment.
 Always keep the storage com- partment covers closed whiledriving. Do not attempt toplace so many items in thestorage compartment that thestorage compartment covercannot close securely.
OXM049174L
OXM049212
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 146

4 147
Features of your vehicle

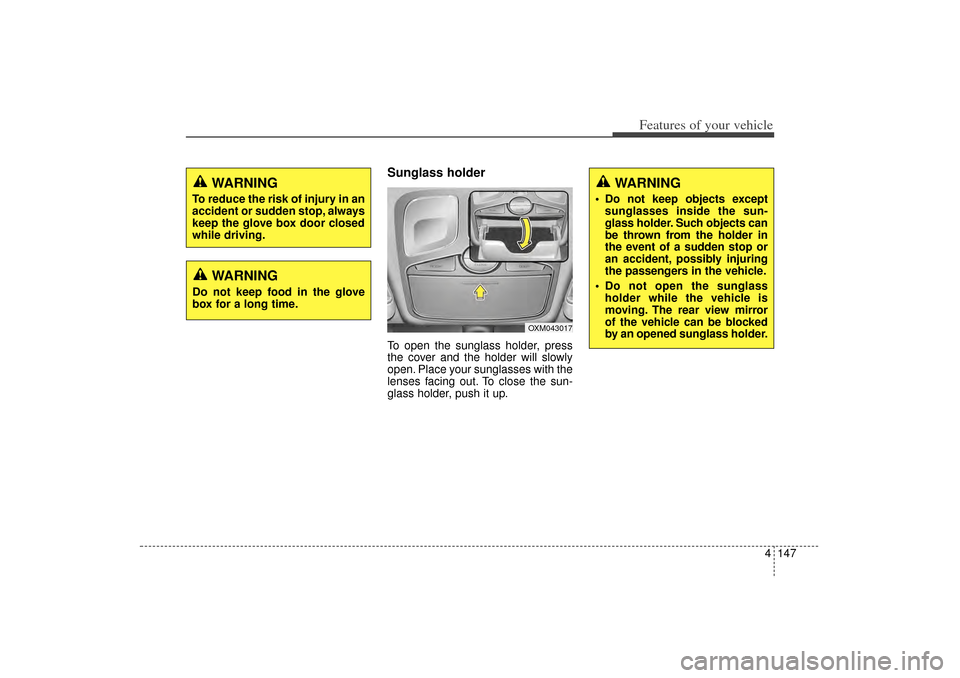

Sunglass holder To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses with the
lenses facing out. To close the sun-
glass holder, push it up.
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.
WARNING
Do not keep food in the glove
box for a long time.
OXM043017
WARNING
 Do not keep objects exceptsunglasses inside the sun-
glass holder. Such objects can
be thrown from the holder in
the event of a sudden stop or
an accident, possibly injuring
the passengers in the vehicle.
 Do not open the sunglass holder while the vehicle is
moving. The rear view mirror
of the vehicle can be blocked
by an opened sunglass holder.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 147

Features of your vehicle148

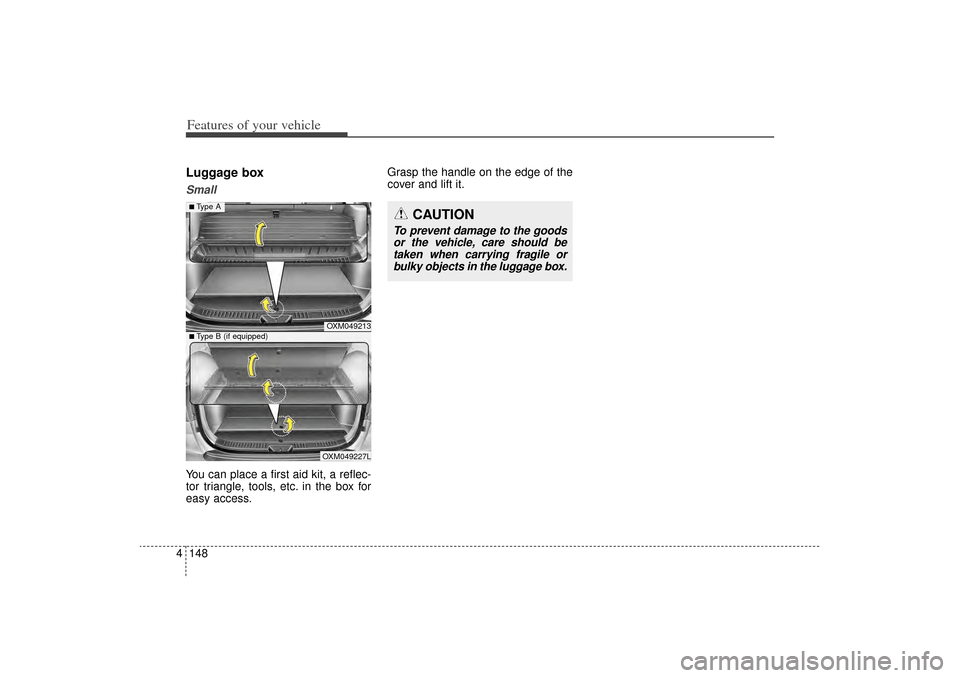

4Luggage boxSmallYou can place a first aid kit, a reflec-
tor triangle, tools, etc. in the box for
easy access. Grasp the handle on the edge of the
cover and lift it.
CAUTION
To prevent damage to the goods
or the vehicle, care should betaken when carrying fragile orbulky objects in the luggage box.
OXM049213OXM049227L
■Type A■ Type B (if equipped)
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 148

4 149
Features of your vehicle

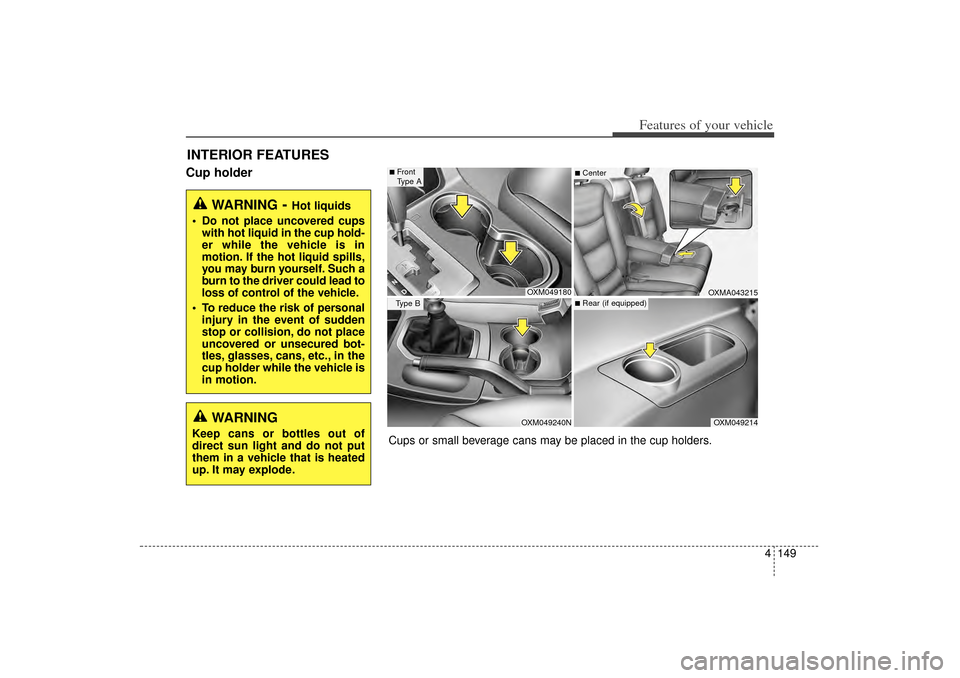

Cup holderINTERIOR FEATURES
WARNING
- Hot liquids
 Do not place uncovered cups with hot liquid in the cup hold-
er while the vehicle is in
motion. If the hot liquid spills,
you may burn yourself. Such a
burn to the driver could lead to
loss of control of the vehicle.
 To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or unsecured bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
OXM049180OXM049240N
OXM049214OXMA043215
■Front
Type AType B
■Center■Rear (if equipped)
Cups or small beverage cans may be placed in the cup holders.
WARNING
Keep cans or bottles out of
direct sun light and do not put
them in a vehicle that is heated
up. It may explode.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 149
