KIA Sorento 2014 3.G Owner's Manual

Features of your vehicle180
4SYSTEM SETTINGSPress the key Select
[System] through tune knob or
key Select menu through TUNE
knob
Memory InformationDisplays currently used memory and
total system memory.
Select [Memory Information] OK
The currently used memory is dis-
played on the left side while the total
system memory is displayed on the
right side.Prompt FeedbackThis feature is used to change voice
command feedback between Normal
and Expert modes.
Select [Prompt Feedback] Set
through
TUNE
knob
 On : This mode is for beginner
users and provides detailed instruc-
tions during voice command opera-
tion.  Off : This mode is for expert users
and omits some information during
voice command operation. (When
using Expert mode, guidance
instructions can be heard through
the [Help] or [Menu] commands.
LanguageThis menu is used to set the display
and voice recognition language.
Select [Language]
Set through TUNE knob
❈ The system will reboot after the
language is changed.
❈ Language support by region
- English, Francais, Espanol
4
SETUP
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 180

4 181
Features of your vehicle
RADIO : FM, AM OR SIRIUSChanging RADIO mode (FM, AM
or SIRIUS)
Press the key to change the
mode in order of FM1➟FM2➟
AM➟SAT1➟SAT2➟SAT3.
 When the power is off, press the key to turn on the audio
system and receive radio broad-
casts.
 [Mode Pop up] On state : Displays the change radio mode pop up
screen. While the pop up screen is
displayed, you can change the
radio mode (FM1 ➟ FM2 ➟ AM ➟
SAT1 ➟ SAT2 ➟ SAT3) through the
tune knob or ~ keys.
Adjust VolumeTurn the VOL knob left/right to
adjust the volume.SEEKPress the key
 Shortly pressing the key (under 0.8 seconds): A utomatically searches
for the next station.
 Pressing and holding the key (over 0.8 seconds): While holding the key
, frequency changes without stop-
ping. When the key is released,
automatically searches for the next
frequency from that point.Preset SEEKPress the ~ key
 Shortly pressing the key (under 0.8 seconds): Plays the frequency
saved in the corresponding key.
 Pressing and holding the key (over 0.8 seconds): Pressing and holding
the desired key from ~
will save the currently playing
broadcast to the selected key and
sound a BEEP.
SCANPress the key
 Shortly pressing the key (under 0.8seconds): The broadcast frequency
increases and previews each
broadcast for 5 seconds each. After
scanning all frequencies, returns
and plays the current broadcast fre-
quency.
 Pressing and holding the key (over 0.8 seconds): Previews the broad-
casts saved in Preset ~
for 5 seconds each.Selecting through manual
searchTurn the TUNE knob left/right to
adjust the frequency.
 FM : Changes by 200KHz
 AM : Changes by 10KHz
6
1
SCAN
6
1
6
1 SEEK
TRACK
6
1
RADIO
RADIO
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 181

Features of your vehicle182

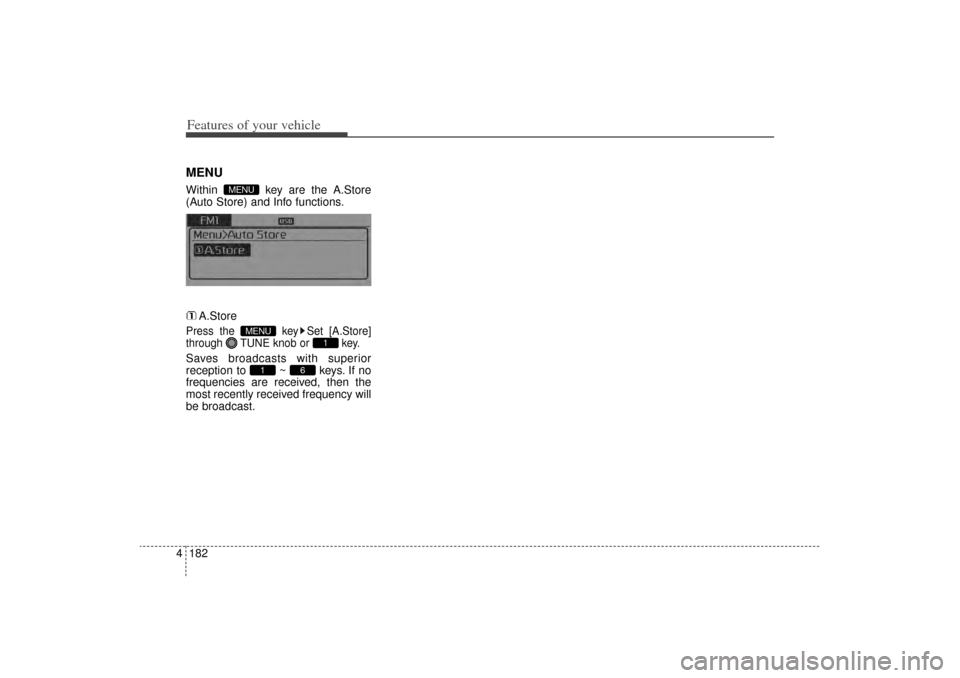

4MENUWithin key are the A.Store
(Auto Store) and Info functions.
A.StorePress the key Set [A.Store]
through TUNE knob or key.Saves broadcasts with superior
reception to ~ keys. If no
frequencies are received, then the
most recently received frequency will
be broadcast.
6
1
1
MENU
MENU
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 182

4 183
Features of your vehicle

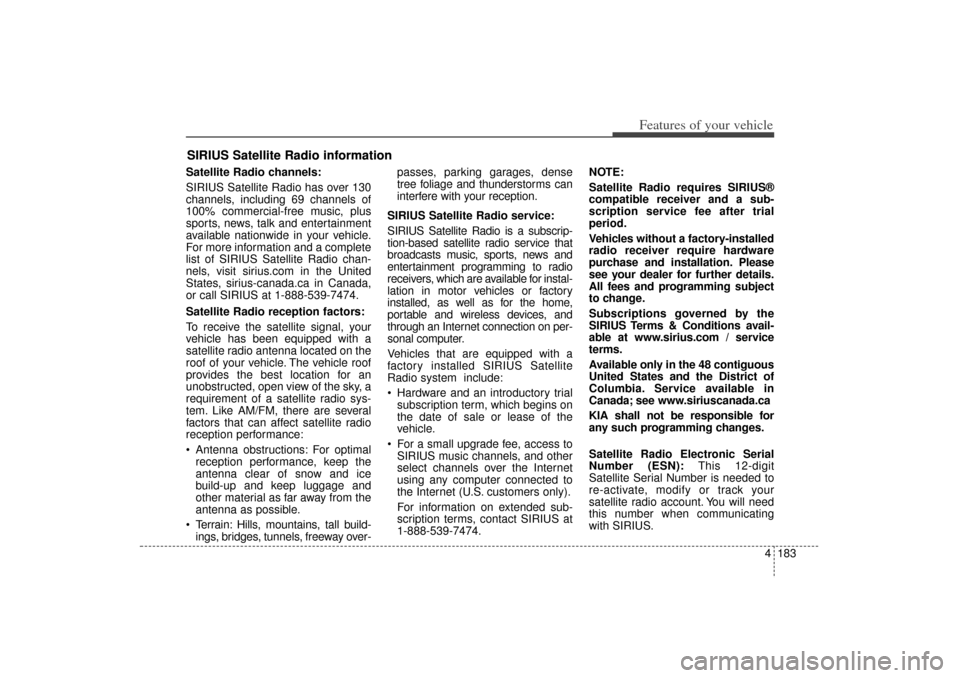

Satellite Radio channels:
SIRIUS Satellite Radio has over 130
channels, including 69 channels of
100% commercial-free music, plus
sports, news, talk and entertainment
available nationwide in your vehicle.
For more information and a complete
list of SIRIUS Satellite Radio chan-
nels, visit sirius.com in the United
States, sirius-canada.ca in Canada,
or call SIRIUS at 1-888-539-7474.
Satellite Radio reception factors:
To receive the satellite signal, your
vehicle has been equipped with a
satellite radio antenna located on the
roof of your vehicle. The vehicle roof
provides the best location for an
unobstructed, open view of the sky, a
requirement of a satellite radio sys-
tem. Like AM/FM, there are several
factors that can affect satellite radio
reception performance:
 Antenna obstructions: For optimalreception performance, keep the
antenna clear of snow and ice
build-up and keep luggage and
other material as far away from the
antenna as possible.
 Terrain: Hills, mountains, tall build- ings, bridges, tunnels, freeway over- passes, parking garages, dense
tree foliage and thunderstorms can
interfere with your reception.
SIRIUS Satellite Radio service:
SIRIUS Satellite Radio is a subscrip-
tion-based satellite radio service that
broadcasts music, sports, news and
entertainment programming to radio
receivers, which are available for instal-
lation in motor vehicles or factory
installed, as well as for the home,
portable and wireless devices, and
through an Internet connection on per-
sonal computer.
Vehicles that are equipped with a
factory installed SIRIUS Satellite
Radio system include:
 Hardware and an introductory trial subscription term, which begins on
the date of sale or lease of the
vehicle.
 For a small upgrade fee, access to SIRIUS music channels, and other
select channels over the Internet
using any computer connected to
the Internet (U.S. customers only).
For information on extended sub-
scription terms, contact SIRIUS at
1-888-539-7474. NOTE:
Satellite Radio requires SIRIUS®
compatible receiver and a sub-
scription service fee after trial
period.
Vehicles without a factory-installed
radio receiver require hardware
purchase and installation. Please
see your dealer for further details.
All fees and programming subject
to change.
Subscriptions governed by the
SIRIUS Terms & Conditions avail-
able at www.sirius.com / service
terms.
Available only in the 48 contiguous
United States and the District of
Columbia. Service available in
Canada; see www.siriuscanada.ca
KIA shall not be responsible for
any such programming changes.
Satellite Radio Electronic Serial
Number (ESN):
This 12-digit
Satellite Serial Number is needed to
re-activate, modify or track your
satellite radio account. You will need
this number when communicating
with SIRIUS.SIRIUS Satellite Radio information
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 183

Features of your vehicle184
4SIRIUS RADIO
Using SIRIUS Satellite RadioYour Kia vehicle is equipped with a 3
month complimentary period of SIR-
IUS Satellite Radio so you have
access to over 130 channels of
music, information, and entertain-
ment programming.ActivationIn order to extend or reactivate your
subscription to SIRIUS Satellite
Radio, you will need to contact SIR-
IUS Customer Care at 1-888-539-
7474. Have your 12 digit SID (Sirius
Identification Number) / ESN
(Electronic Serial Number) ready. To
retrieve the SID / ESN, turn on the
radio, press the [RADIO] button, and
tune to channel zero. Please note that the vehicle will need
to be turned on, in Sirius mode, and
have an unobstructed view of the sky
in order for the radio to receive the
activation signal.
SEEKPress the key
 Shortly pressing the key (under 0.8
seconds): select previous or next
channel.
 Pressing and holding the key (over 0.8 seconds): continuously move to
previous or next channel.
❈ If the “Category” icon is displayed,
channels are changed within the
current category.
SCANPress the key
 Shortly pressing the key (under 0.8
seconds): Previews each broad-
cast for 5 seconds each
❈ Press the key again to
continue listening to the current
frequency
❈ If the “Category” icon is displayed,
channels are changed within the
current category.CategoryPress the key Set through
the
TUNE
knob
 The display will indicate the category menus, highlight the category that
the current channel belongs to.
 In the Category List Mode, press the key to navigate category
list.
 Press the tune knob to select the low- est channel in the highlighted cate-
gory.
❈ If channel is selected by selecting
category, then the “CATEGORY”
icon is displayed at the top of the
screen.
CATFOLDER
CATFOLDER
SCAN
SCAN
RADIO
RADIO
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 184

4 185
Features of your vehicle
PresetPress the key ~
 Shortly pressing the key (under 0.8seconds): Plays the frequency
saved in the corresponding key.
 Pressing and holding the key (over 0.8 seconds): Pressing and holding
the desired key from ~
will save the current broadcast to
the selected key and sound a
BEEP.✽ ✽ Troubleshooting1. Antenna Error
If this message is displayed, the
antenna or antenna cable is bro-
ken or unplugged. Please consult
with your Kia dealership.
2. Acquiring Signal If this message is displayed, it
means that the antenna is covered
and that the SIRIUS Satellite
Radio signal is not available.
Ensure the antenna is uncovered
and has a clear view of the sky.
Tune Rotate TUNE knob : Changes
the channel number or scrolls cate-
gory list.
 Press TUNE knob : Selects the menu.MenuSelect category menu through the
TUNE knob Press the
key Select [ Info] through the
TUNE knob or keyInfo (Information)Displays the Artist/Song info of the
current song.
1
MENU
6
1
6
1
RADIO
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 185

Features of your vehicle186
4BASIC METHOD OF USE :
Audio CD / MP3 CD / USB /
iPod / My MusicPress the key to change the
mod mode in order of CD
➟
USB(iPod)
➟ AUX
➟ My Music
➟ BT
Audio.
The folder/file name is displayed on
the screen.

4 187
Features of your vehicle

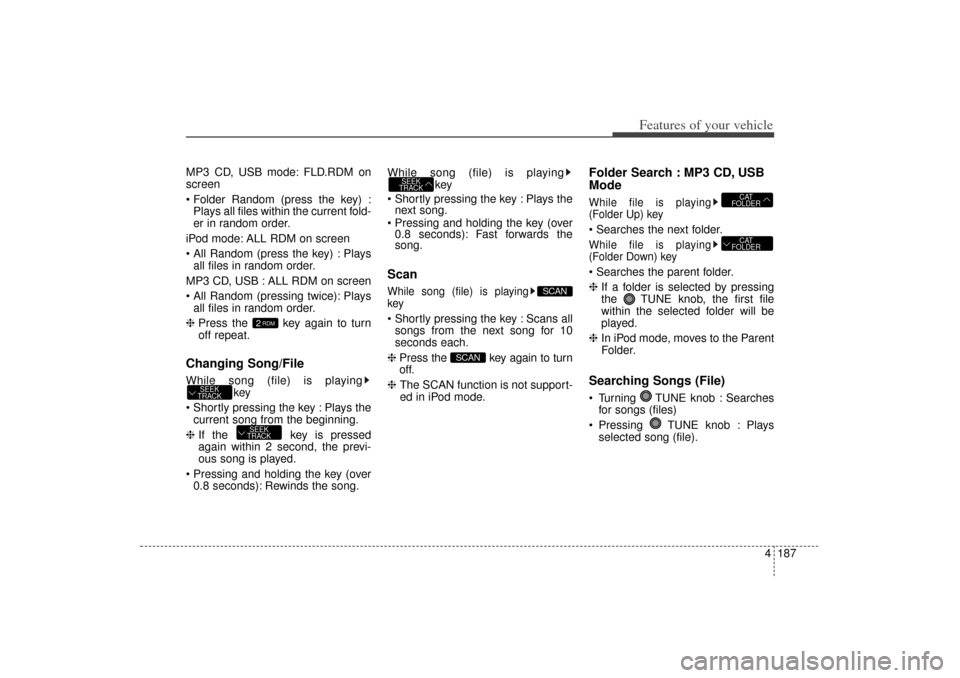

MP3 CD, USB mode: FLD.RDM on
screen
 Folder Random (press the key) :Plays all files within the current fold-
er in random order.
iPod mode: ALL RDM on screen
 All Random (press the key) : Plays all files in random order.
MP3 CD, USB : ALL RDM on screen
 All Random (pressing twice): Plays all files in random order.
❈ Press the key again to turn
off repeat.Changing Song/FileWhile song (file) is playing
key
 Shortly pressing the key : Plays the current song from the beginning.
❈ If the key is pressed
again within 2 second, the previ-
ous song is played.
 Pressing and holding the key (over 0.8 seconds): Rewinds the song. While song (file) is playing
key
 Shortly pressing the key : Plays the next song.
 Pressing and holding the key (over 0.8 seconds): Fast forwards the
song.
ScanWhile song (file) is playing
key Shortly pressing the key : Scans all
songs from the next song for 10
seconds each.
❈ Press the key again to turn
off.
❈ The SCAN function is not support-
ed in iPod mode.
Folder Search : MP3 CD, USB
ModeWhile file is playing
(Folder Up) key Searches the next folder.While file is playing
(Folder Down) key Searches the parent folder.
❈ If a folder is selected by pressing
the TUNE knob, the first file
within the selected folder will be
played.
❈ In iPod mode, moves to the Parent
Folder.Searching Songs (File) Turning TUNE knob : Searches
for songs (files)
 Pressing TUNE knob : Plays selected song (file).
CAT
FOLDERCAT
FOLDER
SCAN
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
2RDM
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 187

Features of your vehicle188
4MENU : Audio CDPress the CD MP3 mode key
to set the Repeat, Random,
Information features.RepeatPress the key Set [ RPT]
through the TUNE knob or
key to repeat the current song.
❈ Press RPT again to turn off.RandomPress the key Set [ RDM]
through the
TUNE
knob or
key to randomly play songs within
the current folder.
❈ Press RDM again to turn off.
InformationPress the key Set [ Info]
through the
TUNE
knob or
key to display information of the cur-
rent song.
❈ Press the key to turn off
info display
.
MENU : MP3 CD / USBPress the CD MP3 mode key
to set the Repeat, Folder Random,
Folder Repeat, All Random,
Information, and Copy features.RepeatPress the key Set [ RPT]
through the
TUNE
knob or
key to repeat the current song.
❈ Press RPT again to turn off.
1 RPT
MENU
MENU
MENU
3
MENU
2 RDM
MENU
1 RPT
MENU
MENU
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 188

4 189
Features of your vehicle
Folder RandomPress the key Set [ F.RDM]
through the
TUNE
knob or
key to randomly play songs within the
current folder.
❈ Press F.RDM again to turn off.
Folder RepeatPress the key Set [ F.RPT]
through the
TUNE
knob or
key to repeat songs within the cur-
rent folder.
❈ Press F.RPT again to turn off.
All RandomPress the key Set [ A.RDM]
through the
TUNE
knob or key
to randomly play all songs within the
CD.
❈ Press A.RDM again to turn off.
InformationPress the key Set [ Info]
through the
TUNE
knob or
key to display information of the cur-
rent song. ❈
Press the key to turn off
info display.
Copy
Press the key Set [
Copy] through the
TUNE
knob
or key.
This is used to copy the current
song into My Music. You can play
the copied Music in My Music
mode.
❈ If another key is pressed while
copying is in progress, a pop up
asking you whether to cancel
copying is displayed.
❈ If another media is connected or
inserted (USB, CD, iPod, AUX)
while copying is in progress, copy-
ing is canceled.
❈ Music will not be played while
copying is in progress.
MENU : iPodIn iPod mode, press the key to
set the Repeat, Album Random, All
Random, Information and Search fea-
tures.RepeatPress the key Set [ RPT]
through the
TUNE
knob or
key to repeat the current song.
❈ Press RPT again to turn repeat off.
All RandomPress the key Set [ RDM]
through the TUNEknob or
key.
Plays all songs within the currently
playing category in random order.
❈ Press RDM again to turn off.
2
MENU
1 RPT
MENU
MENU
6
MENUMENU
5
MENU
4
MENU
3
MENU
2 RDM
MENU
XM(FL) CAN(ENG) 4b(AUDIO).qxp 1/23/2013 3:42 PM Page 189
