KIA Sorento 2014 3.G Owner's Manual

Features of your vehicle150

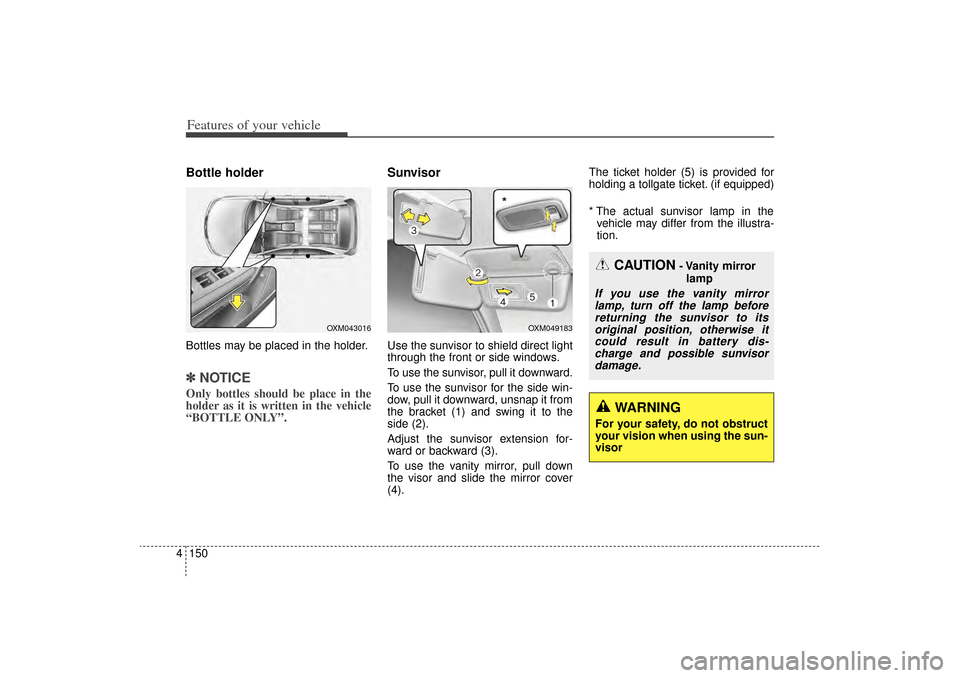

4Bottle holderBottles may be placed in the holder.✽
✽
NOTICEOnly bottles should be place in the
holder as it is written in the vehicle
“BOTTLE ONLY”.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use the sunvisor, pull it downward.
To use the sunvisor for the side win-
dow, pull it downward, unsnap it from
the bracket (1) and swing it to the
side (2).
Adjust the sunvisor extension for-
ward or backward (3).
To use the vanity mirror, pull down
the visor and slide the mirror cover
(4). The ticket holder (5) is provided for
holding a tollgate ticket. (if equipped)
* The actual sunvisor lamp in the
vehicle may differ from the illustra-
tion.
OXM049183
CAUTION
- Vanity mirror
lamp
If you use the vanity mirrorlamp, turn off the lamp beforereturning the sunvisor to itsoriginal position, otherwise itcould result in battery dis-charge and possible sunvisordamage.
*
WARNING
For your safety, do not obstruct
your vision when using the sun-
visor
OXM043016
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 150

4 151
Features of your vehicle

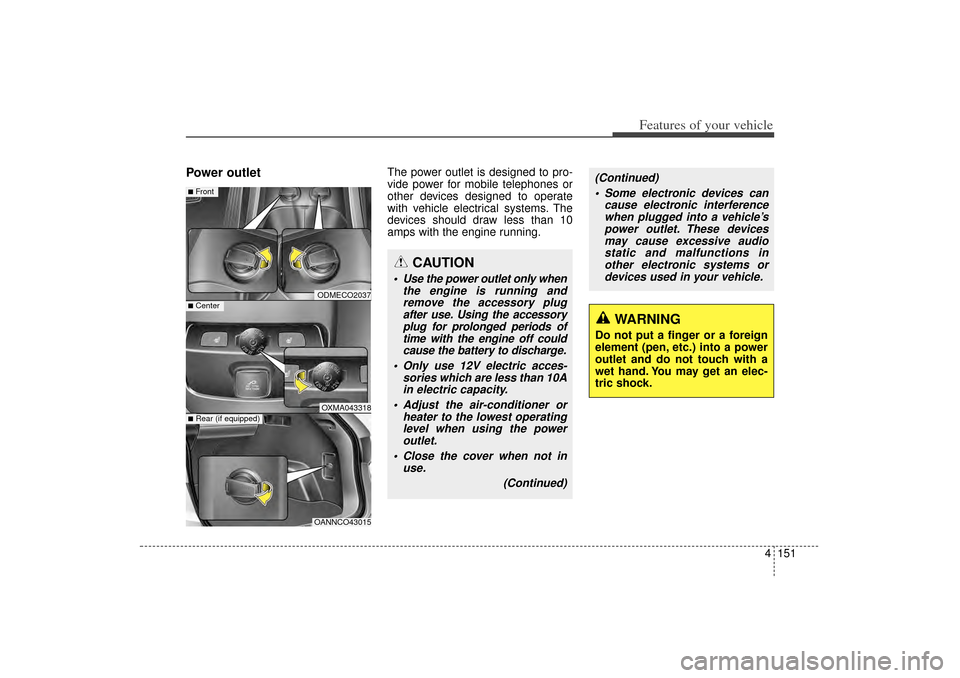

Power outlet
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
CAUTION
 Use the power outlet only whenthe engine is running andremove the accessory plugafter use. Using the accessoryplug for prolonged periods oftime with the engine off couldcause the battery to discharge.
 Only use 12V electric acces- sories which are less than 10Ain electric capacity.
 Adjust the air-conditioner or heater to the lowest operatinglevel when using the poweroutlet.
 Close the cover when not in use.
(Continued)
(Continued) Some electronic devices can cause electronic interferencewhen plugged into a vehicle’spower outlet. These devicesmay cause excessive audiostatic and malfunctions inother electronic systems ordevices used in your vehicle.
WARNING
Do not put a finger or a foreign
element (pen, etc.) into a power
outlet and do not touch with a
wet hand. You may get an elec-
tric shock.
ODMECO2037OXMA043318
■Front■Center
OANNCO43015
■Rear (if equipped)
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 151

Features of your vehicle152
4AC inverter (if equipped) The AC inverter supplies 115V/150W
electric power to operate electric
accessories or equipments.
If you wish to use the AC inverter,
press the AC inverter button while
the engine is running. The light on
the AC inverter button will illuminate. If you press the AC inverter button
again, the AC inverter will be deacti-
vated and the light on the AC invert-
er button will turn off.
✽ ✽
NOTICEWhen turning on the AC inverter,
the indicator on the AC inverter but-
ton illuminates late while the system
conducts a self-check.
✽ ✽NOTICE• Rated voltage : AC 115V
• Maximum electric power : 150W
• In order to avoid an electrical sys-
tem failure, electric shock, etc., be
sure to read owner's manual
before use.
• Be sure to close the cover except the time of use.
OXMA073132
OXMA043400OXMA043402
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 152

4 153
Features of your vehicle

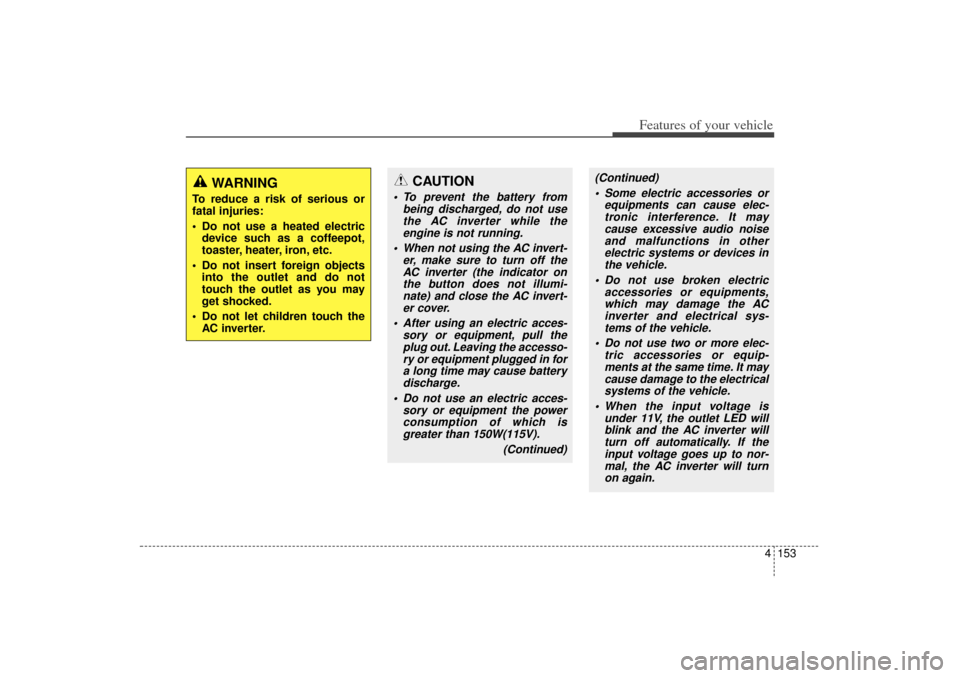

CAUTION
 To prevent the battery frombeing discharged, do not usethe AC inverter while theengine is not running.
 When not using the AC invert- er, make sure to turn off theAC inverter (the indicator onthe button does not illumi-nate) and close the AC invert-er cover.
 After using an electric acces- sory or equipment, pull theplug out. Leaving the accesso-ry or equipment plugged in fora long time may cause batterydischarge.
 Do not use an electric acces- sory or equipment the powerconsumption of which isgreater than 150W(115V).
(Continued)
WARNING
To reduce a risk of serious or
fatal injuries:
 Do not use a heated electricdevice such as a coffeepot,
toaster, heater, iron, etc.
 Do not insert foreign objects into the outlet and do not
touch the outlet as you may
get shocked.
 Do not let children touch the AC inverter.
(Continued)
 Some electric accessories or equipments can cause elec-tronic interference. It maycause excessive audio noiseand malfunctions in otherelectric systems or devices inthe vehicle.
 Do not use broken electric accessories or equipments,which may damage the ACinverter and electrical sys-tems of the vehicle.
 Do not use two or more elec- tric accessories or equip-ments at the same time. It maycause damage to the electricalsystems of the vehicle.
 When the input voltage is under 11V, the outlet LED willblink and the AC inverter willturn off automatically. If theinput voltage goes up to nor-mal, the AC inverter will turnon again.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 153

Features of your vehicle154

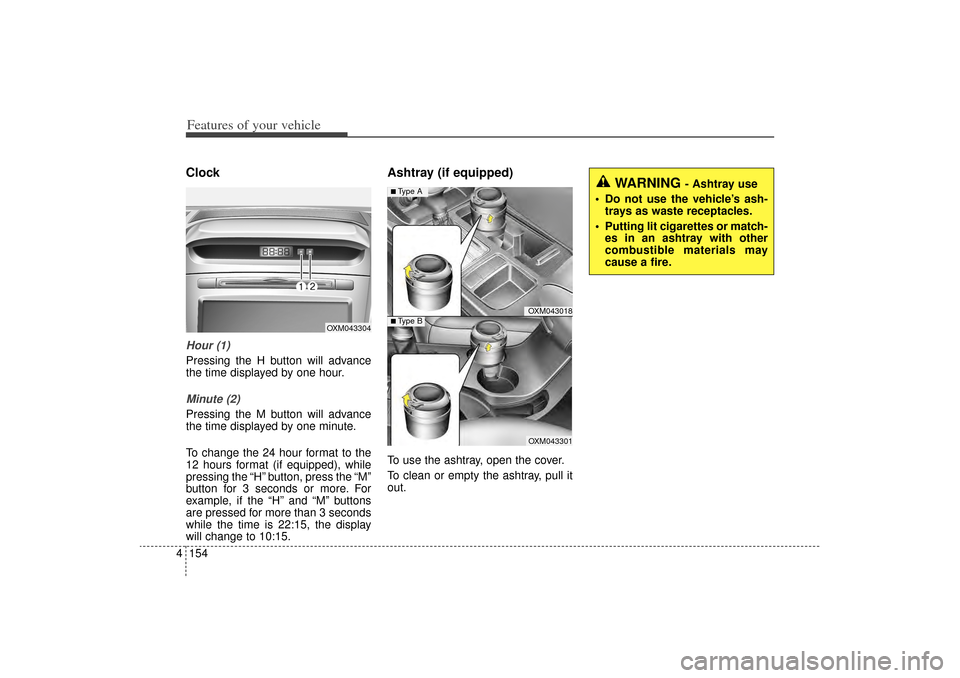

4ClockHour (1)Pressing the H button will advance
the time displayed by one hour.Minute (2)Pressing the M button will advance
the time displayed by one minute.
To change the 24 hour format to the
12 hours format (if equipped), while
pressing the “H” button, press the “M”
button for 3 seconds or more. For
example, if the “H” and “M” buttons
are pressed for more than 3 seconds
while the time is 22:15, the display
will change to 10:15.
Ashtray (if equipped)To use the ashtray, open the cover.
To clean or empty the ashtray, pull it
out.
OXM043304
WARNING
- Ashtray use
 Do not use the vehicle’s ash- trays as waste receptacles.
 Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
OXM043018OXM043301
■Type A■ Type B
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 154

4 155
Features of your vehicle

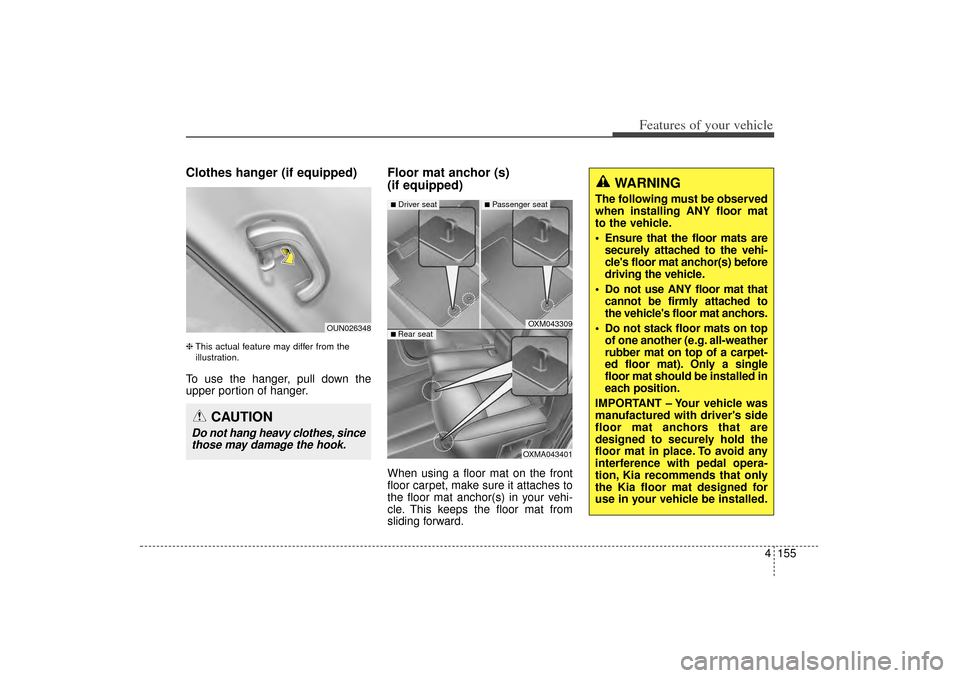

Clothes hanger (if equipped)❈This actual feature may differ from the
illustration.To use the hanger, pull down the
upper portion of hanger.
Floor mat anchor (s)
(if equipped)When using a floor mat on the front
floor carpet, make sure it attaches to
the floor mat anchor(s) in your vehi-
cle. This keeps the floor mat from
sliding forward.
OXM043309OXMA043401
■Driver seat
■Passenger seat
■ Rear seat
WARNING
The following must be observed
when installing ANY floor mat
to the vehicle.
 Ensure that the floor mats are securely attached to the vehi-
cle's floor mat anchor(s) before
driving the vehicle.
 Do not use ANY floor mat that cannot be firmly attached to
the vehicle's floor mat anchors.
 Do not stack floor mats on top of one another (e.g. all-weather
rubber mat on top of a carpet-
ed floor mat). Only a single
floor mat should be installed in
each position.
IMPORTANT – Your vehicle was
manufactured with driver's side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal opera-
tion, Kia recommends that only
the Kia floor mat designed for
use in your vehicle be installed.
OUN026348
CAUTION
Do not hang heavy clothes, since those may damage the hook.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:56 PM Page 155

Features of your vehicle156

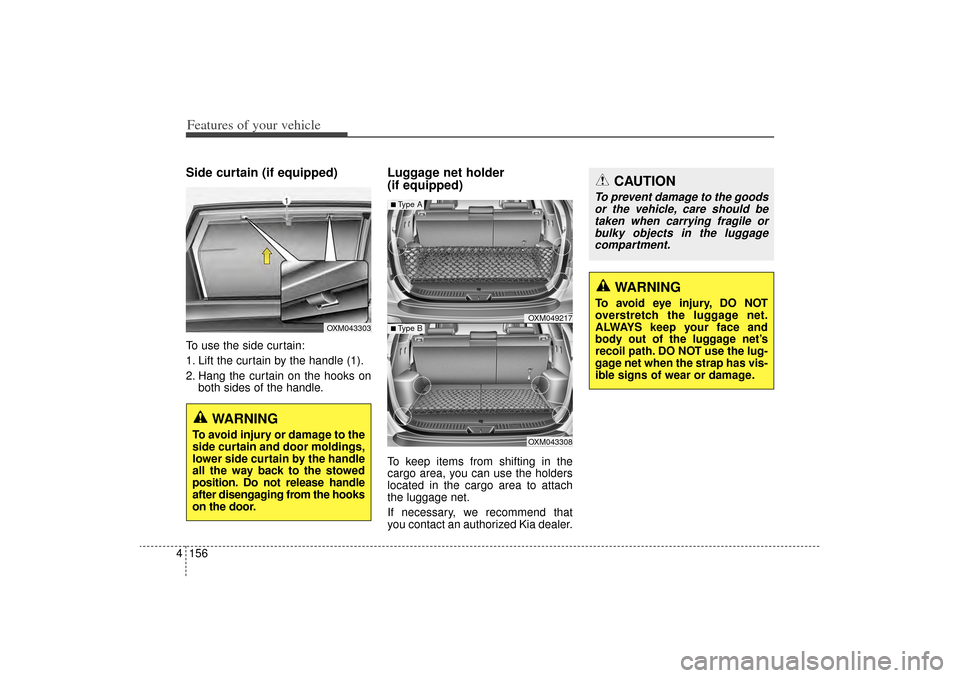

4Side curtain (if equipped)To use the side curtain:
1. Lift the curtain by the handle (1).
2. Hang the curtain on the hooks on
both sides of the handle.
Luggage net holder
(if equipped)To keep items from shifting in the
cargo area, you can use the holders
located in the cargo area to attach
the luggage net.
If necessary, we recommend that
you contact an authorized Kia dealer.
CAUTION
To prevent damage to the goodsor the vehicle, care should betaken when carrying fragile orbulky objects in the luggagecompartment.
WARNING
To avoid eye injury, DO NOT
overstretch the luggage net.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.
OXM049217OXM043308
■Type A■ Type B
OXM043303
WARNING
To avoid injury or damage to the
side curtain and door moldings,
lower side curtain by the handle
all the way back to the stowed
position. Do not release handle
after disengaging from the hooks
on the door.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:57 PM Page 156

4 157
Features of your vehicle

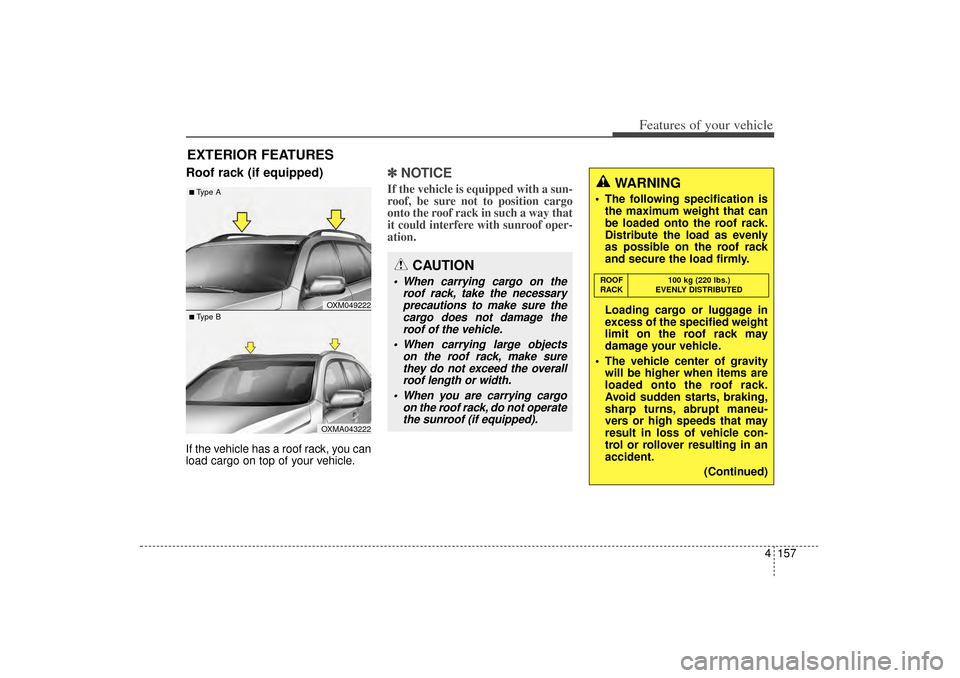

Roof rack (if equipped)If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
✽ ✽NOTICEIf the vehicle is equipped with a sun-
roof, be sure not to position cargo
onto the roof rack in such a way that
it could interfere with sunroof oper-
ation.
EXTERIOR FEATURES
CAUTION
 When carrying cargo on the
roof rack, take the necessaryprecautions to make sure thecargo does not damage theroof of the vehicle.
 When carrying large objects on the roof rack, make surethey do not exceed the overallroof length or width.
 When you are carrying cargo on the roof rack, do not operatethe sunroof (if equipped).
WARNING
 The following specification is the maximum weight that can
be loaded onto the roof rack.
Distribute the load as evenly
as possible on the roof rack
and secure the load firmly.
Loading cargo or luggage in
excess of the specified weight
limit on the roof rack may
damage your vehicle.
 The vehicle center of gravity will be higher when items are
loaded onto the roof rack.
Avoid sudden starts, braking,
sharp turns, abrupt maneu-
vers or high speeds that may
result in loss of vehicle con-
trol or rollover resulting in an
accident.
(Continued)ROOF100 kg (220 lbs.)
RACK EVENLY DISTRIBUTED
OXM049222OXMA043222
■Type A■ Type B
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:57 PM Page 157

Features of your vehicle158

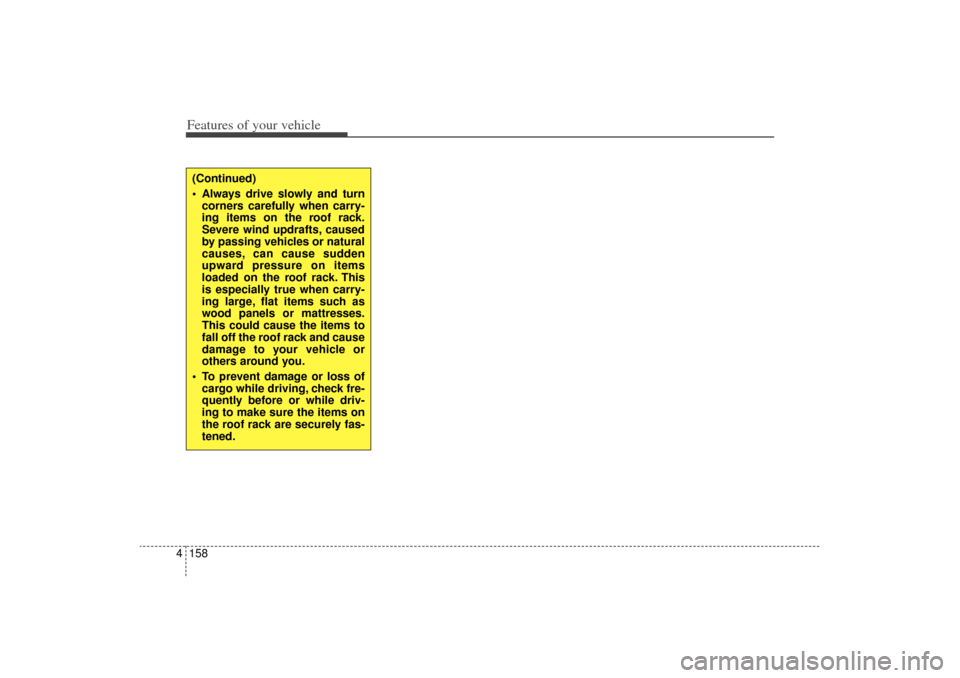

4(Continued)
 Always drive slowly and turn
corners carefully when carry-
ing items on the roof rack.
Severe wind updrafts, caused
by passing vehicles or natural
causes, can cause sudden
upward pressure on items
loaded on the roof rack. This
is especially true when carry-
ing large, flat items such as
wood panels or mattresses.
This could cause the items to
fall off the roof rack and cause
damage to your vehicle or
others around you.
 To prevent damage or loss of cargo while driving, check fre-
quently before or while driv-
ing to make sure the items on
the roof rack are securely fas-
tened.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:57 PM Page 158

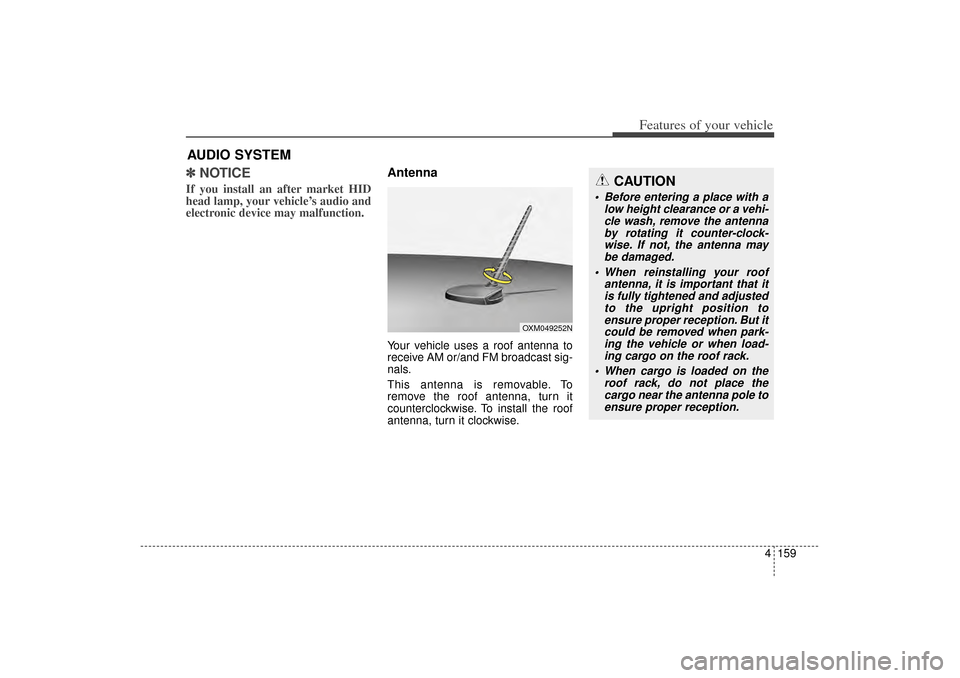

4 159
Features of your vehicle
✽
✽NOTICE If you install an after market HID
head lamp, your vehicle’s audio and
electronic device may malfunction.
AntennaYour vehicle uses a roof antenna to
receive AM or/and FM broadcast sig-
nals.
This antenna is removable. To
remove the roof antenna, turn it
counterclockwise. To install the roof
antenna, turn it clockwise.
AUDIO SYSTEM
CAUTION
• Before entering a place with a
low height clearance or a vehi-cle wash, remove the antennaby rotating it counter-clock-wise. If not, the antenna maybe damaged.
 When reinstalling your roof antenna, it is important that itis fully tightened and adjustedto the upright position toensure proper reception. But itcould be removed when park-ing the vehicle or when load-ing cargo on the roof rack.
 When cargo is loaded on the roof rack, do not place thecargo near the antenna pole toensure proper reception.
OXM049252N
