Page 41 of 76
38
CommandOperation
"J Turn Guidance On Turns on the voice guidance system.
"J Turn Guidance Off Turns off the voice guidance system.
"J Zoom All the Way Out Zooms in on the navigation map to the fullest.
"J Zoom All the Way In Zooms out from the navigation map to the fullest.
"J Cancel Route Cancels the route to the fixed destination and exits
guidance.
"J Destination
Information Tells you the remaining distance and time to your desti-
nation.
"J Route Options Restarts the route to your destination.You can then
select either “Faster Time” or “Shorter Distance”.
"J Find Faster Time
Route Starts a new route to your destination that will take the
least amount of time.
"J Find Shorter Distance
Route Starts a new route to your destination that will use the
shortest distance.
"J Emergency Services Displays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
"J Police Station Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
"J Hospital Displays a list of the nearest hospitals.
You can then set a destination by saying the list number.
"J Dealership Displays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
"J Road Assistance Displays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
"J Show Route Displays a map overview of the entire route to your
destination.
0039
Page 42 of 76
39
CommandOperation
"J Radio
Plays the most recent radio channels from FM, AM, and SiriusXM™.
"JFM Plays FM radio.
"J FM
<87.5~107.9> Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
"J SiriusXM™ Plays SiriusXM™ radio.
"J SiriusXM™
Channel
<0~999> Tunes to SiriusXM™ Channel
to what you say.
e.g.) SiriusXM™ Channel 23: SiriusXM™ Channel twenty three
"J AM Plays AM radio.
"J AM <530~1710> Tunes to AM
e.g.) AM 530: AM five thirty
!¹ Preset <1~18> Tunes to your preset stations (1 to 18).
!¹ Channel
<0~999> In SiriusXM™ Radio mode, turns on the
that you say.
Radio Commands
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
"J Media Continues the last media you played.
This command includes images.
"J Music Continues the last media you played.
This command does not include images.
"J iPod
Plays the iPod currently connected. This will work the same when an iPhone is
connected. If a USB is connected, then it will be played instead of the iPod.
"JUSB Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the USB.
"J Bluetooth
Audio Plays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth connection status.
"J
AUX Plays external devices that are currently connected.
"J My Music Plays My Music files stored in the system.
"J Pandora
Radio Plays Pandora Radio that is currently connected.Pandora Radio
operates according to the iPod currently connected.
Page 43 of 76
40
3. Bluetooth Audio / AUX Command
!Ÿ
Bluetooth Audio supports different functions according to connected devices,
therefore some commands are unavailable, including Play, Stop, Previous
Song, and Next Song.
!Ÿ
For external devices (AUX) and some commands are unavailable, including
Play, Stop, Previous, and Next.
Other Commands List
(Commands used in List / Help)
Command Operation
"J Help Moves to the voice recognition help screen.
All available commands can then be identified and used.
!¹ Line 1~5
(One~Five) When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or “Two."
!¹ Yes / No When voice recognition is activated, this command is used when
an answer is requested for a confirmation question.
!¹ Manual Input When Dial or POI Name search results are displayed, this com-
mand is used to search manually, rather than to search with a
voice command.
Voice recognition stops after this command is used.
0039
Page 44 of 76
41
About Pairing Mobile Phones
0034I cannot pair my mobile phone, what is the cause?
0024
Check to see that the mobile phone supports Bluetooth® function. If your
phone is a Bluetooth® phone, then check to see whether the Bluetooth
setting within your phone has been set to ‘Hidden’. If the device is set to
hidden, please un-hide the device (set to unhidden state).
0034
What is the difference between pairing a mobile phone and connecting a
mobile phone?
0024
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing
Contacts, are supported only in mobile phones connected with the head
unit.
0034
What is a Passkey?
0024
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. The passkey can be changed by pressing
00360028003700380033 Ü
0033004B005200510048 Ü 0025004F005800480057005200520057004B00030036005C00560057004800500003002C0051004900520003 Ü
0033004400560056004E0048005C menu.
00290024
Page 45 of 76
42
About Making/Answering Phone Calls
0034
How can I answer a call?
0024
When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
002400460046004800530057 button using the center
controller or the
key on the steering remote controller. To reject the
call, press the
00350048004D004800460057 button on the screen or press and hold (over 0.8
seconds) the
key on the steering remote controller.
0034
What should I do if I am talking on the Handsfree but want to switch the call to the mobile phone?
0024
While on a call, press the key on the steering remote controller or
press the
000300330055004C0059004400570048 button at the bottom of the Phone screen to switch the
call to your mobile phone.
0034
Why does call quality sometimes worsen?
0024
Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bev-
erage cans, are placed near the mobile phone. Check to see if there are
metal objects in the vicinity of the mobile phone. The call sound and quality
may differ depending on the type of mobile phone.
00290024
Page 46 of 76
43
About Voice Recognition
0034
System cannot recognize my voice. What is the cause?
002400420014
When start voice recognition, you can hear BEEP sound after system saying “Please say a command”. System recognizes your voice after
this BEEP sound, for this reason when overlap BEEP sound and voice,
system cannot recognize. Please wait and say after the BEEP sound.
002400420015 This system can recognize already defined commands. You can find these commands on the screen and Voice Recognition session in
Owner’s Guide.
0034 System cannot recognize “Call John Smith”. What is the cause?
002400420014
To call by name using voice recognition, please check these required conditions.
1. Connect the Bluetooth phone.
2. Contacts are downloaded.
3. Check if the name is stored on the downloaded contacts.
(ex: John Smith)
002400420015 When you say “Call John Smith”, “John Smith” has to be stored in down-
loaded contacts. If “John Smith” is stored named “My Friend” system
cannot recognize “Call John Smith” instead of “Call My Friend”.
Page 47 of 76
44
003100440059004C004A00440057004C00520051
002500440056004C0046000300290048004400570058005500480056

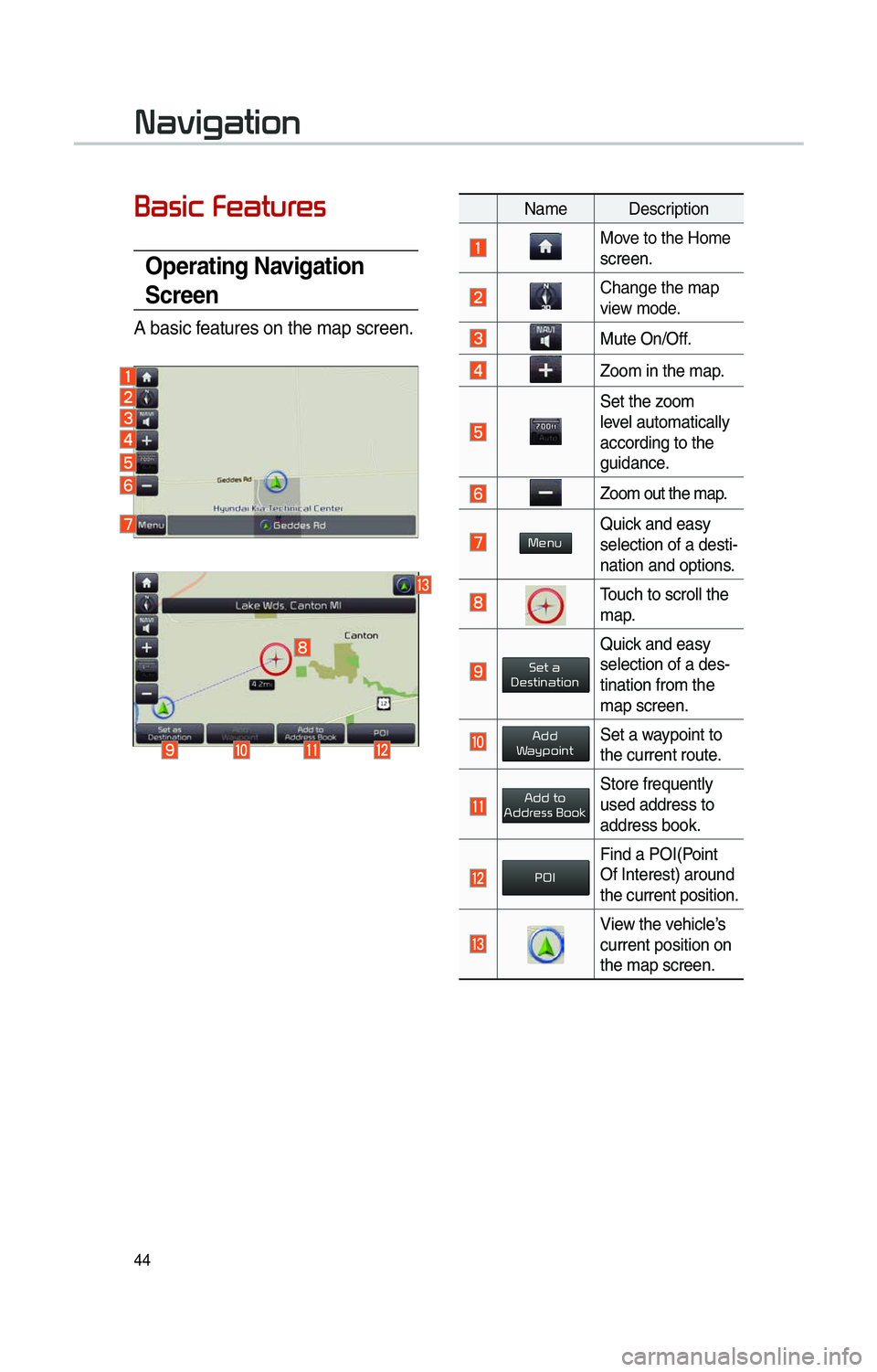

Operating Navigation
Screen
A basic features on the map screen.
Name Description
Move to the Home
screen.
Change the map
view mode.
Mute On/Off.
Zoom in the map.
Set the zoom
level automatically
according to the
guidance.
Zoom out the map.
MenuQuick and easy
selection of a desti-
nation and options.
Touch to scroll the
map.
Set aDestination
Quick and easy
selection of a des-
tination from the
map screen.
AddWaypointSet a waypoint to
the current route.
Add toAddress Book
Store frequently
used address to
address book.
POI
Find a POI(Point
Of Interest) around
the current position.
View the vehicle’s
current position on
the map screen.
Page 48 of 76
45

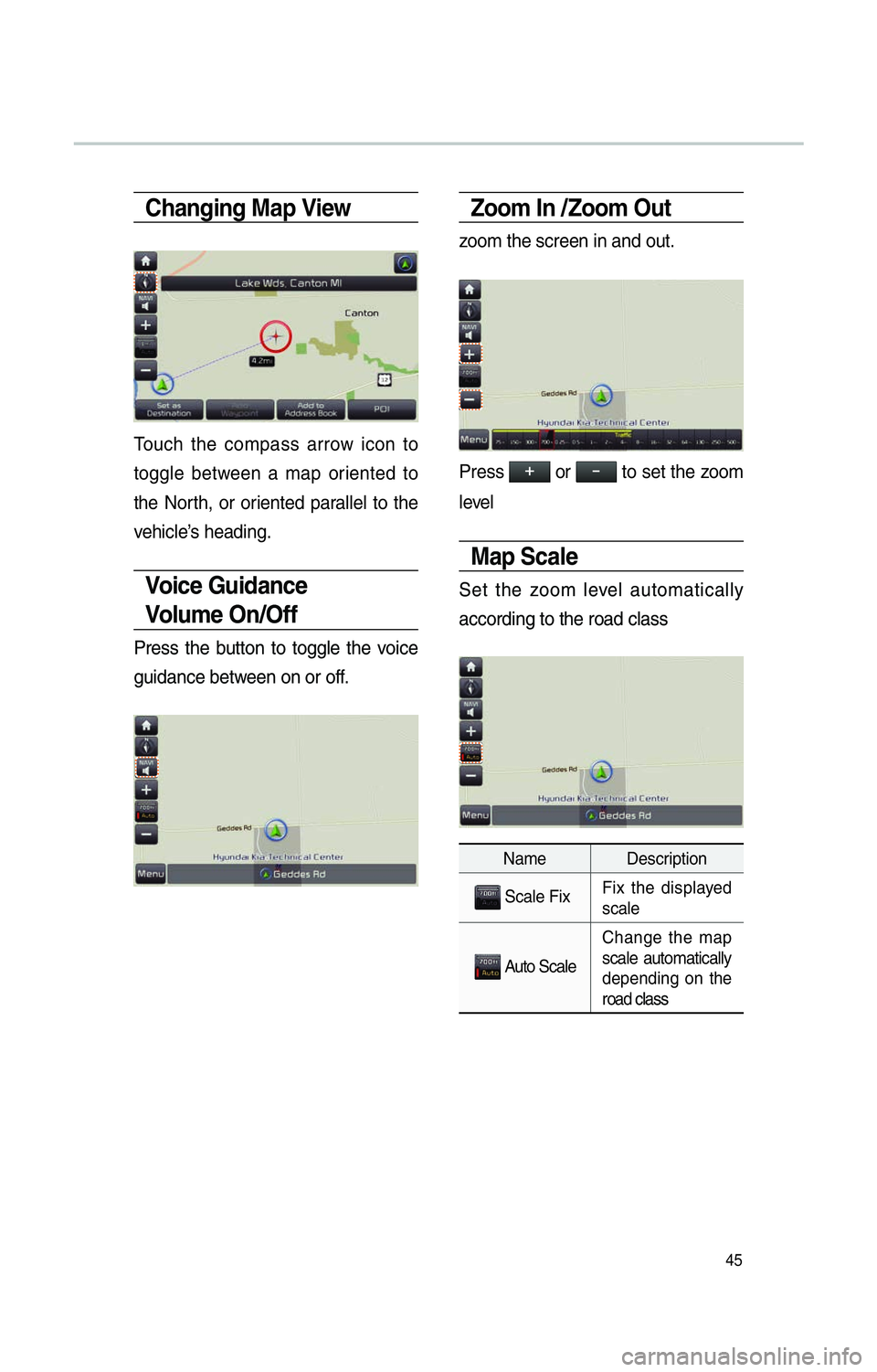

Changing Map View
Touch the compass arrow icon to
toggle between a map oriented to
the North, or oriented parallel to the
vehicle’s heading.
Voice Guidance
Volum e O n /O f f
Press the button to toggle the voice
guidance between on or off.
Zoom In /Zoom Out
zoom the screen in and out.
Press 000E0003 or 00100003 to set the zoom
level
Map Scale
Set the zoom level automatically
according to the road class
Name Description
Scale Fix Fix the displayed
scale
Auto Scale Change the map
scale automatically
depending on the
road
class
Page 49 of 76
46

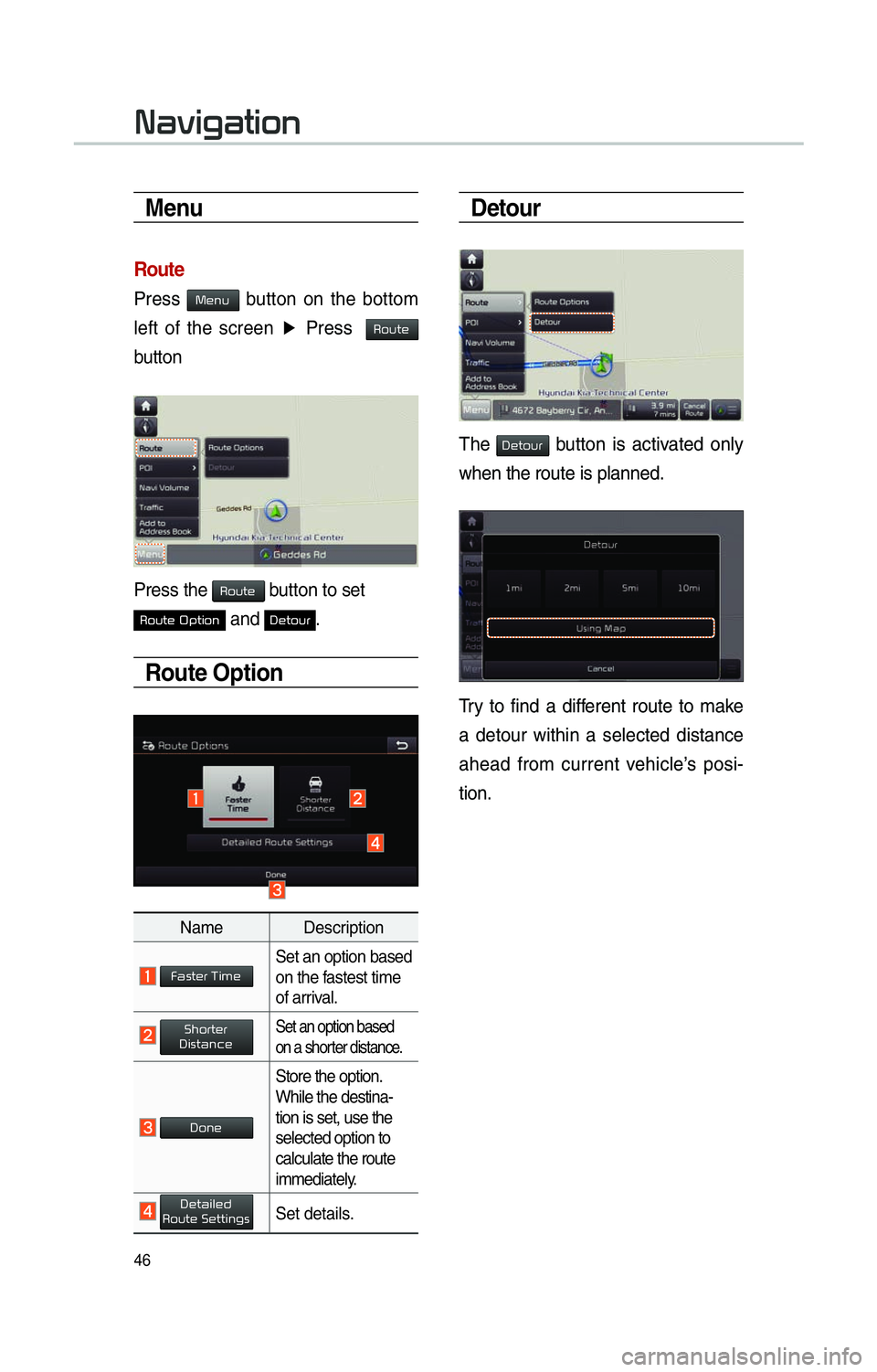

Menu
Route
Press Menu button on the bottom
left of the screen ▶
Press
Route
button
Press the Route button to set
Route Option and Detour.
Route Option
Name Description
Faster TimeSet an option based
on the fastest time
of arrival.
ShorterDistanceSet an option based
on a shorter distance.
Done
Store the option.
While the destina-
tion is set, use the
selected option to
calculate the route
immediately.
Detailed Route SettingsSet details.
Detour
The Detour button is activated only
when the route is planned.
Try to find a different route to make
a detour within a selected distance
ahead from current vehicle’s posi-
tion.
003100440059004C004A00440057004C00520051
Page 50 of 76
47

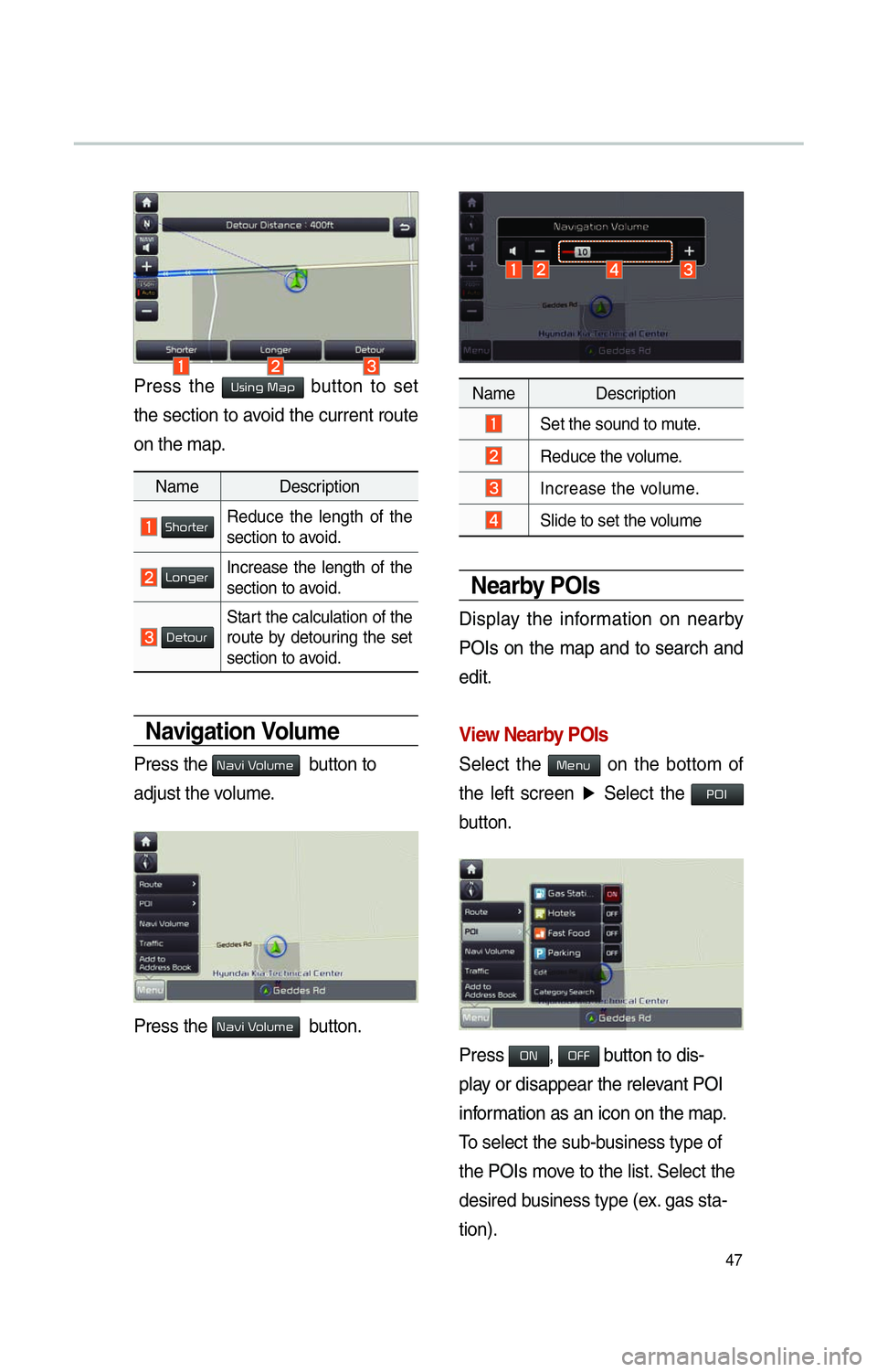

Press the Using Map button to set
the section to avoid the current route
on the map.
Navigation Volume
Press the 003100440059004C000300390048 button to
adjust the volume.
Press the 003100440059004C000300390048 button.
Name Description
ShorterReduce the length of the
section to avoid.
LongerIncrease the length of the
section to avoid.
DetourStart the calculation of the
route by detouring the set
section to avoid.
Nearby POIs
Display the information on nearby
POIs on the map and to search and
edit.
View Nearby POIs
Select the Menu on the bottom of
the left screen ▶
Select the
00330032002C
button.
Press ON, OFF button to dis-
play or disappear the relevant POI
information as an icon on the map.
T
o select the sub-business type of
the POIs move to the list. Select the
desired b
usiness type (ex. gas sta-
tion).
Name Description
Set the sound to mute.
Reduce the volume.
Increase the volume.
Slide to set the volume
