KIA SOUL 2014 Navigation System Quick Reference Guide

18
FeaturesDescription
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list screen : Press the
SHUFFLE button to switch between Shuffle Folder , Shuffle All , and turning shuffle off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the SHUFFLE button to switch between Shuffle
Category
and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10seconds per file)

!Ÿ
If select the song in the file tab on the list screen : Press the SCAN button to switch
between Scan Folder , Scan All , and turning scan off

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the SCAN button to switch between Scan cate-
gory
and turning scan off
Menu
!Ÿ
Add to Playlist : Add the current track to the Playlist Pla ylist is placed on the
left tab in the list

!Ÿ
Save to My Music: You can save the current track to My Music. You can play saved
track from My Music without USB. Access to My Music in the Media mode.
SEEK/
TRACK If press button short (less than 0.8 seconds) moves to previous/next file
or play the current track from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, play the current file from the beginning
If press button long (over than 0.8 seconds) it will rewind/fast-forward the track
TUNE Turn the
00370038003100280003
knob to search a desired track. If the desired track is
displayed, press the
00370038003100280003
knob to play the track.

0038003600250003003000580056004C0046

19
0038003600250003002C00500044004A0048
USB Image
FeaturesDescription
Mode
Displays currently operating mode
Folder Name Displays folder name where image is located
File Index Shows the current file/total files within the USB
Slideshow images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
Save Imageimage as frame screen displayed when the system power is
turned off
Info
Shows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image,
Enlarge/
Reduce Image
!Ÿ
Swipe image left or right to see previous/next image

!Ÿ
Maximum Image : Touch the screen twice quickly

!Ÿ
Minimum Image : Touch the maximum screen twice quickly

20
iPod
FeaturesDescription
Mode
Displays currently operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous FileIf press button short (less than 0.8 seconds) : Moves to the pre-
vious file or play the current file from the beginning (Depends on
the play time)

!Ÿ
If play time is less than 3 seconds, moves to previous file

!Ÿ
If play time is over than 3 seconds, play the current file from the
beginning
If press button long (over than 0.8 seconds) it rewinds the track.
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If press button short(less than 0.8 seconds), Moves to the next file

!Ÿ
If press button long(over than 0.8 seconds), it does fast-forward
the track.
Repeat Repeats the current file
Press the REPEAT button to switch between repeating 1 track ,
and turning repeat off
Shuffle Plays files in random order
When pressing shuffle button, it changes to shuffle category
→ deactivate shuffle then repeat

!Ÿ
Shuffle Category : Shuffle song in the current category
Back Button
Move to home/previous mode screen
004C003300520047

21

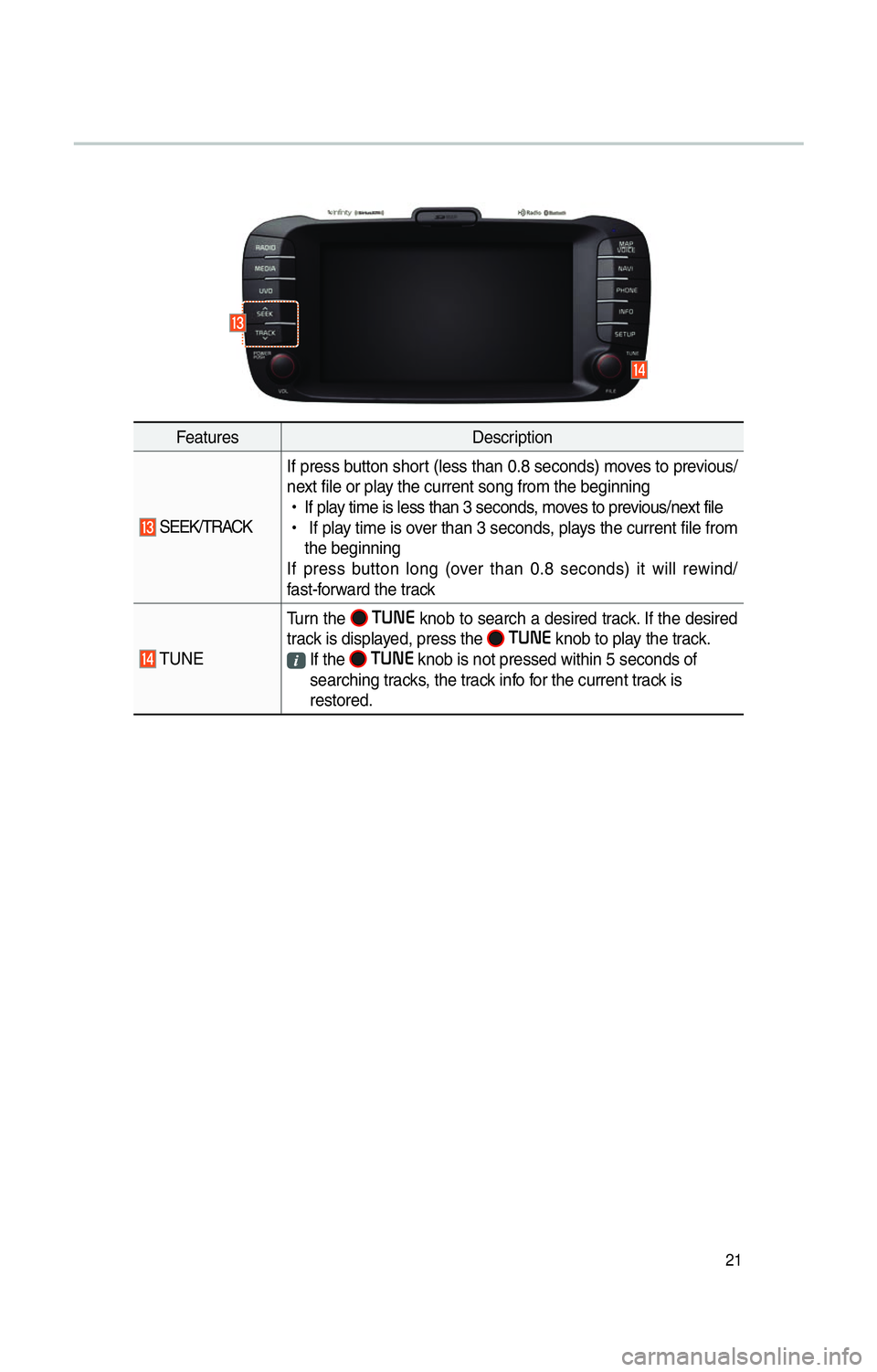

FeaturesDescription
SEEK/TRACKIf press button short (less than 0.8 seconds) moves to previous/
next file or play the current song from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
If press button long (over than 0.8 seconds) it will rewind/
fast-forward the track
TUNE Turn the

00370038003100280003
knob to search a desired track. If the desired
track is displayed, press the 00370038003100280003
knob to play the track. If the 00370038003100280003
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.

22
00240038003B

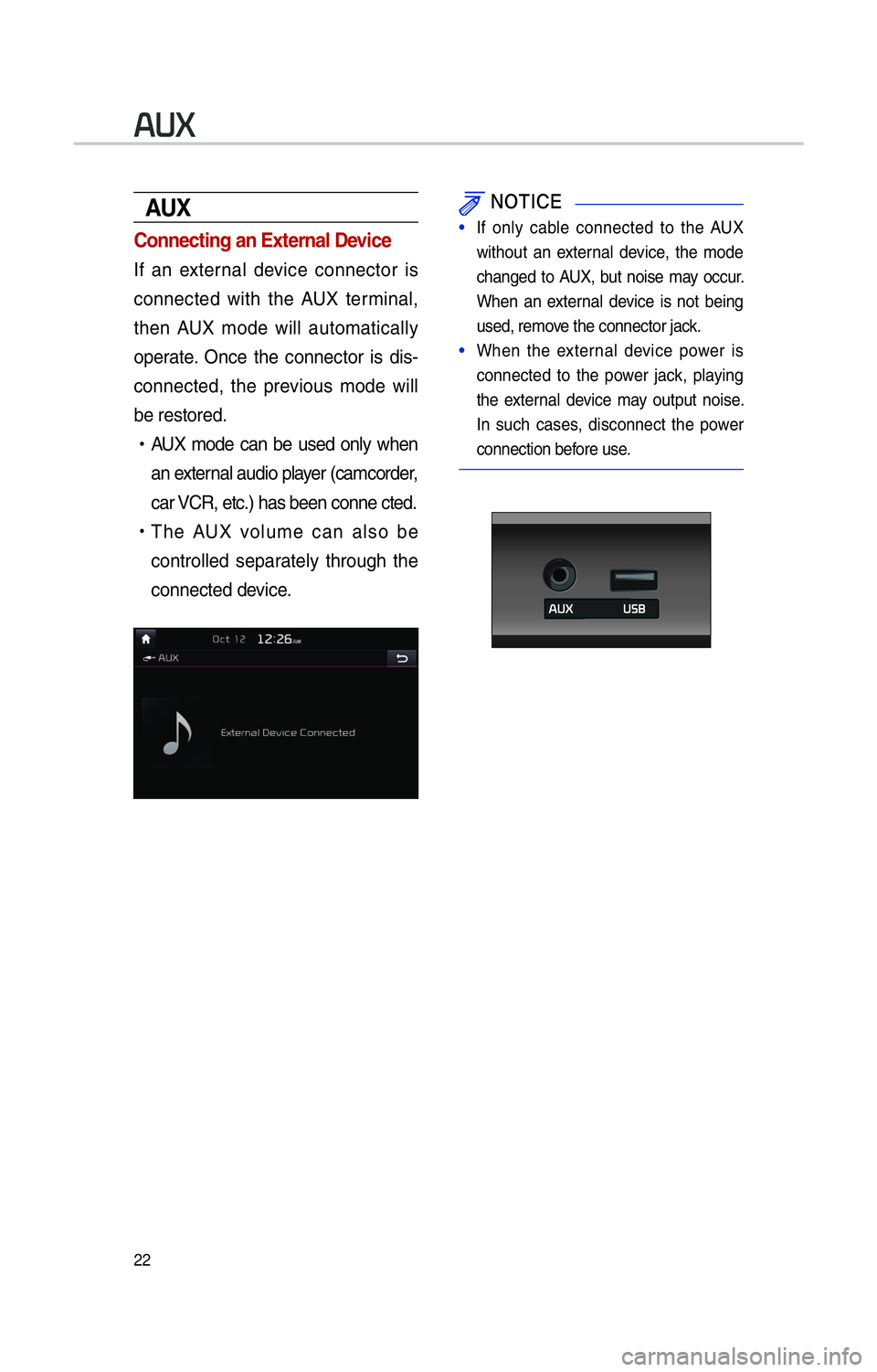

AUX
Connecting an External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
!Ÿ
AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been conne cted.

!Ÿ
The AUX volume can also be
controlled separately through the
connected device.

/05*$&
• If only cable connected to the AUX
without an e
xternal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po

wer jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.

23
Bluetooth Audio
i Information
• 002400550057004C005600570003004C005100490052 and 0037 may not supported by mobile phone
0025004F005800480057005200520057004B0003002400580047004C0052
FeaturesDescription
Mode
Displays currently operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to the previous file

!Ÿ
If play time is over than 3 seconds, plays the current file from
the beginning
This function may differ depending on the model of mobile phone
Play/Pause
Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK
Plays the previous/next file
TUNE 00370038003100280003
is not supported.

24
0030005C0003003000580056004C0046

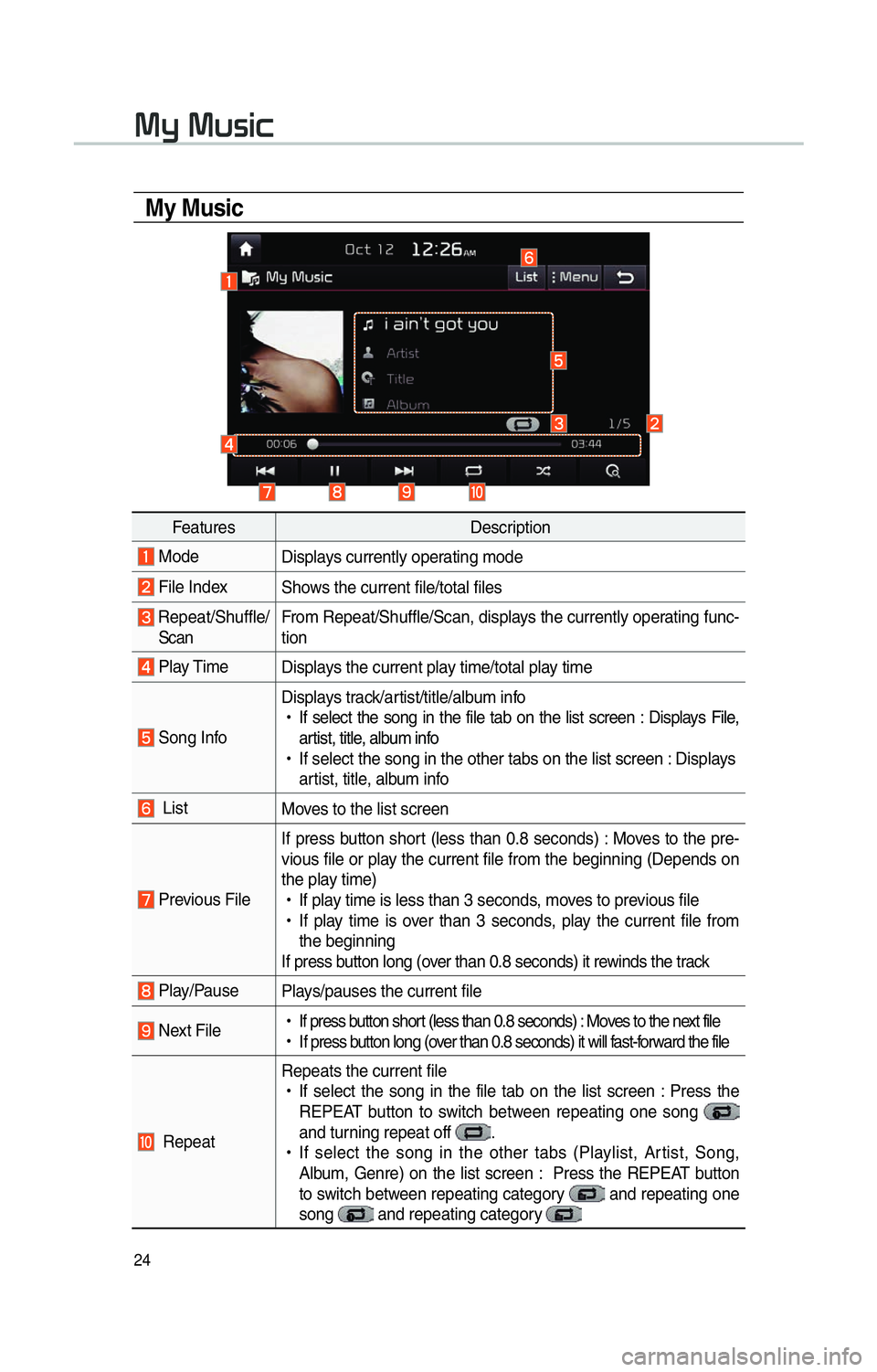

My Music
FeaturesDescription
Mode
Displays currently operating mode
File IndexShows the current file/total files
Repeat/Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating func-
tion
Play Time
Displays the current play time/total play time
Song InfoDisplays track/artist/title/album info

!Ÿ
If select the song in the file tab on the list screen : Displays File,
ar
tist, title, album info

!Ÿ
If select the song in the other tabs on the list screen :
Displays
artist, title, album info
List Moves to the list screen
Previous FileIf press button short (less than 0.8 seconds) : Moves to the pre-
vious file or play the current file from the beginning (Depends on
the play time)

!Ÿ
If play time is less than 3 seconds, moves to previous file

!Ÿ
If play time is over than 3 seconds, play the current file from
the beginning
If press button long (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If press button short (less than 0.8 seconds) : Moves to the next file

!Ÿ
If press button long (over than 0.8 seconds) it will fast-forward the file
Repeat Repeats the current file

!Ÿ
If select the song in the file tab on the list screen : Press the
REPEAT button to switch between repeating one song

and turning repeat off
.

!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album, Genre) on the list screen : Press the REPEAT button
to switch between repeating category
and repeating one
song and repeating category

25

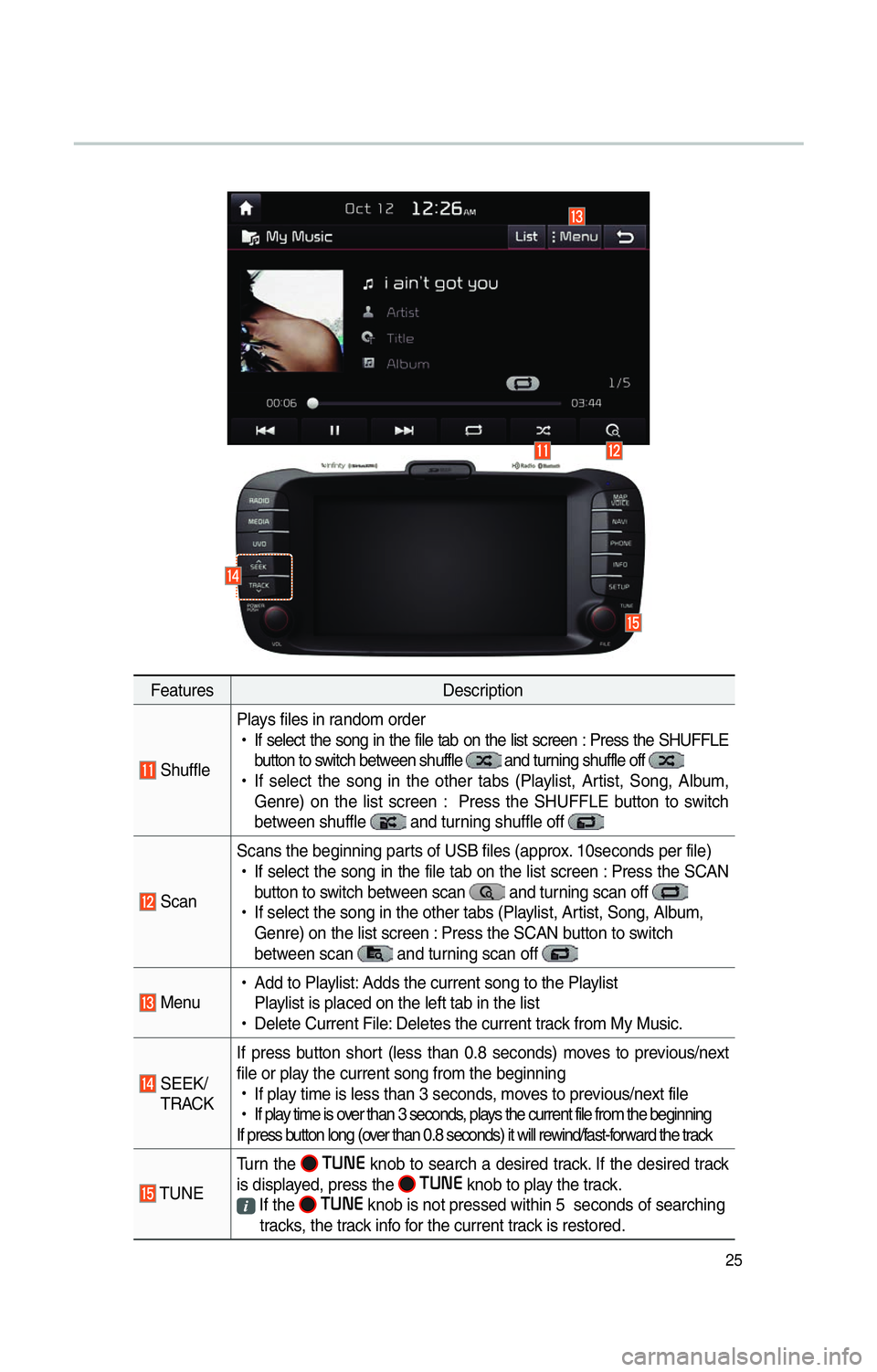

FeaturesDescription
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list screen : Press the SHUFFLE
button to switch between shuffle and turning shuffle off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the SHUFFLE button to switch
between shuffle
and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10seconds per file)

!Ÿ
If select the song in the file tab on the list screen : Press the SCAN
button to switch between scan and turning scan off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the SCAN button to switch
between scan
and turning scan off
Menu
!Ÿ
Add to Playlist: Adds the current song to the Playlist
Playlist is placed on the left tab in the list

!Ÿ
Delete Current File: Deletes the current track from My Music.
SEEK/
TRACK If press button short (less than 0.8 seconds) moves to previous/next
file or play the current song from the beginning

!Ÿ
If play time is less than 3 seconds, moves to previous/next file

!Ÿ
If play time is over than 3 seconds, plays the current file from the beginning
If press button long (over than 0.8 seconds) it will rewind/fast-forward the track
TUNE Turn the

00370038003100280003
knob to search a desired track. If the desired track
is displayed, press the 00370038003100280003
knob to play the track. If the 00370038003100280003
knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.

26
00380056004C0051004A00030025004F005800480057005200520057004B
0025004F005800480057005200520057004B0003
0026005200510051004800460057004C00520051
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Select 0033002B003200310028 in the head unit or
in the steering wheel remote
control. ▶
Select
003C00280036. ▶
Pair your
car after your mobile phone detects
the Bluetooth device. ▶
Enter the
passkey or accept the authorization
popup. ▶
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Select 00360028003700380033 in the head unit. ▶

Select
0033004B005200510048. ▶
Select
0025004F005800480057005200520057004B00030026005200510051004800460057004C00520051. ▶
Select
002400470047000300310048005A0003002700480059004C00460048. ▶
Pair your car after
your mobile phone detects the
Bluetooth device. ▶
Enter the
passkey or accept the authorization
popup. ▶
Connect Bluetooth.
The default passkey is 0000.
The device name above is an exam-
ple. Check the actual information on
the product.
Connecting Bluetooth
Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Select 0033002B003200310028 in the head unit or
in the steering wheel remote
control. ▶
Select the name of the
device to connect. ▶
Connect
Bluetooth.

27
Connecting Devices Through the
Phone Settings
Select 00360028003700380033 in the head unit. ▶

Select
0033004B005200510048. ▶
Select
0025004F005800480057005200520057004B00030026005200510051004800460057004C00520051. ▶
Select the
name of the device to connect. ▶

Connect Bluetooth.
Dial
Dials a call after the Bluetooth
devices are connected.

!Ÿ
Select
0033002B003200310028 in the head unit or
in the steering wheel
remote control. Select
0024004F004F000300300048005100580056
from the full screen display ▶

0033004B005200510048.
Name Description
Keypad Use the keypad to
enter the phone
n

umber that you
want to call. Press
and hold the last
number of a speed
dial to dial a number
that you added to the
Speed Dial list in the
phone
Delete Delete the n umbers
that you entered.
Connections Moves to a screen for
making a Bluetooth
connection.
CallMakes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls, you
can select the num-
ber and press CALL
to automatically dial
that number again.
Information
• Some types of mobile phones may not
support the Speed Dial function.
