KIA SPORTAGE 2016 Features and Functions Guide

39

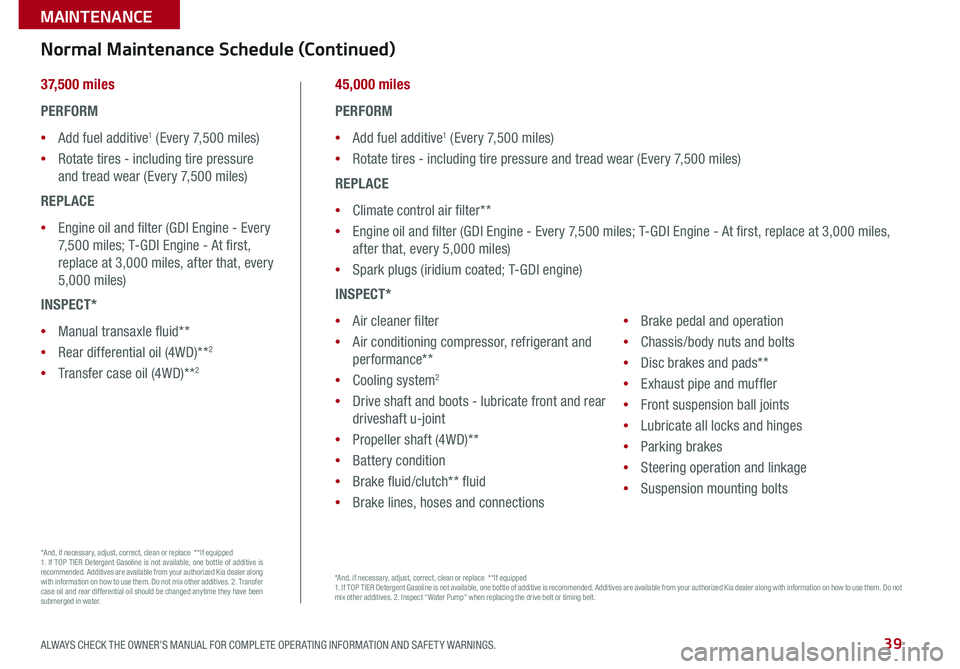

Normal Maintenance Schedule (Continued)
37,500 miles
PERFORM
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires - including tire pressure
and tread wear (Every 7,500 miles)
REPLACE
•Engine oil and filter (GDI Engine - Every
7,500 miles; T-GDI Engine - At first,
replace at 3,000 miles, after that, every
5,000 miles)
INSPECT*
•Manual transaxle fluid**
•Rear differential oil (4WD)**2
•Transfer case oil (4WD)**2
45,000 miles
PERFORM
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires - including tire pressure and tread wear (Every 7,500 miles)
REPLACE
•Climate control air filter**
•Engine oil and filter (GDI Engine - Every 7,500 miles; T-GDI Engine - At first, replace at 3,000 miles,
after that, every 5,000 miles)
•Spark plugs (iridium coated; T-GDI engine)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, refrigerant and
performance**
•Cooling system2
•Drive shaft and boots - lubricate front and rear
driveshaft u-joint
•Propeller shaft (4WD)**
•Battery condition
•Brake fluid/clutch** fluid
•Brake lines, hoses and connections
•Brake pedal and operation
•Chassis/body nuts and bolts
•Disc brakes and pads**
•Exhaust pipe and muffler
•Front suspension ball joints
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
*And, if necessary, adjust, correct, clean or replace * *If equipped 1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 . Transfer case oil and rear differential oil should be changed anytime they have been submerged in water .
*And, if necessary, adjust, correct, clean or replace * *If equipped 1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 . Inspect “Water Pump” when replacing the drive belt or timing belt .
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
MAINTENANCE

40
52,500 miles
PERFORM
•Add fuel additive1
(Every 7,500 miles)
•Rotate tires - including tire
pressure and tread wear (Every
7,500 miles)
REPLACE
•Engine oil and filter (GDI Engine
- Every 7,500 miles; T-GDI
Engine - At first, replace at
3,000 miles, after that, every
5,000 miles)
60,000 miles
PERFORM
•Add fuel additive1 (Every 7,500 miles)
•Rotate tires - including tire pressure and tread wear (Every 7,500 miles)
REPLACE
•Air cleaner filter
•Climate control air filter**
•Engine oil and filter (GDI Engine - Every 7,500 miles; T-GDI Engine - At first, replace at 3,000 miles, after that,
every 5,000 miles)
•Spark plugs (iridium coated; T-GDI engine)
INSPECT*
•Air conditioning compressor,
refrigerant and performance**
•Cooling system2
•Drive belt3 (First, 60,000 miles
after every 15,000 miles)
•Drive shaft and boots - lubricate
front and rear driveshaft u-joint
•Fuel filter4, fuel line, hoses and
connection
•Fuel tank air filter**4
•Propeller shaft (4WD)**
•Valve clearance5
•Vapor hose and fuel filler cap
•Battery condition
•Brake fluid/clutch** fluid
•Brake lines, hoses and
connections
•Brake pedal and operation
•Chassis/body nuts and bolts
•Disc brakes and pads**
•Exhaust pipe and muffler
•Front suspension ball joints
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
Normal Maintenance Schedule (Continued)
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
*And, if necessary, adjust, correct, clean or replace * *If equipped 1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 . Inspect “Water Pump” when replacing the drive belt or timing belt . 3 . Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details . 3 . The drive belt should be replaced when cracks occur or tension is reduced excessively . 4 . Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details . 5 . Inspect for excessive tappet noise and/or engine vibration and adjust if necessary .
SPORTAGE FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
MAINTENANCE

LEGAL DISCLAIMERSSales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.
Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia Motors Corporation (KMC) makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, KMC may need to update or make changes to the vehicle features and other vehicle information reported in this app. KMC, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.
Back-Up Warning System (Rear Parking Assist System): Back-Up Warning System is not a substitute for safe driving, and may not detect every object behind vehicle. Always drive safely and use caution.
Bluetooth® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth® wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
Downhill Brake Control (DBC), Electronic Stability Control: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, power assist for steering and braking will be disabled, and the vehicle will be more difficult to control.
Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
Seat Belts / Airbags: For maximum protection, always wear your seatbelt.
Hill-Start Assist: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
HomeLink® is a registered trademark of Gentex Corporation.
iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Rear-Camera Display: Rear-Camera Display is not a substitute for safe driving, and may not detect all objects behind vehicle. Always drive safely and use caution.up.
SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 a\
ctively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2015 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
Sportmatic® is a registered trademark of Kia Motors America.
Steering Wheel Controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted co\
ntrols while driving.
Sunvisor: Sunvisor may not shield all direct light. Do not operate the vehicle if Sunvisor is impairing your visibility.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.
UVO eServices with Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.

*IF EQUIPPED
© 2015 Kia Motors America, Inc. All rights reserved.
Part Number: UL160-PS-004
Consumer - Roadside Assistance: 1-800-333-4KIA (4542)

Air Conditioning / Climate Control –
pages 21-2 2

Demonstrate Air Flow modes, Defogging and Defrosting Windshield Windshield Wipers & Washers –
page 12
Rear Wiper & Washer –
page 12
*IF EQUIPPED
Automatic*
Manual*
To operate:• Rotate Rear Wiper switch to change Wiper modes• Push lever to spray and wipe
To operate:• Move lever Up/Down to change Wiper modes• Rotate INT switch to adjust Intermittent Wipe Speed• Pull lever to spray and wipe
BEFORE DELIVERYOwner

Active ECO System – page 7 Back-Up Warning System* – page 34 Digital Clock – page 20 Engine Start /Stop Button* – page 10 Front Active Headrests – page 27 HomeLink
® with Auto-Dimming Rearview Mirror* – page 30
Panoramic Sunroof Operation* – page 32 Passenger Airbag Off Indicator – page 36
Rear-Camera Display* – page 33 Reclining/Folding Rear Seats – page 26 Seat Warmers / Ventilated Seats* – page 24 Smart Key* – page 28 Sunvisor – page 31 Tire Pressure Monitoring System ( TPMS) – page 5 Aux/USB/iPod
® Port & Power Outlets – page 20
*if equipped
Standard Audio System*

( Type A)
– page 16

For more information, refer to the Owner’s Manual.
Standard Audio System*

( Type B)
– page 17

For more information, refer to the Owner’s Manual.
Cruise Control
– page 13

Demonstrate operation
CANCEL
ON
OFF
RES +
SET +
MODE
MUTE
CANCE LON
OFF
RES +
SET +
MODE
MUTE
Bluetooth
® Wireless

Technology
– p a g e s 14 -15

Demonstrate operation

UVO eServices System*
– page 18
For more information, refer to the UVO System User’s Manual.
Demonstrate the following with the customer
SPORTAGE
CUSTOMER DELIVERY CHECKLIST
KEY FEATURE WALKTHROUGHSales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upDURING DELIVERY
