8

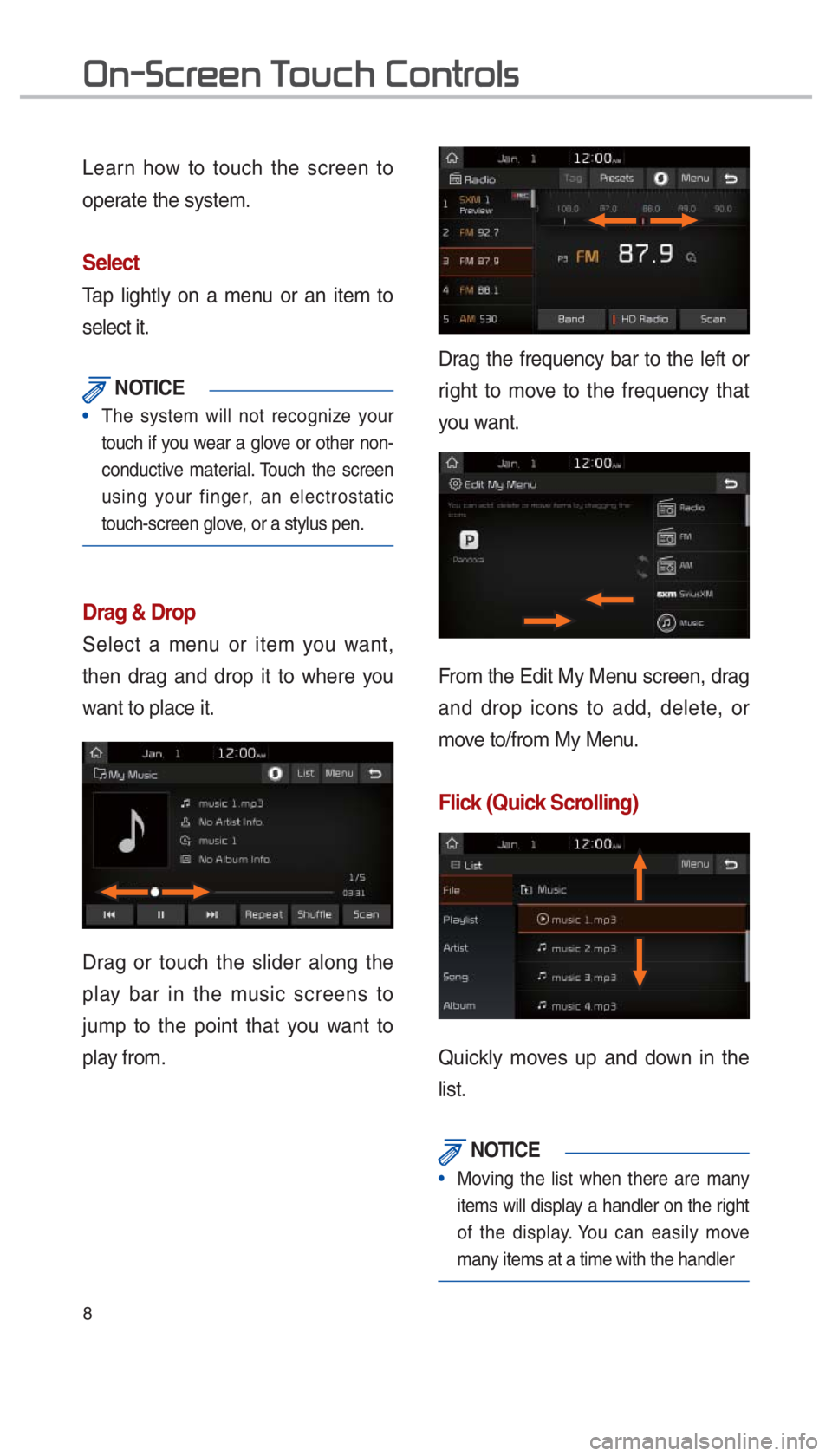

Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
The system will not recognize your
touch if y
ou wear a glove or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from.
Drag the frequency bar to the left or
right to move to the frequency that
you want.
From the Edit My Menu screen, drag
and drop icons to add, delete, or
move to/from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
Moving the list when there are many
items will displa
y a handler on the right
of the display. You can easily move
many items at a time with the handler
00320051001000360046005500480048005100030037
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 12 of 52
9

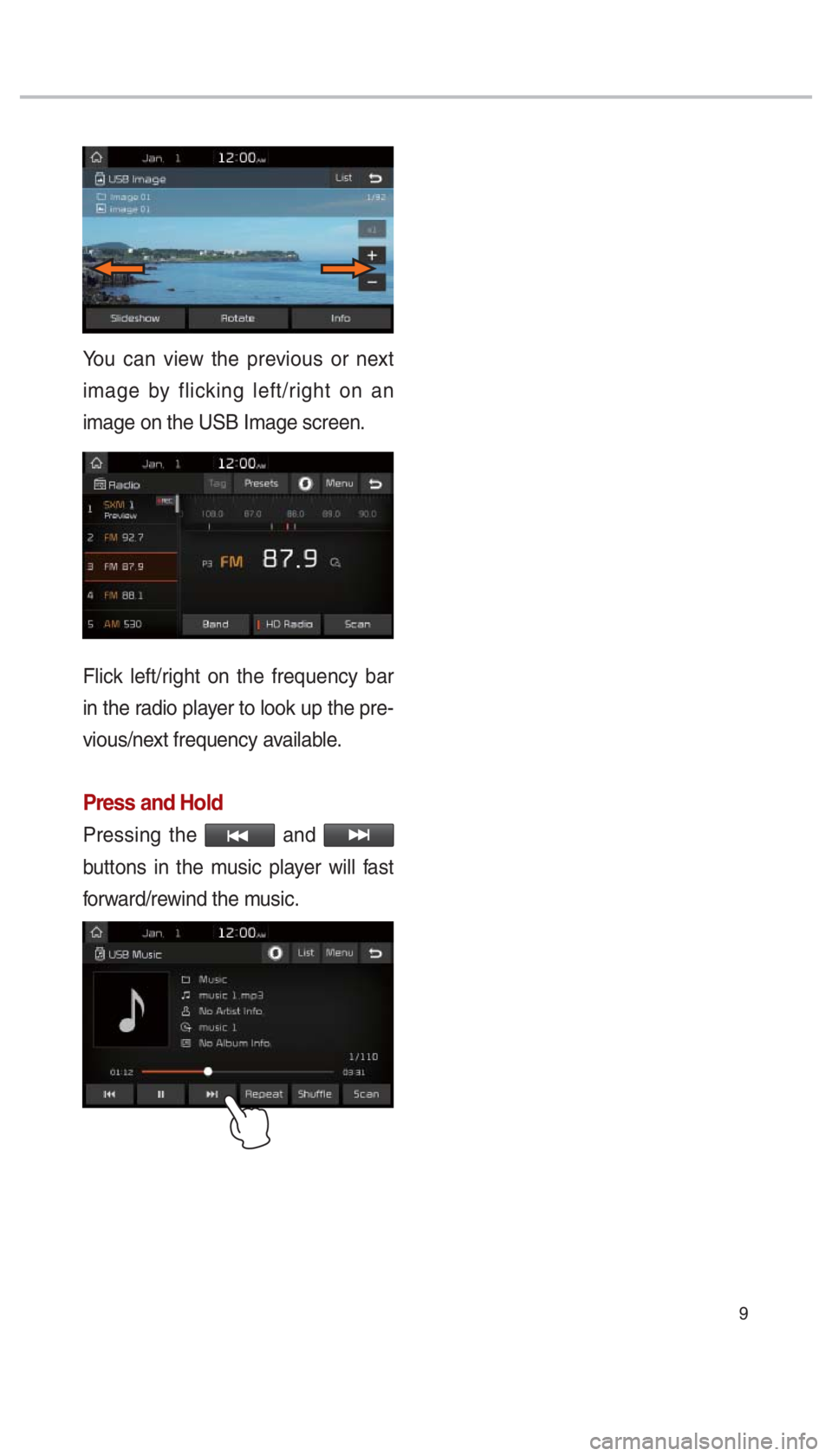

You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music player will fast
forward/rewind the music.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 13 of 52
10
00360048005700580053

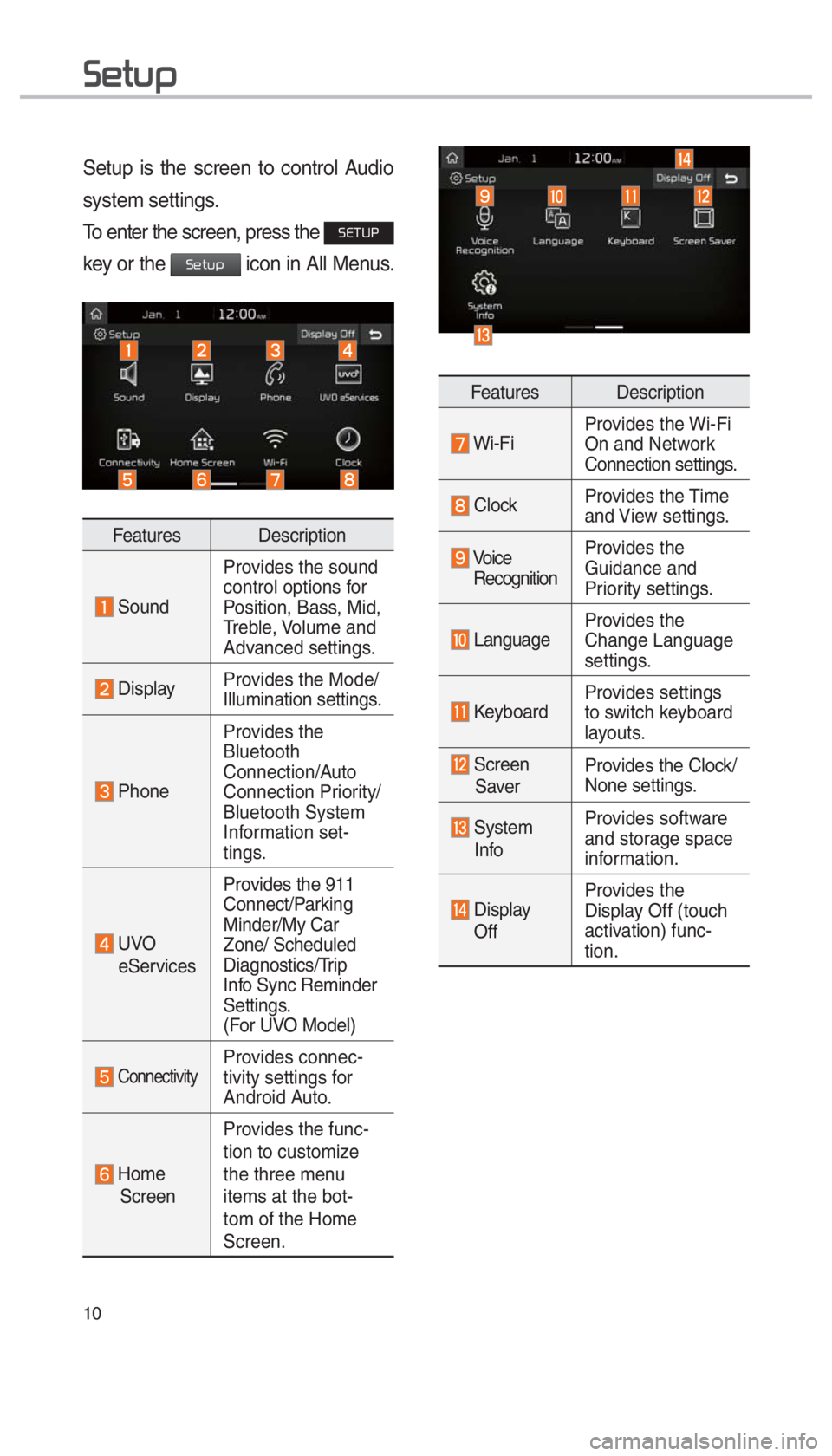

Setup is the screen to control Audio
system settings.
To enter the screen, press the
00360028003700380033
key or the
00360048005700580053 icon in All Menus.
Features Description
Sound Provides the sound
control options for
Position, Bass, Mid,
Treble, Volume and
Advanced settings.
Display
Provides the Mode/
Illumination settings.
PhoneProvides the
Bluetooth
Connection/Auto
Connection Priority/
Bluetooth System
Information set-
tings.
UVO
eServices Provides the 911
Connect/Parking
Minder/My Car
Zone/ Scheduled
Diagnostics/Trip
Info Sync Reminder
Settings.
(For UVO Model)
ConnectivityProvides connec-
tivity settings for
Android Auto.
Home
Screen Provides the func-
tion to customize
the three menu
items at the bot-
tom of the Home
Screen.
Features Description
Wi-Fi
Provides the Wi-Fi
On and Network
Connection settings.
Clock
Provides the Time
and View settings.
Voice
Recognition Provides the
Guidance and
Priority settings.
Language
Provides the
Change Language
settings.
KeyboardProvides settings
to switch keyboard
layouts.
Screen
Saver Provides the Clock/
None settings.
System
Info Provides software
and storage space
information.
Display
Off Provides the
Display Off (touch
activation) func-
tion.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 14 of 52
11
002B0052005000480003003600460055004800480051

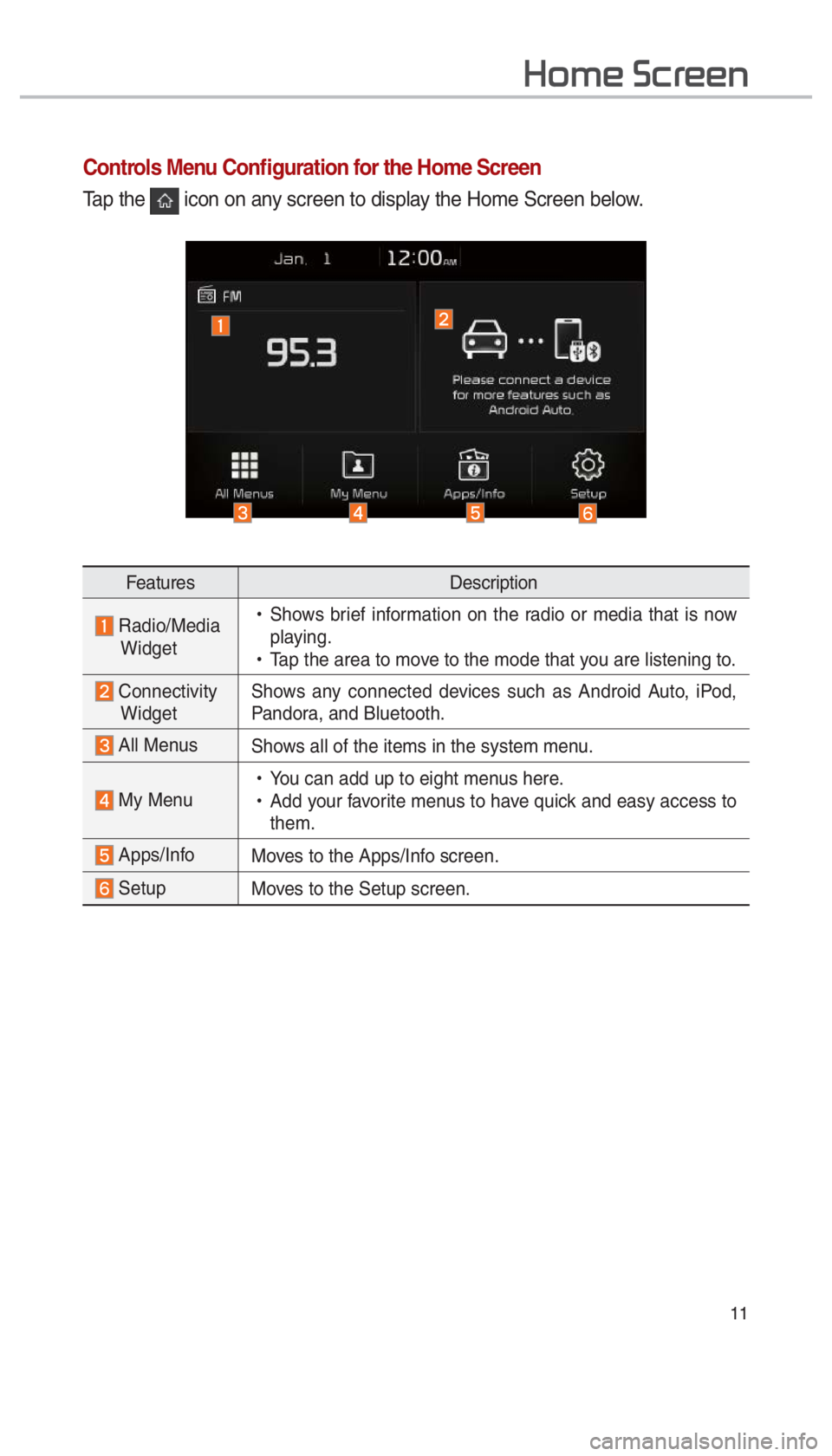

Controls Menu Confi guration for the Home Screen
Tap the icon on any screen to display the Home Screen below.
FeaturesDescription
Radio/Media
Widget
!Ÿ
Shows brief information on the radio or media that is now
playing.
!Ÿ
Tap the area to move to the mode that you are listening to.
Connectivity
Widget Shows any connected devices such as Android Auto, iPod,
Pandora, and Bluetooth.
All Menus
Shows all of the items in the system menu.
My Menu
!Ÿ
You can add up to eight menus here.
!Ÿ
Add your favorite menus to have quick and easy access to
them.
Apps/Info Moves to the Apps/Info screen.
SetupMoves to the Setup screen.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 15 of 52
12

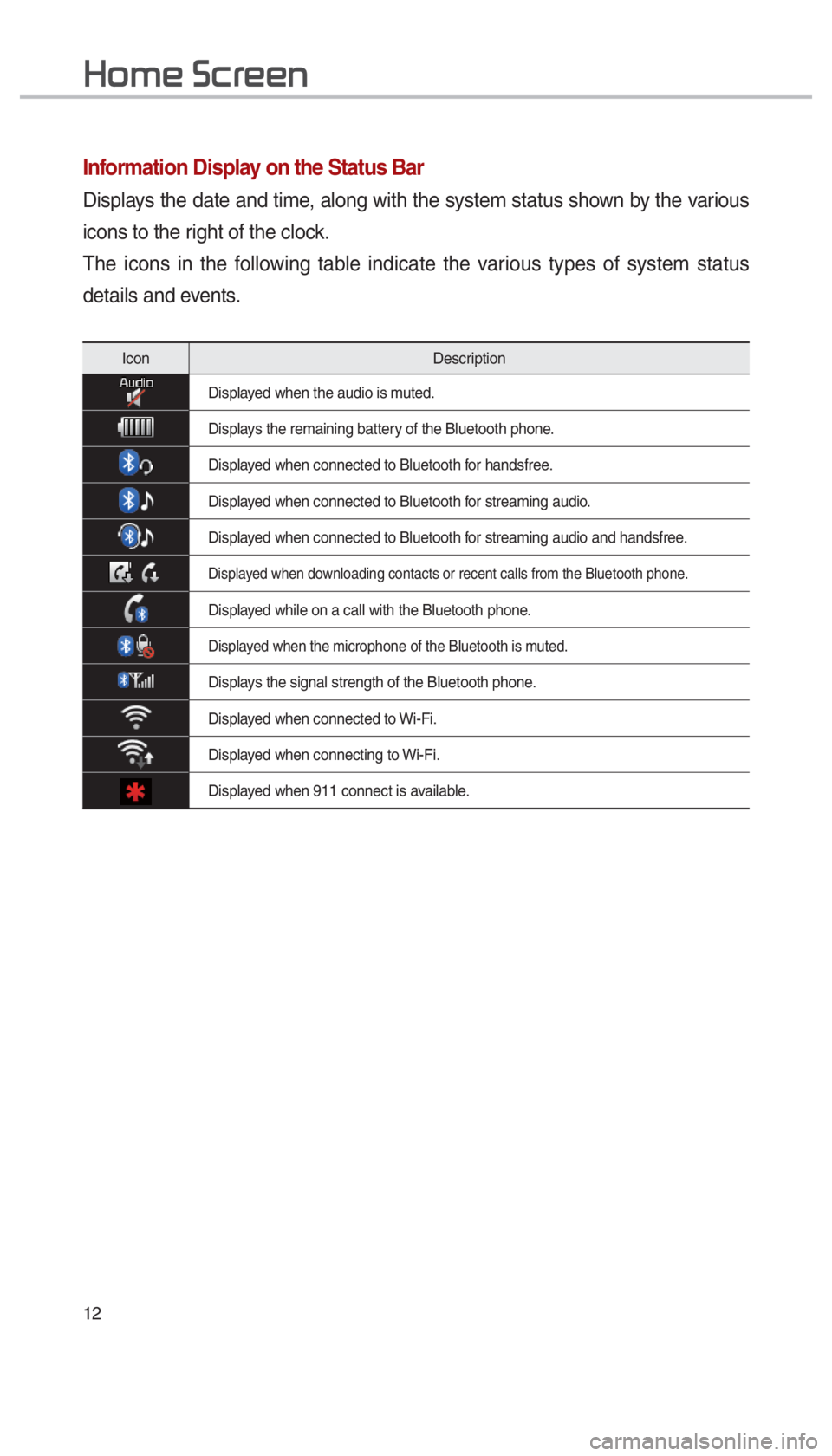

Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
IconDescription
Displayed when the audio is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and handsfree.
Displayed when downloading contacts or recent calls from the Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth is muted.
Displays the signal strength of the Bluetooth phone.
Displayed when connected to Wi-Fi.
Displayed when connecting to Wi-Fi.
Displayed when 911 connect is available.
002B0052005000480003003600460055004800480051
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 16 of 52
13

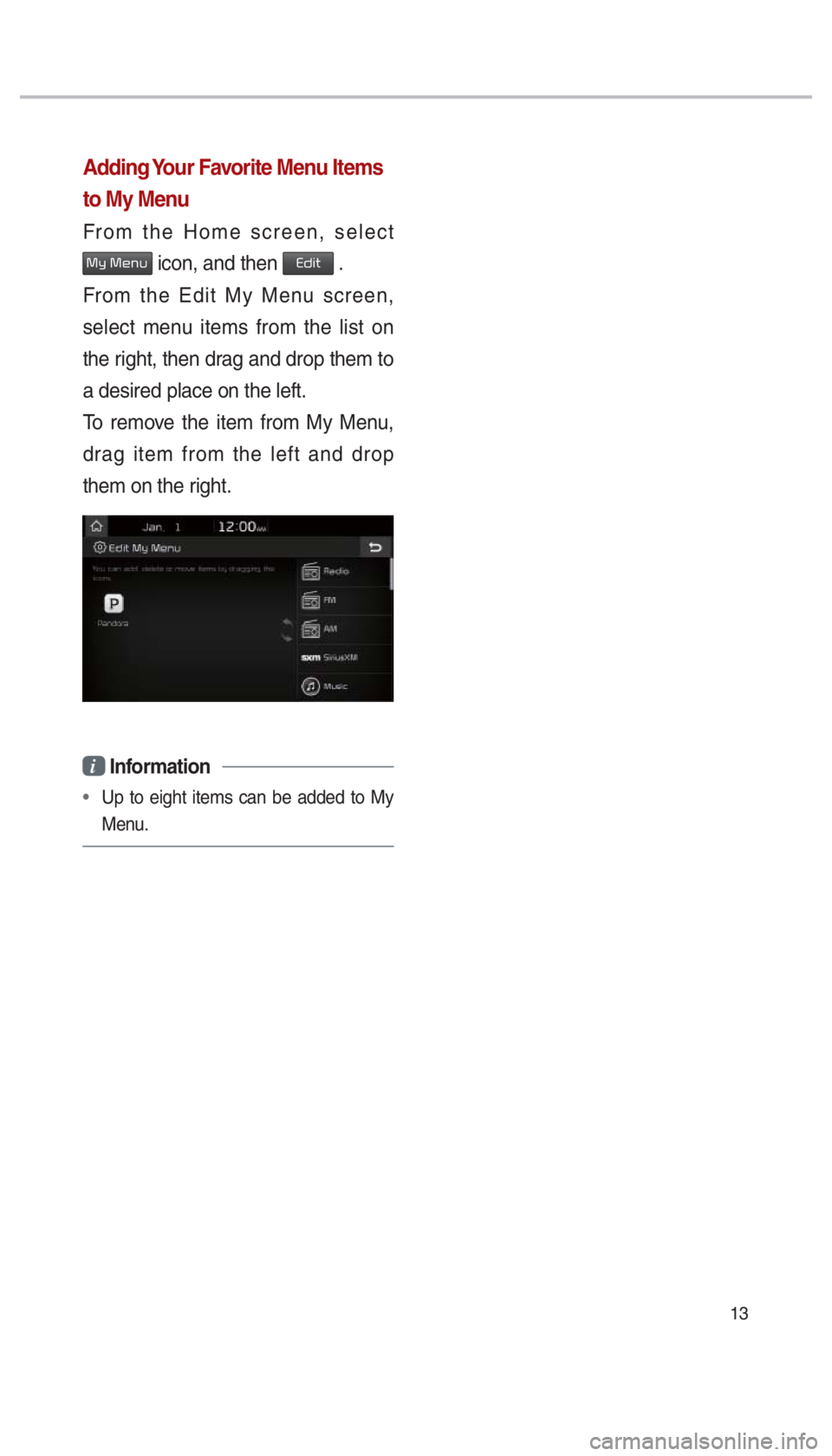

Adding Your Favorite Menu Items
to My Menu
From the Home screen, select
0030005C00030030004800510058 icon, and then 00280047004C0057 .
From the Edit My Menu screen,
select menu items from the list on
the right, then drag and drop them to
a desired place on the left.
To remove the item from My Menu,
drag item from the left and drop
them on the right.
i Information
Up to eight items can be added to My
Men
u.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 17 of 52
14
002900300012002400300003000B005A004C0057004B0003002B00270003003500440047004C005200370030000C
You can access the radio player either by pressing the 003500240027002C0032 key or by
selecting the Radio menu from All Menus on the Home screen.

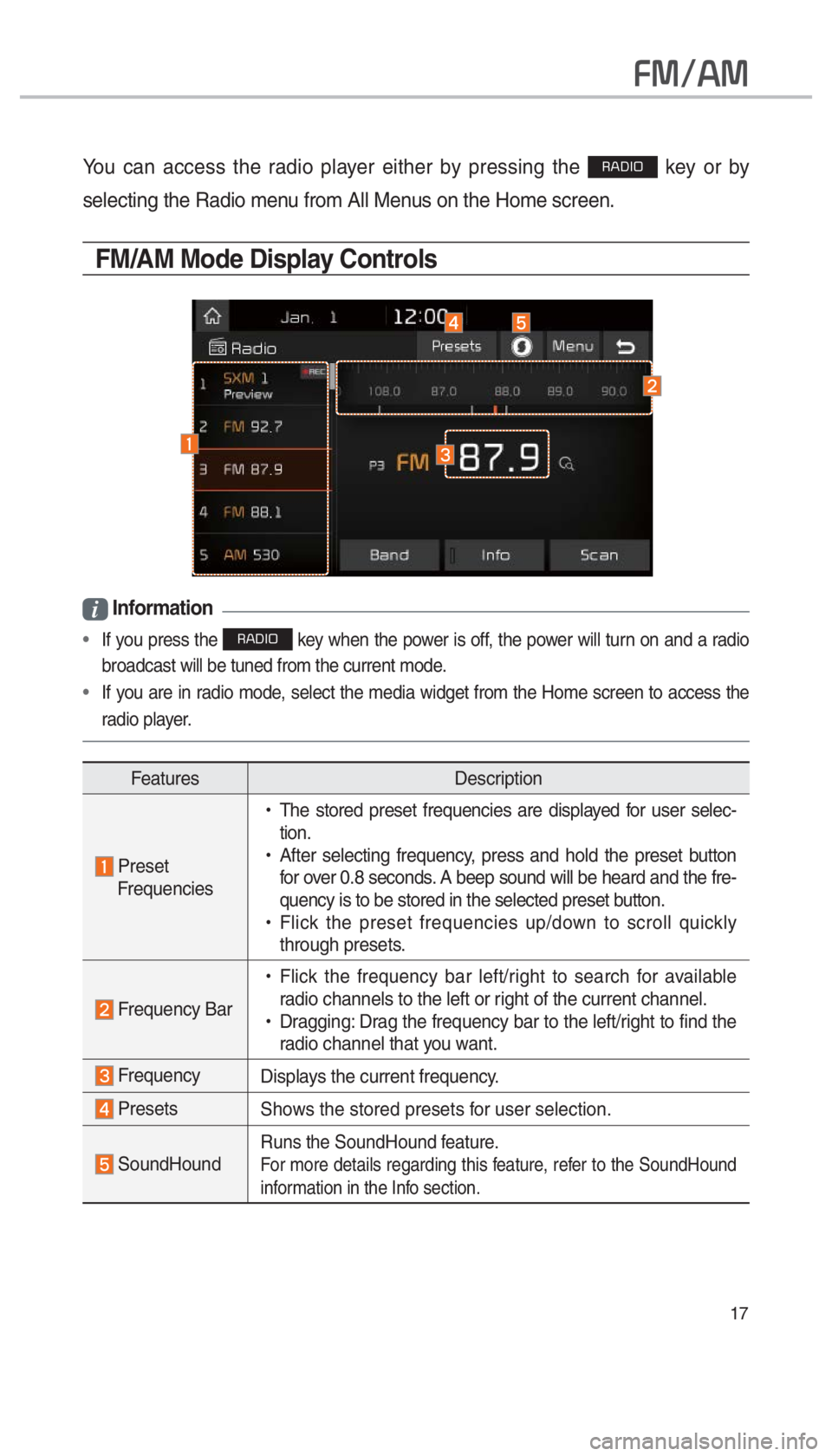

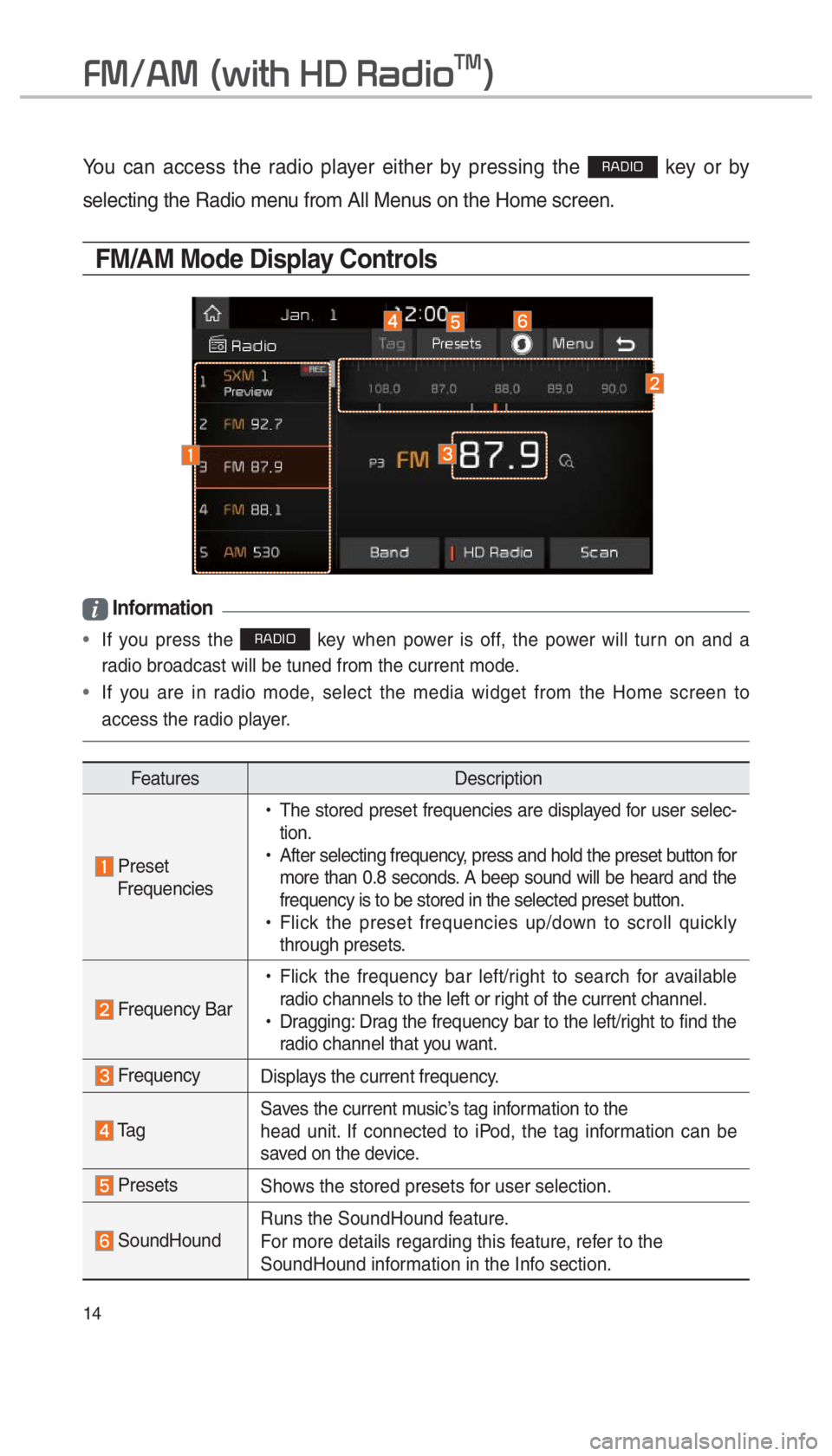

FM/AM Mode Display Controls
i Information
If you press the 003500240027002C0032 key when power is off, the power will turn on and a
radio broadcast will be tuned from the current mode.
If you are in radio mode, select the media widget from the Home screen to
access the r
adio player.
Features Description
Preset
Frequencies
!Ÿ
The stored preset frequencies are displayed for user selec-
tion.
!Ÿ
After selecting frequency, press and hold the preset button for
more than 0.8 seconds. A beep sound will be heard and the
frequency is to be stored in the selected preset button.
!Ÿ
Flick the preset frequencies up/down to scroll quickly
through presets.
Frequency Bar
!Ÿ
Flick the frequency bar left/right to search for available
radio channels to the left or right of the current channel.
!Ÿ
Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency.
Ta gSaves the current music’s tag information to the
head unit. If connected to iPod, the tag information can be
saved on the device.
Presets
Shows the stored presets for user selection.
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 18 of 52
15

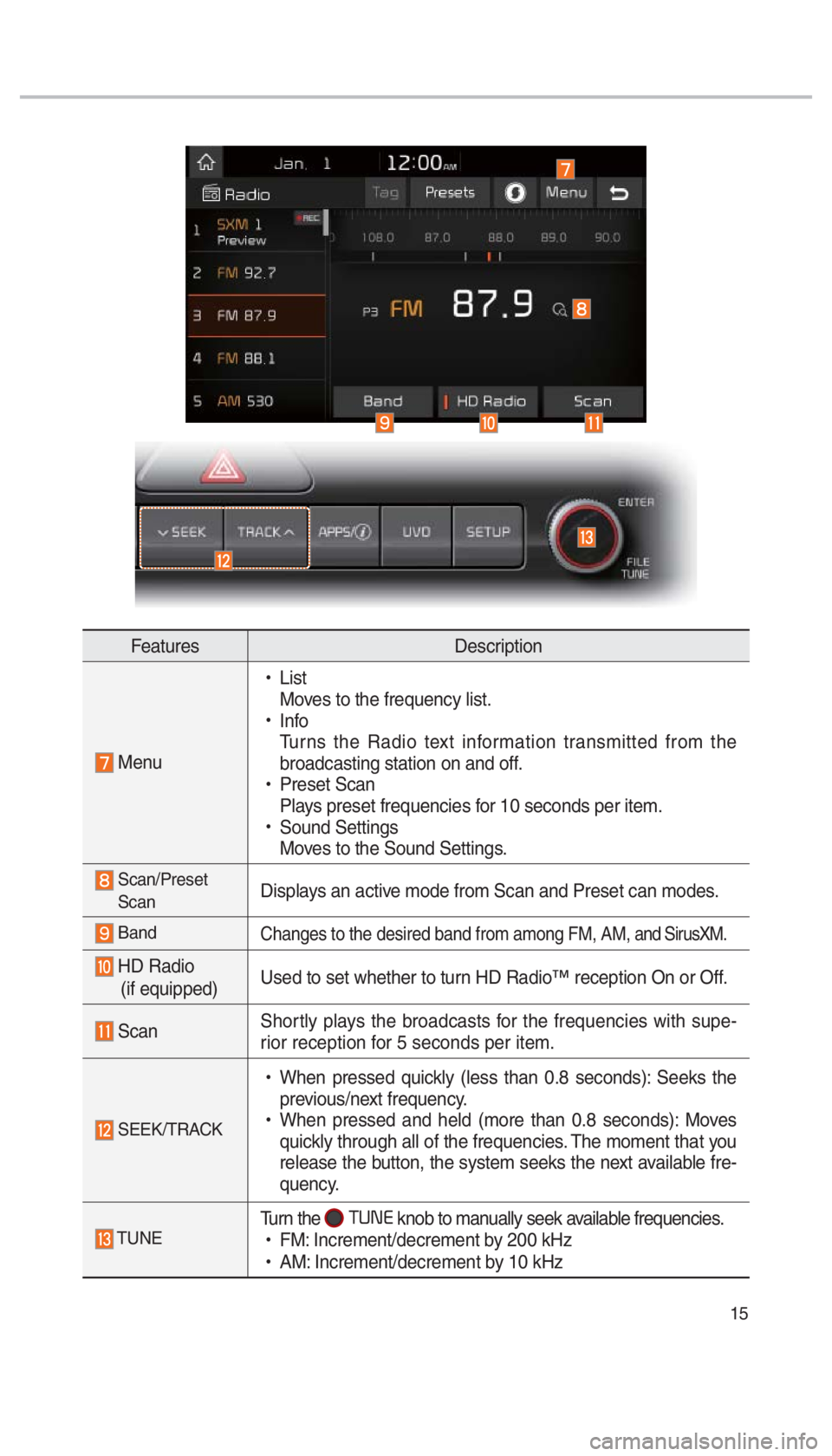

FeaturesDescription
Menu
!Ÿ
List
Moves to the frequency list.
!Ÿ
Info
Turns the Radio text information transmitted from the
broadcasting station on and off.
!Ÿ
Preset Scan
Plays preset frequencies for 10 seconds per item.
!Ÿ
Sound Settings
Moves to the Sound Settings.
Scan/Preset
ScanDisplays an active mode from Scan and Preset can modes.
BandChanges to the desired band from among FM, AM, and SirusXM.
HD Radio (if equipped) Used to set whether to turn HD Radio™ reception On or Off.
Scan
Shortly plays the broadcasts for the frequencies with supe-
rior reception for 5 seconds per item.
SEEK/TRACK
!Ÿ
When pressed quickly (less than 0.8 seconds): Seeks the
previous/next frequency.
!Ÿ
When pressed and held (more than 0.8 seconds): Moves
quickly through all of the frequencies. The moment that you
release the button, the system seeks the next available fre-
quency.
TUNETurn the 0037003800310028
knob to manually seek available frequencies.
!Ÿ
FM: Increment/decrement by 200 kHz
!Ÿ
AM: Increment/decrement by 10 kHz
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 19 of 52
16

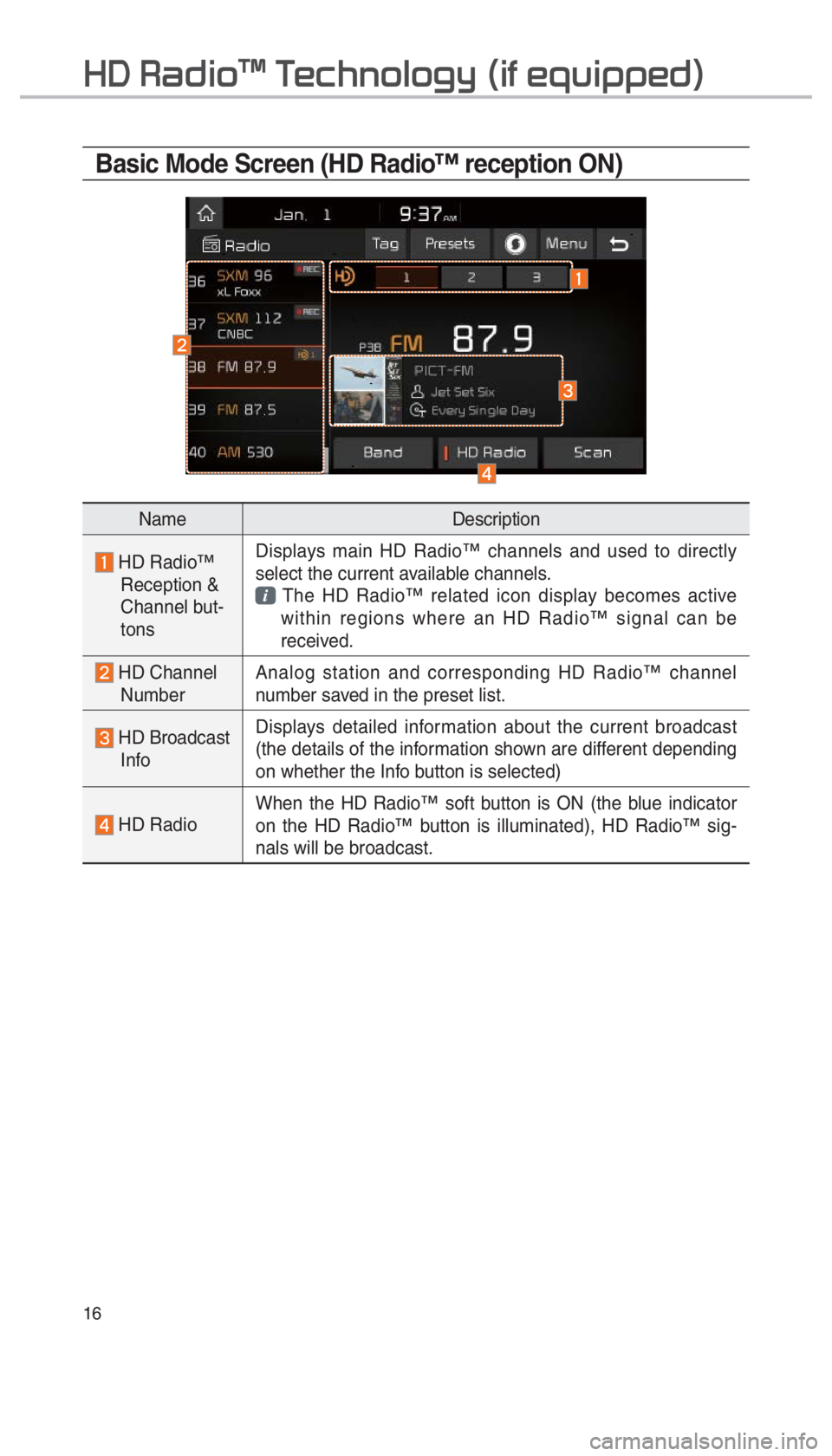

Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HD Radio™
Reception &
Channel but-
tons Displays main HD Radio™ channels and used to directly
select the current available channels.
The HD Radio™ related icon display becomes active
within regions where an HD Radio™ signal can be
received.
HD Channel Number Analog station and corresponding HD Radio™ channel
number saved in the preset list.
HD Broadcast
Info Displays detailed information about the current broadcast
(the details of the information shown are different depending
on whether the Info button is selected)
HD Radio
When the HD Radio™ soft button is ON (the blue indicator
on the HD Radio™ button is illuminated), HD Radio™ sig-
nals will be broadcast.
002B00270003003500440047004C0052043000030037
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 20 of 52
17
002900300012002400300003
You can access the radio player either by pressing the 003500240027002C0032 key or by
selecting the Radio menu from All Menus on the Home screen.
FM/AM Mode Display Controls
i Information
If you press the 003500240027002C0032 key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
If you are in radio mode, select the media widget from the Home screen to access the
r
adio player.
Features Description
Preset
Frequencies
!Ÿ
The stored preset frequencies are displayed for user selec-
tion.
!Ÿ
After selecting frequency, press and hold the preset button
for over 0.8 seconds. A beep sound will be heard and the fre-
quency is to be stored in the selected preset button.
!Ÿ
Flick the preset frequencies up/down to scroll quickly
through presets.
Frequency Bar
!Ÿ
Flick the frequency bar left/right to search for available
radio channels to the left or right of the current channel.
!Ÿ
Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency.
PresetsShows the stored presets for user selection.
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
