KIA SPORTAGE 2017 Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SPORTAGE, Model: KIA SPORTAGE 2017Pages: 52, PDF Size: 1.06 MB
Page 41 of 52
38
0039

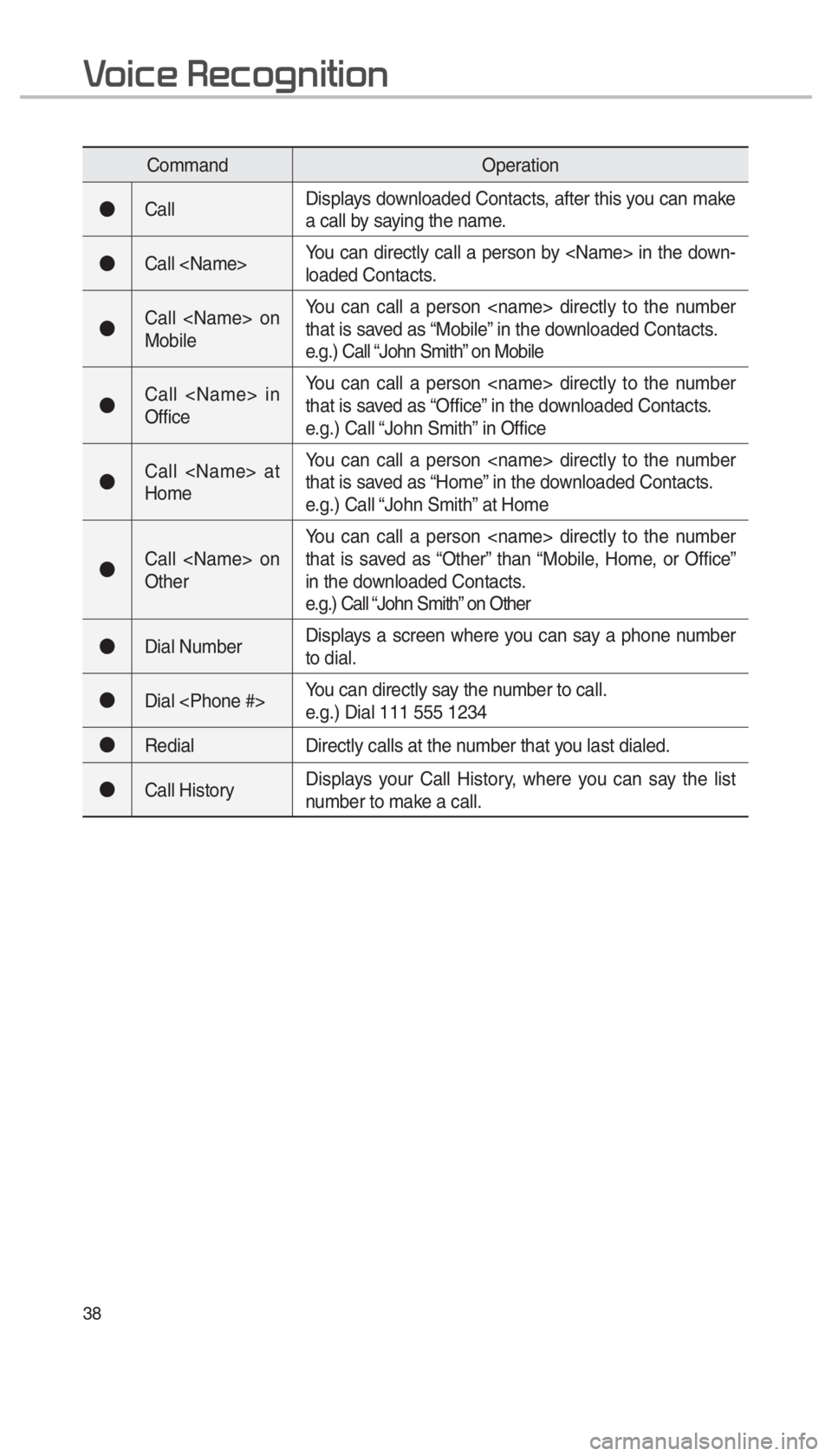

CommandOperation
●CallDisplays downloaded Contacts, after this you can make
a call by saying the name.
●Call
loaded Contacts.
●Call
MobileYou can call a person
that is saved as “Mobile” in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call
OfficeYou can call a person
that is saved as “Office” in the downloaded Contacts.
e.g.) Call “John Smith” in Office
●Call
HomeYou can call a person
that is saved as “Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call
OtherYou can call a person
that is saved as “Other” than “Mobile, Home, or Office”
in the downloaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number
Displays a screen where you can say a phone number
to dial.
●Dial
e.g.) Dial 111 555 1234
●Redial
Directly calls at the number that you last dialed.
●Call HistoryDisplays your Call History, where you can say the list
number to make a call.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 42 of 52
39
Radio Commands
CommandOperation
●RadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
●FM
Plays FM radio.
●FM
<87.5~107.9>Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●SiriusXM
<0~999>Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM 23: SiriusXM Twenty three
●AM
Plays AM radio.
●AM
<530~1710>Tunes to AM
e.g.) AM 530: AM Five thirty
○Preset <1~40> Tunes to your preset stations (1 to 40).
○Channel
<0~999>In SiriusXM™ Radio mode, turns on the
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 43 of 52
40
0039

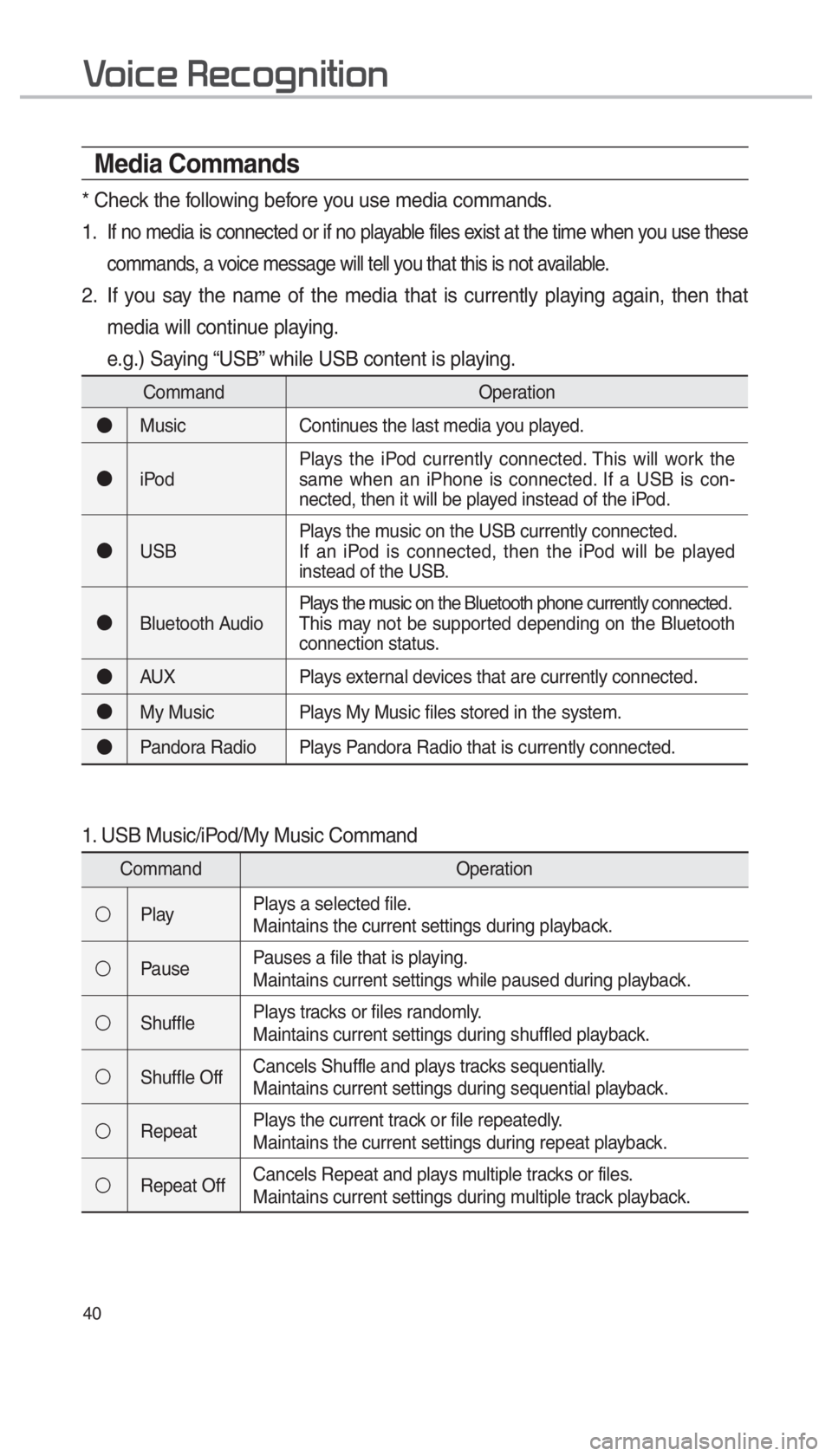

Media Commands
* Check the following before you use media commands.
1.
If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available.
2. If you say the name of the media that is currently playing again, then that media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
●MusicContinues the last media you played.
●iPodPlays the iPod currently connected. This will work the
same when an iPhone is connected. If a USB is con-
nected, then it will be played instead of the iPod.
●USBPlays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played
instead of the USB.
●Bluetooth AudioPlays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth
connection status.
●AUX
Plays external devices that are currently connected.
●My Music Plays My Music files stored in the system.
●Pandora Radio Plays Pandora Radio that is currently connected.
1. USB Music/iPod/My Music Command
Command Operation
○PlayPlays a selected file.
Maintains the current settings during playback.
○PausePauses a file that is playing.
Maintains current settings while paused during playback.
○ShufflePlays tracks or files randomly.
Maintains current settings during shuffled playback.
○Shuffle OffCancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
○RepeatPlays the current track or file repeatedly.
Maintains the current settings during repeat playback.
○Repeat OffCancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 44 of 52
41

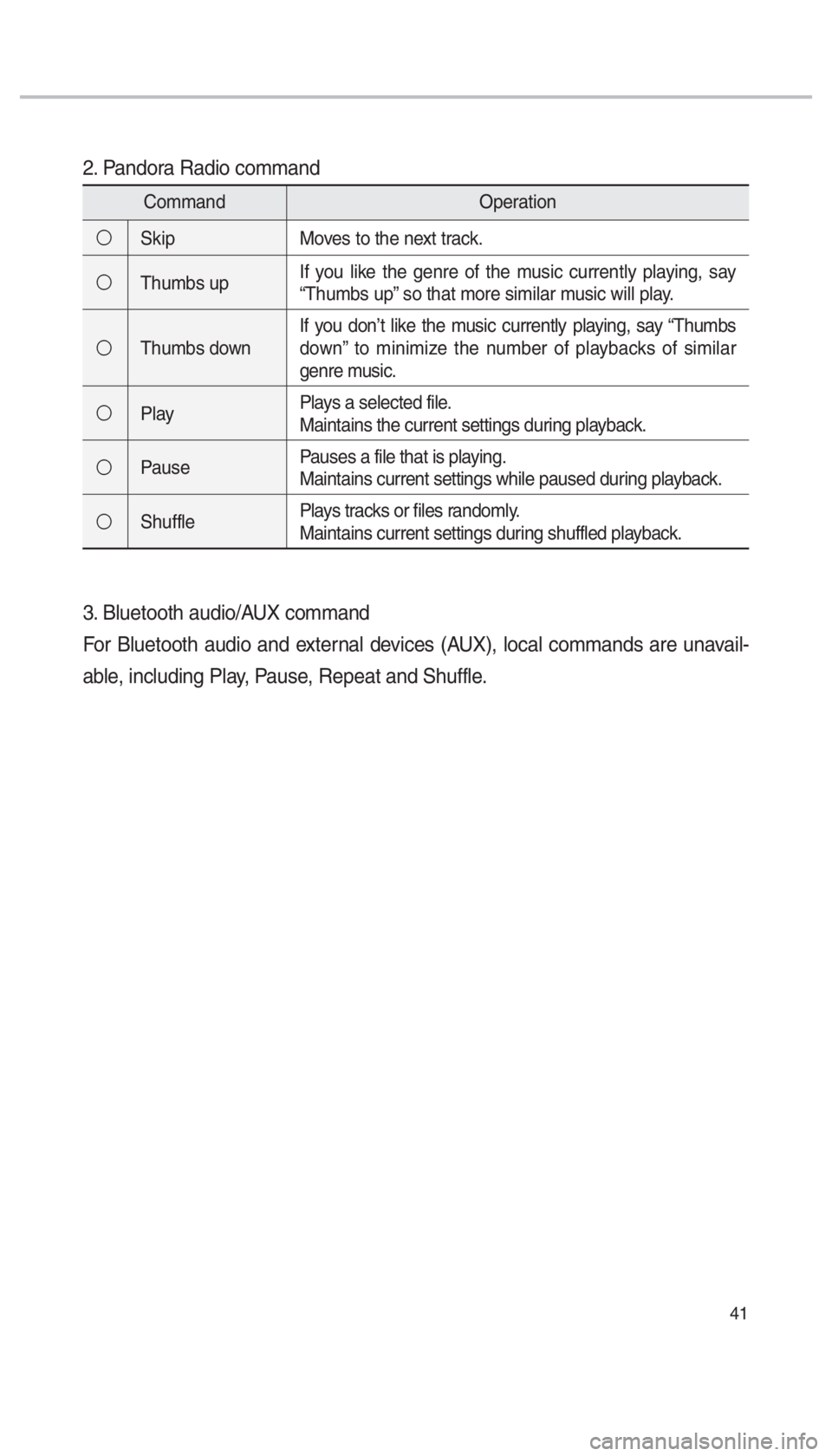

2. Pandora Radio command
CommandOperation
○SkipMoves to the next track.
○Thumbs upIf you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
○Thumbs downIf you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
○Play
Plays a selected file.
Maintains the current settings during playback.
○PausePauses a file that is playing.
Maintains current settings while paused during playback.
○ShufflePlays tracks or files randomly.
Maintains current settings during shuffled playback.
3. Bluetooth audio/AUX command
For Bluetooth audio and external devices (AUX), local commands are unavail-
able, including Play, Pause, Repeat and Shuffle.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 45 of 52
42
0039
Other Commands List
(Commands used in List / Help)
CommandOperation
●HelpMoves to the voice recognition help screen.
All available commands can then be identified and used.
○Line 1~4
(One~Four)When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
○Yes / No
When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
○Previous/NextWhen four or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
○Manual InputWhen Dial entry search results are displayed, this com-
mand is used to search manually, rather than to search
with a voice command.
Voice recognition stops after this command is used.
○Go Back
Moves to the previous screen.
●Exit Ends the voice recognition.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 46 of 52
43
0036004C0055004C00030028005C0048005600030029005500480048

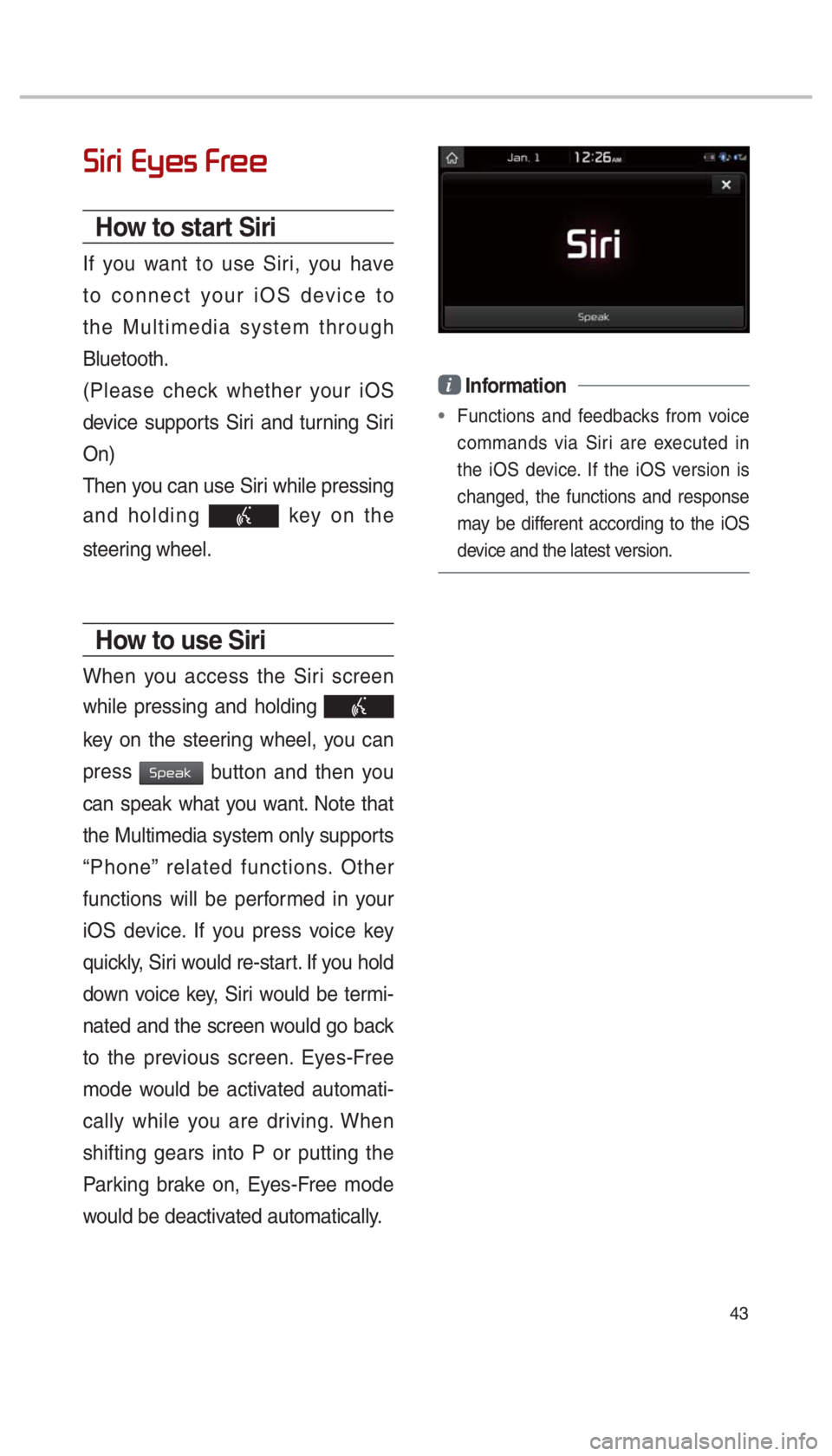

How to start Siri
If you want to use Siri, you have
to connect your iOS device to
the Multimedia system through
Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel, you can
press
0036005300480044004E button and then you
can speak what you want. Note that
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
quickly, Siri would re-start. If you hold
down voice key, Siri would be termi-
nated and the screen would go back
to the previous screen. Eyes-Free
mode would be activated automati-
cally while you are driving. When
shifting gears into P or putting the
Parking brake on, Eyes-Free mode
would be deactivated automatically.
i Information
Functions and feedbacks from voice
commands via Sir
i are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 47 of 52
44
00290024

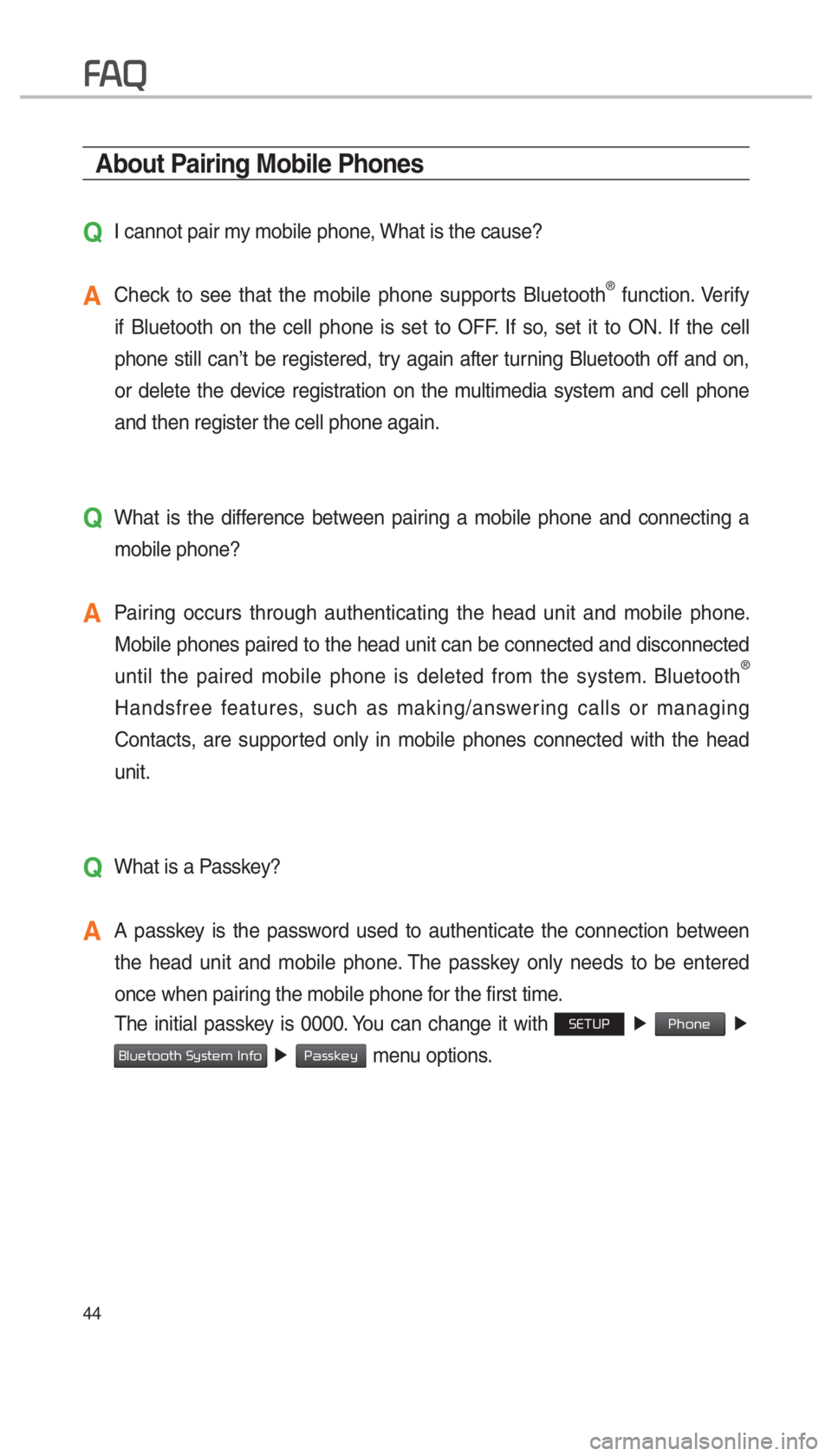

About Pairing Mobile Phones
QI cannot pair my mobile phone, What is the cause?
A
Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the multimedia system and cell phone
and then register the cell phone again.
Q
What is the difference between pairing a mobile phone and connecting a mobile phone?
A
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing
Contacts, are supported only in mobile phones connected with the head
unit.
Q
What is a Passkey?
A
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. You can change it with
00360028003700380033 Ü
0033004B005200510048 Ü
0025004F005800480057005200520057004B00030036005C00560057004800500003002C005100490052 Ü 0033004400560056004E0048005C
menu options.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 48 of 52
![KIA SPORTAGE 2017 Quick Reference Guide 45
About Making/Answering Phone Calls
Q
How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed.
To answer the incoming call, select the
002400460](/img/2/54584/w960_54584-47.png "KIA SPORTAGE 2017 Quick Reference Guide 45
About Making/Answering Phone Calls
Q
How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed.
To answer the incoming call, select the
002400460")
45

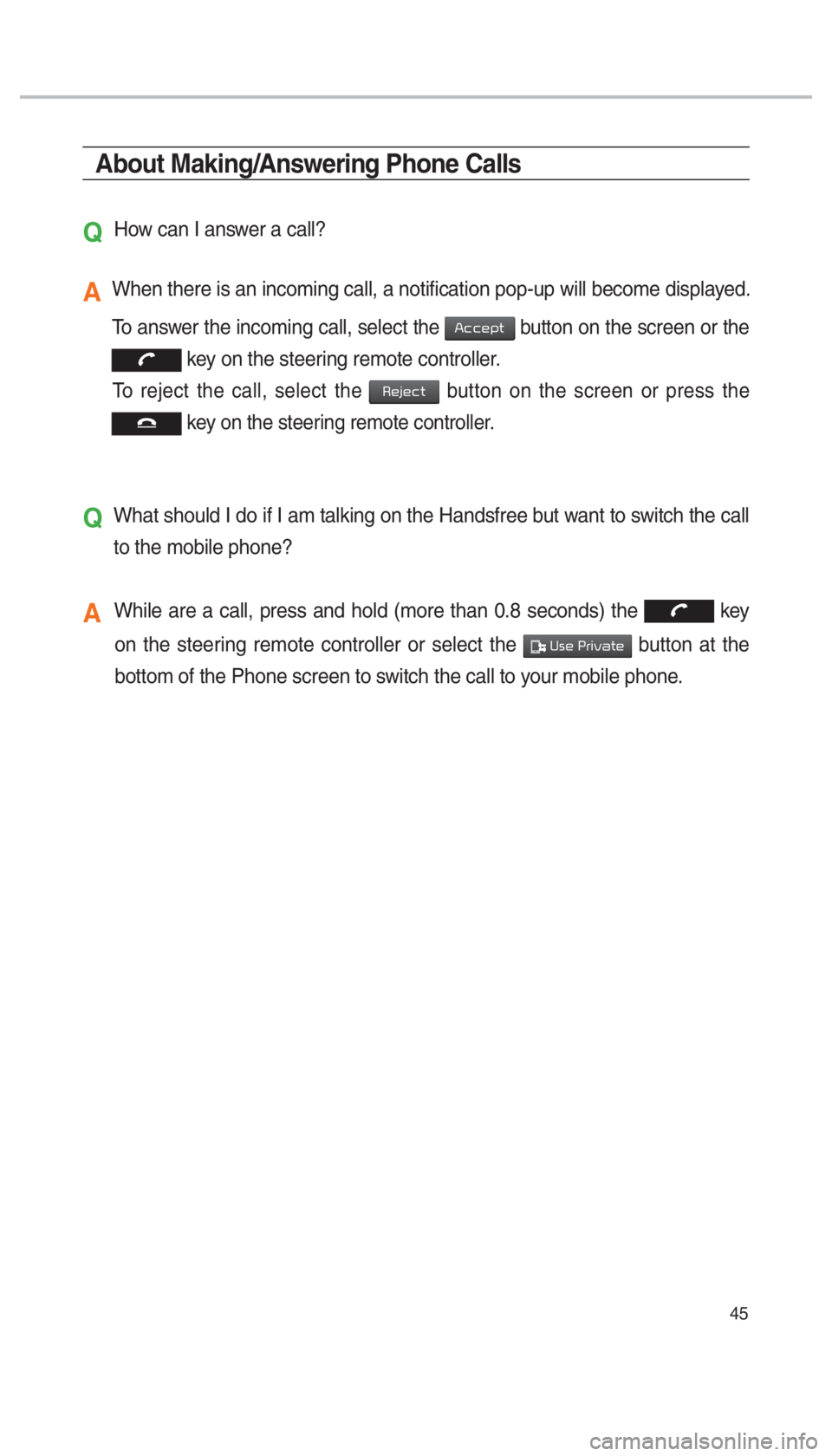

About Making/Answering Phone Calls
Q
How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed.
To answer the incoming call, select the
002400460046004800530057 button on the screen or the
key on the steering remote controller.
To reject the call, select the 00350048004D004800460057 button on the screen or press the
key on the steering remote controller.
Q What should I do if I am talking on the Handsfree but want to switch the call
to the mobile phone?
A
While are a call, press and hold (more than 0.8 seconds) the key
on the steering remote controller or select the
0003003800560048000300330055004C0059004400570048 button at the
bottom of the Phone screen to switch the call to your mobile phone.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 49 of 52
46

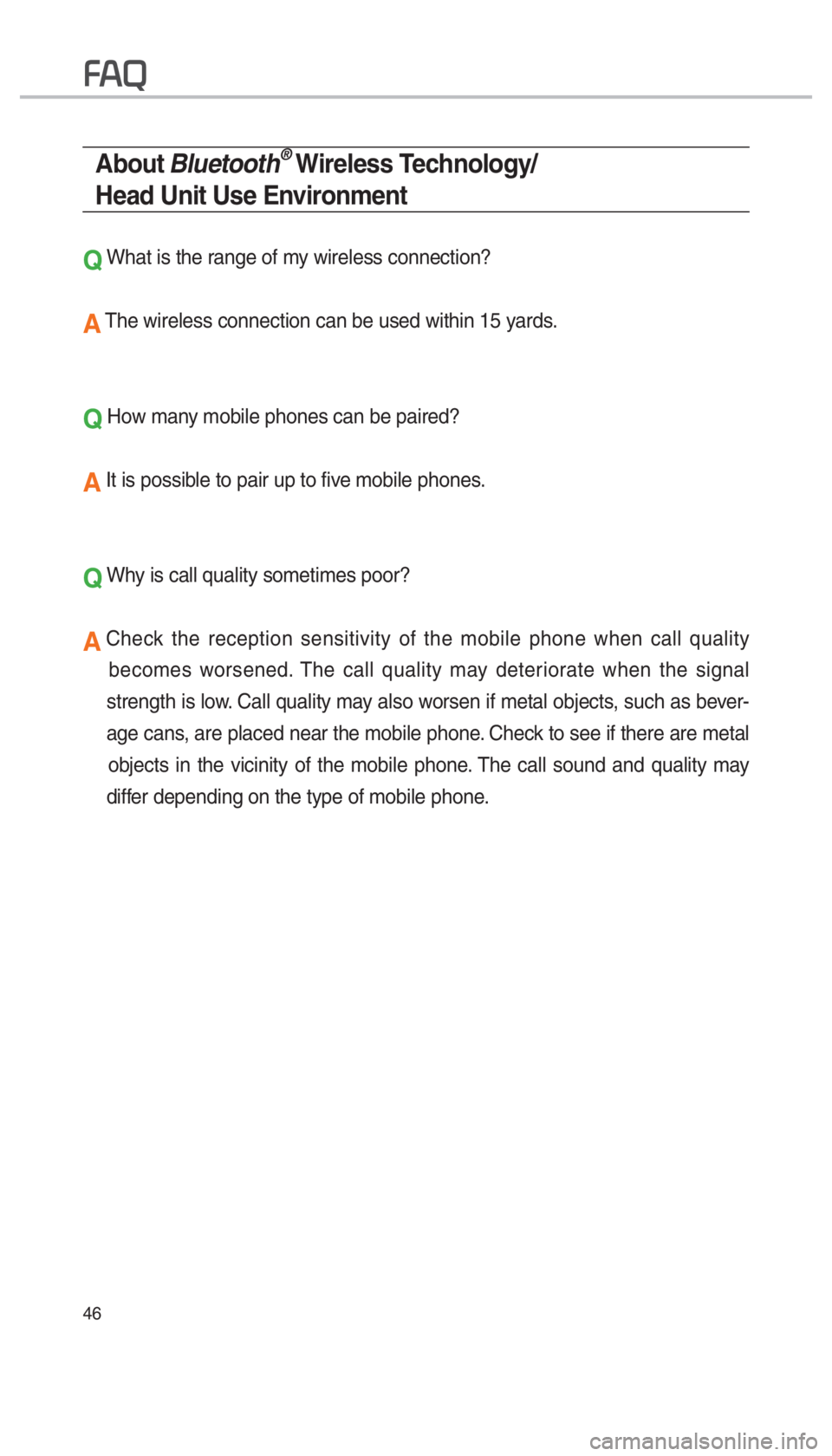

About Bluetooth® Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bever-
age cans, are placed near the mobile phone. Check to see if there are metal
objects in the vicinity of the mobile phone. The call sound and quality may
differ depending on the type of mobile phone.
00290024
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 50 of 52
0030002800300032
