KIA SPORTAGE 2017 Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SPORTAGE, Model: KIA SPORTAGE 2017Pages: 52, PDF Size: 1.06 MB
Page 31 of 52
28
0025004F005800480057005200520057004B00030026005200510051004800460057004C00520051

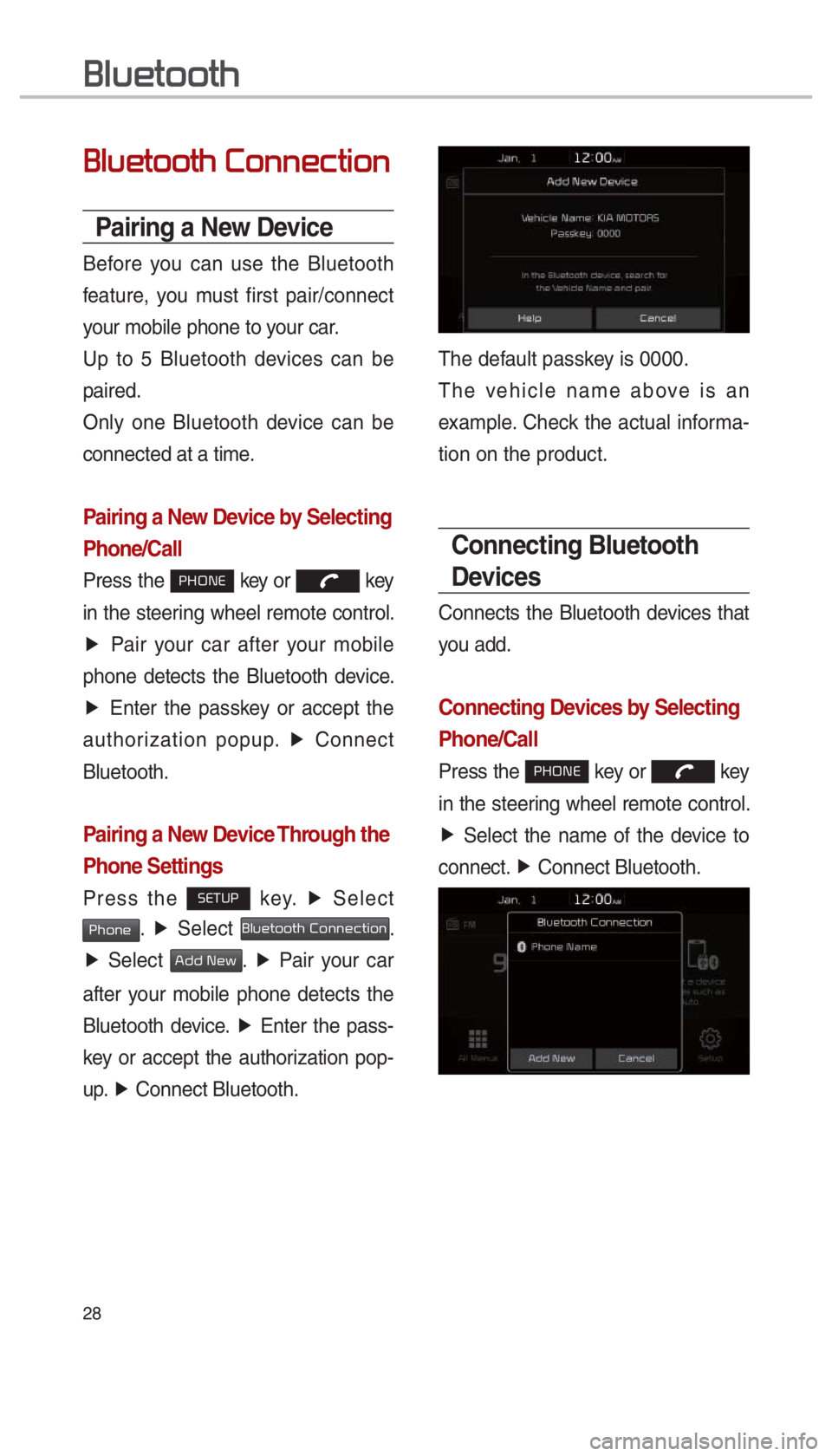

Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the 0033002B003200310028 key or key
in the steering wheel remote control.
Ü Pair your car after your mobile
phone detects the Bluetooth device.
Ü Enter the passkey or accept the
authorization popup. Ü
Connect
Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the 00360028003700380033 key. Ü
Select
0033004B005200510048. Ü
Select 0025004F005800480057005200520057004B00030026005200510051004800460057004C00520051.
Ü Select
002400470047000300310048005A. Ü
Pair your car
after your mobile phone detects the
Bluetooth device. Ü
Enter the pass-
key or accept the authorization pop-
up. Ü
Connect Bluetooth.
The default passkey is 0000.
The vehicle name above is an
example. Check the actual informa-
tion on the product.
Connecting Bluetooth
Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Press the 0033002B003200310028 key or key
in the steering wheel remote control.
Ü Select the name of the device to
connect. Ü
Connect Bluetooth.
0025004F005800480057005200520057004B
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 32 of 52
29

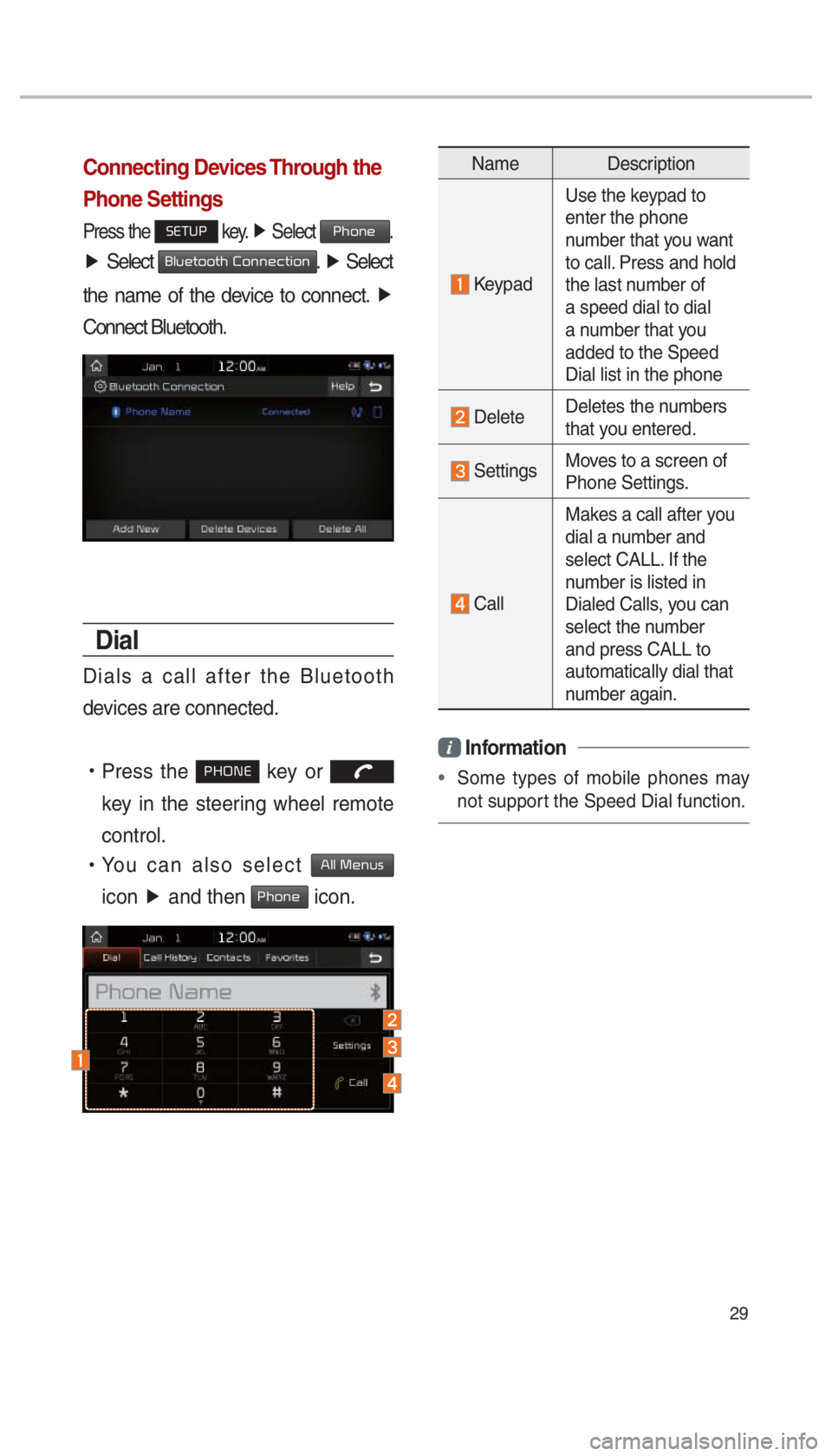

Connecting Devices Through the
Phone Settings
Press the 00360028003700380033 key. Ü
Select 0033004B005200510048.
Ü Select
0025004F005800480057005200520057004B00030026005200510051004800460057004C00520051. Ü
Select
the name of the device to connect. Ü
Connect Bluetooth.
Dial
Dials a call after the Bluetooth
devices are connected.
!Ÿ
Press the
0033002B003200310028 key or
key in the steering wheel remote
control.
!Ÿ
You can also select
0024004F004F000300300048005100580056
icon Ü
and then
0033004B005200510048 icon.
Name Description
Keypad Use the keypad to
enter the phone
number that you want
to call. Press and hold
the last number of
a speed dial to dial
a number that you
added to the Speed
Dial list in the phone
Delete
Deletes the numbers
that you entered.
Settings
Moves to a screen of
Phone Settings.
CallMakes a call after you
dial a number and
select CALL. If the
number is listed in
Dialed Calls, you can
select the number
and press CALL to
automatically dial that
number again.
Information
Some types of mobile phones may
not suppor
t the Speed Dial function.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 33 of 52
30
0025004F005800480057005200520057004B

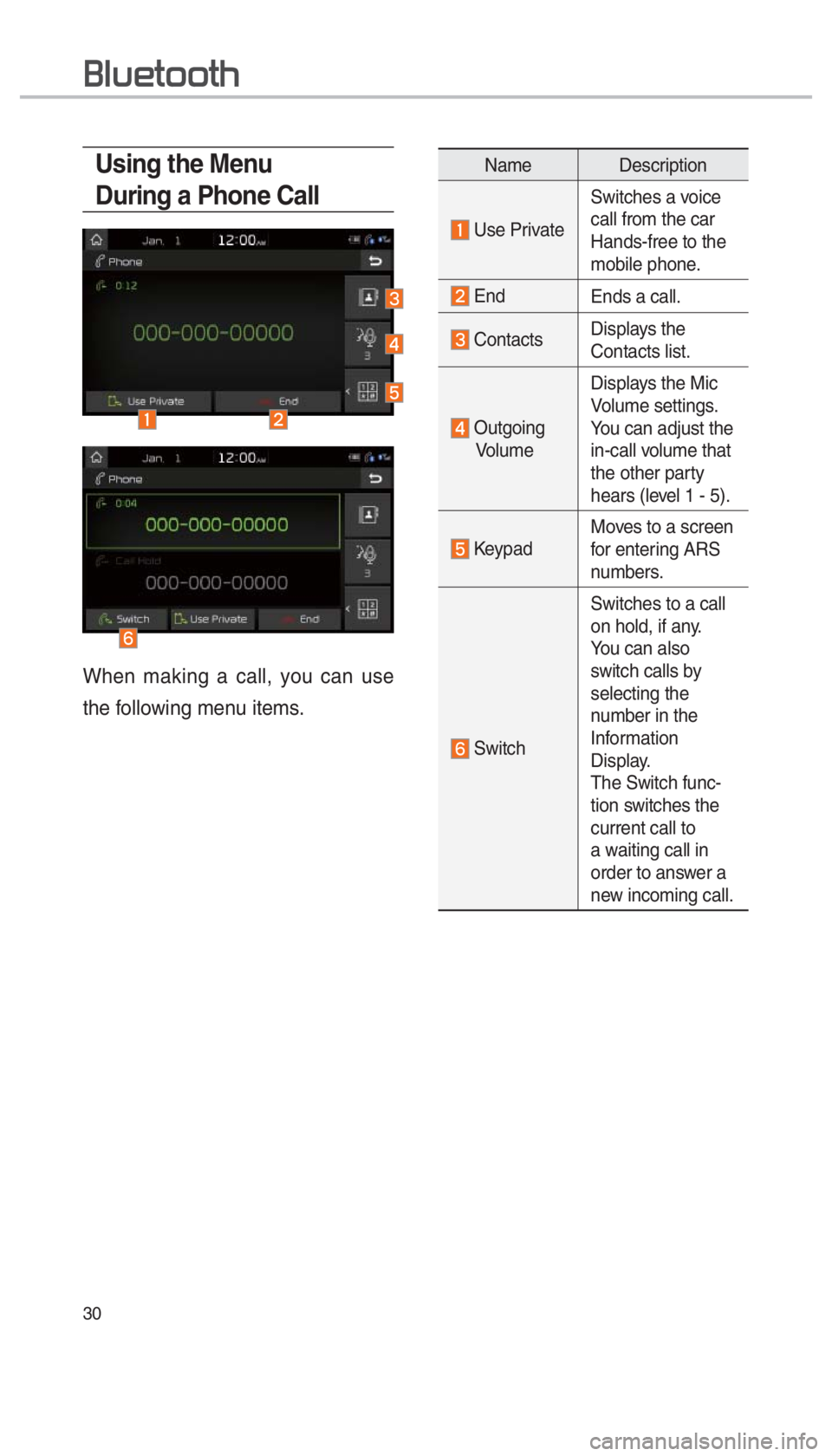

Using the Menu
During a Phone Call
When making a call, you can use
the following menu items.
Name Description
Use PrivateSwitches a voice
call from the car
Hands-free to the
mobile phone.
End
Ends a call.
Contacts Displays the
Contacts list.
Outgoing
Volume Displays the Mic
Volume settings.
You can adjust the
in-call volume that
the other party
hears (level 1 - 5).
Keypad
Moves to a screen
for entering ARS
numbers.
SwitchSwitches to a call
on hold, if any.
You can also
switch calls by
selecting the
number in the
Information
Display.
The Switch func-
tion switches the
current call to
a waiting call in
order to answer a
new incoming call.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 34 of 52
31

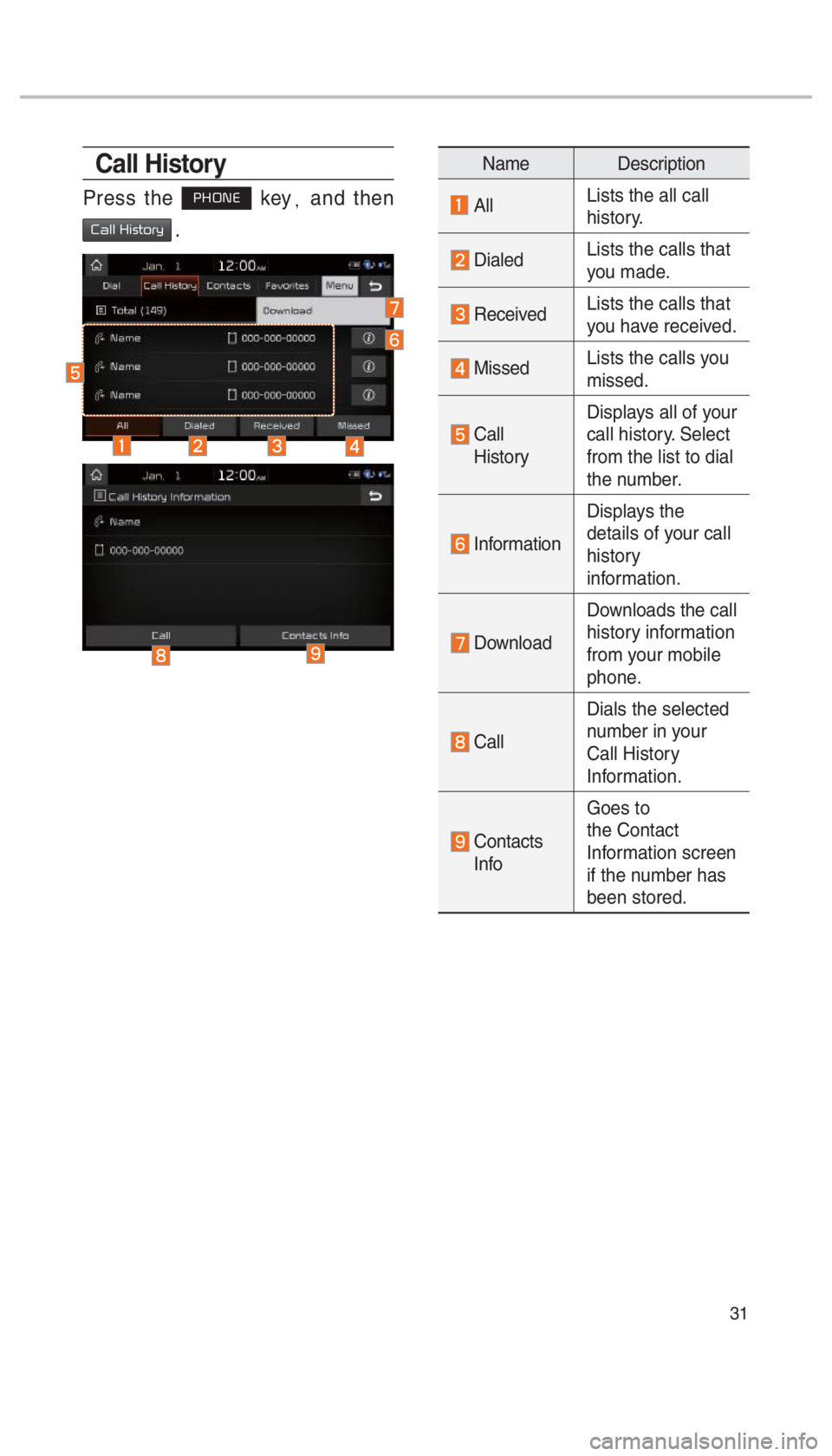

Call History
Press the 0033002B003200310028 key
and then
00260044004F004F0003002B004C0056005700520055005C .
Name Description
All Lists the all call
history.
DialedLists the calls that
you made.
Received Lists the calls that
you have received.
MissedLists the calls you
missed.
Call
History Displays all of your
call history. Select
from the list to dial
the number.
Information
Displays the
details of your call
history
information.
DownloadDownloads the call
history information
from your mobile
phone.
CallDials the selected
number in your
Call History
Information.
Contacts
Info Goes to
the Contact
Information screen
if the number has
been stored.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 35 of 52
32

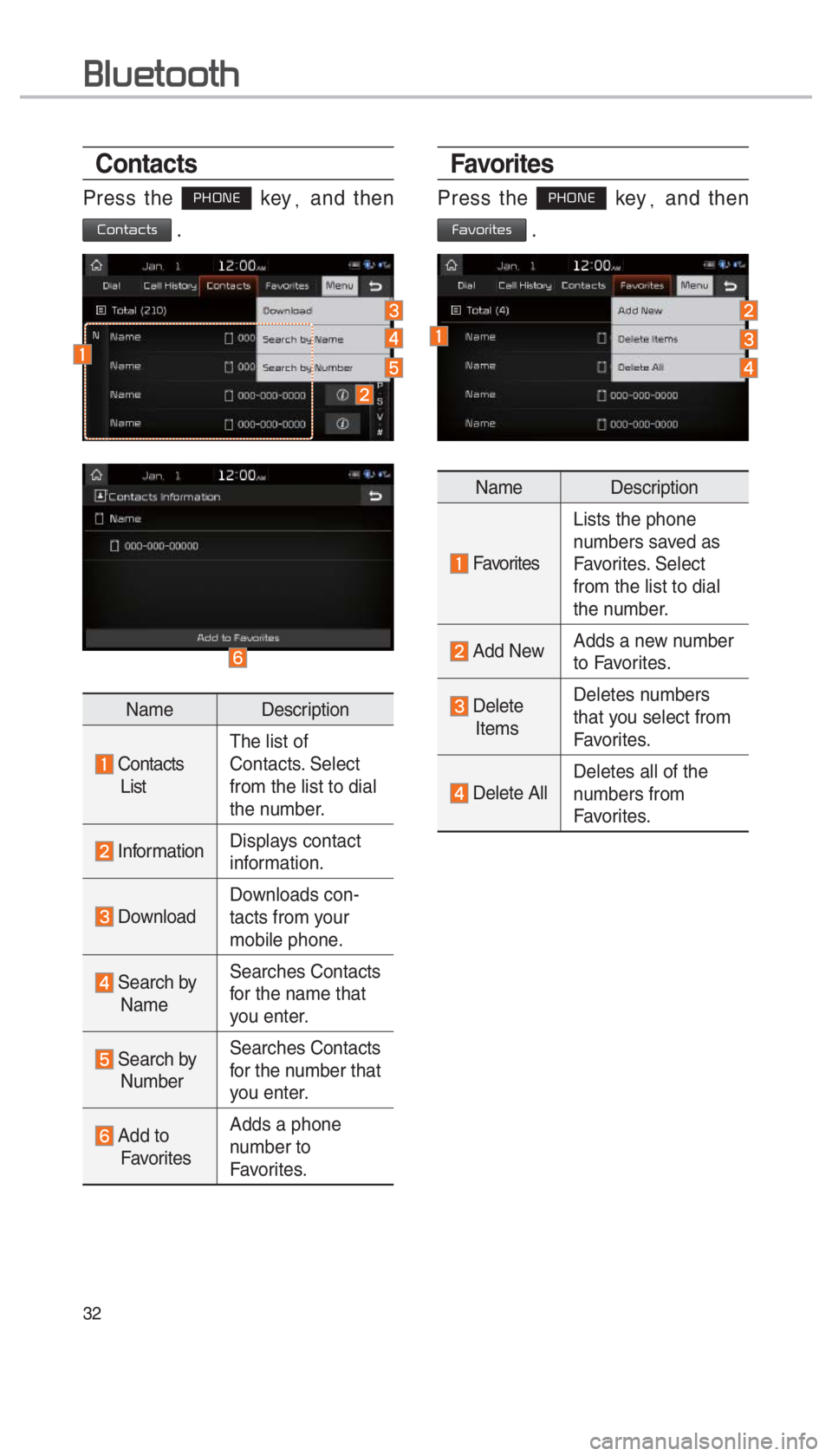

Favorites
Press the 0033002B003200310028 key
and then
00290044005900520055004C005700480056 .
Name Description
Favorites Lists the phone
numbers saved as
Favorites. Select
from the list to dial
the number.
Add New
Adds a new number
to Favorites.
Delete
Items Deletes numbers
that you select from
Favorites.
Delete All
Deletes all of the
numbers from
Favorites.
Contacts
Press the 0033002B003200310028 key
and then
00260052005100570044004600570056 .
Name Description
Contacts
List The list of
Contacts. Select
from the list to dial
the number.
Information
Displays contact
information.
Download Downloads con-
tacts from your
mobile phone.
Search by
Name Searches Contacts
for the name that
you enter.
Search by
Number Searches Contacts
for the number that
you enter.
Add to
Favorites Adds a phone
number to
Favorites.
0025004F005800480057005200520057004B
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 36 of 52
33
0033005500480046004400580057004C00520051005600030035004800540058004C005500480047
0049005200550003003600580046004600480056005600490058004F00030039
0035004800460052004A0051004C0057004C00520051

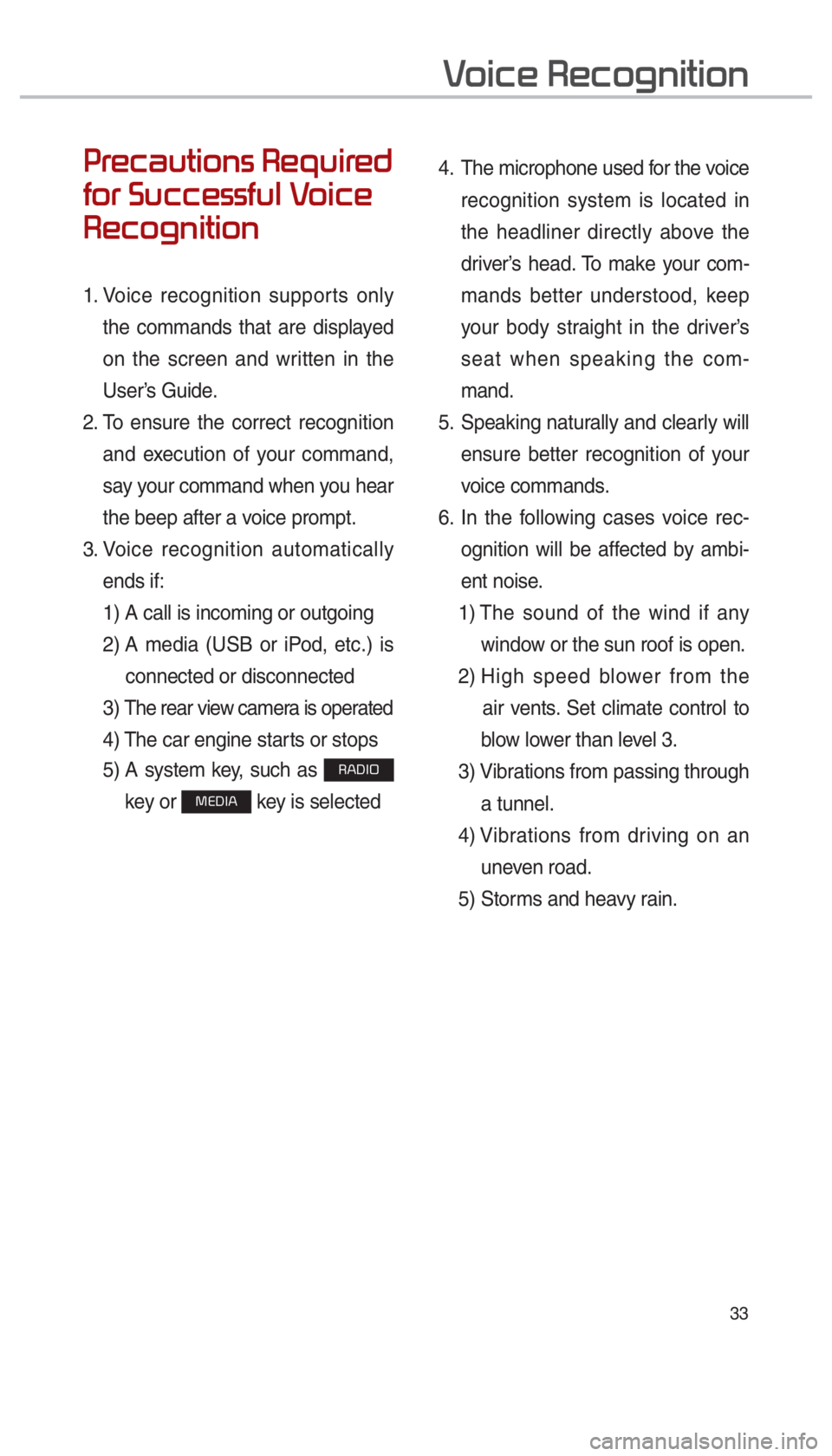

1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if: 1) A call is incoming or outgoing
2) A media (USB or iPod, etc.) is
connected or disconnected
3) The rear view camera is operated
4) The car engine starts or stops
5) A system key, such as
003500240027002C0032
key or 003000280027002C0024 key is selected
4.
The microphone used for the voice
recognition system is located in
the headliner directly above the
driver’s head. To make your com-
mands better understood, keep
your body straight in the driver’s
seat when speaking the com-
mand.
5. Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) High speed blower from the
air vents. Set climate control to
blow lower than level 3.
3) Vibrations from passing through
a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
0039
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 37 of 52
34
0039
00360057004400550057004C0051004A0012002800510047004C0051004A0003
00440051004700030036004800570057004C0051004A00030039
0035004800460052004A0051004C0057004C00520051

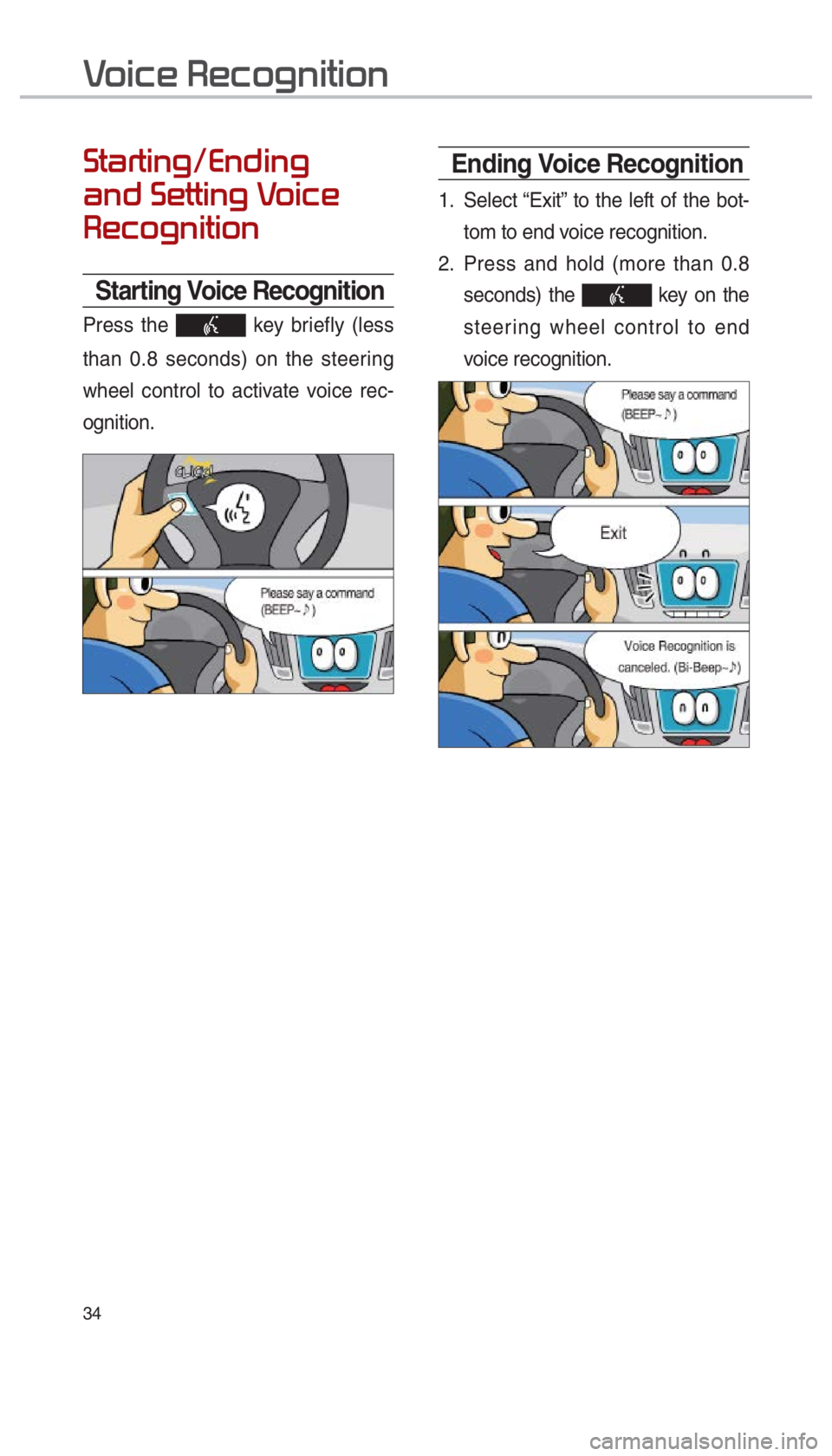

Starting Voice Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel control to activate voice rec-
ognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot- tom to end voice recognition.
2. Press and hold (more than 0.8 seconds) the
key on the
steering wheel control to end
voice recognition.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 38 of 52
35

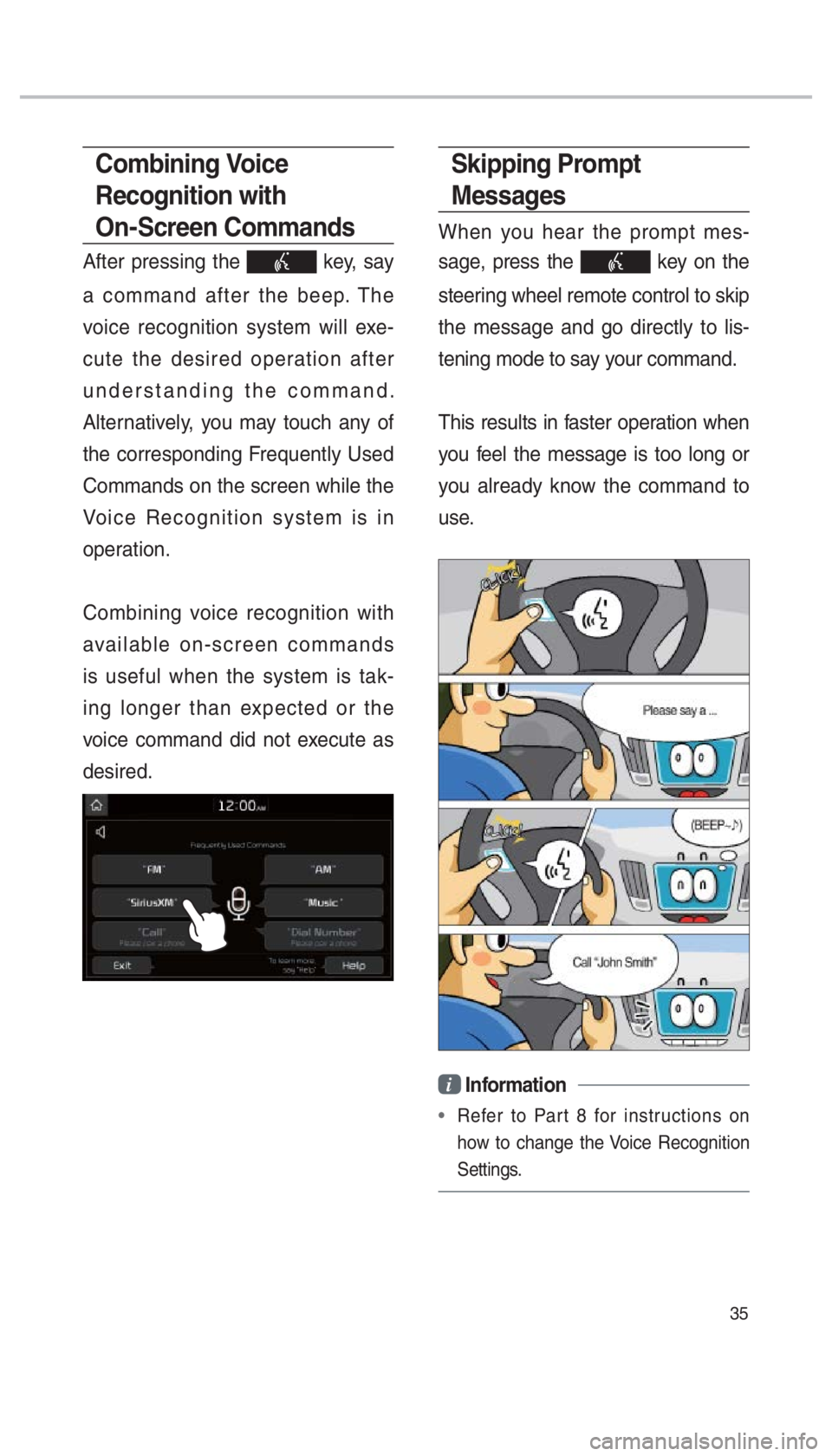

Skipping Prompt
Messages
When you hear the prompt mes-
sage, press the
key on the
steering wheel remote control to skip
the message and go directly to lis-
tening mode to say your command.
This results in faster operation when
you feel the message is too long or
you already know the command to
use.
i Information
Refer to Part 8 for instructions on
ho
w to change the Voice Recognition
Settings.
Combining Voice
Recognition with
On-Screen Commands
After pressing the key, say
a command after the beep. The
voice recognition system will exe-
cute the desired operation after
understanding the command.
Alternatively, you may touch any of
the corresponding Frequently Used
Commands on the screen while the
Voice Recognition system is in
operation.
Combining voice recognition with
available on-screen commands
is useful when the system is tak-
ing longer than expected or the
voice command did not execute as
desired.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 39 of 52
36
0039
0039

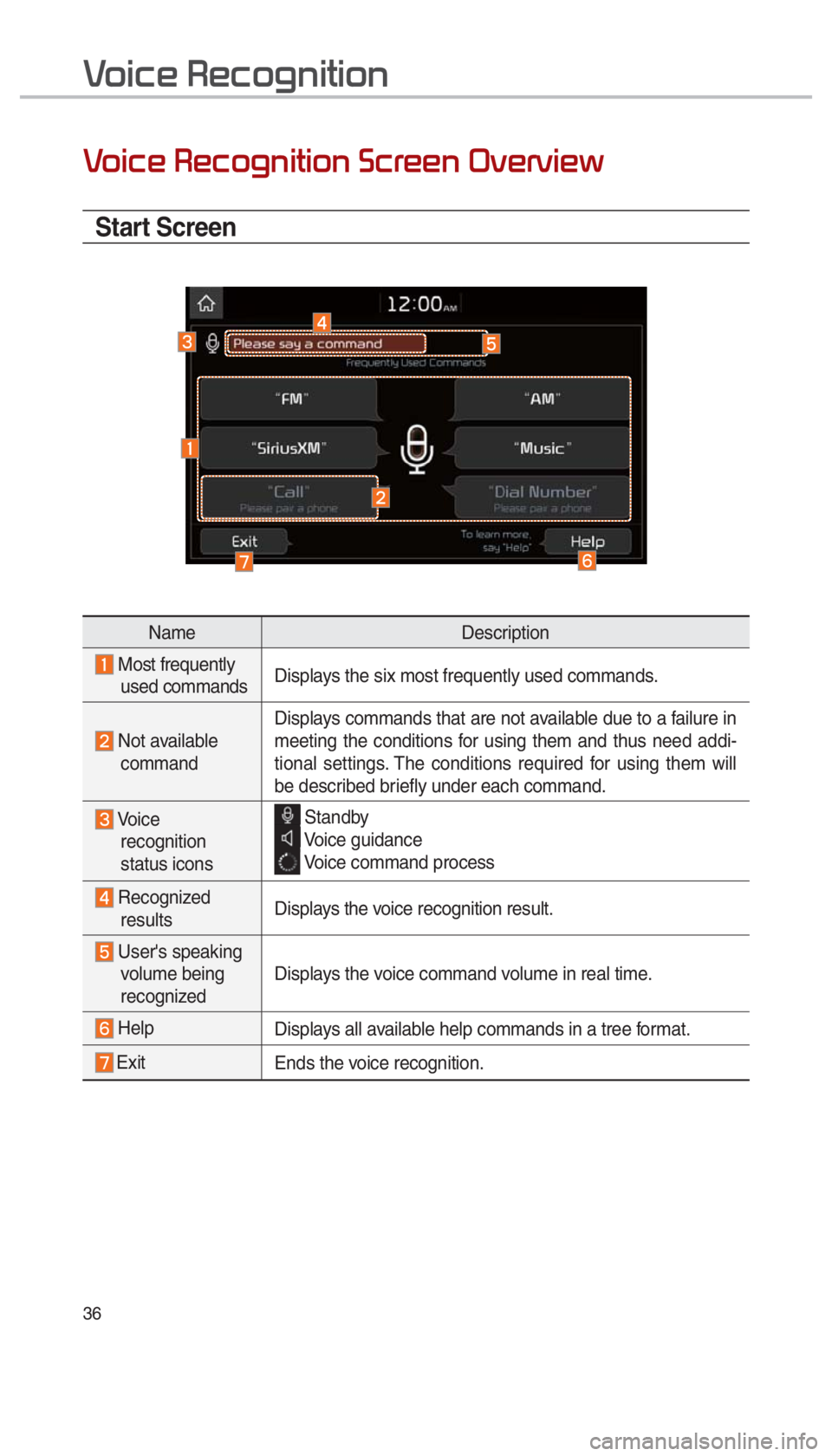

Start Screen
NameDescription
Most frequently
used commands Displays the six most frequently used commands.
Not available
command Displays commands that are not available due to a failure in
meeting the conditions for using them and thus need addi-
tional settings. The conditions required for using them will
be described briefly under each command.
Voice
recognition
status icons Standby Voice guidance Voice command process
Recognized
results Displays the voice recognition result.
User's speaking
volume being
recognized Displays the voice command volume in real time.
Help
Displays all available help commands in a tree format.
ExitEnds the voice recognition.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 40 of 52
37
0039

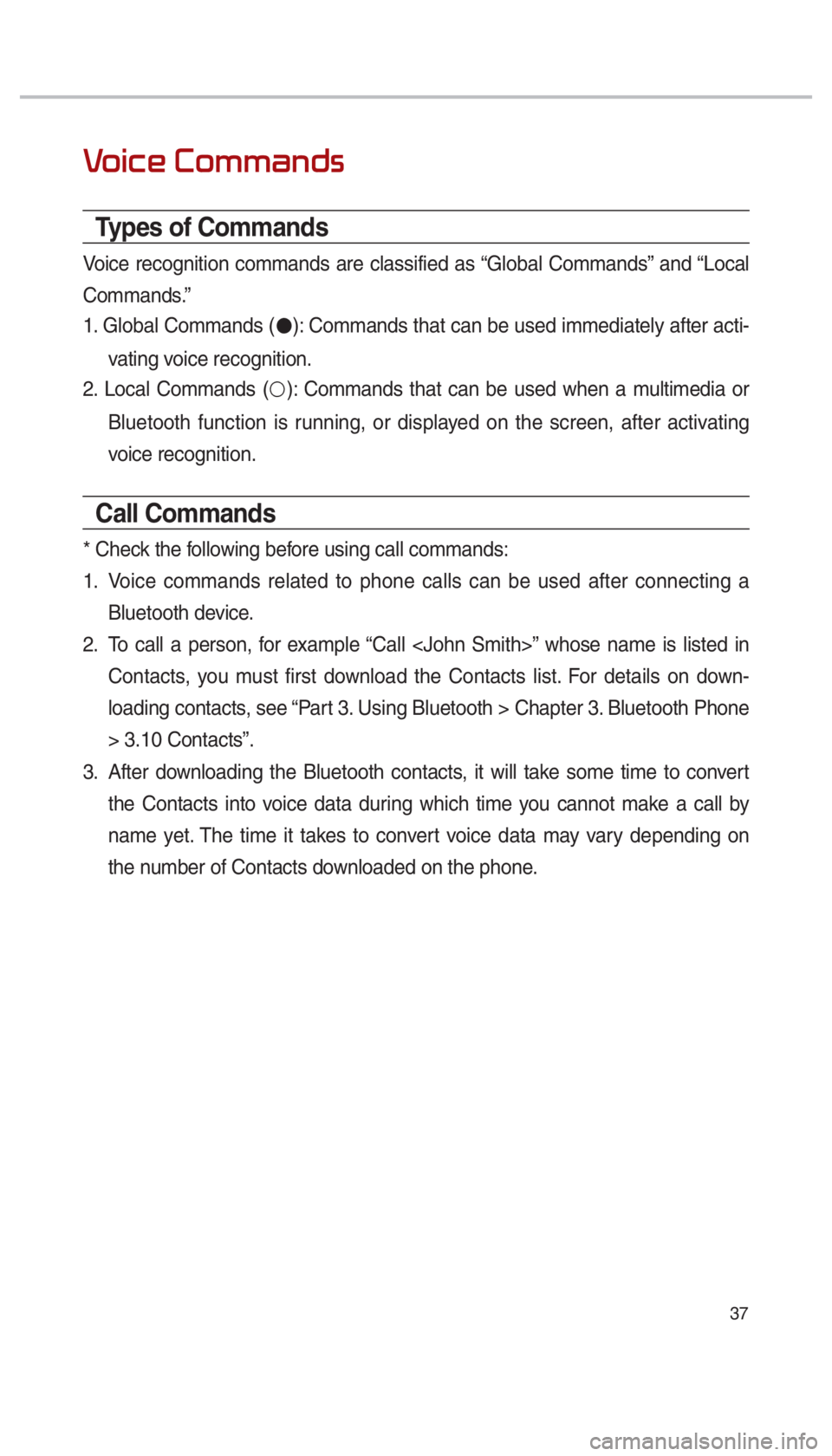

Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands.”
1. Global Commands (
●): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands (
○): Commands that can be used when a multimedia or
Bluetooth function is running, or displayed on the screen, after activating
voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after connecting a Bluetooth device.
2. To call a person, for example “Call
loading contacts, see “Part 3. Using Bluetooth > Chapter 3. Bluetooth Phone
> 3.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert the Contacts into voice data during which time you cannot make a call by
name yet. The time it takes to convert voice data may vary depending on
the number of Contacts downloaded on the phone.
