KIA SPORTAGE 2017 Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SPORTAGE, Model: KIA SPORTAGE 2017Pages: 52, PDF Size: 1.06 MB

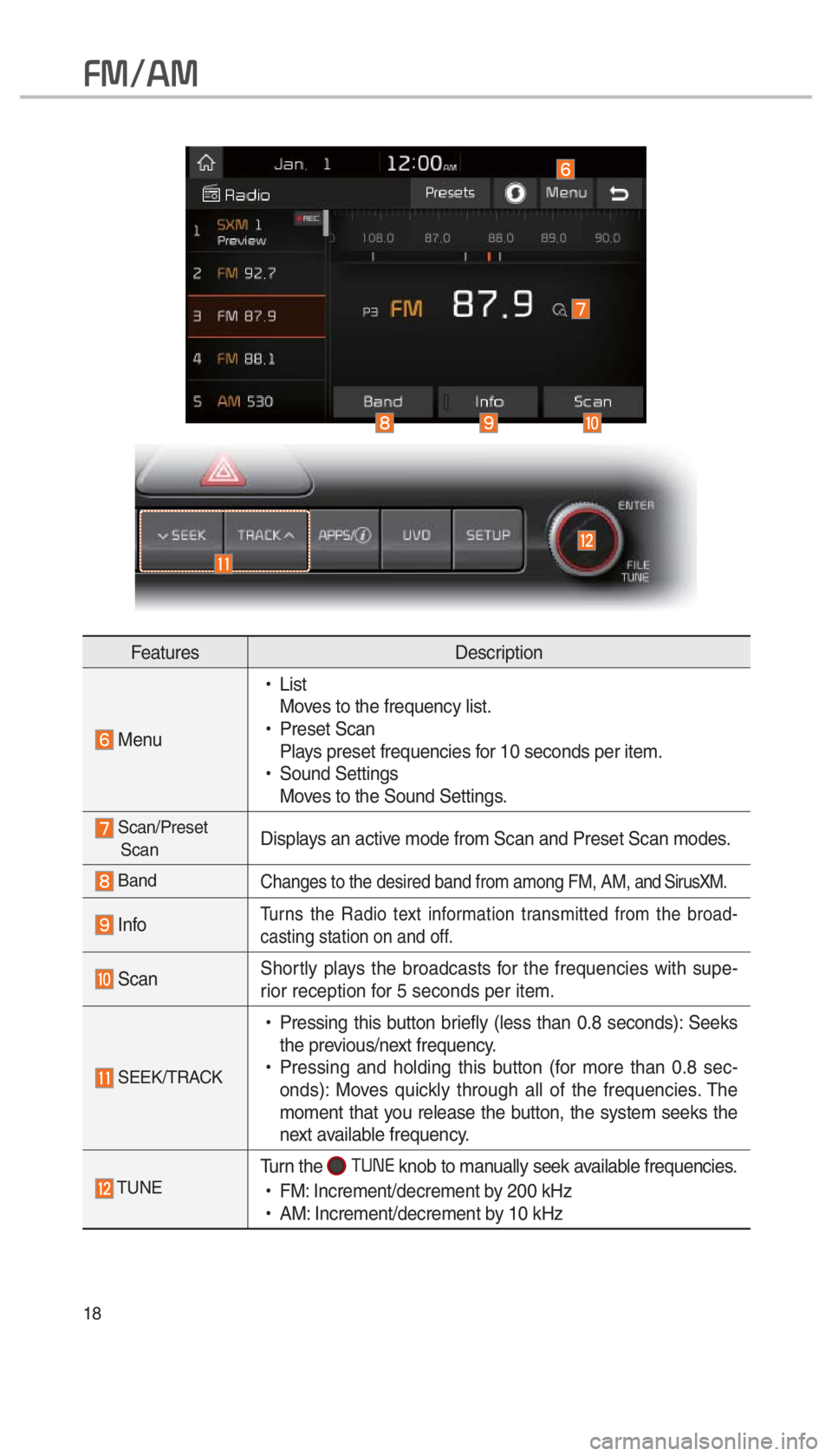

Page 21 of 52
18
FeaturesDescription
Menu
!Ÿ
List
Moves to the frequency list.
!Ÿ
Preset Scan
Plays preset frequencies for 10 seconds per item.
!Ÿ
Sound Settings
Moves to the Sound Settings.
Scan/Preset
ScanDisplays an active mode from Scan and Preset Scan modes.
BandChanges to the desired band from among FM, AM, and SirusXM.
InfoTurns the Radio text information transmitted from the broad-
casting station on and off.
Scan Shortly plays the broadcasts for the frequencies with supe-
rior reception for 5 seconds per item.
SEEK/TRACK
!Ÿ
Pressing this button briefly (less than 0.8 seconds): Seeks
the previous/next frequency.
!Ÿ
Pressing and holding this button (for more than 0.8 sec-
onds): Moves quickly through all of the frequencies. The
moment that you release the button, the system seeks the
next available frequency.
TUNETurn the 0037003800310028 knob to manually seek available frequencies.
!Ÿ
FM: Increment/decrement by 200 kHz
!Ÿ
AM: Increment/decrement by 10 kHz
002900300012002400300003
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

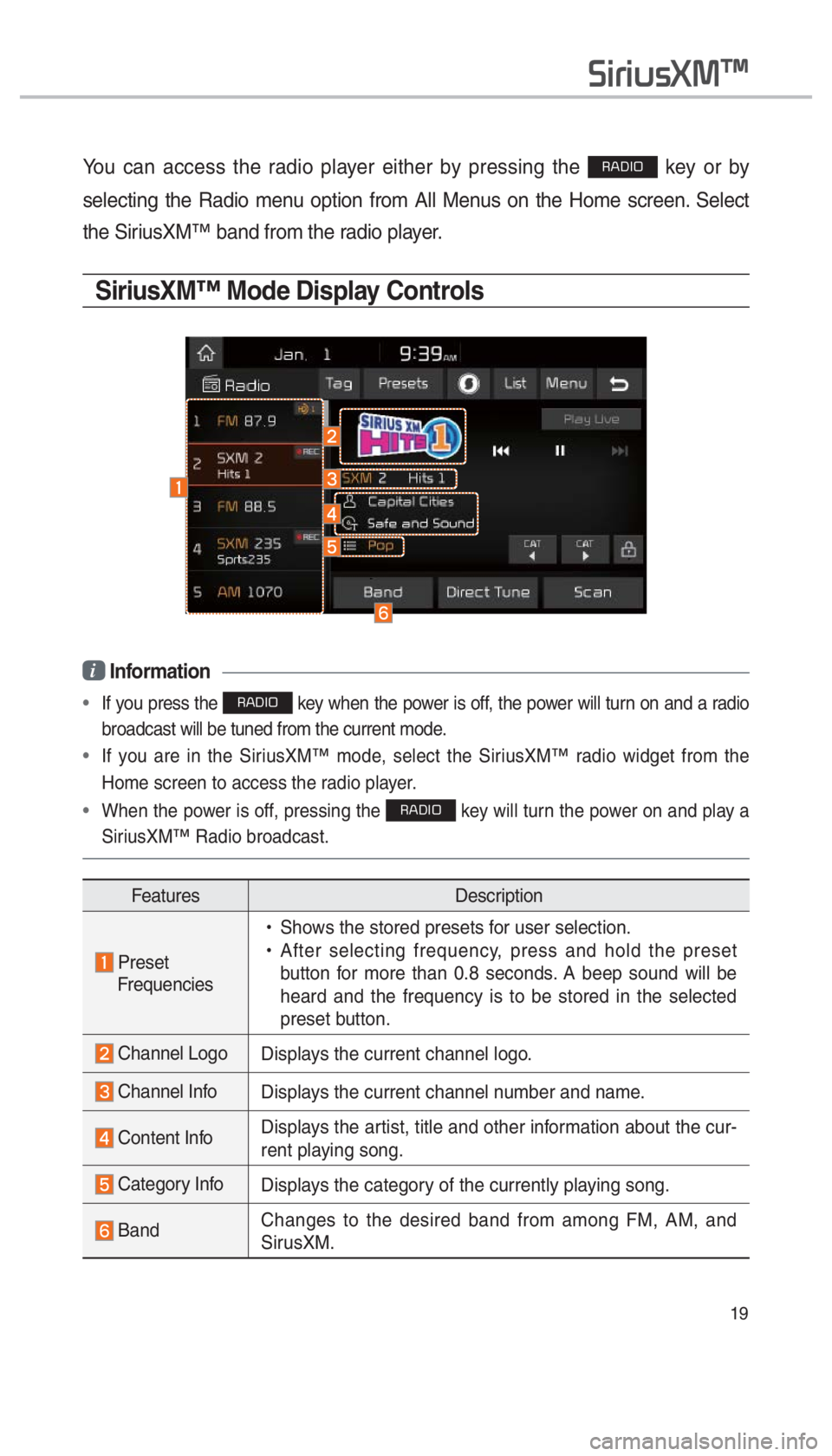

Page 22 of 52
19
You can access the radio player either by pressing the 003500240027002C0032 key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ band from the radio player.
SiriusXM™ Mode Display Controls
i Information
If you press the 003500240027002C0032 key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the
Home screen to access the r
adio player.
When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
Features Description
Preset
Frequencies
!Ÿ
Shows the stored presets for user selection.
!Ÿ
After selecting frequency, press and hold the preset
button for more than 0.8 seconds. A beep sound will be
heard and the frequency is to be stored in the selected
preset button.
Channel Logo Displays the current channel logo.
Channel InfoDisplays the current channel number and name.
Content InfoDisplays the artist, title and other information about the cur-
rent playing song.
Category Info
Displays the category of the currently playing song.
BandChanges to the desired band from among FM, AM, and
SirusXM.
0036004C0055004C00580056003B00300430
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

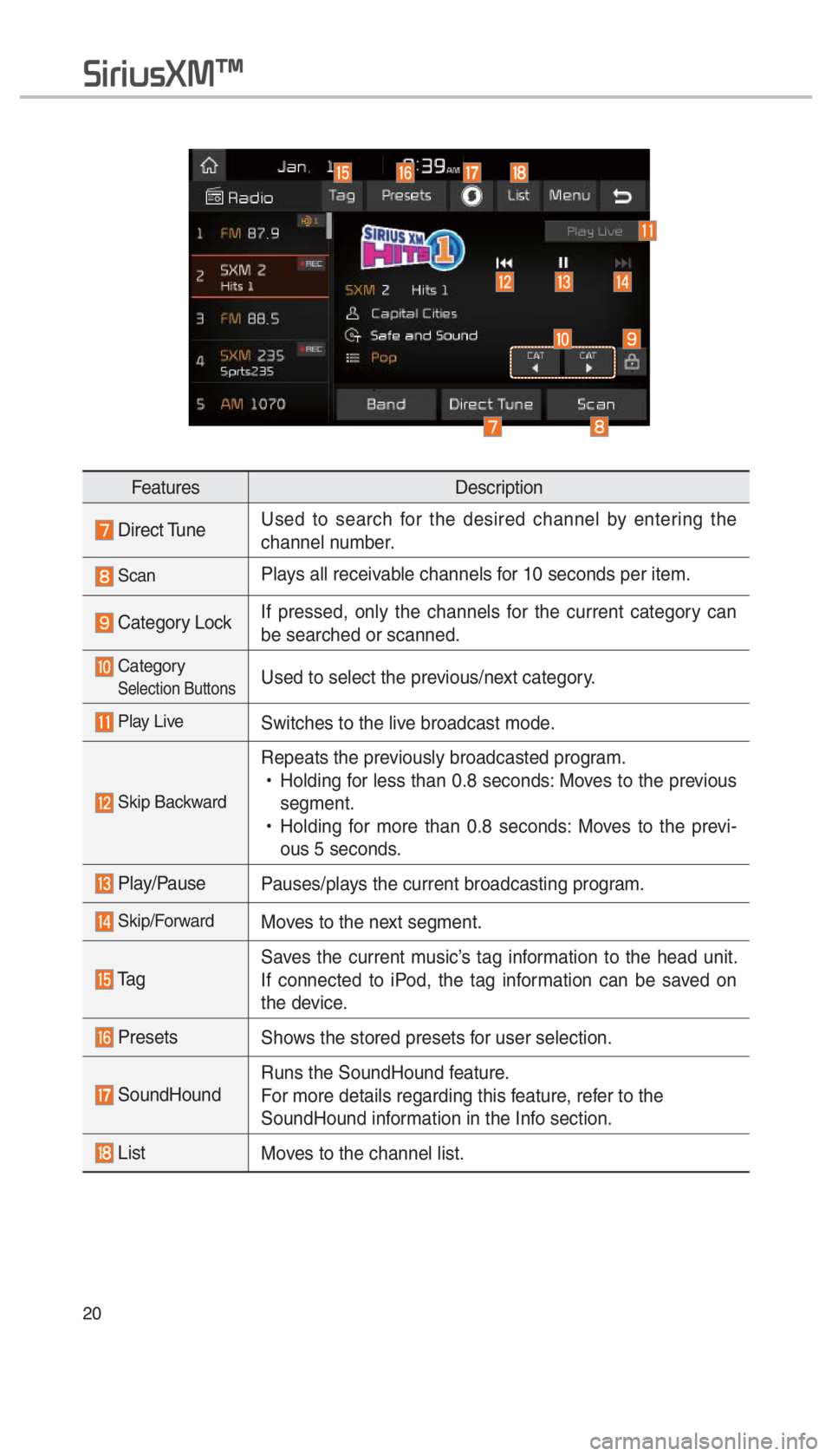

Page 23 of 52
20
0036004C0055004C00580056003B00300430
FeaturesDescription
Direct TuneUsed to search for the desired channel by entering the
channel number.
ScanPlays all receivable channels for 10 seconds per item.
Category LockIf pressed, only the channels for the current category can
be searched or scanned.
CategorySelection ButtonsUsed to select the previous/next category.
Play LiveSwitches to the live broadcast mode.
Skip Backward
Repeats the previously broadcasted program.
!Ÿ
Holding for less than 0.8 seconds: Moves to the previous
segment.
!Ÿ
Holding for more than 0.8 seconds: Moves to the previ-
ous 5 seconds.
Play/Pause Pauses/plays the current broadcasting program.
Skip/ForwardMoves to the next segment.
Ta gSaves the current music’s tag information to the head unit.
If connected to iPod, the tag information can be saved on
the device.
Presets
Shows the stored presets for user selection.
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
List
Moves to the channel list.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

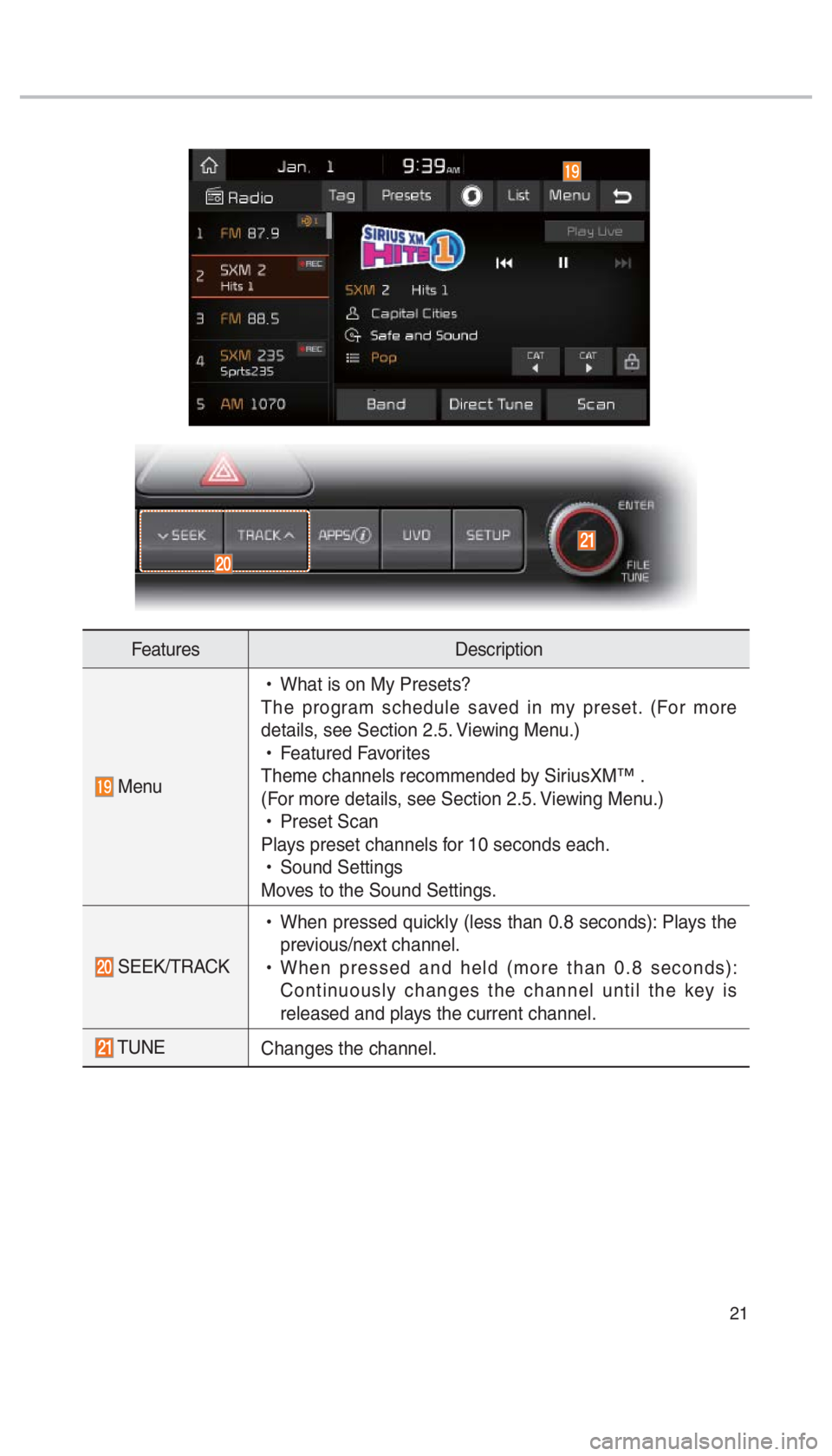

Page 24 of 52
21
FeaturesDescription
Menu
!Ÿ
What is on My Presets?
The program schedule saved in my preset. (For more
details, see Section 2.5. Viewing Menu.)
!Ÿ
Featured Favorites
Theme channels recommended by SiriusXM™ .
(For more details, see Section 2.5. Viewing Menu.)
!Ÿ
Preset Scan
Plays preset channels for 10 seconds each.
!Ÿ
Sound Settings
Moves to the Sound Settings.
SEEK/TRACK
!Ÿ
When pressed quickly (less than 0.8 seconds): Plays the
previous/next channel.
!Ÿ
When pressed and held (more than 0.8 seconds):
Continuously changes the channel until the key is
released and plays the current channel.
TUNE Changes the channel.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

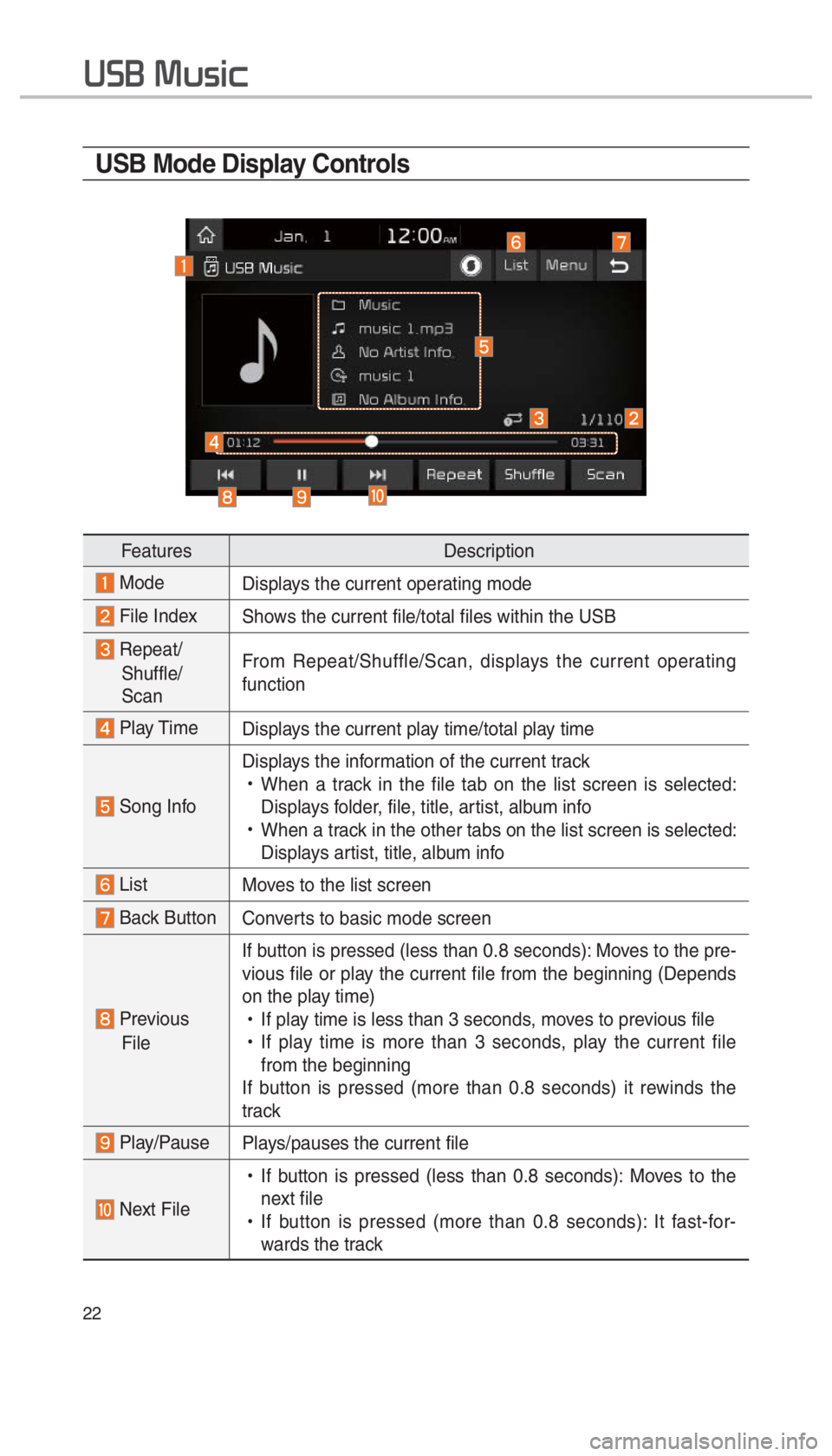

Page 25 of 52
22
USB Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the current operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
!Ÿ
When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
!Ÿ
When a track in the other tabs on the list screen is selected:
Displays artist, title, album info
List Moves to the list screen
Back Button Converts to basic mode screen
Previous
File If button is pressed (less than 0.8 seconds): Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)
!Ÿ
If play time is less than 3 seconds, moves to previous file
!Ÿ
If play time is more than 3 seconds, play the current file
from the beginning
If button is pressed (more than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds): Moves to the
next file
!Ÿ
If button is pressed (more than 0.8 seconds): It fast-for-
wards the track
0038003600250003003000580056004C0046
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

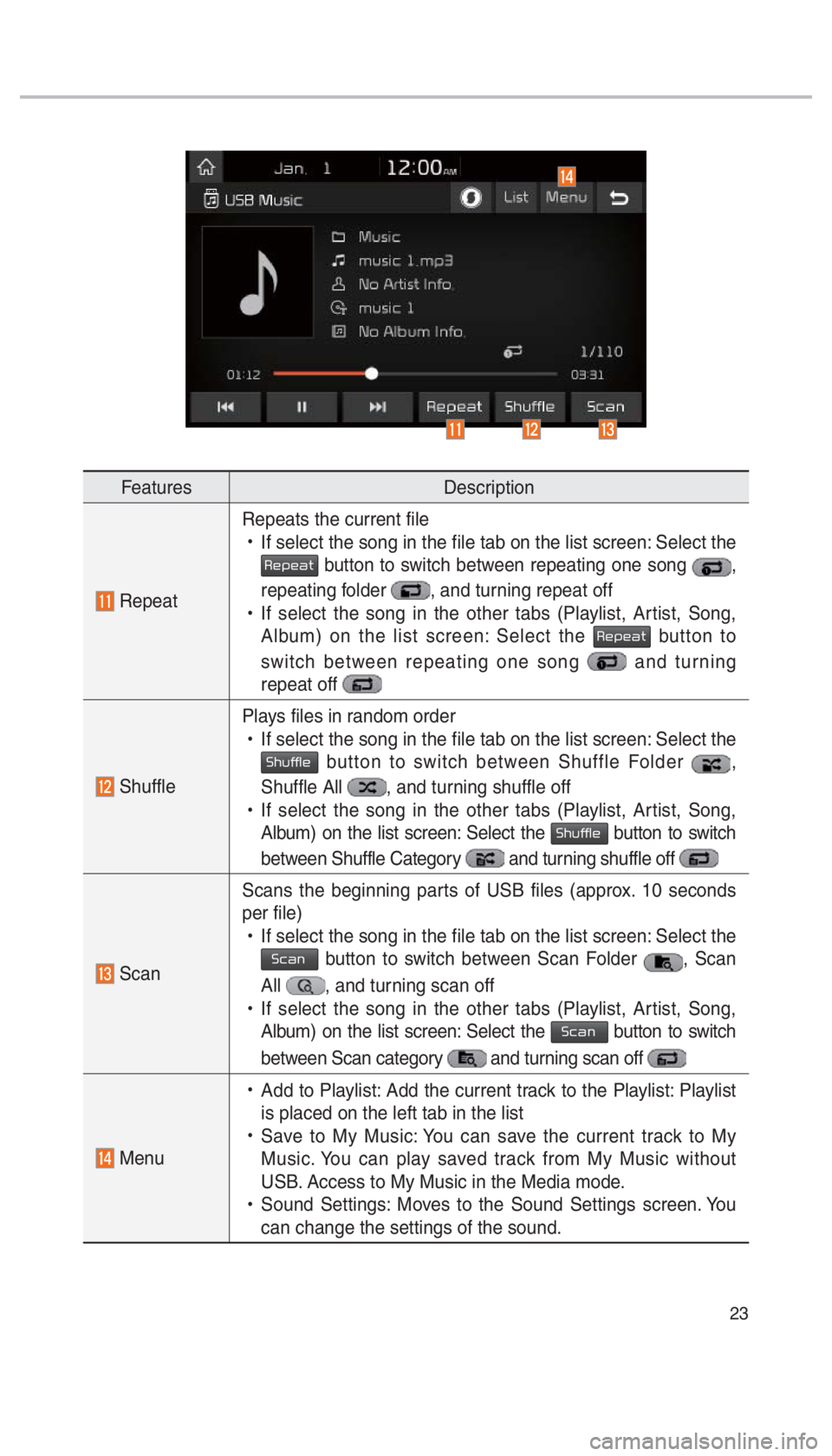

Page 26 of 52
23
FeaturesDescription
RepeatRepeats the current file
!Ÿ
If select the song in the file tab on the list screen: Select the
003500480053004800440057 button to switch between repeating one song ,
repeating folder
, and turning repeat off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
003500480053004800440057 button to
switch between repeating one song
and turning
repeat off
Shuffle Plays files in random order
!Ÿ
If select the song in the file tab on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Folder ,
Shuffle All
, and turning shuffle off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
0036004B005800490049004F0048 button to switch
between Shuffle Category
and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds
per file)
!Ÿ
If select the song in the file tab on the list screen: Select the 0036004600440051 button to switch between Scan Folder , Scan
All
, and turning scan off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
0036004600440051 button to switch
between Scan category
and turning scan off
Menu
!Ÿ
Add to Playlist: Add the current track to the Playlist: Playlist
is placed on the left tab in the list
!Ÿ
Save to My Music: You can save the current track to My
Music. You can play saved track from My Music without
USB. Access to My Music in the Media mode.
!Ÿ
Sound Settings: Moves to the Sound Settings screen. You
can change the settings of the sound.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

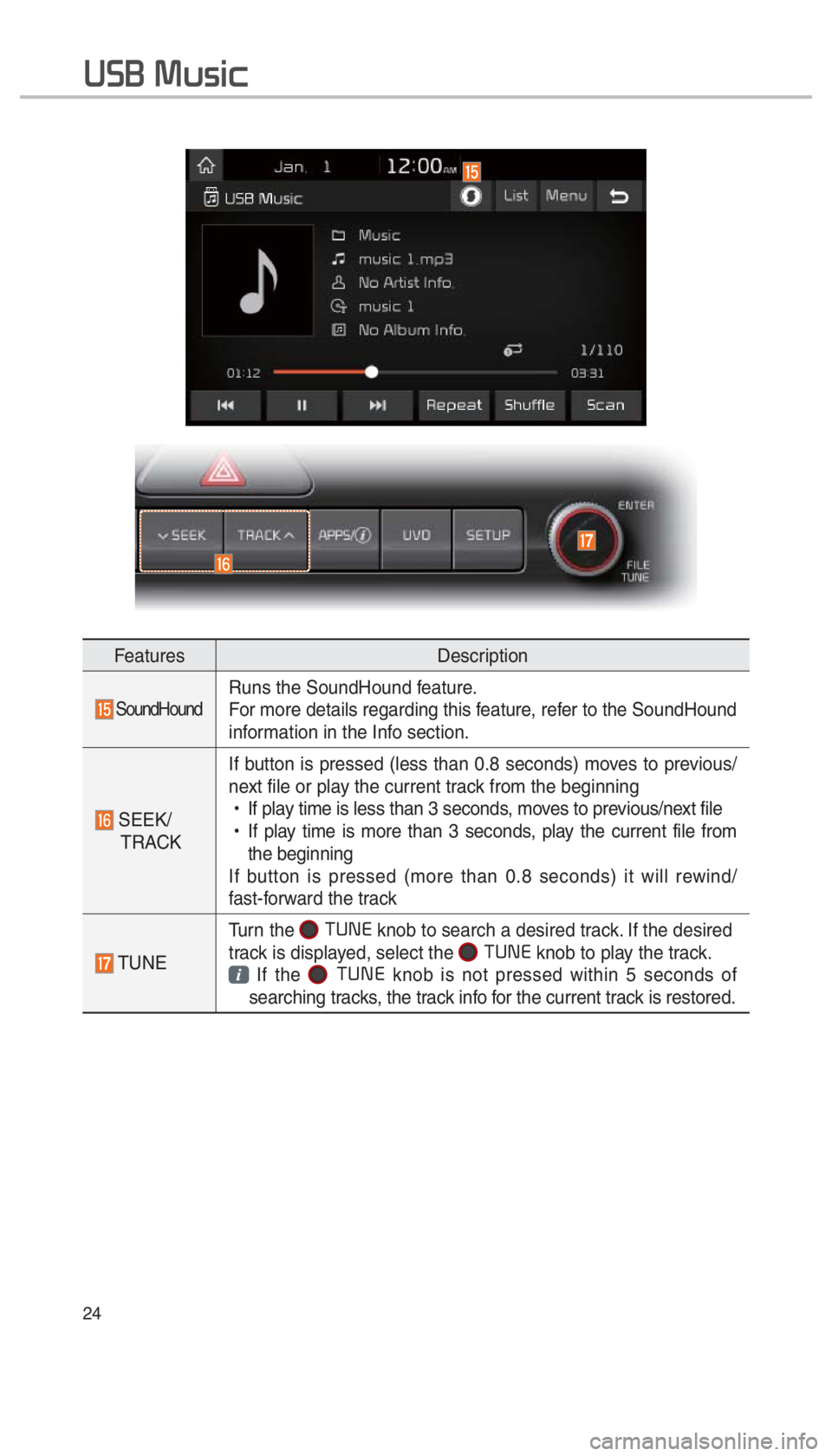

Page 27 of 52
24
FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
SEEK/
TRACK If button is pressed (less than 0.8 seconds) moves to previous/
next file or play the current track from the beginning
!Ÿ
If play time is less than 3 seconds, moves to previous/next file
!Ÿ
If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds) it will rewind/
fast-forward the track
TUNE Turn the
0037003800310028
knob to search a desired track. If the desired
track is displayed, select the
0037003800310028 knob to play the track.
If the 0037003800310028
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is restored.
0038003600250003003000580056004C0046
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

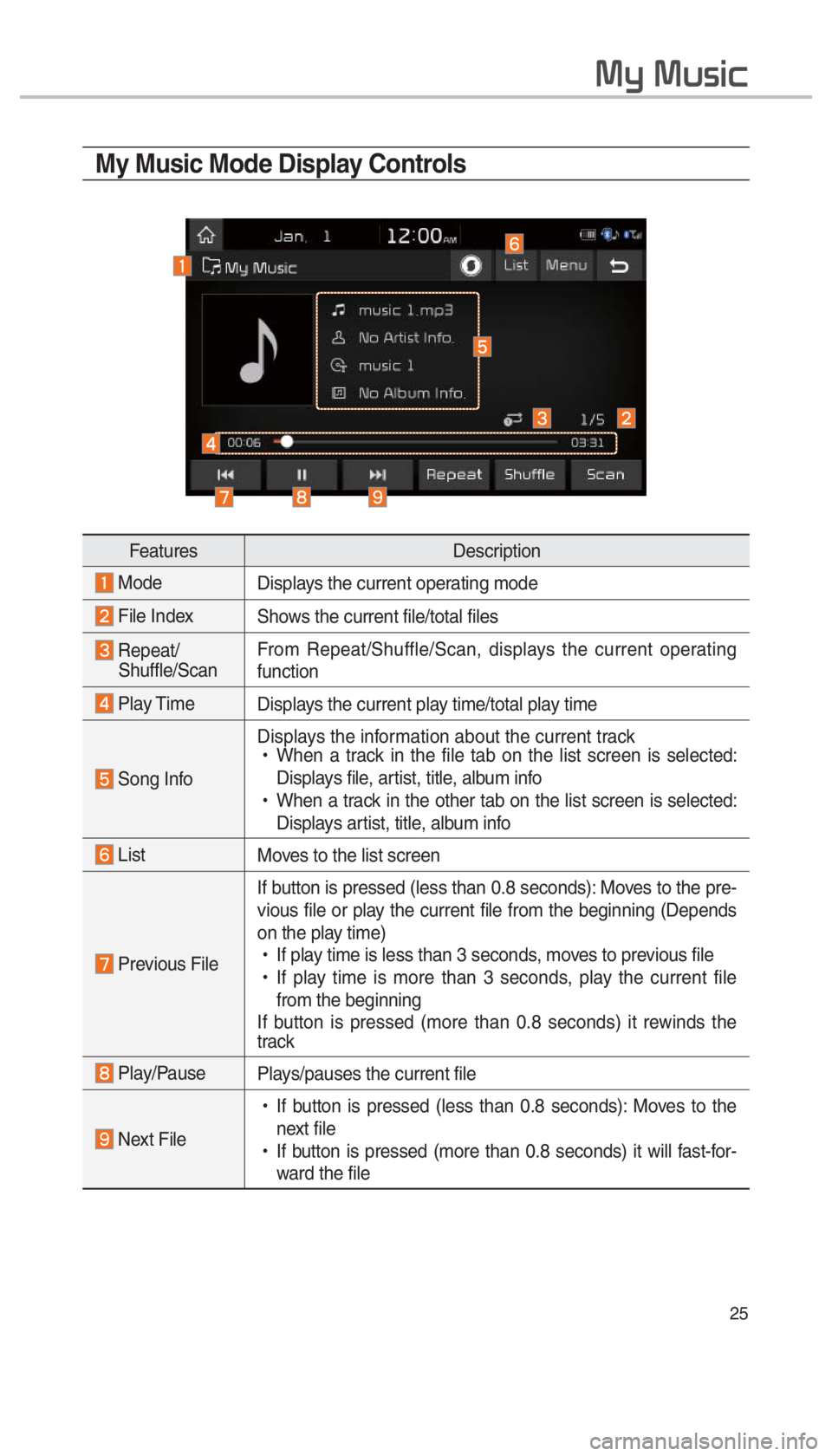

Page 28 of 52
25
0030005C0003003000580056004C0046
My Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track
!Ÿ
When a track in the file tab on the list screen is selected:
Displays file, artist, title, album info
!Ÿ
When a track in the other tab on the list screen is selected:
Displays artist, title, album info
List Moves to the list screen
Previous FileIf button is pressed (less than 0.8 seconds): Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)
!Ÿ
If play time is less than 3 seconds, moves to previous file
!Ÿ
If play time is more than 3 seconds, play the current file
from the beginning
If button is pressed (more than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds): Moves to the
next file
!Ÿ
If button is pressed (more than 0.8 seconds) it will fast-for-
ward the file
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y

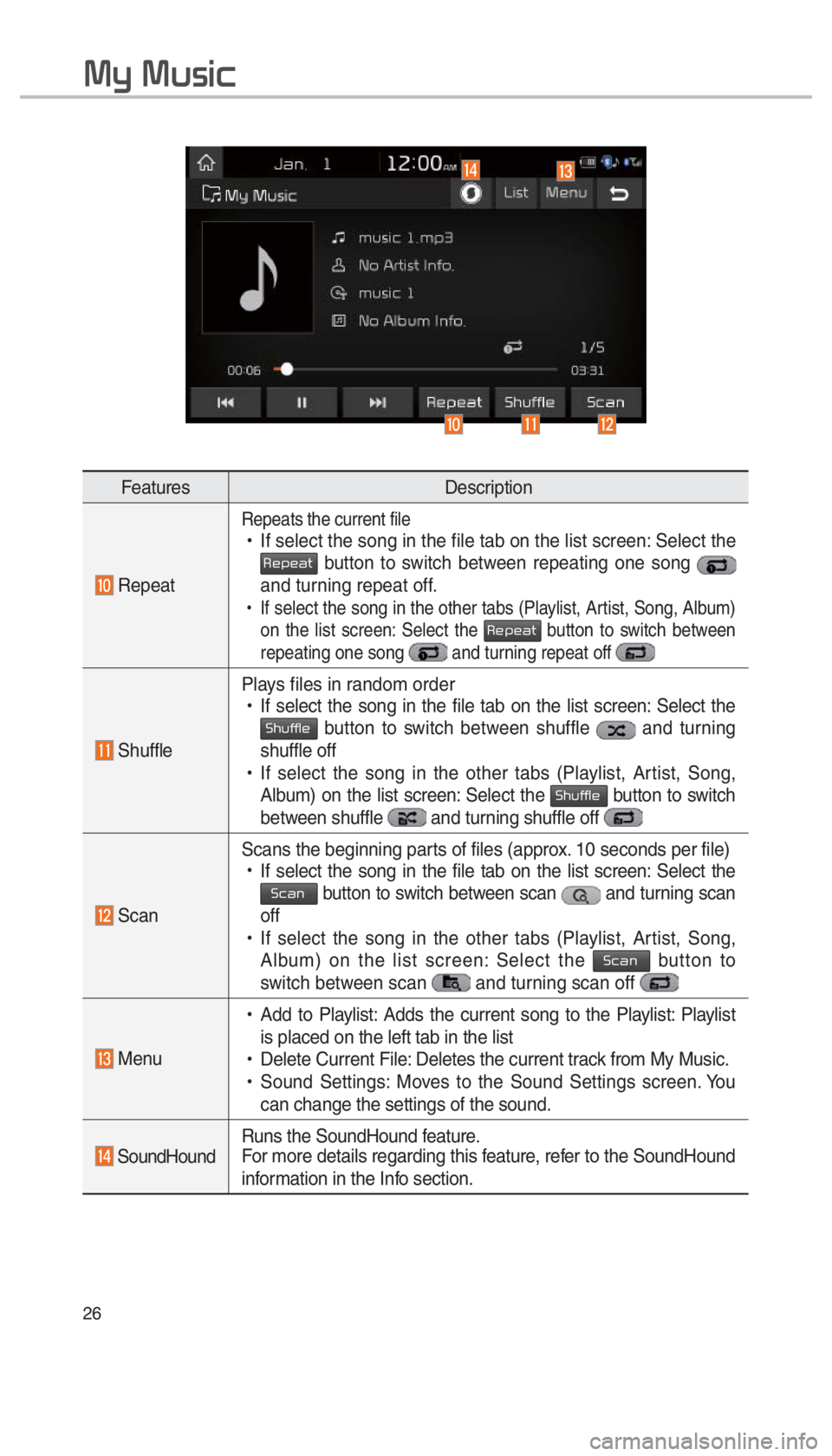

Page 29 of 52
26
FeaturesDescription
Repeat
Repeats the current file
!Ÿ
If select the song in the file tab on the list screen: Select the 003500480053004800440057 button to switch between repeating one song
and turning repeat off.
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song, Album)
on the list screen: Select the 003500480053004800440057 button to switch between
repeating one song and turning repeat off
Shuffle Plays files in random order
!Ÿ
If select the song in the file tab on the list screen: Select the
0036004B005800490049004F0048 button to switch between shuffle and turning
shuffle off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
0036004B005800490049004F0048 button to switch
between shuffle
and turning shuffle off
Scan Scans the beginning parts of files (approx. 10 seconds per file)
!Ÿ
If select the song in the file tab on the list screen: Select the
0036004600440051 button to switch between scan and turning scan
off
!Ÿ
If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
0036004600440051 button to
switch between scan
and turning scan off
Menu
!Ÿ
Add to Playlist: Adds the current song to the Playlist: Playlist
is placed on the left tab in the list
!Ÿ
Delete Current File: Deletes the current track from My Music.
!Ÿ
Sound Settings: Moves to the Sound Settings screen. You
can change the settings of the sound.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
0030005C0003003000580056004C0046
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E
0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
Page 30 of 52
FeaturesDescription
SEEK/
TRACK If button is pressed (less than 0.8 seconds) moves to previous/next
file or play the current song from the beginning
!Ÿ
If play time is less than 3 seconds, moves to previous/next file
!Ÿ
If play time is more than 3 seconds, plays the current file from
the beginning
If button is pressed (more than 0.8 seconds) it will rewind/
fast-forward the track
TUNE Turn the
0037003800310028
knob to search a desired track. If the desired
track is displayed, press the 0037003800310028 knob to play the track.
If the 0037003800310028
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is restored.
, @ 2 - @ 6 7 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E 0 < 6 4 " @ & 6 > " 7 @ 2 3 ( J O E E ß
y
