Page 591 of 611

KIA SPORTAGE 2020  Owners Manual 83

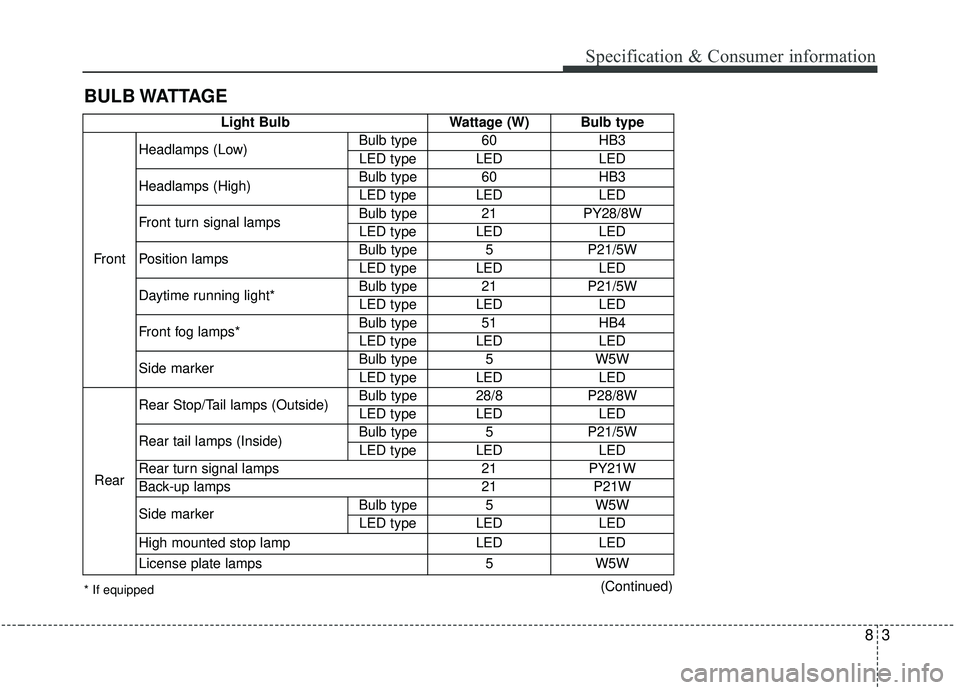

BULB WATTAGESpecification & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps (Low)
Bulb type 60
HB3
LED type LED LED
Headlamps (High) Bulb type 60
HB3
LED type LED LED
Front tu

Page 592 of 611

KIA SPORTAGE 2020  Owners Manual 48
Specification & Consumer information

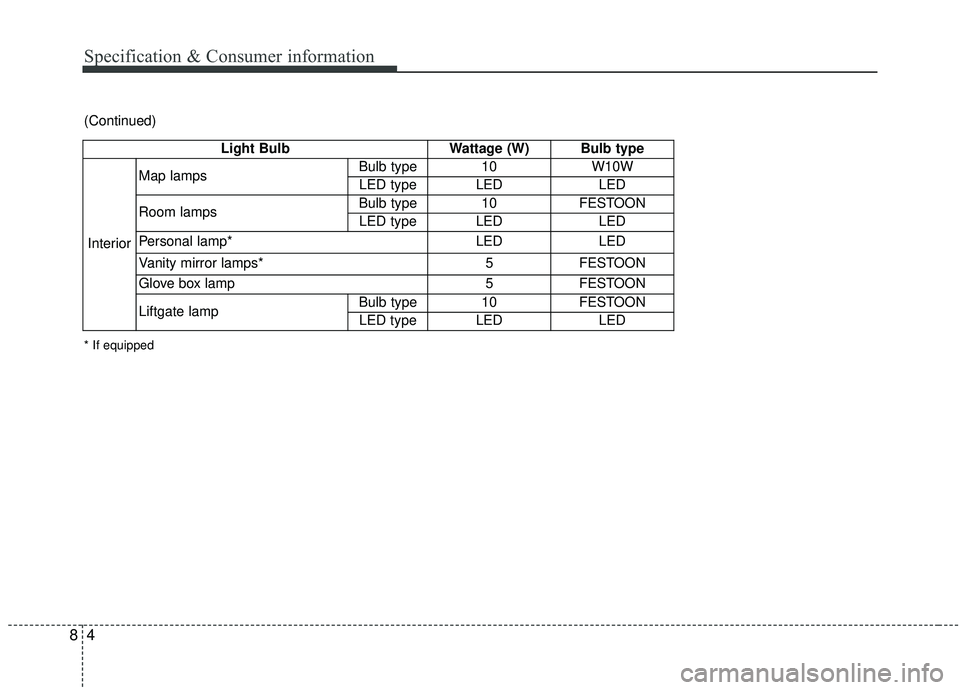

(Continued)Light Bulb Wattage (W) Bulb type
Interior Map lamps
Bulb type 10 W10W
LED type LED LED
Room lamps Bulb type 10 FESTOON
LED type LED LED
Personal lamp

Page 593 of 611

KIA SPORTAGE 2020  Owners Manual 85

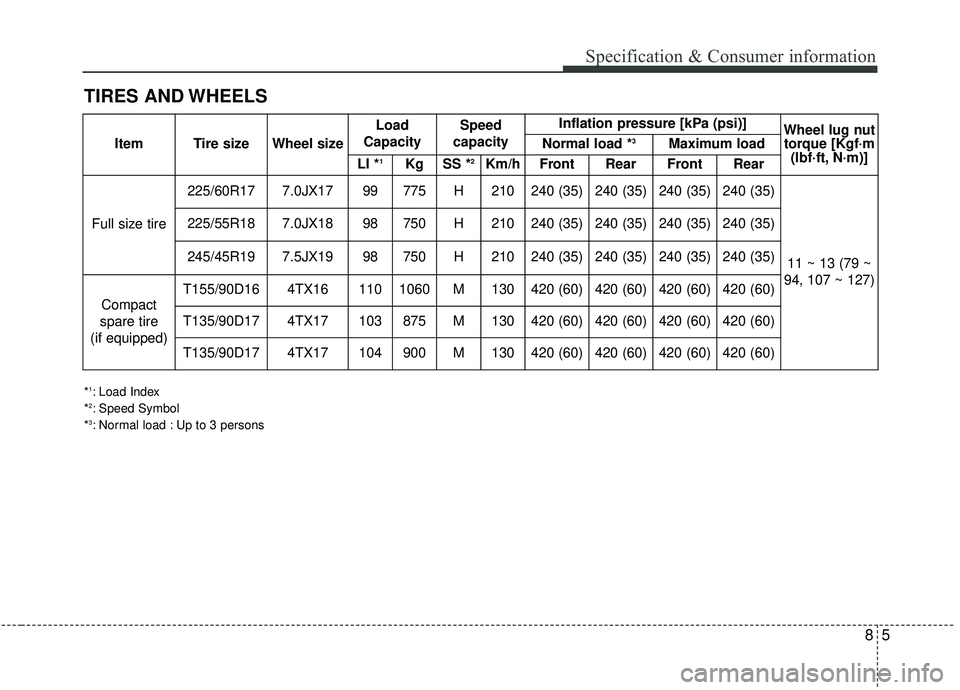

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [kPa (psi)]Wheel lug nut torque [Kgf·m (lb

Page 594 of 611

KIA SPORTAGE 2020  Owners Manual 68
Specification & Consumer information

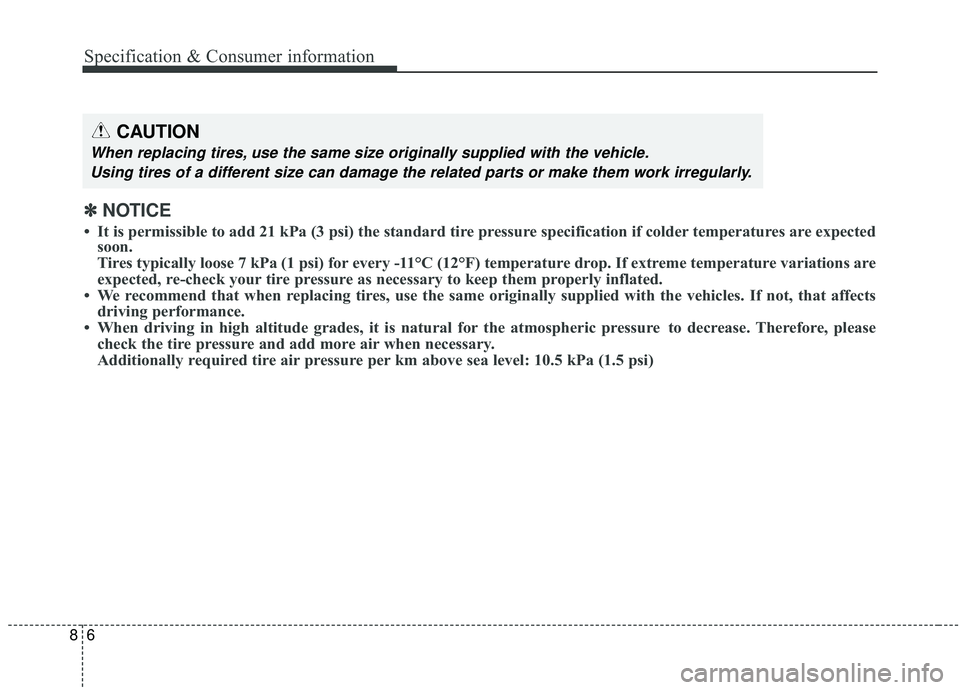

CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make them w

Page 595 of 611

KIA SPORTAGE 2020  Owners Manual 87
Specification & Consumer information

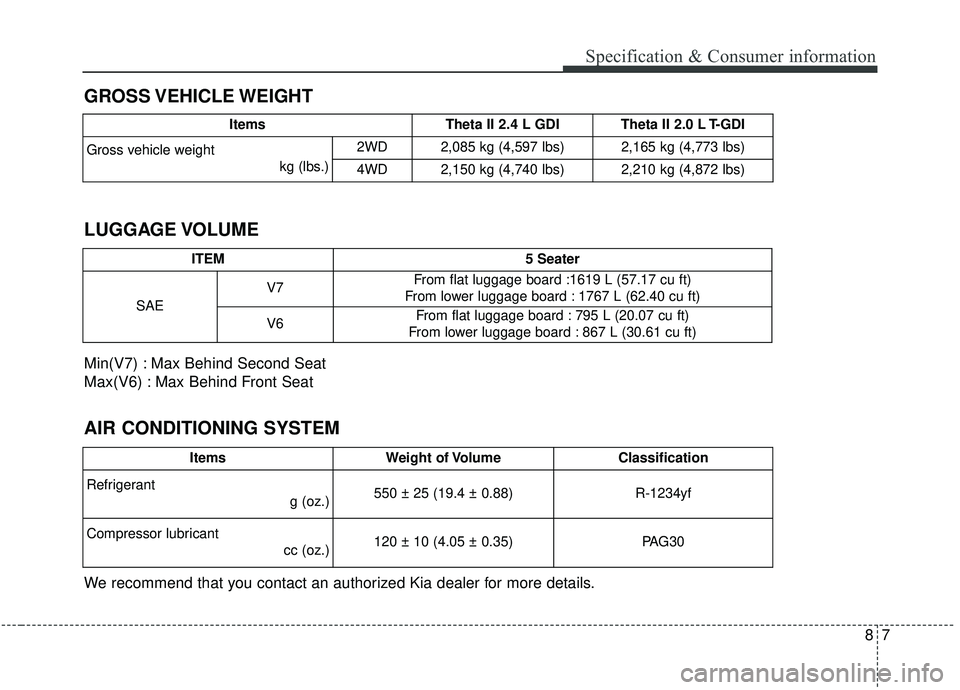

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details. Min(V7) : Max Behind Second

Page 596 of 611

KIA SPORTAGE 2020  Owners Manual 88
Specification & Consumer information

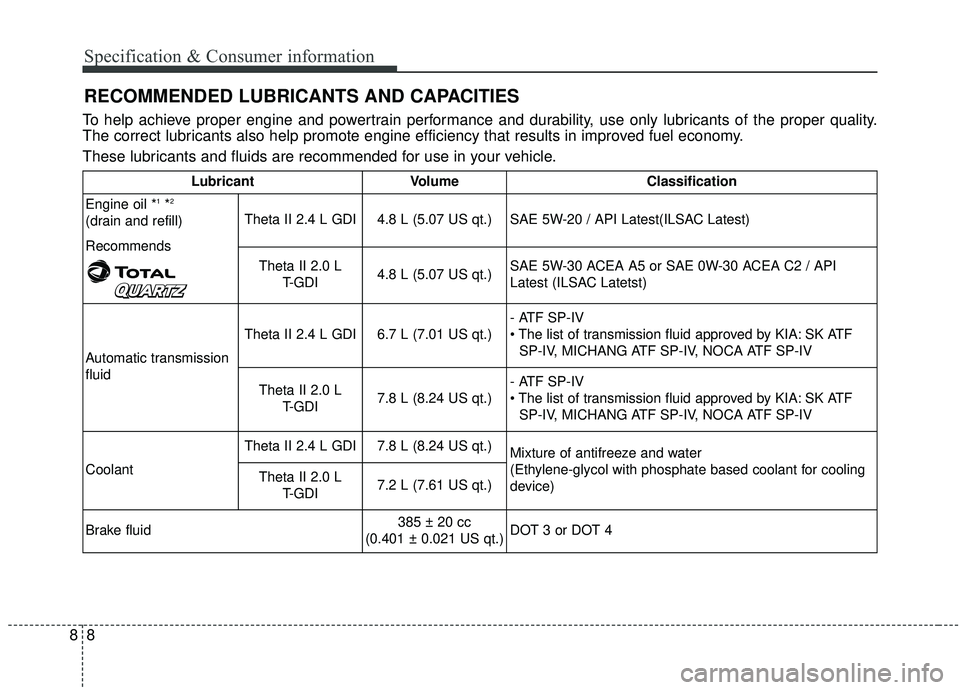

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The co

Page 597 of 611

KIA SPORTAGE 2020  Owners Manual 89
Specification & Consumer information

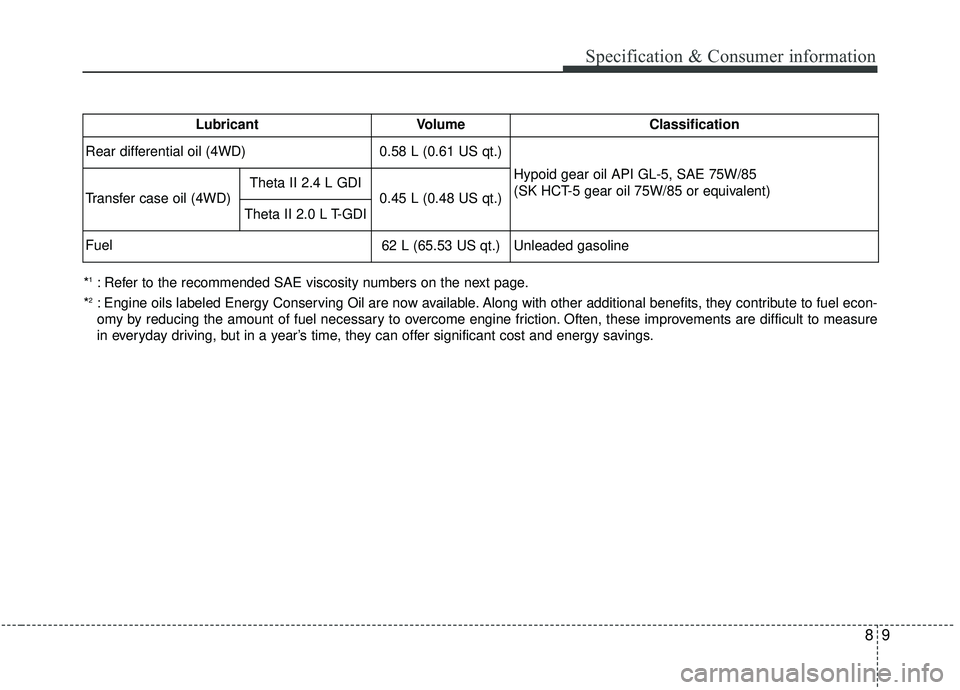

*1: Refer to the recommended SAE viscosity numbers on the next page.
*
2: Engine oils labeled Energy Conserving Oil are now available. Along with other addition

Page 598 of 611

KIA SPORTAGE 2020  Owners Manual 10
8
Specification & Consumer information

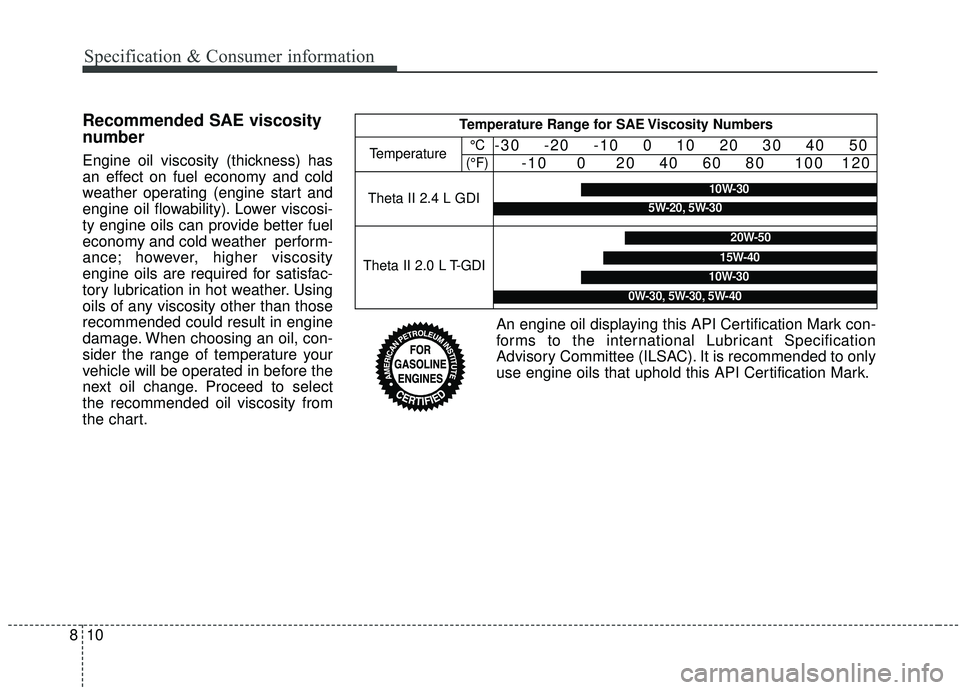

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowab

Page 599 of 611

KIA SPORTAGE 2020  Owners Manual 811
Specification & Consumer information

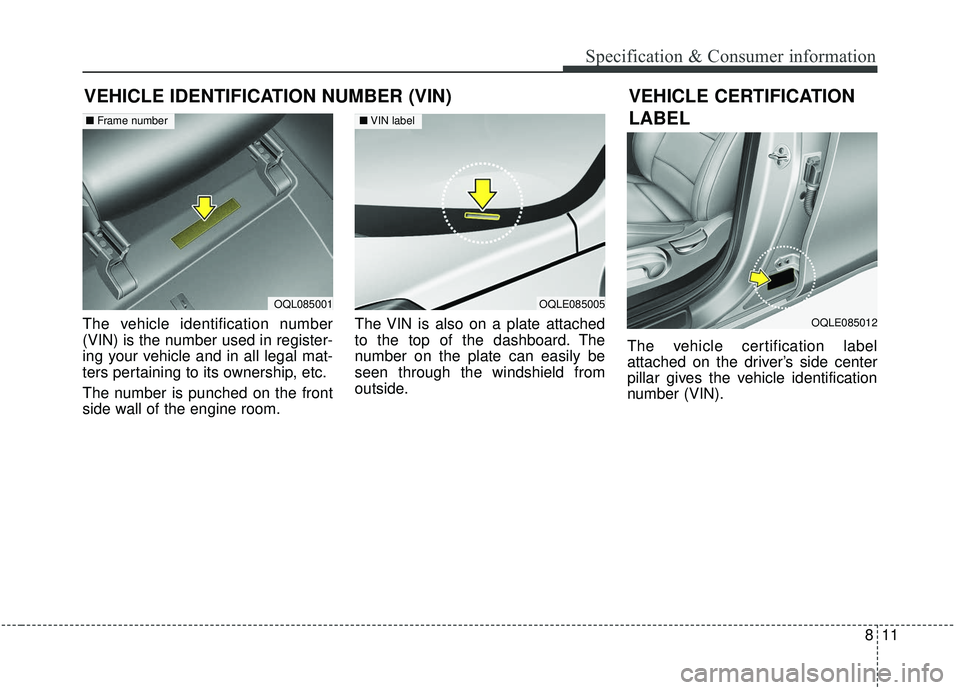

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertain

Page 600 of 611

KIA SPORTAGE 2020  Owners Manual 12
8
Specification & Consumer information

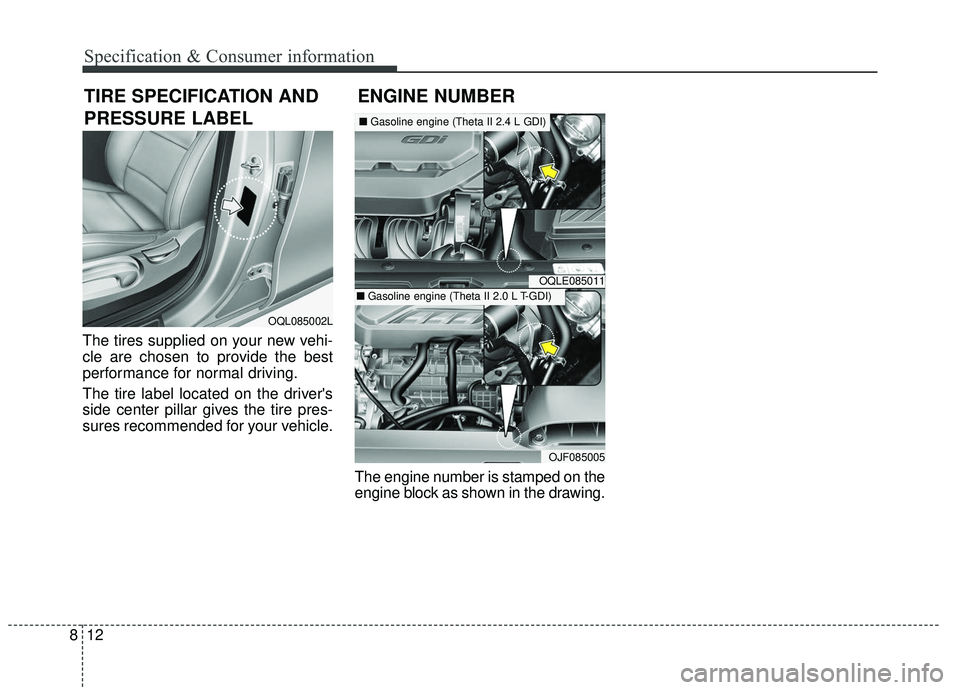

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the drivers
side center pil
