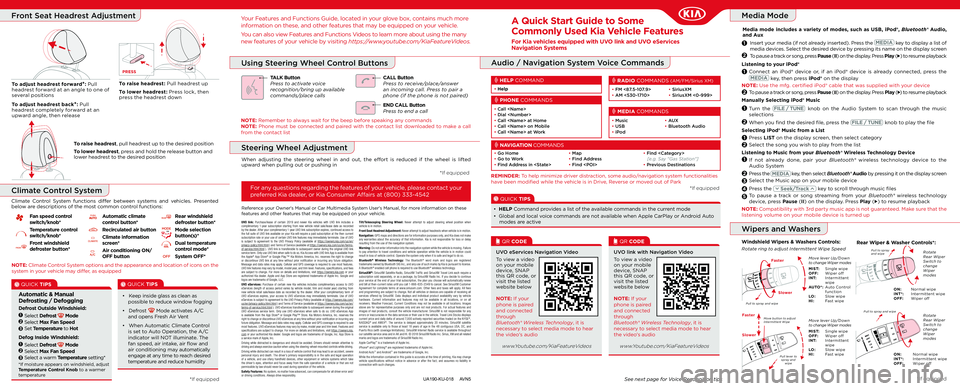

KIA SPORTAGE 2020 Quick Start Guide with UVO link

A Quick Start Guide to Some
Commonly Used Kia Vehicle Features
For Kia vehicles equipped with UVO link and UVO eServices Navigation Systems
Audio / Navigation System Voice Commands
See next page for Voice Recognition tipsUA190-KU-018 AVN5*If equipped
Reference your Owner's Manual or Car Multimedia System User's Manual, for more information on these features and other features that may be equipped on your vehicle.
For any questions regarding the features of your vehicle, please contact your
preferred Kia dealer, or Kia Consumer Affairs at (800) 333-4542
Front Seat Headrest Adjustment
• Go Home• Go to Work• Find Address in
• Map• Find Address• Find
• Find [e.g. Say "Gas Station"]• Previous Destinations
NAVIGATION COMMANDS
• Call • Dial • Call at Home• Call on Mobile• Call at Work
PHONE COMMANDS
• FM <87.5-107.9>• AM <530-1710> • SiriusXM• SiriusXM <0-999>
RADIO COMMANDS (AM/FM/Sirius XM)
Media Mode
UVO link: Purchase /lease of certain 2019 and newer Kia vehicles with U VO link includes a complimentary 1-year subscription starting from new vehicle retail sale /lease date as recorded by the dealer. After your complimentary 1-year U VO link subscription expires, continued access to the full suite of U VO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain U VO link features may immediately terminate. Use of U VO is subject to agreement to the U VO Privacy Policy ( available at https://owners.kia.com/us/en/privacy-policy.html.html ) and Terms of Service ( available at https://owners.kia.com/us/en/terms-of-service.html.html ). UVO link is transferable to subsequent owner during the original UVO link service term. Only use U VO link when safe to do so. Kia Access with U VO link App is available from the Apple® App Store® or Google Play.™ Kia Motors America, Inc. reserves the right to change or discontinue U VO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. U VO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC.UVO eServices: Purchase of certain new Kia vehicles includes complimentary access to U VO eServices ( length of access period varies by vehicle model, trim and model year) starting from new vehicle retail sale /lease date as recorded by the dealer. After your complimentary term of U VO eServices expires, your access to U VO eServices may immediately terminate. Use of U VO eServices is subject to agreement to the U VO Privacy Policy ( available at https://owners.kia.com/us /en /privacy-policy.html.html ) and Terms of Service ( available at https://owners.kia.com/us/en/terms-of-service.html.html ). UVO eServices transferrable to subsequent owner during the original U VO eServices service term. Only use U VO eServices when safe to do so. U VO eServices App is available from the App Store® or Google Play™ Store. Kia Motors America, Inc. reserves the right to change or discontinue U VO eServices at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. U VO eServices features may vary by make, model year and trim level. Features and specifications are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Google and logos are trademarks of Google, Inc. App Store is a service mark of Apple, Inc.Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving. Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use ofany handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and /or driving conditions. Always drive responsibly.
Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.Front Seat Headrest Adjustment : Never attempt to adjust headrests when vehicle is in motion.Navigation: GPS maps and directions are for information purposes only, and Kia does not make any warranties about the accuracy of that information. Kia is not responsible for loss or delay resulting from the use of the navigation system.Warning: Do not enter information into the navigation system while the vehicle is moving. Failure to pay attention to travel conditions and vehicle operation while the vehicle is in motion could result in loss of vehicle control. Operate the system only when it is safe and legal to do so.Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traf fic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AME X®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico ( with coverage limitations ). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2018 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.Apple CarPlay™ is a trademark of Apple Inc.iPhone® and Lightning® are registered trademarks of Apple Inc. Android Auto™ and Android™ are trademarks of Google, Inc.While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.
• Help
HELP COMMAND
*If equipped
To raise headrest: Pull headrest up
To lower headrest: Press lock, then press the headrest down
PRESS
To raise headrest, pull headrest up to the desired position
To lower headrest, press and hold the release button and lower headrest to the desired position
To adjust headrest forward*: Pull headrest forward at an angle to one of several positions
To adjust headrest back*: Pull headrest completely forward at an upward angle, then release
*If equipped
Climate Control System
QUICK TIPS
Automatic & Manual Defrosting / Defogging
Defrost Outside Windshield:
Select Defrost ModeSelect Max Fan SpeedSet Temperature to Hot
1
2
3
Defog Inside Windshield:
Select Defrost ModeSelect Max Fan SpeedSelect a warm Temperature setting*
1
2
3
*If moisture appears on windshield, adjust Temperature Control Knob to a warmer temperature
NOTE: Climate Control System options and the appearance and location of icons on the system in your vehicle may differ, as equipped
Fan speed control switch/knob*
Temperature control switch/knob*
Front windshield defroster button*
Automatic climate control button*
Recirculated air button
Climate information screen*
Air conditioning ON/OFF button
Rear windshield defroster button*
Mode selection button(s)*
Dual temperature control mode*
System OFF*BG
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
Climate Control System functions differ between systems and vehicles. Presented below are descriptions of the most common control functions:
QUICK TIPS
• Keep inside glass as clean as possible to reduce window fogging
• Defrost Mode activates A/C and opens Fresh Air Vent
• When Automatic Climate Control is set to Auto Operation, the A/C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically engage at any time to reach desired temperature and reduce humidity
Your Features and Functions Guide, located in your glove box, contains much more
information on these, and other features that may be equipped on your vehicle.
You can also view Features and Functions Videos to learn more about using the many
new features of your vehicle by visiting https://www.youtube.com/KiaFeatureVideos.
Steering Wheel Adjustment
When adjusting the steering wheel in and out, the effort is reduced if the wheel is lifted upward when pulling out or pushing in
*If equipped
TALK ButtonPress to activate voice recognition/bring up available commands/place calls
CALL ButtonPress to receive/place/answer an incoming call. Press to pair a phone (if the phone is not paired)
END CALL ButtonPress to end a call
NOTE: Remember to always wait for the beep before speaking any commands NOTE: Phone must be connected and paired with the contact list downloaded to make a call from the contact list
Using Steering Wheel Control Buttons
REMINDER: To help minimize driver distraction, some audio/navigation system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
• Music• USB • iPod
• AUX• Bluetooth Audio
MEDIA COMMANDS
QUICK TIPS
• HELP Command provides a list of the available commands in the current mode
• Global and local voice commands are not available when Apple CarPlay or Android Auto modes are active
Listening to your iPod®
Connect an iPod® device or, if an iPod® device is already connected, press the
key, then press iPod® on the display
NOTE: Use the mfg. certified iPod® cable that was supplied with your device
To pause a track or song, press Pause (II) on the display. Press Play () to resume playback
Manually Selecting iPod® Music
Turn the knob on the Audio System to scan through the music selections
When you find the desired file, press the knob to play the file
Selecting iPod® Music from a List
Press LIST on the display screen, then select category
Select the song you wish to play from the list
Listening to Music from your Bluetooth® Wireless Technology Device
If not already done, pair your Bluetooth® wireless technology device to the Audio System
Press the key, then select Bluetooth® Audio by pressing it on the display screen
Select the Music app on your mobile device
Press the key to scroll through music files
To pause a track or song streaming from your Bluetooth® wireless technology device, press Pause (II) on the display. Press Play () to resume playback
NOTE: Compatibility with 3rd party music app is not guaranteed. Make sure that the listening volume on your mobile device is turned up
2
2
1
1
2
1
2
3
4
1
Insert your media (if not already inserted). Press the key to display a list of media devices. Select the desired device by pressing its name on the display screen
To pause a track or song, press Pause (II) on the display. Press Play () to resume playback2
1
Media mode includes a variety of modes, such as USB, iPod®, Bluetooth® Audio, and Aux
5
Wipers and Washers
Windshield Wipers & Washers Controls:Rear Wiper & Washer Controls*:
Move lever Up/Down to change Wiper modesM I S T: Single wipeOFF: Wiper offI N T: Intermittent wipeAUTO*: Auto Control functionLO: Slow wipeHI: Fast wipePull to spray and wipe
Rotate ring to adjust Intermittent Wipe SpeedPull to spray and wipe
ON: Normal wipeINT*: Intermittent wipeOFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes
Faster
Slower
Pull lever to spray and wipe
Pull to spray and wipe
Move button to adjust Intermittent Wipe
ON: Normal wipeINT*: Intermittent wipeOFF: Wiper off
Faster
Slower
Move lever Up/Down to change Wiper modesM I S T: Single wipeOFF: Wiper offI N T: Intermittent wipeLO: Slow wipeHI: Fast wipe
Rotate Rear Wiper Switch to change Wiper modes
QR CODE
To view a video on your mobile device, SNAP this QR code, or visit the listed website below
UVO eServices Navigation Video
NOTE: If your phone is paired and connected through Bluetooth® Wireless Technology, it is necessary to select media mode to hear the video's audio
www.Youtube.com/KiaFeatureVideos
QR CODE
To view a video on your mobile device, SNAP this QR code, or visit the listed website below
UVO link with Navigation Video
NOTE: If your phone is paired and connected through Bluetooth® Wireless Technology, it is necessary to select media mode to hear the video's audio
www.Youtube.com/KiaFeatureVideos

How to Save a Preset
Press and hold the desired slot. This saves the current station in the selected slot

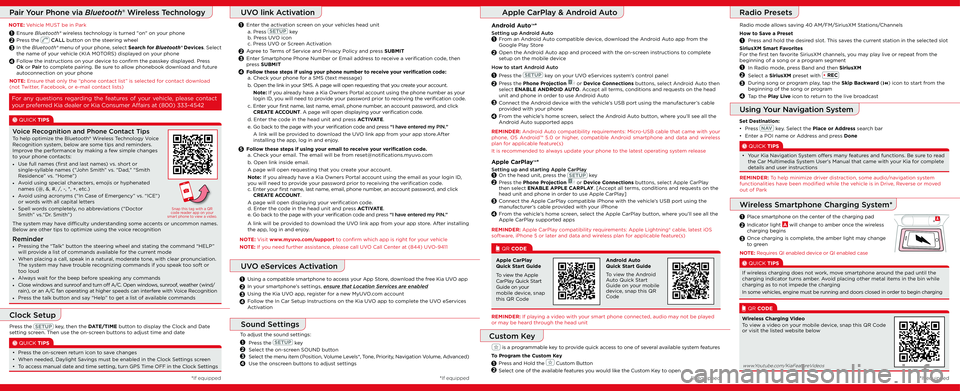

Pair Your Phone via Bluetooth® Wireless Technology
NOTE: Vehicle MUST be in Park
1
2
3
Ensure Bluetooth® wireless technology is turned "on" on your phone
Press the CALL button on the steering wheel
In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select the name of your vehicle (KIA MOTORS) displayed on your phone
Follow the instructions on your device to confirm the passkey displayed. Press Ok or Pair to complete pairing. Be sure to allow phonebook download and future autoconnection on your phone
To adjust the sound settings:
Press the key
Select the on-screen SOUND button
Select the menu item (Position, Volume Levels*, Tone, Priority, Navigation Volume, Advanced)
Use the onscreen buttons to adjust settings
Radio Presets
To help optimize the Bluetooth® Wireless Technology Voice Recognition system, below are some tips and reminders. Improve the performance by making a few simple changes to your phone contacts:
• Use full names (first and last names) vs. short or single-syllable names (“John Smith” vs. “Dad," “Smith Residence” vs. “Home”)
• Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all capital letters
• Spell words completely, no abbreviations (“Doctor Smith” vs.“Dr. Smith”)
Voice Recognition and Phone Contact Tips
Snap this tag with a QR code reader app on your smart phone to view a video.
*If equipped*If equipped
4
NOTE: Ensure that only the “phone contact list” is selected for contact download (not Twitter, Facebook, or e-mail contact lists)
Radio mode allows saving 40 AM/FM/SiriusXM Stations/Channels
1
*If equipped
Sound Settings
Place smartphone on the center of the charging pad
Indicator light A will change to amber once the wireless charging begins
Once charging is complete, the amber light may change to green
2
3
1A
If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber. Avoid placing other metal items in the bin while charging as to not impede the charging
In some vehicles, engine must be running and doors closed in order to begin charging
To view a video on your mobile device, snap this QR Code or visit the listed website below
Wireless Charging Video
www.Youtube.com/KiaFeatureVideos
NOTE: Requires QI enabled device or QI enabled case
Wireless Smartphone Charging System*
Apple CarPlay & Android Auto
• Your Kia Navigation System offers many features and functions. Be sure to read the Car Multimedia System User's Manual that came with your Kia for complete details and user instructions
Set Destination:
• Press key. Select the Place or Address search bar
• Enter a POI name or Address and press Done
Using Your Navigation System
2
3
4
1
Press the key, then the DATE/TIME button to display the Clock and Date setting screen. Then use the on-screen buttons to adjust time and date
Clock Setup
• Press the on-screen return icon to save changes
• When needed, Daylight Savings must be enabled in the Clock Settings screen
• To access manual date and time setting, turn GPS Time OFF in the Clock Settings
SiriusXM Smart FavoritesFor the first ten favorite SiriusXM channels, you may play live or repeat from the beginning of a song or a program segment
In Radio mode, press Band and then SiriusXM
Select a SiriusXM preset with • REC During song or program play, tap the Skip Backward (I7) icon to start from the beginning of the song or program
Tap the Play Live icon to return to the live broadcast
1
2
3
4
QR CODE
Custom Key
is a programmable key to provide quick access to one of several available system features
To Program the Custom Key
Press and Hold the Custom Button
Select one of the available features you would like the Custom Key to open 2
1
• Pressing the “Talk” button the steering wheel and stating the command “HELP” will provide a list of commands available for the current mode
• When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too soft or too loud
• Always wait for the beep before speaking any commands
• Close windows and sunroof and turn off A/C. Open windows, sunroof, weather (wind/rain), or an A/C fan operating at higher speeds can interfere with Voice Recognition
• Press the talk button and say “Help” to get a list of available commands
Reminder
The system may have difficulty understanding some accents or uncommon names. Below are other tips to optimize using the voice recognition
REMINDER: To help minimize driver distraction, some audio/navigation system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
For any questions regarding the features of your vehicle, please contact
your preferred Kia dealer or Kia Consumer Affairs at (800) 333-4542
*If equipped
Apple CarPlay™*
Setting up and starting Apple CarPlay1 On the head unit, press the key
2 Press the Phone Projection or Device Connections buttons, select Apple CarPlay then select ENABLE APPLE CARPLAY. [Accept all terms, conditions and requests on the head unit and phone in order to use Apple CarPlay]
3 Connect the Apple CarPlay compatible iPhone with the vehicle’s USB port using the manufacturer’s cable provided with your iPhone
4 From the vehicle’s home screen, select the Apple CarPlay button, where you’ll see all the Apple CarPlay supported apps
Android Auto™*
Setting up Android AutoFrom an Android Auto compatible device, download the Android Auto app from the Google Play Store
Open the Android Auto app and proceed with the on-screen instructions to complete setup on the mobile device
How to start Android Auto
Press the key on your UVO eServices system’s control panel
Press the Phone Projection or Device Connections buttons, select Android Auto then select ENABLE ANDROID AUTO. Accept all terms, conditions and requests on the head unit and phone in order to use Android Auto
Connect the Android device with the vehicle’s USB port using the manufacturer’s cable provided with your phone
From the vehicle’s home screen, select the Android Auto button, where you’ll see all the Android Auto supported apps
Apple CarPlay Quick Start Guide
To view the Apple CarPlay Quick Start Guide on your mobile device, snap this QR Code
QR CODE
Android Auto Quick Start Guide
To view the Android Auto Quick Start Guide on your mobile device, snap this QR Code
2
1
2
3
4
1
REMINDER: Apple CarPlay compatibility requirements: Apple Lightning® cable, latest iOS software, iPhone 5 or later and data and wireless plan for applicable feature(s)
REMINDER: If playing a video with your smart phone connected, audio may not be played or may be heard through the head unit
REMINDER: Android Auto compatibility requirements: Micro-USB cable that came with your phone, OS Android™ 5.0 or higher, compatible Android smartphone and data and wireless plan for applicable feature(s)
It is recommended to always update your phone to the latest operating system release
UVO link Activation
NOTE: Visit www.myuvo.com/support to confirm which app is right for your vehicle
NOTE: If you need further assistance, please call UVO Call Center at (844) UVO-9411
Using a compatible smartphone to access your App Store, download the free Kia UVO app
In your smartphone’s settings, ensure that Location Services are enabled
Using the Kia UVO app, register for a new MyUVO.com account
Follow the In Car Setup Instructions on the Kia UVO app to complete the UVO eServices Activation
2
3
4
1
UVO eServices Activation
Enter the activation screen on your vehicles head unit
a. Press keyb. Press UVO iconc. Press UVO or Screen Activation
Agree to Terms of Service and Privacy Policy and press SUBMIT
Enter Smartphone Phone Number or Email address to receive a verification code, then press SUBMIT
Follow these steps if using your phone number to receive your verification code:a. Check your phone for a SMS (text message)
b. Open the link in your SMS. A page will open requesting that you create your account.
Note: If you already have a Kia Owners Portal account using the phone number as your login ID, you will need to provide your password prior to receiving the verification code.
c. Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT. A page will open displaying your verification code.
d. Enter the code in the head unit and press ACTIVATE.
e. Go back to the page with your verification code and press “I have entered my PIN.”
A link will be provided to download the UVO link app from your app store.After installing the app, log in and enjoy.
Follow these steps if using your email to receive your verification code. a. Check your email. The email will be from [email protected]
b. Open link inside email.
A page will open requesting that you create your account.
Note: If you already have a Kia Owners Portal account using the email as your login ID, you will need to provide your password prior to receiving the verification code.c. Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT.
A page will open displaying your verification code.d. Enter the code in the head unit and press ACTIVATE.e. Go back to the page with your verification code and press “I have entered my PIN.”
A link will be provided to download the UVO link app from your app store. After installing the app, log in and enjoy.
2
3
4
1
5
