KIA SPORTAGE 2020 Quick Reference Guide
Manufacturer: KIA, Model Year: 2020, Model line: SPORTAGE, Model: KIA SPORTAGE 2020Pages: 50, PDF Size: 2.73 MB
Page 1 of 50

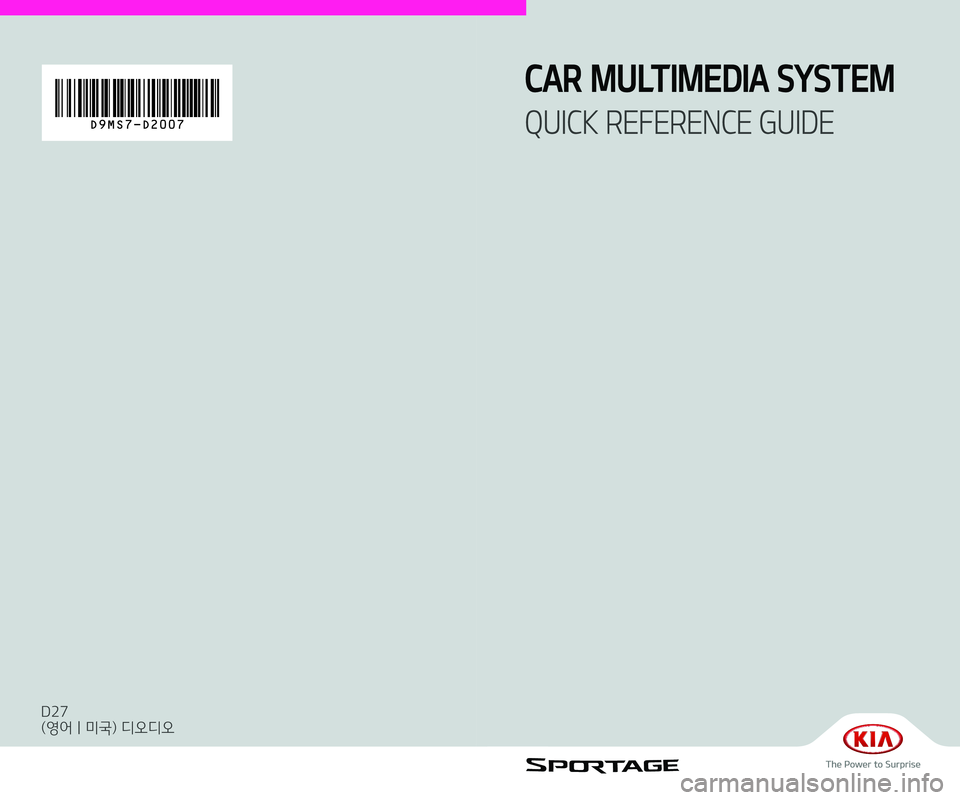

D27
(영어 | 미국) 디오디오
CAR MULTIMEDIA SYSTEM
QUICK REFERENCE GUIDED9MS7 -D2007
Page 2 of 50
Page 3 of 50

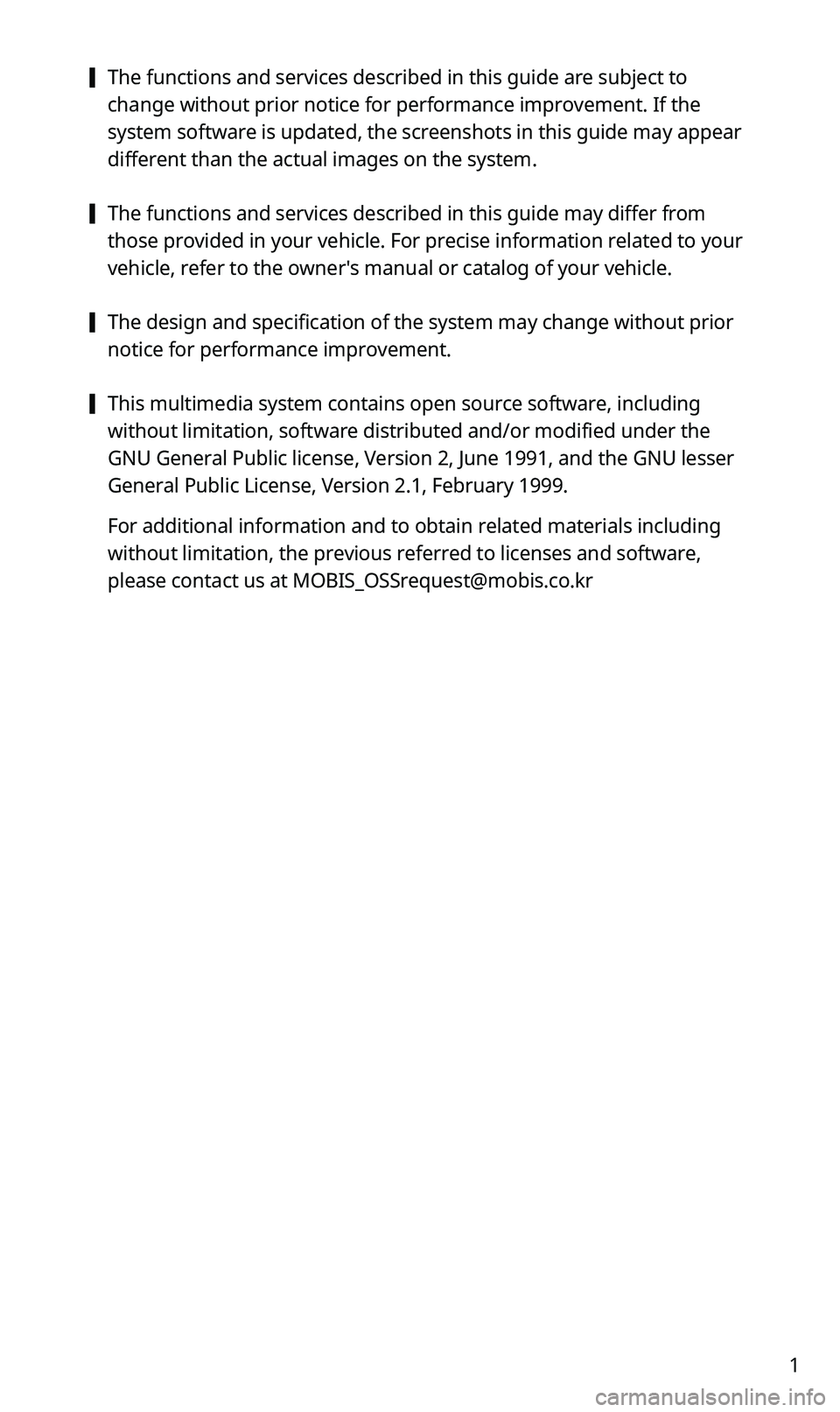

1
[The functions and services described in this guide are subject to
change without prior notice for performance improvement. If the
system software is updated, the screenshots in this guide may appear
different than the actual images on the system.
[The functions and services described in this guide may differ from
those provided in your vehicle. For precise information related to your
vehicle, refer to the owner′s manual or catalog of your vehicle.
[The design and specification of the system may change without prior
notice for performance improvement.
[This multimedia system contains open source software, including
without limitation, software distributed and/or modified under the
GNU General Public license, Version 2, June 1991, and the GNU lesser
General Public License, Version 2.1, February 1999.
For additional information and to obtain related materials including
without limitation, the previous referred to licenses and software,
please contact us at [email protected]
Page 4 of 50

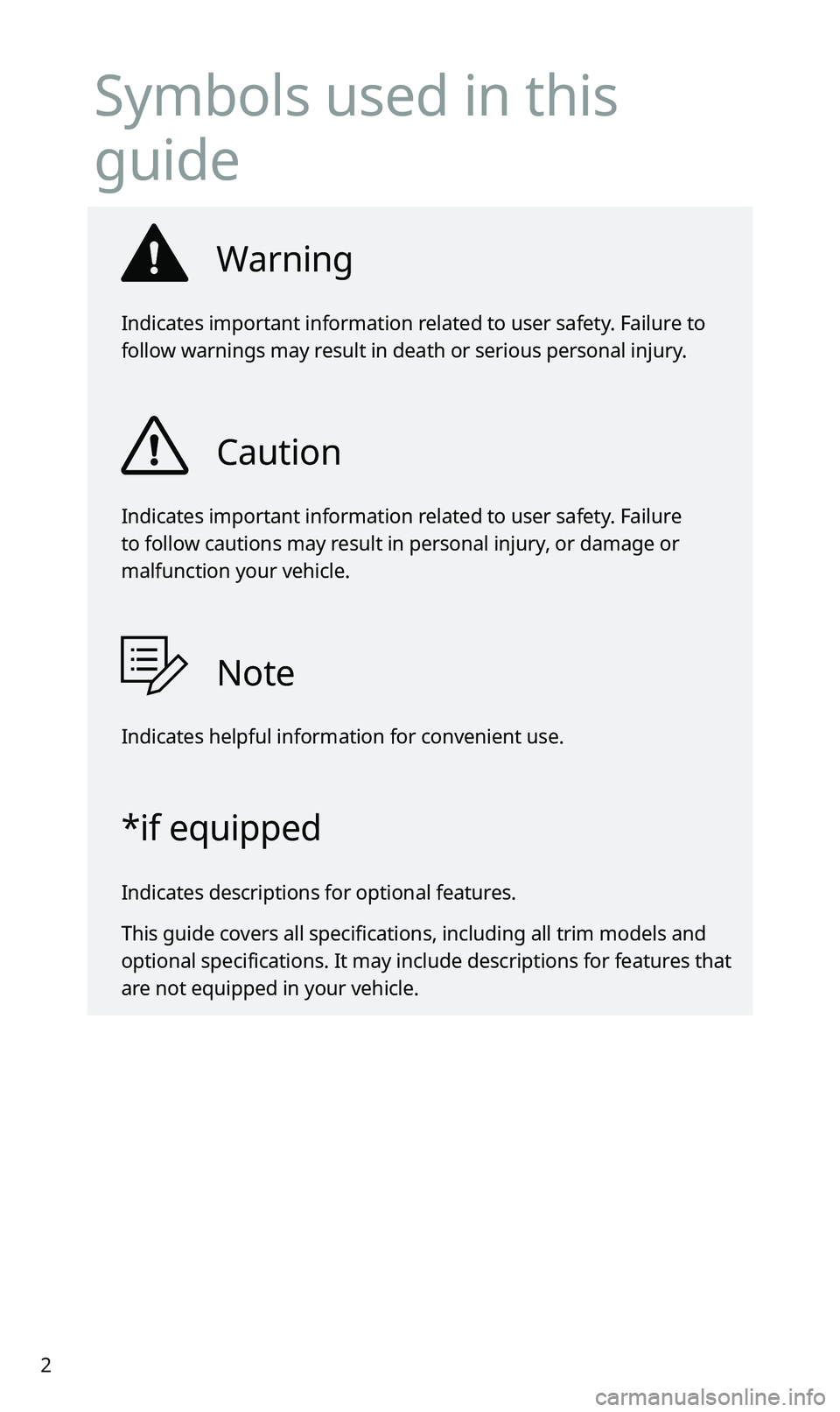

2
Symbols used in this
guide
Warning
Indicates important information related to user safety. Failure to
follow warnings may result in death or serious personal injury.
Caution
Indicates important information related to user safety. Failure
to follow cautions may result in personal injury, or damage or
malfunction your vehicle.
Note
Indicates helpful information for convenient use.
*if equipped
Indicates descriptions for optional features.
This guide covers all specifications, including all trim models and
optional specifications. It may include descriptions for features that
are not equipped in your vehicle.
Page 5 of 50

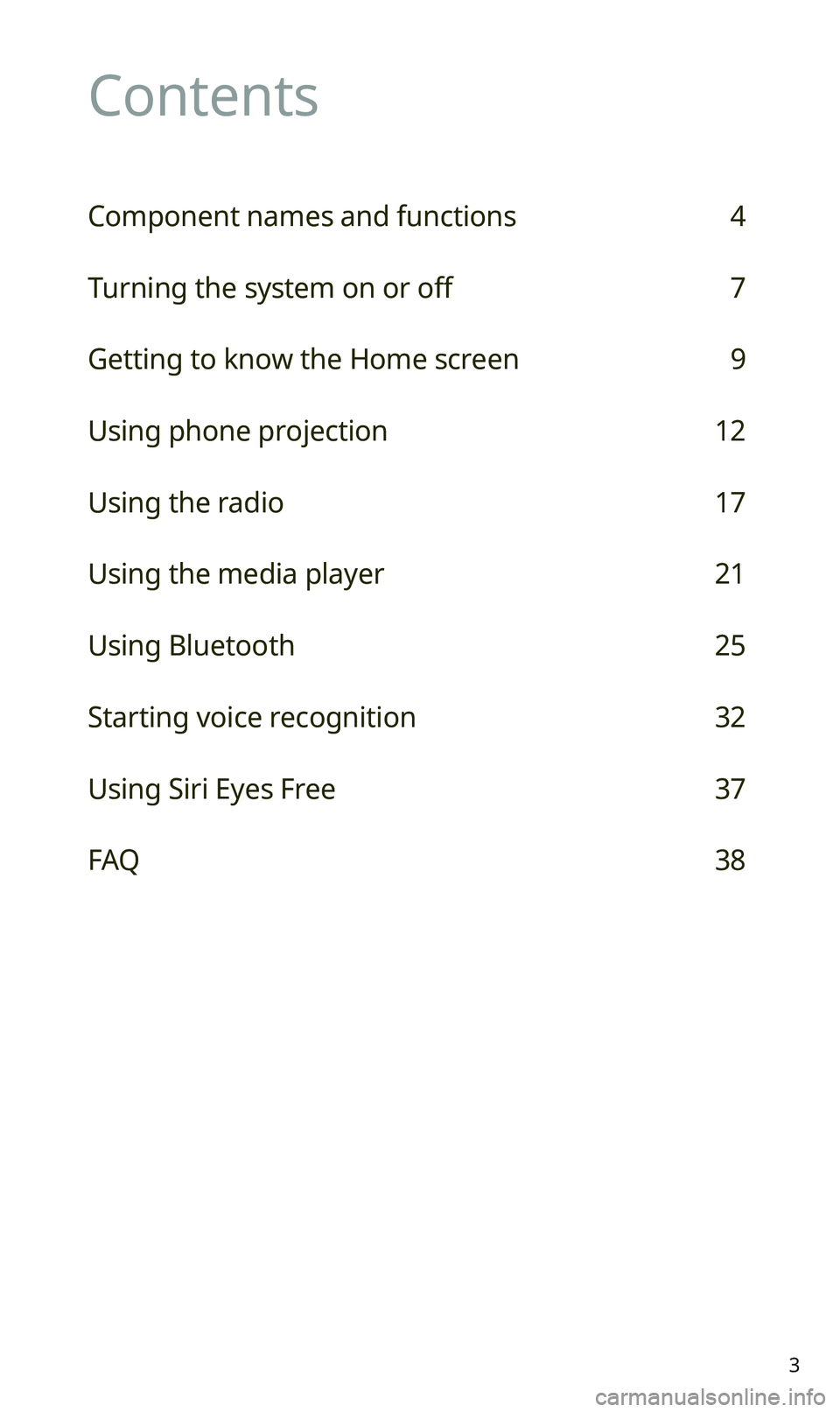

3
Contents
Component names and functions 4
Turning the system on or off 7
Getting to know the Home screen 9
Using phone projection 12
Using the radio 17
Using the media player 21
Using Bluetooth 25
Starting voice recognition 32
Using Siri Eyes Free 37
FAQ 38
Page 6 of 50
4

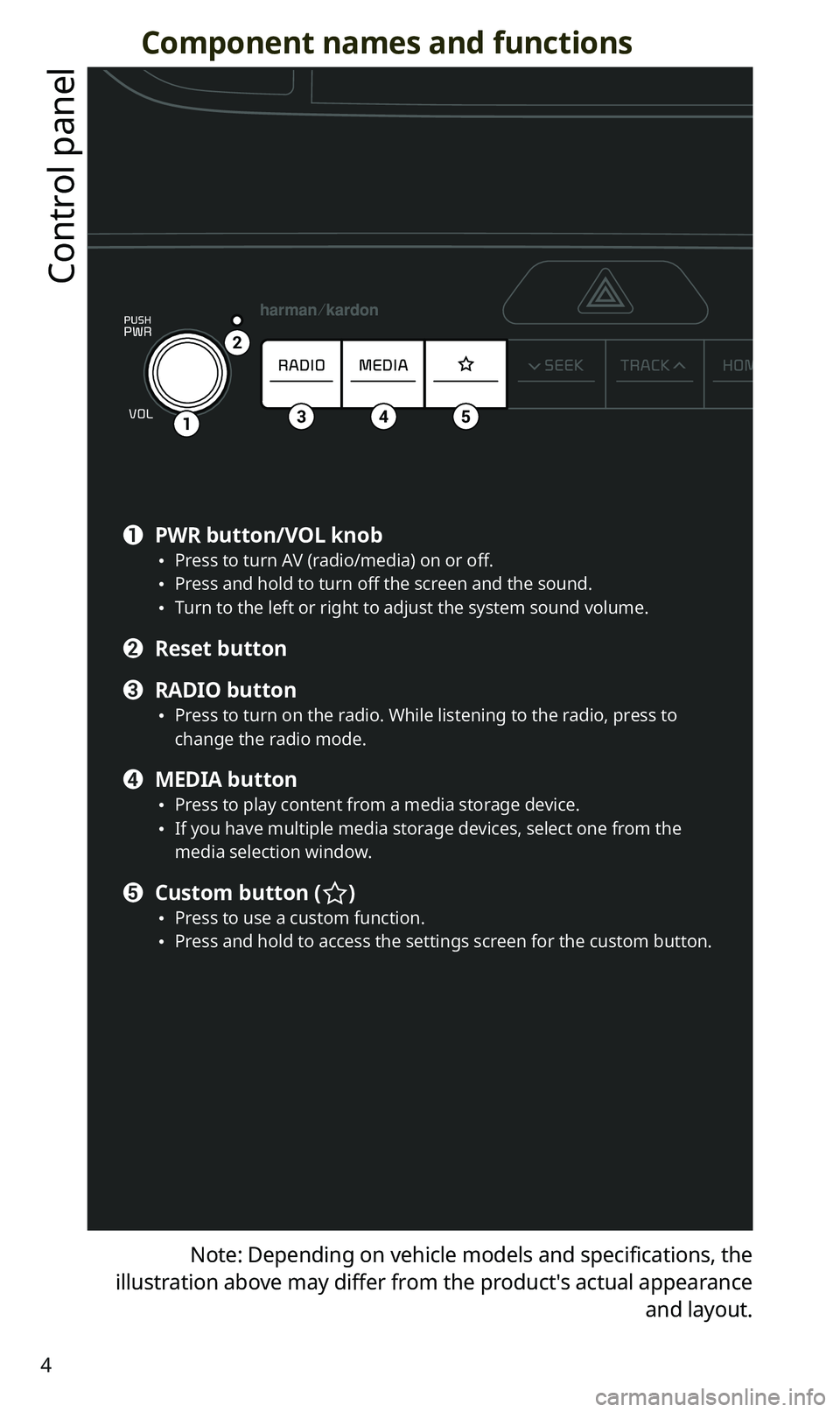

Component names and functions
Control panel
Note: Depending on vehicle models and specifications, the
illustration above may differ from the product′s actual appearance
and layout.
12341
2
345
a PWR button/VOL knob •Press to turn AV (radio/media) on or off. •Press and hold to turn off the screen and the sound. •Turn to the left or right to adjust the system sound volume.
b Reset button
c RADIO button •Press to turn on the radio. While listening to the radio, press to change the radio mode.
d MEDIA button •Press to play content from a media storage device. •If you have multiple media storage devices, select one from the media selection window.
e Custom button () •Press to use a custom function. •Press and hold to access the settings screen for the custom button.
Page 7 of 50

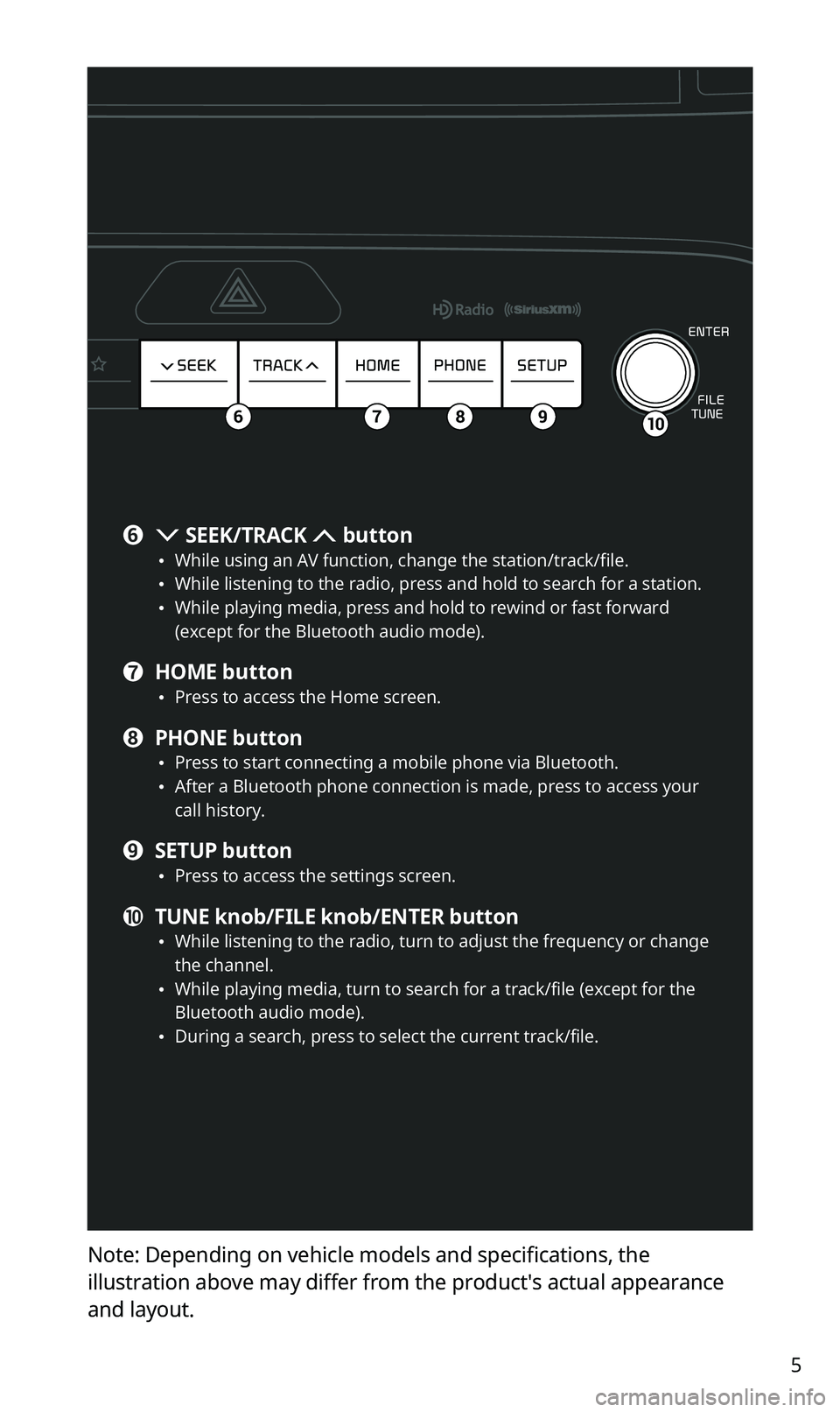

5
Note: Depending on vehicle models and specifications, the
illustration above may differ from the product′s actual appearance
and layout.
106789
f SEEK/TRACK button •While using an AV function, change the station/track/file. •While listening to the radio, press and hold to search for a station. •While playing media, press and hold to rewind or fast forward (except for the Bluetooth audio mode).
g HOME button •Press to access the Home screen.
h PHONE button •Press to start connecting a mobile phone via Bluetooth. •After a Bluetooth phone connection is made, press to access your
call history.
i SETUP button •Press to access the settings screen.
j TUNE knob/FILE knob/ENTER button •While listening to the radio, turn to adjust the frequency or change the channel. •While playing media, turn to search for a track/file (except for the Bluetooth audio mode). •During a search, press to select the current track/file.
Page 8 of 50

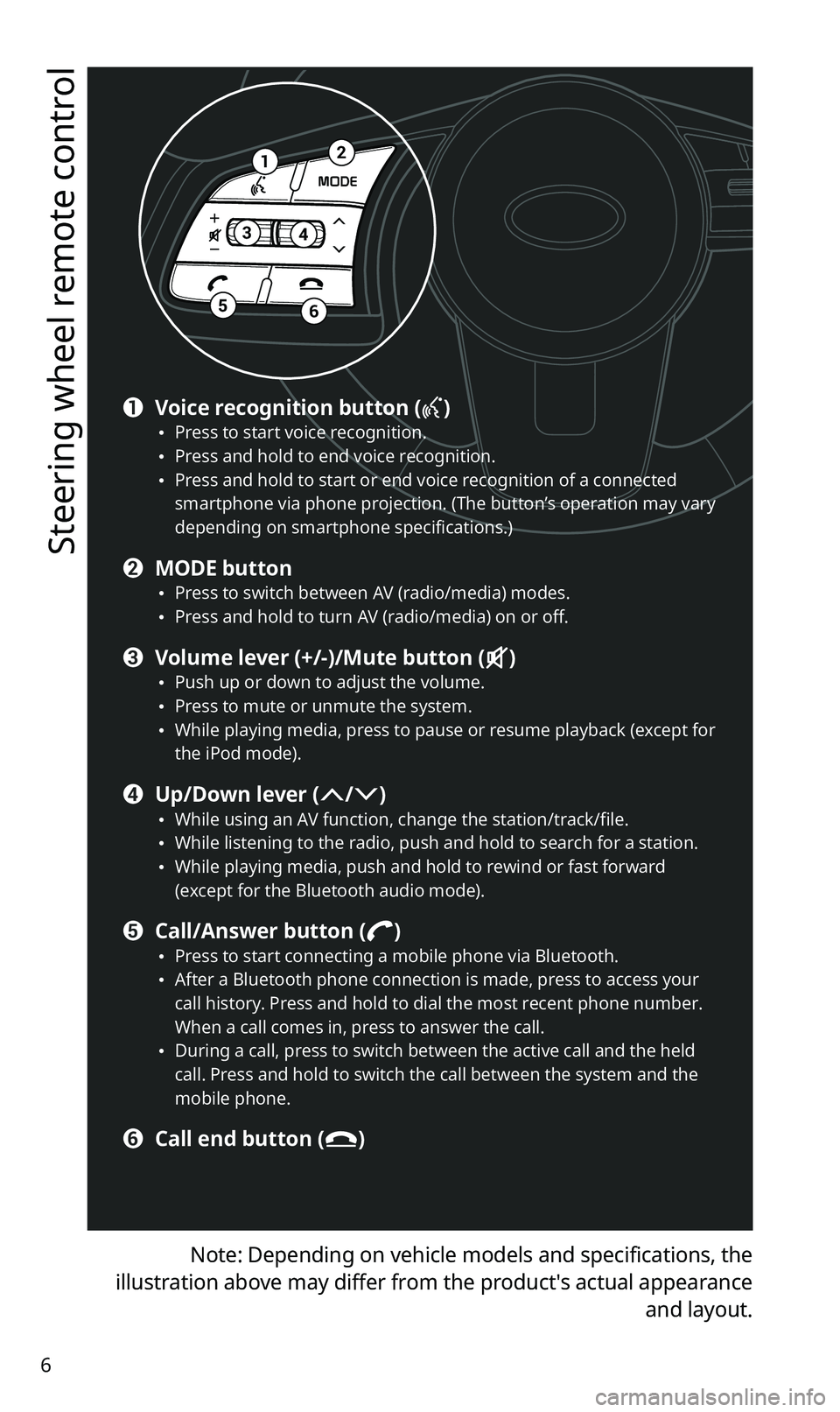

6
Steering wheel remote control
Note: Depending on vehicle models and specifications, the
illustration above may differ from the product′s actual appearance
and layout.
12
34
56
a Voice recognition button () •Press to start voice recognition. •Press and hold to end voice recognition. •Press and hold to start or end voice recognition of a connected smartphone via phone projection. (The button’s operation may vary depending on smartphone specifications.)
b MODE button •Press to switch between AV (radio/media) modes. •Press and hold to turn AV (radio/media) on or off.
c Volume lever (+/-)/Mute button () •Push up or down to adjust the volume. •Press to mute or unmute the system. •While playing media, press to pause or resume playback (except for the iPod mode).
d Up/Down lever (/) •While using an AV function, change the station/track/file. •While listening to the radio, push and hold to search for a station. •While playing media, push and hold to rewind or fast forward (except for the Bluetooth audio mode).
e Call/Answer button () •Press to start connecting a mobile phone via Bluetooth. •After a Bluetooth phone connection is made, press to access your call history. Press and hold to dial the most recent phone number. When a call comes in, press to answer the call. •During a call, press to switch between the active call and the held call. Press and hold to switch the call between the system and the mobile phone.
f Call end button ()
Page 9 of 50

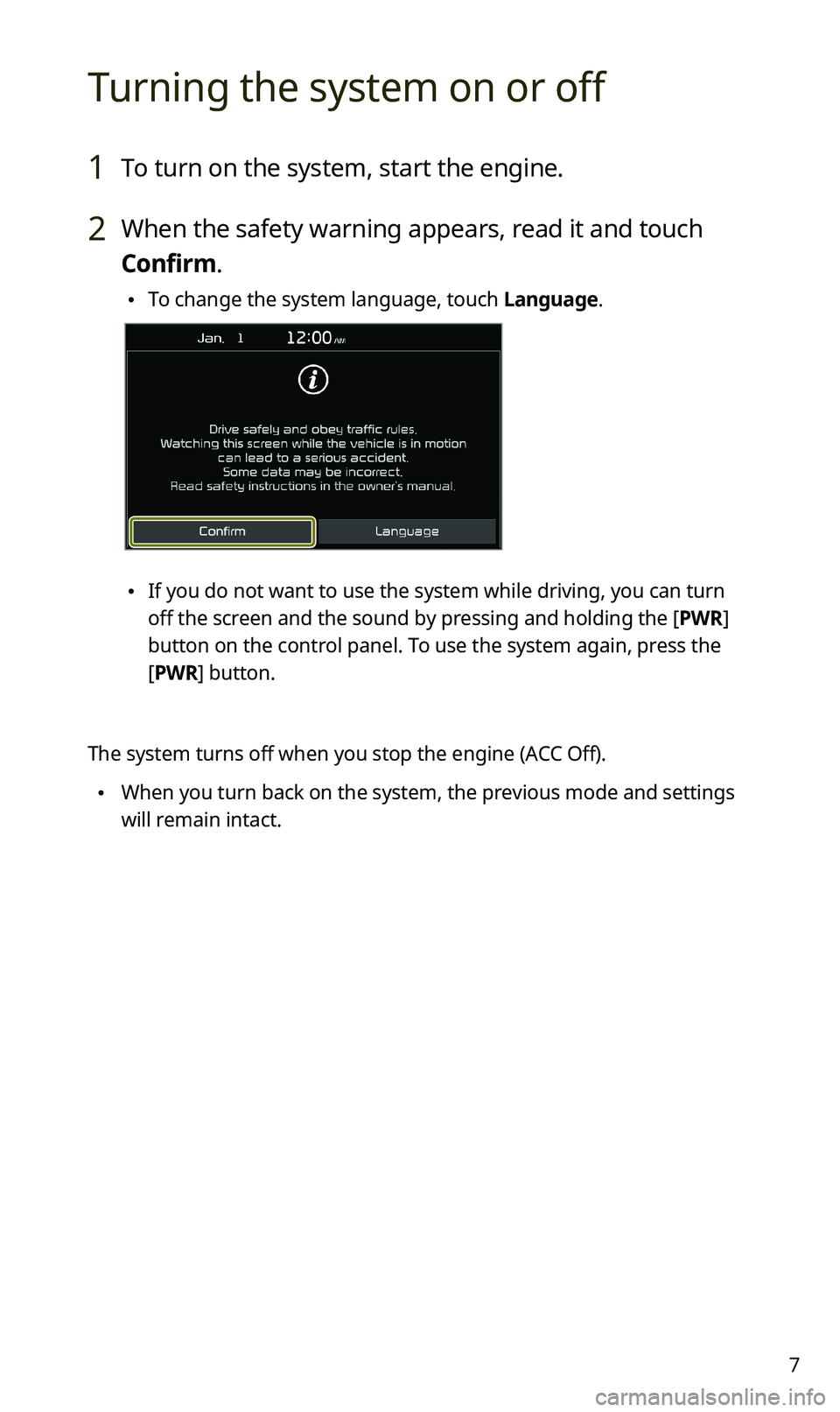

7
Turning the system on or off
1 To turn on the system, start the engine.
2 When the safety warning appears, read it and touch
Confirm.
•To change the system language, touch Language.
•If you do not want to use the system while driving, you can turn
off the screen and the sound by pressing and holding the [PWR]
button on the control panel. To use the system again, press the
[PWR] button.
The system turns off when you stop the engine (ACC Off).
•When you turn back on the system, the previous mode and settings
will remain intact.
Page 10 of 50

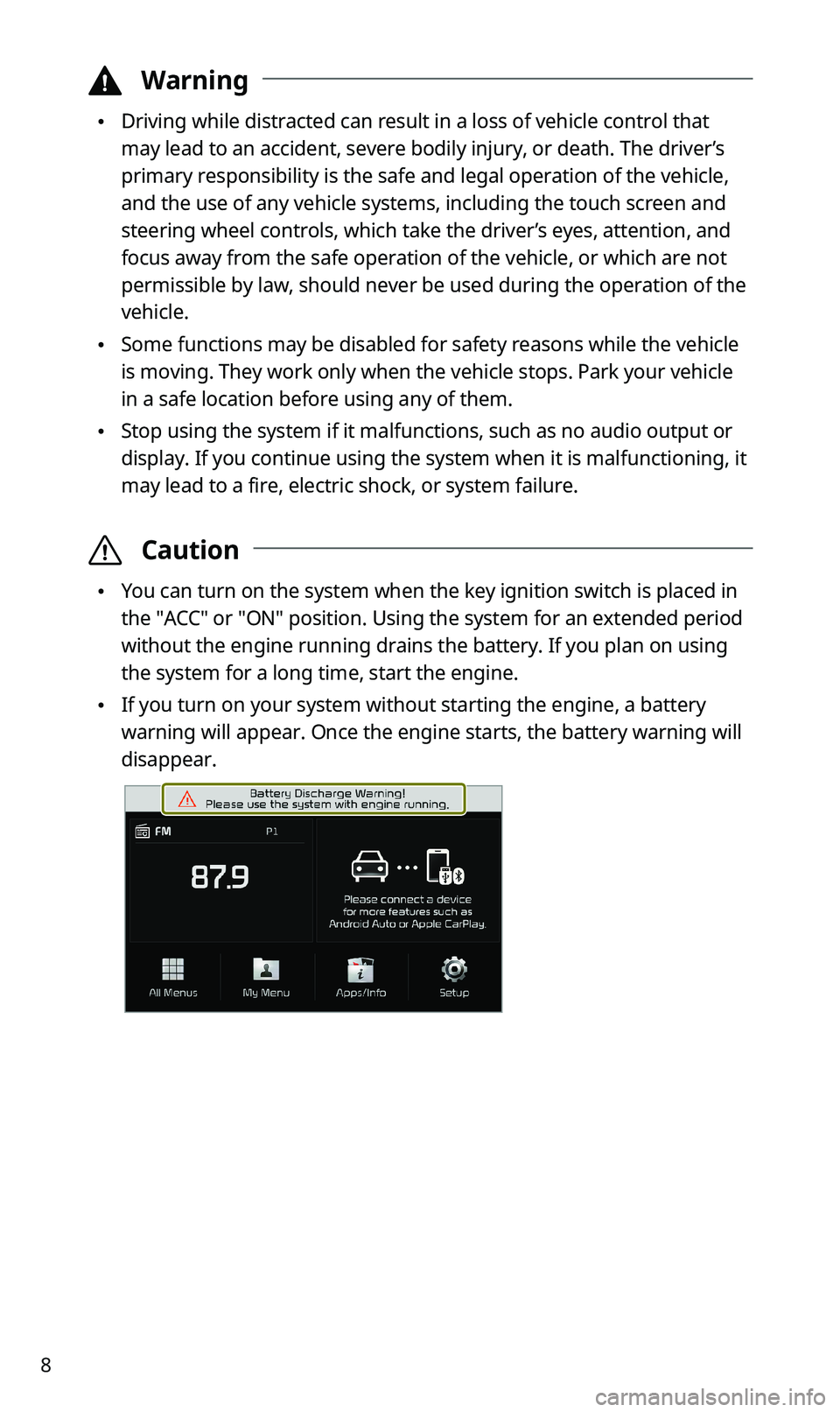

8
ÜWarning
•Driving while distracted can result in a loss of vehicle control that
may lead to an accident, severe bodily injury, or death. The driver’s
primary responsibility is the safe and legal operation of the vehicle,
and the use of any vehicle systems, including the touch screen and
steering wheel controls, which take the driver’s eyes, attention, and
focus away from the safe operation of the vehicle, or which are not
permissible by law, should never be used during the operation of the
vehicle.
•Some functions may be disabled for safety reasons while the vehicle
is moving. They work only when the vehicle stops. Park your vehicle
in a safe location before using any of them.
•Stop using the system if it malfunctions, such as no audio output or
display. If you continue using the system when it is malfunctioning, it
may lead to a fire, electric shock, or system failure.
ÝCaution
•You can turn on the system when the key ignition switch is placed in
the ″ACC″ or ″ON″ position. Using the system for an extended period
without the engine running drains the battery. If you plan on using
the system for a long time, start the engine.
•If you turn on your system without starting the engine, a battery
warning will appear. Once the engine starts, the battery warning will
disappear.
