alarm Lancia Delta 2008 Owner handbook (in English)

192IN AN EMERGENCY
38
38
38
–
38
38
38
38
38
38
38
38F42
F43
F44
F45
F46
F47
F48
F49
F50
F51
F52
F535
30
15
–
20
20
20
5
7.5
5/7.5 (*)
15
7.5
CONSUMERS FUSE AMPERE DIAGRAM
Brake Node, yaw sensor
Windscreen wiper system on steering wheel interface, bi-directional
windscreen/rearscreen washer pump system on steering wheel interface
Cigar lighter/power socket on tunnel,
luggage compartment power socket
Spare
Sunroof motor
Driver-side front electric window
Passenger-side front electric window
Emergency, right, left and central control panels on radio/
radio-navigator (illumination), steering wheel controls (illumination),
controls on front courtesy light (illumination), volume-sensing
alarm control unit, electric sunroof system (controls illumination
control unit), rain/dusk sensor,
electro-chrome mirror, heated front seats controls
Air Bag Node
Cigar lighter (illumination), cruise control control,
Convergence Node, Parking Sensor Node, AQS sensor, climate control
unit, door mirror adjustment, tyre
pressure detection control unit, Lane assistance Node,
control unit on right-hand gas discharge headlight (*)
Rear wiper system on steering wheel interface
Instrument panel, direction indicators

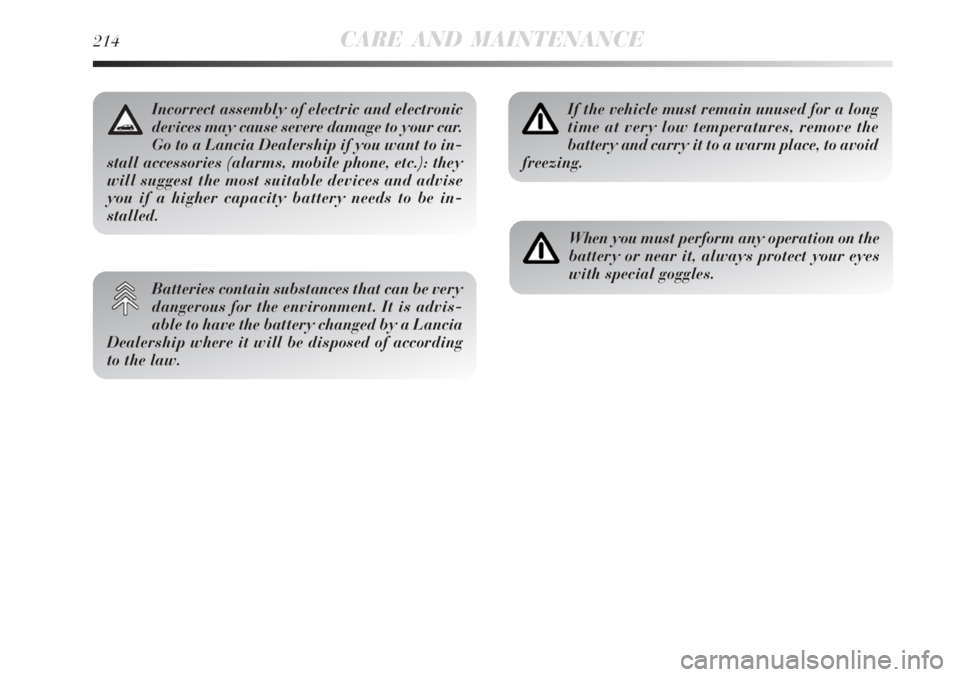

214CARE AND MAINTENANCE
If the vehicle must remain unused for a long
time at very low temperatures, remove the
battery and carry it to a warm place, to avoid
freezing.
When you must perform any operation on the
battery or near it, always protect your eyes
with special goggles.
Incorrect assembly of electric and electronic
devices may cause severe damage to your car.
Go to a Lancia Dealership if you want to in-
stall accessories (alarms, mobile phone, etc.): they
will suggest the most suitable devices and advise
you if a higher capacity battery needs to be in-
stalled.
Batteries contain substances that can be very
dangerous for the environment. It is advis-
able to have the battery changed by a Lancia
Dealership where it will be disposed of according
to the law.

CARE AND MAINTENANCE215
5
USEFUL ADVICE FOR LENGTHENING
THE LIFE OF YOUR BATTERY
To avoid draining your battery and make its life longer,
observe the following indications:
when you park the car, ensure the doors, tailgate and
bonnet are closed properly to ensure that the courtesy
lights do not remain lit in the passenger compartment;
switch off all lights inside the car: the car is however
equipped with a system which switches all internal
lights off automatically;
do not keep accessories (e.g. sound system, hazard
lights, etc.) switched on for a long time when the en-
gine is not running;
before performing any operation on the electrical sys-
tem, disconnect the battery negative terminal;
battery terminals should always be perfectly tightened.
IMPORTANT If the charge level remains below 50% for
a long time, the battery will be damaged by sulphation,
reducing its capacity and starting attitude.The battery will also be at increased risk of freezing (e.g.
already at -10°C). Refer to the paragraph “Car inactivi-
ty” in chapter “3” if the car is left parked for a long time.
If after buying the car, you want to install electric acces-
sories which require permanent electric supply (alarm,
etc.) contact a Lancia Dealership whose qualified per-
sonnel, in addition to suggesting the most suitable devices
from the Lineaccessori Lancia, will evaluate the overall
electric absorption, checking whether the car’s electric sys-
tem is capable of withstanding the load required, or
whether it should be integrated with a more powerful bat-
tery.
Since these devices continue absorbing energy even when
the ignition key is off, they gradually run down the bat-
tery.

INDEX249
7
Bodywork ................................ 221
– bodywork versions .............. 228
Bonnet .................................... 94
Boot ........................................ 89
Boot light (bulb replacement) .. 185
Brakes .................................... 232
Bulb (replacement)................... 174
– bulb types .......................... 176
Capacities .................................. 244
Car parked ................................. 150
Care and maintenance ................ 197
– heavy-duty use of the car........ 203
– Scheduled Service Plan .......... 199
– scheduled servicing ................ 203
– scheduled servicing................. 198
Carrying children safely ............. 132
Ceiling lights .............................. 68
Central locking ........................... 84
Changing a bulb ......................... 174
– exterior bulb .......................... 178
– interior bulb .......................... 183
Changing a wheel ....................... 167Checking fluid levels .................. 205
Child safety device ..................... 83
Child seats (compliance for use) . 138
Cigar lighter ............................... 78
Climatic comfort......................... 51
CO
2emissions ............................ 248
Code card.................................... 38
Controls ..................................... 70
Cornering lights........................... 61
Courtesy mirror lights (bulb
replacement)............................. 186
Cruise Control............................. 66
Cup holder/glove box
compartments .......................... 78
Current socket ............................ 78
Dashboard ................................ 6
Dimensions ................................ 237
Dipped headlights (control) ......... 62
– bulb replacement ................... 178
Direction indicators
– bulb replacement.................... 180
– controls ................................. 60
ABS ........................................... 110
ABS system ................................ 110
Adaptive lights.....................72-101
Advanced ESP (system) ............. 108
Advanced ESP system ................ 108
AFS system................................. 101
Air bags
– front ...................................... 139
– side ....................................... 142
Air filter/Pollen filter .................. 212
Alarm ......................................... 41
Ashtray ...................................... 79
ASR (system) ............................ 109
ASR system ................................ 109
Automatic headlight sensor
(dusk sensor) ........................... 61
Automatic two-zone climate
control system........................... 54
Battery
– jump starting ...................... 158
– recharging .......................... 195
– replacement ........................ 213
