80GETTING TO KNOW YOUR CAR
To close
When the sunroof is in the fully opened position, press
button A-fig. 49; if the button is held down for more than
half a second, the front sunroof glass will automatically
move to the intermediate position (“Comfort” position).
If the button is pressed once again and held down for more
than half a second the sunroof will move to the spoiler po-
sition. Pressing the close button once again will complete-
ly close the sunroof.
fig. 49L0E0108m
If transverse roof racks are fitted use the sun-
roof only in the “spoiler” position. Do not open
the sunroof in the presence of snow or ice: it
may be damaged.
When leaving the car, always remove the key
from the ignition device to avoid the risk of
injury due to accidental operation of the sun-
roof; it presents a risk to those left on board: in-
correct use of the sunroof can be dangerous. Before
operation, always check that no-one is at risk of be-
ing injured by the moving sunroof or by objects get-
ting caught and dragged by it.
Anti-pinch device
The sunroof is fitted with an anti-pinch safety system that
detects the presence of an obstacle during sunroof clos-
ing travel and cuts in by stopping and reversing the sun-
roof travel. IMPORTANT During the sunroof closing manoeuvre the sun
blind will remain in the “fully open” position. If you would
like to close it, this must be done manually.

GETTING TO KNOW YOUR CAR81
1
fig. 50L0E0109m
INITIALISATION PROCEDURE
The sunroof must be re-initialised after disconnecting the
battery or if the relevant protection fuse is blown.
Proceed as follows:
press button A-fig. 49 until the sunroof is completely
closed. Release the button;
press and hold down button A for at least 10 seconds
and/or until the glass panel moves forwards by one
click. Release the button at this point;
within 5 seconds of the previous operation, press and
hold down button A: The glass panel will carry out a
complete opening and closing cycle. Only release the
button when this cycle is complete.EMERGENCY OPERATION
If the switch does not work, the sunroof can be operated
manually as follows:
remove protective cap A-fig. 50 on the rear part of
the internal cover;
take the Allen key provided from the container with
the on-board documentation or from the luggage com-
partment (versions with Fix&Go automatic);
fit the key into seat B and turn it:
– clockwise to open the sunroof;
– counter-clockwise to close the sunroof.

82GETTING TO KNOW YOUR CAR
DOORS
LOCK/RELEASE FROM OUTSIDE fig. 51
Unlocking the doors
To unlock all the doors: turn the key to position 1. Pull up
the associated handle to open the door. Press button Ë
on the remote control to unlock the doors.
Before opening a door, ensure that it is safe
to do so. Open the doors only when the car
is stationary.
fig. 51L0E0042m
Locking the doors
To lock all the doors: Turn the key to position 2 with all
the doors closed correctly.
Press button Áon the remote control to lock the doors. If
one of the doors is not fully closed, simultaneous locking
is disabled.
IMPORTANT If one of the doors is not closed correctly
or there is a fault in the system, the central locking sys-
tem will not engage. If the manoeuvre is repeated 10/11
times in quick succession, the device is excluded for ap-
proximately 30 seconds.

GETTING TO KNOW YOUR CAR83
1
LOCK/RELEASE FROM INSIDE fig. 52
From inside the vehicle (with the doors closed) press the
door locking/unlocking button A on the dashboard. If the
electrical system has failed, it is still possible to lock the
doors manually.
fig. 52L0E0043m
CHILD LOCK SYSTEM B-fig. 53
This system prevents the rear doors from being opened
from the inside.
This device can only be engaged with rear doors open:
position 1 - device engaged (door locked);
position 2 - device not engaged (door may be opened
from the inside).
The device stays on even if the doors are unlocked by the
central locking system.
IMPORTANT The rear doors cannot be opened from the
inside when the child-lock system is engaged.
After engaging the child lock on both rear
doors, check it is properly engaged by try-
ing to open a rear door using the internal
handle.
Always use this device when carrying chil-
dren.

84GETTING TO KNOW YOUR CAR
fig. 53L0E0044m
EMERGENCY REAR DOOR LOCKING
DEVICE A-fig. 53
The rear doors are fitted with an emergency device that
allows the doors to be locked when there is no current.
Proceed as follows:
insert the metal insert on the ignition key into housing
A;
turn the key clockwise and then remove it from hous-
ing A.
The door lock knob can be realigned (only when the bat-
tery charge has been restored) as follows:
press button
Ëon the key;
press door locking/unlocking button
≈on the dash-
board;
open a front door by inserting the key into the key
pawl;
operate the internal door handle.

GETTING TO KNOW YOUR CAR85
1
IMPORTANT If the battery is disconnected or the pro-
tection fuse blows, the door opening/closing mechanism
must be reinitialised as follows:
close all the doors;
press button
Áon the key or door locking/unlocking
button
≈on the dashboard;
press button
Ëon the key or door locking/unlocking
button
≈on the dashboard.
If the child lock was engaged and the previ-
ously described locking procedure carried
out, operating the internal handle will not
open the door but will only realign the door lock
knob. To open the door, the outside handle must be
used. The door central locking/unlocking button
≈is not disabled by the engagement of the emer-
gency lock.
ELECTRIC WINDOWS
These operate when the ignition key is turned to MAR and
for about 2 minutes after turning the key to STOP or re-
moving it.
The control buttons are located in the door panels (the
driver-side door panel can be used to operate all the win-
dows).
There is may be anti-crush safety device which starts
working when the front windows are closing.
CONTROLS fig. 54
A. opening/closing left-hand front window; “continuous
automatic” operation during window opening/closing
stage;
B. opening/closing right-hand front window; continu-
ous automatic operation during window open-
ing/closing stage;
C. enabling/disabling of rear door electric window con-
trols;
D. opening/closing left-hand rear window (where pro-
vided); continuous automatic operation during win-
dow opening/closing stage;
E. opening/closing right-hand rear window (where pro-
vided); “continuous automatic” operation during win-
dow opening/closing stage.

86GETTING TO KNOW YOUR CAR
Press the buttons to open/close the required window.
When one of the two buttons is pressed briefly the win-
dow travel takes place in stages; if the button is held
down, continuous automatic operation is activated both
for closing and opening. . If the button is pressed once
again the window will stop in its current position.
Holding the button pressed for a few seconds will auto-
matically raise or lower the window (only with key on
MAR).
Incorrect use of the electric windows may be
dangerous. Before and during operation en-
sure that passengers are not at risk from the
moving glass, either directly or through personal
objects getting caught in the mechanism.
Always remove the ignition key when leav-
ing the car to prevent the electric windows be-
ing operated accidentally and constituting a
danger to the passengers in the car.
Passenger-side front door/rear doors
On the passenger-side front door control panel, and on
some versions also on the rear doors, buttons F-fig. 54 are
provided to control the associated windows
fig. 54L0E0045m

GETTING TO KNOW YOUR CAR87
1

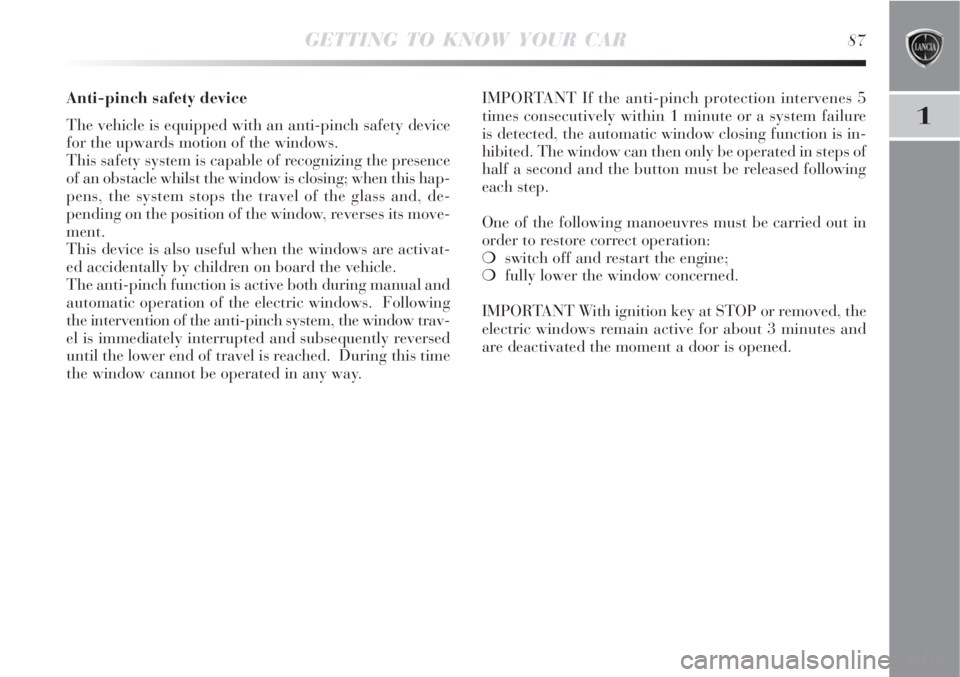

Anti-pinch safety device
The vehicle is equipped with an anti-pinch safety device
for the upwards motion of the windows.
This safety system is capable of recognizing the presence
of an obstacle whilst the window is closing; when this hap-
pens, the system stops the travel of the glass and, de-
pending on the position of the window, reverses its move-
ment.
This device is also useful when the windows are activat-
ed accidentally by children on board the vehicle.
The anti-pinch function is active both during manual and
automatic operation of the electric windows. Following
the intervention of the anti-pinch system, the window trav-
el is immediately interrupted and subsequently reversed
until the lower end of travel is reached. During this time
the window cannot be operated in any way.IMPORTANT If the anti-pinch protection intervenes 5
times consecutively within 1 minute or a system failure
is detected, the automatic window closing function is in-
hibited. The window can then only be operated in steps of
half a second and the button must be released following
each step.
One of the following manoeuvres must be carried out in
order to restore correct operation:
switch off and restart the engine;
fully lower the window concerned.
IMPORTANT With ignition key at STOP or removed, the
electric windows remain active for about 3 minutes and
are deactivated the moment a door is opened.

88GETTING TO KNOW YOUR CAR
Electric window system initialisation
The safety system must be re-initialised after disconnect-
ing the battery or if the relevant protection fuse is blown.
Initialisation procedure:
fully close the window to be initialised manually;
after the window has reached the upper end of travel,
hold the up button pressed for at least one second.
IMPORTANT Where provided, following the disconnec-
tion of the power supply (replacing or disconnecting the
battery or replacing the protection fuse for the electric win-
dows control units), the automatic setting for the electric
windows must be reset.The reset operation should be carried out with the doors
closed according to the following procedure:
1. completely lower the driver-side window and keep the
button pressed for at least 3 seconds once the end of
travel position has been reached;
2. completely raise the driver-side window and keep the
button pressed for at least 3 seconds once the end of
travel position has been reached;
3. repeat stages 1 and 2 for the passenger-side window
4. check that the initialisation has taken place correctly
by checking the automatic operation of the windows.
IMPORTANT With central locking on, operating the in-
ternal handle of one of the doors will unlock all the doors.
If there is no power (blown fuse, battery disconnected,
etc.) the doors can still be locked manually. As in this case
the automatic window opening function is not available,
to open or close the door with the window closed, apply
pressure to the window towards the vehicle interior, to aid
the passage of the window against the trim.

GETTING TO KNOW YOUR CAR89
1
LUGGAGE COMPARTMENT
OPENING THE TAILGATE
When unlocked, the tailgate can be opened from the out-
side by operating the handle fig. 55.
The tailgate can be opened at any time if car doors are un-
locked.
The key with remote control should be used to open the
tailgate.
fig. 55L0E0046m
If the luggage compartment is not closed correctly, this is
indicated by the
´warning light coming on in the in-
strument panel or the
Ricon appearing on the display
together with a dedicated message (see “Instrument pan-
el warning lights” in this chapter).
Opening the tailgate turns the luggage compartment light
on: the light automatically turns off after you close the
tailgate.
The light remains on for about 15 minutes after the key
is turned to STOP: if, during this period, a door or the tail-
gate is opened, the 15 minute timing is reset.
Open the tailgate using the key with remote control
To release the tailgate lock press R. Luggage compart-
ment opening is indicated by the double flashing of the
direction indicators; tailgate closing is indicated by sin-
gle flashing (only with the alarm switched on, where pro-
vided).
