lock Lancia Delta 2011 Owner handbook (in English)

1

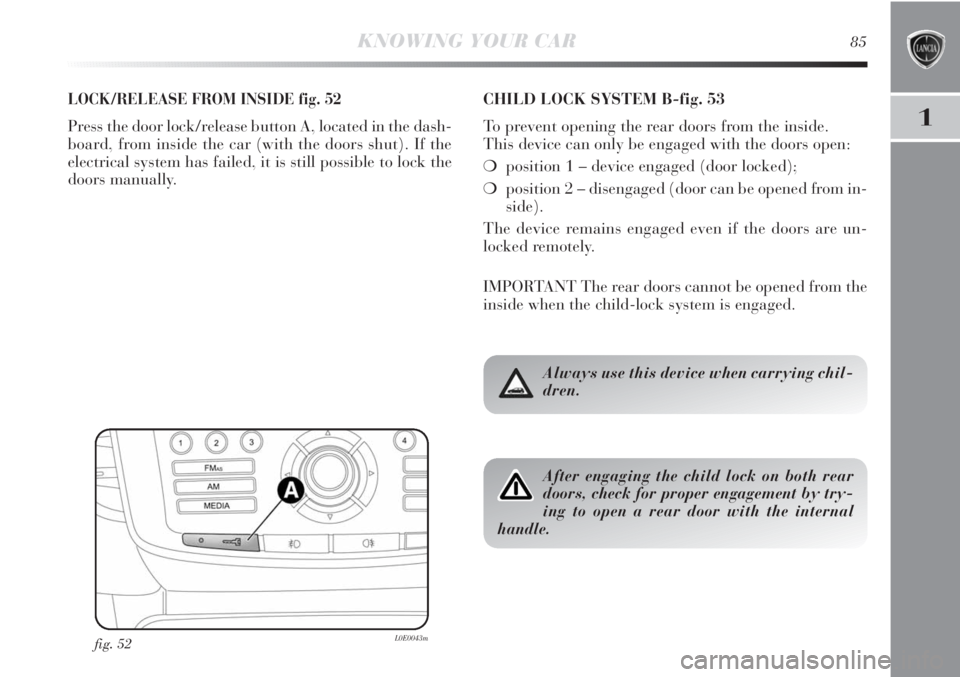

KNOWING YOUR CAR85
LOCK/RELEASE FROM INSIDE fig. 52
Press the door lock/release button A, located in the dash-
board, from inside the car (with the doors shut). If the
electrical system has failed, it is still possible to lock the
doors manually.
fig. 52L0E0043m
CHILD LOCK SYSTEM B-fig. 53
To prevent opening the rear doors from the inside.
This device can only be engaged with the doors open:
❍position 1 – device engaged (door locked);
❍position 2 – disengaged (door can be opened from in-
side).
The device remains engaged even if the doors are un-
locked remotely.
IMPORTANT The rear doors cannot be opened from the
inside when the child-lock system is engaged.
After engaging the child lock on both rear
doors, check for proper engagement by try-
ing to open a rear door with the internal
handle.
Always use this device when carrying chil-
dren.

86KNOWING YOUR CAR
fig. 53L0E0044m
EMERGENCY REAR DOOR LOCKING DEVICE
A-fig. 53
The rear doors are fitted with an emergency device that
allows the doors to be locked when there is no current.
Proceed as follows:
❍insert the metal insert of the ignition key into housing
A;
❍turn the key anticlockwise and then remove it from
housing A.
The door lock knob can be realigned (only when the bat-
tery charge has been restored) as follows:
❍press button
Ëon the key;
❍press door lock/release button
≈in the dashboard;
❍open a front door by inserting the key into the key
pawl;
❍operate the internal door handle.

1
KNOWING YOUR CAR87
IMPORTANT If the battery is disconnected or the pro-
tection fuse blows, the luggage compartment opening/
closing mechanism must be initialised as follows:
❍shut all the doors;
❍press button
Áon the key or door lock/release but-
ton
≈in the dashboard;
❍press button
Ëon the key or door lock/release but-
ton
≈in the dashboard.
If the child lock was engaged and the previ-
ously described locking procedure carried
out, operating the internal handle will not
open the door but will only realign the door lock
knobs. To open the door, the outside handle must be
used. The door central locking/unlocking button is
not disabled by the engagement of the emergency
lock
≈.
POWER WINDOWS
These operate when the ignition key is turned to MAR and
for about 2 minutes after turning the key to STOP or re-
moving it.
The control buttons are located in the door panels (the
driver side door panel can be used to operate all the
windows).
An anti-pinch device is operated when the front windows
are lifted.
CONTROLS fig. 54
A. opening/closing left hand front window; “continuous
automatic” operation during window opening/closing
stage;
B. opening/closing right hand front window; “continu-
ous automatic” operation during window opening/
closing stage;
C. enabling/disabling of rear door electric window con-
trols;
D. opening/closing left hand rear window (for versions/
markets, where provided); “continuous automatic”
operation during window opening/closing stage;
E.opening/closing right hand rear window (where pro-
vided); “continuous automatic” operation during win-
dow opening/closing stage.

90KNOWING YOUR CAR
Electric window system initialisation
The system must be re-initialised after disconnecting the
battery or if the relevant protection fuse is blown.
Initialisation procedure:
❍fully close the window to be initialised manually;
❍once fully closed, keep holding down the closing con-
trol for at least 1 second.
IMPORTANT Where provided, after there has been no
power supply for the control units (battery replaced or
disconnected or protective fuses for the electric window
control units replaced), the automatic operation of the
windows must be restored.The restoration procedure must be performed as follows
with the doors closed:
1. completely open the driver’s door window keeping the
operating button pressed for at least three seconds af-
ter the (lower) end of travel position;
2. completely raise the driver’s side window and keep the
button pressed for at least three seconds once the end
of travel position (upper end stop) has been reached;
3. repeat stages 1 and 2 for the passenger-side window
4. make sure that the initialisation is correct by check-
ing that the windows work automatically.
IMPORTANT With central locking on, operating the in-
ternal handle of one of the doors will unlock all the doors.
If there is no electric power supply (fuse blown, battery
disconnected, etc.) it is still possible to operate the door
locking manually; in this case the automatic lowering
function for the windows is not available and to open or
close the door with the window closed it is necessary to
exert pressure on the window towards the inside of the
vehicle to facilitate the movement of the window on the
moulding.

1
KNOWING YOUR CAR91
BOOT
OPENING THE TAILGATE
When unlocked, the luggage compartment can be opened
from the outside using the handle fig. 55.
The tailgate can be opened at any time, if the doors are
unlocked.
The key with remote control should be used to open the
tailgate.
fig. 55L0E0046m
If the luggage compartment is not closed correctly, this
is indicated by the warning light
´coming on in the in-
strument panel or the icon
Rappearing in the display
together with a dedicated message (see “Instrument panel
warning lights” paragraph in this chapter).
Opening the tailgate will switch the boot light on: the
light will go off automatically when closing the tailgate.
The light will stay on for about 15 minutes after turning
the key to STOP: if during this time, a door or the tailgate
is opened, the light will switch on again for 15 minutes.
Opening the tailgate using the key
with remote control
To release the tailgate lock press R. Luggage com-
partment opening is indicated by the double flashing of
the direction indicators; tailgate closing is indicated by
single flashing (only with the alarm switched on, where
provided).

92KNOWING YOUR CAR
CLOSING THE TAILGATE fig. 56
To close, lower the tailgate pressing near the lock until
you hear it click. There are handles B provided inside the
tailgate to allow it to be closed more easily.
fig. 56L0E0047m
If you travel in areas with few filling stations
and you want to transport fuel in a spare
tank, comply with the regulations in force
and use only an approved, suitably secured tank. In
the event of a collision the fire risk is increased all
the same.
Take care not to knock objects on the roof rack
when opening the tailgate.
Never exceed the maximum allowed load in
the luggage compartment; see chapter 6.
Make sure that the objects are well arranged
in the boot so that they will not be projected for-
wards following sudden braking. Never travel with
the tailgate open: exhaust gases may get into the
passenger’s compartment.

1
KNOWING YOUR CAR93
fig. 57L0E0048m
OPENING THE TAILGATE IN AN EMERGENCY
fig. 57
To open the tailgate from the passenger compartment if
the car battery is flat or the electric tailgate lock is faulty,
proceed as follows (see “Extending the boot”).
❍remove the rear head restraints;
❍fold over the backrests;
❍operate lever A to unlock the tailgate mechanically
from inside the luggage compartment.EXTENDING THE BOOT
IMPORTANT If the rear seat backrest is folded down, re-
leasing the rear curtains of the parcel shelf is strictly com-
pulsory (follow the specific indications in the “Parcel
shelf” paragraph).
The luggage compartment can be partially (1/3 or 2/3)
or totally extended by splitting the rear seat fig. 59.
Proceed as follows to extend the luggage compartment:
❍completely lower the rear seat head restraints;
❍move the seat belt to the side, making sure that it is
fully extended and not twisted;
❍release the parcel shelf curtain (for versions/markets,
where provided) from the backrests (see the para-
graph “Parcel shelf” on the next pages);
fig. 58L0E0049m

100KNOWING YOUR CAR
With hot engine, proceed with the utmost
care inside the engine compartment to avoid
burns. Do not place your hands close to the
fan: it might start working even with the ignition
key removed. Wait for the engine to cool.
Pay attention to scarves, ties and other loose
fitting garments. If they accidentally touch
moving parts, they may easily get caught up
with serious risks for those who wear them.
CLOSING fig. 65
Proceed as follows:
❍Hold the bonnet up with one hand and with the other
remove rod C from housing D and put it back into its
catch;
❍Lower the bonnet to approximately 20 centimetres
from the engine compartment and let it drop. Make
sure that the bonnet is completely closed and not only
fastened by the safety catch by trying to open it. In
this case, do not press the bonnet down, rather lift
it again and repeat the procedure.
For safety reasons, the bonnet must always
be properly closed while the car is travel-
ling. Make sure that the bonnet is properly
closed and that the lock is engaged. Should you no-
tice that the bonnet is not properly secured while
travelling, stop the car immediately and close the
bonnet safely.

1
KNOWING YOUR CAR105
IMPORTANT The function is activated about 5 seconds
after the SPORT button is pressed.
IMPORTANT The steering may become stiffer during
parking manoeuvres including a great deal of steering.
This is normal and caused by the system preventing the
electric control motor overheating. No repairs are needed.
The power steering system will start working normally
again the next time the car is used.Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications
(e.g. installation of anti-theft device). This could
negatively affect performance and safety, invali-
date the warranty, cause serious safety problems
and also result in vehicle non-compliance with
type-approval requirements.
Before servicing the car, switch off the engine
and remove the key from the ignition device
to activate the steering lock. This is espe-
cially important when the car wheels are not touch-
ing the ground. If this is not possible (e.g. if the key
must be kept in the MAR position or the engine must
be kept running), remove the electric power steering
system main fuse.On some versions, with the CITY function
activated, the SPORT function is not avail-
able. To activate the SPORT function, deactivate
the CITY function and vice versa, because they are
reciprocally incompatible.

112KNOWING YOUR CAR
ADVANCED ESP SYSTEM
(ELECTRONIC STABILITY PROGRAM)
This is an electronic car stability control system in the
event of tyre grip loss, helping to maintain directional
control.
The Advanced ESP system is therefore particularly use-
ful when road surface grip conditions change.
With the Advanced ESP system as well as the ASR (trac-
tion control with intervention on the brakes and the en-
gine) plus the HILL HOLDER (device for hill starts with-
out using the brakes) and also MSR (adjustment of engine
braking force with gear downshift), HBA (automatic in-
crease in braking pressure during emergency braking),
ABS (preventing the wheels from locking and slipping on
all road surfaces during sharp braking and DST (appli-
cation of force on the steering wheel for steering correc-
tion) functions are all available. SYSTEM INTERVENTION
It is signalled by the blinking of the warning light á
on the instrument panel, to inform the driver that the car
is in critical stability and grip conditions.
Switching the system on
The Advanced ESP system comes on automatically when
the vehicle is started and cannot be turned off.
Failure indications
In the event of a failure, the Advanced ESP system will
be automatically switched off and warning light áwill
appear constantly in the instrument panel along with
a message on the reconfigurable multifunction display.
The LED on the ASR OFF button will also light up (see
“Instrument panel warning lights” chapter). In this case,
go to a Lancia Dealership.
The performance of the Advanced ESP sys-
tem should not encourage the driver to take
unnecessary risks. Your driving style must
always be suited to the road conditions, visibility
and traffic. The driver is ultimately responsible for
road safety.
