roof rack Lancia Delta 2014 Owner handbook (in English)

We really know your car because we invented, designed and built it:
we really know every single detail. At Lancia Service authorised workshopsyou can find technicians
directly trained by us, offering quality and professionalism for all service operations.
Lancia workshops are always close to you for the regular servicing operations, season checks
and practical recommendations by our experts.
With Lancia Genuine Parts you keep the reliability, comfort and performance features
of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we recommend them
because they come from our steady commitment in research and development
of highly innovative technologies.
For all these reasons: rely on Genuine Parts, because they are the only
ones designed by Lancia for your car.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL MAINTENANCECOMFORT: SUSPENSION
AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS,
INJECTORS AND BATTERIESLINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
Lancia Delta GB.qxd 28-01-2011 9:37 Pagina 2

KNOWING YOUR CAR7
1
Dashboard .................................................. 8
Control panel and on-board in strument s...... 9
Dis play ....................................................... 26
Menu items ................................................. 30
Trip Comput er ............................................ 40
Symbols ...................................................... 42
Lancia Code system..................................... 43
The keys ..................................................... 44
Alarm ......................................................... 48
Ignition switch ............................................ 51
S eats .......................................................... 52
Head res traints ........................................... 55
S teering wheel ............................................ 56
Rear view mirrors ....................................... 56
Climatic comfort ......................................... 58
Manual climate control system .................... 59
Dual-zone automatic climate control system ... 61
External light s............................................. 67
Window cleani ng ......................................... 70
Cruis e Control ............................................. 73
Roof light s................................................... 75
Controls ...................................................... 77
Fuel cut-off system ...................................... 80 Interior fittings
............................................ 81
S unroof ....................................................... 86
Doors .......................................................... 89
Electric windows ........................................ 92
Luggage compart ment................................. 96
Bonnet ........................................................ 102
Roof rack/s ki rack ....................................... 104
Headlight s................................................... 105
D ST system ................................................. 107
S P
ORT function .......................................... 107
Reactive Suspens ion System ........................ 109
Driving Advis or ........................................... 110
Advanced ES P system ................................. 117
EOBD system .............................................. 124
“Dualdrive” electric power
s teering system ............................................ 125
TPMS system .............................................. 127
Parking sens ors ........................................... 131
Magic Parking ............................................. 134
Wiring for radio system .............................. 148
Accessories purchased by the owne r............. 149
Refuelling the car ........................................ 150
Protecting the environment.......................... 152
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 7

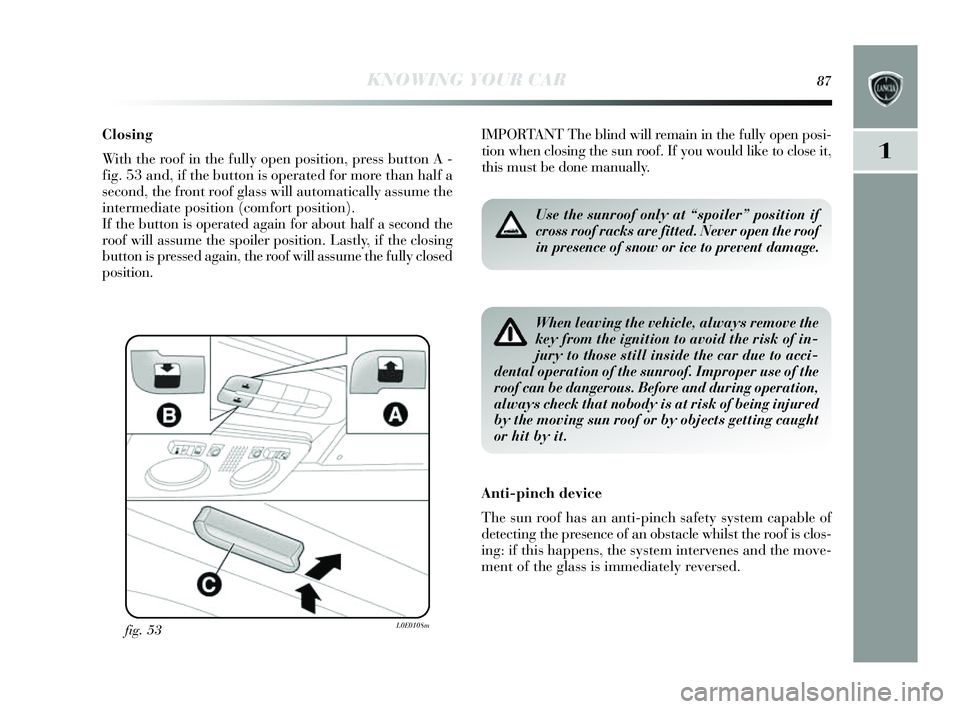

KNOWING YOUR CAR87
1
Closing
With the roof in the fully open position, press button A -
fig. 53 and, if the button is operated for more than half a
s econd, the front roof gla ss will automatically a ssume the
intermediate pos ition (comfort po sition).
If the button is operated again for about half a second the
roof will assume the s poiler position. Lastly, if the clos ing
button i s pressed again, the roof will a ssume the fully clos ed
pos ition.
fig. 53L0E0108m
Use the sunroof only at “spoiler” position if
cross roof racks are fitted. Never open the roof
in presence of snow or ice to prevent damage.
When leaving the vehicle, always remove the
key from the ignition to avoid the risk of in-
jury to those still inside the car due to acci-
dental operation of the sunroof. Improper use of the
roof can be dangerous. Before and during operation,
always check that nobody is at risk of being injured
by the moving sun roof or by objects getting caught
or hit by it.
Anti-pinch device
The sun roof has an anti-pinch safety system capable of
detecting the pres ence of an obstacle whilst the roof is clos-
ing: if this happens, the system intervenes and the move-
ment of the glass i s immediately reversed.
IMPORTANT The blind will remain in the full
y open po si-
tion when clo sing the sun roof. If you would like to clo se it,
this mus t be done manuall y.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 87

104KNOWING YOUR CAR
ROOF RACK/SKI RACK
FASTENERS
The attachments are located in the areas illustrated in fig.
68 and can onl y be reached with the doors open.
Lineaccessori provides a specific roof rack/s ki rack for the
tailgate.
IMPORTANT Follow the in structions contained in the as -
s embly kit carefully . Assembly must be performed by qual-
ified pers onnel.
fig. 68L0E0111m
Always comply with local legislation re-
garding maximum load size.
After having travelled several kilometres
check that the attachment fixing screws are
properly fastened.
Distribute the load uniformly and when dri-
ving take into consideration the increased
sensitivity to cross winds.
Never exceed the maximum permitted loads;
see chapter “6”.
001-154 Delta GB 2ed 27/01/14 10.47 Pagina 104

STARTING AND DRIVING
189
3
SAVING FUELSome useful tips are given below for saving fuel and re-
ducing harmful emissions of CO
2and other pollutants (ni-
trogen oxides, unburnt hydrocarbons, Particulate Matter
(PM), etc.).
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in accordance
with the “Scheduled Servicing Plan”.
Ty r e s
Check the pressure of the tyres routinely at an interval of
no more than 4 weeks: if the pressure is too low, con-
sumption levels increase as resistance to rolling is higher.
Unnecessary loads
Do not travel with an overloaded luggage compartment.
The weight of the car (especially when driving in town)
and its ride greatly affect consumption and stability.Accessories installed on longitudinal bars
Remove accessories like
: roof racks, ski racks, luggage con-
tainer, etc. from the roof if they are no longer used. These
accessories lower aerodynamic penetration and adverse-
ly affect consumption levels. When transporting particu-
larly large objects, use a trailer if possible.
Electric devices
Use electrical devices only for the amount of time needed.
The heated rear window, additional headlights, wind-
screen/rear window wipers and heater fan need a con-
siderable amount of energy, therefore increasing fuel con-
sumption (by up to 25% in the urban cycle).
Climate control system
Using the climate control system leads to higher fuel con-
sumption (on average up to +20%). If the temperature
outside permits, try and use the vent
ilation only.
Devices for aerodynamic control
The use of non-certified devices for aerodynamic control
may adversely affect air drag and consumption levels.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 189

TECHNICAL SPECIFICATIONS
275
6
FUEL CONSUMPTIONThe fuel consumption values given in the table below are
determined on the basis of the type-approval tests laid
down by specific European Directives.
The procedures below are followed for measuring con-
sumption:
❍urban cycle: cold starting followed by driving that sim-
ulates urban use of the car;
❍extra-urban cycle: frequent accelerating in all gears,
simulating extra-urban use of the car; speed varies be-
tween 0 and 120 km/h;
❍combined consumption: the weighting is around 37%
urban cycle and 63% extra-urban cycle.IMPORTANT The type of route, traffic situations, weath-
er conditions, driving style, general conditions of the car,
trim level/equipment/accessories, climate control system
use, load, roof rack, other situations that affect air drag
may lead to different fuel consumption levels than those
measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres x 100 km)
1.6 Multijet
105 HP
1.6 Multijet120
HP
Urban
5.5
5.6
Extra-urban
3.7
3.8
Combined
4.4
4.5
257-280 Delta GB 1ed 02/09/13 09.37 Pagina 275

286
LIST OF CONTENTS
SBR system.............................157
Seat belts................................156
Seats......................................52
– cleaning...............................256
Side bags................................178
Side lights...............................69
– bulb replacement.................216
Snow chains...........................193
Sport (function)......................77
SPORT function.....................107
Starting and driving................183
Starting the engine...........184-196
Steering lock...........................51
Steering wheel........................56
Steering..................................263
Sun roof.................................86
Sun visors...............................81
Suspension ............................263– Reactive Suspension
System.................................109
Symbols..................................42
Technical specifications..........257
The keys.................................44
Third brake light
(bulb replacement)...............218
To wing the car........................231
To wing trailers........................191
TPMS.....................................127
Tr a n s mission..........................262
Trip Computer........................40
TTC system............................121
Ty r e s
–inflation pressure.................268
– replacement.........................203
–Rim Protector......................266
–snow tyres............................267
– standard tyres provided .......267 Rear window wiper
– blades...........................249-250
– control.................................71
– nozzles.................................251
Refuelling...............................150
Remote control (key)..............45
Replacing a bulb.....................
210
Replacing a wheel...................203
Replacing an exterior bulb......214
Replacing an interior bulb......219
Replacing fuses.......................223
Reversing light
(bulb replacement)...............217
Rim Protector (tyres)..............266
Roof rack/ski rack..................104
Rubber hoses..........................249
Safe Lock (device).................47
Safety.....................................155
Saving fuel.............................189
281-288 Delta GB 1ed 26/08/13 14.14 Pagina 286
