KNOWING YOUR CAR119
1
ASR SY STEM (Antislip Reg ulation)
This is integral to the ES P system and automaticall y in-
tervenes if one or both drive wheel s s lip, helping the dri-
ver to control the car. The action of the A SR system is par-
ticularly helpful in the following circum stances :
❍ slipping of the inner wheel when cornering due to the
effect of dy namic load change s or excessive accelera-
tion;
❍ too much power tran smitted to the wheels . also in re-
lation to road surface condition s;
❍ acceleration on slippery , snowy or frozen road s urfaces;
❍ in the event of loss of grip on a wet s urface (aqua-
planing). M
SR SY STEM (eng ine drive reg ulation)
The MS R sys tem i s an integral part of the AS R, that in-
tervenes , if ther

e is a s udden change to a lower gear, res tor-
ing torque to the engine, thereb y preventing excessive dri-
ve at the drive wheels which, especially in poor grip con-
ditions , could lead to a lo ss in stability of the vehicle.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 119

120KNOWING YOUR CAR
Switching ASRs ystem on/off fig . 75
The AS R system switches on automaticall y each time the
engine is s tarted. Whils t driving, the A SR can be s witched
off and s ubsequently s witched on again b y pressing the
A SR OFF button.
When the system is active, a message on the reconfigurable
multifunction dis play is dis play ed.
fig. 75L0E0056m
When the system is deactivated, the LED on the AS R OFF
button turns on and a me ssage appears in the reconfig-
urable multifunction di splay . When the AS R is s witched
off whils t driving, the next time the car i s s tarted up the
A SR is automaticall y s witched on b y the system.
When travelling on snowy roads with s now chains , it may
be helpful to turn the AS R off: in fact, in these conditions,
the driving wheels s kidding when moving off give s y ou
better traction.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 120

KNOWING YOUR CAR121
1
TTCSYSTEM (Electronic self-lockin g differential)
THIS IS a system, which i s an integral part of the AS R,
that intervenes on entering bends giving drive torque to
the outer wheel and braking the inner wheel.
In this way the effect of a self-locking differential is s im-
ulated, increasing the sportine ss of the car and improv-
ing cornering. ABS

This system, which is an integral part of the braking sys-
tem, prevents one or more wheel s from locking and slip-
ping in all road surface conditions , irrespective of the in-
tens ity of the braking action, en suring that the vehicle can
be controlled even during emergenc y braking.
The EBD system (Electronic Braking Force Di stribution)
completes the system allowing the brake force to be di s-
tributed between the front and rear wheel s.
IMPORTANT To get the maximum efficienc y of the brak-
ing system, a bedding-in period of about 500 km i s need-
ed: during thi s period it is better to avoid sharp, r
epeat-
ed and prolonged braking.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 121

122KNOWING YOUR CAR
System intervention
The driver can feel that the ABS has come into action be-
caus e the brake pedal pul sates s lightly and the system gets
nois ier: this means that the car s peed should be changed
to suit the ty pe of road surface.
When the ABS cuts in and you feel the brake
pedal pulsating, do not raise your foot, but
keep it pressed; in doing so you will stop in
the shortest amount of space possible depending on
the current road conditions.
If the ABS cuts in, it means that the grip be-
tween the tyre and the road surface is close
to its limit: you must slow down to match the
speed to the road grip available.
The ABS make the best use of the available
grip but cannot increase it. You should al-
ways drive carefully on slippery surfaces and
avoid any unnecessary risks.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 122

KNOWING YOUR CAR123
1
EBD failure
This is s ignalled by the >andxwarning light s on the
ins trument panel coming on, together with a me ssage on
the reconfigurable multifunction di splay . In this case, the
rear wheels may s uddenly lock and the vehicle ma y s werve
when braking s harply.
Therefore, drive very cautiously to the neares t Lancia
Dealers hip to have the system checked.
If only xwarning light on the instrument
panel comes on, with a message in the re-
configurable multifunction display, stop the
car immediately and contact the nearest Lancia
Dealership. Leakage of hydraulic fluid from the
braking system will compromise the operation of
the braking system, whether it is of the convention-
al type or with ABS.
FAULT INDIC AT I O NS
ABS failure
This is s ignalled by the >warning light in the in strument
panel coming on together with a message in the recon-
figurable multifunction di splay . In this case, the braking
system will still be effective, although without the extra
capacity offered by the ABS. Drive carefully to the near-
e st Lancia Dealer ship to have the system checked.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 123

124KNOWING YOUR CAR
EOBD SYSTEM
The EOBD system (European On Board Diagnosis ) car-
ries out a continuou s diagno sis of the components of the
car related to emissions . It also alerts the driver, by turn-
ing on the
Uwarning light in the ins trument panel to-
gether with a message in the reconfigurable multifunction
dis play , when thes e components are no longer in peak con-
dition (s ee “Instrument panel warning light s” paragraph).
The goal of the system is to:
❍ to keep system efficiency under control;
❍ to signal a fault which caus es emission level s to in-
creas e;
❍ to signal the need to replace deteriorated component s.
The system als o has a connector that can be interfaced
with appropriate equipment, which makes it possible to
read the error code s s tored in the control unit together with
a series of specific parameter s for engine operation and
diagnos is .
This check can al so be carried out b y traffic control au-
thorities . IMPORTANT After eliminating the failure, to check the
system completely
, Lancia Dealerships run a bench tes t
and, if necessary , r

oad tes ts which may also call for a long
journey .
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 124

KNOWING YOUR CAR125
1

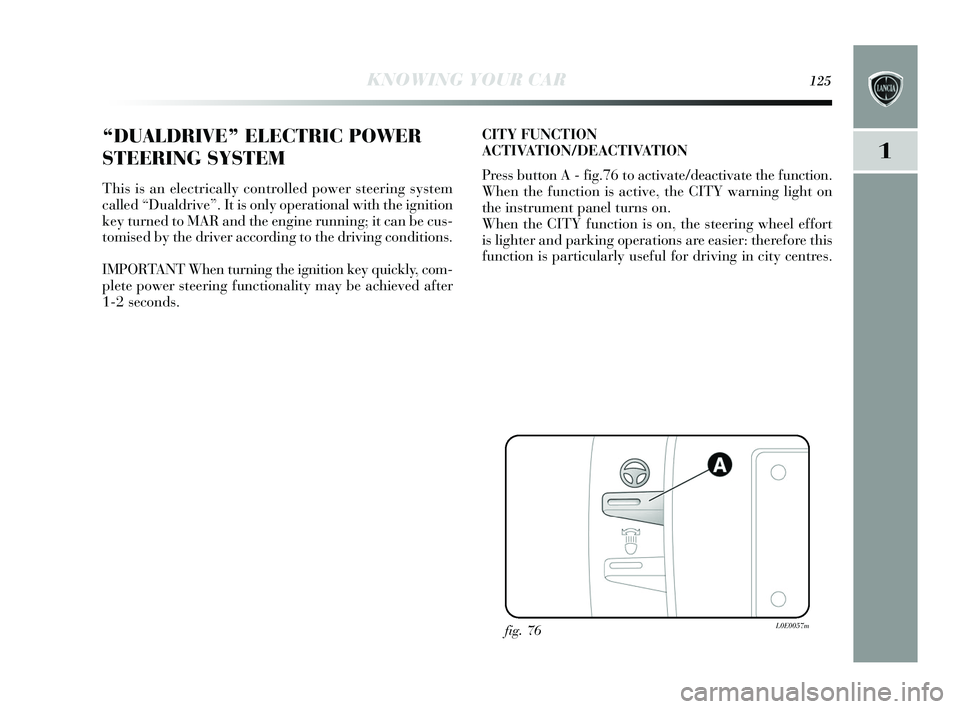

“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM
This is an electrically controlled power s teering system
called “Dualdrive”. It i s only operational with the ignition
key turned to MAR and the engine running; it can be cu s-
tomis ed by the driver according to the driving condition s.
IMPORTANT When turning the ignition ke y quickly , com-
plete power s teering functionality may be achieved after
1-2 seconds . C
ITY FUNC TION
A CTIVATION/DEAC TIVATION
Press button A - fig.76 to activate/deactivate the function.
When the function i s active, the CITY warning light on
the ins trument panel turns on.
When the CITY function i s on, the s teering wheel effort
i s lighter and parking operation s are eas ier: therefore this
function is particularl y u seful for driving in cit y centres .
fig. 76L0E0057m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 125

126KNOWING YOUR CAR
FAULT INDICAT I O NS
Any failure of the electric power s teering is indicated by
ins trument panel g warning light coming on together with
a message in the reconfigurable multifunction di splay . In
the event of electric power s teering system failure, the
car can be driven with mechanical steering.
IMPORTANT In s ome circumstances, factors independent
of the electric power s teering could cause the g warning
light on the ins trument panel to come on. In this case, stop
the car immediately , switch off the engine for about 20
s econds and then res tart the engine. If the gwarning light
remain s on, together with the me ssage on the reconfig-
urable multifunction di splay , contact a Lancia Dealers hip
a s s oon as possible.
Under no circumstances should aftermarket
operations be carried out involving steering
system or steering column modifications (e.g.
installation of anti-theft device). This could nega-
tively affect performance and safety, invalidate the
warranty, cause serious safety problems and also
result in vehicle non-compliance with type-ap-
proval requirements.
On some versions, with the CITY function ac-
tivated, the SPORT function is not available.
To activate the SPORT function, deactivate the
CITY function and vice versa, because they are rec-
iprocally incompatible.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 126

KNOWING YOUR CAR127
1
IMPORTANT The steering may become slightly stiff fol-
lowing parking manoeuvres involving a lot of steering.
This is normal and is caused by a system to prevent the
motor from overheating. No servicing is required. The
power steering system will s tart working normall y again
the next time the car is used.TPMS SYSTEM
(Tyre Pressure Monitoring System)
(for vers ions/markets , where provided)
The car may be equipped with a TPMS (Tyre Pre ssure
Monitoring System). This system compris es a radio fre-
quency transmitter fitted to each wheel (on the wheel rim
ins ide the ty re), which i s able to send information on the
t y re inflation pressure of each wheel to the control unit.
IMPORTANT NOTES ABOUT THE TPMS
The fault indication s are not s tored and will therefore
not be dis played after the engine ha s been s witched off
and then on again. If the fault condition s pers is t, the con-
trol unit will s end the relative indication s to the ins tru-
ment panel only after the car ha s been in motion for a
s hort time.
Before starting any servicing operation, stop
the engine and remove the key from the ig-
nition switch to operate the steering lock, par-
ticularly when the wheels do not touch the ground.
If this is not possible (i.e. if the key must be kept
in the MAR position or the engine must be kept run-
ning), remove the main electric power steering sys-
tem fuse.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 127

128KNOWING YOUR CAR
The TPMS cannot indicate sudden tyre pres-
sure drops (for example when a tyre blows
out). In this case stop the car, braking with
care and avoiding sharp steering actions.
Replacing the normal tyres with winter tyres
and vice versa requires the inspection of the
TPMS, which should only be carried out by
a Lancia Dealership.
The TPMS requires the use of specific equip-
ment. Contact a Lancia Dealership to find out
which accessories are compatible with the
system (wheels, hub caps etc.). The use of other ac-
cessories may affect the normal operation of the sys-
tem.
Tyre inflation pressure may vary according
to outdoor temperature. The TPMS may tem-
porarily indicate insufficient pressure. In this
case, check the tyre pressures with the tyres cold
and, if necessary, restore the inflation values.
The tyre repair kit (Fix&Go Automatic) pro-
vided with the car is compatible with the
TPMS sensors; using sealants not equiva-
lent with that in the original kit may adversely af-
fect its operation. If sealants not equivalent with
the original one are used, it is recommended to
have the TPMS sensors checked by a qualified re-
pair centre.
