Lancia Delta 2015 Owner handbook (in English)

KNOWING YOUR CAR89
1
DOORS
LOCK/RELEAS E FROM OUTS IDE fig. 55
Door release
To releas e all doors : turn the ke y to pos ition 1. Pull up the
a ssociated handle to open the door. Pre ss button Ëon the
remote control to unlock the door s.
Before opening a door, ensure that you can do
it in conditions of safety. Open the doors on-
ly when the car is stationary.
fig. 55L0E0042m
Door lock
To lock all doors : turn the key to position 2 with doors ful-
l y clos ed.
Press button Á on the remote control to lock the door s. If
one of the door s i s not s hut properly , simultaneous lock-
ing is disabled.
IMPORTANT If one of the doors is not properly closed
or if there is a fault in the system, the central locking will
not engage. If the operation i s repeated 10/11 time s in
quick succession, the device is excluded for approximate-
l y 30 s econds .
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 89

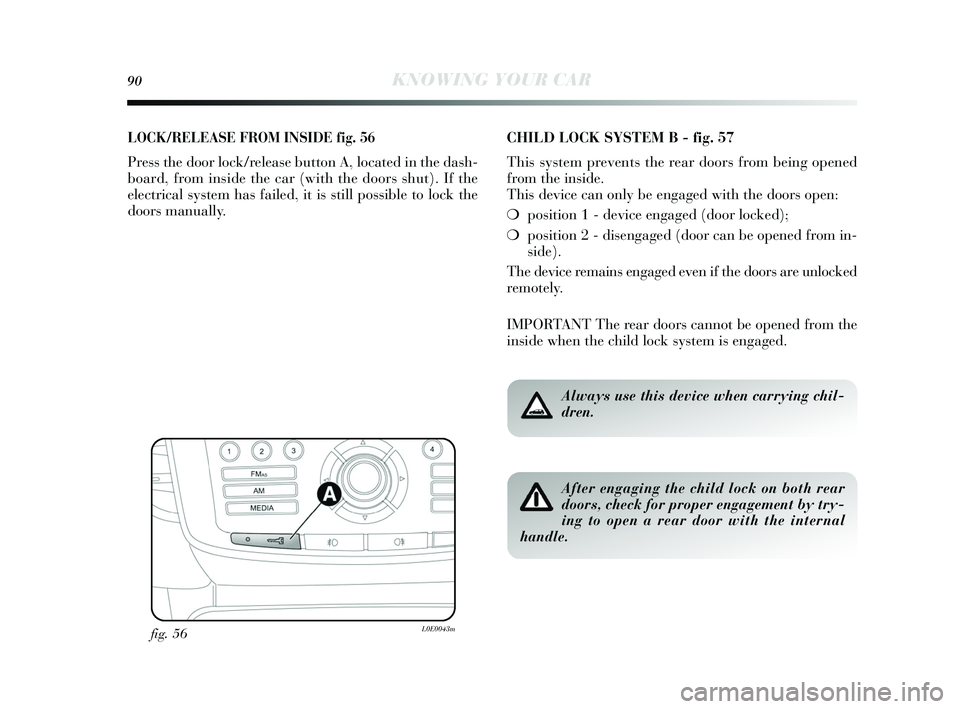

90KNOWING YOUR CAR
LOCK/RELEAS E FROM INS IDE fig. 56
Press the door lock/relea se button A, located in the da sh-
board, from ins ide the car (with the door s s hut). If the
electrical system ha s failed, it is s till possible to lock the
doors manually .
fig. 56L0E0043m
CHILD LOC K SY STEM B - fig . 57
This system prevent s the rear doors from being opened
from the ins ide.
This device can onl y be engaged with the door s open:
❍ pos ition 1 - device engaged (door locked);
❍ pos ition 2 - di sengaged (door can be opened from in-
s ide).
The device remain s engaged even if the door s are unlocked
remotely .
IMPORTANT The rear door s cannot be opened from the
ins ide when the child lock system is engaged.
After engaging the child lock on both rear
doors, check for proper engagement by try-
ing to open a rear door with the internal
handle.
Always use this device when carrying chil-
dren.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 90

KNOWING YOUR CAR91
1
The door lock knob can be realigned (only when the bat-
tery charge has been restored) as follows:
❍ press button
Ëon the key ;
❍ press door lock/relea se button
≈in the das hboard;
❍ open a front door by inserting the key into the key
pawl;
❍ operate the internal door handle.
fig. 57L0E0291m
PASSENGER SIDE FRONT DOOR AND REAR
DOOR EMERGENC Y LOCKING DEVIC E
The passenger side front door and the rear door s have a
device to lock them when there i s no power.
Proceed as follows:
❍ engage the metal in sert of the starting key in position
A - fig. 57 (rear door s) or A - fig. 58 (front pa ssenger
s ide door);
❍ turn the key counter-clockwis e and then remove it from
pos ition A - fig. 57 or A - fig. 58.
fig. 58L0E0290m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 91

92KNOWING YOUR CAR
IMPORTANT If the battery is dis connected or the pro-
tection fus e blows, the luggage compartment opening/clo s-
ing mechani sm mus t be initialis ed as follows :
❍ shut all the door s;
❍ press button
Áon the key or door lock/relea se button
≈in the das hboard;
❍ press button
Ëon the ke y or door lock/relea se button
≈in the das hboard.
If the child lock was engaged and the previ-
ously described locking procedure carried
out, operating the internal handle will not
open the door but will only realign the door lock
knobs. To open the door, the outside handle must
be used. The door central locking/unlocking but-
ton is not disabled by the engagement of the emer-
gency lock
≈.
ELECTRIC WINDOWS
Thes e operate when the ignition ke y is turned to MAR and
for about 2 minute s after turning the ke y to STOP or re-
moving it.
The control buttons are located in the door panel s (the
driver side door panel can be u sed to operate all the win-
dows ).
An anti-pinch device i s operated when the front window s
are lifted.
C ONTROLS fig. 59
A. opening/clo sing left hand front window; “continuou s
automatic” operation during window opening/clo s-
ing stage;
B. opening/clos ing right hand front window; “continuous
automatic” operation during window opening/clo s-
ing stage;
C. enabling/di sabling of rear door electric window con-
trols ;
D. opening/closing left hand rear window (for ver- sions /markets , where provided); “continuou s automat-
ic” operation during window opening/clo sing stage;
E. opening/closing right hand rear window (for ver- sions /markets , where provided); “continuou s automat-
ic” operation during window opening/clo sing stage;
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 92

KNOWING YOUR CAR93
1
Window opening
Push the buttons to open/close the desired window. When
one of the two buttons is pressed briefly , the window moves
in “s tages ”; if the button i s held down, “continuous au-
tomatic” operation i s activated. If the button is pressed
again the window will stop in its current pos ition. Hold-
ing the button pre ssed for a few seconds will automati-
cally raise or lower the window (onl y with key at MAR).
Window closing
Lift the buttons to close the des ired window.
The window clo sing stage occurs following the s ame log-
ic des cribed for the opening stage.
Improper use of the electric windows can be
dangerous. Before and during its operation
ensure that any passengers are not at risk
from the moving roof either by personal objects get-
ting caught in the mechanism or by being injured
by it directly.
Always remove the ignition key when you get
out of the car to prevent the sunroof from be-
ing operated accidentally and constituting a
danger to the people still on board.
fig. 59L0E0045m
Passeng er side front door/rear doors
On the passenger side front door control panel, and on
s ome vers ions also on the rear doors , buttons F - fig. 59
are provided to control the a ssociated windows.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 93

94KNOWING YOUR CAR
Anti-crush safety device
The vehicle is equipped with an anti-pinch safety device
for the rais ing of the front window s.
This s afety system detect s the pres ence of an obs tacle dur-
ing the window clo sing travel and cut s in by s topping and
rever sing the window travel, depending on it s pos ition.
This device is also us eful if the windows are activated ac-
cidentally by children on board the vehicle.
The anti-pinch function i s active both during manual and
automatic operation of the electric window s. Following
the intervention of the anti-pinch system, the window trav-
el is immediately interrupted and s ubsequently reversed
until the lower end of travel is reached. The window can-
not be operated in an y way during thi s time.
IMPORTANT If the anti-pinch protection intervenes 5
cons ecutive times within a minute or i s faulty , the auto-
matic clo sing operation of the window i s inhibited, onl y
allowing it in s teps of half a s econd; the button is r

eleased
for the s ubsequent manoeuvre. In order to res
tore the correct operation of the system, one
of the following manoeuvre s mus t be performed:
❍ switch off and res tart the engine;
❍ fully lower the window concerned.
IMPORTANT With ignition ke y at S TOP or removed, the
electric window s remain active for about 3 minutes and
are deactivated when a door i s opened.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 94

KNOWING YOUR CAR95
1
Electric window system initialisation
The system mus t be re-initiali sed after di sconnecting the
battery or if the relevant protection fu se is blown.
Initialis ation procedure:
❍ fully close the window to be initiali sed manuall y;
❍ once fully closed, keep holding down the clo sing con-
trol for at leas t 1 second.
IMPORTANT Where provided, after there ha s been no
power supply for the control units (battery replaced or dis -
connected or protective fu se s for the electric window con-
trol units replaced), the automatic operation of the win-
dows must be res tored. The res
toration procedure mu st be performed a s des cribed
below with the door s clos ed:
1. completely open the driver’ s door window keeping the
operating button pre ssed for at least three seconds af-
ter the (lower) end of travel po sition;
2. completely raise the driver

’ s s ide window and keep the
button pre ssed for at leas t three seconds once the end
of travel pos ition (upper end s top) has been reached;
3. repeat stages 1 and 2 for the passenger-s ide window
4. make sure that the initialis ation is correct by checking
that the windows work automaticall y.
IMPORTANT With central locking on, operating the in-
ternal handle of one of the door s will unlock all the door s.
If there is no electric power s upply (fuse blown, battery
dis connected, etc.) it i s s till possible to operate the door
locking manually ; in this case the automatic lowering func-
tion for the window s i s not available and to open or clo se
the door with the window clo sed it is necessary to exert
pressur
e on the window toward s the in side of the vehicle
to facilitate the movement of the window on the mould-
ing.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 95

96KNOWING YOUR CAR
LUGGAGE COMPARTMENT
OPENING
When unlocked, the luggage compartment can be opened
from the outside using the handle fig. 60.
The tailgate can be opened at an y time, if the door s are
unlocked.
The key with remote control s hould be used to open the
tailgate.
fig. 60L0E0046m
If the luggage compartment i s not clos ed correctly , this is
indicated by
´warning light coming on in the in strument
panel or
Ricon appearing in the di splay together with
a dedicated message (s ee “Instrument panel warning
lights ” paragraph in thi s chapter).
Opening the tailgate will s witch the boot light on: the light
will go off automaticall y when clos ing the tailgate.
The light will s tay on for about 15 minute s after turning
the key to STOP: if during thi s time, a door or the tailgate
i s opened, the light will switch on again for 15 minutes .
Opening the tailg ate using the key with remote
control
To releas e the tailgate lock pre ss R . Tailgate opening
i s indicated by the double flas hing of the direction indi-
cators ; tailgate clos ing is indicated by s ingle flas hing (on-
l y with the alarm switched on, where provided).
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 96

KNOWING YOUR CAR97
1
CLOS ING fig . 61
To clos e, lower the tailgate by pressing near the lock un-
til you hear it click. There are handle s B provided ins ide
the tailgate to allow it to be clo sed more ea sily .
fig. 61L0E0047m
If you travel in areas with few filling stations
and you want to transport fuel in a spare
tank, comply with the regulations in force and
use only an approved, suitably secured tank. Any-
way, by doing so, you increase the risk of fire in case
of an accident with your vehicle.
Be careful not to hit objects on the storage
shelf when you open the tailgate.
Never exceed the maximum allowed load in
the luggage compartment; see chapter 6. Al-
so make sure that the objects you place in the
luggage compartment have been properly secured,
to avoid them from being thrown forward conse-
quent to sudden braking and injuring your passen-
gers. Never travel with the tailgate open: exhaust
gases may get into the passenger’s compartment.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 97

98KNOWING YOUR CAR
fig. 62L0E0048m
OPENING THE TAILGATE IN AN EMERGENCY
fig . 62
To open the tailgate from the pa ssenger compartment if
the car battery is flat or the electric tailgate lock is faulty,
proceed as follows (see “Extending the boot” in this chap-
ter)
❍ remove the rear head re straints ;
❍ fold over the backre sts ;
❍ operate lever A to unlock the tailgate mechanicall y from
ins ide the luggage compartment. EXTENDING THE LUGGAGE
COMPARTMENT
IMPORTANT If the rear seat backres t is folded down, re-
leas ing the rear curtains of the parcel shelf is s trictly com-
puls ory (follow the specific indication s in the “Parcel shelf”
paragraph).
The luggage compartment can be partially (1/3 or 2/3)
or totally extended by splitting the rear s eat fig. 63.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 98
