Lancia Flavia 2013 Owner handbook (in English)

The Headlights with Wipers feature can
be turned on or off through the Elec-
tronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle In-
formation Center (EVIC)/Customer-
Programmable Features” in “Under-
standing Your Instrument Panel” for
further information.HEADLIGHT TIME DELAY
This feature is particularly useful
when exiting your vehicle in an unlit
area. It provides the safety of head-
light illumination for up to 90 seconds
after turning the ignition switch to the
LOCK position.
To activate the delay, turn the ignition
switch to the LOCK position while the
headlights are still on. Then, turn off
the headlights within 45 seconds. The
delay interval begins when you turn
off the headlights. Only the headlights
will illuminate during this time.
If you turn the headlights, parking
lights, or ignition switch ON again,
the system will cancel the delay.If you turn the headlights off before
the ignition, they will turn off in the
normal manner.
The Headlight delay time is program-
mable on vehicles equipped with the
Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle In-
formation Center (EVIC)/Customer-
Programmable Features” in “Under-
standing Your Instrument Panel” for
further information.INSTRUMENT PANEL
DIMMER
Rotate the center portion of the lever
to the extreme bottom position to fully
dim the instrument panel lights and
prevent the interior lights from illumi-
nating when a door is opened.
Rotate the center portion of the lever
up to increase the brightness of the
instrument panel lights when the
parking lights or headlights are on.
Rotate the center portion of the lever
upward to the next detent position to
brighten the odometer and radio
when the parking lights or headlights
are on.Rotate the center portion of the lever
upward to the last detent to turn on
the interior lighting.
FOG LIGHTS
To activate the front fog lights,
turn on the parking lights, low
beam headlights or automatic
headlights and pull out on the end of
the multifunction lever.
Dimmer Control
Front Fog Light Control
95

Rear Fog LightsThe rear fog lights may be
operated as desired when vis-
ibility is poor due to fog. To
activate the rear fog lights, turn on the
parking lights, headlights or auto-
matic lights pull out the end of the
multifunction lever and rotate the le-
ver to the last detent.
NOTE: The headlights will al-
ways be on when the rear fog
lamps are activated.
TURN SIGNALS
Move the multifunction lever up or
down and the arrows on each side of
the instrument cluster flash to show
proper operation of the front and rear
turn signal lights. LANE CHANGE ASSIST
Tap the lever up or down once, without
moving beyond the detent, and the
turn signal (right or left) will flash
three times then automatically turn off.HIGH/LOW BEAM SWITCH
Push the multifunction lever away
from you to switch the headlights to
high beam. Pull the multifunction le-
ver toward you to switch the head-
lights back to low beam.
FLASH-TO-PASS
You can signal another vehicle with
your headlights by lightly pulling the
multifunction lever toward you. This
will cause the headlights to turn on at
high beam and remain on until the
lever is released.NOTE: If the multifunction lever
is held in the Flash-To-Pass posi-
tion for more than 15 seconds, the
high beams will shut off. If this
occurs, wait 30 seconds before ac-
tivating the Flash-To-Pass func-
tion again.
INTERIOR LIGHTS
Two courtesy/reading lights are lo-
cated in the bottom of the rearview
mirror. You can turn these lights on
and off from the switches in the mir-
ror or from the dimmer control in the
multifunction lever. These lights are
also controlled automatically by the
Illuminated Entry System.
Rear Fog Light Control
Turn Signal Control
Courtesy/Reading Light Switches
96

A courtesy light is also found in the
rear of the center console. You can
turn this light on and off from the
dimmer control in the multifunction
lever. This light is also controlled au-
tomatically by the Illuminated Entry
System.
Headlight Leveling System
This system allows the driver to main-
tain proper headlight beam position
with the road surface regardless of
vehicle load.
The headlight leveling switch is lo-
cated on the instrument panel below
the radio.To operate: push the head-
light leveling switch until
the appropriate number,
which corresponds to the
load listed on the following chart, il-
luminates on the switch.
0
Driver only, or driver
and front passenger.
1 All seating positions
occupied.
2 All seating positions
occupied, plus an
evenly distributed
load in the luggage
compartment. The
total weight of pas-
sengers and load
does not exceed the
maximum load ca-
pacity of the vehicle.
3 Driver, plus an
evenly distributed
load in the luggage
compartment. The
total weight of the
driver and load does
not exceed the maxi-
mum load capacity
of the vehicle.
Calculations based on a passenger
weight of 75 kg. BATTERY SAVER FEATURE
To protect the battery, the interior
lights will turn off automatically
10 minutes after the ignition switch is
moved to the LOCK position. This
will occur if the interior lights were
switched on manually or are on be-
cause a door is open.
WINDSHIELD WIPERS
AND WASHERS
The wipers and washers are
operated by a switch on the
control lever. The lever is lo-
cated on the right side of the steering
column.
Windshield Wiper/Washer Lever
97

Rotate the end of the lever to the LO
position for low-speed wiper opera-
tion, or to the HI position for high-
speed wiper operation.
NOTE: The wipers will automati-
cally return to the park position if
you turn the ignition switch OFF
while they are operating. The wip-
ers will resume operation when
you turn the ignition switch to the
ON position again.CAUTION!
 Turn the windshield wipers offwhen driving through an auto-
matic car wash. Damage to the
windshield wipers may result if
the wiper control is left in any
position other than off.
(Continued)
CAUTION!(Continued)
 Always remove any buildup of snow that prevents the wind-
shield wiper blades from return-
ing to the off position. If the wind-
shield wiper control is turned off
and the blades cannot return to
the off position, damage to the
wiper motor may occur.
INTERMITTENT WIPER
SYSTEM
Use the intermittent wiper system
when weather conditions make a
single wiping cycle with a variable
pause between cycles desirable. Ro-
tate the end of the windshield wiper/
washer control lever to the first de-
tent, and then turn the end of the lever
to select the desired delay interval.
There are five delay settings, which
allow you to regulate the wipe interval
from a minimum of one cycle every
second to a maximum of approxi-
mately 18 seconds between cycles. NOTE: The wiper delay times de-
pend on vehicle speed. If the ve-
hicle is moving less than 16 km/h,
delay times will be doubled.
WINDSHIELD WASHERS
To use the washer, pull the windshield
wiper/washer control lever toward
you and hold it for as long as washer
spray is desired.
If you activate the washer while the
wiper control is in the delay range, the
wipers will operate in low-speed for
two wipe cycles after releasing the
lever and then resume the intermit-
tent interval previously selected.
Changing Wiper Speeds
Changing Intermittent Settings
98

If you activate the washer while the
wiper control is in the off position, the
wipers will operate for two wipe cycles
and then turn off.WARNING!
Sudden loss of visibility through
the windshield could lead to a col-
lision. You might not see other ve-
hicles or other obstacles. To avoid
sudden icing of the windshield dur-
ing freezing weather, warm the
windshield with defroster before
and during windshield washer use.
MIST FEATURE
Push down on the wiper control lever
to activate a single wipe to clear the
windshield of road mist or spray from
a passing vehicle. As long as the lever
is held down, the wipers will continue
to operate.
NOTE:
The mist feature does not
activate the washer pump; therefore,
no washer fluid will be sprayed on
the windshield. The wash function
must be used in order to spray the
windshield with washer fluid.
HEADLIGHTS WITH
WIPERS FEATURE
(AVAILABLE WITH
AUTOMATIC HEADLIGHTS
ONLY)When this feature is active, the head-
lights will turn on approximately
10 seconds after the wipers are turned
on if the multifunction lever (on the
left side of the steering column) is
placed in the AUTO position. In addi-
tion, the headlights will turn off when
the wipers are turned off if they were
turned on by this feature.
The headlights with wipers feature
can be turned on or off through the
Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable
Features)” in “Understanding Your
Instrument Panel” for further infor-
mation.
TILT/TELESCOPING
STEERING COLUMN
This feature allows you to tilt the
steering column upward or down-
ward. It also allows you to lengthen or
shorten the steering column. The tilt/
telescoping lever is located below the
steering wheel at the end of the steer-
ing column.
To unlock the steering column, push
the lever downward. To tilt the steer-
ing column, move the steering wheel
upward or downward as desired.
Mist Control
Tilt/Telescoping Lever
99

To lengthen or shorten the steering
column, pull the steering wheel out-
ward or push it inward as desired. To
lock the steering column in position,
pull the lever upward until fully en-
gaged.WARNING!
Do not adjust the steering column
while driving. Adjusting the steer-
ing column while driving or driving
with the steering column unlocked,
could cause the driver to lose con-
trol of the vehicle. Failure to follow
this warning may result in serious
injury or death.
ELECTRONIC SPEED
CONTROL
When engaged, the Electronic Speed
Control takes over accelerator opera-
tions at speeds greater than 40 km/h.
The Electronic Speed Control buttons
are located on the right side of the
steering wheel. NOTE: In order to ensure proper
operation, the Electronic Speed
Control System has been designed
to shut down if multiple Speed
Control functions are operated at
the same time. If this occurs, the
Electronic Speed Control System
can be reactivated by pushing the
Electronic Speed Control ON/OFF
button and resetting the desired
vehicle set speed.TO ACTIVATE
Push the ON/OFF button. The Cruise
Indicator Light in the instrument
cluster will illuminate. To turn the
system off, push the ON/OFF button
a second time. The Cruise Indicator
Light will turn off. The system should
be turned off when not in use.
WARNING!
Leaving the Electronic Speed Con-
trol system on when not in use is
dangerous. You could accidentally
set the system or cause it to go
faster than you want. You could
lose control and have an accident.
Always leave the system OFF when
you are not using it.
TO SET A DESIRED SPEED
Turn the Electronic Speed Control
ON. When the vehicle has reached the
desired speed, press the SET (-) but-
ton and release. Release the accelera-
tor and the vehicle will operate at the
selected speed.
Electronic Speed Control Switches1 — ON/OFF 2 — RES +
4 — CANCEL 3 — SET -
100

NOTE: The vehicle should be
traveling at a steady speed and on
level ground before pressing the
SET button.
TO DEACTIVATE
A soft tap on the brake pedal, pushing
the CANCEL button, or normal brake
pressure while slowing the vehicle will
deactivate Electronic Speed Control
without erasing the set speed memory.
Pressing the ON/OFF button or turn-
ing the ignition switch OFF erases the
set speed memory.
TO RESUME SPEED
To resume a previously set speed,
push the RES (+) button and release.
Resume can be used at any speed
above 32 km/h.
TO VARY THE SPEED
SETTING
When the Electronic Speed Control is
set, you can increase speed by pushing
the RES (+) button. If the button is
continually pressed, the set speed willcontinue to increase until the button is
released, then the new set speed will
be established.
Pressing the RES (+) button once will
result in a 2 km/h increase in set speed.
Each subsequent tap of the button re-
sults in an increase of 2 km/h.To decrease speed while the Elec-
tronic Speed Control is set, push the
SET (-) button. If the button is con-
tinually held in the SET (-) position,
the set speed will continue to decrease
until the button is released. Release
the button when the desired speed is
reached, and the new set speed will be
established.
Pressing the SET (-) button once will
result in a 2 km/h decrease in set
speed. Each subsequent tap of the
button results in a decrease of 2 km/h.
TO ACCELERATE FOR
PASSING
Press the accelerator as you would
normally. When the pedal is released,
the vehicle will return to the set speed.Using Electronic Speed Control
On Hills
The transmission may downshift on
hills to maintain the vehicle set speed.
NOTE:
The Electronic Speed Con-
trol system maintains speed up and
down hills. A slight speed change on
moderate hills is normal.
On steep hills, a greater speed loss or
gain may occur so it may be prefer-
able to drive without Electronic Speed
Control.WARNING!
Electronic Speed Control can be
dangerous where the system cannot
maintain a constant speed. Your ve-
hicle could go too fast for the con-
ditions, and you could lose control
and have an accident. Do not use
Electronic Speed Control in heavy
traffic or on roads that are winding,
icy, snow-covered or slippery.
101

ELECTRICAL POWER
OUTLETS
There are two 12 Volt (13 Amp) elec-
trical power outlets on this vehicle.
Both of the power outlets are pro-
tected by a fuse.
The instrument panel power outlet,
located below the climate control
knobs, has power available only when
the ignition is ON. This power outlet
will also operate a conventional cigar
lighter unit.
NOTE: To preserve the heating el-
ement, do not hold the lighter in
the heating position.A second power outlet is located in-
side the center console.
The center console power outlet is
powered directly from the battery
(power available at all times). Items
plugged into this power outlet may
discharge the battery and/or prevent
the engine from starting.
CAUTION!
Do not exceed the maximum
power of 160 Watts (13 Amps) at
12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse
protecting the system will need to
be replaced.
(Continued)
CAUTION!
(Continued)
Power outlets are designed for ac-
cessory plugs only. Do not insert
any other object in the power out-
lets as this will damage the outlet
and blow the fuse. Improper use of
the power outlet can cause damage
not covered by your New Vehicle
Limited Warranty.
Instrument Panel Power Outlet
Center Console
Power Outlet Fuse Locations
1 — #16 Fuse 15 A Blue Cigar
Lighter Instrument Panel
2 — #11 Fuse 15 A Blue Power Out-
let Inside Arm Rest
102

WARNING!
To avoid serious injury or death:
 Only devices designed for use inthis type of outlet should be in-
serted into any 12 Volt outlet.
 Do not touch with wet hands.
 Close the lid when not in use and while driving the vehicle.
If this outlet is mishandled, it may
cause an electric shock and failure.CAUTION!
 Many accessories that can be
plugged in draw power from the
vehicle's battery, even when not
in use (i.e., cellular phones, etc.).
Eventually, if plugged in long
enough, the vehicle's battery will
discharge sufficiently to degrade
battery life and/or prevent the
engine from starting.
 Accessories that draw higher power (i.e., coolers, vacuum
cleaners, lights, etc.) will degrade
the battery even more quickly.
Only use these intermittently and
with greater caution.
(Continued)
CAUTION!(Continued)
 After the use of high power draw accessories, or long periods of the
vehicle not being started (with
accessories still plugged in), the
vehicle must be driven a suffi-
cient length of time to allow the
generator to recharge the vehi-
cle's battery.CIGAR LIGHTER AND
ASH RECEIVER
(for versions/markets,
where provided)An optional ash receiver is available
from your authorized dealer and will
fit in the center console front cup-
holder.
The optional ash receiver also comes
with a cigar lighter that can be used
with the power outlets. Refer to “Elec-
trical Power Outlets” in “Understand-
ing The Features Of Your Vehicle” for
further information. CUPHOLDERS
FRONT SEAT CUPHOLDER
The cupholder in the center console
will accommodate either two large
size cups or two 0.5 L bottles or cans.
The one-piece insert can be removed
easily for cleaning. An optional re-
movable ashtray may be located in
one of the cupholders.
Front Cupholders
103

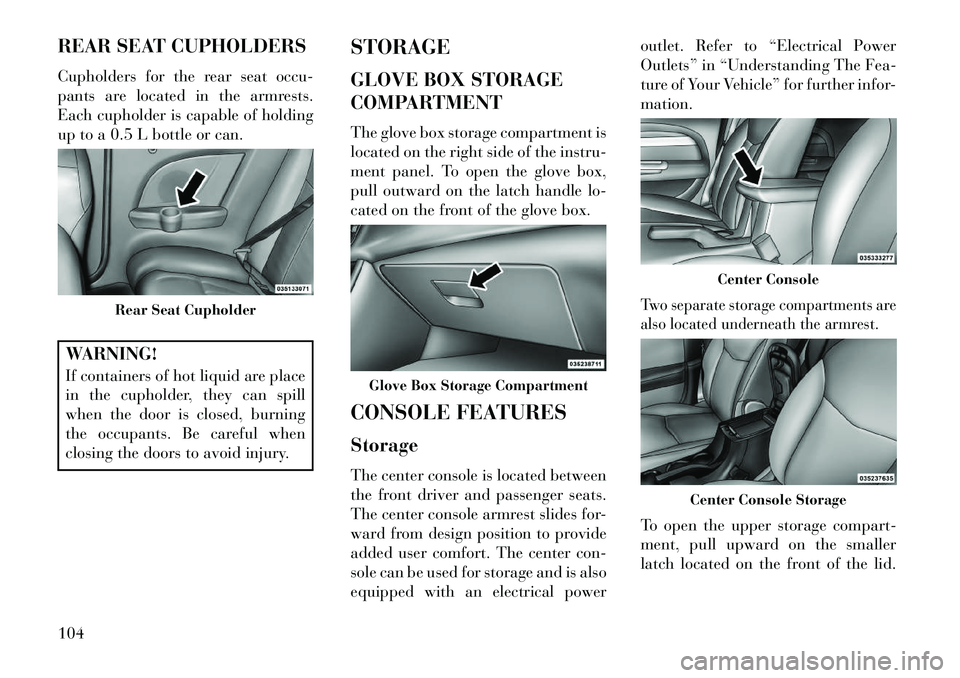

REAR SEAT CUPHOLDERS
Cupholders for the rear seat occu-
pants are located in the armrests.
Each cupholder is capable of holding
up to a 0.5 L bottle or can.WARNING!
If containers of hot liquid are place
in the cupholder, they can spill
when the door is closed, burning
the occupants. Be careful when
closing the doors to avoid injury.STORAGE
GLOVE BOX STORAGE
COMPARTMENT
The glove box storage compartment is
located on the right side of the instru-
ment panel. To open the glove box,
pull outward on the latch handle lo-
cated on the front of the glove box.
CONSOLE FEATURES
Storage
The center console is located between
the front driver and passenger seats.
The center console armrest slides for-
ward from design position to provide
added user comfort. The center con-
sole can be used for storage and is also
equipped with an electrical power outlet. Refer to “Electrical Power
Outlets” in “Understanding The Fea-
ture of Your Vehicle” for further infor-
mation.
Two separate storage compartments are
also located underneath the armrest.To open the upper storage compart-
ment, pull upward on the smaller
latch located on the front of the lid.
Rear Seat Cupholder
Glove Box Storage Compartment
Center Console
Center Console Storage
104
