Lancia Musa 2007 Owner handbook (in English)

DISPLAY CONTROL BUTTONS
To use the information the “Multifunction display” is able to give, you
should firstly familiarise with the control buttons using them as
described below.
Before doing anything you are advised to read this section thoroughly.
MODE button
To scroll the display and the related options upwards/downwards.
Press for less than 2 seconds (pulse) to confirm the option required
and/or move to the main screen (same option) or access the Menu.
Press for more than 2 seconds to exit the set-up menu and to confirm
selected options.
+ and – buttons
To increase (+) or to decrease (–) the displayed value or to change
displayed values (see next pages).
TRIP button
Press for less than 2 seconds (pulse) to scroll the Trip computer
screens.
Press for more than 2 seconds to reset the Trip computer and start a
new mission.
IMPORTANT When in set-up menu, to display the Trip computer
info you have first to quit the set-up menu, then use the Trip button
to display the Trip computer info.
30
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0025m
L0D0026m

SET-UP MENU
The “Set-up Menu” enables to perform the following adjustments
and/or settings:
❒SET CLOCK
❒BUZZER VOLUME
❒SPEED LIMIT
❒SET DISTANCE UNIT.
Set clock
The car is delivered with this function set on 24 hours.
Proceed as follows for the required setting:
❒press repeatedly the MODE button until displaying “Hour”;
❒press +to increase by one minute;
❒press –to decrease by one minute.
Keeping buttons +or–pressed for a few seconds obtains automatic
fast increase or decrease, until releasing the buttons.
❒Press MODE button for over 2 seconds to confirm setting.
31
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0034m

Buzzer volume
Proceed as follows to set the required volume:
❒press repeatedly the MODE button until displaying “bUZZ”;
❒press +to increase volume;
❒press –to decrease volume;
❒Press MODE button for over 2 seconds to confirm setting.
Speed limit exceeded
With this function it is possible to set the car speed limit which, if
exceeded, automatically sounds a buzzer with the special displaying
to alert the driver.
The car is delivered with this function set to “OFF”.
Proceed as follows for the required setting:
❒press repeatedly the MODE button until displaying “SPEEd”;
❒press +to increase the speed value (max. limit: 250 km/h);
❒press –to decrease the speed value (min. limit: 30 km/h, below
this value the “OFF” mode is resumed);
❒Press MODE button for over 2 seconds to confirm setting.
32
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0035m
L0D0036m

Set distance unit
Proceed as follows to set the required distance unit (km or miles):
❒press repeatedly the MODE button until displaying “Unit”
❒press +or–to change unit;
❒Press MODE button for over 2 seconds to confirm setting.
33
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0037m

TRIP COMPUTER
Pressing button TRIP, the “Trip computer” function gives information
relating to the operating status of the car.
This function is resettable.
Values displayed are: Cruising range, Travelled distance, Average fuel
consumption, Current fuel consumption, Average speed, Travel time
(driving time). Value selected will be displayed until a new
information is requested.
(*) When the Current fuel consumption value is displayed, the word
TRIP will not be displayed.
Start of journey procedure (reset)
To start a new journey, with the key to MAR, keep the TRIP button
pressed for over 2 seconds (see paragraph “Display control buttons”).
IMPORTANT The “Cruising range” and “Current fuel consumption”
information cannot be reset.
34
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0029m
L0D0031m
L0D0030m
L0D0373m
L0D0033m
Cruising range
Average/Current
fuel consumption (*) Distance
travelled
Average speed
Trip time

Cruising range= shows the distance (in km or
miles) that the car can still cover before needing
fuel, assuming that driving conditions are kept
unvaried. The display will show “- - - -” in the
following cases:
❒value for range to empty lower than 50 km or
fuel level below 4 litres; in this event before “- -
- -” the message “Warning, limited range” will
be displayed (this message will be displayed also
if not in TRIP COMPUTER mode);
❒in case of car parked with engine running for a
long period, when the car moves off the range to
empty indication will be displayed again.
Travelled distance= shows the km (or miles)
covered from last reset (*).
Average fuel consumption= shows the average
consumption calculated from last reset (*), this
value can be expressed in l/100 km or mpg.
Instant consumption= shows the fuel
consumption variation updated every second, it can
be expressed in l/100 km or mpg. In case of car
parked with engine running the display will show “-
- - -”. When the car moves off the instant
consumption indication will be displayed again.
Average speed= shows the average speed of the
car in relation with total time elapsed from last reset
(*), this value can be expressed in km/h or in mph.
35
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Travel time= time elapsed from last reset (*).
(*) Reset can be:
– “manual”, reset is performed by the driver by
pressing the relevant button (see paragraph
“Control buttons”)
– “automatic”, reset is performed when the
travelled distance reaches 3999.9 km or when
travel time reaches 99:59 (99 hours and 59
minutes)
– after reconnecting the battery.
IMPORTANT Lacking information, Trip computer
values are displayed with “- - - -”. When restoring
normal operating conditions after a failure,
calculation will restart regularly without resetting
values.
IMPORTANT After battery
disconnection/connection certain displayed values
are equal to “- - - -” until significant data for
calculation are available.

INERTIAL FUEL CUT-OFF SWITCH OPERATION WARNING
MESSAGE
The message shown in the figure is displayed automatically when the
fuel cut-off switch comes into operation after a crash.
This switch stops fuel supply.
See paragraph “Inertial fuel cut-off switch”.
36
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0038m
WARNINGIf after “FPSon” message displaying you smell fuel or see leaks from the fuel
system, do not reset the switch to avoid fire risk.

MULTIFUNCTION DISPLAY
(On three-line comfort panel)
The “Multifunction display” shows all the useful information
necessary when driving, more particularly:
INFORMATION ON STANDARD SCREEN
❒Date A.
❒Mileage recorder B.
❒Clock C.
❒External temperature D.
When the ignition key is removed only the time is displayed; when
opening one of the front doors the display comes on showing the
odometer indication.
INFORMATION ABOUT CAR CONDITIONS (at event)
❒Scheduled maintenance programme intervals.
❒ Trip computer information.
❒To adjust the intensity of the instrument dimmer/ menus/
instrument panel, sound system and automatic two-zone climate
control system display.
❒Display of failure/warning messages/function activation.
❒Display of the CITY mode (if selected).
❒Headlight aiming position display (with dipped beam headlights
on) E.
❒Symbol for possible ice on road.
37
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
FOH9000m

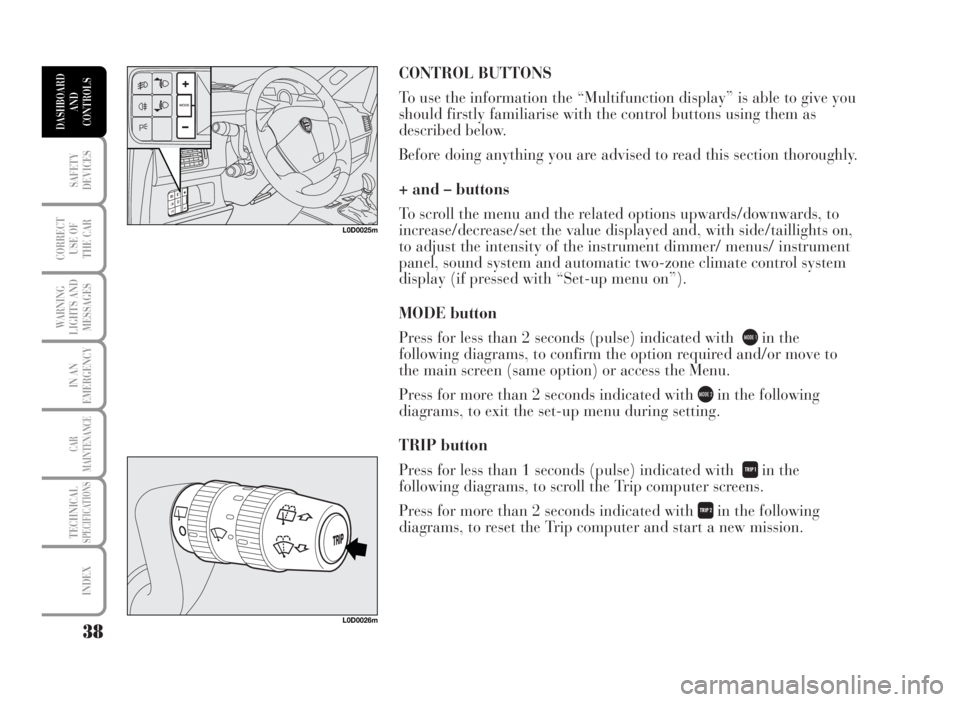

CONTROL BUTTONS
To use the information the “Multifunction display” is able to give you
should firstly familiarise with the control buttons using them as
described below.
Before doing anything you are advised to read this section thoroughly.
+ and – buttons
To scroll the menu and the related options upwards/downwards, to
increase/decrease/set the value displayed and, with side/taillights on,
to adjust the intensity of the instrument dimmer/ menus/ instrument
panel, sound system and automatic two-zone climate control system
display (if pressed with “Set-up menu on”).
MODE button
Press for less than 2 seconds (pulse) indicated with
bin the
following diagrams, to confirm the option required and/or move to
the main screen (same option) or access the Menu.
Press for more than 2 seconds indicated with
cin the following
diagrams, to exit the set-up menu during setting.
TRIP button
Press for less than 1 seconds (pulse) indicated with
hin the
following diagrams, to scroll the Trip computer screens.
Press for more than 2 seconds indicated with
iin the following
diagrams, to reset the Trip computer and start a new mission.
38
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0025m
L0D0026m

39
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
SET-UP MENU
The “Set-up Menu” enables to perform the
following adjustments and/or settings using the
control buttons (see previous pages):
❒SPEED LIMIT
❒AUTOMATIC HEADLIGHT DAYLIGHT
SENSOR (where provided)
❒TRIP B ON/OFF
❒SET CLOCK
❒CLOCK MODE
❒SET DATE
❒SPEEDLOCK
❒INDEPENDENT BOOT
❒DRIVER’S DOOR UNLOCKING❒DISTANCE UNIT
❒CONSUMPTION UNIT
❒TEMPERATURE UNIT (where required)
❒LANGUAGE
❒BUZZER VOLUME
❒BUTTON VOLUME
❒S.B.R. (Seat Belt Reminder) BUZZER
REACTIVATION (*)
❒SERVICE
❒EXIT MENU
(*) This function can be displayed only after Lancia Dealership has deactivated the S.B.R. system.
