stop start Lancia Musa 2007 Owner handbook (in English)

8
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
SYMBOLS
Special coloured labels have been attached near or actually on some
of the components of your Lancia Idea. These labels bear symbols
that remind you of the precautions to be taken as regards that
particular component.
The plate summarising the symbols used can be found under the
bonnet.
THE LANCIA CODE SYSTEM
To further protect you car from theft, it has been fitted with an engine
immobilising system. This system is automatically activated when the
ignition key is removed.
An electronic device, in fact, is fitted in each ignition key grip. The
device transmits a radio-frequency signal when the engine is started
through a special aerial built into the ignition switch. The modulate
signal, which changes each time the engine is started, is the
“password”, by means of which the control unit recognises the key
and enables to start the engine.
OPERATION
Each time the car is started turning the ignition key to MAR, the
Lancia CODE system control unit sends a recognition code to the
engine control unit to deactivate the inhibitor.
The code is sent only if the Lancia CODE system control unit has
recognised the code transmitted from the key.
Each time the ignition key is turned to the STOP position, the Lancia
CODE system deactivates the functions of the engine electronic
control unit.
L0D0012m

9
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
At starting, if the code has not been recognised
correctly, the warning light
Ywill come on.
In this case, the key should be moved to the STOP
position and then back to MAR; if the lock
continues, possibly try again with the other key
provided with the car. If it is still not possible to
start the car, follow the instructions given in chapter
“In an emergency” and then contact a Lancia
Dealership.
IMPORTANT Every key has its own code, which
must be memorised by the system control unit. To
memorise new keys, up to a maximum of eight,
apply to Lancia Dealership.Warning light Ycoming on when driving
❒If the warning light
Yturns on, this means
that the system is running a self-test (for
example for a voltage drop). At the first stop,
turn the ignition key to STOP and then to MAR
again: if no failure is detected warning light
Ywill not come on.
❒If the warning light
Ystays on, repeat the
procedure described previously leaving the key
at STOP for over 30 seconds. Should the
inconvenience persists, contact a Lancia
Dealership.
❒If the warning light
Ystays on this means that
the code has not been recognised. In this case,
the key should be moved to the STOP position
and then back to MAR; if the lock continues,
possibly try again with the other key provided
with the car. If it is still not possible to start the
car, follow the instruction given in chapter “In
an emergency”) and then contact a Lancia
Dealership.
The electronic components inside the key may be damaged if the key is submitted to sharp knocks.

20
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
IGNITION SWITCH
The key can be turned to 3 different positions:
❒STOP: engine off, key can be removed, steering column locked.
Certain electrical devices (e.g.: sound system, power windows…)
can work.
❒MAR: driving position. All electrical devices are powered.
❒AVV: engine starting (unstable position).
The ignition switch is fitted with a safety mechanism that, in the
event the engine is not started, turns back the ignition key to STOP
before repeating the starting operation.
L0D0021m
WARNING
It is absolutely forbidden to carry out whatever after-market operation involving
steering system or steering column modifications (e.g.: installation of anti-theft
Device) that could badly affect performance and safety, cause the lapse of
warranty and also result in non-compliance of the car with homologation
requirements.

98
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Button for demisting/defrosting
the heated rear window and door
mirrors G
Press this button to switch on the
heated rear window
demisting/defrosting function. The led on the
button will come on.
This function will be automatically switched off
after the preset time, or pressing the button again or
when stopping the engine. It will not start up
automatically when the engine is started again.
IMPORTANT Do not apply stickers on the inside of
the rear window over the heating filaments to avoid
damage that might cause it to stop working
properly.❒climate control system compressor off;
❒fan off.
The heated rear window can be switched on and off
normally when the system is off by pressing button
G.
IMPORTANT The climate control system electronic
unit stores the system settings made before the
system was switched off and restores them as soon
as a button is pressed (with the exception of the
heated rear window button). The function which
the button corresponds to will be switched on, if it
was off when the system was switched off. It will be
kept if, on the other hand, it was on when the
system was switched off.
Press the AUTO button to switch the climate control
system back on.
OFF button E (system off)
To switch the climate control system
off, press button E, also the display
will go off.
The climate control system
conditions when the system is off are the following:
❒Every led off;
❒set temperatures not displayed;
❒air recirculation on, thus isolating the passenger
compartment;

107
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Turning the knurled ring F it is possible to increase the sensitivity of
the rain sensor.
The increase of the sensitivity of the rain sensor is signalled by a
control and acquisition “stroke”.
Operating the windscreen washer with the rain sensor activated will
start the smart washing function (without the additional cleaning
stroke after five seconds), at the end of which the rain sensor resumes
its normal automatic function.
Deactivation
Remove the stalk from position B or turn the ignition key to STOP.
At the following starting operation (key at MAR), the sensor will not
be reactivated even if the stalk is still at B. To activate the rain sensor,
move the stalk to A or C and then again to B or turn the sensitivity
adjustment knurled ring.
Rain sensor activation is indicated by a wiper “stroke”.
The rain sensor is able to recognize and automatically adjust itself in
the presence of the following particular conditions:
❒impurities on the controlled surface (salt, dirt, etc.);
❒difference between day and night.
Water streaks could cause non-required wiping.WARNING
L0D0073m

117
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
INERTIAL FUEL CUT-OFF SWITCH
It is located next to the passenger’s door pillar, at the bottom (move
the covering aside to reach it) and it comes into operation in the case
of a crash by cutting off fuel and switching off the engine.
When the fuel cut-off switch is on, warning light è(if any) comes on
together with the message on the multifunction reconfigurable
display.
Carefully inspect the car to find fuel leaks, e.g. in the engine
compartment, under the car or near the tank.
If no fuel leaks are found and the car can be started again, press
button A to reset the fuel system and the lights.
After a crash, remember to turn the ignition key to STOP to prevent
battery run-down.
WARNINGIf, after an accident, you can smell petrol or see that the fuel feed system is leaking,
to avoid the risk of fire, do not reset the switch.
L0D0085m

ENGINE STARTING
The car is fitted with an electronic engine lock
device. If the engine fails to start, see paragraph
“Lancia CODE system” in section “Dashboard and
controls”.
The engine may be noisier than usual during the
first seconds of operation, especially after it has not
been used for a while. This characteristic feature of
the hydraulic tappet system does not compromise
functionality or reliability. The system devised for
the Lancia Musa was designed to limit maintenance
interventions.STARTING PROCEDURE FOR PETROL
VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Put the gear lever into neutral;
❒Press the clutch pedal down to the floor without
touching the accelerator;
❒Turn the ignition key to AVV and let it go the
moment the engine starts.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
starting.
If, when the ignition key is on MAR, warning light
Yremains lit together with warning light U, turn
the key to STOP and then back to MAR; if the
warning light remains on, try with the other keys
provided with the car.
184
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
We recommend that during the initial period you do not drive to full vehicle performance (e.g.:
excessive acceleration, long journeys at top speed, sharp braking, etc.).
When the engine is switched off never leave the ignition key in the MAR position to prevent
pointless current absorption from draining the battery.
WARNINGRunning the engine in confined areas is extremely dangerous. The engine consumes
oxygen and produces carbon monoxide which is a highly toxic and lethal gas.

If you are still unable to start the engine, perform
the emergency start-up procedure (see “Emergency
start-up” in section “In an emergency”) and contact
Lancia Dealership.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.
STARTING PROCEDURE FOR MULTIJET
VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Put the gear lever into neutral;
❒Turn the ignition key to MAR: the warning lights
m,UandYwill light up on the instrument
panel;
❒Wait for the warning lights
Yandm. The
hotter the engine is, the quicker this will happen;
❒Press the clutch pedal down to the floor without
touching the accelerator;❒Turn the ignition key to AVV as soon as warning
light
mgoes out. If you wait too long you will
lose the benefit of the work done by the glow
plugs. Release the key as soon as the engine
starts.
IMPORTANT With cold engine, the accelerator
pedal shall be completely released while turning the
ignition key to AVV.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
starting.
If, when the ignition key is on MAR, warning light
Y remains lit, turn the key to STOP and then back
to MAR; if the warning light remains on, try with
the other keys provided with the car.
If you still cannot start the engine, contact Lancia
Dealership.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.
185
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
The warning light mwill flash for 60 seconds at start-up or during prolonged cranking to signal
a fault in the glow plug heating system. You can use the car as usual if the engine starts but you
should contact a Lancia Dealership as soon as possible.

HOW TO WARM UP THE ENGINE AFTER IT
HAS JUST STARTED (petrol and Multijet versions)
Proceed as follows:
❒Drive off slowly, letting the engine turn at
medium revs. Do not accelerate abruptly;
❒Do not drive at full performance for the initial
kilometres. Wait until the coolant temperature
gauge starts moving.
EMERGENCY START-UP
If the instrument panel warning light
Ystays on
with fixed light, the emergency start-up can be
performed by using the CODE card code
(see section “In an emergency”).STOPPING THE ENGINE
Turn the ignition to STOP while the engine is idling.
IMPORTANT After a taxing drive, you should allow
the engine to “catch its breath” before turning it off
by letting it idle to allow the temperature in the
engine compartment to fall.
186
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
Never bump start the engine by pushing, towing or coasting downhill. This could cause fuel to
flow into the catalytic exhaust system and damage it beyond repair.
A quick burst on the accelerator before turning off the engine serves absolutely no practical
purpose, it wastes fuel and is damaging especially to turbocharged engines.
Remember that the servobrake and power steering are not operational until the
engine has been started, therefore much effort than usual is required on the brake
pedal and steering wheel.
WARNING

214
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
red
red
w
v

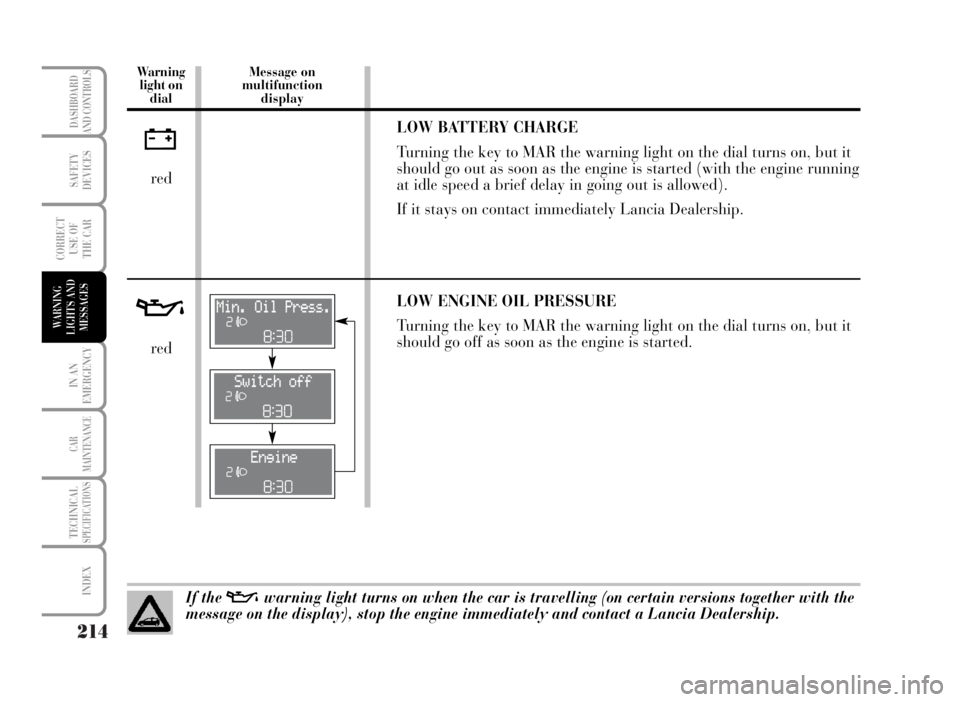

LOW BATTERY CHARGE
Turning the key to MAR the warning light on the dial turns on, but it
should go out as soon as the engine is started (with the engine running
at idle speed a brief delay in going out is allowed).
If it stays on contact immediately Lancia Dealership.
LOW ENGINE OIL PRESSURE
Turning the key to MAR the warning light on the dial turns on, but it
should go off as soon as the engine is started.
If the vwarning light turns on when the car is travelling (on certain versions together with the
message on the display), stop the engine immediately and contact a Lancia Dealership.
