phone Lancia Musa 2007 Owner handbook (in English)

IMPORTANT The remote control system frequency can be disturbed
by significant radio transmissions outside the car (e.g: mobile phones,
HAM radio systems, etc.) that could cause remote control
malfunctioning.
Opening the doors and the tailgate
Press briefly button
Ë: for opening of the doors, tailgate, fuel lid,
timed switching on of passenger’s compartment lights and double
flashing of direction indicators.
Doors will be unlocked automatically if the fuel inertial cut-off
switch comes into operation.
Use the “Set-up menu” of the reconfigurable multifunction
display (see the relevant paragraph in section “Dashboard and
controls”) to set the system so that when pressing button
Ëonly
the driver’s door will open.
IMPORTANT The remote control system frequency can be
disturbed by significant radio transmissions outside the car (e.g:
mobile phones, HAM radio systems, etc.) that could cause remote
control malfunctioning.
Closing the doors and the tailgate
Press briefly button
Á: for remote locking of doors and tailgate, fuel
lid
, for switching the passenger’s compartment lights off and flashing
once the direction indicators.
12
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0016m

13
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Deterrence led
When locking the doors, the led on button A switches on for about 3
seconds and than starts flashing (deterrence function). Once doors are
locked, if one or more doors or the tailgate are not closed correctly,
the led and direction indicators will start flashing quickly.
IMPORTANT The remote control system frequency can be disturbed
by significant radio transmissions outside the car (e.g: mobile phones,
HAM radio systems, etc.) that could cause remote control
malfunctioning.
Opening the tailgate from the outside
The tailgate can be opened from the outside by pressing and keeping
pressed the remote control button
R. Tailgate opening will obtain
double direction indicators flashing; tailgate closing is indicated by
one flashing.
IMPORTANT The remote control system frequency can be disturbed
by significant radio transmissions outside the car (e.g: mobile phones,
HAM radio systems, etc.) that could cause remote control
malfunctioning.
Locking doors from the inside
With doors closed, press button A or B set in the middle of the dashboard to respectively lock or unlock doors.
IMPORTANT Door locking from inside will not cut-in if one door is not prefectly closed or there is a system
failure.
If the cause of the failure is removed, the device will start working properly.
If the inside locking button is pressed accidentally, when getting out of the car only the doors used
will unlock whereas the tailgate will stay locked.To realign the system, press the lock / unlock
button again.
L0D0016m
L0D0100m

121
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
MAGNETIC CARD/TICKET SLOTS
The slots for holding magnetic cards and tickets (phone card, toll
slips, etc.) can be found on the central tunnel unit.
ROOF SHELF
This shelf was designed to facilitate quick storage of light objects
(e.g.: documents, road map, etc.).
IMPORTANT Do not put heavy objects on the shelf and do not lean
on it.
The shelf is an alternative to the sunroof.
L0D0092m
L0D0093m
L0D0236m
REAR CD COMPARTMENT WITH
GLASS/CAN HOLDER
On the central console, behind the handbrake, there is a CD
compartment with glass/can holder.

148
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CELLULAR TELEPHONE PROVISION (where fitted)
The telephone provision is matched to the radio with CD or CD MP3 and consists of:
❒dual-purpose aerial (sound system + cellular phone 900/1800 MHz), on the car roof;
❒dual-purpose aerial connecting cable and wiring with 10-way connector.
The connector is located between the the steering column and the central console.
The hands-free kit must be purchased by the Customer since it must be compatible with the owned
cellular phone. You are suggested to have the microphone installed next to the front ceiling light.
WARNINGThe maximum power applicable on the aerial is 20W.
Contact Lancia Dealership for the installation and connection of the cellular
phone on the vehicle, to prevent any faults which might compromise the car
safety.
WARNING

ACCESSORIES PURCHASED
BY THE OWNER
If, after buying the car, you decide to install
electrical accessories that require a permanent
electric supply (alarm, satellite antitheft system,
etc.) or accessories that in any case burden the
electric supply, contact Lancia Dealership, whose
qualified personnel, besides suggesting the most
suitable devices belonging to Lineaccessori Lancia,
will also evaluate the overall electric absorption,
checking whether the vehicle electric system is able
to withstand the load required, or whether it needs
to be integrated with a more powerful battery.
INSTALLATION OF ELECTRIC/ELECTRONIC
DEVICES
Electric/electronic devices installed after buying the
vehicle and in after-market shall bear the following
marking:
Fiat Auto S.p.A. authorizes the installation of
transceivers, provided that installation is workmanlike
performed in compliance with Manufacturer’s
specifications at a specialised service centre.
IMPORTANT The installation of devices involving
modifications of vehicle characteristics may
determine the withdrawal of the driving licence by
the appointed public authorities and the forfeiture ofthe warranty as concerns defects/failures due to said
modification or leading directly or indirectly to it.
Fiat Auto S.p.A. declines all responsibility due to
damages connected with the installation of
accessories/devices not supplied by or recommended
by Fiat Auto S.p.A. and installed not in compliance
with the specified prescriptions.
RADIO TRANSMITTERS AND CELLULAR
TELEPHONES
Radio transceiver equipment (e.g.: e-tacs mobile
phones, HAM radio systems and the like) shall not
be used inside the car unless a separate aerial is
mounted outside the car.
The use of these devices inside the passenger
compartment (without external aerial) may cause
electrical systems equipping the car to malfunction.
This could compromise car safety in addition to
constituting a potential hazard for the passengers.
In addition, transmission and reception of these
devices may be affected by the shielding effect of
the car body.
As concerns the use of mobile phones (GSM, GPRS,
UMTS) provided with official EC approval, strictly
comply with the instructions given by the mobile
phone manufacturer.
149
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

176
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

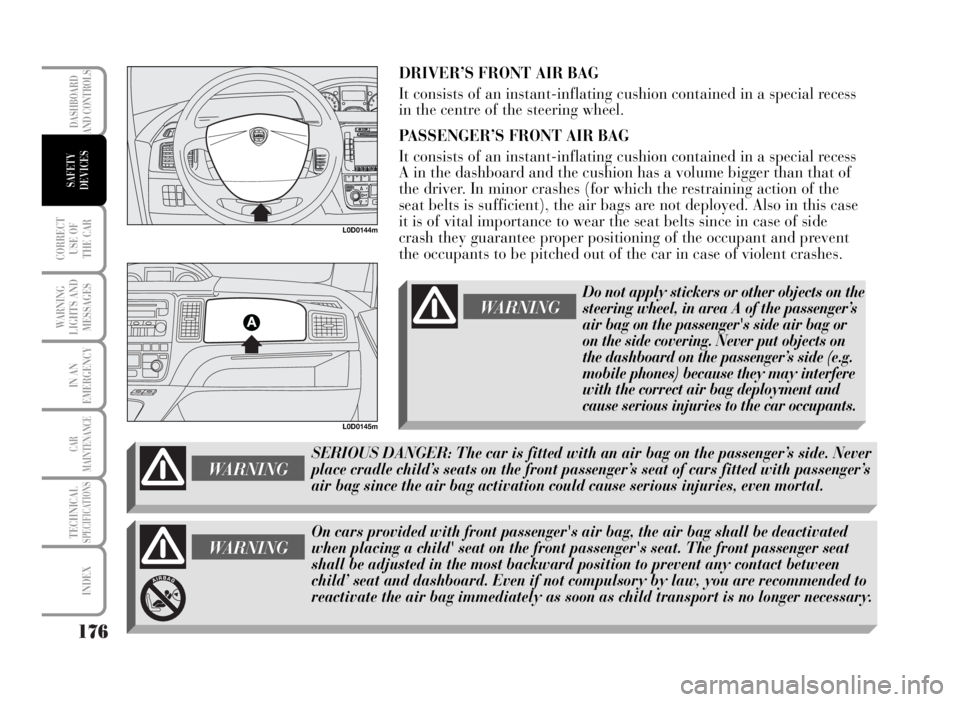

DRIVER’S FRONT AIR BAG
It consists of an instant-inflating cushion contained in a special recess
in the centre of the steering wheel.
PASSENGER’S FRONT AIR BAG
It consists of an instant-inflating cushion contained in a special recess
A in the dashboard and the cushion has a volume bigger than that of
the driver. In minor crashes (for which the restraining action of the
seat belts is sufficient), the air bags are not deployed. Also in this case
it is of vital importance to wear the seat belts since in case of side
crash they guarantee proper positioning of the occupant and prevent
the occupants to be pitched out of the car in case of violent crashes.
WARNING
On cars provided with front passenger's air bag, the air bag shall be deactivated
when placing a child' seat on the front passenger's seat. The front passenger seat
shall be adjusted in the most backward position to prevent any contact between
child’ seat and dashboard. Even if not compulsory by law, you are recommended to
reactivate the air bag immediately as soon as child transport is no longer necessary.
L0D0144m
L0D0145m
SERIOUS DANGER: The car is fitted with an air bag on the passenger’s side. Never
place cradle child’s seats on the front passenger’s seat of cars fitted with passenger’s
air bag since the air bag activation could cause serious injuries, even mortal.
WARNING
Do not apply stickers or other objects on the
steering wheel, in area A of the passenger’s
air bag on the passenger's side air bag or
on the side covering. Never put objects on
the dashboard on the passenger’s side (e.g.
mobile phones) because they may interfere
with the correct air bag deployment and
cause serious injuries to the car occupants.
WARNING

283
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
FUSE SUMMARY TABLE
Control box on dashboard
USERFUSE AMPERE
Right-hand dipped beam headlightF12 15
Left-hand dipped beam headlight / headlight aiming device F13 15
Reversing lights / engine compartment control box relay coils / body computer F31 7,5
+30 Driver’s / passenger’s door control units (*) F32 15
Left rear power windowF33 20
Right rear power windowF34 20
+15 Cruise control, signal from switch on brake pedal for control units (*) F35 7,5
+30 Presetting for trailer control unit, rear locks front locks with single door control unit (*) F36 20
+15 Third brake light, instrument panel, brake lights (*) F37 10
Boot unlockingF38 15
+30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*)F39 10
Rear heated screenF40 30
Heated door electric mirrorsF41 7,5
+15 ABS / ESP control unit (*)F42 7,5
Windscreen wiper/washerF43 30
Cigar lighter / current socket on tunnelF44 20
Heated seatsF45 15
Boot current socketF46 20
Driver’s door control unit power supply (power window, lock) F47 20
Passenger’s door control unit power supply (power window, lock) F48 20
+15 utilities (left and central dashboard control lights, electric mirrors, heated seat control
lighting, presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit,
sunroof control lighting) (*)F49 7,5
Airbag control unitF50 7,5
+15 Tyre pressure control unit, ECO / Sport control (*) F51 7,5
Rear screen wiper/washerF52 15
+30 Direction indicators, hazard lights, instrument panel (*) F5 10
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key

If the battery is not fitted with electrolyte level
indicator, the relevant checks must only be carried
out by authorised personnel.
To check the battery charge, slacken the two
fastening screws and open the cover. Check the
battery charge and then reclose the cover, take care
to prevent pinching and short circuits.CHANGING THE BATTERY
If required, replace the battery with a genuine spare
part having the same specifications.
If a battery with different specifications is fitted, the
service intervals given in the “Service schedule” in
this section will no longer be valid. Refer to the
instructions provided by the battery manufacturer.
306
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
WARNINGWhen working on the battery or near it, always wear the proper goggles. Batteries contain substances that are very harmful for the environment. You are advised to have
the battery changed at a Lancia Dealership, which is properly equipped for disposing of used
batteries respecting nature and the law.
Incorrect fitting of electrical and electronic accessories can seriously damage the car.
If after buying the car, you want to install electric accessories which require permanent electric
supply (alarm, free-hand phone kit, etc.) contact Lancia Dealership whose qualified personnel, in
addition to suggesting the most suitable devices, will evaluate the overall electric absorption,
checking whether the car’s electric system is capable of withstanding the load required, or whether
it should be integrated with a more powerful battery.
If the car is left inactive for long periods at cold, remove the battery and store it
in a warm place to prevent freezing.
WARNING

337
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
DASHBOARDAND CONTROLS
INDEX
INDEX
ABS (system) ...................... 138
ASR (system) ...................... 142
Accessories purchased
by the user ........................ 149
Air bags (front) ................... 175
– driver's air bag ............... 176
– passenger's front air bag . 176
– passenger's front air bag
manual deactivation ...... 177
– side bags .......................... 178
Air vents ............................. 82
Ashtray (Smokers’ kit) ....... 123
At the filling station............. 154
Automatic two-zone climate
control system ..................... 88
Battery
– checking the charge ........ 305
– jump starting .................. 254
– recharging ...................... 286
– replacing ........................ 306
Bodywork
– maintenance .................. 314
– version codes .................. 321
Bonnet ................................ 134
Boot ................................... 129
– extension ........................ 134– light ................................ 279
Brake lights
– bulb replacement ............ 276
Brakes
– fluid level ...................... 303
– handbrake ..................... 187
– technical data ................. 324
Bulb (replacement).............. 268
Capacities ........................... 332
Car inactivity ..................... 208
Car maintenance............... 290
– additional checks ............ 294
– Annual Inspection
Schedule ......................... 294
– scheduled service ............ 291
– Service Schedule ............. 292
Carrying children safely ...... 165
Ceiling lights ....................... 112
– bulb replacement ............ 277
Cellular telephone
– presetting........................ 148
Checking fluid levels ......... 297
Child lock ........................... 14Cigar lighter (Smokers’ kit) ... 123
Clutch ................................ 323
CO
2emissions .................... 336
Correct use of the car ....... 183
Cruise Control .................... 109
Current sockets ................... 122
Dashboard and controls.. 7-23
Diesel fuel filter .................. 304
Dimensions.......................... 329
Dipped beam headlights
– bulb replacement ............ 272
– control ........................... 99
Direction indicators ............ 101
– bulb replacement ............ 273
– control ........................... 101
Door pockets ....................... 120
Doors .................................. 11
– emergency device for
locking doors from
outside ........................ 11-252
Dual FuNction System
gearbox ............................. 189
– oil level ........................... 301
Dualdrive
(electric power steering) ... 150

339
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
DASHBOARDAND CONTROLS
INDEX
– flashing .......................... 100
Manual climate control
system .............................. 83
Mechanical gearbox (use) .... 188
Multifunction display .......... 37
– controls........................... 38
Number plate light
– bulb replacement ........... 277
Oddment compartments ..... 119
– upper .............................. 118
Outlets ................................ 122
Parking ............................. 187
Parking sensors ................... 152
Performance ........................ 330
Plates ................................. 319
Power windows ................... 126
Pretensioners ....................... 162
Prolonged car inactivity ...... 208
Protecting the environment.. 156
Radio transmitters and
cellular telephones ............. 148
Rain sensor ......................... 106Rear fog lights
– bulb replacement ............ 276
– control button ................. 116
Rear window washer
– control ........................... 108
– fluid level ...................... 302
Rear window wipers
– blades ............................ 311
– control ........................... 104
– nozzles ............................ 313
– smart washing ................ 105
Rearview mirrors ................. 79
Rev counter ......................... 27
Reversing light
– bulb replacement ............ 275
Rims and tyres .................... 325
Roof racks ......................... 136
Rubber tubing ..................... 311
Safety devices................... 157
Seat belts
– general instructions ....... 163
– height adjustment .......... 160
– maintenance .................. 165
– S.B.R. system .................. 159
– use ............................ 158-160Seats ................................... 70
Side bags ............................ 178
Side/taillights
– bulb replacement ....... 274-275
– control ........................... 99
Smart washing .................... 105
Snow chains ....................... 207
Sound system
– installation .................... 147
– preset system ................. 147
Spark plugs ......................... 322
Speedometer........................ 27
Starting the engine
– bump starting ................. 255
– emergency start-up ......... 253
– ignition switch ............... 22
– jump starting ................. 254
– JTD engines .................... 184
– petrol engines ................ 184
– stopping the engine ......... 186
– warming up the engine .. 186
Steering ............................... 324
Steering lock ...................... 22
Steering wheel (adjustment) 69
Sunroof ............................... 124
Sun visors ........................... 123
