Number Function Wire
Color
5 Right Rear
Position, SideMarker
Lights, and
Rear Registra- tion Plate
Illumination
Device.
b
Brown
6 Stoplights Red
7 Left Rear Position, SideMarker
Lights, and
Rear Registra-
tion Plate
Illumination Device.
b
Black
8 Reverse lights Red/ Black
9 Permanent
Power Supply(+12V) Brown/
White
10 Power Supply Controlled byIgnition
Switch
(+12V) Red
Pin
Number Function Wire
Color
11
a
Return for
Contact (Pin) 10 White
12 Reserve for Future Alloca-
tion Red/Blue
13
a
Return for
Contact (Pin) 9 White
Note: The allocation pin 12 has
been changed from “Coding for
coupled Trailer” to “Reserve for
Future Allocation.”
aThe three return circuits shall not
be connected electrically in the
trailer.bThe rear position registration
plate illumination device shall be
connected such that no light of the
device has a common connection
with both pins 5 and 7.
TOWING TIPS
Before setting out on a trip, practice
turning, stopping, and backing up the
trailer in an area located away from
heavy traffic. Automatic Transmission
The DRIVE range can be selected
when towing. However, if frequent
shifting occurs while in this range,
select a lower gear range using the
AutoStick® shift control (for
versions/markets, where provided).
NOTE:
Selecting a lower gear range while
operating the vehicle under heavy
operating conditions will improve
performance and extend transmis-
sion life by reducing excessive
shifting and heat buildup. This ac-
tion will also provide better engine
braking.
If you REGULARLY tow a trailer for
more than 45 minutes of continuous
operation, then change the automatic
transmission fluid and filter accord-
ing to the interval specified for “po-
lice, taxi, fleet, or frequent trailer tow-
ing.” Refer to the “Maintenance
Schedule” for the proper maintenance
intervals.
235

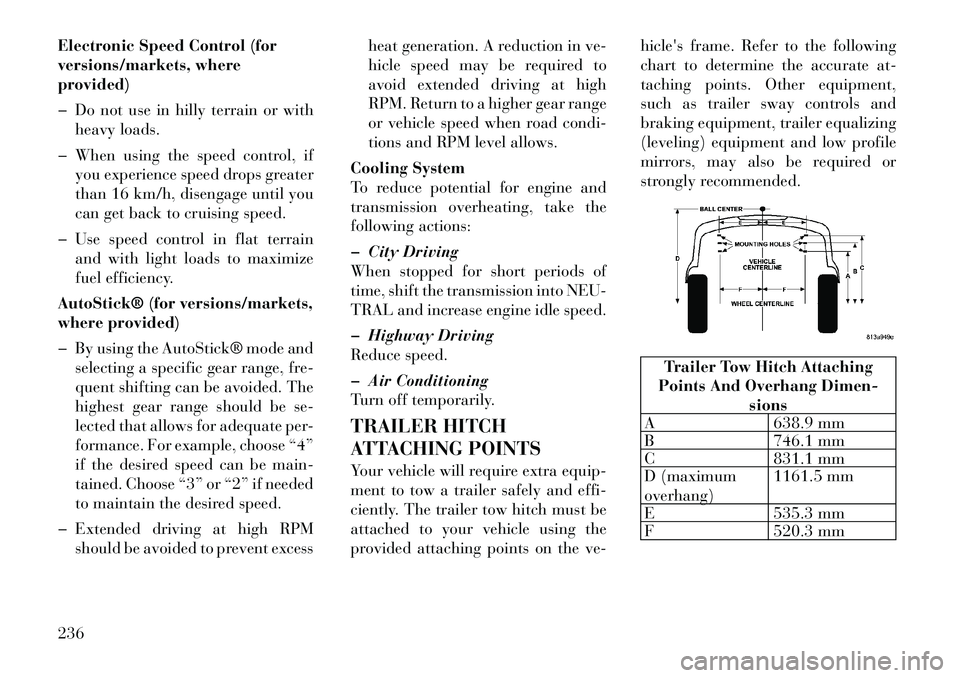

Electronic Speed Control (for
versions/markets, where
provided)
Do not use in hilly terrain or withheavy loads.
When using the speed control, if you experience speed drops greater
than 16 km/h, disengage until you
can get back to cruising speed.
Use speed control in flat terrain and with light loads to maximize
fuel efficiency.
AutoStick® (for versions/markets,
where provided)
By using the AutoStick® mode and selecting a specific gear range, fr e-
quent shifting can be avoided. The
highest gear range should be se-
lected that allows for adequate per-
formance. For example, choose “4”
if the desired speed can be main-
tained. Choose “3” or “2” if needed
to maintain the desired speed.
Extended driving at high RPM should be avoided to prevent excess heat generation. A reduction in
ve-
hicle speed may be required to
avoid extended driving at high
RPM. Return to a higher gear range
or vehicle speed when road condi-
tions and RPM level allows.
Cooling System
To reduce potential for engine and
transmission overheating, take the
following actions:
City Driving
When stopped for short periods of
time, shift the transmission into NEU-
TRAL and increase engine idle speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
TRAILER HITCH
ATTACHING POINTS
Your vehicle will require extra equip-
ment to tow a trailer safely and effi-
ciently. The trailer tow hitch must be
attached to your vehicle using the
provided attaching points on the ve- hicle's frame. Refer to the following
chart to determine the accurate
at-
taching points. Other equipment,
such as trailer sway controls and
braking equipment, trailer equalizing
(leveling) equipment and low profile
mirrors, may also be required or
strongly recommended.
Trailer Tow Hitch Attaching
Points And Overhang Dimen- sions
A 638.9 mm
B 746.1 mm
C 831.1 mm
D (maximum
overhang) 1161.5 mm
E 535.3 mm
F 520.3 mm
236

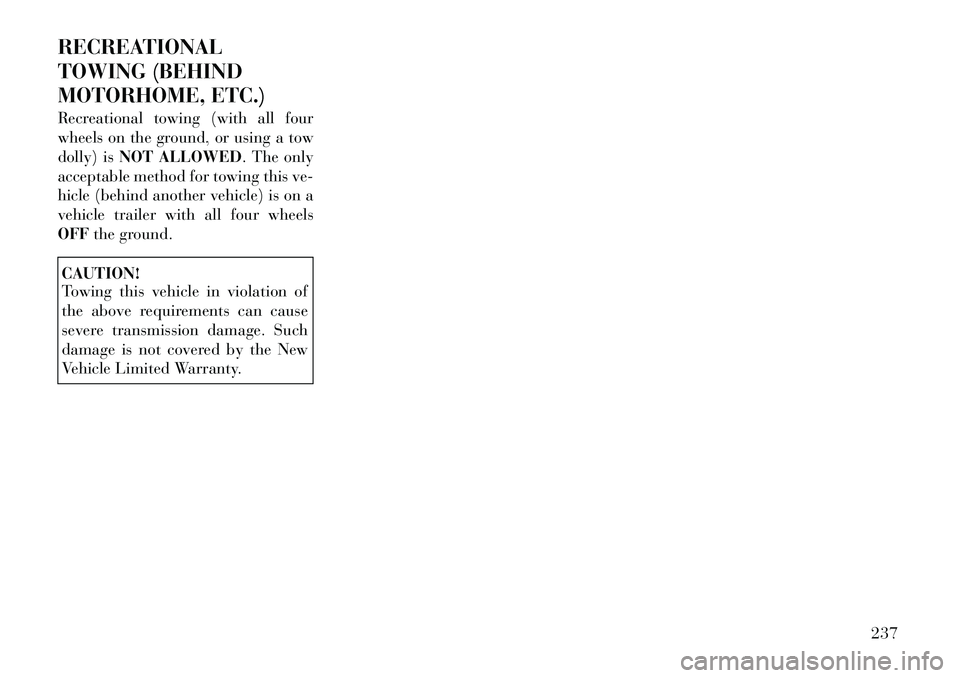

RECREATIONAL
TOWING (BEHIND
MOTORHOME, ETC.)
Recreational towing (with all four
wheels on the ground, or using a tow
dolly) isNOT ALLOWED. The only
acceptable method for towing this ve-
hicle (behind another vehicle) is on a
vehicle trailer with all four wheels
OFF the ground.CAUTION!
Towing this vehicle in violation of
the above requirements can cause
severe transmission damage. Such
damage is not covered by the New
Vehicle Limited Warranty.
237

238

6
WHAT TO DO IN EMERGENCIES
 HAZARD WARNING FLASHERS . . . . . . . . . . . . 240
 IF YOUR ENGINE OVERHEATS . . . . . . . . . . . . . 240
 TIREFIT KIT (for versions/markets, where provided) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
 TIREFIT STORAGE . . . . . . . . . . . . . . . . . . . . 241
 TIREFIT KIT COMPONENTS AND OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . 241
 TIREFIT USAGE PRECAUTIONS . . . . . . . . . . 242
 SEALING A TIRE WITH TIREFIT . . . . . . . . . 243
 JUMP-STARTING PROCEDURES . . . . . . . . . . . . 246  PREPARATIONS FOR JUMP-START . . . . . . . 246
 JUMP-STARTING PROCEDURE . . . . . . . . . . . 247
 FREEING A STUCK VEHICLE . . . . . . . . . . . . . . 248
 TOW EYES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
 SHIFT LEVER OVERRIDE — 5 SPEED TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . 249
 MANUAL PARK RELEASE — 8 SPEED TRANSMISSION (3.6L Engine) . . . . . . . . . . . . . . 250
 TOWING A DISABLED VEHICLE . . . . . . . . . . . 251  Without The Ignition Key . . . . . . . . . . . . . . . . 252
239

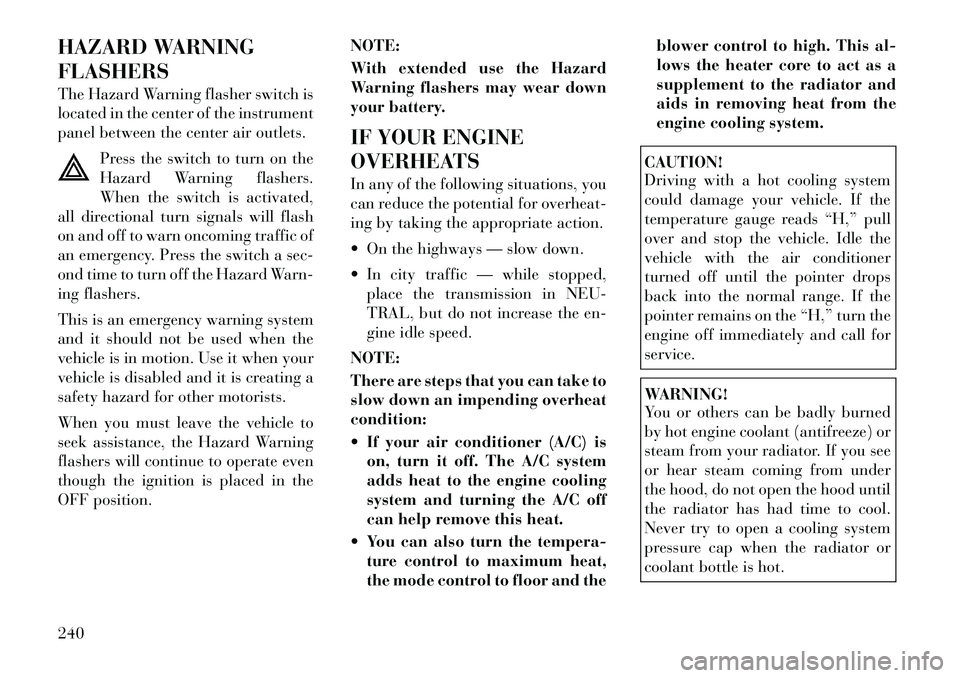

HAZARD WARNING
FLASHERS
The Hazard Warning flasher switch is
located in the center of the instrument
panel between the center air outlets.Press the switch to turn on the
Hazard Warning flashers.
When the switch is activated,
all directional turn signals will flash
on and off to warn oncoming traffic of
an emergency. Press the switch a sec-
ond time to turn off the Hazard Warn-
ing flashers.
This is an emergency warning system
and it should not be used when the
vehicle is in motion. Use it when your
vehicle is disabled and it is creating a
safety hazard for other motorists.
When you must leave the vehicle to
seek assistance, the Hazard Warning
flashers will continue to operate even
though the ignition is placed in the
OFF position. NOTE:
With extended use the Hazard
Warning flashers may wear down
your battery.
IF YOUR ENGINE
OVERHEATS
In any of the following situations, you
can reduce the potential for overheat-
ing by taking the appropriate action.
 On the highways — slow down.
 In city traffic — while stopped,
place the transmission in NEU-
TRAL, but do not increase the en-
gine idle speed.
NOTE:
There are steps that you can take to
slow down an impending overheat
condition:
 If your air conditioner (A/C) is on, turn it off. The A/C system
adds heat to the engine cooling
system and turning the A/C off
can help remove this heat.
 You can also turn the tempera- ture control to maximum heat,
the mode control to floor and the blower control to high. This al-
lows the heater core to act as a
supplement to the radiator and
aids in removing heat from the
engine cooling system.
CAUTION!
Driving with a hot cooling system
could damage your vehicle. If the
temperature gauge reads “H,” pull
over and stop the vehicle. Idle the
vehicle with the air conditioner
turned off until the pointer drops
back into the normal range. If the
pointer remains on the “H,” turn the
engine off immediately and call for
service.WARNING!
You or others can be badly burned
by hot engine coolant (antifreeze) or
steam from your radiator. If you see
or hear steam coming from under
the hood, do not open the hood until
the radiator has had time to cool.
Never try to open a cooling system
pressure cap when the radiator or
coolant bottle is hot.
240

TIREFIT KIT (for
versions/markets, where
provided)
Small punctures up to
14” (6 mm) in
the tire tread can be sealed with
TIREFIT. Foreign objects (e.g.,
screws or nails) should not be re-
moved from the tire. TIREFIT can be
used in outside temperatures down to
approximately ­20°C.
This kit will provide a temporary tire
seal, allowing you to drive your ve-
hicle up to 160 km with a maximum
speed of 88 km/hr.
TIREFIT STORAGE
The TIREFIT kit is located in the
trunk. TIREFIT KIT
COMPONENTS AND
OPERATION
1. Sealant Bottle
2. Deflation Button
3. Pressure Gauge
4. Power Button
5. Mode Select Knob
6. Sealant Hose (Clear)
7. Air Pump Hose (Black)
8. Power Plug
Using The Mode Select Knob And
Hoses
Your TIREFIT kit is equipped with
the following symbols to indicate the
air or sealant mode.Selecting Air Mode
Turn the Mode Select Knob
(5) to this position for air
pump operation only. Use
the Black Air Pump Hose
(7) when selecting this mode.
Selecting Sealant Mode
Turn the Mode Se-
lect Knob (5) to this
position to inject
the TIREFIT Seal-
ant and to inflate
the tire. Use the
Sealant Hose (clear
hose) (6) when selecting this mode.
Using The Power Button
Push and release the Power
Button (4) once to turn On
the TIREFIT kit. Push and
release the Power Button (4)
again to turn Off the TIREFIT kit.
Using The Deflation ButtonPress the Deflation Button
(2) to reduce the air pres-
sure in the tire if it becomes
over-inflated.
TIREFIT Location
241

TIREFIT USAGE
PRECAUTIONS
 Replace the TIREFIT SealantBottle (1) and Sealant Hose (6)
prior to the expiration date (printed
on the bottle label) to assure opti-
mum operation of the system. Refer
to “Sealing a Tire with TIREFIT”
section (F) “Sealant Bottle and
Hose Replacement”.
 The Sealant Bottle (1) and Sealant Hose (6) are a one tire application
use. After each use, always replace
these components immediately at
an authorized dealer.
 When the TIREFIT sealant is in a liquid form, clean water, and a
damp cloth will remove the mate-
rial from the vehicle or tire and
wheel components. Once the seal-
ant dries, it can easily be peeled off
and properly discarded.
 For optimum performance, make sure the valve stem on the wheel is
free of debris before connecting the
TIREFIT kit.  You can use the TIREFIT air pump
to inflate bicycle tires. The kit also
comes with two needles, located in
the Accessory Storage Compart-
ment (on the bottom of the air
pump) for inflating sport balls,
rafts, or similar inflatable items.
However, use only the Air Pump
Hose (7) and make sure the Mode
Select Knob (5) is in the Air Mode
when inflating such items to avoid
injecting sealant into them. The
TIREFIT Sealant is only intended
to seal punctures less than 6 mm
diameter in the tread of your ve-
hicle.
 Do not lift or carry the TIREFIT kit by the hoses.
WARNING!
 Do not attempt to seal a tire on theside of the vehicle closest to traf-
fic. Pull far enough off the road to
avoid the danger of being hit
when using the TIREFIT kit.
 Do not use TIREFIT or drive the
vehicle under the following cir-
cumstances:
(Continued)
WARNING!(Continued)
If the puncture in the tire tread
is approximately 6 mm or
larger.
If the tire has any sidewall
damage.
If the tire has any damage from
driving with extremely low tire
pressure.
If the tire has any damage from
driving on a flat tire.
If the wheel has any damage.
If you are unsure of the condi-
tion of the tire or the wheel.
 Keep TIREFIT away from open
flames or heat source.
 A loose TIREFIT kit thrown for-
ward in a collision or hard stop
could endanger the occupants of
the vehicle. Always stow the
TIREFIT kit in the place pro-
vided. Failure to follow these
warnings can result in injuries
that are serious or fatal to you,
your passengers, and others
around you.
(Continued)
242

WARNING!(Continued)
 Take care not to allow the con-
tents of TIREFIT to come in con-
tact with hair, eyes, or clothing.
TIREFIT is harmful if inhaled,
swallowed, or absorbed through
the skin. It causes skin, eye, and
respiratory irritation. Flush im-
mediately with plenty of water if
there is any contact with eyes or
skin. Change clothing as soon as
possible, if there is any contact
with clothing.
 TIREFIT Sealant solution con-
tains latex. In case of an allergic
reaction or rash, consult a physi-
cian immediately. Keep TIREFIT
out of reach of children. If swal-
lowed, rinse mouth immediately
with plenty of water and drink
plenty of water. Do not induce
vomiting! Consult a physician im-
mediately. SEALING A TIRE WITH
TIREFIT
(A) Whenever You Stop To Use
TIREFIT:
1. Pull over to a safe location and
turn on the vehicle’s Hazard Warning
flashers.
2. Verify that the valve stem (on the
wheel with the deflated tire) is in a
position that is near to the ground.
This will allow the TIREFIT Hoses
(6) and (7) to reach the valve stem
and keep the TIREFIT kit flat on the
ground. This will provide the best po-
sitioning of the kit when injecting the
sealant into the deflated tire and run-
ning the air pump. Move the vehicle as
necessary to place the valve stem in
this position before proceeding.
3. Place the transmission in PARK
(auto transmission) or in Gear
(manual transmission) and turn Off
the ignition.
4. Set the parking brake.
(B) Setting Up To Use TIREFIT:
1. Turn the Mode Select Knob (5) to
the Sealant Mode position. 2. Uncoil the Sealant Hose (6) and
then remove the cap from the fitting
at the end of the hose.
3. Place the TIREFIT kit flat on the
ground next to the deflated tire.
4. Remove the cap from the valve
stem and then screw the fitting at the
end of the Sealant Hose (6) onto the
valve stem.
5. Uncoil the Power Plug (8) and in-
sert the plug into the vehicle’s 12 Volt
power outlet.
NOTE:
Do not remove foreign objects (e.g.,
screws or nails) from the tire.
(C) Injecting TIREFIT Sealant
Into The Deflated Tire:
 Always start the engine before
turning ON the TIREFIT kit.
NOTE:
Manual transmission vehicles
must have the parking brake en-
gaged and the shift lever in NEU-
TRAL.
 After pressing the Power Button (4), the sealant (white fluid) will
243

flow from the Sealant Bottle (1)
through the Sealant Hose (6) and
into the tire.
NOTE:
Sealant may leak out through the
puncture in the tire.
If the sealant (white fluid) does not
flow within 0 – 10 seconds through
the Sealant Hose (6):
1. Press the Power Button (4) to turn
Off the TIREFIT kit. Disconnect the
Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of
debris. Reconnect the Sealant Hose
(6) to the valve stem. Check that the
Mode Select Knob (5) is in the Sealant
Mode position and not Air Mode.
Press the Power Button (4) to turn On
the TIREFIT kit.
2. Connect the Power Plug (8) to a
different 12 Volt power outlet in your
vehicle or another vehicle, if avail-
able. Make sure the engine is running
before turning ON the TIREFIT kit.
3. The Sealant Bottle (1) may be
empty due to previous use. Call for
assistance. NOTE:
If the Mode Select Knob (5) is on
Air Mode and the pump is operat-
ing, air will dispense from the Air
Pump Hose (7) only, not the Seal-
ant Hose (6).
If the sealant (white fluid) does
flow
through the Sealant Hose (6):
1. Continue to operate the pump un-
til sealant is no longer flowing
through hose (typically takes 30 -
70 seconds). As the sealant flows
through the Sealant Hose (6), the
Pressure Gauge (3) can read as high
as 5 Bar. The Pressure Gauge (3) will
decrease quickly from approximately
70 psi (5 Bar) to the actual tire pres-
sure when the Sealant Bottle (1) is
empty.
2. The pump will start to inject air
into the tire immediately after the
Sealant Bottle (1) is empty. Continue
to operate the pump and inflate the
tire to the pressure indicated on the
tire pressure label on the driver-side
latch pillar (recommended pressure).
Check the tire pressure by looking at
the Pressure Gauge (3). If the tire does not inflate to at least
1.8 Bar pressure within 15 min-
utes:
 The tire is too badly damaged. Do
not attempt to drive the vehicle fur-
ther. Call for assistance.
NOTE:
If the tire becomes over-inflated,
press the Deflation Button to re-
duce the tire pressure to the rec-
ommended inflation pressure be-
fore continuing.
If the tire inflates to the recom-
mended pressure or is at least 1.8
Bar pressure within 15 minutes:
1. Press the Power Button (4) to turn
off the TIREFIT kit.
2. Remove the Speed Limit sticker
from the top of the Sealant Bottle (1)
and place the sticker on the instru-
ment panel.
3. Immediately disconnect the Seal-
ant Hose (6) from the valve stem,
reinstall the cap on the fitting at the
end of the hose, and place the TIRE-
244
